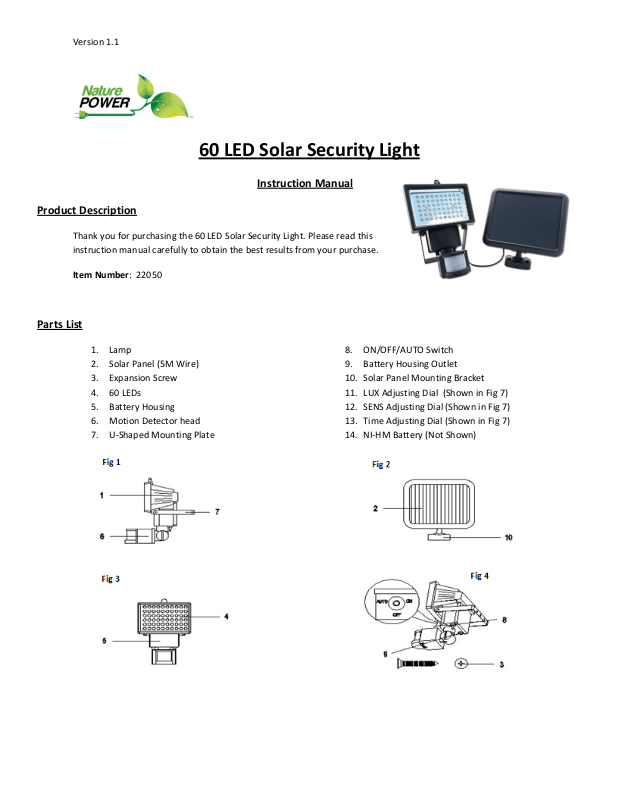

Nature Power 22050 User Manual

Version 1.1

Product Description

Thank you for purchasing the 60 LED Solar Security Light. Please read this
instruction manual carefully to obtain the best results from your purchase.

Item Number: 22050

Parts List

60 LED Solar Security Light

Instruction Manual

1. Lamp

2. Solar Panel (5M Wire)

3. Expansion Screw

4. 60 LEDs

5. Battery Housing

6. Motion Detector head

7. U-Shaped Mounting Plate

8. ON/OFF/AUTO Switch

9. Battery Housing Outlet

10. Solar Panel Mounting Bracket

11. LUX Adjusting Dial (Shown in Fig 7)

12. SENS Adjusting Dial (Shown in Fig 7)

13. Time Adjusting Dial (Shown in Fig 7)

14. NI-HM Battery (Not Shown)

Version 1.1

Assembly

Solar Panel Wall or Deck Mounted

1. Secure bracket to solar panel with screw provided as shown in Fig 5.

2. Set bracket on surface and secure in place with larger screws provided as shown in Fig 6.

3. Adjust angle of solar panel to ensure it receives optimum sunlight.

Note: The Solar Panel is equipped with a 5 meter cord so both units can be installed up to 5 meters apart.

Lamp Installation

1. Using ‘U’ shaped mounting plate located to the rear of the lamp to mark where you want to install the

lamp (7) Fig 1.

2. Make sure this is clear of obstacles such as cables and electric lines.

3. Secure lamp to the wall with screws provided.

4. Carefully route the power cord from the solar panel to the lamp and plug it into the battery housing input.

5. Adjust the motion sensor so that it faces the area where motion is most likely to be detected. You can

move it up and down by adjusting the screw on the neck of the motion detector.

Note: Lamp unit should be mounted 2 – 3 meters (6.5 – 9.8ft) from the ground to ensure motion
detection is optimised.
