NEVADA COLLECTION
ASSEMBLY INSTRUCTIONS
Page 2
FITTINGS FOR THE NEVADA COLLECTION
THESE ASSEMBLY
INSTRUCTIONS APPLY TO
THE FOLLOWING MODELS:
• Nevada
• Sonora
• Sahara
• Malabar
• Tibet
• Ki
• Sol
• Tao
• Iona
• Arran
• Skye
• Shetland
• Samarkand
• Mandalay
• Zanskar
• Cochin
• Camden
• Java
• Ocean

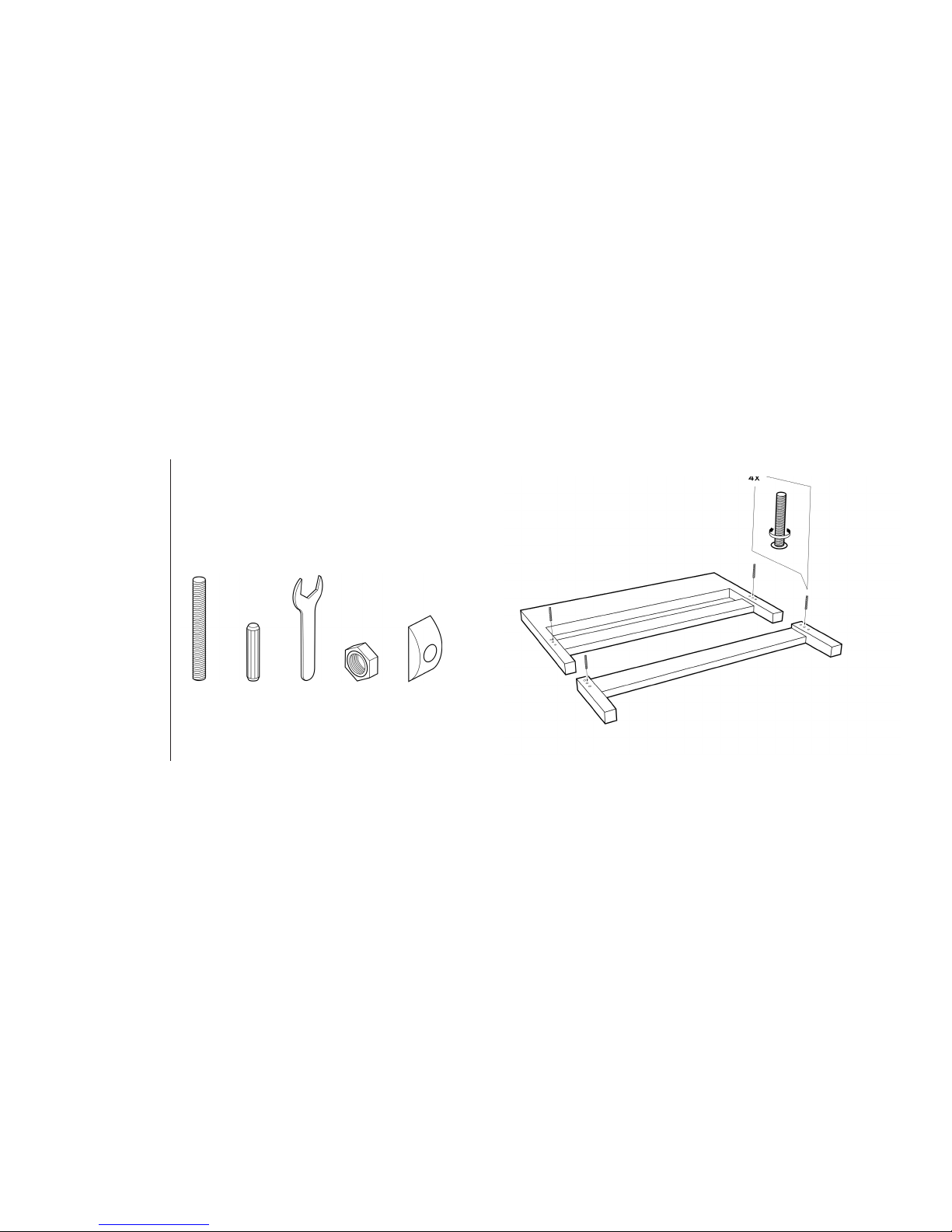

4 X
BOLTS
8 X
DOWELS
1 X
SPANNER
4 X
NUTS
4 X
HALF
MOON
WASHERS
1.
Screw in the bolts as illustrated.
Page 3

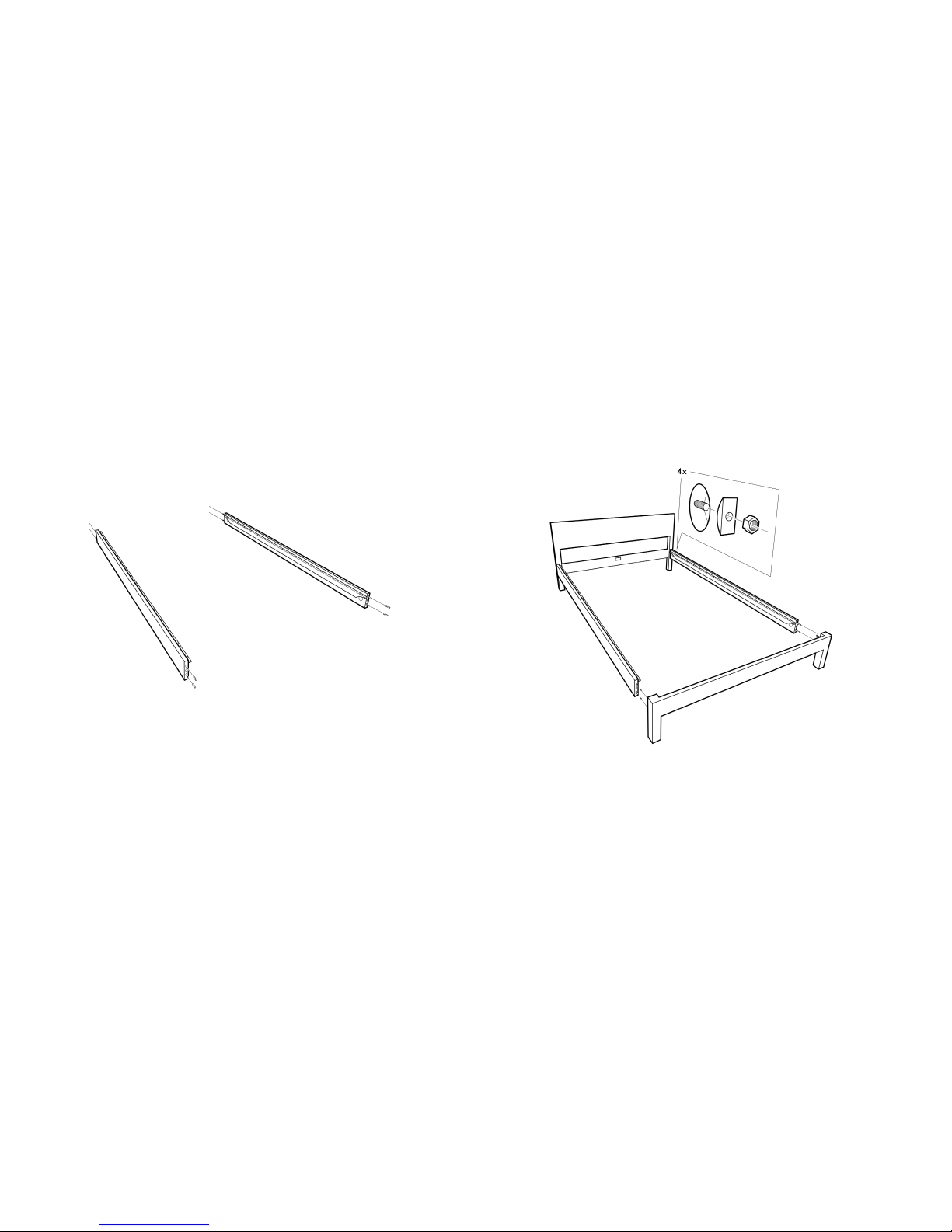

2.
Slot in the 8 dowels to the side rails
as illustrated. (Tap in with a rubber
mallet if required).
3.
Locate the side rails on the bolts and
secure using the washers and nuts,
tighten using the spanner.
Page 4

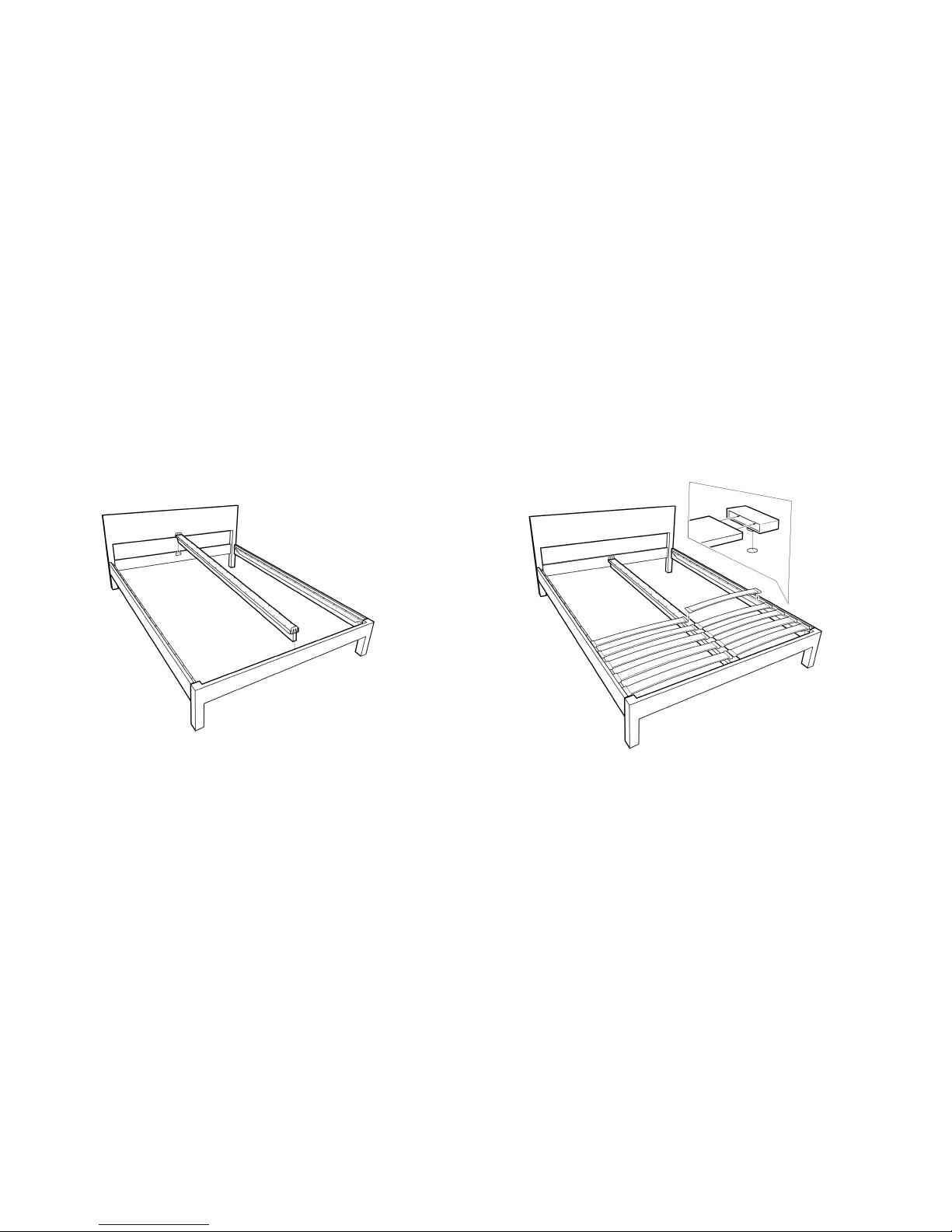

4.
Slot in the centre rail.
* Please note single bed bases (75cm & 90cm) will not include
a centre rail.
5.
Place the end caps on the
sprung slats and attach (centre
of the gently curved slats
should be upwards).
* Please note - if you have ordered a standard single
(90cm) or super-king (180cm) bed base you will also
receive a set of double slats with sliders. These slats
are for holes 4-9 from the head of the bed base.
* Some designs (where the mattress doesn’t sit within the frame, but sits on top of it) will
come with a sheet of non-slip matting to prevent the mattress from moving on the base.
Page 5
THANK YOU FOR BUYING A BED FROM
DEVONSHIRE POINT, 123-125 FITZWILLIAM STREET, SHEFFIELD, S1 4JP
T: 0114 272 1984
W: WWW.NATURALBEDCOMPANY.CO.UK
