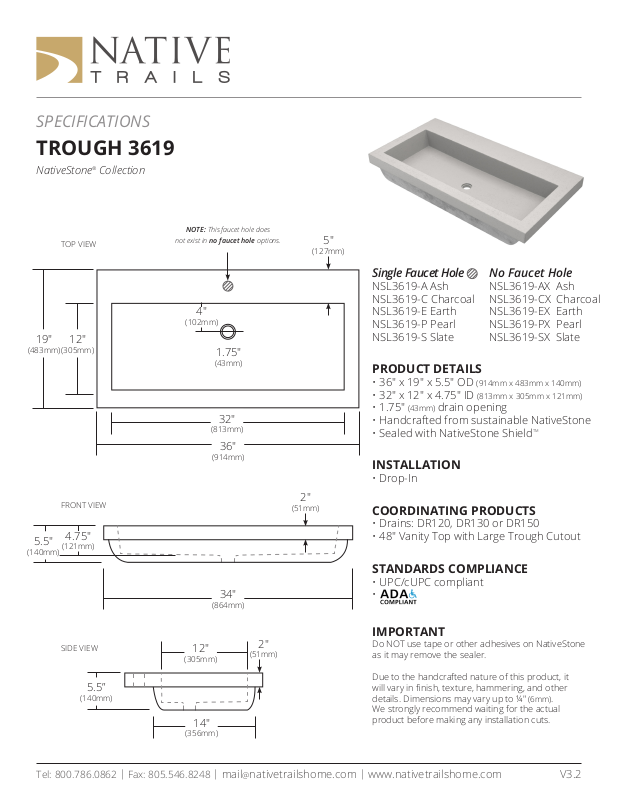

SPECIFICATIONS
TROUGH 3619
NativeStone® Collection
TOP VIEW
NOTE: This faucet hole does
not exist in no faucet hole options.
5"
(127mm)
19"
(483mm)
5.5"
(140mm)
12"
(305mm)
FRONT VIEW
4.75"
(121mm)
4"
(102mm)
1.75"
(43mm)
32"
(813mm)
36"
(914mm)
2"
(51mm)
Single Faucet Hole
NSL3619-A Ash
NSL3619-C Charcoal
NSL3619-E Earth
NSL3619-P Pearl
NSL3619-S Slate
No Faucet Hole
NSL3619-AX Ash
NSL3619-CX Charcoal
NSL3619-EX Earth
NSL3619-PX Pearl
NSL3619-SX Slate
PRODUCT DETAILS
• 36" x 19" x 5.5" OD (914mm x 483mm x 140mm)
• 32" x 12" x 4.75" ID (813mm x 305mm x 121mm)
• 1.75" (43mm) drain opening
• Handcrafted from sustainable NativeStone
• Sealed with NativeStone Shield
TM
INSTALLATION
• Drop-In
COORDINATING PRODUCTS
• Drains: DR120, DR130 or DR150
• 48" Vanity Top with Large Trough Cutout
SIDE VIEW
12"
(305mm)
5.5”
(140mm)
14"
(356mm)
Tel: 800.786.0862 | Fax: 805.546.8248
STANDARDS COMPLIANCE
• UPC/cUPC compliant
34"
(864mm)
•
IMPORTANT
2"
(51mm)
|
mail@nativetrailshome.com | www.nativetrailshome.com V3.2
Do NOT use tape or other adhesives on NativeStone
as it may remove the sealer.
Due to the handcrafted nature of this product, it
will vary in nish, texture, hammering, and other
details. Dimensions may vary up to ¼" (6mm).
We strongly recommend waiting for the actual
product before making any installation cuts.
