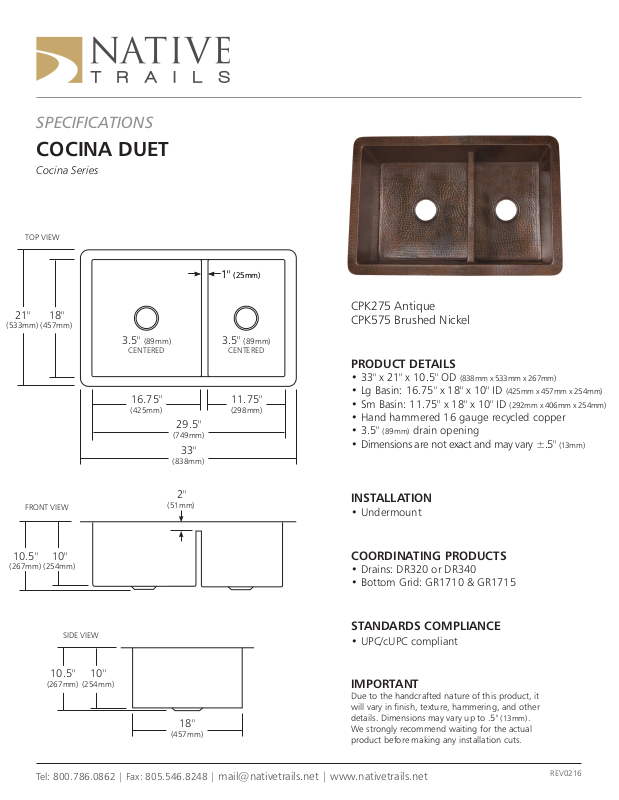

Native Trails XNT1717 Specifications

SPECIFICATIONS

COCINA DUET

Cocina Series

TOP VIEW

1" (25mm)

1" (25mm)

21"

(533mm)

FRONT VIEW

10.5"

(267mm)

18"

(457mm)

10"

(254mm)

3.5" (89mm)

CENTERED

16.75"

(425mm)

29.5"

(749mm)

33"

(838mm)

2"

(51mm)

3.5" (89mm)
1"(25mm)

CENTERED

11.75"

(298mm)

CPK275 Antique
CPK575 Brushed Nickel

PRODUCT DETAILS

• 33" x 21" x 10.5" OD (838mm x 533mm x 267mm)

• Lg Basin: 16.75" x 18" x 10" ID (425mm x 457mm x 254mm)

• Sm Basin: 11.75" x 18" x 10" ID (292mm x 406mm x 254mm)

• Hand hammered 16 gauge recycled copper

• 3.5" (89mm) drain opening

• Dimensions are not exact and may vary ±.5" (13mm)

INSTALLATION

• Undermount

COORDINATING PRODUCTS

• Drains: DR320 or DR340

• Bottom Grid: GR1710 & GR1715

SIDE VIEW

10.5"

(267mm)

10"

(254mm)

18"

(457mm)

Tel: [phone] | Fax: [phone] | [e-mail] | www.nativetrails.net

• UPC/cUPC compliant

IMPORTANT

Due to the handcrafted nature of this product, it
will vary in finish, texture, hammering, and other
details. Dimensions may vary up to .5" (13mm).
We strongly recommend waiting for the actual
product before making any installation cuts.

STANDARDS COMPLIANCE

REV0216
