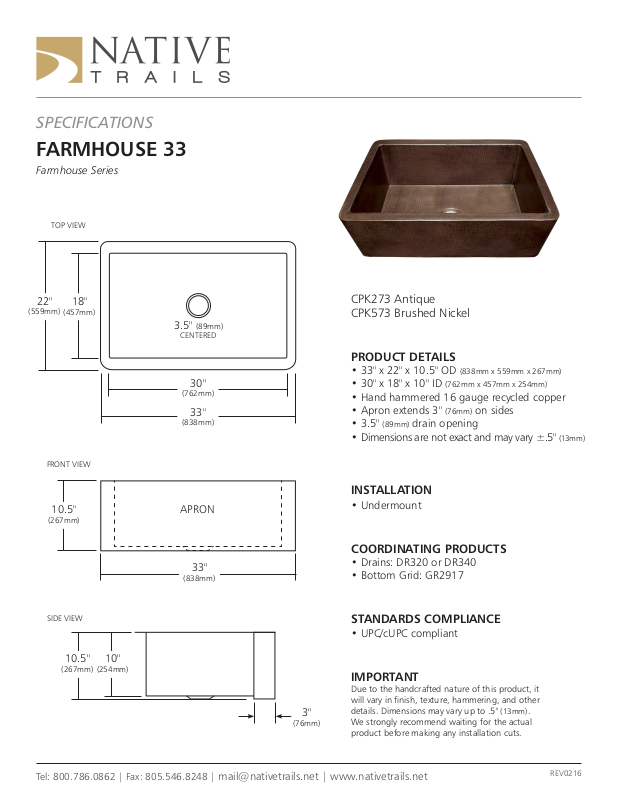

Native Trails XNT1709 Specifications

SPECIFICATIONS

FARMHOUSE 33

Farmhouse Series

TOP VIEW

22"

(559mm)

FRONT VIEW

10.5"

(267mm)

18"

(457mm)

3.5" (89mm)

CENTERED

30"

(762mm)

33"

(838mm)

APRON

33"

(838mm)

CPK273 Antique
CPK573 Brushed Nickel

PRODUCT DETAILS

• 33" x 22" x 10.5" OD (838mm x 559mm x 267mm)

• 30" x 18" x 10" ID (762mm x 457mm x 254mm)

• Hand hammered 16 gauge recycled copper

• Apron extends 3" (76mm) on sides

• 3.5" (89mm) drain opening

• Dimensions are not exact and may vary ±.5" (13mm)

INSTALLATION

• Undermount

COORDINATING PRODUCTS

• Drains: DR320 or DR340

• Bottom Grid: GR2917

SIDE VIEW

STANDARDS COMPLIANCE

• UPC/cUPC compliant

10.5"

(267mm)

10"

(254mm)

IMPORTANT

Due to the handcrafted nature of this product, it
will vary in finish, texture, hammering, and other

3"

(76mm)

Tel: [phone] | Fax: [phone] | [e-mail] | www.nativetrails.net

details. Dimensions may vary up to .5" (13mm).
We strongly recommend waiting for the actual
product before making any installation cuts.

REV0216
