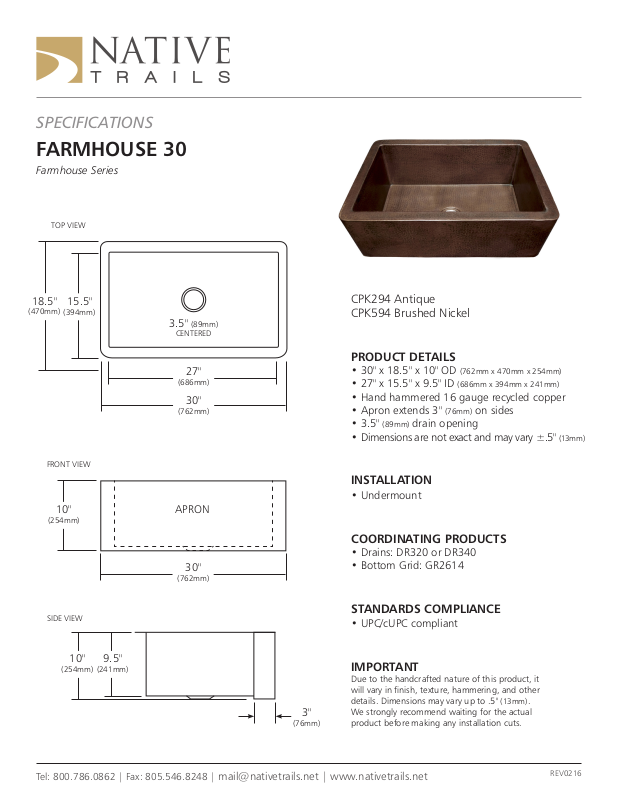

Native Trails XNT1706 Specifications

SPECIFICATIONS

FARMHOUSE 30

Farmhouse Series

TOP VIEW

18.5"

(470mm)

FRONT VIEW

(254mm)

15.5"

(394mm)

10"

3.5" (89mm)

CENTERED

27"

(686mm)

30"

(762mm)

APRON

30"

(762mm)

CPK294 Antique
CPK594 Brushed Nickel

PRODUCT DETAILS

• 30" x 18.5" x 10" OD (762mm x 470mm x 254mm)

• 27" x 15.5" x 9.5" ID (686mm x 394mm x 241mm)

• Hand hammered 16 gauge recycled copper

• Apron extends 3" (76mm) on sides

• 3.5" (89mm) drain opening

• Dimensions are not exact and may vary ±.5" (13mm)

INSTALLATION

• Undermount

COORDINATING PRODUCTS

• Drains: DR320 or DR340

• Bottom Grid: GR2614

SIDE VIEW

10"

(254mm)

9.5"

(241mm)

3"

(76mm)

Tel: [phone] | Fax: [phone] | [e-mail] | www.nativetrails.net

STANDARDS COMPLIANCE

• UPC/cUPC compliant

IMPORTANT

Due to the handcrafted nature of this product, it
will vary in finish, texture, hammering, and other
details. Dimensions may vary up to .5" (13mm).
We strongly recommend waiting for the actual
product before making any installation cuts.

REV0216
