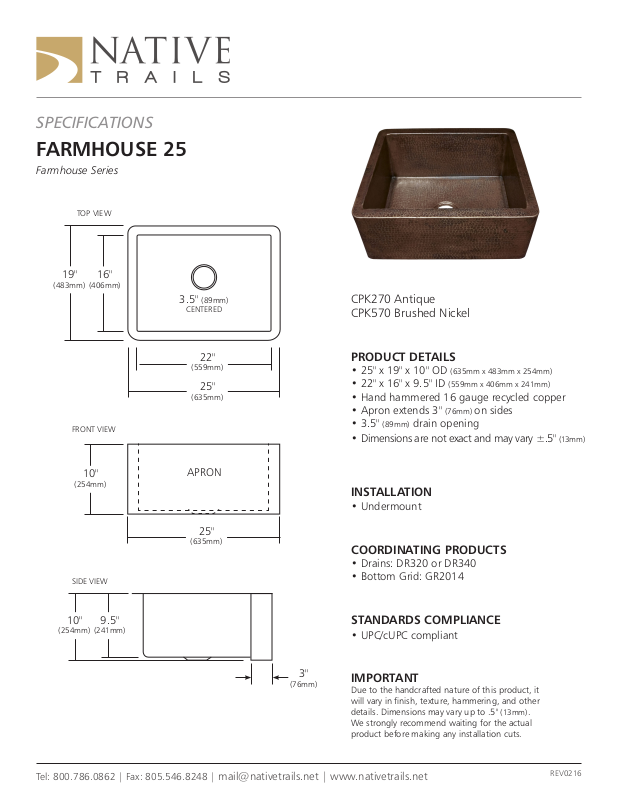

Native Trails XNT1702 Specifications

SPECIFICATIONS

FARMHOUSE 25

Farmhouse Series

TOP VIEW

19"

(483mm)

FRONT VIEW

(254mm)

SIDE VIEW

16"

(406mm)

10"

3.5" (89mm)

CENTERED

22"

(559mm)

25"

(635mm)

APRON

25"

(635mm)

CPK270 Antique
CPK570 Brushed Nickel

PRODUCT DETAILS

• 25" x 19" x 10" OD (635mm x 483mm x 254mm)

• 22" x 16" x 9.5" ID (559mm x 406mm x 241mm)

• Hand hammered 16 gauge recycled copper

• Apron extends 3" (76mm) on sides

• 3.5" (89mm) drain opening

• Dimensions are not exact and may vary ±.5" (13mm)

INSTALLATION

• Undermount

COORDINATING PRODUCTS

• Drains: DR320 or DR340

• Bottom Grid: GR2014

10"

(254mm)

Tel: [phone] | Fax: [phone] | [e-mail] | www.nativetrails.net

9.5"

(241mm)

3"

(76mm)

STANDARDS COMPLIANCE

• UPC/cUPC compliant

IMPORTANT

Due to the handcrafted nature of this product, it
will vary in finish, texture, hammering, and other
details. Dimensions may vary up to .5" (13mm).
We strongly recommend waiting for the actual
product before making any installation cuts.

REV0216
