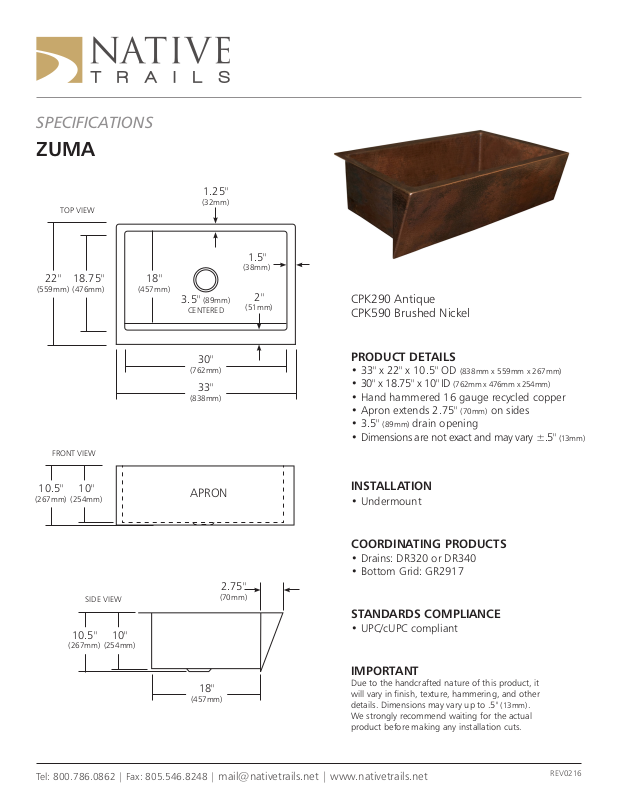

Native Trails XNT1694 Specifications

SPECIFICATIONS

ZUMA

TOP VIEW

18.75"

22"

(559mm)

(476mm)

(457mm)

18"

1.25"

(32mm)

3.5" (89mm)

CENTERED

1.5"

(38mm)

2"

(51mm)

CPK290 Antique
CPK590 Brushed Nickel

FRONT VIEW

10.5"

(267mm)

10"

(254mm)

SIDE VIEW

10.5"

(267mm)

10"

(254mm)

30"

(762mm)

33"

(838mm)

APRON

PRODUCT DETAILS

• 33" x 22" x 10.5" OD (838mm x 559mm x 267mm)

• 30" x 18.75" x 10" ID (762mm x 476mm x 254mm)

• Hand hammered 16 gauge recycled copper

• Apron extends 2.75" (70mm) on sides

• 3.5" (89mm) drain opening

• Dimensions are not exact and may vary ±.5" (13mm)

INSTALLATION

• Undermount

COORDINATING PRODUCTS

• Drains: DR320 or DR340

• Bottom Grid: GR2917

2.75"

(70mm)

STANDARDS COMPLIANCE

• UPC/cUPC compliant

IMPORTANT

18"

(457mm)

Tel: [phone] | Fax: [phone] | [e-mail] | www.nativetrails.net

Due to the handcrafted nature of this product, it
will vary in finish, texture, hammering, and other
details. Dimensions may vary up to .5" (13mm).
We strongly recommend waiting for the actual
product before making any installation cuts.

REV0216
