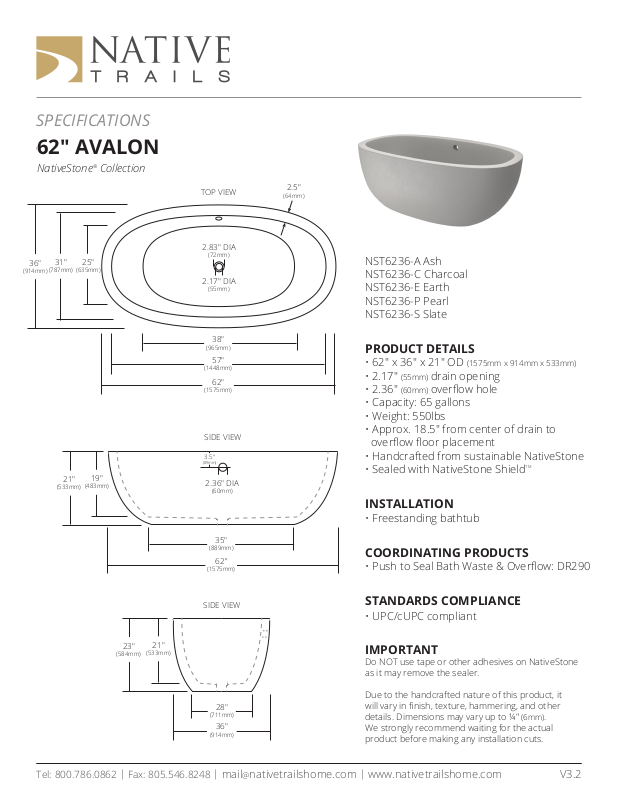

Native Trails XNT1691 Specifications

SPECIFICATIONS

62" AVALON

60” AURORA

NativeStone® Collection

36"

(914mm)

31"

(787mm)

21"

(533mm)

25"

(635mm)

19"

(483mm)

TOP VIEW

2.83" DIA

(72mm)

2.17" DIA

(55mm)

38"

(965mm)

57"

(1448mm)

62"

(1575mm)

SIDE VIEW

3.5"

(89mm)

2.36" DIA

(60mm)

2.5"

(64mm)

NST6236-A Ash
NST6236-C Charcoal
NST6236-E Earth
NST6236-P Pearl
NST6236-S Slate

PRODUCT DETAILS

• 62" x 36" x 21" OD (1575mm x 914mm x 533mm)

• 2.17" (55mm) drain opening

• 2.36″ (60mm) overow hole

• Capacity: 65 gallons

• Weight: 550lbs

• Approx. 18.5″ from center of drain to
overow oor placement

• Handcrafted from sustainable NativeStone

• Sealed with NativeStone Shield

TM

INSTALLATION

• Freestanding bathtub

SIDE VIEW

21"

23"

(533mm)

(584mm)

Tel: [phone] | Fax: [phone]

35"

(889mm)

62”

(1575mm)

COORDINATING PRODUCTS

• Push to Seal Bath Waste & Overow: DR290

STANDARDS COMPLIANCE

• UPC/cUPC compliant

IMPORTANT

Do NOT use tape or other adhesives on NativeStone

as it may remove the sealer.

Due to the handcrafted nature of this product, it

28"

(711mm)

36"

(914mm)

|

[e-mail] | www.nativetrailshome.com V3.2

will vary in nish, texture, hammering, and other
details. Dimensions may vary up to ¼" (6mm).
We strongly recommend waiting for the actual
product before making any installation cuts.
