Native Trails XNT1673 Dimensions

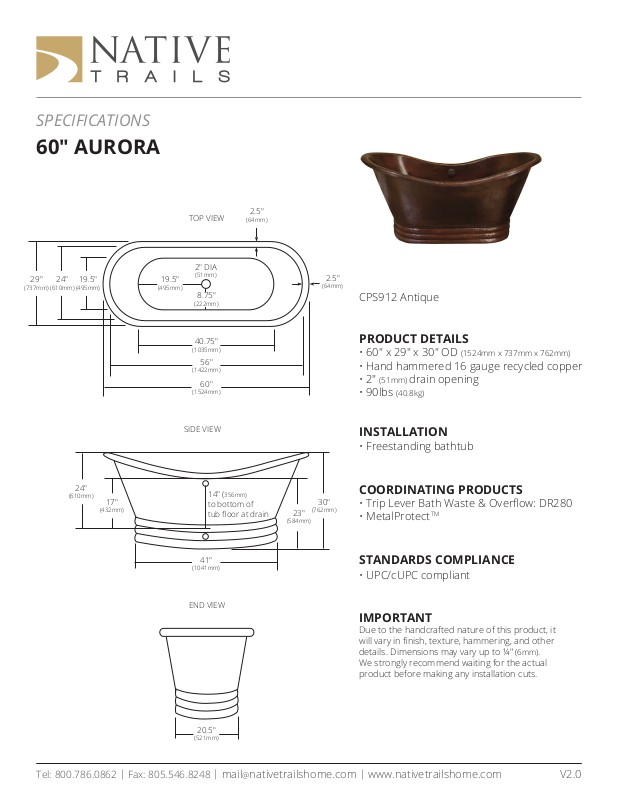

SPECIFICATIONS

60" AURORA

29"

(737mm)

24"

(610mm)

19.5"

(495mm)

24"

(610mm)

17"

(432mm)

19.5"

(495mm)

TOP VIEW

2" DIA

(51mm)

8.75"

(222mm)

40.75"

(1035mm)

56"

(1422mm)

60"

(1524mm)

SIDE VIEW

14" (356mm)
to bottom of

tub oor at drain

2.5"

(64mm)

23"

(584mm)

2.5"

(64mm)

30"

(762mm)

CPS912 Antique

PRODUCT DETAILS

• 60" x 29" x 30" OD (1524mm x 737mm x 762mm)

• Hand hammered 16 gauge recycled copper

• 2" (51mm) drain opening

• 90lbs (40.8kg)

INSTALLATION

• Freestanding bathtub

COORDINATING PRODUCTS

• Trip Lever Bath Waste & Overow: DR280

• MetalProtect

TM

41"

(1041mm)

END VIEW

20.5"

(521mm)

Tel: [phone] | Fax: [phone]

STANDARDS COMPLIANCE

• UPC/cUPC compliant

IMPORTANT

Due to the handcrafted nature of this product, it

will vary in nish, texture, hammering, and other

details. Dimensions may vary up to ¼" (6mm).

We strongly recommend waiting for the actual

product before making any installation cuts.

|

[e-mail] | www.nativetrailshome.com V2.0
