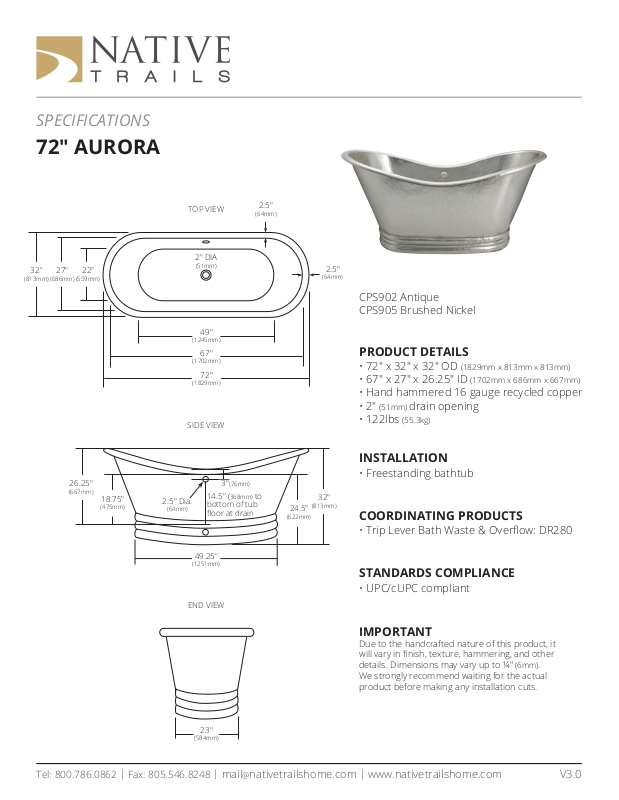

Native Trails XNT1672 Specifications

SPECIFICATIONS

72" AURORA

32"

(813mm)

27"

(686mm)

22"

(559mm)

26.25"

(667mm)

18.75"

(475mm)

2.5" Dia.

(64mm)

TOP VIEW

2" DIA

(51mm)

49"

(1245mm)

67"

(1702mm)

72"

(1829mm)

SIDE VIEW

14.5" (368mm) to

bottom of tub

oor at drain

3"(76mm)

2.5"

(64mm)

24.5"

(622mm)

2.5"

(64mm)

32"

(813mm)

CPS902 Antique
CPS905 Brushed Nickel

PRODUCT DETAILS

• 72" x 32" x 32" OD (1829mm x 813mm x 813mm)

• 67″ x 27″ x 26.25″ ID (1702mm x 686mm x 667mm)

• Hand hammered 16 gauge recycled copper

• 2" (51mm) drain opening

• 122lbs (55.3kg)

INSTALLATION

• Freestanding bathtub

COORDINATING PRODUCTS

• Trip Lever Bath Waste & Overow: DR280

49.25"

(1251mm)

END VIEW

23"

(584mm)

Tel: [phone] | Fax: [phone]

STANDARDS COMPLIANCE

• UPC/cUPC compliant

IMPORTANT

Due to the handcrafted nature of this product, it

will vary in nish, texture, hammering, and other
details. Dimensions may vary up to ¼" (6mm).
We strongly recommend waiting for the actual
product before making any installation cuts.

|

[e-mail] | www.nativetrailshome.com V3.0
