Native Trails XNT1508 Installation & Assembly

INSTALLATION INSTRUCTIONS
W W W .NA TIVETR A ILS. NET
1
2
3
4
W W W .NA TIVETR A ILS. NET
Remove all excess silicone around the drain after the drain has been installed

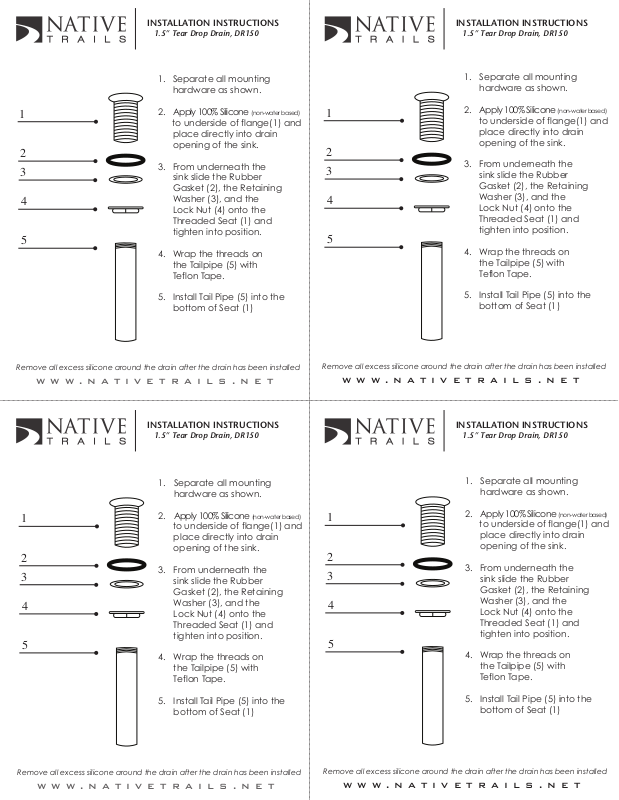

1.5” Tear Drop Drain, DR150
INSTALLATION INSTRUCTIONS
1.5” Tear Drop Drain, DR150
1. Separate all mounting hardware as shown.
1
2. Apply 100% Silicone to underside of flange(1) and
place directly into drain opening of the sink.
(non-water based)
2
3
4
3. From underneath the
sink slide the Rubber Gasket (2), the Retaining Washer (3), and the Lock Nut (4) onto the Threaded Seat (1) and tighten into position.
5
4. Wrap the threads on
the Tailpipe (5) with Teflon Tape.
5. Install Tail Pipe (5) into the
bottom of Seat (1)
1
2
3
4
5
1. Separate all mounting hardware as shown.
2. Apply 100% Silicone to underside of flange(1) and
place directly into drain opening of the sink.
3. From underneath the
sink slide the Rubber Gasket (2), the Retaining Washer (3), and the Lock Nut (4) onto the Threaded Seat (1) and tighten into position.
4. Wrap the threads on
the Tailpipe (5) with Teflon Tape.
5. Install Tail Pipe (5) into the
bottom of Seat (1)
(non-water based)
Remove all excess silicone around the drain after the drain has been installed
INSTALLATION INSTRUCTIONS
1.5” Tear Drop Drain, DR150
1. Separate all mounting hardware as shown.
2. Apply 100% Silicone to underside of flange(1) and
place directly into drain opening of the sink.
(non-water based)
3. From underneath the
sink slide the Rubber Gasket (2), the Retaining Washer (3), and the Lock Nut (4) onto the Threaded Seat (1) and tighten into position.
5
4. Wrap the threads on
the Tailpipe (5) with Teflon Tape.
5. Install Tail Pipe (5) into the
bottom of Seat (1)
Remove all excess silicone around the drain after the drain has been installed
W W W .NA TIVETR A ILS. NET
INSTALLATION INSTRUCTIONS
1.5” Tear Drop Drain, DR150
1. Separate all mounting hardware as shown.
1
2. Apply 100% Silicone to underside of flange(1) and
place directly into drain opening of the sink.
2
3
4
3. From underneath the
sink slide the Rubber Gasket (2), the Retaining Washer (3), and the Lock Nut (4) onto the Threaded Seat (1) and tighten into position.
(non-water based)
5
4. Wrap the threads on
the Tailpipe (5) with Teflon Tape.
5. Install Tail Pipe (5) into the
bottom of Seat (1)
Remove all excess silicone around the drain after the drain has been installed
W W W .NA TIVETR A ILS. NET
