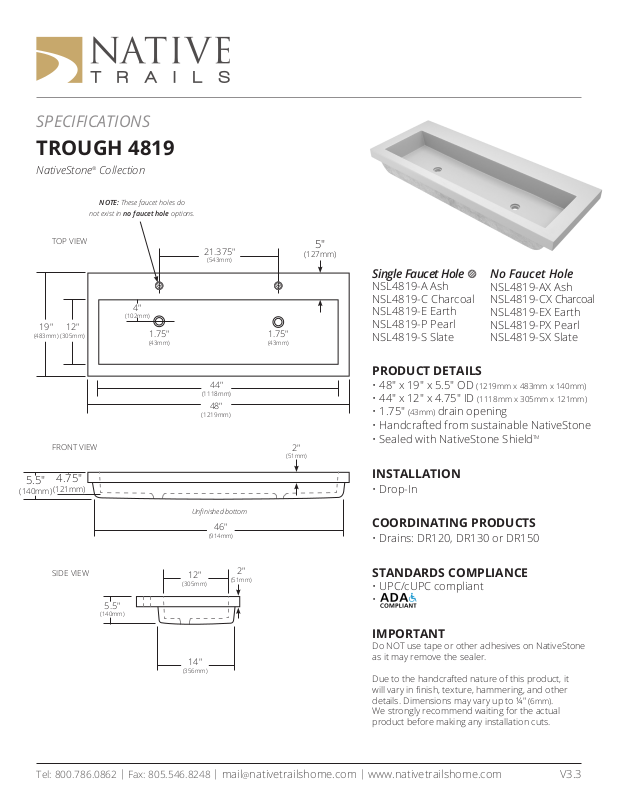

SPECIFICATIONS
TROUGH 4819
NativeStone® Collection
NOTE: These faucet holes do
not exist in no faucet hole options.
19"
(483mm)
5.5"
(140mm)
TOP VIEW
12"
(305mm)
FRONT VIEW
4.75"
(121mm)
4"
(102mm)
1.75"
(43mm)
21.375"
(543mm)
44"
(1118mm)
48"
(1219mm)
Unnished bottom
46"
(914mm)
1.75"
(43mm)
2"
(51mm)
5"
(127mm)
Single Faucet Hole
NSL4819-A Ash
NSL4819-C Charcoal
NSL4819-E Earth
NSL4819-P Pearl
NSL4819-S Slate
No Faucet Hole
NSL4819-AX Ash
NSL4819-CX Charcoal
NSL4819-EX Earth
NSL4819-PX Pearl
NSL4819-SX Slate
PRODUCT DETAILS
• 48" x 19" x 5.5" OD (1219mm x 483mm x 140mm)
• 44" x 12" x 4.75″ ID (1118mm x 305mm x 121mm)
• 1.75" (43mm) drain opening
• Handcrafted from sustainable NativeStone
• Sealed with NativeStone Shield
TM
INSTALLATION
• Drop-In
COORDINATING PRODUCTS
• Drains: DR120, DR130 or DR150
SIDE VIEW
5.5"
(140mm)
12"
(305mm)
14"
(356mm)
Tel: 800.786.0862 | Fax: 805.546.8248
2"
(51mm)
STANDARDS COMPLIANCE
• UPC/cUPC compliant
•
IMPORTANT
Do NOT use tape or other adhesives on NativeStone
as it may remove the sealer.
Due to the handcrafted nature of this product, it
will vary in nish, texture, hammering, and other
details. Dimensions may vary up to ¼" (6mm).
We strongly recommend waiting for the actual
product before making any installation cuts.
|
