Page 1

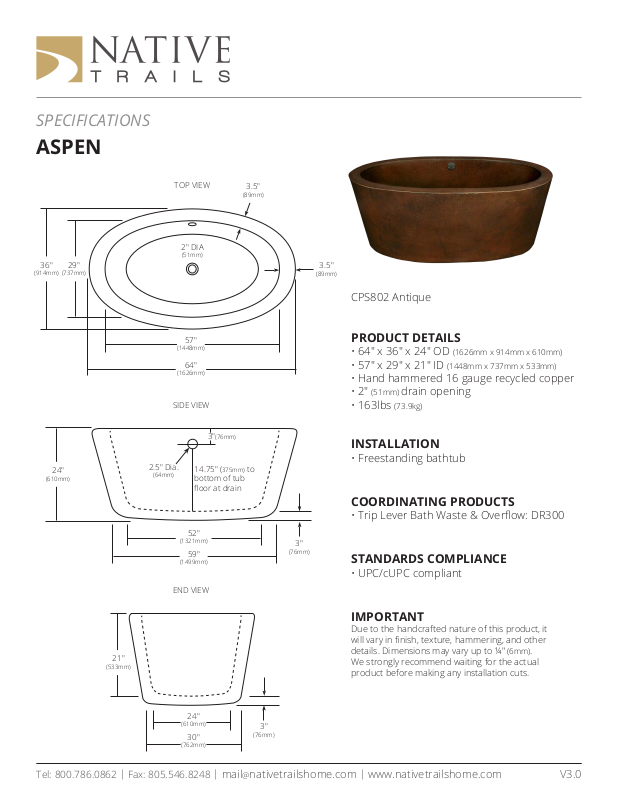

SPECIFICATIONS
ASPEN
36"
(914mm)
(610mm)
24"
29"
(737mm)
2.5" Dia.
(64mm)
TOP VIEW
2" DIA
(51mm)
57"
(1448mm)
64"
(1626mm)
SIDE VIEW
14.75" (375mm) to
bottom of tub
oor at drain
52"
(1321mm)
59"
(1499mm)
END VIEW
3"(76mm)
3.5"
(89mm)
3"
(76mm)
3.5"
(89mm)
CPS802 Antique
PRODUCT DETAILS
• 64" x 36" x 24" OD (1626mm x 914mm x 610mm)
• 57" x 29" x 21" ID (1448mm x 737mm x 533mm)
• Hand hammered 16 gauge recycled copper
• 2" (51mm) drain opening
• 163lbs (73.9kg)
INSTALLATION
• Freestanding bathtub
COORDINATING PRODUCTS
• Trip Lever Bath Waste & Overow: DR300
STANDARDS COMPLIANCE
• UPC/cUPC compliant
21"
(533mm)
24"
(610mm)
30"
(762mm)
Tel: 800.786.0862 | Fax: 805.546.8248
IMPORTANT
Due to the handcrafted nature of this product, it
will vary in nish, texture, hammering, and other
details. Dimensions may vary up to ¼" (6mm).
We strongly recommend waiting for the actual
product before making any installation cuts.
3"
(76mm)
|
mail@nativetrailshome.com | www.nativetrailshome.com V3.0
