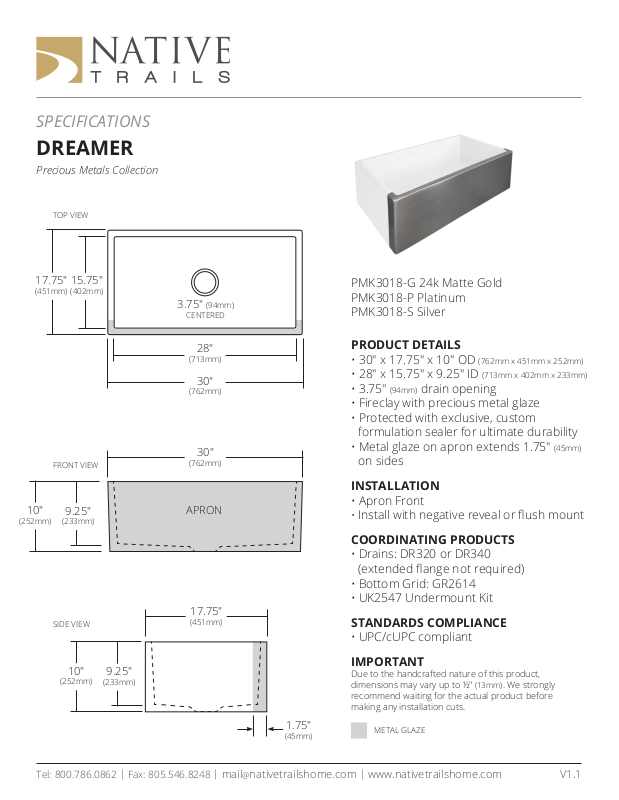

SPECIFICATIONS
DREAMER
Precious Metals Collection
TOP VIEW
17.75"
(451mm)
10"
(252mm)
15.75"
(402mm)
FRONT VIEW
9.25"
(233mm)
SIDE VIEW
3.75" (94mm)
CENTERED
28"
(713mm)
30"
(762mm)
30"
(762mm)
APRON
17.75"
(451mm)
PMK3018-G 24k Matte Gold
PMK3018-P Platinum
PMK3018-S Silver
PRODUCT DETAILS
• 30″ x 17.75″ x 10″ OD (762mm x 451mm x 252mm)
• 28″ x 15.75″ x 9.25″ ID (713mm x 402mm x 233mm)
• 3.75″ (94mm) drain opening
• Fireclay with precious metal glaze
• Protected with exclusive, custom
formulation sealer for ultimate durability
• Metal glaze on apron extends 1.75″ (45mm)
on sides
INSTALLATION
• Apron Front
• Install with negative reveal or ush mount
COORDINATING PRODUCTS
• Drains: DR320 or DR340
(extended ange not required)
• Bottom Grid: GR2614
• UK2547 Undermount Kit
STANDARDS COMPLIANCE
• UPC/cUPC compliant
10"
(252mm)
Tel: 800.786.0862 | Fax: 805.546.8248
9.25"
(233mm)
IMPORTANT
Due to the handcrafted nature of this product,
dimensions may vary up to ½" (13mm). We strongly
recommend waiting for the actual product before
making any installation cuts.
1.75"
(45mm)
|
mail@nativetrailshome.com | www.nativetrailshome.com V1.1
METAL GLAZE
