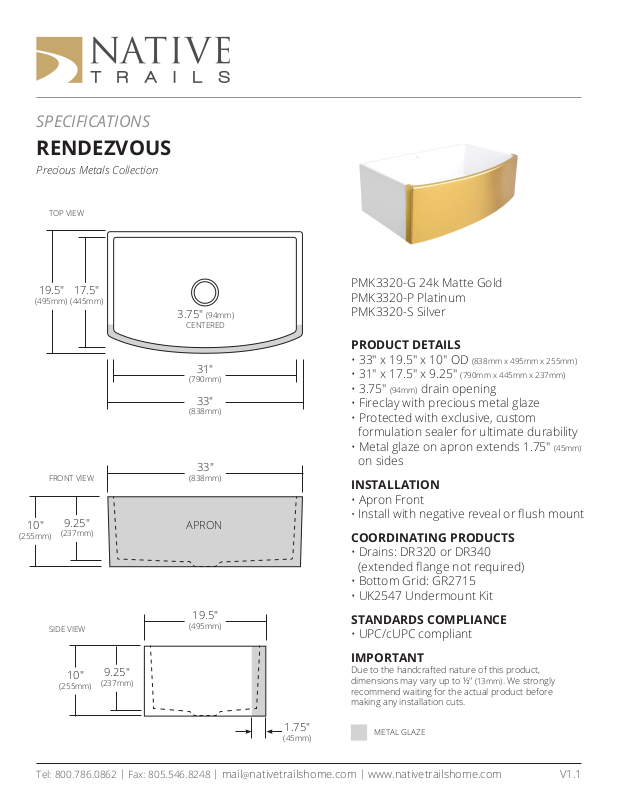

SPECIFICATIONS
RENDEZVOUS
Precious Metals Collection
TOP VIEW
19.5"
(495mm)
10"
(255mm)
17.5"
(445mm)
FRONT VIEW
9.25"
(237mm)
3.75" (94mm)
CENTERED
31"
(790mm)
33"
(838mm)
33"
(838mm)
APRON
PMK3320-G 24k Matte Gold
PMK3320-P Platinum
PMK3320-S Silver
PRODUCT DETAILS
• 33″ x 19.5″ x 10″ OD (838mm x 495mm x 255mm)
• 31″ x 17.5″ x 9.25″ (790mm x 445mm x 237mm)
• 3.75″ (94mm) drain opening
• Fireclay with precious metal glaze
• Protected with exclusive, custom
formulation sealer for ultimate durability
• Metal glaze on apron extends 1.75″ (45mm)
on sides
INSTALLATION
• Apron Front
• Install with negative reveal or ush mount
COORDINATING PRODUCTS
• Drains: DR320 or DR340
(extended ange not required)
• Bottom Grid: GR2715
• UK2547 Undermount Kit
19.5"
SIDE VIEW
10"
(255mm)
Tel: 800.786.0862 | Fax: 805.546.8248
9.25"
(237mm)
(495mm)
STANDARDS COMPLIANCE
• UPC/cUPC compliant
IMPORTANT
Due to the handcrafted nature of this product,
dimensions may vary up to ½" (13mm). We strongly
recommend waiting for the actual product before
making any installation cuts.
1.75"
(45mm)
|
mail@nativetrailshome.com | www.nativetrailshome.com V1.1
METAL GLAZE
