A.
READ THIS FIRST
GENERAL INSTALLATION NOTES:
• All Native Trails products should be installed by a licensed contractor.
B.
DROP-IN & RAISED
PROFILE SINK
INSTALLATION:

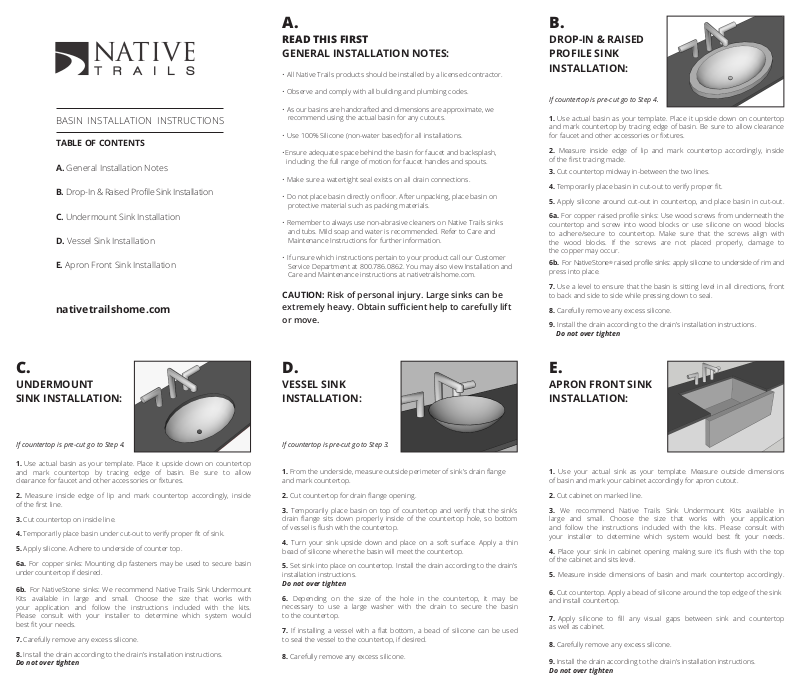

BASIN INSTALLATION INSTRUCTIONS
TABLE OF CONTENTS
A. General Installation Notes
B. Drop-In & Raised Prole Sink Installation
C. Undermount Sink Installation
D. Vessel Sink Installation
E. Apron Front Sink Installation
nativetrailshome.com
• Observe and comply with all building and plumbing codes.
• As our basins are handcrafted and dimensions are approximate, we
recommend using the actual basin for any cutouts.
• Use 100% Silicone (non-water based) for all installations.
•Ensure adequate space behind the basin for faucet and backsplash,
including the full range of motion for faucet handles and spouts.
• Make sure a watertight seal exists on all drain connections.
• Do not place basin directly on oor. After unpacking, place basin on
protective material such as packing materials.
• Remember to always use non-abrasive cleaners on Native Trails sinks
and tubs. Mild soap and water is recommended. Refer to Care and
Maintenance Instructions for further information.
• If unsure which instructions pertain to your product call our Customer
Service Department at 800.786.0862. You may also view Installation and
Care and Maintenance instructions at nativetrailshome.com.
CAUTION: Risk of personal injury. Large sinks can be
extremely heavy. Obtain sucient help to carefully lift
or move.
If countertop is pre-cut go to Step 4.
1. Use actual basin as your template. Place it upside down on countertop
and mark countertop by tracing edge of basin. Be sure to allow clearance
for faucet and other accessories or xtures.
2. Measure inside edge of lip and mark countertop accordingly, inside
of the rst tracing made.
3. Cut countertop midway in-between the two lines.
4. Temporarily place basin in cut-out to verify proper t.
5. Apply silicone around cut-out in countertop, and place basin in cut-out.
6a. For copper raised prole sinks: Use wood screws from underneath the
countertop and screw into wood blocks or use silicone on wood blocks
to adhere/secure to countertop. Make sure that the screws align with
the wood blocks. If the screws are not placed properly, damage to
the copper may occur.
6b. For NativeStone® raised prole sinks: apply silicone to underside of rim and
press into place.
7. Use a level to ensure that the basin is sitting level in all directions, front
to back and side to side while pressing down to seal.
8. Carefully remove any excess silicone.
9. Install the drain according to the drain’s installation instructions.
Do not over tighten
C.
UNDERMOUNT
SINK INSTALLATION:
If countertop is pre-cut go to Step 4.
1. Use actual basin as your template. Place it upside down on countertop
and mark countertop by tracing edge of basin. Be sure to allow
clearance for faucet and other accessories or xtures.
2. Measure inside edge of lip and mark countertop accordingly, inside
of the rst line.
3. Cut countertop on inside line.
4. Temporarily place basin under cut-out to verify proper t of sink.
5. Apply silicone. Adhere to underside of counter top.
6a. For copper sinks: Mounting clip fasteners may be used to secure basin
under countertop if desired.
6b. For NativeStone sinks: We recommend Native Trails Sink Undermount
Kits available in large and small. Choose the size that works with
your application and follow the instructions included with the kits.
Please consult with your installer to determine which system would
best t your needs.
7. Carefully remove any excess silicone.
8. Install the drain according to the drain’s installation instructions.
Do not over tighten
D.
VESSEL SINK
INSTALLATION:
If countertop is pre-cut go to Step 3.
1. From the underside, measure outside perimeter of sink’s drain ange
and mark countertop.
2. Cut countertop for drain ange opening.
3. Temporarily place basin on top of countertop and verify that the sink’s
drain ange sits down properly inside of the countertop hole, so bottom
of vessel is ush with the countertop.
4. Turn your sink upside down and place on a soft surface. Apply a thin
bead of silicone where the basin will meet the countertop.
5. Set sink into place on countertop. Install the drain according to the drain’s
installation instructions.
Do not over tighten
6. Depending on the size of the hole in the countertop, it may be
necessary to use a large washer with the drain to secure the basin
to the countertop.
7. If installing a vessel with a at bottom, a bead of silicone can be used
to seal the vessel to the countertop, if desired.
8. Carefully remove any excess silicone.
E.
APRON FRONT SINK
INSTALLATION:
1. Use your actual sink as your template. Measure outside dimensions
of basin and mark your cabinet accordingly for apron cutout.
2. Cut cabinet on marked line.
3. We recommend Native Trails Sink Undermount Kits available in
large and small. Choose the size that works with your application
and follow the instructions included with the kits. Please consult with
your installer to determine which system would best t your needs.
4. Place your sink in cabinet opening making sure it’s ush with the top
of the cabinet and sits level.
5. Measure inside dimensions of basin and mark countertop accordingly.
6. Cut countertop. Apply a bead of silicone around the top edge of the sink
and install countertop.
7. Apply silicone to ll any visual gaps between sink and countertop
as well as cabinet.
8. Carefully remove any excess silicone.
9. Install the drain according to the drain’s installation instructions.
Do not over tighten
