Page 1

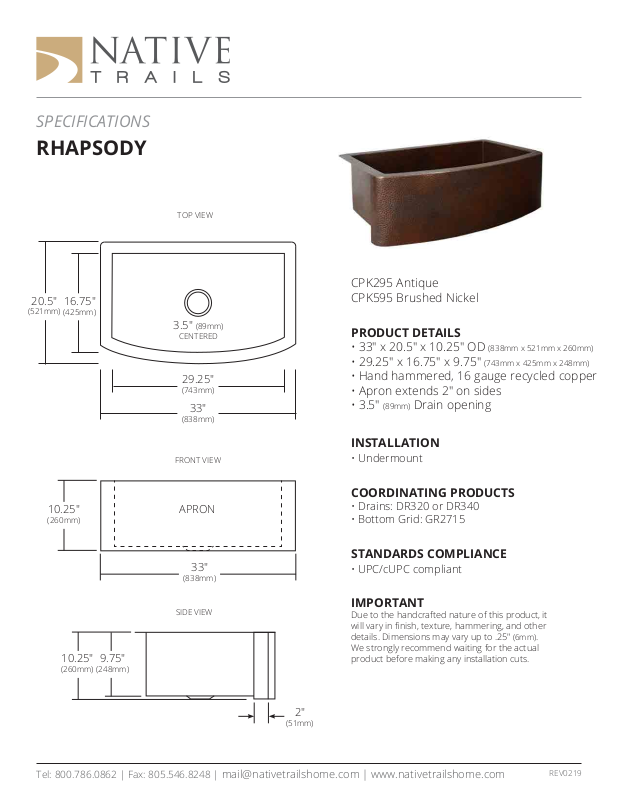

SPECIFICATIONS
RHAPSODY
20.5"
(521mm)
16.75"
(425mm)
TOP VIEW
3.5" (89mm)
CENTERED
29.25"
(743mm)
33"
(838mm)
CPK295 Antique
CPK595 Brushed Nickel
PRODUCT DETAILS
• 33″ x 20.5″ x 10.25″ OD
(838mm x 521mm x 260mm)
• 29.25″ x 16.75″ x 9.75″ (743mm x 425mm x 248mm)
• Hand hammered, 16 gauge recycled copper
• Apron extends 2″ on sides
• 3.5″ (89mm) Drain opening
10.25"
(260mm)
10.25"
(260mm)
9.75"
(248mm)
FRONT VIEW
APRON
33"
(838mm)
SIDE VIEW
INSTALLATION
• Undermount
COORDINATING PRODUCTS
• Drains: DR320 or DR340
• Bottom Grid: GR2715
STANDARDS COMPLIANCE
• UPC/cUPC compliant
IMPORTANT
Due to the handcrafted nature of this product, it
will vary in nish, texture, hammering, and other
details. Dimensions may vary up to .25" (6mm).
We strongly recommend waiting for the actual
product before making any installation cuts.
2"
(51mm)
Tel: 800.786.0862 | Fax: 805.546.8248 | [email protected] | www.nativetrailshome.com
REV0219
