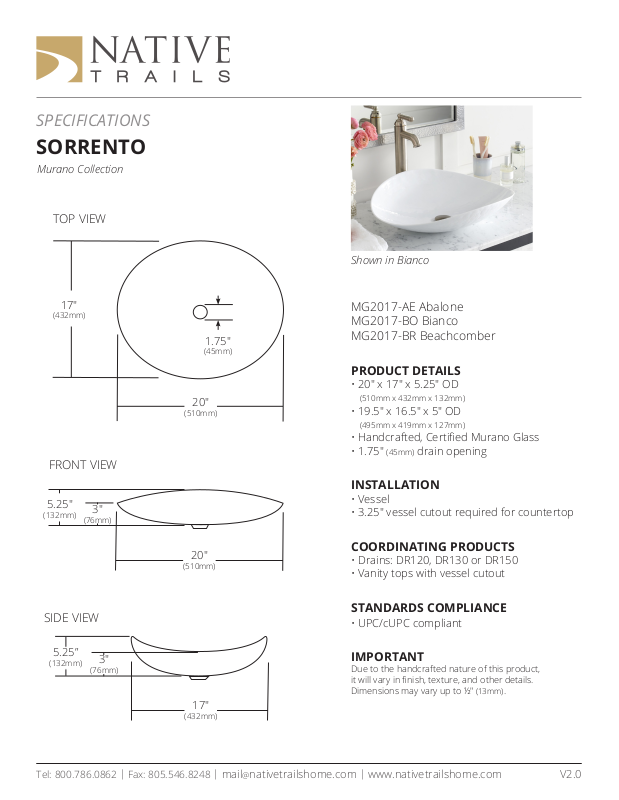

Native Trails W002999331 Specifications

SPECIFICATIONS

SORRENTO

Murano Collection

TOP VIEW

Shown in Bianco

17"

(432mm)

FRONT VIEW

5.25"

(132mm)

3"

(76mm)

1.75"

(45mm)

20"

(510mm)

20"

(510mm)

MG2017-AE Abalone
MG2017-BO Bianco
MG2017-BR Beachcomber

PRODUCT DETAILS

• 20″ x 17″ x 5.25″ OD

(510mm x 432mm x 132mm)

• 19.5″ x 16.5″ x 5″ OD

(495mm x 419mm x 127mm)

• Handcrafted, Certied Murano Glass

• 1.75″ (45mm) drain opening

INSTALLATION

• Vessel

• 3.25″ vessel cutout required for countertop

COORDINATING PRODUCTS

• Drains: DR120, DR130 or DR150

• Vanity tops with vessel cutout

SIDE VIEW

5.25”

(132mm)

Tel: [phone] | Fax: [phone]

3"

(76mm)

17"

(432mm)

STANDARDS COMPLIANCE

• UPC/cUPC compliant

IMPORTANT

Due to the handcrafted nature of this product,
it will vary in nish, texture, and other details.
Dimensions may vary up to ½″ (13mm).

|

[e-mail] | www.nativetrailshome.com V2.0
