LMC6024
Low Power CMOS Quad Operational Amplifier
General Description
The LMC6024 is a CMOS quad operational amplifier which
can operate from either a single supply or dual supplies. Its
performance features include an input common-mode range
that reaches V
100 kΩ and5kΩloads) that is equal to or better than widely
accepted bipolar equivalents, while the power supply requirement is less than 1 mW.
This chip is built with National’s advanced Double-Poly
Silicon-Gate CMOS process.
See the LMC6022 datasheet for a CMOS dual operational
amplifier with these same features.
Features
n Specified for 100 kΩ and5kΩloads
n High voltage gain 120 dB
n Low offset voltage drift 2.5 µV/˚C
−
, low input bias current and voltage gain (into
n Ultra low input bias current 40 fA
n Input common-mode range includes V
n Operating range from +5V to +15V supply
n Low distortion 0.01%at 1 kHz
n Slew rate 0.11 V/µs
n Micropower operation 1 mW
−
Applications
n High-impedance buffer or preamplifier
n Current-to-voltage converter
n Long-term integrator
n Sample-and-hold circuit
n Peak detector
n Medical instrumentation
n Industrial controls
LMC6024 Low Power CMOS Quad Operational Amplifier
November 1994
Connection Diagram
Ordering Information
Temperature Range
Industrial
−40˚C ≤ T
LMC6024IN 14-Pin N14A Rail
LMC6024IM 14-Pin M14A Rail
≤ +85˚C
J
14-Pin DIP/SO
DS011235-1
Top View
Package
Molded DIP
Small Outline Tape and Reel
NSC
Drawing
Transport
Media
© 1999 National Semiconductor Corporation DS011235 www.national.com
Absolute Maximum Ratings (Note 1)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Differential Input Voltage
Supply Voltage (V
+−V−
) 16V
Lead Temperature
(Soldering, 10 sec.) 260˚C
Storage Temperature Range −65˚C to +150˚C
Voltage at Output/Input Pin (V
Current at Input Pin
Current at Output Pin
Current at Power Supply Pin 35 mA
Output Short Circuit to V
+
±
Supply Voltage
+
) + 0.3V, (V−) − 0.3V
±
±
18 mA
5mA
(Note 12)
Output Short Circuit to V
−
(Note 2)
Junction Temperature 150˚C
ESD Tolerance (Note 4) 1000V
Power Dissipation (Note 3)
Operating Ratings
Temperature Range −40˚C ≤ TJ≤ +85˚C
Supply Voltage Range 4.75V to 15.5V
Power Dissipation (Note 10)
Thermal Resistance (θ
14-Pin DIP 85˚C/W
14-Pin SO 115˚C/W
), (Note 11)
JA
DC Electrical Characteristics
The following specifications apply for V
face limits apply at the temperature extremes; all other limits T
+
=
5V, V
−
=
0V, V
=
1.5V, V
CM
J
=
25˚C.
=
2.5V, and R
O
=
1M unless otherwise noted. Bold-
L
Typical LMC6024I
Symbol Parameter Conditions (Note 5) Limit Units
(Note 6)
V
OS
Input Offset Voltage 1 9 mV
11 Max
∆V
/∆T Input Offset Voltage 2.5 µV/˚C
OS
Average Drift
I
B
Input Bias Current 0.04 pA
200 Max
I
OS
Input Offset Current 0.01 pA
100 Max
R
IN
Input Resistance
CMRR Common Mode 0V ≤ V
+
Rejection Ratio V
=
+PSRR Positive Power Supply 5V ≤ V
≤ 12V 83 63 dB
CM
15V 61 Min
+
≤ 15V 83 63 dB
>
1 TeraΩ
Rejection Ratio 61 Min
−PSRR Negative Power Supply 0V ≤ V
−
≤ −10V 94 74 dB
Rejection Ratio 73 Min
+
V
CM
Input Common-Mode V
=
5V and 15V −0.4 −0.1 V
Voltage Range For CMRR ≥ 50 DB 0 Max
+
V
− 1.9 V+− 2.3 V
A
V
Large Signal Voltage Gain R
=
100 kΩ (Note 7) 1000 200 V/mV
L
+
V
− 2.5 Min
Sourcing 100 Min
Sinking 500 90 V/mV
40 Min
=
R
5kΩ(Note 7) 1000 100 V/mV
L
Sourcing 75 Min
Sinking 250 50 V/mV
20 Min
www.national.com 2
DC Electrical Characteristics (Continued)
The following specifications apply for V
face limits apply at the temperature extremes; all other limits T
+
Symbol Parameter Conditions (Note 5) Limit Units
V
O
I
O
I
S
Output Voltage Swing V
Output Current V
Supply Current All Four Amplifiers 160 240 µA
=
−
5V, V
=
0V, V
=
1.5V, V
CM
J
=
25˚C.
=
2.5V, and R
O
=
1M unless otherwise noted. Bold-
L
Typical LMC6024I
(Note 6)
+
=
5V 4.987 4.40 V
=
R
100 kΩ to 2.5V 4.43 Min
L
0.004 0.06 V
0.09 Max
+
=
V
5V 4.940 4.20 V
=
R
5kΩto 2.5V 4.00 Min
L
0.040 0.25 V
0.35 Max
+
=
V
15V 14.970 14.00 V
=
R
100 kΩ to 7.5V 13.90 Min
L
0.007 0.06 V
0.09 Max
+
=
V
15V 14.840 13.70 V
=
R
5kΩto 7.5V 13.50 Min
L
0.110 0.32 V
0.40 Max
+
=
5V 22 13 mA
Sourcing, V
Sinking V
=
0V 9 Min
O
=
5V 21 13 mA
O
(Note 2) 9 Min
+
=
V
15V 40 23 mA
Sourcing, V
Sinking, V
=
0V 15 Min
O
=
13V 39 23 mA
O
(Note 12) 15 Min
=
V
1.5V 280 Max
O
www.national.com3
AC Electrical Characteristics
The following specifications apply for V
face limits apply at the temperature extremes; all other limits T
+
=
5V, V
−
=
0V, V
=
1.5V, V
CM
J
=
25˚C.
=
2.5V, and R
O
=
1M unless otherwise noted. Bold-
L
Typical LMC6024I
Symbol Parameter Conditions (Note 5) Limit Units
(Note 6)
SR Slew Rate (Note 8) 0.11 0.05 V/µs
0.03 Min
GBW Gain-Bandwidth Product 0.35 MHz
θ
M
G
M
Phase Margin 50 Deg
Gain Margin 17 dB
Amp-to-Amp Isolation (Note 9) 130 dB
e
n
Input-Referred Voltage Noise F=1 kHz 42
i
n
Note 1: Absolute Maximum Ratings indicate limits beyond which damage to the component may occur. Operating Ratings indicate conditions for which the device
is intended to be functional, but do not guarantee specific performance limits. For guaranteed specifications and test conditions, see the Electrical Characteristics.
The guaranteed specifications apply only for the test conditions listed.
Note 2: Applies to both single-supply and split-supply operation. Continuous short circuit operation at elevated ambient temperature and/or multiple Op Amp shorts
can result in exceeding the maximum allowed junction temperature of 150˚C. Output currents in excess of
Note 3: The maximum power dissipation isafunction of T
−TA)/θJA.
Note 4: Human body model, 100 pF discharge through a 1.5 kΩ resistor.
Note 5: Typical values represent the most likely parametric norm.
Note 6: All limits are guaranteed by testing or correlation.
Note 7: V
Note 8: V
Note 9: Input referred, V
Note 10: For operating at elevated temperatures the device must be derated based on the thermal resistance θ
Note 11: All numbers apply for packages soldered directly into a PC board.
Note 12: Do not connect output to V
Input-Referred Current Noise F=1 kHz 0.0002
±
, θJA, and TA. The maximum allowable power dissipation at any ambient temperature is P
J(max)
+
=
+
=
=
15V, V
15V. Connected as Voltage Follower with 10V step input. Number specified is the slower of the positive and negative slew rates.
CM
7.5V, and R
+
=
connected to 7.5V. For Sourcing tests, 7.5V ≤ VO≤ 11.5V. For Sinking tests, 2.5V ≤ VO≤ 7.5V.
L
15V and R
=
100 kΩ connected to 7.5V. Each amp excited in turn with 1 kHz to produce V
L
+
when V+is greater than 13V or reliability may be adversely affected.
30 mA over long term may adversly affect reliability.
=
13 V
O
PP
=
with P
JA
(T
D
J−TA
.
)/θJA.
=
(T
D
J(max)
www.national.com 4
Typical Performance Characteristics V
Supply Current
vs Supply Voltage
Input Bias Current
vs Temperature
=
±
S
7.5V, T
=
25˚C unless otherwise specified
A
Common-Mode Voltage
Range vs Temperature
Output Characteristics
Current Sinking
Crosstalk Rejection
vs Frequency
DS011235-27
DS011235-30
DS011235-33
Output Characteristics
Current Sourcing
CMRR vs Frequency
DS011235-28
DS011235-31
DS011235-34
DS011235-29
Input Voltage Noise
vs Frequency
DS011235-32
CMRR vs Temperature
DS011235-35
www.national.com5
Typical Performance Characteristics V
=
±
S
7.5V, T
=
25˚C unless otherwise specified (Continued)
A
Power Supply Rejection
Ratio vs Frequency
Gain and Phase Responses
vs Load Capacitance
Non-Inverting Slew Rate
vs Temperature
DS011235-36
DS011235-39
Open-Loop Voltage
Gain vs Temperature
Gain and Phase
Responses vs Temperature
Inverting Slew Rate
vs Temperature
DS011235-37
DS011235-40
Open-Loop
Frequency Response
Gain Error
(V
vs V
OUT
)
OS
Large-Signal Pulse
Non-Inverting Response
=
(A
+1)
V
DS011235-38
DS011235-41
DS011235-42
www.national.com 6
DS011235-43
DS011235-44
Typical Performance Characteristics V
=
±
S
7.5V, T
=
25˚C unless otherwise specified (Continued)
A
Non-Inverting Small
Signal Pulse Response
=
(A
+1)
V
Stability vs Capacitive Load
DS011235-45
Inverting Large-Signal
Pulse Response
Stability vs Capacitive Load
DS011235-46
Inverting Small-Signal
Pulse Response
DS011235-47
Note 13: Avoid resistive loads of less than 500Ω, as they may cause instability.
DS011235-4
Application Hints
AMPLIFIER TOPOLOGY
The topology chosen for the LMC6024 is unconventional
(compared to general-purpose op amps) in that the traditional unity-gain buffer output stage is not used; instead, the
output is taken directly from the output of the integrator,to allow rail-to-rail output swing. Since the buffer traditionally delivers the power to the load, while maintaining high op amp
gain and stability, and must withstand shorts to either rail,
these tasks now fall to the integrator.
As a result of these demands, the integrator is a compound
affair with an embedded gain stage that is doubly fed forward
(via C
and Cff) by a dedicated unity-gain compensation
f
driver. In addition, the output portion of the integrator is a
push-pull configuration for delivering heavy loads. While
sinking current the whole amplifier path consists of three
gain stages with one stage fed forward, whereas while
sourcing the path contains four gain stages with two fed
forward.
DS011235-5
DS011235-6
FIGURE 1. LMC6024 Circuit Topology (Each Amplifier)
The large signal voltage gain while sourcing is comparable
to traditional bipolar op amps, for load resistance of at least
5kΩ. The gain while sinking is higher than most CMOS op
amps, due to the additional gain stage; however, when driv-
www.national.com7
Application Hints (Continued)
ing load resistance of 5 kΩ or less, the gain will be reduced
as indicated in the Electrical Characterisitics. The op amp
can drive load resistance as low as 500Ω without instability.
COMPENSATING INPUT CAPACITANCE
Refer to the LMC660 or LMC662 datasheets to determine
whether or not a feedback capacitor will be necessary for
compensation and what the value of that capacitor would be.
CAPACITIVE LOAD TOLERANCE
Like many other op amps, the LMC6024 may oscillate when
its applied load appears capacitive. The threshold of oscillation varies both with load and circuit gain. The configuration
most sensitive to oscillation is a unity-gain follower. See the
Typical Performance Characteristics.
The load capacitance interacts with the op amp’s output resistance to create an additional pole. If this pole frequency is
sufficiently low, it will degrade the op amp’s phase margin so
that the amplifier is no longer stable at low gains. The addition of a small resistor (50Ω to 100Ω) in series with the op
amp’s output, and a capacitor (5 pF to 10 pF) from inverting
input to output pins, returns the phase margin to a safe value
without interfering with lower-frequency circuit operation.
Thus, larger values of capacitance can be tolerated without
oscillation. Note that in all cases, the output will ring heavily
when the load capcitance is near the threshold for
oscillation.
DS011235-7

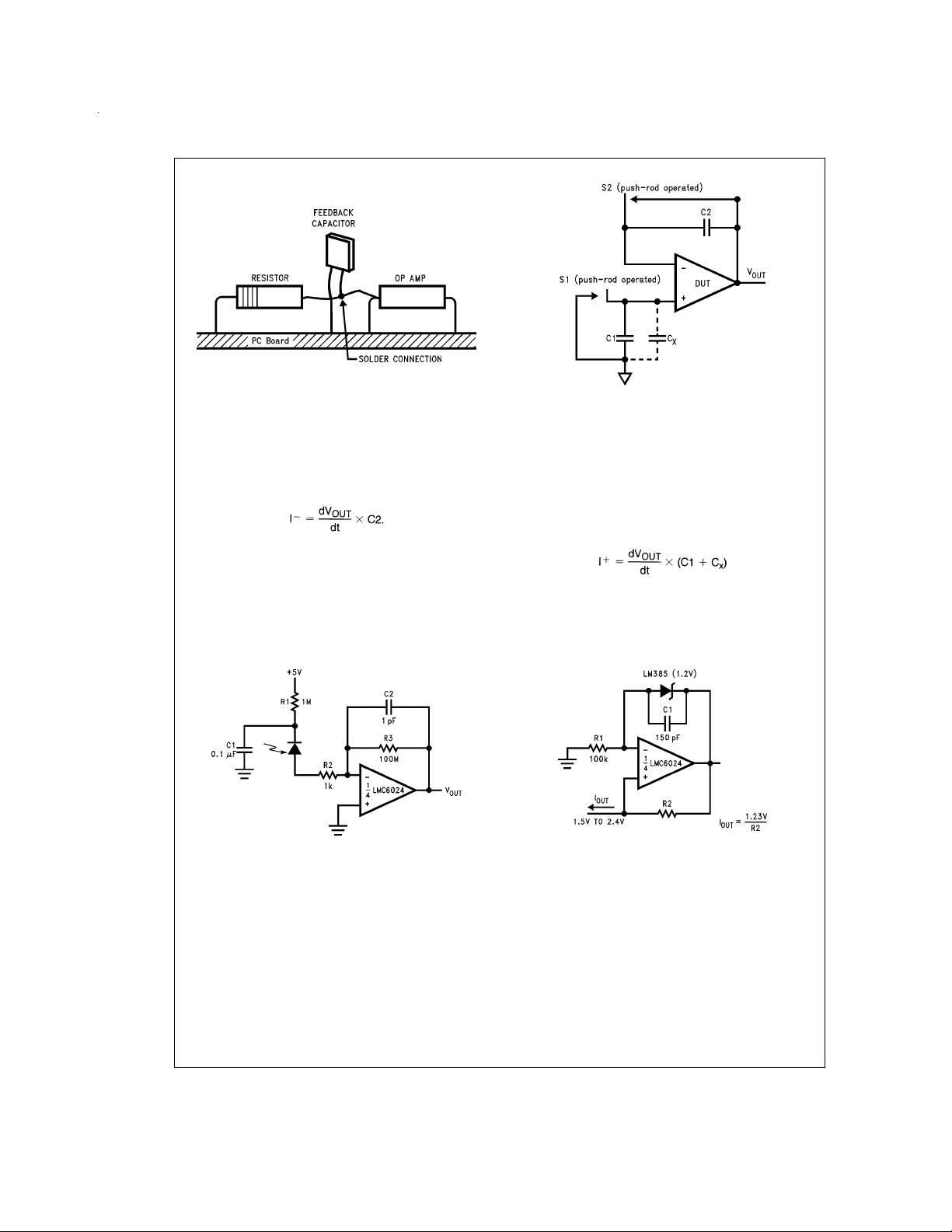

FIGURE 2. Rx, Cx Improve Capacitive Load Tolerance
Capacitive load driving capability is enhanced by using a pull
up resistor to V
ducting 50 µA or more will significantly improve capacitive
load responses. The value of the pull up resistor must be determined based on the current sinking capability of the ampli-
+
Figure 3
. Typically a pull up resistor con-
fier with respect to the desired output swing. Open loop gain
of the amplifier can also be affected by the pull up resistor
(see Electrical Characteristics).
DS011235-26
FIGURE 3. Compensating for Large
Capacitive Loads with a Pull Up Resistor
PRINTED-CIRCUIT-BOARD LAYOUT
FOR HIGH-IMPEDANCE WORK
It is generally recognized that any circuit which must operate
with less than 1000 pA of leakage current requires special
layout of the PC board. When one wishes to take advantage
of the ultra-low bias current of the LMC6024, typically less
than 0.04 pA, it is essential to have an excellent layout. Fortunately, the techniques for obtaining low leakages are quite
simple. First, the user must not ignore the surface leakage of
the PC board, even though it may sometimes appear acceptably low, because under conditions of high humidity or dust
or contamination, the surface leakage will be appreciable.
To minimize the effect of any surface leakage, lay out a ring
of foil completely surrounding the LMC6024’s inputs and the
terminals of capacitors, diodes, conductors, resistors, relay
terminals, etc. connected to the op-amp’s inputs. See
4
. To have a significant effect, guard rings should be placed
Figure
on both the top and bottom of the PC board. This PC foil
must then be connected to a voltage which is at the same
voltage as the amplifier inputs, since no leakage current can
flow between two points at the same potential. For example,
a PC board trace-to-pad resistance of 10
12
ohms, which is
normally considered a very large resistance, could leak 5 pA
if the trace were a 5V bus adjacent to the pad of an input.
This would cause a 100 times degradation from the
LMC6024’s actual performance. However, if a guard ring is
held within 5 mV of the inputs, then even a resistance of 10
ohms would cause only 0.05 pA of leakage current, or perhaps a minor (2:1) degradation of the amplifier’s performance. See
Figure 5a,Figure 5b,Figure 5c
for typical connections of guard rings for standard op-amp configurations.
If both inputs are active and at high impedance, the guard
can be tied to ground and still provide some protection; see
Figure 5d
.
11
www.national.com 8
Application Hints (Continued)
FIGURE 4. Example of Guard Ring in P.C. Board Layout (Using the LMC6024)
DS011235-8
DS011235-9
(a) Inverting Amplifier
DS011235-11
(c) Follower
FIGURE 5. Guard Ring Connections
The designer should be aware that when it is inappropriate
to lay out a PC board for the sake of just a few circuits, there
is another technique which is even better than a guard ring
on a PC board: Don’t insert the amplifier’s input pin into the
board at all, but bend it up in the air and use only air as an insulator. Air is an excellent insulator. In this case you may
have to forego some of the advantages of PC board con-
DS011235-10
(b) Non-Inverting Amplifier
DS011235-12
(d) Howland Current Pump
struction, but the advantages are sometimes well worth the
effort of using point-to-point up-in-the-air wiring. See
6
.
Figure
www.national.com9
Application Hints (Continued)
(Input pins are lifted out of PC board and soldered directly to components.
All other pins connected to PC board.)
DS011235-13
FIGURE 6. Air Wiring
BIAS CURRENT TESTING
Figure 7
The test method of
is appropriate for bench-testing
bias current with reasonable accuracy. Tounderstand its operation, first close switch S2 momentarily. When S2 is
opened, then
Typical Single-Supply Applications (V
Photodiode Current-to-Voltage Converter
DS011235-14
FIGURE 7. Simple Input Bias Current Test Circuit
A suitable capacitor for C2 would bea5pFor10pFsilver
mica, NPO ceramic, or air-dielectric. When determining the
magnitude of I
−
, the leakage of the capacitor and socket
must be taken into account. Switch S2 should be left shorted
most of the time, or else the dielectric absorption of the capacitor C2 could cause errors.
Similarly, if S1 is shorted momentarily (while leaving S2
shorted)
where Cxis the stray capacitance at the +input.
+
=
5.0 V
)
DC
Micropower Current Source
Note 14: A 5V bias on the photodiode can cut its capacitance by a factor of
2 or 3, leading to improved response and lower noise. However, this bias on
the photodiode will cause photodiode leakage (also known as its dark current).
www.national.com 10
DS011235-15
(Upper limit of output range dictated by input common-mode range; lower
limit dictated by minimum current requirement of LM385.)
DS011235-16
Typical Single-Supply Applications (V
Low-Leakage Sample-and-Hold
Instrumentation Amplifier
+
=
5.0 V
) (Continued)
DC
DS011235-17
If R1=R5, R3=R6, and R4=R7;
Then
∴
AV≈ 100 for circuit shown.
For good CMRR over temperature, low drift resistors should be used. Matching of R3 to R6 and R4 to R7 affects CMRR. Gain may be adjusted through R2.
CMRR may be adjusted through R7.
=
f
10 Hz
O
Q=2.1
Gain=−8.8
10 Hz Bandpass Filter
DS011235-19
=
f
c
d=0.895
Gain=1
10 Hz High-Pass Filter (2 dB Dip)
10 Hz
DS011235-18
DS011235-20
www.national.com11
Typical Single-Supply Applications (V
+
=
5.0 V
) (Continued)
DC
1 Hz Low-Pass Filter (Maximally Flat, Dual Supply
Only)
DS011235-21
High Gain Amplifier with Offset Voltage Reduction
Gain=−46.8
Output offset voltage reduced to the
level of the input offset voltage of
the bottom amplifier (typically 1 mV),
referred to V
BIAS
.
DS011235-22
www.national.com 12

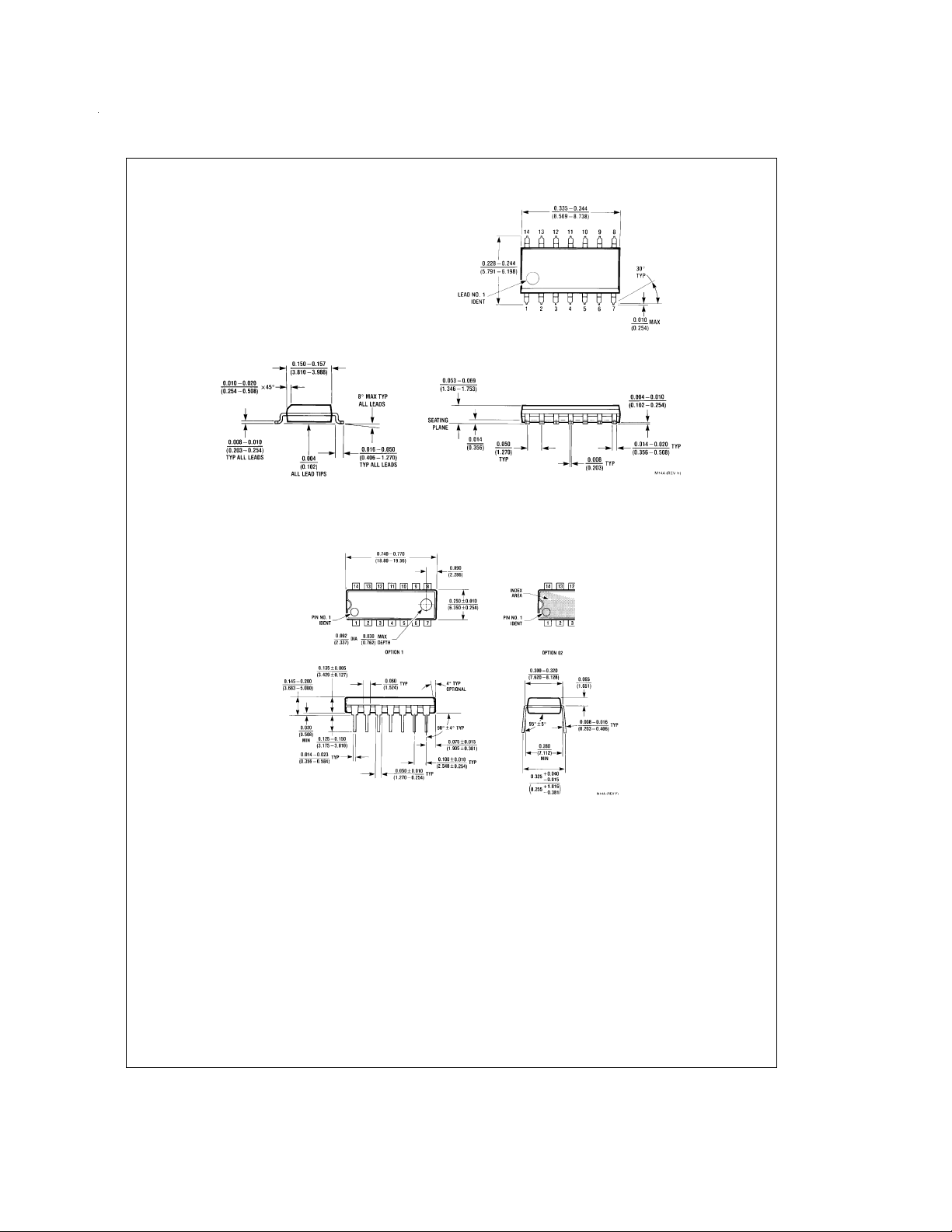

Physical Dimensions inches (millimeters) unless otherwise noted
14-Pin Small Outline Molded Package (M)
Order Number LMC6024IM
NS Package Number M14A
14-Pin Molded Dual-In-Line Package (N)
Order Number LMC6024IN
NS Package Number N14A
www.national.com13
LMC6024 Low Power CMOS Quad Operational Amplifier
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, and whose failure to perform when properly used in accordance
with instructions for use provided in the labeling, can
be reasonably expected to result in a significant injury
to the user.
National Semiconductor
Corporation
Americas
Tel: 1-800-272-9959
Fax: 1-800-737-7018
Email: support@nsc.com
www.national.com
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
National Semiconductor
Europe
Fax: +49 (0) 1 80-530 85 86
Email: europe.support@nsc.com
Deutsch Tel: +49 (0) 1 80-530 85 85
English Tel: +49 (0) 1 80-532 78 32
Français Tel: +49 (0) 1 80-532 93 58
Italiano Tel: +49 (0) 1 80-534 16 80
2. A critical component is any component of a life support
device or system whose failure to perform can be reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
National Semiconductor
Asia Pacific Customer
Response Group
Tel: 65-2544466
Fax: 65-2504466
Email: sea.support@nsc.com
National Semiconductor
Japan Ltd.
Tel: 81-3-5639-7560
Fax: 81-3-5639-7507
Loading...
