National Semiconductor LM4549B Technical data

September 2006
LM4549B AC ’97 Rev 2.1 Multi-Channel Audio Codec with Sample Rate Conversion and National 3D Sound
LM4549B AC ’97 Rev 2.1 Multi-Channel Audio Codec with Sample Rate Conversion and National
3D Sound

General Description

The LM4549B is an audio codec for PC systems which is fully PC99 compliant and performs the analog intensive functions of the AC ’97 Rev 2.1 architecture. Using 18-bit Sigma-Delta ADCs and DACs, the LM4549B provides 90 dB of Dynamic Range.
The LM4549B was designed specifically to provide a high quality audio path and provide all analog functionality in a PC audio system. It features full duplex stereo ADCs and DACs and analog mixers with access to 4 stereo and 4 mono inputs. Each mixer input has separate gain, attenuation and mute control and the mixers drive 1 mono and 2 stereo outputs, each with attenuation and mute control. The LM4549B supports National’s 3D Sound stereo enhance­ment and a comprehensive sample rate conversion capabil­ity. The sample rate for the ADCs and DACs can be pro­grammed separately with a resolution of 1 Hz to convert any rate in the range 4 kHz – 48 kHz. Sample timing from the ADCs and sample request timing for the DACs are com­pletely deterministic to ease task scheduling and application software development. These features together with an ex­tended temperature range also make the LM4549B suitable for non-PC codec applications.
The LM4549B features the ability to connect several codecs together using the Extended AC Link configuration of one dedicated serial data signal to the Controller per codec. LM4549B systems support up to 8 simultaneous channels of streaming data on Input Frames (Codec to Controller) while Output Frames (Controller to Codec) carry 2 streams to multiple codecs. The LM4549B may also be used in systems with the National LM4550B to support up to 6 simultaneous channels of streaming data on Output Frames.
The AC ’97 architecture separates the analog and digital functions of the PC audio system allowing both for system design flexibility and increased performance.

Key Specifications

n Analog Mixer Dynamic Range 97 dB (typ) n DAC Dynamic Range 89 dB (typ) n ADC Dynamic Range 90 dB (typ)

Features

n AC ’97 Rev 2.1 compliant n High quality Sample Rate Conversion from 4 kHz to 48
kHz in 1 Hz increments
n Multiple codec support n True Line Level Output with separate gain control n National’s 3D Sound stereo enhancement circuitry n Advanced power management support n External Amplifier Power Down (EAPD) control n PC-Beep passthrough to Line Out during Initialization or
Cold Reset
n Digital 3.3V and 5V supply options n Extended Temperature: −40˚C T
85˚C
A

Applications

n Desktop PC audio systems on PCI cards, AMR cards, or
with motherboard chips sets featuring AC Link
n Portable PC systems as on MDC cards, or with a
chipset or accelerator featuring AC Link
n General and Multi-channel audio frequency systems n Automotive Telematics
© 2006 National Semiconductor Corporation DS201235 www.national.com
LM4549B
20123501

Block Diagram

www.national.com 2
LM4549B

Absolute Maximum Ratings (Note 1)

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Supply Voltage 6.0V
Soldering Information
LQFP Package
Vapor Phase (60 sec.) 215˚C
Infrared (15 sec.) 220˚C
θ
(typ) – VBH48A 74˚C/W
JA
Storage Temperature −65˚C to +150˚C
Input Voltage −0.3V to V
DD
+0.3V

Operating Ratings

ESD Susceptibility (Note 2) 2000V
pin 3 750V
ESD Susceptibility (Note 3) 200V
pin 3 100V
Junction Temperature 150˚C

Electrical Characteristics (Notes 1, 5) The following specifications apply for AV

48 kHz, single codec configuration, (primary mode) unless otherwise noted. Limits apply for T
Temperature Range
T
MIN
TA≤ T
(Note 4) −40˚C TA≤ 85˚C
MAX
Analog Supply Range 4.2V AV
Digital Supply Range 3.0V DV
= 5V, DVDD= 3.3V, Fs =
DD
= 25˚C. The reference for 0 dB
A
DD
DD
5.5V
5.5V
is 1 Vrms unless otherwise specified.
Units
(Limits)
Symbol Parameter Conditions
AV
DD
Analog Supply Range 4.2 V (min)
LM4549B
Typical
(Note 6)
Limit
(Note 7)
5.5 V (max)
DV
DD
Digital Supply Range 3.0 V (min)
5.5 V (max)
= 5 V 34 mA
D
A
I
I
V
DSD
ASD
IDD
IDD
REF
Digital Quiescent Power Supply Current
Analog Quiescent Power Supply Current
Digital Shutdown Current PR543210 = 111111 19 µA
Analog Shutdown Current PR543210 = 111111 70 µA
Reference Voltage No pullup resistor 2.16 V
DV
DD
DV
= 3.3 V 19 mA
DD
= 5.5 V 53 mA
AV
DD
PSRR Power Supply Rejection Ratio 40 dB
Analog Loopthrough Mode (Note 8)
Dynamic Range (Note 9)
THD Total Harmonic Distortion V
CD Input to Line Output, -60 dB Input THD+N
=-3dB,f=1kHz, RL=10k 0.013 0.02 % (max)
O
97 90 dB (min)
Analog Input Section
V
IN
V
IN
V
IN
Line Input Voltage
Mic Input with 20 dB Gain 0.1 Vrms
Mic Input with 0 dB Gain 1 Vrms
LINE_IN, AUX, CD, VIDEO, PC_BEEP, PHONE
1 Vrms
Xtalk Crosstalk CD Left to Right -95 dB
Z
IN
C
IN
Input Impedance(Note 9) All Analog Inputs 40 10 k(min)
Input Capacitance(Note 9) 3.7 7 pF
Interchannel Gain Mismatch CD Left to Right 0.1 dB
Record Gain Amplifier - ADC
A
S
A
M
Step Size 0 dB to 22.5 dB 1.5 dB
Mute Attenuation (Note 9) 86 dB
Mixer Section
A
S
A
M
Step Size +12 dB to -34.5 dB 1.5 dB
Mute Attenuation 86 dB
www.national.com3
Electrical Characteristics (Notes 1, 5) The following specifications apply for AV
48 kHz, single codec configuration, (primary mode) unless otherwise noted. Limits apply for T is 1 Vrms unless otherwise specified. (Continued)
LM4549B
= 5V, DVDD= 3.3V, Fs =
DD
= 25˚C. The reference for 0 dB
A
Symbol Parameter Conditions
Analog to Digital Converters
Resolution 18 Bits
Dynamic Range (Note 9) -60 dB Input THD+N, A-Weighted 90 86 dB (min)
Frequency Response -1 dB Bandwidth 20 kHz
Digital to Analog Converters
Resolution 18 Bits
Dynamic Range (Note 9) -60 dB Input THD+N, A-Weighted 89 82 dB (min)
THD Total Harmonic Distortion V
=-3dB,f=1kHz, RL=10k 0.01 %
IN
Frequency Response 20 - 21 k Hz
Group Delay (Note 9) Sample Frequency = 48 kHz 0.36 1 ms (max)
Out of Band Energy (Note 10) -40 dB
Stop Band Rejection 70 dB
D
T
Discrete Tones -96 dB
Analog Output Section
A
S
A
M
Z
OUT
Step Size 0 dB to -46.5 dB 1.5 dB
Mute Attenuation 86 dB
Output Impedance (Note 9) All Analog Outputs 220
Digital I/O (Note 9)
V
IH
V
IL
V
OH
V
OL
I
L
I
L
C
IN
I
DR
High level input voltage
Low level input voltage
High level output voltage IO= −2.5 mA.
Low level output voltage IO= 2.5 mA.
Input Leakage Current AC Link inputs
Tri state Leakage Current High impedance AC Link outputs
AC-Link I/O capacitance(Note 9) SDout, BitClk, SDin, Sync, Reset# only 4 7.5 pF (max)
Output drive current AC Link outputs 5 mA
Digital Timing Specifications (Note 9)
F
BC
T
BCP
T
CH
F
SYNC
T
SP
T
SH
T
SL
T
DSETUP
T
DHOLD
T
SSETUP
BIT_CLK frequency 12.288 MHz
BIT_CLK period 81.4 ns
BIT_CLK high
Variation of BIT_CLK duty cycle from 50%
SYNC frequency 48 kHz
SYNC period 20.8 µs
SYNC high pulse width 1.3 µs
SYNC low pulse width 19.5 µs
Setup Time for codec data input SDATA_OUT to falling edge of BIT_CLK 3.5 10 ns (min)
Hold Time for codec data input(Note9)Hold time of SDATA_OUT from falling
edge of BIT_CLK
Setup Time for codec SYNC input(Note 9)
SYNC to falling edge of BIT_CLK 3.8 10 ns (min)
LM4549B
Typical
(Note 6)
Limit
(Note 7)
0.65 x DV
0.35 x DV
0.90 x DV
0.10 x DV
±
10 µA
±
10 µA
±
20 % (max)
(Limits)
V (min)
DD
V (max)
DD
V (min)
DD
V (max)
DD
5.3 10 ns (min)
Units
www.national.com 4
LM4549B
Electrical Characteristics (Notes 1, 5) The following specifications apply for AV
48 kHz, single codec configuration, (primary mode) unless otherwise noted. Limits apply for T
= 5V, DVDD= 3.3V, Fs =
DD
= 25˚C. The reference for 0 dB
A
is 1 Vrms unless otherwise specified. (Continued)
Symbol Parameter Conditions
T
SHOLD
T
CO
T
RISE
T
FALL
T
RST_LOW
T
RST2CLK
T
SH
T
SYNC2CLK
T
S2_PDOWN
T
SUPPLY2RST
T
SU2RST
T
RST2HZ
Note 1: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is functional, but do not guarantee specific performance limits. Electrical Characteristics state DC andAC electrical specifications under particular test conditions which guarantee specific performance limits. This assumes that the device is within the Operating Ratings. Specifications are not guaranteed for parameters where no limit is given, however, the typical value is a good indication of device performance.
Note 2: Human body model, 100 pF discharged through a 1.5 kresistor.
Note 3: Machine Model, 220 pF – 240 pF discharged through all pins.
Note 4: The maximum power dissipation must be derated at elevated temperatures and is dictated by T
allowable power dissipation is P The typical junction-to-ambient thermal resistance is 74˚C/W for package number VBH48A.
Note 5: All voltages are measured with respect to the ground pin, unless otherwise specified.
Note 6: Typicals are measured at 25˚C and represent the parametric norm.
Note 7: Limits are guaranteed to National’s AOQL (Average Outgoing Quality Level).
Note 8: Loopthrough mode describes a path from an analog input through the analog mixer to an analog output
Note 9: These specifications are guaranteed by design and characterization; they are not production tested.
Note 10: Out of band energy is measured from 28.8 kHz to 100 kHz relative toa1VrmsDACoutput.
Hold Time for codec SYNC inpu(Note 9)t
Output Valid Delay
Rise Time(Note 9)
Fall Time(Note 9)
RESET# active low pulse width(Note
9)
RESET# inactive to BIT_CLK start up
SYNC active high pulse width(Note
9)
SYNC inactive to BIT_CLK start up For Warm Reset 162.8 ns (min)
AC Link Power Down Delay
Power On Reset
Setup to trailing edge of RESET#(Note 9)
Rising edge of RESET# to Hi-Z(Note 9)
DMAX
=(T
)/θJAor the number given in Absolute Maximum Ratings, whichever is lower. For the LM4549B, T
JMAX–TA
Hold time of SYNC from falling edge of BIT_CLK
Output Delay of SDATA_IN from rising edge of BIT_CLK
BIT_CLK, SYNC, SDATA_IN or SDATA_OUT
BIT_CLK, SYNC, SDATA_IN or SDATA_OUT
For Cold Reset 1.0 µs (min)
For Cold Reset 271 162.8 ns (min)
For Warm Reset 1.0 µs (min)
Delay from end of Slot 2 to BIT_CLK, SDATA_IN low
Time from minimum valid supply levels to end of Reset
For ATE Test Mode 15 ns (min)
For ATE Test Mode 25 ns (max)
, θJA, and the ambient temperature TA. The maximum
JMAX
LM4549B
Typical
(Note 6)
Limit
(Note 7)
(Limits)
10 ns (min)
5.2 15 ns (max)
6 ns (max)
6 ns (max)
1 µs (max)
1 µs (min)
= 150˚C.
JMAX
Units
www.national.com5

Timing Diagrams

LM4549B
Clocks Data Delay, Setup and Hold
20123510
20123511
Digital Rise and Fall Legend
20123530
20123512
Power On Reset
Cold Reset
Warm Reset
www.national.com 6
20123529
20123513
20123514

Typical Application

LM4549B
20123503

FIGURE 1. LM4549B Typical Application Circuit, Single Codec, 1 Vrms inputs

APPLICATION HINTS

The LM4549B must be initialized by using RESET# to perform a Power On Reset as shown in the Power On Reset Timing
Diagram Don’t leave unused Analog inputs floating. Tie all unused inputs together and connect to Analog Ground through a capacitor
(e.g. 0.1 µF) Do not leave CD_GND floating when using the CD stereo input. CD_GND is the AC signal reference for the CD channels and
should be connected to the CD source ground (Analog Ground may also be acceptable) througha1µFcapacitor If using a non-standard AC Link controller take care to keep the SYNC and SDATA_IN signals low during Cold Reset to avoid
entering the ATE or Vendor test modes by mistake. The PC_Beep input should be muted if not used since it defaults to 0 dB gain on reset, unlike the mute default of the other
analog inputs
www.national.com7
LM4549B
20123525
Typical Application (Continued)
www.national.com 8
FIGURE 2. LM4549B Reference Design, Typical Application, Single Codec, 1 Vrms and 2 Vrms inputs, EMC output filters

Connection Diagram

LM4549B

Pin Descriptions

Name Pin I / O
PC_BEEP 12 I
PHONE 13 I
Top View
20123502
Order Number LM4549BVH
See NS Package Number VBH48A

ANALOG I/O

Functional Description
Mono Input This line level (1 Vrms nominal) mono input is mixed equally into both channels of the Stereo Mix signal at MIX2 under the control of the PC_Beep Volume control register, 0Ah. The PC_BEEP level can be muted or adjusted from 0 dB to -45 dB in 3 dB steps. The Stereo Mix signal feeds both the Line Out and Line Level Out analog outputs and is also selectable at the Record Select Mux. During Initialization or Cold Reset, (reset pin held active low), PC_BEEP is switched directly to both channels of the Line Out stereo output, bypassing all volume controls. This allows signals such as PC power-on self-test tones to be heard through the PC’s audio system before the codec registers are configured.
Mono Input This line level (1 Vrms nominal) mono input is selectable at the Record Select Mux for conversion by either channel of the stereo ADC. It can also be mixed equally into both channels of the Stereo Mix signal at MIX2 under the control of the Phone Volume register, 0Ch. The PHONE level can be muted or adjusted from +12 dB to -34.5 dB in 1.5 dB steps. The Stereo Mix signal feeds both the Line Out and Line Level Out analog stereo outputs and is also selectable at the Record Select Mux.
www.national.com9
Pin Descriptions (Continued)
LM4549B
Name Pin I / O
AUX_L 14 I
AUX_R 15 I
VIDEO_L 16 I
VIDEO_R 17 I
CD_L 18 I
CD_GND 19 I
CD_R 20 I
ANALOG I/O (Continued)
Functional Description
Left Stereo Channel Input This line level input (1 Vrms nominal) is selectable at the left channel of the stereo Record Select Mux for conversion by the left channel ADC. It can also be mixed into the left channel of the Stereo Mix 3D signal at MIX1 under the control of the Aux Volume register, 16h. The AUX_L level can be muted (along with AUX_R) or adjusted from +12 dB to -34.5 dB in 1.5 dB steps. Stereo Mix 3D is combined into the Stereo Mix signal at MIX2 for access to the stereo outputs Line Out and Line Level Out.
Right Stereo Channel Input This line level input (1 Vrms nominal) is selectable at the right channel of the stereo Record Select Mux for conversion by the right channel ADC. It can also be mixed into the right channel of the Stereo Mix 3D signal at MIX1 under the control of the Aux Volume register, 16h. The AUX_R level can be muted (along with AUX_L) or adjusted from +12 dB to -34.5 dB in 1.5 dB steps. Stereo Mix 3D is combined into the Stereo Mix signal at MIX2 for access to the stereo outputs Line Out and Line Level Out.
Left Stereo Channel Input This line level input (1 Vrms nominal) is selectable at the left channel of the stereo Record Select Mux for conversion by the left channel ADC. It can also be mixed into the left channel of the Stereo Mix 3D signal at MIX1 under the control of the Video Volume register, 14h. The VIDEO_L level can be muted (along with VIDEO_R) or adjusted from +12 dB to -34.5 dB in
1.5 dB steps. Stereo Mix 3D is combined into the Stereo Mix signal at MIX2 for access to the stereo outputs Line Out and Line Level Out.
Right Stereo Channel Input This line level input (1 Vrms nominal) is selectable at the right channel of the stereo Record Select Mux for conversion by the right channel ADC. It can also be mixed into the right channel of the Stereo Mix 3D signal at MIX1 under the control of the Video Volume register, 14h. The VIDEO_R level can be muted (along with VIDEO_L) or adjusted from +12 dB to
-34.5 dB in 1.5 dB steps. Stereo Mix 3D is combined into the Stereo Mix signal at MIX2 for access to the stereo outputs Line Out and Line Level Out.
Left Stereo Channel Input This line level input (1 Vrms nominal) is selectable at the left channel of the stereo Input Mux for conversion by the left channel ADC. It can also be mixed into the left channel of the Stereo Mix 3D signal at MIX1 under the control of the CD Volume register, 12h. The CD_L level can be muted (along with CD_R) or adjusted from +12 dB to -34.5 dB in 1.5 dB steps. Stereo Mix 3D is mixed into the Stereo Mix signal at MIX2 for access to the stereo outputs Line Out and Line Level Out.
AC Ground Reference This input is the reference for the signals on both CD_L and CD_R. CD_GND is not a DC ground and should be AC-coupled to the stereo source ground common to both CD_L and CD_R. The three inputs, CD_GND, CD_L and CD_R act together as a quasi-differential stereo input with CD_GND providing AC common-mode feedback to reject ground noise. This can improve the input SNR for a stereo source with a good common ground but precision resistors may be needed in any external attenuators to achieve the necessary balance between the two channels.
Right Stereo Channel Input This line level input (1 Vrms nominal) is selectable at the right channel of the stereo Input Mux for conversion by the right channel ADC. It can also be mixed into the right channel of the Stereo Mix 3D signal at MIX1 under the control of the CD Volume register, 12h. The CD_R level can be muted (along with CD_L) or adjusted from +12 dB to -34.5 dB in 1.5 dB steps. Stereo Mix 3D is combined into the Stereo Mix signal at MIX2 for access to the stereo outputs Line Out and Line Level Out.
www.national.com 10
Pin Descriptions (Continued)
LM4549B
ANALOG I/O (Continued)
Name Pin I / O
MIC1 21 I
MIC2 22 I
LINE_IN_L 23 I
LINE_IN_R 24 I
LINE_OUT_L 35 O
LINE_OUT_R 36 O
MONO_OUT 37 O
Functional Description
Mono microphone input Either MIC1 or MIC2 can be muxed to a programmable boost amplifier with selection by the MS bit (bit D8) in the General Purpose register, 20h. The boost amplifier gain (0 dB or 20 dB) is set by the 20dB bit (D6) in the Mic Volume register, 0Eh. Nominal input levels at the two gain settings are 1 Vrms and 0.1 Vrms respectively. The amplifier output is selectable (Record Select register, 1Ah) by either the right or left channels of the Record Select Mux for conversion on either or both channels of the stereo ADCs. The amplifier output can also be accessed at the stereo mixer MIX1 (muting and mixing adjustments via Mic Volume register, 0Eh) where it is mixed equally into both left and right channels of Stereo Mix 3D for access to the stereo outputs Line Out and Line Level Out. Access to the Mono analog output is selected by a mux controlled by the MIX bit (D9) in General Purpose register, 20h.
Mono microphone input Either MIC1 or MIC2 can be muxed to a programmable boost amplifier with selection by the MS bit (bit D8) in the General Purpose register, 20h. The boost amplifier gain (0 dB or 20 dB) is set by the 20dB bit (D6) in the Mic Volume register, 0Eh. Nominal input levels at the two gain settings are 1 Vrms and 0.1 Vrms respectively. The amplifier output is selectable (Record Select register, 1Ah) by either the right or left channels of the Record Select Mux for conversion on either or both channels of the stereo ADCs. The amplifier output can also be accessed at the stereo mixer MIX1 (muting and mixing adjustments via Mic Volume register, 0Eh) where it is mixed equally into both left and right channels of Stereo Mix 3D for access to the stereo outputs Line Out and Line Level Out. Access to the Mono analog output is selected by a mux controlled by the MIX bit (D9) in General Purpose register, 20h.
Left Stereo Channel Input This line level input (1 Vrms nominal) is selectable at the left channel of the stereo Record Select Mux for conversion by the left channel ADC. It can also be mixed into the left channel of the Stereo Mix 3D signal at MIX1 under the control of the Line In Volume register, 10h. The LINE_IN_L level can be muted (along with LINE_IN_R) or adjusted from +12 dB to -34.5 dB in 1.5 dB steps. Stereo Mix 3D is combined into the Stereo Mix signal at MIX2 for access to the stereo outputs Line Out and Line Level Out.
Right Stereo Channel Input This line level input (1 Vrms nominal) is selectable at the right channel of the stereo Input Mux for conversion by the right channel ADC. It can also be mixed into the right channel of the Stereo Mix 3D signal at MIX1 under the control of the Line In Volume register, 10h. The LINE_IN_R level can be muted (along with LINE_IN_L) or adjusted from +12 dB to -34.5 dB in 1.5 dB steps. Stereo Mix 3D is combined into the Stereo Mix signal at MIX2 for access to the stereo outputs Line Out and Line Level Out.
Left Stereo Channel Output This line level output (1 Vrms nominal) is fed from the left channel of the Stereo Mix signal from MIX2 via the Master Volume register, 02h. The LINE_OUT_L amplitude can be muted (along with LINE_OUT_R) or adjusted from 0 dB to -46.5 dB in 1.5 dB steps.
Right Stereo Channel Output This line level output (1 Vrms nominal) is fed from the right channel of the Stereo Mix signal from MIX2 via the Master Volume register, 02h. The LINE_OUT_R amplitude can be muted (along with LINE_OUT_L) or adjusted from 0 dB to -46.5 dB in 1.5 dB steps.
Mono Output This mono line level output (1 Vrms nominal) is fed from either a microphone input (MIC1 or MIC2, after boost amplifier) or from the mono sum of the left and right Stereo Mix 3D channels from MIX1. The optional National 3D Sound enhancement can be disabled (default) by the 3D bit (bit D13) in the General Purpose register, 20h. Choice of input is by the MIX bit (D9) in the same register. MIX=0 selects a microphone input. Output level can be muted or adjusted from 0 dB to -46.5 dB in 1.5 dB steps via the Mono Volume register, 06h.
www.national.com11
Pin Descriptions (Continued)
LM4549B
Name Pin I / O
LNLVL_OUT_L 39 O
LNLVL_OUT_R 41 O
Name Pin I / O Functional Description
XTL_IN 2 I
XTL_OUT 3 O
SDATA_OUT 5 I
BIT_CLK 6 I/O
SDATA_IN 8 O
SYNC 10 I
ANALOG I/O (Continued)
Functional Description
Left Stereo Channel Output This line level output (1 Vrms nominal) is fed from the left channel of the Stereo Mix signal from MIX2 via the Line Level Volume register, 04h. The LNLVL_OUT_L amplitude can be muted (along with LNLVL_OUT_R) or adjusted from 0 dB to - 46.5 dB in 1.5 dB steps
Right Stereo Channel Output This line level output (1 Vrms nominal) is fed from the right channel of the Stereo Mix signal from MIX2 via the Line Level Volume register, 04h. The LNLVL_OUT_R amplitude can be muted (along with LNLVL_OUT_L) or adjusted from 0 dB to - 46.5 dB in 1.5 dB steps

DIGITAL I/O AND CLOCKING

24.576 MHz crystal or oscillator input To complete the oscillator circuit use a fundamental mode crystal operating in parallel resonance and connect a 1Mresistor across pins 2 and 3. Choose the load capacitors (Figure 2, C1, C2) to suit the crystal (e.g. C1 = C2 = 33 pF for a crystal designed for a 20 pF load. Assumes that each ’Input + trace’ capacitance=7pF) This pin may also be used as the input for an external oscillator (24.576 MHz nominal) at standard logic levels (V This pin is only used when the codec is in Primary mode. It may be left open (NC) for any Secondary mode.
24.576 MHz crystal output Used with XTAL_IN to configure a crystal oscillator. When the codec is used with an external oscillator this pin should be left open (NC). When the codec is configured in a Secondary mode this pin is not used and may be left open (NC).
Input to codec This is the input for AC Link Output Frames from an AC ’97 Digital Audio Controller to the LM4549B codec. These frames can contain both control data and DAC PCM audio data. This input is sampled by the LM4549B on the falling edge of BIT_CLK.
AC Link clock An OUTPUT when in Primary Codec mode. This pin provides a 12.288 MHz clock for the AC Link. The clock is derived (internally divided by two) from the 24.576 MHz signal at the crystal input (XTL_IN). This pin is an INPUT when the codec is configured in any of the Secondary Codec modes and would normally use the AC Link clock generated by a Primary Codec.
Output from codec This is the output for AC Link Input Frames from the LM4549B codec to an AC ’97 Digital Audio Controller. These frames can contain both codec status data and PCM audio data from the ADCs. The LM4549B clocks data from this output on the rising edge of BIT_CLK.
AC Link frame marker and Warm Reset This input defines the boundaries of AC Link frames. Each frame lasts 256 periods of BIT_CLK. In normal operation SYNC is a 48 kHz positive pulse with a duty cycle of 6.25% (16/256). SYNC is sampled on the falling edge of BIT_CLK and the codec takes the first positive sample of SYNC as defining the start of a new AC Link frame. If a subsequent SYNC pulse occurs within 255 BIT_CLK periods of the frame start it will be ignored. SYNC is also used as an active high input to perform an (asynchronous) Warm Reset. Warm Reset is used to clear a power down state on the codec AC Link interface.
IH,VIL
).
www.national.com 12
Pin Descriptions (Continued)
DIGITAL I/O AND CLOCKING (Continued)
Name Pin I / O Functional Description
Cold Reset This active low signal causes a hardware reset which returns the control registers and all
RESET# 11 I
ID0# 45 I
ID1# 46 I
EAPD 47 O
internal circuits to their default conditions. RESET# MUST be used to initialize the LM4549B after Power On when the supplies have stabilized. Cold Reset also clears the codec from both ATE and Vendor test modes. In addition, while active, it switches the PC_BEEP mono input directly to both channels of the LINE_OUT stereo output.
Codec Identity ID1# and ID0# determine the Codec Identity for multiple codec use. The Codec Identity configures the codec in either Primary or one of three Secondary Codec modes. These Identity pins are of inverted polarity relative to the Codec Identity bits ID1, ID0 (bits D15, D14) in the read-only Extended Audio ID register, 28h. If the ID0# pin (pin 45) is connected to ground then the ID0 bit (D14, reg 28h) will be set to “1”. Similarly, connection to DV the ID0 bit to “0”. If left open (NC), ID0# is pulled high by an internal pull-up resistor.
Codec Identity ID1# and ID0# determine the codec address for multiple codec use. The Codec Identity configures the codec in either Primary or one of three Secondary Codec modes. These Identity pins are of inverted polarity relative to the Codec Identity bits ID1, ID0 (bits D15, D14) in the read-only Extended Audio ID register, 28h. If the ID1# pin (pin 46) is connected to ground then the ID1 bit (D15, reg 28h) will be set to “1”. Similarly, connection to DV the ID1 bit to “0”. If left open (NC), ID1# is pulled high by an internal pull-up resistor.
External Amplifier Power Down control signal This output is set by the EAPD bit (bit D15) in the Powerdown Control/ Status register, 26h. As with the other logic outputs, the output voltage is set by DV connected to the shutdown pin on an external power amplifier. For normal operation the default value of EAPD = 0 will enable the external amplifier allowing an input on PC_BEEP to be heard during Cold Reset.
DD
DD
. This pin is intended to be
DD
LM4549B
will set
will set

POWER SUPPLIES AND REFERENCES

Name Pin I / O Functional Description
AV
AV
DV
DV
DV
DV
DD
SS
DD1
DD2
SS1
SS2
25 I Analog supply
26 I Analog ground
1 I Digital supply
9 I Digital supply
4 I Digital ground
7 I Digital ground
Nominal 2.2 V internal reference
V
REF
27 O
Not intended to sink or source current. Use short traces to bypass (3.3µF, 0.1µF) this pin to maximize codec performance. See text.
V
REF_OUT
28 O
Nominal 2.2 V reference output Can source up to 5 mA of current and can be used to bias a microphone.

3D SOUND AND NO-CONNECTS (NC)

Name Pin I / O Functional Description
These pins are used to complete the National 3D Sound stereo enhancement circuit. Connect a 0.022 µF capacitor between pins 3DP and 3DN. National 3D Sound can be turned on and
3DP, 3DN 33,34 O
off via the 3D bit (D13) in the General Purpose register, 20h. National 3D Sound uses a fixed-depth type stereo enhancement circuit hence the 3D Control register, 22h is read-only and is not programmable. If National 3D Sound is not needed, these pins should be left open (NC).
www.national.com13
Pin Descriptions (Continued)
LM4549B
Name Pin I / O Functional Description
NC
29, 30 31, 32 38, 40 42, 43 44, 48
NC
3D SOUND AND NO-CONNECTS (NC) (Continued)
These pins are not used and should be left open (NC). For second source applications these pins may be connected to a noise-free supply or ground (e.g. AV

Typical Performance Characteristics

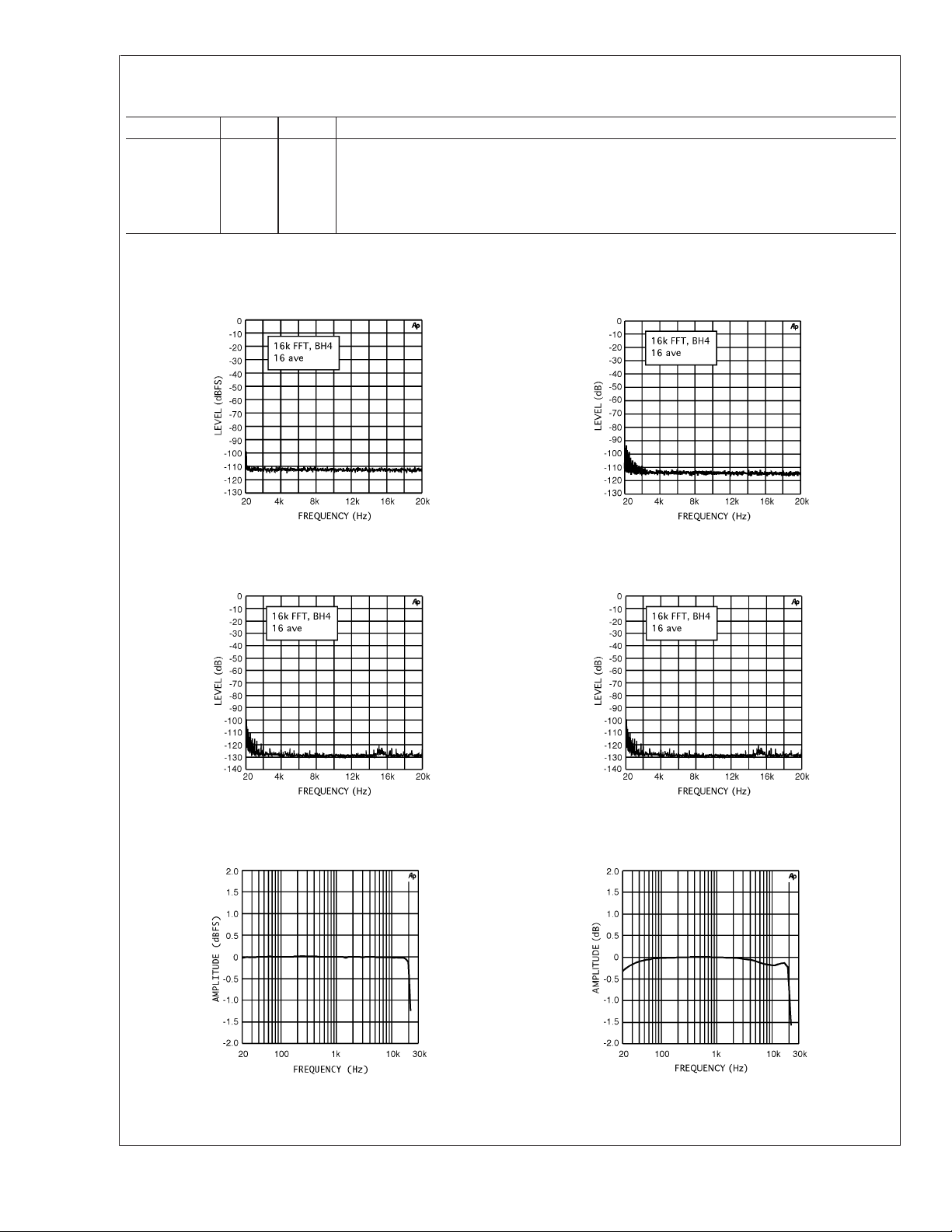

ADC Noise Floor DAC Noise Floor
20123515 20123516
or AVSS), either directly or through a capacitor.
DD
Line Out Noise Floor
(Analog Loopthrough)
ADC Frequency
Response
Line Level Out Noise Floor
(Analog Loopthrough)
20123518 20123531
DAC Frequency
Response
20123519 20123520
www.national.com 14
LM4549B
REG Name D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Default

LM4549B Register Map

00h Reset X 0001101010000000D40h
02h Master Volume Mute X ML5 ML4 ML3 ML2 ML1 ML0 X X MR5 MR4 MR3 MR2 MR1 MR0 8000h
04h Line Level Volume Mute X ML5 ML4 ML3 ML2 ML1 ML0 X X MR5 MR4 MR3 MR2 MR1 MR0 8000h
06h Mono Volume Mute XXXXXXXXXMM5MM4MM3MM2MM1MM08000h
Output Volume
0Ah PC_Beep Volume Mute XXXXXXXXXXPV3PV2PV1PV0X0000h
0Ch Phone Volume Mute XXXXXXXXXXGN4GN3GN2GN1GN08008h
10h Line In Volume Mute X X GL4 GL3 GL2 GL1 GL0 X X X GR4 GR3 GR2 GR1 GR0 8808h
0Eh Mic Volume Mute XXXXXXXX20dB X GN4 GN3 GN2 GN1 GN0 8008h
12h CD Volume Mute X X GL4 GL3 GL2 GL1 GL0 X X X GR4 GR3 GR2 GR1 GR0 8808h
14h Video Volume Mute X X GL4 GL3 GL2 GL1 GL0 X X X GR4 GR3 GR2 GR1 GR0 8808h
Input Volume
16h Aux Volume Mute X X GL4 GL3 GL2 GL1 GL0 X X X GR4 GR3 GR2 GR1 GR0 8808h
18h PCM Out Volume Mute X X GL4 GL3 GL2 GL1 GL0 X X X GR4 GR3 GR2 GR1 GR0 8808h
1Ah Record Select XXXXXSL2SL1SL0XXXXXSR2SR1SR00000h
1Ch Record Gain Mute X X X GL3 GL2 GL1 GL0 X X X X GR3 GR2 GR1 GR0 8000h
ADC Sources
3D Control
20h General Purpose POP X 3D X X X MIX MS LPBK X XXXXXX0000h
X0000001000000010101h
(Read Only)
22h
26h Powerdown Ctrl/Stat EAPD PR6 PR5 PR4 PR3 PR2 PR1 PR0 X X X X REF ANL DAC ADC 000Xh
X 24h Reserved XXXXXXXXXXXXXXXX0000h
Extended Audio
28h Extended Audio ID ID1 ID0 XXXX0 0 00XX0 X0VRAX001h
XXXXXXXXXXXXXXXVRA0000h
2Ah
Control/Status
32h PCM ADC Rate SR15 SR14 SR13 SR12 SR11 SR10 SR9 SR8 SR7 SR6 SR5 SR4 SR3 SR2 SR1 SR0 BB80h
2Ch PCM DAC Rate SR15 SR14 SR13 SR12 SR11 SR10 SR9 SR8 SR7 SR6 SR5 SR4 SR3 SR2 SR1 SR0 BB80h
X 5Ah Vendor Reserved 1 XXXXXXXXXXXXXXXX0000h
X 7Ah Vendor Reserved 3 XXXXXXXXXXXXXXXX0000h
X 74h Vendor Reserved 2 XXXXXXXXXXXXXXXX0000h
www.national.com15
7Eh Vendor ID2 01000011010010014349h
7Ch Vendor ID1 01001110010100114E53h

Functional Description

GENERAL

LM4549B
The LM4549B codec can mix, process and convert among analog (stereo and mono) and digital (AC Link format) inputs and outputs. There are four stereo and four mono analog inputs and two stereo and one mono analog outputs. A single codec supports data streaming on two input and two output channels of the AC Link digital interface simultaneously.

ADC INPUTS AND OUTPUTS

All four of the stereo analog inputs and three of the mono analog inputs can be selected for conversion by the 18-bit stereo ADC. Digital output from the left and right channel ADCs is always located in AC Link Input Frame slots 3 and 4 respectively. Input level to either ADC channel can be muted or adjusted from the Record Gain register, 1Ch. Ad­justments are in 1.5 dB steps over a gain range of 0 dB to +22.5 dB and both channels mute together (mute bit D15). Input selection for the ADC is through the Record Select Mux controlled from the Record Select register, 1Ah, together with microphone selection controlled by the MS bit (bit D8) in the General Purpose register, 20h. One of the stereo inputs, CD_IN, uses a quasi-differential 3-pin interface where both stereo channel inputs are referenced to the third pin, CD_GND. CD_GND should be AC coupled to the source ground and provides common-mode feedback to cancel ground noise. It is not a DC ground. The other three stereo inputs, LINE_IN, AUX and VIDEO are 2-pin interfaces, single-ended for each stereo channel, with analog ground
) as the signal reference. Either of the two mono
(AV
SS
microphone inputs can be muxed to a programmable boost amplifier before selection for either channel of the ADC. The Microphone Mux is controlled by the Microphone Selection (MS) bit (D8) in the General Purpose register (20h) and the 20 dB programmable boost is enabled by the 20dB bit (D6) in register 0Eh. The mono PHONE input may also be se­lected for either ADC channel.

ANALOG MIXING: MIX1

Five analog inputs are available for mixing at the stereo mixer, MIX1 – all four stereo and one mono, namely the microphone input selected by MS (D8, reg 20h). Digital input to the codec can be directed to either MIX1 or to MIX2 after conversion by the 18-bit stereo DAC and level adjustment by the PCM Out Volume control register (18h). Each input to MIX1 may be muted or level adjusted using the appropriate Mixer Input Volume Register: Mic Volume (0Eh), Line_In Volume (10h), CD Volume (12h), Video Volume (14h), Aux Volume (16h) and PCM Out Volume (18h). The mono micro­phone input is mixed equally into left and right stereo chan­nels but stereo mixing is orthogonal, i.e. left channels are only mixed with other left channels and right with right. The left and right amplitudes of any stereo input may be adjusted independently however mute for a stereo input acts on both left and right channels.

DAC MIXING AND 3D PROCESSING

Control of routing the DAC output to MIX1 or MIX2 is by the POP bit (D15) in the General Purpose register, 20h. If MIX1 is selected (default, POP=0) then the DAC output is avail­able for processing by the National 3D Sound circuitry. If MIX2 is selected, the DAC output will bypass the 3D pro­cessing. This allows analog inputs to be enhanced by the analog 3D Sound circuitry prior to mixing with digital audio. The digital audio may then use alternative digital 3D en­hancements. National 3D Sound circuitry is enabled by the
3D bit (D13) in the General Purpose register, 20h, and is a fixed depth implementation. The 3D Control register, 22h, is therefore not programmable (read-only). The 3D Sound cir­cuitry defaults to disabled after reset.

ANALOG MIXING: MIX2

MIX2 combines the output of MIX1 (Stereo Mix 3D) with the two mono analog inputs, PHONE and PC_BEEP; each are level-adjusted by the input control registers Phone Volume (0Ch) and PC_Beep Volume (0Ah) respectively. If selected by the POP bit (D15, reg 20h), the DAC output is also summed into MIX2.

STEREO MIX

The output of MIX2 is the signal, Stereo Mix. Stereo Mix is used to drive both the Line output (LINE_OUT) and the Line Level output (LNLVL_OUT) and can also be selected as the input to the ADC by the Record Select Mux. In addition, the two channels of Stereo Mix are summed to form a mono signal (Mono Mix) also selectable by the Record Select Mux as an input to either channel of the ADC.

STEREO OUTPUTS

The output volume from LINE_OUT and LNLVL_OUT can be muted or adjusted by 0 dB to 45 dB in nominal 3 dB steps under the control of the output volume registers Master Volume (02h) and Line Level Volume (04h) respectively. As with the input volume registers, adjustments to the levels of the two stereo channels can be made independently but both left and right channels share a mute bit (D15).

MONO OUTPUT

The mono output (MONO_OUT) is driven by one of two signals selected by the MIX bit (D9) in the General Purpose register, 20h. The signal selected by default (MIX = 0) is the mono summation of the two channels of Stereo Mix 3D, the stereo output of the mixer MIX1. Setting the control bit MIX = 1, selects a microphone input, MIC1 or MIC2. The choice of microphone is controlled by the Microphone Select (MS) bit (D8) also in the General Purpose register, 20h.

ANALOG LOOPTHROUGH AND DIGITAL LOOPBACK

Analog Loopthrough refers to an all-analog signal path from an analog input through the mixers to an analog output. Digital Loopback refers to a mixed-mode analog and digital signal path from an analog input through the ADC, looped­back (LPBK bit – D7, 20h) through the DAC and mixers to an analog output. This is an 18 bit digital loopback at 48 kHz, bypassing the the SRC logic even if an SRC rate other than 48 kHz is selected.

RESETS

COLD RESET is performed when RESET# (pin 11) is pulled low for internal circuits are reset to their default state. It is the only reset which clears the ATE and Vendor test modes.
WARM RESET is performed when SYNC (pin 10) is held high for powerdown (PR4 = 1, Powerdown Control / Status register, 26h). It is used to clear PR4 and power up the AC Link digital interface but otherwise does not change the contents of any internal circuitry.
>
1 µs. It is a complete reset. All registers and
>
1 µs and the codec AC Link digital interface is in
www.national.com 16
Functional Description (Continued)
REGISTER RESET is performed when any value is written to the RESET register, 00h. It resets all registers to their

AC Link Serial Interface Protocol

FIGURE 3. AC Link Bidirectional Audio Frame

LM4549B
default state and will modify circuit configurations accord­ingly but does not reset any other internal circuits.
20123504

FIGURE 4. AC Link Output Frame

AC LINK OUTPUT FRAME: SDATA_OUT, CONTROLLER OUTPUT TO LM4549B INPUT

The AC Link Output Frame carries control and PCM data to the LM4549B control registers and stereo DAC. Output Frames are carried on the SDATA_OUT signal which is an output from the AC ’97 Digital Controller and an input to the LM4549B codec. As shown in Figure 3, Output Frames are constructed from thirteen time slots: one Tag Slot followed by twelve Data Slots. Each Frame consists of 256 bits with each of the twelve Data Slots containing 20 bits. Input and Output Frames are aligned to the same SYNC transition. Note that since the LM4549B is a two channel codec, it only accepts data in 4 of the twelve Data Slots – 2 for control, one each for PCM data to the left and right channel DACs. Data Slot 3 & 4 are used to stream data to the stereo DAC for all modes selected by the Identity pins ID1#, ID0#.
A new Output Frame is signaled with a low-to-high transition of SYNC. SYNC should be clocked from the controller on a
20123506
rising edge of BIT_CLK and, as shown in Figure 4 and Figure 5, the first tag bit in the Frame (“Valid Frame”) should be clocked from the controller by the next rising edge of BIT_CLK and sampled by the LM4549B on the following falling edge. The AC ’97 Controller should always clock data to SDATA_OUT on a rising edge of BIT_CLK and the LM4549B always samples SDATA_OUT on the next falling edge. SYNC is sampled with the falling edge of BIT_CLK.
The LM4549B checks each Frame to ensure 256 bits are received. If a new Frame is detected (a low-to-high transition on SYNC) before 256 bits are received from the old Frame then the new Frame is ignored i.e. the data on SDATA_OUT is discarded until a valid new Frame is detected.
The LM4549B expects to receive data MSB first, in an MSB justified format.
www.national.com17
AC Link Serial Interface Protocol
(Continued)
LM4549B
SDATA_OUT: Slot 0 – Tag Phase
The first bit of Slot 0 is designated the "Valid Frame" bit. If this bit is 1, it indicates that the current Output Frame con­tains at least one slot of valid data and the LM4549B will check further tag bits for valid data in the expected Data Slots. With the codec in Primary mode, a controller will indicate valid data in a slot by setting the associated tag bit equal to 1. Since it is a two channel codec the LM4549B can only receive data from four slots in a given frame and so only checks the valid-data bits for 4 slots. In Primary mode these tag bits are for: slot 1 (Command Address), slot 2 (Command Data), slot 3 (PCM data for left DAC) and slot 4 (PCM data for right DAC).
The last two bits in the Tag contain the Codec ID used to select the target codec to receive the frame in multiple codec systems. When the frame is being sent to a codec in one of the Secondary modes the controller does not use bits 14 and 13 to indicate valid Command Address and Data in slots 1 and 2. Instead, this role is performed by the Codec ID bits – operation of the Extended AC Link assumes that the control­ler would not access a secondary codec unless it was pro­viding valid Command Address and/or Data. When in one of the secondary modes the LM4549B only checks the tag bits for the Codec ID and for valid data in the two audio data slots 3&4.
When sending an Output Frame to a Secondary mode co­dec, a controller should set tag bits 14 and 13 to zero.
Bit Description Comment
Right DAC data
11
10:2 Not Used
1,0
SDATA_OUT: Slot 1 – Read/Write, Control Address
Slot 1 is used by a controller to indicate both the address of a target register in the LM4549B and whether the access operation is a register read or register write. The MSB of slot 1 (bit 19) is set to 1 to indicate that the current access operation is ’read’. Bits 18 through 12 are used to specify the 7-bit register address of the read or write operation. The least significant twelve bits are reserved and should be stuffed with zeros by the AC ’97 controller.
Bits Description Comment
19 Read/Write
18:12
11:0 Reserved Controller should set to "0"
in Slot 4
Codec ID
(ID1, ID0)
SLOT 1, OUTPUT FRAME
Register Address
1 = Valid PCM Data in Slot 4
(Primary & all Secondary modes)
Controller should stuff these slots with “0”s
The codec ID is used in a multi-codec system to identify the target Secondary codec for the Control Register address and/or data sent in the Output Frame
1 = Read 0 = Write
Identifies the Status/Command register for read/write
FIGURE 5. Start of AC Link Output Frame
SLOT 0, OUTPUT FRAME
Bit Description Comment
15 Valid Frame
Control register
14
13
12
address
Control register
data
Left DAC data
in Slot 3
1 = Valid data in at least one
slot.
1 = Valid Control Address in
Slot 1 (Primary codec only)
1 = Valid Control Data in Slot
2 (Primary codec only)
1 = Valid PCM Data in Slot 3
(Primary & all Secondary modes)
20123505
SDATA_OUT: Slot 2 – Control Data
Slot 2 is used to transmit 16-bit control data to the LM4549B when the access operation is ’write’. The least significant four bits should be stuffed with zeros by the AC ’97 controller. If the access operation is a register read, the entire slot, bits 19 through 0 should be stuffed with zeros.
SLOT 2, OUTPUT FRAME
Bits Description Comment
Control
19:4
Register Write
Data
3:0 Reserved Set to "0"
SDATA_OUT: Slots3&4–PCMPlayback Left/Right Channels
Slots 3 and 4 are 20-bit fields used to transmit PCM data to the left and right channels of the stereo DAC for all codec Primary and Secondary modes. Any unused bits should be stuffed with zeros. The LM4549B DACs have 18-bit resolu­tion and will therefore use the 18 MSBs of the 20-bit PCM data (MSB justified).
Controller should stuff with zeros if operation is “read”
www.national.com 18
AC Link Serial Interface Protocol
(Continued)
SLOTS3&4,OUTPUT FRAME
Bits Description Comment
PCM DAC Data
19:0
(Left /Right
Channels)
Slots used to stream data to DACs for all Primary or Secondary modes. Set unused bits to "0"
LM4549B
SDATA_OUT: Slots 5 to 12 – Reserved
These slots are not used by the LM4549B and should all be stuffed with zeros by the AC ’97 Controller.

FIGURE 6. AC Link Input Frame

AC LINK INPUT FRAME: SDATA_IN, CONTROLLER INPUT FROM LM4549B OUTPUT

The AC Link Input Frame contains status and PCM data from the LM4549B control registers and stereo ADC. Input Frames are carried on the SDATA_IN signal which is an input to the AC ’97 Digital Audio Controller and an output from the LM4549B codec. As shown in Figure 3, Input Frames are constructed from thirteen time slots: one Tag Slot followed by twelve Data Slots. The Tag Slot, Slot 0, contains 16 bits of which 5 are used by the LM4549B. One is used to indicate that the AC Link interface is fully operational and the other 4 to indicate the validity of the data in the four of the twelve following Data Slots that are used by the LM4549B. Each Frame consists of 256 bits with each of the twelve data slots containing 20 bits.
A new Input Frame is signaled with a low-to-high transition of SYNC. SYNC should be clocked from the controller on a rising edge of BIT_CLK and, as shown in Figure 6 and Figure 7, the first tag bit in the Frame (“Codec Ready”) is clocked from the LM4549B by the next rising edge of BIT_CLK. The LM4549B always clocks data to SDATA_IN on a rising edge of BIT_CLK and the controller is expected to sample SDATA_IN on the next falling edge. The LM4549B samples SYNC on the falling edge of BIT_CLK.
Input and Output Frames are aligned to the same SYNC transition.
The LM4549B checks each Frame to ensure 256 bits are received. If a new Frame is detected (a low-to-high transition on SYNC) before 256 bits are received from an old Frame then the new Frame is ignored i.e. no valid data is sent on SDATA_IN until a valid new Frame is detected.
20123508
The LM4549B transmits data MSB first, in a MSB justified format. All reserved bits and slots are stuffed with "0"s by the LM4549B.
20123507

FIGURE 7. Start of AC Link Input Frame

SDATA_IN: Slot 0 – Codec/Slot Status Bits
The first bit (bit 15, “Codec Ready”) of slot 0 in the AC Link Input Frame indicates when the codec’s AC Link digital interface and its status/control registers are fully operational. The digital controller is then able to read the LSBs from the Powerdown Control/Stat register (26h) to determine the sta­tus of the four main analog subsections. It is important to
www.national.com19
AC Link Serial Interface Protocol
(Continued)
LM4549B
check the status of these subsections after Initialization, Cold Reset, or the use of the powerdown modes in order to minimize the risk of distorting analog signals passed before the subsections are ready.
The 4 bits 14, 13, 12 and 11 indicate that the data in slots 1, 2, 3 and 4, respectively, are valid.
SLOT 0, INPUT FRAME
Bit Description Comment
Codec Ready
15
14
13
12
11
SDATA_IN: Slot 1 – Status Address / Slot Request Bits
This slot echoes (in bits 18 – 12) the 7-bit address of the codec control/status register received from the controller as part of a read-request in the previous frame. If no read­request was received, the codec stuffs these bits with zeros.
Bits 11, 10 are Slot Request bits that support the Variable Rate Audio (VRA) capabilities of the LM4549B. For all codec Primary and Secondary modes, the left and right channels of the DAC take PCM data from slots 3 and 4 in the Output Frame respectively. The codec uses bits 11 and 10 to re­quest DAC data from these two slots. If bits 11 and 10 are set to 0, the controller should respond with valid PCM data in slots 3 and 4 of the next Output Frame. If bits 11 and 10 are set to 1, the controller should not send data.
The codec has full control of the slot request bits. By default, data is requested in every frame, corresponding to a sample rate equal to the frame rate (SYNC frequency) – 48 kHz when XTAL_IN = 24.576 MHz. To send samples at a rate below the frame rate, a controller should set VRA = 1 (bit 0 in the Extended Audio Control/Status register, 2Ah) and program the desired rate into the PCM DAC Rate register, 2Ch. Both DAC channels operate at the same sample rate. Values for common sample rates are given in the Register Description section (Sample Rate Control Registers, 2Ch, 32h) but any rate between 4 kHz and 48 kHz (to a resolution of 1 Hz) is supported. Slot Requests from the LM4549B are issued completely deterministically. For example if a sample rate of 8000 Hz is programmed into 2Ch then the LM4549B will always issue a slot request in every sixth frame. A frequency of 9600 Hz will result in a request every fifth frame while a frequency of 8800 Hz will cause slot requests to be spaced alternately five and six frames apart. This determin­ism makes it easy to plan task scheduling on a system controller and simplifies application software development.
The LM4549B will ignore data in Output Frame slots that do not follow an Input Frame with a Slot Request. For example, if the LM4549B is expecting data at a 8000 Hz rate yet the AC ’97 Digital Audio Controller continues to send data at
Bit
Slot 1 data
valid
Slot 2 data
valid
Slot 3 data
valid
Slot 4 data
valid
1 = AC Link Interface Ready
1 = Valid Status Address or
Slot Request
1 = Valid Status Data
1 = Valid PCM Data
(Left ADC)
1 = Valid PCM Data
(Right ADC)
48000 Hz, then only those one-in-six audio samples that follow a Slot Request will be used by the DAC. The rest will be discarded.
Bits 9 – 2 are request bits for slots not used by the LM4549B and are stuffed with zeros. Bits 1 and 0 are reserved and are also stuffed with zeros.
SLOT 1, INPUT FRAME
Bits Description Comment
19 Reserved Stuffed with "0" by LM4549B
Status Register
18:12
11
10
9:2
1,0 Reserved Stuffed with "0"s by LM4549B
SDATA_IN: Slot 2 – Status Data
This slot returns 16-bit status data read from a codec control/ status register. The codec sends the data in the frame fol­lowing a read-request by the controller (bit 15, slot 1 of the Output Frame). If no read-request was made in the previous frame the codec will stuff this slot with zeros.
Bits Description Comment
19:4 Status Data
3:0 Reserved Stuffed with "0"s by LM4549B
SDATA_IN: Slot 3 – PCM Record Left Channel
This slot contains sampled data from the left channel of the stereo ADC. The signal to be digitized is selected using the Record Select register (1Ah) and subsequently routed through the Record Select Mux and the Record Gain ampli­fier to the ADC.
This is a 20-bit slot and the digitized 18-bit PCM data is transmitted in an MSB justified format. The remaining 2 LSBs are stuffed with zeros.
Bits Description Comment
19:2
Index
Slot 3 Request
bit
(For left DAC
PCM data)
Slot 4 Request
bit
(For right DAC
PCM data)
Unused Slot Request bits
SLOT 2, INPUT FRAME
SLOT 3, INPUT FRAME
PCM Record Left Channel
data
Echo of the requested Status Register address.
0 = Controller should send
valid data in Slot 3 of the next Output Frame.
1 = Controller should not
send Slot 3 data.
0 = Controller should send
valid data in Slot 4 of the next Output Frame.
1 = Controller should not
send Slot 4 data.
Stuffed with "0"s by LM4549B
Data read from a codec control/status register. Stuffed with “0”s if no read-request in previous frame.
18-bit PCM sample from left ADC
www.national.com 20
LM4549B
AC Link Serial Interface Protocol
(Continued)
SLOT 3, INPUT FRAME (Continued)
Bits Description Comment
1:0 Reserved Stuffed with "0"s by LM4549B
SDATA_IN: Slot 4 – PCM Record Right Channel
This slot contains sampled data from the right channel of the stereo ADC. The signal to be digitized is selected using the Record Select register (1Ah) and subsequently routed through the Record Select Mux and the Record Gain ampli­fier to the ADC.
This is a 20-bit slot and the digitized 18-bit PCM data is transmitted in an MSB justified format. The remaining 2 LSBs are stuffed with zeros.
SLOT 4, INPUT FRAME
Bits Description Comment
PCM Record
19:2
Right Channel
data
1:0 Reserved Stuffed with "0"s by LM4549B
SDATA_IN: Slots 5 to 12 – Reserved
Slots 5 – 12 of the AC Link Input Frame are not used for data by the LM4549B and are always stuffed with zeros.
18-bit PCM sample from right ADC
www.national.com21

Register Descriptions

Default settings are indicated by *.
LM4549B

RESET REGISTER (00h)

Writing any value to this register causes a Register Reset which changes all registers back to their default values. If a read is performed on this register, the LM4549B will return a value of 0D40h. This value can be interpreted in accordance with the AC ’97 Specification to indicate that National 3D Sound is implemented and 18-bit data is supported for both the ADCs and DACs.

MASTER VOLUME REGISTER (02h)

This output register allows the output level from either chan­nel of the stereo LINE_OUT to be muted or attenuated over the range 0 dB – 46.5 dB in nominal 1.5 dB steps. There are 6 bits of volume control for each channel and both stereo channels can be individually attenuated. The mute bit (D15) acts simultaneously on both stereo channels of LINE_OUT. The AC’97 specification states that “support for the MSB of the level is optional.” All six bits may be written to the register, but if the MSB is a ’1’, the MSB is ignored and the register will be set to 0 11111. This will be the value when the register is read, allowing the software driver to detect whether the MSB is supported or not.
Mute Mx5:Mx0 Function
0 0 00000 0 dB attenuation
0 0 11111 46.5 dB attenuation
0 1 xxxxx As Written
0 0 11111 As read back
1 X XXXXX *mute
Default: 8000h

LINE LEVEL VOLUME REGISTER (04h)

This output register allows the level from both channels of LNLVL_OUT to be muted or individually attenuated over the range 0 dB to –46.5 dB in nominal 1.5 dB steps. There are 6 bits of volume control for each channel plus one mute bit. The mute bit (D15) acts on both channels. Operation of this register and LNLVL_OUT matches that of the Master Volume register and the LINE_OUT output.

MONO VOLUME REGISTER (06h)

This output register allows the level from MONO_OUT to be muted or attenuated over the range 0 dB – 46.5 dB in nominal 1.5 dB steps. There are 6 bits of volume control and one mute bit (D15). All six bits may be written to the register, but if the MSB is a 1, the MSB is ignored and the register will be set t o 0 11111. This will be the value when the register is read, allowing the software driver to detect whether the MSB is supported or not.
Mute MM5:MM0 Function
0 0 00000 0 dB attenuation
0 0 11111 46.5 dB attenuation
0 1 xxxxx As written
0 0 11111 As read back
1 X XXXXX *mute
Default: 8000h

PC BEEP VOLUME REGISTER (0Ah)

This input register adjusts the level of the mono PC_BEEP input to the stereo mixer MIX2 where it is summed equally into both channels of the Stereo Mix signal. PC_BEEP can be both muted and attenuated over a range of 0 dB to –45 dB in nominal 3 dB steps. Note that the default setting for the PC_Beep Volume register is 0 dB attenuation rather than mute.
Mute PV3:PV0 Function
0 0000 *0 dB attenuation
0 1111 45 dB attenuation
1 XXXX mute
Default: 0000h

MIXER INPUT VOLUME REGISTERS (Index 0Ch - 18h)

These input registers adjust the volume levels into the stereo mixers MIX1 and MIX2. Each channel may be adjusted over a range of +12 dB gain to –34.5 dB attenuation in 1.5 dB steps. For stereo ports, volumes of the left and right chan­nels can be independently adjusted. Muting a given port is accomplished by setting the MSB to 1. Setting the MSB to 1 for stereo ports mutes both the left and right channels. The Mic Volume register (0Eh) controls an additional 20 dB boost for the selected microphone input by setting the 20dB bit (D6).
Mute Gx4:Gx0 Function
0 0 0000 +12 dB gain
0 0 1000 0 dB gain
0 1 1111 –34.5 dB attenuation
1 X XXXX *mute
Default: 8008h (mono registers)
8808h (stereo registers)

RECORD SELECT REGISTER (1Ah)

This register independently controls the sources for the right and left channels of the stereo ADC. The default value of 0000h corresponds to selecting the (mono) Mic input for both channels.
SL2:SL0 Source for Left Channel ADC
0 *Mic input
1 CD input (L)
2 VIDEO input (L)
3 AUX input (L)
4 LINE_IN input (L)
5 Stereo Mix (L)
6 Mono Mix
7 PHONE input
SR2:SR0 Source for Right Channel ADC
0 *Mic input
1 CD input (R)
2 VIDEO input (R)
3 AUX input (R)
4 LINE_IN input (R)
5 Stereo Mix (R)
www.national.com 22
Register Descriptions (Continued)
SR2:SR0 Source for Right Channel ADC
6 Mono Mix
7 PHONE input
Default: 0000h

RECORD GAIN REGISTER (1Ch)

This register controls the input levels for both channels of the stereo ADC. The inputs come from the Record Select Mux and are selected via the Record Select Control register, 1Ah. The gain of each channel can be individually programmed from 0dB to +22.5 dB in 1.5 dB steps. Both channels can also be muted by setting the MSB to 1.

Record Gain Register (1Ch)

Mute Gx3:Gx0 Function
0 1111 22.5 dB gain
0 0000 0 dB gain
1 XXXX *mute
Default: 8000h

GENERAL PURPOSE REGISTER (20h)

This register controls many miscellaneous functions imple­mented on the LM4549B. The miscellaneous control bits include POP which allows the DAC output to bypass the National 3D Sound circuitry, 3D which enables or disables the National 3D Sound circuitry, MIX which selects the MO­NO_OUT source, MS which controls the Microphone Selec­tion mux and LPBK which connects the output of the stereo ADC to the input of the stereo DAC. LPBK provides a mixed-mode analog and digital loopback path between ana­log inputs and analog outputs. This is an 18 bit digital loop­back at 48 kHz, bypassing the SRC logic, even if a sample rate other than 48 kHz is selected.
BIT Function
POP
MIX
MS
LPBK
Default: 0000h

3D CONTROL REGISTER (22h)

This read-only (0101h) register indicates, in accordance with the AC ’97 Rev 2.1 Specification, the fixed depth and center characteristics of the National 3D Sound stereo enhance­ment.
PCM Out Path: *0 = 3D allowed
1 = 3D bypassed
National 3D Sound: *0 = off
3D
1= on
Mono output select: *0 = Mix
1 = Mic
Mic select: *0 = MIC1
1 = MIC2
ADC/DAC Loopback: *0 = No Loopback
1 = Loopback

POWERDOWN CONTROL / STATUS REGISTER (26h)

This read/write register is used both to monitor subsystem readiness and also to program the LM4549B powerdown states. The 4 LSBs indicate status and 7 of the 8 MSBs control powerdown.
The 4 LSBs of this register indicate the status of the 4 audio subsections of the codec: Reference voltage, Analog mixers and amplifiers, DAC section, ADC section. When the "Codec Ready" indicator bit in the AC Link Input Frame (SDATA_IN: slot 0, bit 15) is a "1", it indicates that the AC Link and AC ’97 registers are in a fully operational state and that control and status information can be transferred. It does NOT indicate that the codec is ready to send or receive audio PCM data or to pass signals through the analog I/O and mixers. To deter­mine that readiness, the Controller must check that the 4 LSBs of this register are set to “1” indicating that the appro­priate audio subsections are ready.
The powerdown bits PR0 – PR5 control internal subsections of the codec. They are implemented in compliance with AC ’97 Rev 2.1 to support the standard device power manage­ment states D0 – D3 as defined in the ACPI and PCI Bus Power Management Specification.
PR0 controls the powerdown state of the ADC and associ­ated sampling rate conversion circuitry. PR1 controls power­down for the DAC and the DAC sampling rate conversion circuitry. PR2 powers down the mixer circuits (MIX1, MIX2, National 3D Sound, Mono Out, Line Out). PR3 powers down V
in addition to all the same mixer circuits as PR2. PR4
REF
powers down the AC Link digital interface – see Figure 8 for signal powerdown timing. PR5 disables internal clocks. PR6 is not used. EAPD controls the External Amplifier Power­Down bit.
BIT# BIT Function: Status
0 ADC
1 DAC
1 = ADC section ready to
transmit data
1 = DAC section ready to
accept data
2 ANL 1 = Analog mixers ready
3 REF 1 = V
is up to nominal level
REF
BIT# BIT Function: Powerdown
8 PR0
1 = Powerdown ADCs and
Record Select Mux
9 PR1 1 = Powerdown DACs
10 PR2
11 PR3
12 PR4
1 = Powerdown Analog Mixer
(V
still on)
REF
1 = Powerdown Analog Mixer
(V
off)
REF
1 = Powerdown AC Link digital
interface (BIT_CLK off)
13 PR5 1 = Disable Internal Clock
14 PR6 Not Used
15 EAPD
External Amplifier PowerDown
*0 = Set EAPD Pin to 0 (pin 47)
Default: 000Fh If ready; otherwise 000Xh

EXTENDED AUDIO ID REGISTER (28h)

This read-only (X001h) register identifies which AC ’97 Ex­tended Audio features are supported. The LM4549B features VRA (Variable Rate Audio) and ID1, ID0 (Multiple Codec
LM4549B
www.national.com23
Register Descriptions (Continued)
support). VRA is indicated by a "1" in bit 0. The two MSBs,
LM4549B
ID1 and ID0, show the current Codec Identity as defined by the Identity pins ID1#, ID0#. Note that the external logic connections to ID1#, ID0# (pins 46 and 45) are inverse in polarity to the value of the Codec Identity (ID1, ID0) held in bits D15, D14. Codec mode selections are shown in the table below.
Pin 46
(ID1#)
NC/DV
NC/DV
GND NC/DV
GND GND 1 1 Secondary 3

EXTENDED AUDIO STATUS/CONTROL REGISTER (2Ah)

This read/write register provides status and control of the variable sample rate capabilities in the LM4549B. Setting the LSB of this register to "1" enables Variable Rate Audio (VRA) mode and allows DAC and ADC sample rates to be pro­grammed via registers 2Ch and 32h respectively.
BIT Function
VRA *0 = VRA off (Frame-rate sampling)
Default: 0000h

SAMPLE RATE CONTROL REGISTERS (2Ch, 32h)

These read/write registers are used to set the sample rate for the left and right channels of the DAC (PCM DAC Rate, 2Ch) and the ADC (PCM ADC Rate, 32h). When Variable Rate Audio is enabled via bit 0 of the Extended Audio Control/Status register (2Ah), the sample rates can be pro­grammed, in 1 Hz increments, to be any value from 4 kHz to 48 kHz. The value required is the hexadecimal representa­tion of the desired sample rate, e.g. 8000 is a list of the most common sample rates and the corre­sponding register (hex) values.

VENDOR ID REGISTERS (7Ch, 7Eh)

These two read-only (4E53h, 4349h) registers contain Na­tional’s Vendor ID and National’s LM45xx codec version designation. The first 24 bits (4Eh, 53h, 43h) represent the three ASCII characters “NSC” which is National’s Vendor ID
Pin 45
(ID0#)
NC/DV
DD
GND 0 1 Secondary 1
DD
D15,28h
(ID1)
DD
DD
D14,28h
(ID0)
0 0 Primary
1 0 Secondary 2
Codec Identity
1 = VRA on
= 1F40h. Below
10

Common Sample Rates

SR15:SR0 Sample Rate (Hz)
1F40h 8000
2B11h 11025
3E80h 16000
5622h 22050
AC44h 44100
*BB80h *48000
Mode
for Microsoft’s Plug and Play. The last 8 bits are the two binary coded decimal characters, 4, 9 and identify the codec to be an LM4549B.

RESERVED REGISTERS

Do not write to reserved registers. In particular, do not write to registers 24h, 5Ah, 74h and 7Ah. All registers not listed in the LM4549B Register Map are reserved. Reserved regis­ters will return 0000h if read.

Low Power Modes

The LM4549B provides 6 bits to control the powerdown state of internal analog and digital subsections and clocks. It also provides one bit intended to control an external analog power amplifier. These 7 bits (PR0 – PR5, EAPD) are lo­cated in the 8 MSBs of the Powerdown Control/Status reg­ister, 26h. The status of the four main analog subsections is given by the 4 LSBs in the same register, 26h.
The powerdown bits are implemented in compliance with AC ’97 Rev 2.1 to support the standard device power manage­ment states D0 – D3 as defined in the ACPI and PCI Bus Power Management Specification.
PR0 controls the powerdown state of the ADC and associ­ated sampling rate conversion circuitry. PR1 controls power­down for the DAC and the DAC sampling rate conversion circuitry. PR2 powers down the mixer circuits (MIX1, MIX2, National 3D Sound, Mono Out, Line Out). PR3 powers down
in addition to all the same mixer circuits as PR2. PR4
V
REF
powers down the AC Link Digital Interface – see Figure 8 for signal powerdown timing. PR5 disables internal clocks but leaves the crystal oscillator and BIT_CLK running (needed for minimum Primary mode powerdown dissipation in multi­codec systems). PR6 is not used. EAPD controls the Exter­nal Amplifier PowerDown pin (pin 47).
After a subsection has undergone a powerdown cycle, the appropriate status bit(s) in the Powerdown Control/Status register (26h) must be polled to confirm readiness. In par­ticular the startup time of the V value of the decoupling capacitors on pin 27 (3.3 µF, 0.1 µF in parallel is recommended).
When the AC Link Digital Interface is powered down the codec output signals SDATA_IN and BIT_CLK (Primary mode) are cleared to zero and no control data can be passed between controller and codec(s). This powerdown state can be cleared in two ways: Cold Reset (RESET# = 0) or Warm Reset (SYNC = 1, no BIT_CLK). Cold Reset sets all regis­ters back to their default values (including clearing PR4) whereas Warm Reset only clears the PR4 bit and restarts the AC Link Digital Interface leaving all register contents otherwise unaffected. For Warm Reset (see Timing Dia­grams), the SYNC input is used asynchronously. The LM4549B codec allows the AC Link digital interface power­down state to be cleared immediately so that its duration can be essentially as short as T
SH
However for conformance with AC ’97 Rev 2.1, Warm Reset should not be applied within four frame times of powerdown i.e. the AC Link powerdown state should be allowed to last at least 82.8 µs.
circuitry depends on the
REF
, the Warm Reset pulse width.
www.national.com 24
Low Power Modes (Continued)

FIGURE 8. AC Link Powerdown Timing

LM4549B
20123509

Improving System Performance

The audio codec is capable of dynamic range performance in excess of 90 db., but the user must pay careful attention to several factors to achieve this. A primary consideration is keeping analog and digital grounds separate, and connect­ing them together in only one place. Some designers show the connection as a zero ohm resistor, which allows naming the nets separately. Although it is possible to use a two layer board, it is recommended that a minimum of four layers be used, with the two inside layers being analog ground and digital ground. If EMI is a system consideration, then as many as eight layers have been successfully used. The 12 and 25 MHz. clocks can have significant harmonic content depending on the rise and fall times. Bypass capacitors should be very close to the package. The analog VDD pins should be supplied from a separate regulator to reduce noise. By operating the digital portion on 3.3V instead of 5V, an additional 0.5-0.7 db improvement can be obtained.
The bandgap reference and the anti-pop slow turn-on circuit were improved in the LM4549B. A pullup resistor is not required on V resistor can be left on the pc board, but the temperature coefficient will improve with no resistor on this pin. In addi­tion, the THD will improve by 0.2–0.5 dB. The external capacitor is charged by an internal current source, ramping the voltage slowly. This results in slow turn-on of the audio stages, eliminating “pops and clicks”. Thus, turn-on perfor­mance is also improved. The pullup resistor, in conjunction with the internal impedance and the external capacitor, form a frequency dependent divider from the analog supply. Noise on the analog supply will be coupled into the audio path, with approximately 30 dB. of attenuation. Although this is not a large amount if the noise on the supply is tens of millivolts, it will prevent SNR from exceeding 80 dB.
In Figure 1 and Figure 2, the input coupling capacitors are shown as 1 µF capacitors. This is only necessary for extend­ing the response down to 20 Hz. for music applications. For telematics or voice applications, thelower 3 dB. point can be much higher. Using a guaranteed input resistance of 10 k, (40 ktypical), a 0.1 µF capacitor may be used. The lower 3
, pin 27. For an existing design, the 10 k
REF
dB point will still be below 300 Hz. By using a smaller capacitor, the package size may be reduced, leading to a lower system cost.

Backwards Compatibility

The LM4549B is improved compared with the LM4549A. If it is required to build a board that will use either part, a 10 k resistor must be added from the V the LM4549A. It is not required for the LM4549B. Addition of this resistor will slightly increase the temperature coefficient of the internal bandgap reference and decrease the THD performance, but overall performance will still be better than the LM4549A. The LM4549A requires that pins 1 and 9
) connect directly to a 27 nH. inductor before going to
(DV
DD
the 3.3 Volt digital supply and the bypass capacitors. The inductor is not required for the LM4549B and should not be used.
pin (pin 27) to AVDDfor
REF

Multiple Codecs

EXTENDED AC LINK

Up to four codecs can be supported on the extended AC Link. These multiple codec implementations should run off a common BIT_CLK generated by the Primary Codec. All codecs share the AC ’97 Digital Controller output signals, SYNC, SDATA_OUT, and RESET#. Each codec, however, supplies its own SDATA_IN signal back to the controller, with the result that the controller requires one dedicated input pin per codec. (Figure 9).
By definition there can be one Primary Codec and up to three Secondary Codecs on an extended AC Link. The Primary Codec has a Codec Identity = (ID1, ID0) = ID = 00 while Secondary Codecs may have identities equal to 01, 10 or 11. The Codec Identity is used as a chip select function. This allows the Command and Status registers in any of the codecs to be individually addressed although the access mechanism for Secondary Codecs differs slightly from that for a Primary.
The Identity control pins, ID1#, ID0# (pins 46 and 45) are internally pulled up to DV
. The Codec may therefore be
DD
www.national.com25
Multiple Codecs (Continued)
configured as ’Primary’ either by leaving ID1#, ID0# open
LM4549B
(NC) or by strapping them externally to DV ply).
The difference between Primary and Secondary codec modes is in their timing source and in the Tag Bit handling in Output Frames for Command/Status register access. For a timing source, a Primary codec divides down by 2 the fre­quency of the signal on XTAL_IN and also generates this as the BIT_CLK output for the use of the controller and any Secondary codecs. Secondary codecs use BIT_CLK as an input and as their timing source and do not use XTAL_IN or XTAL_OUT. The use of Tag Bits is described below.

SECONDARY CODEC REGISTER ACCESS

For Secondary Codec access, the controller must set the tag bits for Command Address and Data in the Output Frame as invalid (i.e. equal to 0). The Command Address and Data tag bits are in slot 0, bits 14 and 13 and Output Frames are those in the SDATA_OUT signal from controller to codec. The controller must also place the non-zero value (01, 10, or
11) corresponding to the Identity (ID1, ID0) of the target Secondary Codec into the Codec ID field (slot 0, bits 1 and 0) in that same Output Frame. The value set in the Codec ID field determines which of the three possible Secondary Co­decs is accessed. Unlike a Primary Codec, a Secondary Codec will disregard the Command Address and Data tag bits when there is a match between the 2-bit Codec ID value (slot 0, bits 1 and 0) and the Codec Identity (ID1, ID0). Instead it uses the Codec-ID/Identity match to indicate that the Command Address in slot 1 and (if a “write”) the Com­mand Data in slot 2 are valid.

SLOT 0: TAG bits in Output Frames (controller to codec)

Bit1514131211109876543210
Valid
Slot 1
Slot 2
Slot 3
Slot 4
Frame
Valid
Valid
Valid
Valid
(Digital Sup-
DD
XXXXXXXXXID1ID0
When reading from a Secondary Codec, the controller must send the correct Codec ID bits (i.e. the target Codec Identity in slot 0, bits 1 and 0) along with the read-request bit (slot 1, bit 19) and target register address (slot 1, bits 18 – 12). To write to a Secondary Codec, a controller must send the correct Codec ID bits when slot 1 contains a valid target register address and “write” indicator bit and slot 2 contains valid target register data. A write operation is only valid if the register address and data are both valid and sent within the same frame. When accessing the Primary Codec, the Codec ID bits are cleared and the tag bits 14 and 13 resume their role indicating the validity of Command Address and Data in slots 1 and 2.
The use of the tag bits in Input Frames (carried by the SDATA_IN signal) is the same for Primary and Secondary Codecs.
The Codec Identity is determined by the inverting input pins ID1#, ID0# (pins 46 and 45) and can be read as the value of the ID1, ID0 bits (D15, D14) in the Extended Audio ID register, 28h of the target codec.
Slots in the AC Link Output Frame are always mapped to carry data to the left DAC channel in slot 3 and data to the right DAC channel in slot 4. Similarly, slots in AC Link Input Frames are always mapped such that PCM data from the left ADC channel is carried by slot 3 and PCM data from the right ADC channel by slot 4. Output Frames are those carried by the SDATA_OUT signal from the controller to the codec while Input Frames are those carried by the SDATA_IN signal from the codec to the controller.

Extended Audio ID register (28h): Support for Multiple Codecs

Reg Name D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Default
Extended
28h
Audio ID
www.national.com 26
ID1ID0XXXXXXXXXXXXXVRAX001h
Multiple Codecs (Continued)
LM4549B

FIGURE 9. Multiple Codecs using Extended AC Link

Test Modes

AC ’97 Rev 2.1 defines two test modes: ATE test mode and Vendor test mode. Cold Reset is the only way to exit either of them. The ATE test mode is activated if SDATA_OUT is sampled high by the trailing edge (zero-to-one transition) of RESET#. In ATE test mode the codec AC Link outputs SDATA_IN and BIT_CLK are configured to a high imped­ance state to allow tester control of the AC Link interface for
20123523
controller testing. ATE test mode timing parameters are given in the Electrical Characteristics table. The Vendor test mode is entered if SYNC is sampled high by the zero-to-one transition of RESET#. Neither of these entry conditions can occur in normal AC Link operation but care must be taken to avoid mistaken activation of the test modes when using non standard controllers.
www.national.com27

Physical Dimensions inches (millimeters) unless otherwise noted

3D Sound
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
For the most current product information visit us at www.national.com.
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT AND GENERAL COUNSEL OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant injury to the user.
BANNED SUBSTANCE COMPLIANCE
National Semiconductor follows the provisions of the Product Stewardship Guide for Customers (CSP-9-111C2) and Banned Substances and Materials of Interest Specification (CSP-9-111S2) for regulatory environmental compliance. Details may be found at: www.national.com/quality/green.
Lead free products are RoHS compliant.
LM4549B AC ’97 Rev 2.1 Multi-Channel Audio Codec with Sample Rate Conversion and National
www.national.com
National Semiconductor Americas Customer Support Center
Email: new.feedback@nsc.com Tel: 1-800-272-9959
48-Lead , LQFP,7X7X1.4mm, JEDEC (M)
Order Number LM4549BVH
NS Package Number VBH48A
2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
National Semiconductor Europe Customer Support Center
Fax: +49 (0) 180-530 85 86
Email: europe.support@nsc.com Deutsch Tel: +49 (0) 69 9508 6208 English Tel: +44 (0) 870 24 0 2171 Français Tel: +33 (0) 1 41 91 8790
National Semiconductor Asia Pacific Customer Support Center
Email: ap.support@nsc.com
National Semiconductor Japan Customer Support Center
Fax: 81-3-5639-7507 Email: jpn.feedback@nsc.com Tel: 81-3-5639-7560
Loading...
