Datasheet DP83848I Datasheet (National Semiconductor)

DP83848I PHYTER® - Industrial Temperature

DP83848I PHYTER

May 2008

Single Port 10/100 Mb/s Ethernet Physical Layer Transceiver

General Description

The DP83848I is a robust fully featured 10/100 single port Physical Layer device offering low power consumption, including several intelligent power down states. These low power modes increase overall product reliability due to decreased power dissipation. Supporting multiple intelligent power modes allows the application to use the absolute minimum amount of power needed for operation. In addition to low power, the DP83848I is optimized for cable length performance far exceeding IEEE specifications.

The DP83848I includes a 25MHz clock out. This means that the application can be designed with a minimum of external parts, which in turn results in the lowest possible total cost of the solution.

The DP83848I easily interfaces to twisted pair media via an external transformer and fully supports JTAG IEEE specification 1149.1 for ease of manufacturing. Additionally both MII and RMII are supported ensuring ease and flexibility of design.

The DP83848I features integrated sublayers to support both 10BASE-T and 100BASE-TX Ethernet protocols, which ensures compatibility and interoperability with all other standards based Ethernet solutions.

The DP83848I is offered in a small form factor (48 pin LQFP) so that a minimum of board space is needed.

Applications

• High End Peripheral Devices

• Industrial Controls and Factory Automation

• General Embedded Applications

Features

• Low-power 3.3V, 0.18µm CMOS technology

• Low power consumption < 270mW Typical

• 3.3V MAC Interface

• Auto-MDIX for 10/100 Mb/s

• Energy Detection Mode

• 25 MHz clock out

• SNI Interface (configurable)

• RMII Rev. 1.2 Interface (configurable)

• MII Serial Management Interface (MDC and MDIO)

• IEEE 802.3u MII

• IEEE 802.3u Auto-Negotiation and Parallel Detection

• IEEE 802.3u ENDEC, 10BASE-T transceivers and filters

• IEEE 802.3u PCS, 100BASE-TX transceivers and filters

• IEEE 1149.1 JTAG

• Integrated ANSI X3.263 compliant TP-PMD physical sub-

layer with adaptive equalization and Baseline Wander compensation

• Error-free Operation up to 150 meters

• Programmable LED support Link, 10 /100 Mb/s Mode, Activ-

ity, and Collision Detect

• Single register access for complete PHY status

• 10/100 Mb/s packet BIST (Built in Self Test)

• 48-pin LQFP package (7mm) x (7mm)

— Industrial Temperature Single Port 10/100 Mb/s Ethernet Physical Layer Transceiver

System Diagram

10BASE-T

MPU/CPU

PHYTER® is a registered trademark of National Semiconductor.

MII/RMII/SNI

Media Access Controller

DP83848I

10/100 Mb/s

25 MHz Clock

Source

Typical Application

Status

LEDs

Magnetics

RJ-45

100BASE-TX

MII/RMII/SNI

DP83848I

TX_CLK

TXD[3:0]

TX_EN

TX_DATA TX_CLK

SERIAL

MANAGEMENT

MDIO

MII/RMII/SNI INTERFACES

COL

MDC

CRS/CRS_DV

RX_ER

RX_CLK

RX_DV

RX_CLK

RXD[3:0]

RX_DATA

MII

10BASE-T &

100BASE-TX

Transmit Block

Registers

Auto-Negotiation

State Machine

10BASE-T &

100BASE-TX

Receive Block

Boundary

Scan

JTAG

DAC

Clock

Generation

Auto-MDIX

TD±

Figure 1. DP83848I Functional Block Diagram

LEDS

RD±

REFERENCE CLOCK

ADC

LED

Drivers

www.national.com 2

1.0 Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.1 Serial Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

1.2 MAC Data Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

1.3 Clock Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

1.4 LED Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

1.5 JTAG Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

1.6 Reset and Power Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

1.7 Strap Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

1.8 10 Mb/s and 100 Mb/s PMD Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

1.9 Special Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

1.10 Power Supply Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

1.11 Package Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

2.0 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.1 Auto-Negotiation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

2.1.1 Auto-Negotiation Pin Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.1.2 Auto-Negotiation Register Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.1.3 Auto-Negotiation Parallel Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.1.4 Auto-Negotiation Restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.1.5 Enabling Auto-Negotiation via Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.1.6 Auto-Negotiation Complete Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.2 Auto-MDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

2.3 PHY Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

2.3.1 MII Isolate Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.4 LED Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

2.4.1 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.4.2 LED Direct Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.5 Half Duplex vs. Full Duplex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

2.6 Internal Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

2.7 BIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

3.0 Functional Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.1 MII Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

3.1.1 Nibble-wide MII Data Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.1.2 Collision Detect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.1.3 Carrier Sense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.2 Reduced MII Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

3.3 10 Mb Serial Network Interface (SNI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

3.4 802.3u MII Serial Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

3.4.1 Serial Management Register Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.4.2 Serial Management Access Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.4.3 Serial Management Preamble Suppression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.0 Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.1 100BASE-TX TRANSMITTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

4.1.1 Scrambler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.1.2 NRZ to NRZI Encoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.1.3 Binary to MLT-3 Convertor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.2 100BASE-TX RECEIVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

4.2.1 Analog Front End . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.2.2 Digital Signal Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.2.2.1 Digital Adaptive Equalization and Gain Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

4.2.2.2 Base Line Wander Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.2.3 Signal Detect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.2.4 MLT-3 to NRZI Decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.2.5 NRZI to NRZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.2.6 Serial to Parallel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.2.7 Descrambler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4.2.8 Code-group Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4.2.9 4B/5B Decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4.2.10 100BASE-TX Link Integrity Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4.2.11 Bad SSD Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

DP83848I

3 www.national.com

4.3 10BASE-T TRANSCEIVER MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

4.3.1 Operational Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4.3.2 Smart Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

DP83848I

4.3.3 Collision Detection and SQE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.3.4 Carrier Sense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.3.5 Normal Link Pulse Detection/Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.3.6 Jabber Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.3.7 Automatic Link Polarity Detection and Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.3.8 Transmit and Receive Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.3.9 Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.3.10 Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.0 Design Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.1 TPI Network Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

5.2 ESD Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

5.3 Clock In (X1) Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

5.4 Power Feedback Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

5.5 Power Down/Interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

5.5.1 Power Down Control Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.5.2 Interrupt Mechanisms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.6 Energy Detect Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

6.0 Reset Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6.1 Hardware Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

6.2 Software Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

7.0 Register Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

7.1 Register Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

7.1.1 Basic Mode Control Register (BMCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

7.1.2 Basic Mode Status Register (BMSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

7.1.3 PHY Identifier Register #1 (PHYIDR1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

7.1.4 PHY Identifier Register #2 (PHYIDR2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

7.1.5 Auto-Negotiation Advertisement Register (ANAR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

7.1.6 Auto-Negotiation Link Partner Ability Register (ANLPAR) (BASE Page) . . . . . . . . . . . . . . . . 47

7.1.7 Auto-Negotiation Link Partner Ability Register (ANLPAR) (Next Page) . . . . . . . . . . . . . . . . . 48

7.1.8 Auto-Negotiate Expansion Register (ANER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

7.1.9 Auto-Negotiation Next Page Transmit Register (ANNPTR) . . . . . . . . . . . . . . . . . . . . . . . . . . 49

7.2 Extended Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

7.2.1 PHY Status Register (PHYSTS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

7.2.2 MII Interrupt Control Register (MICR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

7.2.3 MII Interrupt Status and Misc. Control Register (MISR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

7.2.4 False Carrier Sense Counter Register (FCSCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

7.2.5 Receiver Error Counter Register (RECR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

7.2.6 100 Mb/s PCS Configuration and Status Register (PCSR) . . . . . . . . . . . . . . . . . . . . . . . . . . 55

7.2.7 RMII and Bypass Register (RBR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

7.2.8 LED Direct Control Register (LEDCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

7.2.9 PHY Control Register (PHYCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

7.2.10 10Base-T Status/Control Register (10BTSCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

7.2.11 CD Test and BIST Extensions Register (CDCTRL1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

7.2.12 Energy Detect Control (EDCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

8.0 Electrical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

8.1 DC Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

8.2 AC Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

8.2.1 Power Up Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

8.2.2 Reset Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

8.2.3 MII Serial Management Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

8.2.4 100 Mb/s MII Transmit Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

8.2.5 100 Mb/s MII Receive Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

8.2.6 100BASE-TX Transmit Packet Latency Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

8.2.7 100BASE-TX Transmit Packet Deassertion Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

8.2.8 100BASE-TX Transmit Timing (tR/F & Jitter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

8.2.9 100BASE-TX Receive Packet Latency Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

8.2.10 100BASE-TX Receive Packet Deassertion Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

www.national.com 4

8.2.11 10 Mb/s MII Transmit Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

8.2.12 10 Mb/s MII Receive Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

8.2.13 10 Mb/s Serial Mode Transmit Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

8.2.14 10 Mb/s Serial Mode Receive Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

8.2.15 10BASE-T Transmit Timing (Start of Packet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

8.2.16 10BASE-T Transmit Timing (End of Packet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

8.2.17 10BASE-T Receive Timing (Start of Packet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

8.2.18 10BASE-T Receive Timing (End of Packet) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

8.2.19 10 Mb/s Heartbeat Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

8.2.20 10 Mb/s Jabber Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

8.2.21 10BASE-T Normal Link Pulse Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

8.2.22 Auto-Negotiation Fast Link Pulse (FLP) Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

8.2.23 100BASE-TX Signal Detect Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

8.2.24 100 Mb/s Internal Loopback Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

8.2.25 10 Mb/s Internal Loopback Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

8.2.26 RMII Transmit Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

8.2.27 RMII Receive Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

8.2.28 Isolation Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

8.2.29 25 MHz_OUT Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

8.2.30 100 Mb/s X1 to TX_CLK Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

9.0 Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

DP83848I

5 www.national.com

List of Figures

DP83848I

Figure 1. DP83848I Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Figure 2. PHYAD Strapping Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 3. AN Strapping and LED Loading Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 4. Typical MDC/MDIO Read Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 5. Typical MDC/MDIO Write Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 6. 100BASE-TX Transmit Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 7. 100BASE-TX Receive Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 8. EIA/TIA Attenuation vs. Frequency for 0, 50, 100, 130 & 150 meters of CAT 5 cable . . . . . . . . . . . 28

Figure 9. 100BASE-TX BLW Event . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 10. 10BASE-T Twisted Pair Smart Squelch Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Figure 11. 10/100 Mb/s Twisted Pair Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Figure 12. Crystal Oscillator Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Figure 13. Power Feeback Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

www.national.com 6

List of Tables

Table 1. Auto-Negotiation Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Table 2. PHY Address Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Table 3. LED Mode Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Table 4. Supported packet sizes at +/-50ppm +/-100ppm for each clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Table 5. Typical MDIO Frame Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Table 5. 4B5B CCode-group Encoding and Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Table 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Table 7. 25 MHz Oscillator Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Table 8. 50 MHz Oscillator Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Table 9. 25 MHz Crystal Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 10. Register Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Table 11. Register Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Table 12. Basic Mode Control Register (BMCR), address 0x00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Table 13. Basic Mode Status Register (BMSR), address 0x01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Table 14. PHY Identifier Register #1 (PHYIDR1), address 0x02 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Table 15. PHY Identifier Register #2 (PHYIDR2), address 0x03 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Table 16. Negotiation Advertisement Register (ANAR), address 0x04 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Table 17. Auto-Negotiation Link Partner Ability Register (ANLPAR) (BASE Page), address 0x05 . . . . . . . . 47

Table 18. Auto-Negotiation Link Partner Ability Register (ANLPAR) (Next Page), address 0x05 . . . . . . . . .48

Table 19. Auto-Negotiate Expansion Register (ANER), address 0x06 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Table 20. Auto-Negotiation Next Page Transmit Register (ANNPTR), address 0x07 . . . . . . . . . . . . . . . . . . . 49

Table 21. PHY Status Register (PHYSTS), address 0x10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Table 22. MII Interrupt Control Register (MICR), address 0x11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Table 23. MII Interrupt Status and Misc. Control Register (MISR), address 0x12 . . . . . . . . . . . . . . . . . . . . . . 53

Table 24. False Carrier Sense Counter Register (FCSCR), address 0x14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Table 25. Receiver Error Counter Register (RECR), address 0x15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Table 26. 100 Mb/s PCS Configuration and Status Register (PCSR), address 0x16 . . . . . . . . . . . . . . . . . . . .55

Table 27. RMII and Bypass Register (RBR), addresses 0x17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Table 28. LED Direct Control Register (LEDCR), address 0x18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Table 29. PHY Control Register (PHYCR), address 0x19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Table 30. 10Base-T Status/Control Register (10BTSCR), address 0x1A . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Table 31. CD Test and BIST Extensions Register (CDCTRL1), address 0x1B . . . . . . . . . . . . . . . . . . . . . . . . . 60

Table 32. Energy Detect Control (EDCR), address 0x1D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

DP83848I

7 www.national.com

Pin Layout

DP83848I

PFBIN2

RX_CLK

RX_DV/MII_MODE

CRS/CRS_DV/LED_CFG

RX_ER/MDIX_EN

COL/PHYAD0

RXD_0/PHYAD1

RXD_1/PHYAD2

RXD_2/PHYAD3

RXD_3/PHYAD4

IOGND

IOVDD33

DGND

IOGNDX1X2

IOVDD33

MDC

MDIO

DP83848I

RESET_N

LED_LINK/AN0

LED_SPEED/AN1

LED_ACT/COL/AN_EN

25MHz_OUT

RBIAS

PFBOUT

AVDD33

RESERVED

AGND

PFBIN1

TD +

TD -

AGND

RD +

RD -

TXD_0

TXD_1

TX_CLK

TX_EN

TXD_2

TXD_3/SNI_MODE

Top View

NS Package Number VBH48A

www.national.com 8

PWR_DOWN/INT

TCK

TDO

TDI

TMS

TRST#

1.0 Pin Descriptions

The DP83848I pins are classified into the following interface categories (each interface is described in the sections that follow):

— Serial Management Interface — MAC Data Interface — Clock Interface — LED Interface —JTAG Interface — Reset and Power Down — Strap Options — 10/100 Mb/s PMD Interface — Special Connect Pins — Power and Ground pins

1.1 Serial Management Interface

Signal Name Type Pin # Description

MDC I 31 MANAGEMENT DATA CLOCK: Synchronous clock to the MDIO

MDIO I/O 30 MANAGEMENT DATA I/O: Bi-directional management instruc-

Note: Strapping pin option. Please see Section 1.7 for strap definitions.

All DP83848I signal pins are I/O cells regardless of the particular use. The definitions below define the functionality of the I/O cells for each pin.

Type: I Input Type: O Output Type: I/O Input/Output Type OD Open Drain Type: PD,PU Internal Pulldown/Pullup Type: S Strapping Pin (All strap pins have weak in-

ternal pull-ups or pull-downs. If the default strap value is needed to be changed then an

external 2.2 kΩ resistor should be used.

Please see

management data input/output serial interface which may be asynchronous to transmit and receive clocks. The maximum clock rate is 25 MHz with no minimum clock rate.

tion/data signal that may be sourced by the station management

entity or the PHY. This pin requires a 1.5 kΩ pullup resistor.

Section 1.7 for details.)

DP83848I

1.2 MAC Data Interface

Signal Name Type Pin # Description

TX_CLK O 1 MII TRANSMIT CLOCK: 25 MHz Transmit clock output in 100

Mb/s mode or 2.5 MHz in 10 Mb/s mode derived from the 25 MHz reference clock.

Unused in RMII mode. The device uses the X1 reference clock input as the 50 MHz reference for both transmit and receive.

SNI TRANSMIT CLOCK: 10 MHz Transmit clock output in 10 Mb SNI mode. The MAC should source TX_EN and TXD_0 using this clock.

TX_EN I, PD 2 MII TRANSMIT ENABLE: Active high input indicates the pres-

ence of valid data inputs on TXD[3:0].

RMII TRANSMIT ENABLE: Active high input indicates the presence of valid data on TXD[1:0].

SNI TRANSMIT ENABLE: Active high input indicates the presence of valid data on TXD_0.

TXD_0

TXD_1

TXD_2

TXD_3

S, I, PD

MII TRANSMIT DATA: Transmit data MII input pins, TXD[3:0], that accept data synchronous to the TX_CLK (2.5 MHz in 10 Mb/s mode or 25 MHz in 100 Mb/s mode).

RMII TRANSMIT DATA: Transmit data RMII input pins, TXD[1:0], that accept data synchronous to the 50 MHz reference clock.

SNI TRANSMIT DATA: Transmit data SNI input pin, TXD_0, that accept data synchronous to the TX_CLK (10 MHz in 10 Mb/s SNI mode).

9 www.national.com

Signal Name Type Pin # Description

RX_CLK O 38 MII RECEIVE CLOCK: Provides the 25 MHz recovered receive

DP83848I

RX_DV S, O, PD 39 MII RECEIVE DATA VALID: Asserted high to indicate that valid

RX_ER S, O, PU 41 MII RECEIVE ERROR: Asserted high synchronously to RX_CLK

RXD_0

RXD_1

RXD_2

RXD_3

CRS/CRS_DV S, O, PU 40 MII CARRIER SENSE: Asserted high to indicate the receive me-

COL S, O, PU 42 MII COLLISION DETECT: Asserted high to indicate detection of

S, O, PD 43

clocks for 100 Mb/s mode and 2.5 MHz for 10 Mb/s mode.

Unused in RMII mode. The device uses the X1 reference clock input as the 50 MHz reference for both transmit and receive.

SNI RECEIVE CLOCK: Provides the 10 MHz recovered receive clocks for 10 Mb/s SNI mode.

data is present on the corresponding RXD[3:0]. MII mode by de fault with internal pulldown.

RMII Synchronous Receive Data Valid: This signal provides the RMII Receive Data Valid indication independent of Carrier Sense.

This pin is not used in SNI mode.

to indicate that an invalid symbol has been detected within a re ceived packet in 100 Mb/s mode.

RMII RECEIVE ERROR: Assert high synchronously to X1 whenever it detects a media error and RXDV is asserted in 100 Mb/s mode.

This pin is not required to be used by a MAC, in either MII or RMII mode, since the Phy is required to corrupt data on a receive error.

This pin is not used in SNI mode.

MII RECEIVE DATA: Nibble wide receive data signals driven synchronously to the RX_CLK, 25 MHz for 100 Mb/s mode, 2.5 MHz for 10 Mb/s mode). RXD[3:0] signals contain valid data when RX_DV is asserted.

RMII RECEIVE DATA: 2-bits receive data signals, RXD[1:0], driven synchronously to the X1 clock, 50 MHz.

SNI RECEIVE DATA: Receive data signal, RXD_0, driven synchronously to the RX_CLK. RXD_0 contains valid data when CRS is asserted. RXD[3:1] are not used in this mode.

dium is non-idle.

RMII CARRIER SENSE/RECEIVE DATA VALID: This signal combines the RMII Carrier and Receive Data Valid indications. For a detailed description of this signal, see the RMII Specifica tion.

SNI CARRIER SENSE: Asserted high to indicate the receive medium is non-idle. It is used to frame valid receive data on the RXD_0 signal.

a collision condition (simultaneous transmit and receive activity) in 10 Mb/s and 100 Mb/s Half Duplex Modes.

While in 10BASE-T Half Duplex mode with heartbeat enabled this

pin is also asserted for a duration of approximately 1µs at the end

of transmission to indicate heartbeat (SQE test).

In Full Duplex Mode, for 10 Mb/s or 100 Mb/s operation, this signal is always logic 0. There is no heartbeat function during 10 Mb/s full duplex operation.

RMII COLLISION DETECT: Per the RMII Specification, no COL signal is required. The MAC will recover CRS from the CRS_DV signal and use that along with its TX_EN signal to determine col lision.

SNI COLLISION DETECT: Asserted high to indicate detection of a collision condition (simultaneous transmit and receive activity) in 10 Mb/s SNI mode.

www.national.com 10

1.3 Clock Interface

Signal Name Type Pin # Description

X1 I 34 CRYSTAL/OSCILLATOR INPUT: This pin is the primary clock

X2 O 33 CRYSTAL OUTPUT: This pin is the primary clock reference out-

25MHz_OUT O 25 25 MHz CLOCK OUTPUT:

reference input for the DP83848I and must be connected to a 25 MHz 0.005% ( ther an external crystal resonator connected across pins X1 and X2, or an external CMOS-level oscillator source connected to pin X1 only.

RMII REFERENCE CLOCK: This pin is the primary clock reference input for the RMII mode and must be connected to a 50 MHz

0.005% (

put to connect to an external 25 MHz crystal resonator device. This pin must be left unconnected if an external CMOS oscillator clock source is used.

In MII mode, this pin provides a 25 MHz clock output to the system.

In RMII mode, this pin provides a 50 MHz clock output to the system.

This allows other devices to use the reference clock from the DP83848I without requiring additional clock sources.

+50 ppm) clock source. The DP83848I supports ei-

+50 ppm) CMOS-level oscillator source.

DP83848I

1.4 LED Interface

See Table 3 for LED Mode Selection.

Signal Name Type Pin # Description

LED_LINK S, O, PU 28 LINK LED: In Mode 1, this pin indicates the status of the LINK.

LED_SPEED S, O, PU 27 SPEED LED: The LED is ON when device is in 100 Mb/s and OFF

LED_ACT/COL S, O, PU 26 ACTIVITY LED: In Mode 1, this pin is the Activity LED which is

The LED will be ON when Link is good.

LINK/ACT LED: In Mode 2 and Mode 3, this pin indicates transmit and receive activity in addition to the status of the Link. The LED will be ON when Link is good. It will blink when the transmitter or receiver is active.

when in 10 Mb/s. Functionality of this LED is independent of mode selected.

ON when activity is present on either Transmit or Receive.

COLLISION/DUPLEX LED: In Mode 2, this pin by default indicates Collision detection. For Mode 3, this LED output may be programmed to indicate Full-duplex status instead of Collision.

11 www.national.com

1.5 JTAG Interface

DP83848I

TCK I, PU 8 TEST CLOCK

TDI I, PU 12 TEST DATA INPUT

TDO O 9 TEST OUTPUT

TMS I, PU 10 TEST MODE SELECT

TRST# I, PU 11 TEST RESET: Active low asynchronous test reset.

Signal Name Type Pin # Description

This pin has a weak internal pullup.

1.6 Reset and Power Down

Signal Name Type Pin # Description

RESET_N I, PU 29 RESET: Active Low input that initializes or re-initializes the

PWR_DOWN/INT I, OD, PU 7 See Section 5.5 for detailed description.

DP83848I. Asserting this pin low for at least 1 µs will force a reset

process to occur. All internal registers will re-initialize to their de fault states as specified for each bit in the Register Block section. All strap options are re-initialized as well.

The default function of this pin is POWER DOWN.

POWER DOWN: The pin is an active low input in this mode and should be asserted low to put the device in a Power Down mode.

INTERRUPT: The pin is an open drain output in this mode and will be asserted low when an interrupt condition occurs. Although the pin has a weak internal pull-up, some applications may require an external pull-up resister. Register access is required for the pin to be used as an interrupt mechanism. See Mechanism for more details on the interrupt mechanisms.

Section 5.5.2 Interrupt

1.7 Strap Options

The DP83848I uses many of the functional pins as strap options. The values of these pins are sampled during reset and used to strap the device into specific modes of opera tion. The strap option pin assignments are defined below. The functional pin name is indicated in parentheses.

Signal Name Type Pin # Description

PHYAD0 (COL)

PHYAD1 (RXD_0)

PHYAD2 (RXD_1)

PHYAD3 (RXD_2)

PHYAD4 (RXD_3)

S, O, PU

S, O, PD

PHY ADDRESS [4:0]: The DP83848I provides five PHY address pins, the state of which are latched into the PHYCTRL register at system Hardware-Reset.

The DP83848I supports PHY Address strapping values 0 (<00000>) through 31 (<11111>). A PHY Address of 0 puts the part into the MII Isolate Mode. The MII isolate mode must be se lected by strapping Phy Address 0; changing to Address 0 by register write will not put the Phy in the MII isolate mode. Please refer to section 2.3 for additional information.

PHYAD0 pin has weak internal pull-up resistor.

PHYAD[4:1] pins have weak internal pull-down resistors.

A 2.2 kΩ resistor should be used for pull-down or pull-up to

change the default strap option. If the default option is required, then there is no need for external pull-up or pull

down resistors. Since these pins may have alternate func

tions after reset is deasserted, they should not be connected directly to VCC or GND.

www.national.com 12

Signal Name Type Pin # Description

AN_EN (LED_ACT/COL)

AN_1 (LED_SPEED)

AN_0 (LED_LINK)

S, O, PU 26

Auto-Negotiation Enable: When high, this enables Auto-Negotiation with the capability set by ANO and AN1 pins. When low, this puts the part into Forced Mode with the capability set by AN0 and AN1 pins.

AN0 / AN1: These input pins control the forced or advertised operating mode of the DP83848I according to the following table. The value on these pins is set by connecting the input pins to GND (0) or V

NEVER be connected directly to GND or VCC.

The value set at this input is latched into the DP83848I at Hardware-Reset.

The float/pull-down status of these pins are latched into the Basic Mode Control Register and the Auto_Negotiation Advertisement Register during Hardware-Reset.

The default is 111 since these pins have internal pull-ups.

(1) through 2.2 kΩ resistors. These pins should

AN_EN AN1 AN0 Forced Mode

0 0 0 10BASE-T, Half-Duplex

0 0 1 10BASE-T, Full-Duplex

0 1 0 100BASE-TX, Half-Duplex

0 1 1 100BASE-TX, Full-Duplex

AN_EN AN1 AN0 Advertised Mode

1 0 0 10BASE-T, Half/Full-Duplex

1 0 1 100BASE-TX, Half/Full-Duplex

1 1 0 10BASE-T Half-Duplex

100BASE-TX, Half-Duplex

1 1 1 10BASE-T, Half/Full-Duplex

100BASE-TX, Half/Full-Duplex

DP83848I

MII_MODE (RX_DV)

SNI_MODE (TXD_3)

LED_CFG (CRS) S, O, PU 40 LED CONFIGURATION: This strapping option determines the

MDIX_EN (RX_ER) S, O, PU 41 MDIX ENABLE: Default is to enable MDIX. This strapping option

S, O, PD 39

MII MODE SELECT: This strapping option pair determines the

operating mode of the MAC Data Interface. Default operation (No pull-ups) will enable normal MII Mode of operation. Strapping MII_MODE high will cause the device to be in RMII or SNI mode of operation, determined by the status of the SNI_MODE strap. Since the pins include internal pull-downs, the default values are

The following table details the configurations:

MII_MODE SNI_MODE MAC Interface

Mode

0 X MII Mode

1 0 RMII Mode

1 1 10 Mb SNI Mode

mode of operation of the LED pins. Default is Mode 1. Mode 1 and Mode 2 can be controlled via the strap option. All modes are con figurable via register access.

SeeTable 3 for LED Mode Selection.

disables Auto-MDIX. An external pull-down will disable AutoMDIX mode.

13 www.national.com

1.8 10 Mb/s and 100 Mb/s PMD Interface

DP83848I

TD-, TD+ I/O 16, 17 Differential common driver transmit output (PMD Output Pair).

RD-, RD+ I/O 13, 14 Differential receive input (PMD Input Pair). These differential in-

Signal Name Type Pin # Description

These differential outputs are automatically configured to either 10BASE-T or 100BASE-TX signaling.

In Auto-MDIX mode of operation, this pair can be used as the Receive Input pair.

These pins require 3.3V bias for operation.

puts are automatically configured to accept either 100BASE-TX or 10BASE-T signaling.

In Auto-MDIX mode of operation, this pair can be used as the Transmit Output pair.

These pins require 3.3V bias for operation.

1.9 Special Connections

Signal Name Type Pin # Description

RBIAS I 24 Bias Resistor Connection. A 4.87 kΩ 1% resistor should be con-

PFBOUT O 23 Power Feedback Output. Parallel caps, 10µ F (Tantalum pre-

PFBIN1

PFBIN2

RESERVED I/O 20, 21 RESERVED: These pins must be pulled-up through 2.2 kΩ resis-

I 18

nected from RBIAS to GND.

ferred) and 0.1µF, should be placed close to the PFBOUT. Con-

nect this pin to PFBIN1 (pin 18) and PFBIN2 (pin 37). See Section 5.4 for proper placement pin.

Power Feedback Input. These pins are fed with power from

PFBOUT pin. A small capacitor of 0.1µF should be connected

close to each pin.

Note: Do not supply power to these pins other than from PFBOUT.

tors to AVDD33 supply.

1.10 Power Supply Pins

Signal Name Pin # Description

IOVDD33 32, 48 I/O 3.3V Supply

IOGND 35, 47 I/O Ground

DGND 36 Digital Ground

AVDD33 22 Analog 3.3V Supply

AGND 15, 19 Analog Ground

www.national.com 14

1.11 Package Pin Assignments

VBH48A Pin # Pin Name

1 TX_CLK

2 TX_EN

3 TXD_0

4 TXD_1

5 TXD_2

6 TXD_3/SNI_MODE

7 PWR_DOWN/INT

8 TCK

9 TDO

10 TMS

11 TRST#

12 TDI

13 RD -

14 RD +

15 AGND

16 TD -

17 TD +

18 PFBIN1

19 AGND

20 RESERVED

21 RESERVED

22 AVDD33

23 PFBOUT

24 RBIAS

25 25MHz_OUT

26 LED_ACT/COL/AN_EN

27 LED_SPEED/AN1

28 LED_LINK/AN0

29 RESET_N

30 MDIO

31 MDC

32 IOVDD33

33 X2

34 X1

35 IOGND

36 DGND

37 PFBIN2

38 RX_CLK

39 RX_DV/MII_MODE

40 CRS/CRS_DV/LED_CFG

DP83848I

VBH48A Pin # Pin Name

41 RX_ER/MDIX_EN

42 COL/PHYAD0

43 RXD_0/PHYAD1

44 RXD_1/PHYAD2

45 RXD_2/PHYAD3

46 RXD_3/PHYAD4

47 IOGND

48 IOVDD33

15 www.national.com

2.0 Configuration

This section includes information on the various configuration options available with the DP83848I. The configuration options described below include:

DP83848I

— Auto-Negotiation — PHY Address and LEDs — Half Duplex vs. Full Duplex — Isolate mode — Loopback mode —BIST

2.1 Auto-Negotiation

The Auto-Negotiation function provides a mechanism for exchanging configuration information between two ends of a link segment and automatically selecting the highest per formance mode of operation supported by both devices. Fast Link Pulse (FLP) Bursts provide the signalling used to communicate Auto-Negotiation abilities between two devices at each end of a link segment. For further detail regarding Auto-Negotiation, refer to Clause 28 of the IEEE

802.3u specification. The DP83848I supports four different Ethernet protocols (10 Mb/s Half Duplex, 10 Mb/s Full Duplex, 100 Mb/s Half Duplex, and 100 Mb/s Full Duplex), so the inclusion of Auto-Negotiation ensures that the high est performance protocol will be selected based on the advertised ability of the Link Partner. The Auto-Negotiation function within the DP83848I can be controlled either by internal register access or by the use of the AN_EN, AN1 and AN0 pins.

2.1.1 Auto-Negotiation Pin Control

The state of AN_EN, AN0 and AN1 determines whether the DP83848I is forced into a specific mode or Auto-Negotiation will advertise a specific ability (or set of abilities) as given in be selected without requiring internal register access.

The state of AN_EN, AN0 and AN1, upon power-up/reset, determines the state of bits [8:5] of the ANAR register.

The Auto-Negotiation function selected at power-up or reset can be changed at any time by writing to the Basic Mode Control Register (BMCR) at address 0x00h.

Table 1. These pins allow configuration options to

Tabl e 1. Auto-Negotiation Modes

AN_EN AN1 AN0 Forced Mode

0 0 0 10BASE-T, Half-Duplex

0 0 1 10BASE-T, Full-Duplex

0 1 0 100BASE-TX, Half-Duplex

0 1 1 100BASE-TX, Full-Duplex

AN_EN AN1 AN0 Advertised Mode

1 0 0 10BASE-T, Half/Full-Duplex

1 0 1 100BASE-TX, Half/Full-Duplex

1 1 0 10BASE-T Half-Duplex

100BASE-TX, Half-Duplex

1 1 1 10BASE-T, Half/Full-Duplex

100BASE-TX, Half/Full-Duplex

2.1.2 Auto-Negotiation Register Control

When Auto-Negotiation is enabled, the DP83848I transmits the abilities programmed into the Auto-Negotiation Advertisement register (ANAR) at address 04h via FLP Bursts.

Any combination of 10 Mb/s, 100 Mb/s, Half-Duplex, and

Full Duplex modes may be selected.

Auto-Negotiation Priority Resolution:

— (1) 100BASE-TX Full Duplex (Highest Priority) — (2) 100BASE-TX Half Duplex — (3) 10BASE-T Full Duplex — (4) 10BASE-T Half Duplex (Lowest Priority) The Basic Mode Control Register (BMCR) at address 00h

provides control for enabling, disabling, and restarting the Auto-Negotiation process. When Auto-Negotiation is dis abled, the Speed Selection bit in the BMCR controls switching between 10 Mb/s or 100 Mb/s operation, and the Duplex Mode bit controls switching between full duplex operation and half duplex operation. The Speed Selection and Duplex Mode bits have no effect on the mode of oper ation when the Auto-Negotiation Enable bit is set.

The Link Speed can be examined through the PHY Status Register (PHYSTS) at address 10h after a Link is achieved.

The Basic Mode Status Register (BMSR) indicates the set of available abilities for technology types, Auto-Negotiation ability, and Extended Register Capability. These bits are permanently set to indicate the full functionality of the DP83848I (only the 100BASE-T4 bit is not set since the DP83848I does not support that function).

The BMSR also provides status on:

— Whether or not Auto-Negotiation is complete — Whether or not the Link Partner is advertising that a re-

mote fault has occurred — Whether or not valid link has been established — Support for Management Frame Preamble suppression The Auto-Negotiation Advertisement Register (ANAR)

indicates the Auto-Negotiation abilities to be advertised by the DP83848I. All available abilities are transmitted by default, but any ability can be suppressed by writing to the

www.national.com 16

ANAR. Updating the ANAR to suppress an ability is one way for a management agent to change (restrict) the tech nology that is used.

The Auto-Negotiation Link Partner Ability Register (ANLPAR) at address 05h is used to receive the base link code word as well as all next page code words during the negotiation. Furthermore, the ANLPAR will be updated to either 0081h or 0021h for parallel detection to either 100 Mb/s or 10 Mb/s respectively.

The Auto-Negotiation Expansion Register (ANER) indicates additional Auto-Negotiation status. The ANER provides status on:

— Whether or not a Parallel Detect Fault has occurred — Whether or not the Link Partner supports the Next Page

function

— Whether or not the DP83848I supports the Next Page

function

— Whether or not the current page being exchanged by

Auto-Negotiation has been received

— Whether or not the Link Partner supports Auto-Negotia-

tion

2.1.3 Auto-Negotiation Parallel Detection

The DP83848I supports the Parallel Detection function as defined in the IEEE 802.3u specification. Parallel Detection requires both the 10 Mb/s and 100 Mb/s receivers to moni tor the receive signal and report link status to the AutoNegotiation function. Auto-Negotiation uses this informa tion to configure the correct technology in the event that the Link Partner does not support Auto-Negotiation but is transmitting link signals that the 100BASE-TX or 10BASET PMAs recognize as valid link signals.

If the DP83848I completes Auto-Negotiation as a result of Parallel Detection, bits 5 and 7 within the ANLPAR register will be set to reflect the mode of operation present in the Link Partner. Note that bits 4:0 of the ANLPAR will also be set to 00001 based on a successful parallel detection to indicate a valid 802.3 selector field. Software may deter mine that negotiation completed via Parallel Detection by reading a zero in the Link Partner Auto-Negotiation Able bit once the Auto-Negotiation Complete bit is set. If configured for parallel detect mode and any condition other than a sin gle good link occurs then the parallel detect fault bit will be set.

2.1.4 Auto-Negotiation Restart

Once Auto-Negotiation has completed, it may be restarted at any time by setting bit 9 (Restart Auto-Negotiation) of the BMCR to one. If the mode configured by a successful AutoNegotiation loses a valid link, then the Auto-Negotiation process will resume and attempt to determine the configu ration for the link. This function ensures that a valid configuration is maintained if the cable becomes disconnected.

A renegotiation request from any entity, such as a management agent, will cause the DP83848I to halt any transmit data and link pulse activity until the break_link_timer expires (~1500 ms). Consequently, the Link Partner will go into link fail and normal Auto-Negotiation resumes. The DP83848I will resume Auto-Negotiation after the break_link_timer has expired by issuing FLP (Fast Link Pulse) bursts.

2.1.5 Enabling Auto-Negotiation via Software

It is important to note that if the DP83848I has been initialized upon power-up as a non-auto-negotiating device (forced technology), and it is then required that Auto-Negotiation or re-Auto-Negotiation be initiated via software,

12 (Auto-Negotiation Enable) of the Basic Mode Control

bit Register (BMCR) must first be cleared and then set for any Auto-Negotiation function to take effect.

2.1.6 Auto-Negotiation Complete Time

Parallel detection and Auto-Negotiation take approximately 2-3 seconds to complete. In addition, Auto-Negotiation with next page should take approximately 2-3 seconds to com plete, depending on the number of next pages sent.

Refer to Clause 28 of the IEEE 802.3u standard for a full description of the individual timers related to Auto-Negotiation.

2.2 Auto-MDIX

When enabled, this function utilizes Auto-Negotiation to determine the proper configuration for transmission and reception of data and subsequently selects the appropriate MDI pair for MDI/MDIX operation. The function uses a ran dom seed to control switching of the crossover circuitry. This implementation complies with the corresponding IEEE

802.3 Auto-Negotiation and Crossover Specifications.

Auto-MDIX is enabled by default and can be configured via strap or via PHYCR (0x19h) register, bits [15:14].

Neither Auto-Negotiation nor Auto-MDIX is required to be enabled in forcing crossover of the MDI pairs. Forced crossover can be achieved through the FORCE_MDIX bit, bit 14 of PHYCR (0x19h) register.

Note: Auto-MDIX will not work in a forced mode of operation.

DP83848I

17 www.national.com

2.3 PHY Address

The 5 PHY address inputs pins are shared with the RXD[3:0] pins and COL pin as shown below.

DP83848I

Tabl e 2. PHY Address Mapping

Pin # PHYAD Function RXD Function

42 PHYAD0 COL

43 PHYAD1 RXD_0

44 PHYAD2 RXD_1

45 PHYAD3 RXD_2

46 PHYAD4 RXD_3

The DP83848I can be set to respond to any of 32 possible PHY addresses via strap pins. The information is latched into the PHYCR register (address 19h, bits [4:0]) at device power-up and hardware reset. The PHY Address pins are shared with the RXD and COL pins. Each DP83848I or port sharing an MDIO bus in a system must have a unique physical address.

The DP83848I supports PHY Address strapping values 0 (<0 0 0 0 0 > ) t h r o u g h 3 1 (<11111 >). St r a p p i n g PHY Address 0 puts the part into Isolate Mode. It should also be noted that selecting PHY Address 0 via an MDIO write to PHYCR will not put the device in Isolate Mode. See more information.

For further detail relating to the latch-in timing requirements of the PHY Address pins, as well as the other hardware configuration pins, refer to the Reset summary in Section 6.0.

Section 2.3.1for

Since the PHYAD[0] pin has weak internal pull-up resistor and PHYAD[4:1] pins have weak internal pull-down resis tors, the default setting for the PHY address is 00001 (01h).

Refer to Figure 2 for an example of a PHYAD connection to external components. In this example, the PHYAD strapping results in address 00011 (03h).

2.3.1 MII Isolate Mode

The DP83848I can be put into MII Isolate mode by writing to bit 10 of the BMCR register or by strapping in Physical Address 0. It should be noted that selecting Physical Address 0 via an MDIO write to PHYCR will not put the device in the MII isolate mode.

When in the MII isolate mode, the DP83848I does not respond to packet data present at TXD[3:0], TX_EN inputs and presents a high impedance on the TX_CLK, RX_CLK, RX_DV, RX_ER, RXD[3:0], COL, and CRS outputs. When in Isolate mode, the DP83848I will continue to respond to all management transactions.

While in Isolate mode, the PMD output pair will not transmit packet data but will continue to source 100BASE-TX scrambled idles or 10BASE-T normal link pulses.

The DP83848I can Auto-Negotiate or parallel detect to a specific technology depending on the receive signal at the PMD input pair. A valid link can be established for the receiver even when the DP83848I is in Isolate mode.

RXD_3

PHYAD4= 0

RXD_2

Figure 2. PHYAD Strapping Example

RXD_1

PHYAD2 = 0PHYAD3 = 0

RXD_0

PHYAD1 = 1

2.2kΩ

COL

PHYAD0 = 1

VCC

www.national.com 18

2.4 LED Interface

The DP83848I supports three configurable Light Emitting Diode (LED) pins. The device supports three LED configu rations: Link, Speed, Activity and Collision. Function are

Tab le 3. LED Mode Select

Mode LED_CFG[1]

(bit 6)

1 don’t care 1 ON for Good Link

2 0 0 ON for Good Link

3 1 0 ON for Good Link

LED_CFG[0]

(bit 5)

or (pin40)

LED_LINK LED_SPEED LED_ACT/COL

OFF for No Link

BLINK for Activity

multiplexed among the LEDs. The PHY Control Register (PHYCR) for the LEDs can also be selected through

address 19h, bits [6:5].

See Table 3 for LED Mode selection.

ON in 100 Mb/s

OFF in 10 Mb/s

ON in 100 Mb/s

OFF in 10 Mb/s

ON in 100 Mb/s

OFF in 10 Mb/s

ON for Activity

OFF for No Activity

ON for Collision

OFF for No Collision

ON for Full Duplex

OFF for Half Duplex

DP83848I

The LED_LINK pin in Mode 1 indicates the link status of the port. In 100BASE-T mode, link is established as a result of input receive amplitude compliant with the TPPMD specifications which will result in internal generation of signal detect. A 10 Mb/s Link is established as a result of the reception of at least seven consecutive normal Link Pulses or the reception of a valid 10BASE-T packet. This will cause the assertion of LED_LINK. LED_LINK will deas sert in accordance with the Link Loss Timer as specified in the IEEE 802.3 specification.

The LED_LINK pin in Mode 1 will be OFF when no LINK is present.

The LED_LINK pin in Mode 2 and Mode 3 will be ON to indicate Link is good and BLINK to indicate activity is present on either transmit or receive activity.

The LED_SPEED pin indicates 10 or 100 Mb/s data rate of the port. The standard CMOS driver goes high when operating in 100 Mb/s operation. The functionality of this LED is independent of mode selected.

The LED_ACT/COL pin in Mode 1 indicates the presence of either transmit or receive activity. The LED will be ON for Activity and OFF for No Activity. In Mode 2, this pin indi cates the Collision status of the port. The LED will be ON for Collision and OFF for No Collision.

The LED_ACT/COL pin in Mode 3 indicates the presence of Duplex status for 10 Mb/s or 100 Mb/s operation. The LED will be ON for Full Duplex and OFF for Half Duplex.

In 10 Mb/s half duplex mode, the collision LED is based on the COL signal.

Since these LED pins are also used as strap options, the polarity of the LED is dependent on whether the pin is pulled up or down.

Specifically, when the LED outputs are used to drive LEDs directly, the active state of each output driver is dependent on the logic level sampled by the corresponding AN input upon power-up/reset. For example, if a given AN input is resistively pulled low then the corresponding output will be configured as an active high driver. Conversely, if a given AN input is resistively pulled high, then the corresponding output will be configured as an active low driver.

Refer to Figure 3 for an example of AN connections to external components. In this example, the AN strapping results in Auto-Negotiation with 10/100 Half/Full-Duplex advertised.

The adaptive nature of the LED outputs helps to simplify potential implementation issues of these dual purpose pins.

LED_ACT/COL

AN_EN = 1

2.2kΩ

LED_SPEED AN1 = 1

2.2kΩ

110Ω

2.2kΩ

LED_LINK AN0 = 1

110Ω

VCC

2.4.1 LEDs

Since the Auto-Negotiation (AN) strap options share the LED output pins, the external components required for strapping and LED usage must be considered in order to avoid contention.

Figure 3. AN Strapping and LED Loading Example

19 www.national.com

2.4.2 LED Direct Control

The DP83848I provides another option to directly control any or all LED outputs through the LED Direct Control Reg ister (LEDCR), address 18h. The register does not provide

DP83848I

read access to LEDs.

2.5 Half Duplex vs. Full Duplex

The DP83848I supports both half and full duplex operation at both 10 Mb/s and 100 Mb/s speeds.

Half-duplex relies on the CSMA/CD protocol to handle collisions and network access. In Half-Duplex mode, CRS responds to both transmit and receive activity in order to maintain compliance with the IEEE 802.3 specification.

Since the DP83848I is designed to support simultaneous transmit and receive activity it is capable of supporting fullduplex switched applications with a throughput of up to 200 Mb/s per port when operating in 100BASE-TX mode. Because the CSMA/CD protocol does not apply to fullduplex operation, the DP83848I disables its own internal collision sensing and reporting functions and modifies the behavior of Carrier Sense (CRS) such that it indicates only receive activity. This allows a full-duplex capable MAC to operate properly.

All modes of operation (100BASE-TX and 10BASE-T) can run either half-duplex or full-duplex. Additionally, other than CRS and Collision reporting, all remaining MII signaling remains the same regardless of the selected duplex mode.

It is important to understand that while Auto-Negotiation with the use of Fast Link Pulse code words can interpret and configure to full-duplex operation, parallel detection can not recognize the difference between full and halfduplex from a fixed 10 Mb/s or 100 Mb/s link partner over twisted pair. As specified in the 802.3u specification, if a far-end link partner is configured to a forced full duplex 100BASE-TX ability, the parallel detection state machine in the partner would be unable to detect the full duplex capa bility of the far-end link partner. This link segment would negotiate to a half duplex 100BASE-TX configuration (same scenario for 10 Mb/s).

2.6 Internal Loopback

The DP83848I includes a Loopback Test mode for facilitat-

ing system diagnostics. The Loopback mode is selected through bit 14 (Loopback) of the Basic Mode Control Reg ister (BMCR). Writing 1 to this bit enables MII transmit data to be routed to the MII receive outputs. Loopback status may be checked in bit 3 of the PHY Status Register (PHYSTS). While in Loopback mode the data will not be transmitted onto the media. To ensure that the desired operating mode is maintained, Auto-Negotiation should be disabled before selecting the Loopback mode.

2.7 BIST

The DP83848I incorporates an internal Built-in Self Test (BIST) circuit to accommodate in-circuit testing or diagnos tics. The BIST circuit can be utilized to test the integrity of the transmit and receive data paths. BIST testing can be performed with the part in the internal loopback mode or externally looped back using a loopback cable fixture.

The BIST is implemented with independent transmit and receive paths, with the transmit block generating a continuous stream of a pseudo random sequence. The user can select a 9 bit or 15 bit pseudo random sequence from the PSR_15 bit in the PHY Control Register (PHYCR). The received data is compared to the generated pseudo-ran dom data by the BIST Linear Feedback Shift Register (LFSR) to determine the BIST pass/fail status.

The pass/fail status of the BIST is stored in the BIST status bit in the PHYCR register. The status bit defaults to 0 (BIST fail) and will transition on a successful comparison. If an error (mis-compare) occurs, the status bit is latched and is cleared upon a subsequent write to the Start/Stop bit.

For transmit VOD testing, the Packet BIST Continuous Mode can be used to allow continuous data transmission, setting BIST_CONT_MODE, bit 5, of CDCTRL1 (0x1Bh).

The number of BIST errors can be monitored through the BIST Error Count in the CDCTRL1 (0x1Bh), bits [15:8].

www.national.com 20

3.0 Functional Description

The DP83848I supports several modes of operation using the MII interface pins. The options are defined in the follow ing sections and include:

— MII Mode — RMII Mode — 10 Mb Serial Network Interface (SNI) The modes of operation can be selected by strap options

or register control. For RMII mode, it is required to use the strap option, since it requires a 50 MHz clock instead of the normal 25 MHz.

In each of these modes, the IEEE 802.3 serial management interface is operational for device configuration and status. The serial management interface of the MII allows for the configuration and control of multiple PHY devices, gathering of status, error information, and the determina tion of the type and capabilities of the attached PHY(s).

3.1 MII Interface

The DP83848I incorporates the Media Independent Interface (MII) as specified in Clause 22 of the IEEE 802.3u standard. This interface may be used to connect PHY devices to a MAC in 10/100 Mb/s systems. This section describes the nibble wide MII data interface.

The nibble wide MII data interface consists of a receive bus and a transmit bus each with control signals to facilitate data transfer between the PHY and the upper layer (MAC).

3.1.1 Nibble-wide MII Data Interface

Clause 22 of the IEEE 802.3u specification defines the Media Independent Interface. This interface includes a dedicated receive bus and a dedicated transmit bus. These two data buses, along with various control and status sig nals, allow for the simultaneous exchange of data between the DP83848I and the upper layer agent (MAC).

The receive interface consists of a nibble wide data bus RXD[3:0], a receive error signal RX_ER, a receive data valid flag RX_DV, and a receive clock RX_CLK for syn chronous transfer of the data. The receive clock operates at either 2.5 MHz to support 10 Mb/s operation modes or at 25 MHz to support 100 Mb/s operational modes.

The transmit interface consists of a nibble wide data bus TXD[3:0], a transmit enable control signal TX_EN, and a transmit clock TX_CLK which runs at either 2.5 MHz or 25 MHz.

Additionally, the MII includes the carrier sense signal CRS, as well as a collision detect signal COL. The CRS signal asserts to indicate the reception of data from the network or as a function of transmit data in Half Duplex mode. The COL signal asserts as an indication of a collision which can occur during half-duplex operation when both a transmit and receive operation occur simultaneously.

3.1.2 Collision Detect

For Half Duplex, a 10BASE-T or 100BASE-TX collision is detected when the receive and transmit channels are active simultaneously. Collisions are reported by the COL signal on the MII.

If the DP83848I is transmitting in 10 Mb/s mode when a collision is detected, the collision is not reported until seven bits have been received while in the collision state. This prevents a collision being reported incorrectly due to noise on the network. The COL signal remains set for the dura tion of the collision.

If a collision occurs during a receive operation, it is immediately reported by the COL signal.

When heartbeat is enabled (only applicable to 10 Mb/s operation), approximately 1 each packet, a Signal Quality Error (SQE) signal of approx imately 10 bit times is generated (internally) to indicate successful transmission. SQE is reported as a pulse on the COL signal of the MII.

3.1.3 Carrier Sense

Carrier Sense (CRS) is asserted due to receive activity, once valid data is detected via the squelch function during 10 Mb/s operation. During 100 Mb/s operation CRS is asserted when a valid link (SD) and two non-contiguous zeros are detected on the line.

For 10 or 100 Mb/s Half Duplex operation, CRS is asserted during either packet transmission or reception.

For 10 or 100 Mb/s Full Duplex operation, CRS is asserted only due to receive activity.

CRS is deasserted following an end of packet.

µs after the transmission of

3.2 Reduced MII Interface

The DP83848I incorporates the Reduced Media Independent Interface (RMII) as specified in the RMII specification (rev1.2) from the RMII Consortium. This interface may be used to connect PHY devices to a MAC in 10/100 Mb/s systems using a reduced number of pins. In this mode, data is transferred 2-bits at a time using the 50 MHz RMII_REF clock for both transmit and receive. The follow ing pins are used in RMII mode:

— TX_EN —TXD[1:0] — RX_ER (optional for Mac) — CRS_DV — RXD[1:0] — X1 (RMII Reference clock is 50 MHz) In addition, the RMII mode supplies an RX_DV signal

which allows for a simpler method of recovering receive data without having to separate RX_DV from the CRS_DV indication. This is especially useful for systems which do not require CRS, such as systems that only support fullduplex operation. This signal is also useful for diagnostic testing where it may be desirable to loop Receive RMII data directly to the transmitter.

Since the reference clock operates at 10 times the data rate for 10 Mb/s operation, transmit data is sampled every 10 clocks. Likewise, receive data will be generated every 10th clock so that an attached device can sample the data every 10 clocks.

RMII mode requires a 50 MHz oscillator be connected to the device X1 pin. A 50 MHz crystal is not supported.

DP83848I

21 www.national.com

To tolerate potential frequency differences between the 50 MHz reference clock and the recovered receive clock, the receive RMII function includes a programmable elasticity buffer. The elasticity buffer is programmable to minimize

DP83848I

propagation delay based on expected packet size and clock accuracy. This allows for supporting a range of packet sizes including jumbo frames.

Table 4. Supported packet sizes at +/-50ppm +/-100ppm for each clock

Start Threshold

RBR[1:0]

1 (4-bits) 2 bits 2400 bytes 1200 bytes

2 (8-bits) 6 bits 7200 bytes 3600 bytes

3 (12-bits) 10 bits 12000 bytes 6000 bytes

0 (16-bits) 14 bits 16800 bytes 8400 bytes

Latency Tolerance Recommended Packet Size

The elasticity buffer will force Frame Check Sequence errors for packets which overrun or underrun the FIFO. Underrun and Overrun conditions can be reported in the RMII and Bypass Register (RBR). The following table indi cates how to program the elasticity buffer fifo (in 4-bit increments) based on expected max packet size and clock accuracy. It assumes both clocks (RMII Reference clock and far-end Transmitter clock) have the same accuracy.

at +/- 50ppm

Recommended Packet Size

at +/- 100ppm

3.3 10 Mb Serial Network Interface (SNI)

The DP83848I incorporates a 10 Mb Serial Network Interface (SNI) which allows a simple serial data interface for 10 Mb only devices. This is also referred to as a 7-wire interface. While there is no defined standard for this interface, it is based on early 10 Mb physical layer devices. Data is clocked serially at 10 MHz using separate transmit and receive paths. The following pins are used in SNI mode:

—TX_CLK —TX_EN —TXD[0] —RX_CLK —RXD[0] — CRS —COL

3.4 802.3u MII Serial Management Interface

3.4.1 Serial Management Register Access

The serial management MII specification defines a set of thirty-two 16-bit status and control registers that are acces sible through the management interface pins MDC and MDIO. The DP83848I implements all the required MII reg isters as well as several optional registers. These registers are fully described in Section 7.0. A description of the serial management access protocol follows.

3.4.2 Serial Management Access Protocol

The serial control interface consists of two pins, Management Data Clock (MDC) and Management Data Input/Output (MDIO). MDC has a maximum clock rate of 25 MHz and no minimum rate. The MDIO line is bi-directional and may be shared by up to 32 devices. The MDIO frame for mat is shown below in Tab le 5 .

The MDIO pin requires a pull-up resistor (1.5 kΩ) which,

during IDLE and turnaround, will pull MDIO high. In order to initialize the MDIO interface, the station management entity sends a sequence of 32 contiguous logic ones on MDIO to provide the DP83848I with a sequence that can be used to establish synchronization. This preamble may be gener ated either by driving MDIO high for 32 consecutive MDC clock cycles, or by simply allowing the MDIO pull-up resis tor to pull the MDIO pin high during which time 32 MDC clock cycles are provided. In addition 32 MDC clock cycles should be used to re-sync the device if an invalid start, opcode, or turnaround bit is detected.

The DP83848I waits until it has received this preamble sequence before responding to any other transaction. Once the DP83848I serial management port has been ini tialized no further preamble sequencing is required until after a power-on/reset, invalid Start, invalid Opcode, or invalid turnaround bit has occurred.

The Start code is indicated by a <01> pattern. This assures the MDIO line transitions from the default idle line state.

Turnaround is defined as an idle bit time inserted between the Register Address field and the Data field. To avoid contention during a read transaction, no device shall actively drive the MDIO signal during the first bit of Turnaround. The addressed DP83848I drives the MDIO with a zero for the second bit of turnaround and follows this with the

required data. between MDC and the MDIO as driven/received by the Sta-

tion (STA) and the DP83848I (PHY) for a typical register read access.

For write transactions, the station management entity writes data to the addressed DP83848I thus eliminating the requirement for MDIO Turnaround. The Turnaround time is filled by the management entity by inserting <10>. shows the timing relationship for a typical MII register write access.

Figure 4 shows the timing relationship

Figure 5

www.national.com 22

Table 5. Typical MDIO Frame Format

MII Management

Serial Protocol

Read Operation <idle><01><10><AAAAA><RRRRR><Z0><xxxx xxxx xxxx xxxx><idle>

Write Operation <idle><01><01><AAAAA><RRRRR><10><xxxx xxxx xxxx xxxx><idle>

MDC

DP83848I

MDIO

(STA)

MDIO

(PHY)

00011 110000 000

Idle Start

Opcode

(Read)

PHY Address

(PHYAD = 0Ch)

(00h = BMCR)

Figure 4. Typical MDC/MDIO Read Operation

MDC

MDIO

(STA)

00011110000000

Idle Start

Opcode

(Write)

PHY Address

(PHYAD = 0Ch)

(00h = BMCR)

Figure 5. Typical MDC/MDIO Write Operation

3.4.3 Serial Management Preamble Suppression

The DP83848I supports a Preamble Suppression mode as indicated by a one in bit 6 of the Basic Mode Status Regis ter (BMSR, address 01h.) If the station management entity (i.e. MAC or other management controller) determines that all PHYs in the system support Preamble Suppression by returning a one in this bit, then the station management entity need not generate preamble for each management transaction.

The DP83848I requires a single initialization sequence of 32 bits of preamble following hardware/software reset. This

0 0 011000100000000

0 0 0 000 00000000

1000

Idle

requirement is generally met by the mandatory pull-up resistor on MDIO in conjunction with a continuous MDC, or the management access made to determine whether Pre

amble Suppression is supported.

While the DP83848I requires an initial preamble sequence of 32 bits for management initialization, it does not require a full 32-bit sequence between each subsequent transac tion. A minimum of one idle bit between management transactions is required as specified in the IEEE 802.3u specification.

Idle

23 www.national.com

4.0 Architecture

This section describes the operations within each transceiver module, 100BASE-TX and 10BASE-T. Each operation consists of several functional blocks and described in

DP83848I

the following:

— 100BASE-TX Transmitter — 100BASE-TX Receiver — 10BASE-T Transceiver Module

4.1 100BASE-TX TRANSMITTER

The 100BASE-TX transmitter consists of several functional blocks which convert synchronous 4-bit nibble data, as pro vided by the MII, to a scrambled MLT-3 125 Mb/s serial data stream. Because the 100BASE-TX TP-PMD is integrated, the differential output pins, PMD Output Pair, can be directly routed to the magnetics.

The block diagram in Figure 6. provides an overview of each functional block within the 100BASE-TX transmit section.

The Transmitter section consists of the following functional blocks:

— Code-group Encoder and Injection block — Scrambler block (bypass option) — NRZ to NRZI encoder block — Binary to MLT-3 converter / Common Driver The bypass option for the functional blocks within the

100BASE-TX transmitter provides flexibility for applications where data conversion is not always required. The DP83848I implements the 100BASE-TX transmit state

machine diagram as specified in the IEEE 802.3u Stan

dard, Clause 24.

125MHZ CLOCK

BP_SCR

100BASE-TX

LOOPBACK

TX_CLK

DIVIDE

BY 5

MLT[1:0]

TXD[3:0] /

TX_EN

4B5B CODE-

GROUP

ENCODER &

5B PARALLEL

TO SERIAL

SCRAMBLER

MUX

NRZ TO NRZI

ENCODER

BINARY

TO MLT-3 /

COMMON

DRIVER

Figure 6. 100BASE-TX Transmit Block Diagram

www.national.com 24

PMD OUTPUT PAIR

Tab le 5. 4B5B CCode-group Encoding and Injection

DATA CODES

0 11110 0000

1 01001 0001

2 10100 0010

3 10101 0011

4 01010 0100

5 01011 0101

6 01110 0110

7 01111 0111

8 10010 1000

9 10011 1001

A 10110 1010

B 10111 1011

C 11010 1100

D 11011 1101

E 11100 1110

F 11101 1111

IDLE AND CONTROL CODES

H 00100 HALT code-group - Error code

I 11111 Inter-Packet IDLE - 0000 (Note 1)

J 11000 First Start of Packet - 0101 (Note 1)

K 10001 Second Start of Packet - 0101 (Note 1)

T 01101 First End of Packet - 0000 (Note 1)

R 00111 Second End of Packet - 0000 (Note 1)

INVALID CODES

V 00000

V 00001

V 00010

V 00011

V 00101

V 00110

V 01000

V 01100

Note: Control code-groups I, J, K, T and R in data fields will be mapped as invalid codes, together with RX_ER asserted.

DP83848I

The code-group encoder converts 4-bit (4B) nibble data generated by the MAC into 5-bit (5B) code-groups for transmission. This conversion is required to allow control data to be combined with packet data code-groups. Refer

Tab l e 5 for 4B to 5B code-group mapping details.

The code-group encoder substitutes the first 8-bits of the MAC preamble with a J/K code-group pair (11000 10001) upon transmission. The code-group encoder continues to replace subsequent 4B preamble and data nibbles with corresponding 5B code-groups. At the end of the transmit packet, upon the deassertion of Transmit Enable signal from the MAC, the code-group encoder injects the T/R

code-group pair (01101 00111) indicating the end of the frame.

After the T/R code-group pair, the code-group encoder continuously injects IDLEs into the transmit data stream until the next transmit packet is detected (reassertion of Transmit Enable).

4.1.1 Scrambler

The scrambler is required to control the radiated emissions at the media connector and on the twisted pair cable (for

25 www.national.com

100BASE-TX applications). By scrambling the data, the total energy launched onto the cable is randomly distrib uted over a wide frequency range. Without the scrambler, energy levels at the PMD and on the cable could peak

DP83848I

beyond FCC limitations at frequencies related to repeating 5B sequences (i.e., continuous transmission of IDLEs).

The scrambler is configured as a closed loop linear feedback shift register (LFSR) with an 11-bit polynomial. The output of the closed loop LFSR is X-ORd with the serial NRZ data from the code-group encoder. The result is a scrambled data stream with sufficient randomization to decrease radiated emissions at certain frequencies by as much as 20 dB. The DP83848I uses the PHY_ID (pins PHYAD [4:0]) to set a unique seed value.

4.1.2 NRZ to NRZI Encoder

After the transmit data stream has been serialized and scrambled, the data must be NRZI encoded in order to comply with the TP-PMD standard for 100BASE-TX trans mission over Category-5 Unshielded twisted pair cable.

4.1.3 Binary to MLT-3 Convertor

The Binary to MLT-3 conversion is accomplished by converting the serial binary data stream output from the NRZI encoder into two binary data streams with alternately phased logic one events. These two binary streams are then fed to the twisted pair output driver which converts the voltage to current and alternately drives either side of the transmit transformer primary winding, resulting in a MLT-3 signal.

The 100BASE-TX MLT-3 signal sourced by the PMD Output Pair common driver is slew rate controlled. This should be considered when selecting AC coupling magnetics to ensure TP-PMD Standard compliant transition times (3 ns < Tr < 5 ns).

The 100BASE-TX transmit TP-PMD function within the DP83848I is capable of sourcing only MLT-3 encoded data. Binary output from the PMD Output Pair is not possible in 100 Mb/s mode.

4.2 100BASE-TX RECEIVER

The 100BASE-TX receiver consists of several functional

blocks which convert the scrambled MLT-3 125 Mb/s serial data stream to synchronous 4-bit nibble data that is pro vided to the MII. Because the 100BASE-TX TP-PMD is

integrated, the differential input pins, RD±, can be directly

routed from the AC coupling magnetics.

See Figure 7 for a block diagram of the 100BASE-TX receive function. This provides an overview of each functional block within the 100BASE-TX receive section.

The Receive section consists of the following functional blocks:

— Analog Front End — Digital Signal Processor — Signal Detect — MLT-3 to Binary Decoder — NRZI to NRZ Decoder — Serial to Parallel

— Descrambler — Code Group Alignment —4B/5B Decoder — Link Integrity Monitor — Bad SSD Detection

4.2.1 Analog Front End

In addition to the Digital Equalization and Gain Control, the DP83848I includes Analog Equalization and Gain Control in the Analog Front End. The Analog Equalization reduces the amount of Digital Equalization required in the DSP.

4.2.2 Digital Signal Processor

The Digital Signal Processor includes Adaptive Equalization with Gain Control and Base Line Wander Compensation.

www.national.com 26

DP83848I

RX_DV/CRS

RX_DATA

VALID SSD

DETECT

RX_CLK RXD[3:0] / RX_ER

4B/5B DECODER

SERIAL TO PARALLEL

CODE GROUP

ALIGNMENT

DESCRAMBLER

NRZI TO NRZ

DECODER

MLT-3 TO BINARY

DECODER

LINK

INTEGRITY

MONITOR

SIGNAL

DETECT

DIGITAL

SIGNAL

PROCESSOR

ANALOG

FRONT

END

RD +/−

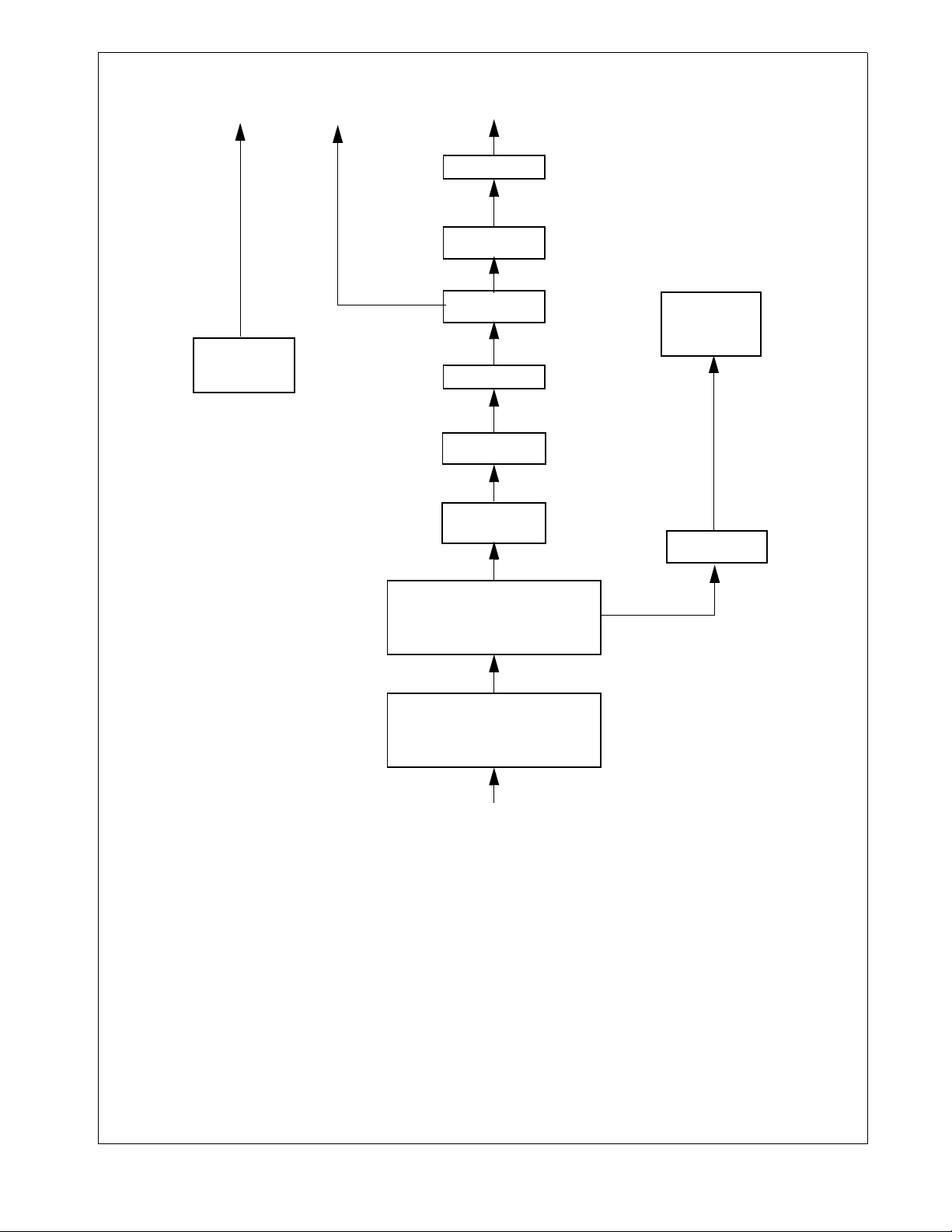

Figure 7. 100BASE-TX Receive Block Diagram

27 www.national.com

4.2.2.1 Digital Adaptive Equalization and Gain Control

When transmitting data at high speeds over copper twisted pair cable, frequency dependent attenuation becomes a concern. In high-speed twisted pair signalling, the fre

DP83848I

quency content of the transmitted signal can vary greatly during normal operation based primarily on the random ness of the scrambled data stream. This variation in signal attenuation caused by frequency variations must be com pensated to ensure the integrity of the transmission.

In order to ensure quality transmission when employing MLT-3 encoding, the compensation must be able to adapt to various cable lengths and cable types depending on the installed environment. The selection of long cable lengths for a given implementation, requires significant compensa tion which will over-compensate for shorter, less attenuating lengths. Conversely, the selection of short or intermediate cable lengths requiring less compensation will cause serious under-compensation for longer length cables. The compensation or equalization must be adap

tive to ensure proper conditioning of the received signal independent of the cable length.

The DP83848I utilizes an extremely robust equalization scheme referred as ‘Digital Adaptive Equalization.’

The Digital Equalizer removes ISI (inter symbol interfer-

ence) from the receive data stream by continuously adapting to provide a filter with the inverse frequency response

of the channel. Equalization is combined with an adaptive gain control stage. This enables the receive 'eye pattern' to be opened sufficiently to allow very reliable data recovery.

The curves given in Figure 8 illustrate attenuation at certain frequencies for given cable lengths. This is derived from the worst case frequency vs. attenuation figures as speci

fied in the EIA/TIA Bulletin TSB-36. These curves indicate the significant variations in signal attenuation that must be compensated for by the receive adaptive equalization cir cuit.

Figure 8. EIA/TIA Attenuation vs. Frequency for 0, 50,

www.national.com 28

100, 130 & 150 meters of CAT 5 cable

4.2.2.2 Base Line Wander Compensation

DP83848I

Figure 9. 100BASE-TX BLW Event

The DP83848I is completely ANSI TP-PMD compliant and includes Base Line Wander (BLW) compensation. The BLW compensation block can successfully recover the TPPMD defined “killer” pattern.

BLW can generally be defined as the change in the average DC content, relatively short period over time, of an AC coupled digital transmission over a given transmission medium. (i.e., copper wire).

BLW results from the interaction between the low frequency components of a transmitted bit stream and the frequency response of the AC coupling component(s) within the transmission system. If the low frequency content of the digital bit stream goes below the low frequency pole of the AC coupling transformers then the droop characteris tics of the transformers will dominate resulting in potentially serious BLW.

The digital oscilloscope plot provided in Figure 9 illustrates the severity of the BLW event that can theoretically be generated during 100BASE-TX packet transmission. This event consists of approximately 800 mV of DC offset for a

period of 120 µs. Left uncompensated, events such as this

can cause packet loss.

4.2.3 Signal Detect

The signal detect function of the DP83848I is incorporated to meet the specifications mandated by the ANSI FDDI TP-

PMD Standard as well as the IEEE 802.3 100BASE-TX Standard for both voltage thresholds and timing parame ters.

Note that the reception of normal 10BASE-T link pulses and fast link pulses per IEEE 802.3u Auto-Negotiation by the 100BASE-TX receiver do not cause the DP83848I to assert signal detect.

4.2.4 MLT-3 to NRZI Decoder

The DP83848I decodes the MLT-3 information from the Digital Adaptive Equalizer block to binary NRZI data.

4.2.5 NRZI to NRZ

In a typical application, the NRZI to NRZ decoder is required in order to present NRZ formatted data to the descrambler.

4.2.6 Serial to Parallel

The 100BASE-TX receiver includes a Serial to Parallel converter which supplies 5-bit wide data symbols to the PCS Rx state machine.

29 www.national.com

4.2.7 Descrambler

A serial descrambler is used to de-scramble the received NRZ data. The descrambler has to generate an identical data scrambling sequence (N) in order to recover the origi

DP83848I

nal unscrambled data (UD) from the scrambled data (SD) as represented in the equations:

SD UD N⊕()= UD SD N⊕()=

Synchronization of the descrambler to the original scrambling sequence (N) is achieved based on the knowledge that the incoming scrambled data stream consists of scrambled IDLE data. After the descrambler has recog nized 12 consecutive IDLE code-groups, where an unscrambled IDLE code-group in 5B NRZ is equal to five co n se c u t i v e o n es ( 11111 ) , i t w i l l s y n c h r o n i z e t o t h e r e c e i v e data stream and generate unscrambled data in the form of unaligned 5B code-groups.

In order to maintain synchronization, the descrambler must continuously monitor the validity of the unscrambled data that it generates. To ensure this, a line state monitor and a hold timer are used to constantly monitor the synchroniza tion status. Upon synchronization of the descrambler the

hold timer starts a 722 µs countdown. Upon detection of

sufficient IDLE code-groups (58 bit times) within the 722 period, the hold timer will reset and begin a new count down. This monitoring operation will continue indefinitely given a properly operating network connection with good signal integrity. If the line state monitor does not recognize sufficient unscrambled IDLE code-groups within the 722 period, the entire descrambler will be forced out of the cur rent state of synchronization and reset in order to reacquire synchronization.

4.2.10 100BASE-TX Link Integrity Monitor

The 100 Base TX Link monitor ensures that a valid and stable link is established before enabling both the Transmit

and Receive PCS layer.

Signal detect must be valid for 395us to allow the link monitor to enter the 'Link Up' state, and enable the transmit and receive functions.

4.2.11 Bad SSD Detection

A Bad Start of Stream Delimiter (Bad SSD) is any transition

from consecutive idle code-groups to non-idle code-groups which is not prefixed by the code-group pair /J/K.

If this condition is detected, the DP83848I will assert RX_ER and present RXD[3:0] = 1110 to the MII for the cycles that correspond to received 5B code-groups until at least two IDLE code groups are detected. In addition, the False Carrier Sense Counter register (FCSCR) will be incremented by one.

Once at least two IDLE code groups are detected, RX_ER

and CRS become de-asserted.

µs

4.3 10BASE-T TRANSCEIVER MODULE

The 10BASE-T Transceiver Module is IEEE 802.3 compliant. It includes the receiver, transmitter, collision, heartbeat, loopback, jabber, and link integrity functions, as

µs

defined in the standard. An external filter is not required on

the 10BASE-T interface since this is integrated inside the

DP83848I. This section focuses on the general 10BASE-T system level operation.

4.2.8 Code-group Alignment

The code-group alignment module operates on unaligned 5-bit data from the descrambler (or, if the descrambler is bypassed, directly from the NRZI/NRZ decoder) and con verts it into 5B code-group data (5 bits). Code-group alignment occurs after the J/K code-group pair is detected. Once the J/K code-group pair (11000 10001) is detected, subsequent data is aligned on a fixed boundary.

4.2.9 4B/5B Decoder

The code-group decoder functions as a look up table that translates incoming 5B code-groups into 4B nibbles. The code-group decoder first detects the J/K code-group pair preceded by IDLE code-groups and replaces the J/K with MAC preamble. Specifically, the J/K 10-bit code-group pair is replaced by the nibble pair (0101 0101). All subsequent 5B code-groups are converted to the corresponding 4B nibbles for the duration of the entire packet. This conver sion ceases upon the detection of the T/R code-group pair denoting the End of Stream Delimiter (ESD) or with the reception of a minimum of two IDLE code-groups.

4.3.1 Operational Modes

The DP83848I has two basic 10BASE-T operational modes:

— Half Duplex mode — Full Duplex mode

Half Duplex Mode

In Half Duplex mode the DP83848I functions as a standard IEEE 802.3 10BASE-T transceiver supporting the CSMA/CD protocol.

Full Duplex Mode

In Full Duplex mode the DP83848I is capable of simultaneously transmitting and receiving without asserting the collision signal. The DP83848I's 10 Mb/s ENDEC is designed to encode and decode simultaneously.

www.national.com 30

4.3.2 Smart Squelch

The smart squelch is responsible for determining when valid data is present on the differential receive inputs. The DP83848I implements an intelligent receive squelch to ensure that impulse noise on the receive inputs will not be mistaken for a valid signal. Smart squelch operation is independent of the 10BASE-T operational mode.

The squelch circuitry employs a combination of amplitude and timing measurements (as specified in the IEEE 802.3 10BSE-T standard) to determine the validity of data on the twisted pair inputs (refer to

The signal at the start of a packet is checked by the smart squelch and any pulses not exceeding the squelch level (either positive or negative, depending upon polarity) will be rejected. Once this first squelch level is overcome cor rectly, the opposite squelch level must then be exceeded

Figure 10).

within 150 ns. Finally the signal must again exceed the original squelch level within a 150 ns to ensure that the input waveform will not be rejected. This checking proce dure results in the loss of typically three preamble bits at the beginning of each packet.

Only after all these conditions have been satisfied will a control signal be generated to indicate to the remainder of the circuitry that valid data is present. At this time, the smart squelch circuitry is reset.

Valid data is considered to be present until the squelch level has not been generated for a time longer than 150 ns, indicating the End of Packet. Once good data has been detected, the squelch levels are reduced to minimize the effect of noise causing premature End of Packet detection.

DP83848I

SQ+(reduced)

SQ-(reduced)

<150 ns

SQ+

SQ-

<150 ns

start of packet

Figure 10. 10BASE-T Twisted Pair Smart Squelch Operation

4.3.3 Collision Detection and SQE

When in Half Duplex, a 10BASE-T collision is detected when the receive and transmit channels are active simulta neously. Collisions are reported by the COL signal on the MII. Collisions are also reported when a jabber condition is detected.

The COL signal remains set for the duration of the collision. If the PHY is receiving when a collision is detected it is reported immediately (through the COL pin).

When heartbeat is enabled, approximately 1 µs after the

transmission of each packet, a Signal Quality Error (SQE) signal of approximately 10-bit times is generated to indi cate successful transmission. SQE is reported as a pulse on the COL signal of the MII.

The SQE test is inhibited when the PHY is set in full duplex mode. SQE can also be inhibited by setting the HEARTBEAT_DIS bit in the 10BTSCR register.

>150 ns

end of packet

4.3.4 Carrier Sense

Carrier Sense (CRS) may be asserted due to receive activity once valid data is detected via the squelch function.

For 10 Mb/s Half Duplex operation, CRS is asserted during either packet transmission or reception.

For 10 Mb/s Full Duplex operation, CRS is asserted only during receive activity.

CRS is deasserted following an end of packet.

4.3.5 Normal Link Pulse Detection/Generation

The link pulse generator produces pulses as defined in the IEEE 802.3 10BASE-T standard. Each link pulse is nomi nally 100 ns in duration and transmitted every 16 ms in the absence of transmit data.

Link pulses are used to check the integrity of the connection with the remote end. If valid link pulses are not received, the link detector disables the 10BASE-T twisted pair transmitter, receiver and collision detection functions.

When the link integrity function is disabled (FORCE_LINK_10 of the 10BTSCR register), a good link is forced and the 10BASE-T transceiver will operate regard less of the presence of link pulses.

31 www.national.com

4.3.6 Jabber Function

The jabber function monitors the DP83848I's output and disables the transmitter if it attempts to transmit a packet of longer than legal size. A jabber timer monitors the transmit

DP83848I

ter and disables the transmission if the transmitter is active for approximately 85 ms.

Once disabled by the Jabber function, the transmitter stays disabled for the entire time that the ENDEC module's inter nal transmit enable is asserted. This signal has to be deasserted for approximately 500 ms (the “unjab” time) before the Jabber function re-enables the transmit outputs.

The Jabber function is only relevant in 10BASE-T mode.

4.3.7 Automatic Link Polarity Detection and Correction

The DP83848I's 10BASE-T transceiver module incorporates an automatic link polarity detection circuit. When three consecutive inverted link pulses are received, bad polarity is reported.

A polarity reversal can be caused by a wiring error at either end of the cable, usually at the Main Distribution Frame (MDF) or patch panel in the wiring closet.

The bad polarity condition is latched in the 10BTSCR register. The DP83848I's 10BASE-T transceiver module corrects for this error internally and will continue to decode received data correctly. This eliminates the need to correct the wiring error immediately.

4.3.8 Transmit and Receive Filtering

External 10BASE-T filters are not required when using the DP83848I, as the required signal conditioning is integrated

into the device.

Only isolation transformers and impedance matching resistors are required for the 10BASE-T transmit and receive interface. The internal transmit filtering ensures that all the

harmonics in the transmit signal are attenuated by at least 30 dB.

4.3.9 Transmitter

The encoder begins operation when the Transmit Enable input (TX_EN) goes high and converts NRZ data to preemphasized Manchester data for the transceiver. For the duration of TX_EN, the serialized Transmit Data (TXD) is encoded for the transmit-driver pair (PMD Output Pair). TXD must be valid on the rising edge of Transmit Clock (TX_CLK). Transmission ends when TX_EN deasserts. The last transition is always positive; it occurs at the center of the bit cell if the last bit is a one, or at the end of the bit cell if the last bit is a zero.

4.3.10 Receiver

The decoder detects the end of a frame when no additional mid-bit transitions are detected. Within one and a half bit times after the last bit, carrier sense is de-asserted. Receive clock stays active for five more bit times after CRS goes low, to guarantee the receive timings of the controller.

www.national.com 32

5.0 Design Guidelines

5.1 TPI Network Circuit

Figure 11 shows the recommended circuit for a 10/100 Mb/s twisted pair interface. To the right is a partial list of recommended transformers. It is important that the user realize that variations with PCB and component character istics requires that the application be tested to ensure that the circuit meets the requirements of the intended application.

RD-

Vdd

49.9Ω

DP83848I

Pulse H1102 Pulse H2019 Pulse J0011D21 Pulse J0011D21B

Vdd

COMMON MODE CHOKES

MAY BE REQUIRED.

49.9

Ω

RD+

TD-

49.9Ω

49.9

Ω

TD+

PLACE RESISTORS AND CAPACITORS CLOSE TO

THE DEVICE.

Vdd

0.1µF

1:1

0.1µF*

1:1

NOTE: CENTER TAP IS PULLED TO VDD

*PLACE CAPACITORS CLOSE TO THE

TRANSFORMER CENTER TAPS

RD-

RD+

TD-

TD+

RJ45

All values are typical and are +/- 1%

Figure 11. 10/100 Mb/s Twisted Pair Interface

33 www.national.com

5.2 ESD Protection

Typically, ESD precautions are predominantly in effect when handling the devices or board before being installed in a system. In those cases, strict handling procedures

DP83848I

need be implemented during the manufacturing process to greatly reduce the occurrences of catastrophic ESD events. After the system is assembled, internal compo nents are less sensitive from ESD events.

See Section 8.0 for ESD rating.

5.3 Clock In (X1) Requirements

The DP83848I supports an external CMOS level oscillator source or a crystal resonator device.

capacitor values will vary with the crystal vendors; check with the vendor for the recommended loads.

The oscillator circuit is designed to drive a parallel reso-

nance AT cut crystal with a minimum drive level of 100µW

and a maximum of 500

µW. If a crystal is specified for a

lower drive level, a current limiting resistor should be placed in series between X2 and the crystal.

As a starting point for evaluating an oscillator circuit, if the

requirements for the crystal are not known, C should be set at 33 pF, and R

should be set at 0Ω.

and C

Specification for 25 MHz crystal are listed in Tab l e 9 .

Oscillator

If an external clock source is used, X1 should be tied to the clock source and X2 should be left floating.

Specifications for CMOS oscillators: 25 MHz in MII Mode and 50 MHz in RMII Mode are listed in

Table 7 and Tabl e 8 .

Crystal

A 25 MHz, parallel, 20 pF load crystal resonator should be used if a crystal source is desired. Figure 12 shows a typi-

Figure 12. Crystal Oscillator Circuit

cal connection for a crystal resonator circuit. The load

Tabl e 6.

Tabl e 7. 25 MHz Oscillator Specification

Parameter Min Typ Max Units Condition

Frequency 25 MHz

Frequency

+50 ppm Operational Temperature

Tolerance

Frequency

+50 ppm 1 year aging

Stability

Rise / Fall Time 6 nsec 20% - 80%

Jitter

800

psec Short term

psec Long term

Symmetry 40% 60% Duty Cycle

This limit is provided as a guideline for component selection and to guaranteed by production testing.

Refer to AN-1548, “PHYTER 100 Base-TX Reference Clock Jitter Tolerance,“ for details on jitter performance.

www.national.com 34

Tabl e 8. 50 MHz Oscillator Specification

Parameter Min Typ Max Units Condition

Frequency 50 MHz

Frequency

+50 ppm Operational Temperature

Tolerance

Frequency

+50 ppm Operational Temperature

Stability

Rise / Fall Time 6 nsec 20% - 80%

Jitter

800

psec Short term

psec Long term

Symmetry 40% 60% Duty Cycle

This limit is provided as a guideline for component selection and to guaranteed by production testing.

Refer to AN-1548, “PHYTER 100 Base-TX Reference Clock Jitter Tolerance,“ for details on jitter performance.

Tabl e 9. 25 MHz Crystal Specification

Parameter Min Typ Max Units Condition

Frequency 25 MHz

Frequency

Tolerance

Frequency

+50 ppm Operational

Temperature

+50 ppm 1 year aging

Stability

Load Capacitance 25 40 pF

DP83848I

5.4 Power Feedback Circuit

To ensure correct operation for the DP83848I, parallel caps with values of 10 placed close to pin 23 (PFBOUT) of the device.

Pin 18 (PFBIN1) and pin 37 (PFBIN2) must be connected to pin 23 (PFBOUT), each pin requires a small capacitor

µF). See Figure 13 below for proper connections.

(.1

Pin 23 (

PFBOUT

Pin 18 (PFBIN1)

Pin 37 (PFBIN2)

Figure 13. Power Feeback Connection

µF (Tantalum) and 0.1 µF should be

)

10 µF

.1 µF

5.5 Power Down/Interrupt

The Power Down and Interrupt functions are multiplexed on pin 7 of the device. By default, this pin functions as a power down input and the interrupt function is disabled. Setting bit 0 (INT_OE) of MICR (0x11h) will configure the pin as an active low interrupt output.

5.5.1 Power Down Control Mode

The PWR_DOWN/INT pin can be asserted low to put the device in a Power Down mode. This is equivalent to setting bit 11 (Power Down) in the Basic Mode Control Register, BMCR (0x00h). An external control signal can be used to drive the pin low, overcoming the weak internal pull-up resistor. Alternatively, the device can be configured to ini tialize into a Power Down state by use of an external pulldown resistor on the PWR_DOWN/INT pin. Since the device will still respond to management register accesses, setting the INT_OE bit in the MICR register will disable the PWR_DOWN/INT input, allowing the device to exit the Power Down state.

5.5.2 Interrupt Mechanisms

The interrupt function is controlled via register access. All interrupt sources are disabled by default. Setting bit 1 (INTEN) of MICR (0x11h) will enable interrupts to be out put, dependent on the interrupt mask set in the lower byte of the MISR (0x12h). The PWR_DOWN/INT pin is asyn chronously asserted low when an interrupt condition occurs. The source of the interrupt can be determined by reading the upper byte of the MISR. One or more bits in the

35 www.national.com

MISR will be set, denoting all currently pending interrupts. Reading of the MISR clears ALL pending interrupts.

Example: To generate an interrupt on a change of link status or on a change of energy detect power state, the steps

DP83848I

would be:

— Write 0003h to MICR to set INTEN and INT_OE — Write 0060h to MISR to set ED_INT_EN and

LINK_INT_EN

— Monitor PWR_DOWN/INT pin

When PWR_DOWN/INT pin asserts low, user would read the MISR register to see if the ED_INT or LINK_INT bits are set, i.e. which source caused the interrupt. After read ing the MISR, the interrupt bits should clear and the PWR_DOWN/INT pin will deassert.

5.6 Energy Detect Mode

When Energy Detect is enabled and there is no activity on the cable, the DP83848I will remain in a low power mode while monitoring the transmission line. Activity on the line will cause the DP83848I to go through a normal power up sequence. Regardless of cable activity, the DP83848I will occasionally wake up the transmitter to put ED pulses on the line, but will otherwise draw as little power as possible. Energy detect functionality is controlled via register Energy Detect Control (EDCR), address 0x1Dh.

www.national.com 36

6.0 Reset Operation

The DP83848I includes an internal power-on reset (POR) function and does not need to be explicitly reset for normal operation after power up. If required during normal opera

DP83848I

tion, the device can be reset by a hardware or software reset.

6.1 Hardware Reset

A hardware reset is accomplished by applying a low pulse (TTL level), with a duration of at least 1 RESET_N. This will reset the device such that all registers will be reinitialized to default values and the hardware con

µs, to the

figuration values will be re-latched into the device (similar to the power-up/reset operation).

6.2 Software Reset

A software reset is accomplished by setting the reset bit

(bit 15) of the Basic Mode Control Register (BMCR). The period from the point in time when the reset bit is set to the point in time when software reset has concluded is approx

imately 1 µs.

The software reset will reset the device such that all registers will be reset to default values and the hardware configuration values will be maintained. Software driver code must wait 3

further serial MII operations with the DP83848I.

µs following a software reset before allowing

www.national.com 37

7.0 Register Block

DP83848I

1Eh-1Fh 30-31 RW RESERVED RESERVED

Offset

Hex Decimal

00h 0 RW BMCR Basic Mode Control Register

01h 1 RO BMSR Basic Mode Status Register

02h 2 RO PHYIDR1 PHY Identifier Register #1

03h 3 RO PHYIDR2 PHY Identifier Register #2

04h 4 RW ANAR Auto-Negotiation Advertisement Register

05h 5 RW ANLPAR Auto-Negotiation Link Partner Ability Register (Base Page)

05h 5 RW ANLPARNP Auto-Negotiation Link Partner Ability Register (Next Page)

06h 6 RW ANER Auto-Negotiation Expansion Register

07h 7 RW ANNPTR Auto-Negotiation Next Page TX

08h-Fh 8-15 RW RESERVED RESERVED

10h 16 RO PHYSTS PHY Status Register

11h 17 RW MICR MII Interrupt Control Register

12h 18 RO MISR MII Interrupt Status Register

13h 19 RW RESERVED RESERVED

14h 20 RO FCSCR False Carrier Sense Counter Register

15h 21 RO RECR Receive Error Counter Register

16h 22 RW PCSR PCS Sub-Layer Configuration and Status Register

17h 23 RW RBR RMII and Bypass Register

18h 24 RW LEDCR LED Direct Control Register

19h 25 RW PHYCR PHY Control Register

1Ah 26 RW 10BTSCR 10Base-T Status/Control Register

1Bh 27 RW CDCTRL1 CD Test Control Register and BIST Extensions Register

1Ch 28 RW RESERVED RESERVED

1Dh 29 RW EDCR Energy Detect Control Register

Access Tag Description

Tabl e 10. Register Map

Extended Registers

www.national.com 38

DP83848I

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

Test

Collision

Mode

Duplex

Auto-

Isolate Restart

bility

Extend-

ed Capa-

Detect

Jabber

Link

Status

Neg

Auto-

Ability

Fault

Remote

Neg

plete

Auto-

Com-

Sup-

press

amble

MF Pre-

Re-

served

Re-

served

Re-

Neg

served

Re-

served

REV

MDL_

REV

MDL_

REV

MDL_

REV

MDL_

MDL

VNDR_

MDL

VNDR_

MDL

VNDR_

MDL

VNDR_

MDL

VNDR_

MDL

Protocol

Selection

Protocol

Selection

Protocol

Selection

Protocol

Selection

PAUSE T4 TX_FD TX 10_FD 10 Protocol

ABLE

LP_AN_

PAGE_

NP_

ABLE

PDF LP_NP_

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

Re-

Link

Speed

Duplex

Loop-

Auto-

Jabber

Remote

MII Inter-

Page

De-

Signal

Status

back Sta-

Neg

Detect

Fault

rupt

Receive

scram

Detect

tus

Com-

Lock

plete

TINT INTEN INT_OE

Re-

served

UNMSK_

Re-

FHF_INT RHF_IN

ANC_IN

RHF

FHF

ANC

JAB

LINK

served

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

FCSCNT FCSCNT FCSCNT FCSCNT FCSCNT FCSCNT FCSCNT FCSCNT

Re-

served

Re-

served

Re-

served

CNT

RXER-

Re-

CNT

served

SCRAM_

BYPASS

SCRAM_

NRZI_

BYPASS

Re-

served

Re-

served

100_OK

FORCE_

Re-

served

IME

DESC_T

SD_

OPTION

CE_PMA

TQ_EN SD_FOR

BYPASS

Down

Power

Neg

Auto-

HDX

10Base-

FDX

Enable

10Base-

Table 11. Register Table

Speed

100Base

-TX HDX

Selection

back

-TX FDX

100Base

-T4

OUI MSB OUI MSB OUI MSB OUI MSB OUI MSB OUI MSB OUI MSB OUI MSB OUI MSB OUI MSB OUI MSB OUI MSB OUI MSB OUI MSB OUI MSB OUI MSB

00h BMCR Reset Loop-

01h BMSR 100Base

02h PHYIDR

OUI LSB OUI LSB OUI LSB OUI LSB OUI LSB OUI LSB VNDR_

03h PHYIDR

ASM_DI

Re-

served

Fault

Remote

Re-

ACK Remote

served

Page Ind

04h ANAR Next

05h ANLPAR Next

ACK2 Toggle Code Code Code Code Code Code Code Code Code Code Code

ACK Mes-

05h AN-

sage

Page

Page Ind

LPARNP

Re-

served

Re-

served

Re-

served

Re-

served

06h ANER Re-

ACK2 TOG_TX CODE CODE CODE CODE CODE CODE CODE CODE CODE CODE CODE

sage

Mes-

Re-

served

Page Ind

07h ANNPTR Next

Re-

Page

Re-

08-0fh Re-

False

EXTENDED REGISTERS

Sense

Carrier

Status

Polarity

Latch

Rx Err

MDI-X

mode

served

10h PHYSTS Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

11h MICR Re-

Re-

served

DUP_IN

SPD_IN

ED_INT LINK_IN

served

12h MISR Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

13h Re-

14h FCSCR Re-

Re-

served

Re-

served

BYP_4B

Re-

served

Re-

served

15h RECR Re-

16h PCSR Re-

Register Name Addr Tag Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 9 Bit 8 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Basic Mode Control Register

Basic Mode Status Register

PHY Identifier Register 1

PHY Identifier Register 2

Auto-Negotiation Advertisement Register

Auto-Negotiation Link Partner Ability Regis-

ter (Base Page)

Auto-Negotiation Link Partner Ability Regis-

ter Next Page

Auto-Negotiation Expansion Register

Auto-Negotiation Next Page TX Register

RESERVED

PHY Status Register

MII Interrupt Control Register

MII Interrupt Status and Misc. Control Reg-

ister

RESERVED

False Carrier Sense Counter Register

Receive Error Counter Register

PCS Sub-Layer Configuration and Status

39 www.national.com

RX_RD_

Sel

PHY

_DIS

PTR[0]

ADDR

JABBER

Re-

CDPatt-

ED_DAT

A_COUN

Re-

served

DP83848I

RX_RD_

RX_UNF

RX_OVF

RMII_RE

RMII_M

Re-

PTR[1]

_STS

V1_0

ODE

served

Sel

DIS

PHY

ADDR

HEART_

Re-

PHY

ADDR

PHY

LED_

BP_STR

BIST_ST

ADDR

CNFG[0]

CNFG[1]

ETCH

ART

STATUS

Re-

POLARI-

Re-

LP_DIS FORC_

LOOPBA

SQUELC

served

LINK_10

CK_10_

DIS

SPDLED LNKLED ACTLED

TLED

DRV_AC

KLED

DRV_LN

DLED

DRV_SP

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

Re-

CDPatt-

Re-

10Meg_

Patt_Ga

Re-

served

Re-

N_10

CDPattE

Re-

ODE

BIST_C

ONT_M

Re-

served

Re-

served

Re-

OUNT

ROR_C

BIST_ER

Re-

OUNT

ROR_C

BIST_ER

Re-

BIST_ER

ROR_C

OUNT

ED_DAT

ED_ERR

ED_DAT

ED_ERR

ED_PW

A_COUN

_COUNT

A_MET

_MET

R_STAT

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

BIST_fe PSR_15 BIST_

PAUSE_

MDIX

FORCE_

19h PHYCR MDIX_E

SQUELC

RANGE

ERROR

RANGE

ERROR

100

BASE T

REJECT

10BT_S

ERIAL

1Ah 10BT_S

Re-

OUNT

served

ROR_C

BIST_ER

Re-

OUNT

served

ROR_C

BIST_ER

Re-

ROR_C

OUNT

served

Re-

served

Re-

served

1Ch Re-

BIST_ER

1Bh CDCTRL

ED_MAN ED_BUR

ED_AUT

1Dh EDCR ED_EN ED_AUT

ST_DIS

O_DOW

O_UP

Re-

served

Re-

served

Re-

served

Re-

served

Re-

served

1Eh-1Fh Re-

Re-

Table 11. Register Table

Re-

17h RBR Re-

served

Re-

served

Re-

served

Re-

served

18h LEDCR Re-

Register Name Addr Tag Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 9 Bit 8 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

RMII and Bypass Register

LED Direct Control Register

PHY Control Register

10Base-T Status/Control Register

CD Test Control and BIST Extensions Reg-

ister

RESERVED

Energy Detect Control Register

RESERVED

www.national.com 40

7.1 Register Definition

In the register definitions under the ‘Default’ heading, the following definitions hold true:

— RW=Read Write access — SC=Register sets on event occurrence and Self-Clears when event ends

— RW/SC =Read Write access/Self Clearing bit — RO=Read Only access — COR = Clear on Read — RO/COR=Read Only, Clear on Read — RO/P=Read Only, Permanently set to a default value — LL=Latched Low and held until read, based upon the occurrence of the corresponding event

—LH=Latched High and held until read, based upon the occurrence of the corresponding event

DP83848I

41 www.national.com

7.1.1 Basic Mode Control Register (BMCR)

Tab le 12. Basic Mode Control Register (BMCR), address 0x00

DP83848I

Bit Bit Name Default Description

15 Reset 0, RW/SC Reset:

14 Loopback 0, RW Loopback:

13 Speed Selection Strap, RW Speed Select:

12 Auto-Negotiation

Enable

11 Power Down 0, RW Power Down:

10 Isolate 0, RW Isolate:

9 Restart Auto-

Negotiation

8 Duplex Mode Strap, RW Duplex Mode:

1 = Initiate software Reset / Reset in Process.

0 = Normal operation.

This bit, which is self-clearing, returns a value of one until the reset process is complete. The configuration is re-strapped.

1 = Loopback enabled.

0 = Normal operation.

The loopback function enables MII transmit data to be routed to the MII receive data path.

Setting this bit may cause the descrambler to lose synchronization and

produce a 500 µs “dead time” before any valid data will appear at the

MII receive outputs.

When auto-negotiation is disabled writing to this bit allows the port speed to be selected.

1 = 100 Mb/s.

0 = 10 Mb/s.

Strap, RW Auto-Negotiation Enable:

Strap controls initial value at reset.

1 = Auto-Negotiation Enabled - bits 8 and 13 of this register are ignored when this bit is set.

0 = Auto-Negotiation Disabled - bits 8 and 13 determine the port speed and duplex mode.

1 = Power down.

0 = Normal operation.

Setting this bit powers down the PHY. Only the register block is enabled during a power down condition. This bit is OR’d with the input from the PWR_DOWN/INT pin. When the active low PWR_DOWN/INT pin is asserted, this bit will be set.

1 = Isolates the Port from the MII with the exception of the serial management.

0 = Normal operation.

0, RW/SC Restart Auto-Negotiation:

1 = Restart Auto-Negotiation. Re-initiates the Auto-Negotiation process. If Auto-Negotiation is disabled (bit 12 = 0), this bit is ignored. This bit is self-clearing and will return a value of 1 until Auto-Negotiation is initiated, whereupon it will self-clear. Operation of the Auto-Negotiation process is not affected by the management entity clearing this bit.

0 = Normal operation.

When auto-negotiation is disabled writing to this bit allows the port Duplex capability to be selected.

1 = Full Duplex operation.

0 = Half Duplex operation.

www.national.com 42

Table 12. Basic Mode Control Register (BMCR), address 0x00 (Continued)

Bit Bit Name Default Description

7 Collision Test 0, RW Collision Test:

1 = Collision test enabled.

0 = Normal operation.

When set, this bit will cause the COL signal to be asserted in response to the assertion of TX_EN within 512-bit times. The COL signal will be de-asserted within 4-bit times in response to the de-assertion of TX_EN.

6:0 RESERVED 0, RO RESERVED: Write ignored, read as 0.

DP83848I

43 www.national.com

7.1.2 Basic Mode Status Register (BMSR)

Tabl e 13. Basic Mode Status Register (BMSR), address 0x01

DP83848I

Bit Bit Name Default Description

15 100BASE-T4 0, RO/P 100BASE-T4 Capable:

14 100BASE-TX

Full Duplex

13 100BASE-TX

Half Duplex

12 10BASE-T

Full Duplex

11 10BASE-T

Half Duplex

10:7 RESERVED 0, RO RESERVED: Write as 0, read as 0.

6 MF Preamble

Suppression

5 Auto-Negotiation Com-

plete

4 Remote Fault 0, RO/LH Remote Fault:

3 Auto-Negotiation Abili-ty1, RO/P Auto Negotiation Ability:

2 Link Status 0, RO/LL Link Status:

1 Jabber Detect 0, RO/LH Jabber Detect: This bit only has meaning in 10 Mb/s mode.

0 Extended Capability 1, RO/P Extended Capability:

0 = Device not able to perform 100BASE-T4 mode.

1, RO/P 100BASE-TX Full Duplex Capable:

1 = Device able to perform 100BASE-TX in full duplex mode.

1, RO/P 100BASE-TX Half Duplex Capable:

1 = Device able to perform 100BASE-TX in half duplex mode.

1, RO/P 10BASE-T Full Duplex Capable:

1 = Device able to perform 10BASE-T in full duplex mode.

1, RO/P 10BASE-T Half Duplex Capable:

1 = Device able to perform 10BASE-T in half duplex mode.

1, RO/P Preamble suppression Capable:

1 = Device able to perform management transaction with preamble suppressed, 32-bits of preamble needed only once after reset, invalid opcode or invalid turnaround.

0 = Normal management operation.

0, RO Auto-Negotiation Complete:

1 = Auto-Negotiation process complete.

0 = Auto-Negotiation process not complete.

1 = Remote Fault condition detected (cleared on read or by reset). Fault criteria: Far End Fault Indication or notification from Link Part ner of Remote Fault.

0 = No remote fault condition detected.

1 = Device is able to perform Auto-Negotiation.

0 = Device is not able to perform Auto-Negotiation.

1 = Valid link established (for either 10 or 100 Mb/s operation).

0 = Link not established.

The criteria for link validity is implementation specific. The occurrence of a link failure condition will causes the Link Status bit to clear. Once cleared, this bit may only be set by establishing a good link condition and a read via the management interface.

1 = Jabber condition detected.

0 = No Jabber.

This bit is implemented with a latching function, such that the occurrence of a jabber condition causes it to set until it is cleared by a read to this register by the management interface or by a reset.

1 = Extended register capabilities.

0 = Basic register set capabilities only.

www.national.com 44

The PHY Identifier Registers #1 and #2 together form a unique identifier for the DP83848I. The Identifier consists of a concatenation of the Organizationally Unique Identifier (OUI), the vendor's model number and the model revision num ber. A PHY may return a value of zero in each of the 32 bits of the PHY Identifier if desired. The PHY Identifier is intended to support network management. National's IEEE assigned OUI is 080017h.

7.1.3 PHY Identifier Register #1 (PHYIDR1)

Tab le 14. PHY Identifier Register #1 (PHYIDR1), address 0x02

Bit Bit Name Default Description

15:0 OUI_MSB <0010 0000 0000

0000>, RO/P

7.1.4 PHY Identifier Register #2 (PHYIDR2)

Tab le 15. PHY Identifier Register #2 (PHYIDR2), address 0x03

Bit Bit Name Default Description

15:10 OUI_LSB <0101 11>, RO/P OUI Least Significant Bits:

9:4 VNDR_MDL <00 1001>, RO/P Vendor Model Number:

3:0 MDL_REV <0000>, RO/P Model Revision Number:

OUI Most Significant Bits: Bits 3 to 18 of the OUI (080017h) are stored in bits 15 to 0 of this register. The most significant two bits of the OUI are ignored (the IEEE standard refers to these as bits 1 and 2).

Bits 19 to 24 of the OUI (080017h) are mapped from bits 15 to 10 of this register respectively.

The six bits of vendor model number are mapped from bits 9 to 4 (most significant bit to bit 9).

Four bits of the vendor model revision number are mapped from bits 3 to 0 (most significant bit to bit 3). This field will be incremented for all major device changes.

DP83848I

7.1.5 Auto-Negotiation Advertisement Register (ANAR)

This register contains the advertised abilities of this device as they will be transmitted to its link partner during AutoNegotiation.

Tab le 16. Negotiation Advertisement Register (ANAR), address 0x04

Bit Bit Name Default Description

15 NP 0, RW Next Page Indication:

0 = Next Page Transfer not desired.

1 = Next Page Transfer desired.

14 RESERVED 0, RO/P RESERVED by IEEE: Writes ignored, Read as 0.

13 RF 0, RW Remote Fault:

1 = Advertises that this device has detected a Remote Fault.

0 = No Remote Fault detected.

12 RESERVED 0, RW RESERVED for Future IEEE use: Write as 0, Read as 0

45 www.national.com

Table 16. Negotiation Advertisement Register (ANAR), address 0x04 (Continued)

Bit Bit Name Default Description

DP83848I

11 ASM_DIR 0, RW Asymmetric PAUSE Support for Full Duplex Links:

The ASM_DIR bit indicates that asymmetric PAUSE is supported.

Encoding and resolution of PAUSE bits is defined in IEEE 802.3 Annex 28B, Tables 28B-2 and 28B-3, respectively. Pause resolu tion status is reported in PHYCR[13:12].

1 = Advertise that the DTE (MAC) has implemented both the optional MAC control sublayer and the pause function as specified in clause 31 and annex 31B of 802.3u.

0= No MAC based full duplex flow control.

10 PAUSE 0, RW PAUSE Support for Full Duplex Links:

The PAUSE bit indicates that the device is capable of providing the symmetric PAUSE functions as defined in Annex 31B.

Encoding and resolution of PAUSE bits is defined in IEEE 802.3 Annex 28B, Tables 28B-2 and 28B-3, respectively. Pause resolu tion status is reported in PHYCR[13:12].

1 = Advertise that the DTE (MAC) has implemented both the optional MAC control sublayer and the pause function as specified in clause 31 and annex 31B of 802.3u.

0= No MAC based full duplex flow control.

9 T4 0, RO/P 100BASE-T4 Support:

1= 100BASE-T4 is supported by the local device.

0 = 100BASE-T4 not supported.

8 TX_FD Strap, RW 100BASE-TX Full Duplex Support:

1 = 100BASE-TX Full Duplex is supported by the local device.

0 = 100BASE-TX Full Duplex not supported.

7 TX Strap, RW 100BASE-TX Support:

1 = 100BASE-TX is supported by the local device.

0 = 100BASE-TX not supported.

6 10_FD Strap, RW 10BASE-T Full Duplex Support:

1 = 10BASE-T Full Duplex is supported by the local device.

0 = 10BASE-T Full Duplex not supported.

5 10 Strap, RW 10BASE-T Support:

1 = 10BASE-T is supported by the local device.

0 = 10BASE-T not supported.

4:0 Selector <00001>, RW Protocol Selection Bits:

These bits contain the binary encoded protocol selector supported by this port. <00001> indicates that this device supports IEEE

802.3u.

www.national.com 46

7.1.6 Auto-Negotiation Link Partner Ability Register (ANLPAR) (BASE Page)

This register contains the advertised abilities of the Link Partner as received during Auto-Negotiation. The content changes after the successful auto-negotiation if Next-pages are supported.

Table 17. Auto-Negotiation Link Partner Ability Register (ANLPAR) (BASE Page), address 0x05

Bit Bit Name Default Description

15 NP 0, RO Next Page Indication:

0 = Link Partner does not desire Next Page Transfer.

1 = Link Partner desires Next Page Transfer.

14 ACK 0, RO Acknowledge:

1 = Link Partner acknowledges reception of the ability data word.

0 = Not acknowledged.

The Auto-Negotiation state machine will automatically control the this bit based on the incoming FLP bursts.

13 RF 0, RO Remote Fault:

1 = Remote Fault indicated by Link Partner.

0 = No Remote Fault indicated by Link Partner.

12 RESERVED 0, RO RESERVED for Future IEEE use:

Write as 0, read as 0.

11 ASM_DIR 0, RO ASYMMETRIC PAUSE:

1 = Asymmetric pause is supported by the Link Partner.

0 = Asymmetric pause is not supported by the Link Partner.

10 PAUSE 0, RO PAUSE:

1 = Pause function is supported by the Link Partner.

0 = Pause function is not supported by the Link Partner.

9 T4 0, RO 100BASE-T4 Support:

1 = 100BASE-T4 is supported by the Link Partner.

0 = 100BASE-T4 not supported by the Link Partner.

8 TX_FD 0, RO 100BASE-TX Full Duplex Support:

1 = 100BASE-TX Full Duplex is supported by the Link Partner.

0 = 100BASE-TX Full Duplex not supported by the Link Partner.

7 TX 0, RO 100BASE-TX Support:

1 = 100BASE-TX is supported by the Link Partner.

0 = 100BASE-TX not supported by the Link Partner.

6 10_FD 0, RO 10BASE-T Full Duplex Support:

1 = 10BASE-T Full Duplex is supported by the Link Partner.

0 = 10BASE-T Full Duplex not supported by the Link Partner.

5 10 0, RO 10BASE-T Support:

1 = 10BASE-T is supported by the Link Partner.

0 = 10BASE-T not supported by the Link Partner.

4:0 Selector <0 0000>, RO Protocol Selection Bits:

Link Partner’s binary encoded protocol selector.

DP83848I

47 www.national.com

7.1.7 Auto-Negotiation Link Partner Ability Register (ANLPAR) (Next Page)

Table 18. Auto-Negotiation Link Partner Ability Register (ANLPAR) (Next Page), address 0x05

DP83848I

Bit Bit Name Default Description

15 NP 0, RO Next Page Indication:

1 = Link Partner desires Next Page Transfer.

0 = Link Partner does not desire Next Page Transfer.

14 ACK 0, RO Acknowledge:

1 = Link Partner acknowledges reception of the ability data word.

0 = Not acknowledged.

The Auto-Negotiation state machine will automatically control the this bit based on the incoming FLP bursts. Software should not attempt to write to this bit.

13 MP 0, RO Message Page:

1 = Message Page.

0 = Unformatted Page.

12 ACK2 0, RO Acknowledge 2:

1 = Link Partner does have the ability to comply to next page message.

0 = Link Partner does not have the ability to comply to next page message.

11 Toggle 0, RO Toggle:

1 = Previous value of the transmitted Link Code word equalled 0.

0 = Previous value of the transmitted Link Code word equalled 1.

10:0 CODE <000 0000 0000>, ROCode:

This field represents the code field of the next page transmission. If the MP bit is set (bit 13 of this register), then the code shall be interpreted as a “Message Page,” as defined in annex 28C of Clause 28. Otherwise, the code shall be interpreted as an “Unfor matted Page,” and the interpretation is application specific.

7.1.8 Auto-Negotiate Expansion Register (ANER)

This register contains additional Local Device and Link Partner status information.

Table 19. Auto-Negotiate Expansion Register (ANER), address 0x06

Bit Bit Name Default Description

15:5 RESERVED 0, RO RESERVED: Writes ignored, Read as 0.

4 PDF 0, RO Parallel Detection Fault:

1 = A fault has been detected via the Parallel Detection function.

0 = A fault has not been detected.

3 LP_NP_ABLE 0, RO Link Partner Next Page Able:

1 = Link Partner does support Next Page.

0 = Link Partner does not support Next Page.

2 NP_ABLE 1, RO/P Next Page Able:

1 = Indicates local device is able to send additional “Next Pages”.

1 PAGE_RX 0, RO/COR Link Code Word Page Received:

1 = Link Code Word has been received, cleared on a read.

0 = Link Code Word has not been received.

www.national.com 48

Table 19. Auto-Negotiate Expansion Register (ANER), address 0x06 (Continued)

Bit Bit Name Default Description

0 LP_AN_ABLE 0, RO Link Partner Auto-Negotiation Able:

1 = indicates that the Link Partner supports Auto-Negotiation.

0 = indicates that the Link Partner does not support Auto-Negotiation.

7.1.9 Auto-Negotiation Next Page Transmit Register (ANNPTR)

This register contains the next page information sent by this device to its Link Partner during Auto-Negotiation.

Tab le 20. Auto-Negotiation Next Page Transmit Register (ANNPTR), address 0x07

Bit Bit Name Default Description

15 NP 0, RW Next Page Indication:

0 = No other Next Page Transfer desired.

1 = Another Next Page desired.

14 RESERVED 0, RO RESERVED: Writes ignored, read as 0.

13 MP 1, RW Message Page:

1 = Message Page.

0 = Unformatted Page.

12 ACK2 0, RW Acknowledge2:

1 = Will comply with message.

0 = Cannot comply with message.

Acknowledge2 is used by the next page function to indicate that Local Device has the ability to comply with the message received.

11 TOG_TX 0, RO Toggle:

1 = Value of toggle bit in previously transmitted Link Code Word was 0.

0 = Value of toggle bit in previously transmitted Link Code Word was 1.

Toggle is used by the Arbitration function within Auto-Negotiation to ensure synchronization with the Link Partner during Next Page exchange. This bit shall always take the opposite value of the Tog gle bit in the previously exchanged Link Code Word.

10:0 CODE <000 0000 0001>, RWThis field represents the code field of the next page transmission.

If the MP bit is set (bit 13 of this register), then the code shall be interpreted as a "Message Page”, as defined in annex 28C of IEEE

802.3u. Otherwise, the code shall be interpreted as an "Unformat ted Page”, and the interpretation is application specific.

The default value of the CODE represents a Null Page as defined in Annex 28C of IEEE 802.3u.

DP83848I

49 www.national.com

7.2 Extended Registers

7.2.1 PHY Status Register (PHYSTS)

This register provides a single location within the register set for quick access to commonly accessed information.

DP83848I

Tab le 21. PHY Status Register (PHYSTS), address 0x10

Bit Bit Name Default Description

15 RESERVED 0, RO RESERVED: Write ignored, read as 0.

14 MDI-X mode 0, RO MDI-X mode as reported by the Auto-Negotiation logic:

This bit will be affected by the settings of the MDIX_EN and FORCE_MDIX bits in the PHYCR register. When MDIX is en abled, but not forced, this bit will update dynamically as the Auto-MDIX algorithm swaps between MDI and MDI-X configurations.

1 = MDI pairs swapped

(Receive on TPTD pair, Transmit on TPRD pair)

0 = MDI pairs normal

(Receive on TRD pair, Transmit on TPTD pair)

13 Receive Error Latch 0, RO/LH Receive Error Latch:

This bit will be cleared upon a read of the RECR register.

1 = Receive error event has occurred since last read of RXERCNT (address 0x15, Page 0).

0 = No receive error event has occurred.

12 Polarity Status 0, RO Polarity Status:

This bit is a duplication of bit 4 in the 10BTSCR register. This bit will be cleared upon a read of the 10BTSCR register, but not upon a read of the PHYSTS register.

1 = Inverted Polarity detected.

0 = Correct Polarity detected.

11 False Carrier Sense

Latch

10 Signal Detect 0, RO/LL 100Base-TX unconditional Signal Detect from PMD.

9 Descrambler Lock 0, RO/LL 100Base-TX Descrambler Lock from PMD.

8 Page Received 0, RO Link Code Word Page Received:

7 MII Interrupt 0, RO MII Interrupt Pending:

6 Remote Fault 0, RO Remote Fault:

0, RO/LH False Carrier Sense Latch:

This bit will be cleared upon a read of the FCSR register.

1 = False Carrier event has occurred since last read of FCSCR (address 0x14).

0 = No False Carrier event has occurred.

This is a duplicate of the Page Received bit in the ANER register, but this bit will not be cleared upon a read of the PHYSTS register.

1 = A new Link Code Word Page has been received. Cleared on read of the ANER (address 0x06, bit 1).

0 = Link Code Word Page has not been received.

1 = Indicates that an internal interrupt is pending. Interrupt source can be determined by reading the MISR Register (0x12h). Reading the MISR will clear the Interrupt.

0= No interrupt pending.

1 = Remote Fault condition detected (cleared on read of BMSR (address 01h) register or by reset). Fault criteria: notification from Link Partner of Remote Fault via Auto-Negotiation.

0 = No remote fault condition detected.

www.national.com 50

Table 21. PHY Status Register (PHYSTS), address 0x10 (Continued)

Bit Bit Name Default Description

5 Jabber Detect 0, RO Jabber Detect: This bit only has meaning in 10 Mb/s mode

This bit is a duplicate of the Jabber Detect bit in the BMSR register, except that it is not cleared upon a read of the PHYSTS register.

1 = Jabber condition detected.

0 = No Jabber.

4 Auto-Neg Complete 0, RO Auto-Negotiation Complete:

1 = Auto-Negotiation complete.

0 = Auto-Negotiation not complete.

3 Loopback Status 0, RO Loopback:

1 = Loopback enabled.

0 = Normal operation.

2 Duplex Status 0, RO Duplex:

This bit indicates duplex status and is determined from Auto-Negotiation or Forced Modes.

1 = Full duplex mode.

0 = Half duplex mode.

Note: This bit is only valid if Auto-Negotiation is enabled and complete and there is a valid link or if Auto-Negotiation is disabled and there is a valid link.

1 Speed Status 0, RO Speed10:

This bit indicates the status of the speed and is determined from Auto-Negotiation or Forced Modes.

1 = 10 Mb/s mode.

0 = 100 Mb/s mode.

Note: This bit is only valid if Auto-Negotiation is enabled and complete and there is a valid link or if Auto-Negotiation is disabled and there is a valid link.

0 Link Status 0, RO Link Status:

This bit is a duplicate of the Link Status bit in the BMSR register, except that it will not be cleared upon a read of the PHYSTS register.

1 = Valid link established (for either 10 or 100 Mb/s operation)

0 = Link not established.

DP83848I

51 www.national.com

7.2.2 MII Interrupt Control Register (MICR)

This register implements the MII Interrupt PHY Specific Control register. Sources for interrupt generation include: Energy Detect State Change, Link State Change,

any of the counters becoming half-full. The individual interrupt events must be enabled by setting bits in the MII Inter-

DP83848I

Speed Status Change, Duplex Status Change, Auto-Negotiation Complete or

rupt Status and Event Control Register (MISR).

Tabl e 22. MII Interrupt Control Register (MICR), address 0x11

Bit Bit Name Default Description

15:3 Reserved 0, RO Reserved: Write ignored, Read as 0

2 TINT 0, RW Test Interrupt:

Forces the PHY to generate an interrupt to facilitate interrupt testing. Interrupts will continue to be generated as long as this bit remains set.

1 = Generate an interrupt

0 = Do not generate interrupt

1 INTEN 0, RW Interrupt Enable:

Enable interrupt dependent on the event enables in the MISR register.

1 = Enable event based interrupts

0 = Disable event based interrupts

0 INT_OE 0, RW Interrupt Output Enable:

Enable interrupt events to signal via the PWR_DOWN/INT pin by configuring the PWR_DOWN/INT pin as an output.

1 = PWR_DOWN/INT is an Interrupt Output

0 = PWR_DOWN/INT is a Power Down Input

www.national.com 52

7.2.3 MII Interrupt Status and Misc. Control Register (MISR)

This register contains event status and enables for the interrupt function. If an event has occurred since the last read of this register, the corresponding status bit will be set. If the corresponding enable bit in the register is set, an interrupt will be generated if the event occurs. The MICR register controls must also be set to allow interrupts. The status indi cations in this register will be set even if the interrupt is not enabled

Tab le 23. MII Interrupt Status and Misc. Control Register (MISR), address 0x12

15 Reserved 0, RO RESERVED: Writes ignored, Read as 0

14 ED_INT 0, RO/COR Energy Detect interrupt:

1 = Energy detect interrupt is pending and is cleared by the current read.

0 = No energy detect interrupt pending.

13 LINK_INT 0, RO/COR Change of Link Status interrupt:

1 = Change of link status interrupt is pending and is cleared by the current read.

0 = No change of link status interrupt pending.

12 SPD_INT 0, RO/COR Change of speed status interrupt:

1 = Speed status change interrupt is pending and is cleared by the current read.

0 = No speed status change interrupt pending.

11 DUP_INT 0, RO/COR Change of duplex status interrupt:

1 = Duplex status change interrupt is pending and is cleared by the current read.

0 = No duplex status change interrupt pending.

10 ANC_INT 0, RO/COR Auto-Negotiation Complete interrupt:

1 = Auto-negotiation complete interrupt is pending and is cleared by the current read.

0 = No Auto-negotiation complete interrupt pending.

9 FHF_INT 0, RO/COR False Carrier Counter half-full interrupt:

1 = False carrier counter half-full interrupt is pending and is cleared by the current read.

0 = No false carrier counter half-full interrupt pending.

8 RHF_INT 0, RO/COR Receive Error Counter half-full interrupt:

1 = Receive error counter half-full interrupt is pending and is cleared by the current read.

0 = No receive error carrier counter half-full interrupt pending.

7 RESERVED 0, RO RESERVED: Writes ignored, Read as 0

6 ED_INT_EN 0, RW Enable Interrupt on energy detect event

5 LINK_INT_EN 0, RW Enable Interrupt on change of link status

4 SPD_INT_EN 0, RW Enable Interrupt on change of speed status

3 DUP_INT_EN 0, RW Enable Interrupt on change of duplex status

2 ANC_INT_EN 0, RW Enable Interrupt on Auto-negotiation complete event

1 FHF_INT_EN 0, RW Enable Interrupt on False Carrier Counter Register half-full event

0 RHF_INT_EN 0, RW Enable Interrupt on Receive Error Counter Register half-full event

DP83848I

53 www.national.com

7.2.4 False Carrier Sense Counter Register (FCSCR)

This counter provides information required to implement the “False Carriers” attribute within the MAU managed object class of Clause 30 of the IEEE 802.3u specification.

DP83848I

Tabl e 24. False Carrier Sense Counter Register (FCSCR), address 0x14

Bit Bit Name Default Description

15:8 RESERVED 0, RO RESERVED: Writes ignored, Read as 0

7:0 FCSCNT[7:0] 0, RO / COR False Carrier Event Counter:

This 8-bit counter increments on every false carrier event. This counter sticks when it reaches its max count (FFh).

7.2.5 Receiver Error Counter Register (RECR)

This counter provides information required to implement the “Symbol Error During Carrier” attribute within the PHY managed object class of Clause 30 of the IEEE 802.3u specification.

Table 25. Receiver Error Counter Register (RECR), address 0x15

Bit Bit Name Default Description

15:8 RESERVED 0, RO RESERVED: Writes ignored, Read as 0

7:0 RXERCNT[7:0] 0, RO / COR RX_ER Counter:

When a valid carrier is present and there is at least one occurrence of an invalid data symbol, this 8-bit counter increments for each re ceive error detected. This event can increment only once per valid carrier event. If a collision is present, the attribute will not incre ment. The counter sticks when it reaches its max count.

www.national.com 54

7.2.6 100 Mb/s PCS Configuration and Status Register (PCSR)

Tab le 26. 100 Mb/s PCS Configuration and Status Register (PCSR), address 0x16

Bit Bit Name Default Description

15:13 RESERVED <00>, RO RESERVED: Writes ignored, Read as 0.

12 RESERVED 0 RESERVED:

Must be zero.

11 RESERVED 0 RESERVED:

Must be zero.

10 TQ_EN

9 SD FORCE PMA

8 SD_OPTION 1, RW Signal Detect Option:

7 DESC_TIME 0, RW Descrambler Timeout:

6 RESERVED 0 RESERVED:

5 FORCE_100_OK 0, RW Force 100Mb/s Good Link:

4 RESERVED 0 RESERVED:

3 RESERVED 0 RESERVED:

2 NRZI_BYPASS 0, RW NRZI Bypass Enable:

1 RESERVED 0 RESERVED:

0 RESERVED 0 RESERVED:

0, RW

0,RW

100Mbs True Quiet Mode Enable:

1 = Transmit True Quiet Mode.

0 = Normal Transmit Mode.

Signal Detect Force PMA:

1 = Forces Signal Detection in PMA.

0 = Normal SD operation.

1 = Enhanced signal detect algorithm.

0 = Reduced signal detect algorithm.

Increase the descrambler timeout. When set this should allow the device to receive larger packets (>9k bytes) without loss of synchronization.

1 = 2ms

0 = 722us (per ANSI X3.263: 1995 (TP-PMD) 7.2.3.3e)

Must be zero.

1 = Forces 100Mb/s Good Link.

0 = Normal 100Mb/s operation.

Must be zero.

1 = NRZI Bypass Enabled.

0 = NRZI Bypass Disabled.

Must be zero.

DP83848I

55 www.national.com

7.2.7 RMII and Bypass Register (RBR)

This register configures the RMII Mode of operation. When RMII mode is disabled, the RMII functionality is bypassed.

DP83848I

Bit Bit Name Default Description

15:6 RESERVED 0, RO RESERVED: Writes ignored, read as 0.

5 RMII_MODE Strap, RW Reduced MII Mode:

4 RMII_REV1_0 0, RW Reduce MII Revision 1.0:

3 RX_OVF_STS 0, RO RX FIFO Over Flow Status:

2 RX_UNF_STS 0, RO RX FIFO Under Flow Status:

1:0 ELAST_BUF[1:0] 01, RW Receive Elasticity Buffer. This field controls the Receive Elastic-

Table 27. RMII and Bypass Register (RBR), addresses 0x17

0 = Standard MII Mode

1 = Reduced MII Mode

0 = (RMII revision 1.2) CRS_DV will toggle at the end of a packet to indicate deassertion of CRS.

1 = (RMII revision 1.0) CRS_DV will remain asserted until final data is transferred. CRS_DV will not toggle at the end of a packet.

0 = Normal

1 = Overflow detected

0 = Normal

1 = Underflow detected

ity Buffer which allows for frequency variation tolerance between the 50MHz RMII clock and the recovered data. The following values indicate the tolerance in bits for a single packet. The minimum setting allows for standard Ethernet frame sizes at +/-50ppm accu racy for both RMII and Receive clocks. For greater frequency tolerance the packet lengths may be scaled (i.e. for +/-100ppm, the packet lengths need to be divided by 2).

00 = 14 bit tolerance (up to 16800 byte packets)

01 = 2 bit tolerance (up to 2400 byte packets)

10 = 6 bit tolerance (up to 7200 byte packets)

11 = 10 bit tolerance (up to 12000 byte packets)

7.2.8 LED Direct Control Register (LEDCR)

This register provides the ability to directly control any or all LED outputs. It does not provide read access to LEDs.

Tab le 28. LED Direct Control Register (LEDCR), address 0x18

Bit Bit Name Default Description

15:6 RESERVED 0, RO RESERVED: Writes ignored, read as 0.

5 DRV_SPDLED 0, RW 1 = Drive value of SPDLED bit onto LED_SPD output

0 = Normal operation

4 DRV_LNKLED 0, RW 1 = Drive value of LNKLED bit onto LED_LNK output

0 = Normal operation

3 DRV_ACTLED 0, RW 1 = Drive value of ACTLED bit onto LED_ACT/COL output

0 = Normal operation

2 SPDLED 0, RW Value to force on LED_SPD output

1 LNKLED 0, RW Value to force on LED_LNK output

0 ACTLED 0, RW Value to force on LED_ACT/COL output

www.national.com 56

7.2.9 PHY Control Register (PHYCR)

Tabl e 29. PHY Control Register (PHYCR), address 0x19

Bit Bit Name Default Description

15 MDIX_EN Strap, RW Auto-MDIX Enable:

1 = Enable Auto-neg Auto-MDIX capability.

0 = Disable Auto-neg Auto-MDIX capability.

The Auto-MDIX algorithm requires that the Auto-Negotiation Enable bit in the BMCR register to be set. If Auto-Negotiation is not enabled, Auto-MDIX should be disabled as well.

14 FORCE_MDIX 0, RW Force MDIX:

1 = Force MDI pairs to cross.

(Receive on TPTD pair, Transmit on TPRD pair)

0 = Normal operation.

13 PAUSE_RX 0, RO Pause Receive Negotiated:

Indicates that pause receive should be enabled in the MAC. Based on ANAR[11:10] and ANLPAR[11:10] settings.

This function shall be enabled according to IEEE 802.3 Annex 28B Table 28B-3, “Pause Resolution”, only if the Auto-Negotiated High est Common Denominator is a full duplex technology.

12 PAUSE_TX 0, RO Pause Transmit Negotiated:

Indicates that pause transmit should be enabled in the MAC. Based on ANAR[11:10] and ANLPAR[11:10] settings.

This function shall be enabled according to IEEE 802.3 Annex 28B Table 28B-3, “Pause Resolution”, only if the Auto-Negotiated High est Common Denominator is a full duplex technology.

11 BIST_FE 0, RW/SC BIST Force Error:

1 = Force BIST Error.

0 = Normal operation.

This bit forces a single error, and is self clearing.

10 PSR_15 0, RW BIST Sequence select:

1 = PSR15 selected.

0 = PSR9 selected.

9 BIST_STATUS 0, LL/RO BIST Test Status:

1 = BIST pass.

0 = BIST fail. Latched, cleared when BIST is stopped.

For a count number of BIST errors, see the BIST Error Count in the CDCTRL1 register.

8 BIST_START 0, RW BIST Start:

1 = BIST start.

0 = BIST stop.

7 BP_STRETCH 0, RW Bypass LED Stretching:

This will bypass the LED stretching and the LEDs will reflect the internal value.

1 = Bypass LED stretching.

0 = Normal operation.

DP83848I

57 www.national.com

Table 29. PHY Control Register (PHYCR), address 0x19 (Continued)

Bit Bit Name Default Description

DP83848I

4:0 PHYADDR[4:0] Strap, RW PHY Address: PHY address for port.

LED_CNFG[1]

LED_CNFG[0]

0, RW

Strap, RW

LEDs Configuration

LED_CNFG[1] LED_ CNFG[0] Mode Description

Don’t care 1 Mode 1

0 0 Mode 2

10Mode 3

In Mode 1, LEDs are configured as follows:

LED_LINK = ON for Good Link, OFF for No Link

LED_SPEED = ON in 100 Mb/s, OFF in 10 Mb/s

LED_ACT/COL = ON for Activity, OFF for No Activity

In Mode 2, LEDs are configured as follows:

LED_LINK = ON for good Link, BLINK for Activity

LED_SPEED = ON in 100 Mb/s, OFF in 10 Mb/s

LED_ACT/COL = ON for Collision, OFF for No Collision

Full Duplex, OFF for Half Duplex

In Mode 3, LEDs are configured as follows:

LED_LINK = ON for Good Link, BLINK for Activity

LED_SPEED = ON in 100 Mb/s, OFF in 10 Mb/s

LED_ACT/COL = ON for Full Duplex, OFF for Half Duplex

7.2.10 10Base-T Status/Control Register (10BTSCR)

Table 30. 10Base-T Status/Control Register (10BTSCR), address 0x1A

Bit Bit Name Default Description

15 10BT_SERIAL Strap, RW 10Base-T Serial Mode (SNI)

1 = Enables 10Base-T Serial Mode

0 = Normal Operation

Places 10 Mb/s transmit and receive functions in Serial Network Interface (SNI) Mode of operation. Has no effect on 100 Mb/s operation.

14:12 RESERVED 0, RW RESERVED:

Must be zero.

11:9 SQUELCH 100, RW Squelch Configuration:

Used to set the Squelch ‘ON’ threshold for the receiver.

Default Squelch ON is 330mV peak.

8 LOOPBACK_10_D

0, RW In half-duplex mode, default 10BASE-T operation loops Transmit

data to the Receive data in addition to transmitting the data on the physical medium. This is for consistency with earlier 10BASE2 and 10BASE5 implementations which used a shared medium. Setting this bit disables the loopback function.

This bit does not affect loopback due to setting BMCR[14].

www.national.com 58

Table 30. 10Base-T Status/Control Register (10BTSCR), address 0x1A

Bit Bit Name Default Description

7 LP_DIS 0, RW Normal Link Pulse Disable:

1 = Transmission of NLPs is disabled.

0 = Transmission of NLPs is enabled.

6 FORCE_LINK_10 0, RW Force 10Mb Good Link:

1 = Forced Good 10Mb Link.

0 = Normal Link Status.

5 RESERVED 0, RW RESERVED:

Must be zero.

4 POLARITY RO/LH 10Mb Polarity Status:

This bit is a duplication of bit 12 in the PHYSTS register. Both bits will be cleared upon a read of 10BTSCR register, but not upon a read of the PHYSTS register.

1 = Inverted Polarity detected.

0 = Correct Polarity detected.

3 RESERVED 0, RW RESERVED:

Must be zero.

2 RESERVED 1, RW RESERVED:

Must be set to one.

1 HEARTBEAT_DIS 0, RW Heartbeat Disable: This bit only has influence in half-duplex 10Mb

mode.

1 = Heartbeat function disabled.

0 = Heartbeat function enabled.

When the device is operating at 100Mb or configured for full duplex operation, this bit will be ignored - the heartbeat func tion is disabled.

0 JABBER_DIS 0, RW Jabber Disable:

Applicable only in 10BASE-T.

1 = Jabber function disabled.

0 = Jabber function enabled.

DP83848I

59 www.national.com

7.2.11 CD Test and BIST Extensions Register (CDCTRL1)

Tabl e 31. CD Test and BIST Extensions Register (CDCTRL1), address 0x1B

DP83848I

Bit Bit Name Default Description

15:8 BIST_ERROR_CO

UNT

7:6 RESERVED 0, RW RESERVED:

5 BIST_CONT_MOD

4 CDPATTEN_10 0, RW CD Pattern Enable for 10Mb:

3 RESERVED 0, RW RESERVED:

2 10MEG_PATT_GA

1:0 CDPATTSEL[1:0] 00, RW CD Pattern Select[1:0]:

0, RO BIST ERROR Counter:

0, RW Packet BIST Continuous Mode:

0, RW Defines gap between data or NLP test sequences:

Counts number of errored data nibbles during Packet BIST. This value will reset when Packet BIST is restarted. The counter sticks when it reaches its max count.

Must be zero.

Allows continuous pseudo random data transmission without any break in transmission. This can be used for transmit VOD testing. This is used in conjunction with the BIST controls in the PHYCR Register (0x19h). For 10Mb operation, jabber function must be dis abled, bit 0 of the 10BTSCR (0x1Ah), JABBER_DIS = 1.

1 = Enabled.

0 = Disabled.

Must be zero.

1 = 15 µs. 0 = 10 µs.

If CDPATTEN_10 = 1:

00 = Data, EOP0 sequence 01 = Data, EOP1 sequence 10 = NLPs

11 = Constant Manchester 1s (10MHz sine wave) for harmonic distortion testing.

www.national.com 60

7.2.12 Energy Detect Control (EDCR)

Tabl e 32. Energy Detect Control (EDCR), address 0x1D

Bit Bit Name Default Description

15 ED_EN 0, RW Energy Detect Enable:

Allow Energy Detect Mode.

When Energy Detect is enabled and Auto-Negotiation is disabled via the BMCR register, Auto-MDIX should be disabled via the PHY CR register.

14 ED_AUTO_UP 1, RW Energy Detect Automatic Power Up:

Automatically begin power up sequence when Energy Detect Data Threshold value (EDCR[3:0]) is reached. Alternatively, device could be powered up manually using the ED_MAN bit (ECDR[12]).

13 ED_AUTO_DOWN 1, RW Energy Detect Automatic Power Down:

Automatically begin power down sequence when no energy is detected. Alternatively, device could be powered down using the ED_MAN bit (EDCR[12]).

12 ED_MAN 0, RW/SC Energy Detect Manual Power Up/Down:

Begin power up/down sequence when this bit is asserted. When set, the Energy Detect algorithm will initiate a change of Energy De tect state regardless of threshold (error or data) and timer values. In managed applications, this bit can be set after clearing the Energy Detect interrupt to control the timing of changing the power state.

11 ED_BURST_DIS 0, RW Energy Detect Bust Disable:

Disable bursting of energy detect data pulses. By default, Energy Detect (ED) transmits a burst of 4 ED data pulses each time the CD is powered up. When bursting is disabled, only a single ED data pulse will be send each time the CD is powered up.

10 ED_PWR_STATE 0, RO Energy Detect Power State:

Indicates current Energy Detect Power state. When set, Energy Detect is in the powered up state. When cleared, Energy Detect is in the powered down state. This bit is invalid when Energy Detect is not enabled.

9 ED_ERR_MET 0, RO/COR Energy Detect Error Threshold Met:

No action is automatically taken upon receipt of error events. This bit is informational only and would be cleared on a read.

8 ED_DATA_MET 0, RO/COR Energy Detect Data Threshold Met:

The number of data events that occurred met or surpassed the Energy Detect Data Threshold. This bit is cleared on a read.

7:4 ED_ERR_COUNT 0001, RW Energy Detect Error Threshold:

Threshold to determine the number of energy detect error events that should cause the device to take action. Intended to allow averaging of noise that may be on the line. Counter will reset after approximately 2 seconds without any energy detect data events.

3:0 ED_DATA_COUNT 0001, RW Energy Detect Data Threshold:

Threshold to determine the number of energy detect events that should cause the device to take actions. Intended to allow averag ing of noise that may be on the line. Counter will reset after approximately 2 seconds without any energy detect data events.

DP83848I

61 www.national.com

8.0 Electrical Specifications

Note: All parameters are guaranteed by test, statistical analysis or design.

DP83848I

Absolute Maximum Ratings

Supply Voltage (VCC) -0.5 V to 4.2 V

DC Input Voltage (VIN) -0.5V to VCC + 0.5V

DC Output Voltage (V

Storage Temperature (T

Max case temp for TA = 85°C 107 °C

Max. die temperature (Tj) 150 °C

Lead Temp. (TL)

(Soldering, 10 sec.)

ESD Rating

= 1.5k, C

ZAP

Recommended Operating Conditions

Supply voltage (VCC) 3.3 Volts + .3V

Industrial - Ambient Temperature (TA)

Power Dissipation (PD) 267 mW

) -0.5V to VCC + 0.5V

OUT

)

STG

-65oC to 150°C

= 100 pF)

260 °C

4.0 kV

-40 to 85 °C

Absolute maximum ratings are those values beyond which the safety of the device cannot be guaranteed. They are not meant to imply that the device should be operated at these limits.

Thermal Characteristic

Theta Junction to Case (Tjc)

Theta Junction to Ambient (Tja) degrees Celsius/Watt - No Airflow @ 1.0W

Max Units

28.7 °C / W

83.6 °C / W

Note: This is done with a JEDEC (2 layer 2 oz CU.) thermal test board

8.1 DC Specs

Symbol Pin Types Parameter Conditions Min Typ Max Units

I/O

I/O,

Input High Voltage Nominal V

2.0 V

Input Low Voltage 0.8 V

Input High Current VIN = V

Input Low Current V

Output Low

= GND 10 µA

IOL = 4 mA 0.4 V

10 µA

Voltage

Output High

IOH = -4 mA Vcc - 0.5 V

Voltage

TRI-STATE

Leakage

OUT

= V

+ 10 µA

www.national.com 62

Symbol Pin Types Parameter Conditions Min Typ Max Units

DP83848I

TPTD_100

TPTDsym

TPTD_10

IN1

OUT1

THon

THoff

TH1

dd100

dd10

PMD Output

Pair

PMD Output

Pair

PMD Output

Pair

100M Transmit Voltage

100M Transmit Voltage Symmetry

10M Transmit Voltage

I CMOS Input

Capacitance

O CMOS Output

Capacitance

PMD Input

Pair

100BASE-TX

Signal detect turnon threshold

PMD Input

Pair

100BASE-TX

Signal detect turnoff threshold

PMD Input

Pair

10BASE-T Receive Threshold

Supply 100BASE-TX

(Full Duplex)

Supply 10BASE-T

(Full Duplex)

Supply Power Down

Mode

0.95 1 1.05 V

+ 2 %

2.2 2.5 2.8 V

5 pF

1000 mV diff pk-pk

200 mV diff pk-pk

585 mV

81 mA

92 mA

14 mA

63 www.national.com

8.2 AC Specs

8.2.1 Power Up Timing

DP83848I

Hardware

RESET_N

Vcc

X1 clock

T2.1.1

32 clocks

MDC

T2.1.2

Latch-In of Hardware Configuration Pins

input Dual Function Pins Become Enabled As Outputs

Parameter Description Notes Min Typ Max Units

T2.1.1 Post Power Up Stabilization

time prior to MDC preamble for register accesses

T2.1.2 Hardware Configuration Latch-

in Time from power up

T2.1.3 Hardware Configuration pins

transition to output drivers

MDIO is pulled high for 32-bit serial management initialization

X1 Clock must be stable for a min. of 167ms at power up.

Hardware Configuration Pins are described in the Pin Description section

X1 Clock must be stable for a min. of 167ms at power up.

T2.1.3

output

167 ms

50 ns

www.national.com 64

8.2.2 Reset Timing

Vcc

X1 clock

Hardware

RESET_N

MDC

DP83848I

T2.2.1

T2.2.4

32 clocks

T2.2.2

Latch-In of Hardware Configuration Pins

input Dual Function Pins Become Enabled As Outputs

Parameter Description Notes Min Typ Max Units

T2.2.1 Post RESET Stabilization time

prior to MDC preamble for register accesses

T2.2.2 Hardware Configuration Latch-

in Time from the Deassertion of RESET (either soft or hard)

T2.2.3 Hardware Configuration pins

transition to output drivers

T2.2.4 RESET pulse width X1 Clock must be stable for at min. of 1us

MDIO is pulled high for 32-bit serial management initialization

Hardware Configuration Pins are described in the Pin Description section

during RESET pulse low time.

T2.2.3

output

3 µs

50 ns

1 µs

Note: It is important to choose pull-up and/or pull-down resistors for each of the hardware configuration pins that provide fast RC time constants in order to latch-in the proper value prior to the pin transitioning to an output driver.

65 www.national.com

8.2.3 MII Serial Management Timing

DP83848I

MDC

MDIO (output)

MDC

T2.3.1

T2.3.4

T2.3.2 T2.3.3

MDIO (input)

Parameter Description Notes Min Typ Max Units

T2.3.1 MDC to MDIO (Output) Delay Time 0 30 ns

T2.3.2 MDIO (Input) to MDC Setup Time 10 ns

T2.3.3 MDIO (Input) to MDC Hold Time 10 ns

T2.3.4 MDC Frequency 2.5 25 MHz

8.2.4 100 Mb/s MII Transmit Timing

T2.4.1

TX_CLK

T2.4.2

TXD[3:0]

TX_EN

Valid Data

T2.4.1

T2.4.3

Valid Data

Parameter Description Notes Min Typ Max Units

T2.4.1 TX_CLK High/Low Time 100 Mb/s Normal mode 16 20 24 ns

T2.4.2 TXD[3:0], TX_EN Data Setup to TX_CLK 100 Mb/s Normal mode 10 ns

T2.4.3 TXD[3:0], TX_EN Data Hold from TX_CLK 100 Mb/s Normal mode 0 ns

www.national.com 66

8.2.5 100 Mb/s MII Receive Timing

DP83848I

T2.5.1

RX_CLK

T2.5.1

T2.5.2

RXD[3:0] RX_DV

RX_ER

Parameter Description Notes Min Typ Max Units

T2.5.1 RX_CLK High/Low Time 100 Mb/s Normal mode 16 20 24 ns

T2.5.2 RX_CLK to RXD[3:0], RX_DV, RX_ER Delay 100 Mb/s Normal mode 10 30 ns

Note: RX_CLK may be held low or high for a longer period of time during transition between reference and recovered clocks. Minimum high and low times will not be violated.

8.2.6 100BASE-TX Transmit Packet Latency Timing

Valid Data

TX_CLK

TX_EN

TXD

PMD Output Pair

Parameter Description Notes Min Typ Max Units

T2.6.1 TX_CLK to PMD Output Pair

Latency

Note: For Normal mode, latency is determined by measuring the time from the first rising edge of TX_CLK occurring after the assertion of TX_EN to the first bit of the “J” code group as output from the PMD Output Pair. 1 bit time = 10 ns in 100 Mb/s mode.

100 Mb/s Normal mode 6 bits

T2.6.1

(J/K) IDLE DATA

67 www.national.com

8.2.7 100BASE-TX Transmit Packet Deassertion Timing

DP83848I

TX_CLK

TX_EN

TXD

T2.7.1

PMD Output Pair

(T/R) DATA IDLE

Parameter Description Notes Min Typ Max Units

T2.7.1 TX_CLK to PMD Output Pair

100 Mb/s Normal mode 6 bits

Deassertion

Note: Deassertion is determined by measuring the time from the first rising edge of TX_CLK occurring after the deassertion of TX_EN to the first bit of the “T” code group as output from the PMD Output Pair. 1 bit time = 10 ns in 100 Mb/s mode.

www.national.com 68

8.2.8 100BASE-TX Transmit Timing (t

+1 rise

& Jitter)

R/F

DP83848I

T2.8.1

90%

T2.8.1

10%

-1 fall

10%

90%

T2.8.1

-1 rise

T2.8.1

PMD Output Pair

T2.8.2

PMD Output Pair

eye pattern

Parameter Description Notes Min Typ Max Units

T2.8.1 100 Mb/s PMD Output Pair tR

and t

100 Mb/s tR and tF Mismatch 500 ps

+1 fall

T2.8.2

3 4 5 ns

T2.8.2 100 Mb/s PMD Output Pair

Transmit Jitter

Note: Normal Mismatch is the difference between the maximum and minimum of all rise and fall times

Note: Rise and fall times taken at 10% and 90% of the +1 or -1 amplitude

69 www.national.com

1.4 ns

8.2.9 100BASE-TX Receive Packet Latency Timing

DP83848I

PMD Input Pair

CRS

RXD[3:0]

RX_DV

RX_ER

Parameter Description Notes Min Typ Max Units

T2.9.1 Carrier Sense ON Delay 100 Mb/s Normal mode 20 bits

T2.9.2 Receive Data Latency 100 Mb/s Normal mode 24 bits

Note: Carrier Sense On Delay is determined by measuring the time from the first bit of the “J” code group to the assertion of Carrier Sense.

Note: 1 bit time = 10 ns in 100 Mb/s mode

Note: PMD Input Pair voltage amplitude is greater than the Signal Detect Turn-On Threshold Value.

IDLE

T2.9.1

(J/K)

T2.9.2

Data

8.2.10 100BASE-TX Receive Packet Deassertion Timing

PMD Input Pair

CRS

Parameter Description Notes Min Typ Max Units

T2.10.1 Carrier Sense OFF Delay 100 Mb/s Normal mode 24 bits

Note: Carrier Sense Off Delay is determined by measuring the time from the first bit of the “T” code group to the deassertion of Carrier Sense.

Note: 1 bit time = 10 ns in 100 Mb/s mode

DATA

(T/R)

T2.10.1

IDLE

www.national.com 70

8.2.11 10 Mb/s MII Transmit Timing

DP83848I

T2.11.1

TX_CLK

T2.11.2

TXD[3:0]

TX_EN

Parameter Description Notes Min Typ Max Units

T2.11.1 TX_CLK High/Low Time 10 Mb/s MII mode 190 200 210 ns

T2.11.2 TXD[3:0], TX_EN Data Setup to TX_CLK fall 10 Mb/s MII mode 25 ns

T2.11.3 TXD[3:0], TX_EN Data Hold from TX_CLK rise 10 Mb/s MII mode 0 ns

Note: An attached Mac should drive the transmit signals using the positive edge of TX_CLK. As shown above, the MII signals are sampled on the falling edge of TX_CLK.

8.2.12 10 Mb/s MII Receive Timing

Valid Data

T2.11.1

T2.11.3

T2.12.1

RX_CLK

T2.12.2

RXD[3:0] RX_DV

Parameter Description Notes Min Typ Max Units

T2.12.1 RX_CLK High/Low Time 160 200 240 ns

T2.12.2 RX_CLK to RXD[3:0], RX_DV Delay 10 Mb/s MII mode 100 ns

T2.12.3 RX_CLK rising edge delay from RXD[3:0],

RX_DV Valid

Note: RX_CLK may be held low for a longer period of time during transition between reference and recovered clocks. Minimum high and low times will not be violated.

T2.12.3

Valid Data

10 Mb/s MII mode 100 ns

T2.12.1

71 www.national.com

8.2.13 10 Mb/s Serial Mode Transmit Timing

DP83848I

TX_CLK

TXD[0]

TX_EN

Parameter Description Notes Min Typ Max Units

T2.13.1 TX_CLK High Time 10 Mb/s Serial mode 20 25 30 ns

T2.13.2 TX_CLK Low Time 10 Mb/s Serial mode 70 75 80 ns

T2.13.3 TXD_0, TX_EN Data Setup to TX_CLK rise 10 Mb/s Serial mode 25 ns

T2.13.4 TXD_0, TX_EN Data Hold from TX_CLK rise 10 Mb/s Serial mode 0 ns

8.2.14 10 Mb/s Serial Mode Receive Timing

T2.13.1

T2.13.3

T2.13.4

Valid Data

T2.13.2

T2.14.1

RX_CLK

T2.14.1

T2.14.2

RXD[0] RX_DV

Parameter Description Notes Min Typ Max Units

T2.14.1 RX_CLK High/Low Time 35 50 65 ns

T2.14.2 RX_CLK fall to RXD_0, RX_DV Delay 10 Mb/s Serial mode -10 10 ns

Note: RX_CLK may be held high for a longer period of time during transition between reference and recovered clocks. Minimum high and low times will not be violated.

Valid Data

www.national.com 72

8.2.15 10BASE-T Transmit Timing (Start of Packet)

TX_CLK

TX_EN

TXD

T2.15.2

PMD Output Pair

T2.15.1

Parameter Description Notes Min Typ Max Units

T2.15.1 Transmit Output Delay from the

Falling Edge of TX_CLK

T2.15.2 Transmit Output Delay from the

Rising Edge of TX_CLK

10 Mb/s MII mode 3.5 bits

10 Mb/s Serial mode 3.5 bits

DP83848I

Note: 1 bit time = 100 ns in 10Mb/s.

8.2.16 10BASE-T Transmit Timing (End of Packet)

TX_CLK

TX_EN

PMD Output Pair

Parameter Description Notes Min Typ Max Units

T2.16.1 End of Packet High Time

(with ‘0’ ending bit)

T2.16.2 End of Packet High Time

(with ‘1’ ending bit)

T2.16.2

250 300 ns

T2.16.1

73 www.national.com

8.2.17 10BASE-T Receive Timing (Start of Packet)

DP83848I

101010101011

TPRD±

T2.17.1

CRS

RX_CLK

T2.17.2

RX_DV

1st SFD bit decoded

T2.17.3

RXD[3:0]

Parameter Description Notes Min Typ Max Units

T2.17.1 Carrier Sense Turn On Delay (PMD

Input Pair to CRS)

T2.17.2 RX_DV Latency 10 bits

T2.17.3 Receive Data Latency Measurement shown from SFD 8 bits

Note: 10BASE-T RX_DV Latency is measured from first bit of preamble on the wire to the assertion of RX_DV

Note: 1 bit time = 100 ns in 10 Mb/s mode.

8.2.18 10BASE-T Receive Timing (End of Packet)

PMD Input Pair

RX_CLK

0000

Preamble SFD Data

630 1000 ns

IDLE

CRS

Parameter Description Notes Min Typ Max Units

T2.18.1 Carrier Sense Turn Off Delay 1.0 µs

www.national.com 74

T2.18.1

8.2.19 10 Mb/s Heartbeat Timing

TX_EN

DP83848I

TX_CLK

T2.19.1

COL

Parameter Description Notes Min Typ Max Units

T2.19.1 CD Heartbeat Delay All 10 Mb/s modes 1200 ns

T2.19.2 CD Heartbeat Duration All 10 Mb/s modes 1000 ns

8.2.20 10 Mb/s Jabber Timing

TXE

T2.20.1

PMD Output Pair

T2.19.2

T2.20.2

COL

Parameter Description Notes Min Typ Max Units

T2.20.1 Jabber Activation Time 85 ms

T2.20.2 Jabber Deactivation Time 500 ms

75 www.national.com

8.2.21 10BASE-T Normal Link Pulse Timing

DP83848I

T2.21.1

Normal Link Pulse(s)

Parameter Description Notes Min Typ Max Units

T2.21.1 Pulse Width 100 ns

T2.21.2 Pulse Period 16 ms

Note: These specifications represent transmit timings.

8.2.22 Auto-Negotiation Fast Link Pulse (FLP) Timing

T2.22.3

T2.22.1

Fast Link Pulse(s)

T2.21.2

T2.22.2

T2.22.1

clock pulse

T2.22.4

FLP Burst FLP Burst

Parameter Description Notes Min Typ Max Units

T2.22.1 Clock, Data Pulse Width 100 ns

T2.22.2 Clock Pulse to Clock Pulse

T2.22.3 Clock Pulse to Data Pulse

T2.22.4 Burst Width 2 ms

T2.22.5 FLP Burst to FLP Burst Period 16 ms

Note: These specifications represent transmit timings.

Period

data pulse

T2.22.5

Data = 1 62 µs

clock pulse

125 µs

www.national.com 76

8.2.23 100BASE-TX Signal Detect Timing

PMD Input Pair

T2.23.1

T2.23.2

SD+ internal

Parameter Description Notes Min Typ Max Units

T2.23.1 SD Internal Turn-on Time 1 ms

T2.23.2 SD Internal Turn-off Time 350 µs

Note: The signal amplitude on PMD Input Pair must be TP-PMD compliant.

8.2.24 100 Mb/s Internal Loopback Timing

TX_CLK

DP83848I

TX_EN

TXD[3:0]

CRS

RX_CLK

RX_DV

RXD[3:0]

Parameter Description Notes Min Typ Max Units

T2.24.1 TX_EN to RX_DV Loopback 100 Mb/s internal loopback mode 240 ns

T2.24.1

Note1: Due to the nature of the descrambler function, all 100BASE-TX Loopback modes will cause an initial “dead-time”

of up to 550 µs during which time no data will be present at the receive MII outputs. The 100BASE-TX timing specified is based on device delays after the initial 550µs “dead-time”.

Note2: Measurement is made from the first rising edge of TX_CLK after assertion of TX_EN.

77 www.national.com

8.2.25 10 Mb/s Internal Loopback Timing

DP83848I

TX_CLK

TX_EN

TXD[3:0]

CRS

RX_CLK

RX_DV

RXD[3:0]

T2.25.1

Parameter Description Notes Min Typ Max Units

T2.25.1 TX_EN to RX_DV Loopback 10 Mb/s internal loopback mode 2 µs

Note: Measurement is made from the first rising edge of TX_CLK after assertion of TX_EN.

www.national.com 78

8.2.26 RMII Transmit Timing

DP83848I

T2.26.1

TXD[1:0]

TX_EN

T2.26.2

Valid Data

T2.26.3

T2.26.4

PMD Output Pair

Parameter Description Notes Min Typ Max Units

T2.26.1 X1 Clock Period 50 MHz Reference Clock 20 ns

T2.26.2 TXD[1:0], TX_EN, Data Setup

to X1 rising

T2.26.3 TXD[1:0], TX_EN, Data Hold

T2.26.4 X1 Clock to PMD Output Pair

from X1 rising

From X1 Rising edge to first bit of symbol 17 bits

Latency

Symbol

4 ns

2 ns

79 www.national.com

8.2.27 RMII Receive Timing

DP83848I

PMD Input Pair

RX_DV

CRS_DV

T2.27.3

IDLE

(J/K)

T2.27.2

Data

T2.27.5

(TR)

T2.27.4

T2.27.1

T2.27.2

Data

T2.27.2

RXD[1:0] RX_ER

Parameter Description Notes Min Typ Max Units

T2.27.1 X1 Clock Period 50 MHz Reference Clock 20 ns

T2.27.2 RXD[1:0], CRS_DV, RX_DV

and RX_ER output delay from X1 rising

T2.27.3 CRS ON delay From JK symbol on PMD Receive Pair to

initial assertion of CRS_DV

T2.27.4 CRS OFF delay From TR symbol on PMD Receive Pair to

initial deassertion of CRS_DV

T2.27.5 RXD[1:0] and RX_ER latency From symbol on Receive Pair. Elasticity

buffer set to default value (01)

2 14 ns

18.5 bits

27 bits

38 bits

Note: Per the RMII Specification, output delays assume a 25pF load.

Note: CRS_DV is asserted asynchronously in order to minimize latency of control signals through the why. CRS_DV may toggle synchronously at the end of the packet to indicate CRS deassertion.

Note: RX_DV is synchronous to X1. While not part of the RMII specification, this signal is provided to simplify recovery of receive data.

www.national.com 80

8.2.28 Isolation Timing

Clear bit 10 of BMCR (return to normal operation

from Isolate mode)

T2.28.1

H/W or S/W Reset

(with PHYAD = 00000)

T2.28.2

MODE

ISOLATE

Parameter Description Notes Min Typ Max Units

T2.28.1 From software clear of bit 10 in

the BMCR register to the transition from Isolate to Normal Mode

T2.28.2 From Deassertion of S/W or H/W

Reset to transition from Isolate to Normal mode

NORMAL

100 µs

500 µs

DP83848I

8.2.29 25 MHz_OUT Timing

T2.29.2

T2.29.1 T2.29.1

25 MHz_OUT

Parameter Description Notes Min Typ Max Units

T2.29.1 25 MHz_OUT High/Low Time MII mode 20 ns

RMII mode 10 ns

T2.29.2 25 MHz_OUT propagation delay Relative to X1 8 ns

Note: 25 MHz_OUT characteristics are dependent upon the X1 input characteristics.

81 www.national.com

8.2.30 100 Mb/s X1 to TX_CLK Timing

DP83848I

T2.30.1

TX_CLK

Parameter Description Notes Min Typ Max Units

T2.30.1 X1 to TX_CLK delay 100 Mb/s Normal mode 0 5 ns

Note: X1 to TX_CLK timing is provided to support devices that use X1 instead of TX_CLK as the reference for transmit Mll data.

www.national.com 82

Notes:

DP83848I

83 www.national.com

9.0 Physical Dimensions

inches (millimeters) unless otherwise noted

Lead Quad Frame Package (LQFP)

NS Package Number VBH48A

THE CONTENTS OF THIS DOCUMENT ARE PROVIDED IN CONNECTION WITH NATIONAL SEMICONDUCTOR CORPORATION (“NATIONAL”) PROCUCTS. NATIONAL MAKES NO REPRESENTATIONS OR WARRANTIES WITH RESPECT TO THE ACCURACY OR COMPLETENESS OF THE CONTENTS OF THIS PUBLICATION AND RESERVES THE RIGHT TO MAKE CHANGES TO SPECIFICATIONS AND PRODUCT DESCRIPTIONS AT ANY TIME WITHOUT NOTICE. NO LICENSE, WHETHER EXPRESS, IMPLIED, ARISING BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT.

TESTING AND OTHER QUALITY CONTROLS ARE USED TO THE EXTENT NATIONAL DEEMS NECESSARY TO SUPPORT NATIONAL’S PRODUCT WARRANT. EXCEPT WHERE MANDATED BY GOVERNMENT REQUIREMENTS, TESTING OF ALL PARAMETER OF EACH PRODUCT IS NOT NECESSARILY PERFORMED. NATIONAL ASSUMES NO LIABILITY FOR APPLICTIONS ASSISTANCE OR BUYER PRODUCT DESIGN. BUYERS ARE RESPONSIBLE FOR THEIR PROCUCTS AND APPLICATIONS USING NATIONAL COMPONENTS. PRIOR TO USING OR DISTRIBUTING ANY PROCUCTS THAT INCLUDE NATIONAL COMPONENTS, BUYERS SHOULD PROVIDE ADEQUATE DESIGN, TESTING AND OPERATING SAFEGUARDS.

EXCEPT AS PROVIDED IN NATIONAL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, NATIONAL ASSUMES NO LIABILITY WHATSOEVER, AND NATIONAL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY RELATING TO THE SALE AND/OR USE OF NATIONAL PRODUCTS INCLUDEDING LIBILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

— Industrial Temperature Single Port 10/100 Mb/s Ethernet Physical Layer Transceiver

LIFE SUPPORT POLICY

NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE CHIEF EXECUTIVE OFFICER AND GENERAL COUNSEL OF NATIONAL SEMICONDUCTOR CORPORATION.

Life support devices or systems are devices which (a) are intended for surgical implant into the body, or (b) support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in a significant injury to the user. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system or to affect its safety or effectiveness.

National Semiconductor and the National Semiconductor logo are registered trademarks of National Semiconductor Corporation. All other

DP83848I PHYTER

brand or product names may be trademarks or registered trademarks of their respective holders.

For the most current product information visit us at www.national.com

www.national.com

2008 National Semiconductor Corporation

National Semiconductor Americas Technical Support Center

Email: new.feedback@nsc.com Tel: 1-800-272-9959

National Semiconductor Europe Technical Support Center

Email: europe.support@ nsc.com

German Tel: +49 (0) 180 5010 771

English Tel: +44 (0) 870 850 4288

National Semiconductor Asia Pacific Technical Support Center

Email: ap.support@nsc.com

As used herein:

National Semiconductor Japan Technical Support Center

Email: jpn.feedback@nsc.com

Datasheet DP83848I Datasheet (National Semiconductor)

Specifications and Main Features

Frequently Asked Questions

User Manual

1.0 Pin Descriptions

1.1 Serial Management Interface

1.2 MAC Data Interface

1.3 Clock Interface

1.4 LED Interface

1.5 JTAG Interface

1.6 Reset and Power Down

1.7 Strap Options

1.8 10 Mb/s and 100 Mb/s PMD Interface

1.9 Special Connections

1.10 Power Supply Pins

1.11 Package Pin Assignments

2.0 Configuration

2.1 Auto-Negotiation

2.1.1 Auto-Negotiation Pin Control

2.1.2 Auto-Negotiation Register Control

2.1.3 Auto-Negotiation Parallel Detection

2.1.4 Auto-Negotiation Restart

2.1.5 Enabling Auto-Negotiation via Software

2.1.6 Auto-Negotiation Complete Time

2.2 Auto-MDIX

2.3 PHY Address

2.3.1 MII Isolate Mode

2.4 LED Interface

2.4.1 LEDs

2.4.2 LED Direct Control

2.5 Half Duplex vs. Full Duplex

2.6 Internal Loopback

2.7 BIST

3.0 Functional Description

3.1 MII Interface

3.1.1 Nibble-wide MII Data Interface

3.1.2 Collision Detect

3.1.3 Carrier Sense

3.2 Reduced MII Interface

3.3 10 Mb Serial Network Interface (SNI)

3.4 802.3u MII Serial Management Interface

3.4.1 Serial Management Register Access

3.4.2 Serial Management Access Protocol

3.4.3 Serial Management Preamble Suppression

4.0 Architecture

4.1 100BASE-TX TRANSMITTER

4.1.1 Scrambler

4.1.2 NRZ to NRZI Encoder

4.1.3 Binary to MLT-3 Convertor

4.2 100BASE-TX RECEIVER

4.2.1 Analog Front End

4.2.2 Digital Signal Processor

4.2.3 Signal Detect

4.2.4 MLT-3 to NRZI Decoder

4.2.5 NRZI to NRZ

4.2.6 Serial to Parallel

4.2.7 Descrambler

4.2.10 100BASE-TX Link Integrity Monitor

4.2.11 Bad SSD Detection

4.3 10BASE-T TRANSCEIVER MODULE

4.2.8 Code-group Alignment

4.2.9 4B/5B Decoder

4.3.1 Operational Modes

4.3.2 Smart Squelch

4.3.3 Collision Detection and SQE

4.3.4 Carrier Sense

4.3.5 Normal Link Pulse Detection/Generation

4.3.6 Jabber Function

4.3.7 Automatic Link Polarity Detection and Correction

4.3.8 Transmit and Receive Filtering

4.3.9 Transmitter

4.3.10 Receiver

5.0 Design Guidelines

5.1 TPI Network Circuit

5.2 ESD Protection

5.3 Clock In (X1) Requirements

5.4 Power Feedback Circuit

5.5 Power Down/Interrupt

5.5.1 Power Down Control Mode

5.5.2 Interrupt Mechanisms
