ADC08061/ADC08062
500 ns A/D Converter with S/H Function and Input
Multiplexer
ADC08061/ADC08062 500 ns A/D Converter with S/H Function and Input Multiplexer
June 1999
General Description
Using a patented multi-step A/D conversion technique, the
8-bit ADC08061 and ADC08062 CMOS ADCs offer 500 ns
(typ) conversion time, internal sample-and-hold (S/H), and
dissipate only 125 mW of power. The ADC08062 has a
two-channel multiplexer. The ADC08061/2 family performs
an 8-bit conversion using a 2-bit voltage estimator that generates the 2 MSBs andtwo low-resolution (3-bit) flashes that
generate the 6 LSBs.
Input track-and-hold circuitry eliminates the need for an external sample-and-hold. The ADC08061/2 family performs
accurate conversions of full-scale input signals that have a
frequency range of DC to 300 kHz (full-power bandwidth)
without need of an external S/H.
The digital interface has been designed to ease connection
to microprocessors and allows theparts to be I/O or memory
mapped.
Block Diagram
Key Specifications
n Resolution 8 bits
n Conversion Time 560 ns max (WR-RD Mode)
n Full Power Bandwidth 300 kHz
n Throughput rate 1.5 MHz
n Power Dissipation 100 mW max
n Total Unadjusted Error
1
±
⁄2LSB and±1 LSB
Features
n 1 or 2 input channels
n No external clock required
n Analog input voltage range from GND to V
n Overflow output available for cascading (ADC08061)
n ADC08061 pin-compatible with the industry standard
ADC0820
+
Applications
n Mobile telecommunications
n Hard disk drives
n Instrumentation
n High-speed data acquisition systems
* ADC08061
*
ADC08062
*
TRI-STATE®is a registered trademark of NationalSemiconductor Corporation.
© 1999 National Semiconductor Corporation DS011086 www.national.com
DS011086-1
Connection Diagrams
DS011086-14
Dual-In-Line and Wide-Body
Small-Outline
Packages N20A or M20B
Ordering Information
Industrial (−40˚C ≤ TA≤ 85˚C) Package
ADC08061BIN, ADC08062BIN N20A
ADC08061CIWM, ADC08062CIWM M20B
Pin Description
VIN,
V
IN1–8
DB0–DB7 TRI-STATE data outputs— bit 0 (LSB) through
WR /RDY
: RD Mode (Logic low applied to MODE pin)
MODE Mode: Mode (RD or WR-RD) selection
RD
These are analog inputs. The input range is
GND–50 mV ≤ V
ADC08061 has a single input (V
ADC08062 has a two-channel multiplexer
(V
).
IN1–2
≤ V++50mV.The
INPUT
) and the
IN
bit 7 (MSB).
WR-RD Mode (Logic high appliedto MODEpin)
WR: With CS low, the conversion is started on
the falling edge of WR. The digital result will be
strobed into the output latch at the end of conversion (see
Figures 2, 3, 4
).
RDY: This is an open drain output (no internal
pull-up device). RDY will go low after the falling
edge of CS and return highat the endof conversion.
input— This pin is pulled to a logic low through
an internal 50 µA current sink when left unconnected.
RD Mode is selected if the MODE pin is left unconnected or externally forced low. A complete
conversion is accomplished by pulling RD low
until output data appears.
WR-RD Mode is selected when a high is applied
to the MODE pin. A conversion starts with the
WR signal’s rising edge and then using RD to
access the data.
WR-RD Mode (logic high on the MODE pin)
This is the active low Read input. With a logic
low applied to the CS pin, the TRI-STATE data
outputs (DB0–DB7) will be activated when RD
goes low (
Figures 2, 3, 4
).
RD Mode (logic low on the MODE pin)
DS011086-15
Dual-In-Line and Wide-Body
Small-Outline
Packages N20A or M20B
With CS low, a conversion starts on the falling
edge of RD. Output data appears on DB0–DB7
INT
at the end of conversion(see
This is an active low output that indicates that a
Figures 1, 5
).
conversion is complete and the data is in the
output latch. INT is reset by the rising edge of
RD.
GND This is the power supplyground pin. The ground
pin should be connectedto a “clean” ground reference point.
V
,
REF−
V
REF+
These are the reference voltage inputs. They
may be placed at any voltage between GND −
50 mV and V
greater than V
equal to V
and an input voltage greater than V
LSB produces an output code of 255.
For the ADC08062, an input voltage on any unselected input that exceeds V
+
+50mV,butV
. Ideally, an input voltage
REF−
produces an output code of 0,
REF−
REF+
+
by more than
must be
REF+
− 1.5
100 mV or is below GND by more than 100 mV
will create errors in a selected channel that is
operating within proper operating conditions.
CS
This is the active low Chip Select input. A logic
low signal applied to this input pin enables the
RD and WR inputs. Internally, the CS signal is
ORed with RD and WR signals.
OFL Overflow Output. If the analog input is higher
than V
of conversion. It can be used when cascading
−1⁄2LSB, OFL will be low at the end
REF+
two ADC08061s to achieve higher resolution (9
bits). This output is always active and does not
go into TRI-STATEas DB0–DB7 do. When OFL
is set, all data outputs remain high when the
ADC08061’s output data is read.
NC No connection.
www.national.com 2
Pin Description (Continued)
A0 This logic input is used to select one of the
V+Positive power supply voltage input. Nominal operating
ADC08062’s input multiplexer channels. A channel is selected as shown in the table below.
ADC08062 Channel
A0
0V
1V
IN1
IN2
supply voltage is +5V. The supply pin should be bypassed with a 10 µFbead tantalumin parallelwith a0.1
ceramic capacitor. Lead length should be as short as
possible.
www.national.com3
Absolute Maximum Ratings (Notes 1, 2)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage (V
Logic Control Inputs −0.3V to V
Voltage at Other lInputs and Outputs −0.3V to V
Input Current at Any Pin (Note 3) 5 mA
Package Input Current (Note 3) 20 mA
Power Dissipation (Note 4)
J Package 875 mW
N Package 875 mW
WM Package 875 mW
Storage Temperature −65˚C to +150˚C
+
)6V
+
+ 0.3V
+
+ 0.3V
Lead Temperature (Note 5)
J Package (Soldering, 10 sec.) +300˚C
N Package (Soldering, 10 sec.) +260˚C
WM Package
(Vapor Phase, 60 sec.) +215˚C
WM Package (Infrared, 15 sec.) +220˚C
ESD Susceptibility (Note 6) 2 kV
Operating Ratings (Notes 1, 2)
Temperature Range T
ADC08061/2BIN,
ADC08061/2CIWM −40˚C ≤ T
Supply Voltage, (V
+
) 4.5V to 5.5V
MIN
≤ TA≤ T
≤ 85˚C
A
MAX
Converter Characteristics
The following specifications apply for RD Mode, V
face limits apply for T
Symbol Parameter Conditions Typical Limits Units
INL Integral Non Linearity ADC08061/2BIN
TUE Total Unadjusted Error ADC08061/2BIN
=
=
T
A
to T
T
J
MIN
+
=
5V, V
; all other limits T
MAX
ADC08061/2CIWM
ADC08061/2CIWM
REF+
=
5V, and V
=
T
A
=
GND unless otherwise specified. Bold-
REF−
=
25˚C.
J
(Note 7) (Note 8)
1
±
⁄
2
±
1 LSB (max)
1
±
⁄
2
±
1 LSB (max)
(Limit)
LSB (max)
LSB (max)
Missing Codes 0 Bits (max)
Reference Input Resistance 700 500 Ω(min)
700 1250 Ω (max)
V
REF+
V
REF−
V
IN
Positive Reference V
Input Voltage V
REF−
+
V (min)
V (max)
Negative Reference GND V (min)
Input Voltage V
REF+
V (max)
Analog (Note 10) GND − 0.1 V (min)
Input Voltage V
+
+ 0.1 V (max)
On Channel Input On Channel Input=5V, −0.4 −20 µA (max)
Current Off Channel Input=0V (Note 11)
On Channel Input=0V, −0.4 −20 µA (max)
Off Channel Input=5V (Note 11)
PSS Power Supply Sensitivity V
+
=
±
5%,V
5V
REF
=
4.75V
±
1/16
1
±
⁄
2
LSB (max)
All Codes Tested
Effective Bits 7.8 Bits
Full-Power Bandwidth 300 kHz
THD Total Harmonic Distortion 0.5
%
S/N Signal-to-Noise Ratio 50 dB
IMD Intermodulation Distortion 50 dB
AC Electrical Characteristics
The following specifications apply for V
face limits apply for T
Symbol Parameter Condition
t
WR
t
RD
www.national.com 4
Write Time Mode Pin to V+; 100 100 ns (min)
Read Time (Time from Falling Edge Mode Pin to V+;(
of WR to Falling Edge of RD )
=
T
A
J
+
=
=
MIN
to T
5V, t
MAX
=
T
=
t
10 ns, V
r
f
; all other limits T
Figures 2, 3, 4
(
)
=
5V, V
REF+
=
=
T
A
J
Figure 2
) 350 350 ns (min)
25˚C.
=
0V unless otherwise specified. Bold-
REF−
Typical
(Note 7)
Limits
(Note 8)
Units
(Limit)
AC Electrical Characteristics (Continued)
+
=
=
The following specifications apply for V
face limits apply for T
=
=
T
A
T
J
MIN
to T
5V, t
MAX
Symbol Parameter Condition
t
RDW
t
CONV
t
CRD
t
ACCO
RD Width Mode Pin to GND; (
WR -RD Mode Conversion Time Mode Pin to V+;(
(t
WR+tRD+tACC1
)
RD Mode Conversion Time Mode Pin to GND; (
Access Time (Delay from Falling CL≤ 100 pF 640 900 ns (max)
Edge of RD to Output Valid)
t
ACC1
Access Time (Delay from CL≤ 10 pF 45 110 ns (max)
Falling Edge C
of RD to Output Valid)
t
ACC2
Access Time (Delay from CL≤ 10 pF 25 55 ns (max)
Falling Edge C
of RD to Output Valid)
t
0H
TRI-STATE®Control (Delay from R
Rising Edge of RD to HI-Z State)
t
1H
TRI-STATE Control (Delay from R
Rising Edge of RD to HI-Z State)
t
INTL
Delay from Rising Edge of (
WR to Falling Edge of INT
t
INTH
Delay from Rising Edge of C
RD to Rising Edge of INT
t
INTH
Delay from Rising Edge of C
WR to Rising Edge of INT
t
RDY
t
ID
t
RI
t
N
Delay from CS to RDY Mode Pin=0V, C
Delay from INT to Output Valid R
Delay from RD to INT Mode Pin=V+,tRD≤ t
Time between End of RD (
and Start of New Conversion
t
AH
t
AS
t
CSS
t
CSH
C
C
C
Channel Address Hold Time (
Channel Address Setup Time (
CS Setup Time (
CS Hold Time (
Analog Input Capacitance 25 pF
VIN
Logic Output Capacitance 5 pF
OUT
Logic Input Capacitance 5 pF
IN
=
t
10 ns, V
r
f
; all other limits T
Figure 2
Mode Pin to GND; (
=
100 pF 50
L
Mode Pin to V+,tRD≤ t
(
Figure 2
)
=
100 pF 30
L
>
t
t
;(
RD
L
L
Figures 3, 4
Mode Pin=V+,C
L
2b, and 4
L
R
L
L
Figure 4
(
Figure 3
(
Figures 3, 4
INTL
=
=
3kΩ,C
3kΩ,C
=
10 pF 30 60 ns (max)
L
=
10 pF 30 60 ns (max)
L
) 520 690 ns (max)
=
50 pF; (
L
Figures 1, 2, 3, 4
)
=
Figure 4
50 pF; (
=
3kΩ(
=
3kΩ,C
L
Figure 1
=
100 pF; 0 15 ns (max)
L
)
)
Figures 1, 2, 3, 4, 5
Figures 1, 2, 3, 4, 5
Figures 1, 2, 3, 4, 5
Figures 1, 2, 3, 4, 5
Figures 1, 2, 3, 4, 5
=
5V, V
REF+
=
=
T
A
J
Figure 5
) 200 250 ns (min)
25˚C.
=
0V unless otherwise specified. Bold-
REF−
Typical
(Note 7)
Limits
(Note 8)
Units
(Limit)
400 400 ns (max)
) 500 560 ns (max)
Figure 1
) 655 900 ns (max)
Figure 1
)
INTL
)
=
50 pF
)50 95 ns (max)
)4595 ns (max)
=
50 pF, 25 45 ns (max)
)
; 60 115 ns (max)
INTL
)5050 ns (min)
)1060 ns (min)
)00ns (max)
)00ns (max)
)00ns (min)
DC Electrical Characteristics
The following specifications apply for V
all other limits T
Symbol Parameter Conditions Typical Limits Units
V
IH
=
=
T
25˚C.
A
J
Logic “1” Input Voltage V
+
=
5V unless otherwise specified. Boldface limits apply for T
(Note 7) (Note 8)
+
=
5.5V
=
=
T
A
to T
T
J
MIN
(Limit)
Mode Pin 3.5 V (min)
ADC08062
CS, WR, RD, A0 Pins
2.2 V (min)
ADC08061
CS, WR, RD Pins
2.0 V (min)
www.national.com5
MAX
;
DC Electrical Characteristics (Continued)
+
The following specifications apply for V
all other limits T
=
=
T
25˚C.
A
J
=
5V unless otherwise specified. Boldface limits apply for T
Symbol Parameter Conditions Typical Limits Units
(Note 7) (Note 8)
+
V
IL
Logic “0” Input Voltage V
=
4.5V
Mode Pin 1.5 V (max)
ADC08062
CS, WR, RD, A0 Pins
ADC08061
CS, WR, RD Pins
I
IH
Logic “1” Input Current V
=
5V
IH
CS, RD, A0 Pins
WR Pin
0.005 1 µA (max)
0.1 3 µA (max)
Mode Pin 50 200 µA (max)
I
IL
Logic “0” Input Current V
=
0V
IL
CS, RD, WR, A0 Pins
−0.005 µA (max)
Mode Pin −2
+
V
OH
Logic “1” Output Voltage V
=
4.75V
=
I
−360 µA
OUT
DB0–DB7, OFL, INT
=
I
−10 µA
OUT
DB0–DB7, OFL, INT
+
V
OL
Logic “0” Output Voltage V
=
4.75V
=
I
1.6 mA 0.4 V (max)
OUT
DB0–DB7, OFL, INT, RDY
I
O
TRI-STATE Output Current V
=
5.0V 0.1 3 µA (max)
OUT
DB0–DB7, RDY
=
V
0V −0.1 −3 µA (max)
OUT
DB0–DB7, RDY
I
SOURCE
Output Source Current V
=
0V −26 −6 mA (min)
OUT
DB0–DB7, OFL, INT
I
SINK
Output Sink Current V
=
5V 24 7 mA (min)
OUT
DB0–DB7, OFL, INT, RDY
I
C
Note 1: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. DC and AC electrical specifications do not apply when operating
the device beyond its specified operating ratings. Operating Ratings indicate conditions for which the device is functional, but do not guarantee performance limits.
For guaranteed specifications and test conditions, see the Electrical Characteristics. The guaranteed specifications apply only for the test conditions listed. Some performance characteristics may degrade when the device is not operated under the listed test conditions.
Note 2: All voltages are measured with respect to the GND pin, unless otherwise specified.
Note 3: When the input voltage (V
limited to 5 mA or less. The 20 mA package input current specification limits the number of pins that can exceed the power supply boundaries witha5mAcurrent
limit to four.
Note 4: The power dissipation of this device under normal operation should never exceed 875 mW (Quiescent Power Dissipation + the loads on the digital outputs).
Caution should be taken not to exceed absolute maximum power rating when the device is operating in a severe fault condition (e.g., when any input or output exceeds the power supply). The maximum power dissipation must be derated at elevated temperatures and is dictated by T
(package junction to ambient thermal resistance), and TA(ambient temperature). The maximum allowable power dissipation at any temperature is PD
−TA)/θJAor the number given in the Absolute Maximum Ratings, whichever is lower. The table below details T
of the ADC08061/2.
Supply Current CS=WR=RD=0 11.5 20 mA (max)
) at any pin exceeds the power supply voltage (V
IN
IN
<
GND or V
>
V+), the absolute value of the current at that pin should be
IN
JMAX
and θJAfor the various packages and versions
JMAX
=
=
T
A
to T
T
J
MIN
MAX
(Limit)
0.7 V (max)
0.8 V (max)
2.4 V (min)
4.5 V (min)
(maximum junction temperature), θ
max
=
(T
JMAX
;
JA
Part Number T
ADC08061/2BIN 105 51
ADC08061/2CIWM 105 85
Note 5: See AN-450 “Surface Mounting Methods and Their Effect on Product Reliability” for other methods of soldering surface mount devices.
Note 6: Human body model, 100 pF discharged through a 1.5 kΩ resistor.
Note 7: Typicals are at 25˚C and represent most likely parametric norm.
www.national.com 6
JMAX
θ
JA
DC Electrical Characteristics (Continued)
Note 8: Limits are guaranteed to National’s AOQL (Average Output Quality Level).
Note 9: Total unadjusted error includes offset, full-scale, and linearity errors.
Note 10: Two on-chip diodes are tied to each analog input and are reversed biased during normal operation. One is connected to V
GND. They will become forward biased and conduct when an analog input voltage is equal to or greater than one diode drop above V
caution should be exercised when testing with V
peratures. This can create conversion errors for analog signals near full-scale. The specification allows 50 mV forward bias on either diode; e.g., the output code will
be correct as long as the analog input signal does not exceed the supply voltage by more than 50 mV. Exceeding this range on an unselected channel will corrupt
the reading of a selected channel. An absolute analog input signal voltage range of 0V ≤ V
+
is 4.950V over temperature variations, initial tolerance, and loading.
plied to V
Note 11: Off-channel leakage current is measured after the on-channel selection.
+
=
4.5V.Analog inputs with magnitudes equal to 5V can cause an input diode to conduct, especially at elevated tem-
≤ 5V can be achieved by ensuring that the minimum supply voltage ap-
IN
+
and the other is connected to
+
or below GND. Therefore,

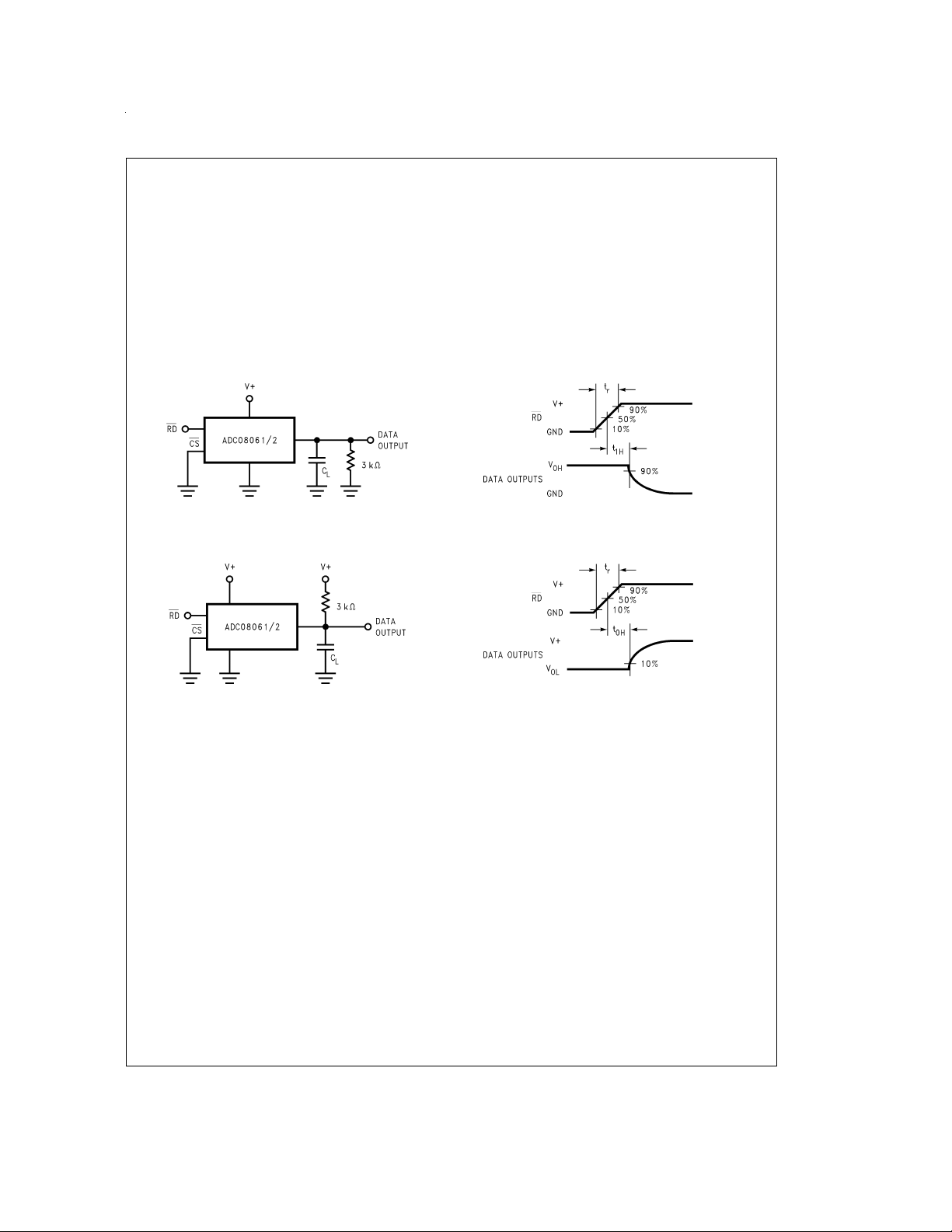

TRI-STATE Test Circuits and Waveforms
t
1H
DS011086-2
t
0H
DS011086-3
=
t
10 ns
r
=
t
10 ns
r
t1H,C
t0H,C
=
10 pF
L
DS011086-4
=
10 pF
L
DS011086-5
www.national.com7

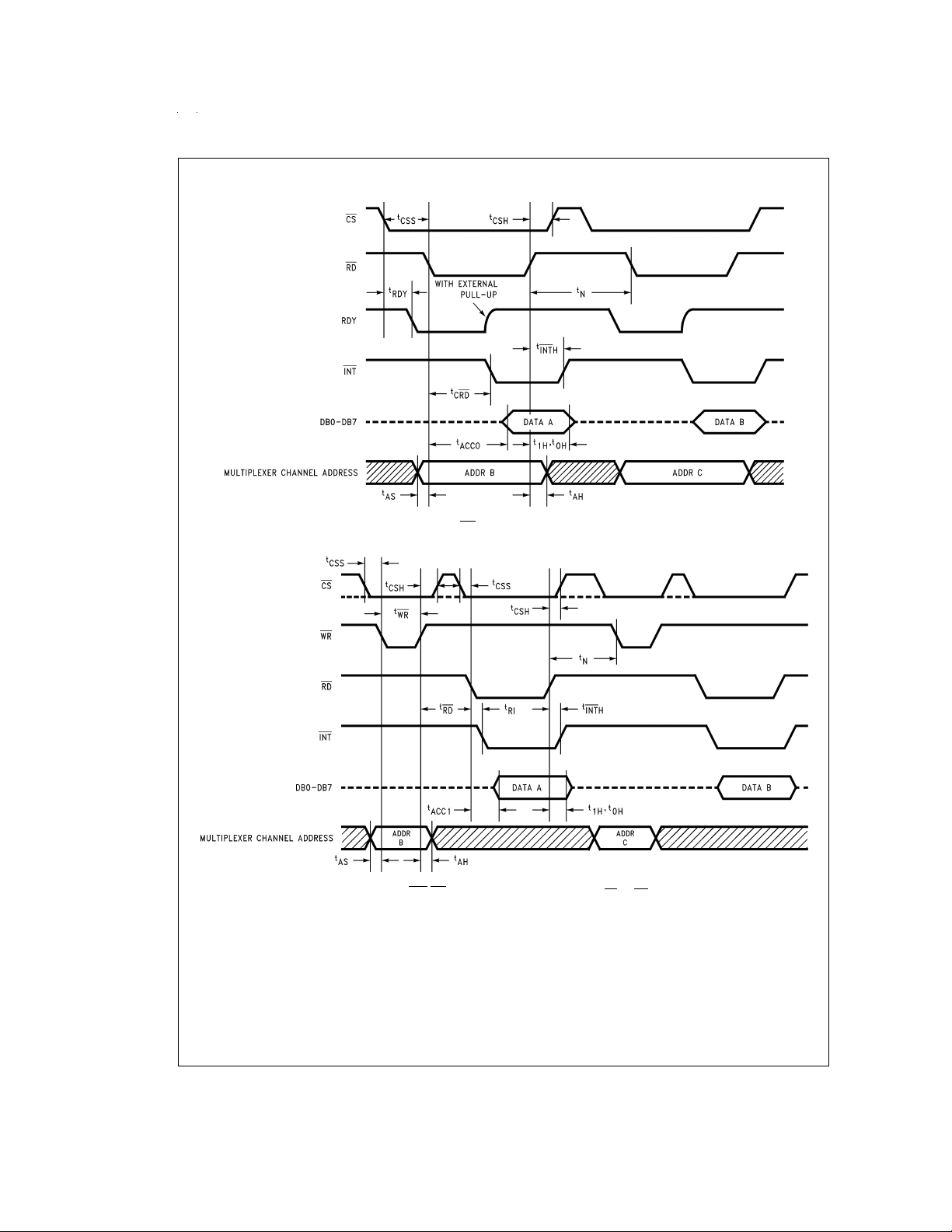

Timing Diagrams
DS011086-6
FIGURE 1. RD Mode (Mode Pin is Low)
FIGURE 2. WR-RD Mode (Mode Pin is High and tRD≤ t
www.national.com 8
INTL
DS011086-7
)
Timing Diagrams (Continued)
FIGURE 3. WR-RD Mode (Mode Pin is High and t
DS011086-8
>
t
INTL
)
RD
DS011086-9
FIGURE 4. WR-RD Mode (Mode Pin is High) Reduced Interface System Connection (CS=RD=0)
www.national.com9
Timing Diagrams (Continued)
FIGURE 5. RD Mode (Pipeline Operation) (Mode Pin is Low and t
Typical Performance Characteristics
t
vs Temperature
CRD
Linearity Error vs
Reference Voltage
must be between 200 ns and 400 ns)
RDW
Offset Error vs
Reference Voltage
DS011086-10
DS011086-25
Supply Current
vs Temperature
DS011086-28
Logic Threshold
vs Temperature
Application Information
1.0 FUNCTIONAL DESCRIPTION
The ADC08061 and ADC08062 perform an 8-bit
analog-to-digital conversion using a multi-step flash technique. The first flash generates the five most significant bits
(MSBs) and the second flash generates the three least significant bits (LSBs).
blocks of the ADC08061/2’s multi-step flash converter. It
www.national.com 10
Figure 6
shows the major functional
DS011086-26
DS011086-27
Output Current
vs Temperature
DS011086-29
consists of an over-encoded 2
1
⁄2-bit Voltage Estimator, an in-
DS011086-30
ternal DAC with two differentvoltage spans, a3-bit half-flash
converter and a comparator multiplexer.
The resistor string near the center of the block diagram in
Figure 6
forms the internal main DAC. Each of the eight resistors at the bottom of the string is equal to 1/256 of thetotal
string resistance. These resistors form the LSB Ladder and
Application Information (Continued)
have a voltage drop of 1/256 of the total reference voltage
(V
REF+−VREF−
up the MSB Ladder. They are made up of eight groups of
four resistors connected in series. EachMSB Ladder section
1
has
⁄8of the total reference voltage across it. Within a given
MSB Ladder section, each of the MSB resistors has 8/256,
or 1/32 of the total reference voltageacross it. Tap points are
found between all of the resistors in both the MSB and LSB
Ladders. Through the Comparator Multiplexer these tap
points can be connected, in groups of eight, to the eight comparators shown at the right of
vides the necessary reference voltages to the comparators
during each flash conversion.
) across them. Theremaining resistors make
Figure 6
. This function pro-
The six comparators, seven-resistor string (estimator DAC),
and Estimator Decoder at the left of
Figure 6
form the Voltage Estimator. The estimator DAC connected between
V
and V
REF+
six Voltage Estimator comparators. These comparators per-
generates the reference voltages for the
REF−
form a very low resolution A/D conversion to obtain an “estimate” of the input voltage.This estimateis then used to control the Comparator Multiplexer, connecting the appropriate
MSB Ladder section to the eight flash comparators. Only 14
comparators, six in the Voltage Estimator and eight in the
flash converter, are needed to achieve the full eight-bit resolution, instead of 32 comparators that would be needed by
traditional half-flash methods.

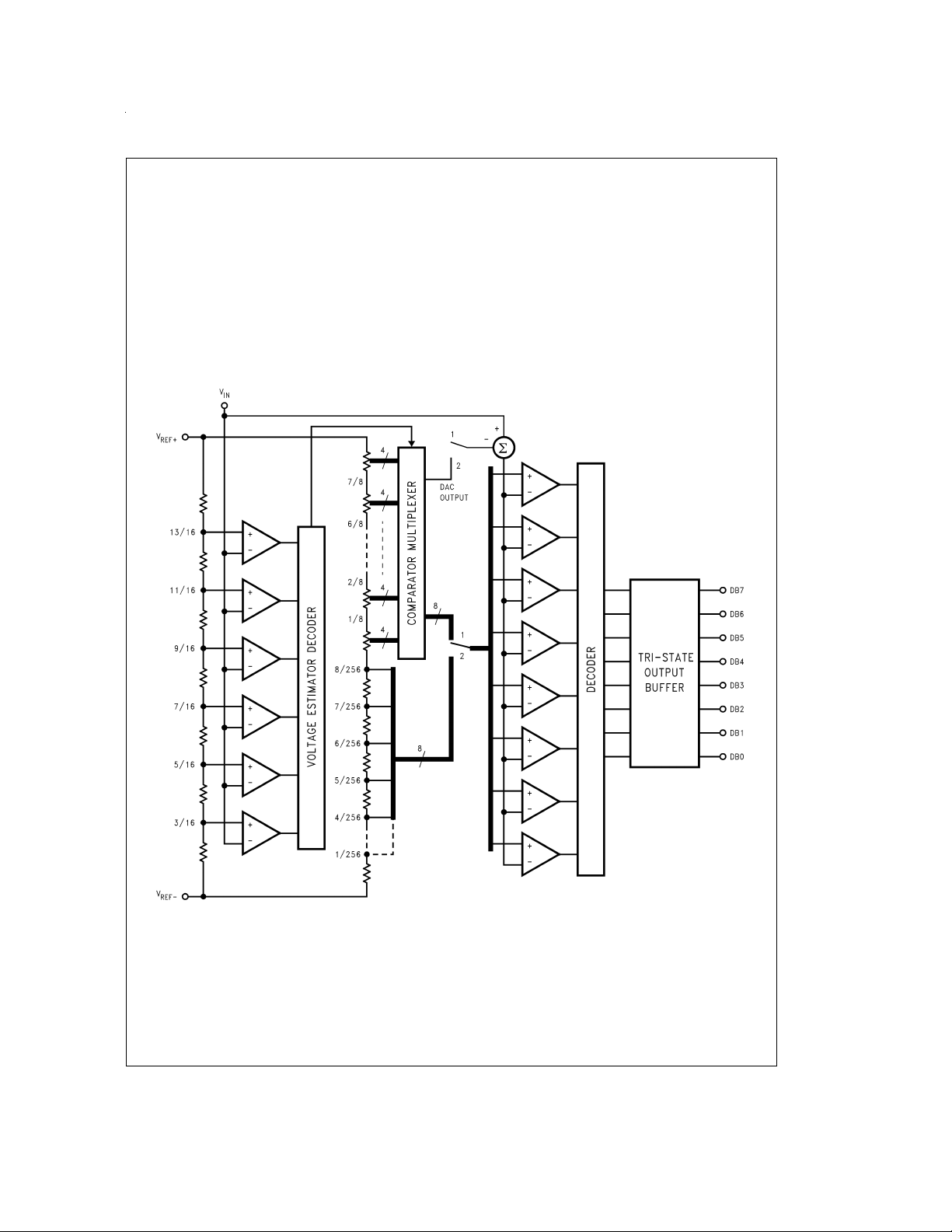

FIGURE 6. Block Diagram of the ADC08061/2 Multi-Step Flash Architecture
A conversion begins with the Voltage Estimator comparing
the analog input signal against the six tap voltages on the estimator DAC. The estimator decoder then selects one of the
groups of tap points along the MSB Ladder.These eight tap
points are then connected to the eight flash comparators.
For example, if the analog input signal applied to V
tween 0 and 3/16 of V
mator decoder instructsthe comparator multiplexer to select
REF(VREF
=
V
REF+−VREF−
is be-
IN
), the esti-
DS011086-18
the eight tap pointsbetween 8/256 and 2/8 of V
nects them to the eight flash comparators. The first flash
REF
and con-
conversion is now performed, producing the five MSBs of
data.
The remaining three LSBs are generated next using the
same eight comparators that were used for the first flash
conversion.As determinedby the results of the MSB flash, a
voltage from the MSBLadder equivalent to the magnitude of
www.national.com11
Application Information (Continued)
the five MSBs is subtracted from the analog input voltage as
the upper switch is moved from position one to position two.
The resulting remainder voltage is applied to the eight flash
comparators and, with the lower switch in position two, compared with the eight tap points from the LSB Ladder.
By using the same eight comparators for both flash conversions, the number of comparators needed by the multi-step
converter is significantly reduced when compared to standard half-flash techniques.
Voltage Estimator errors as large as 1/16 of V
will be corrected since the flash comparators are connected
to ladder voltages that extendbeyond therange specifiedby
the Voltage Estimator. For example, if 7/16 V
9/16 V
tap points below 9/16 V
decoded by the estimator decoder to “10”. The eight flash
comparators will be placed atthe MSB Laddertap pointsbetween
each side of the Voltage Estimator’s span will automatically
correct an error of up to 16 LSBs (16 LSBs=312.5 mV for
V
REF
input voltage is between
Voltage Estimator’s output code will be corrected by sub-
the Voltage Estimator’s comparators tied to the
REF
3
⁄8V
and5⁄8V
REF
=
5V). If the first flash conversion determines that the
will output “1”s (000111). This is
REF
. The overlap of 1/16 V
REF
3
⁄8V
and 4/8 V
REF
tracting “1”. This results in a corrected value of “01”. If the
first flash conversion determines that the input voltage is between 8/16 V
tor’s output code remains unchanged.
− LSB/2 and5⁄8V
REF
, the Voltage Estima-
REF
After correction, the 2-bit data from both the Voltage Estimator and the firstflash conversion are decoded to producethe
five MSBs. Decoding is similar to that of a 5-bit flash converter since there are 32 tap points on the MSB Ladder.
However, 31 comparators are not needed since the Voltage
Estimator places the eight comparators along the MSB Ladder where reference tap voltages are present that fall above
and below the magnitude of V
needed outside thisselected range. If a comparator’s output
. Comparators are not
IN
is a “0”, all comparators above it will also have outputsof “0”
and if a comparator’s outputis a“1”, allcomparators below it
will also have outputs of “1”.
2.0 DIGITAL INTERFACE
The ADC08061/2 has two basic interface modes which are
selected by connecting the MODE pin to a logic high or low.
2.1 RD Mode
With a logic low applied to the MODE pin, the converter is set
to Read mode. In this configuration (see
plete version is done by pulling RD low, and holding low, until
the conversion is complete and output data appears. This
typically takes 655 ns. The INT (interrupt) line goes low at
the end of conversion.A typical delay of 50 ns is needed between the rising edge of RD (after the end of a conversion)
and the start of the next conversion (by pulling RD low).The
RDY output goes low after the falling edge of CS and goes
high at the end-of-conversion. It can be used to signala processor that the converter is busy or serve as a system Transfer Acknowledge signal. For the ADC08062 the data generated by the first conversion cycle after power-up is from an
unknown channel.
2.2 RD Mode Pipelined Operation
Applications that requireshorter RD pulse widths than those
used in the Read mode as described abovecan be achieved
by setting RD’s width between 200 ns–400 ns (
www.national.com 12
REF
REF
− LSB/2, the
REF
Figure 1
Figure 5
(16 LSBs)
<
V
IN
on
REF
), a com-
). RD
<
pulse widths outside this range will create conversion linearity errors. These errors are caused by exercising internal interface logic circuitry using CS and/or RD during a conversion.
When RD goes low, a conversion is initiated and the data
from the previous conversion is available on the DB0–DB7
outputs. Reading D0–D7 for the first two times after
power-up produces random data. The data will be valid during the third RD pulse that occurs after the first conversion.
2.3 WR-RD (WR then RD) Mode
The ADC08061/2 is in the WR-RD mode with the MODE pin
tied high. A conversion starts on the falling edge of the WR
signal. There are two options for reading the output data
which relate to interface timing. Ifan interrupt-driven scheme
is desired, the user can wait for the INT output to go low before reading the conversion result (see
Figure 3
). Typically,
INT will go low 520 ns, maximum, after WR ’s rising edge.
However, if a shorter conversion time is desired, the processor need not wait for INT and can exercise a read after only
350 ns (see
Figure 2
). If RD is pulled low before INT goes
low, INT will immediately go low and data will appear at the
outputs. This is the fastest operating mode (tRD≤ t
a conversion time,including data access time, of 560 ns. Al-
INTL
) with
lowing 100 ns for reading the conversion data and the delay
between conversions gives a total throughput time of 660 ns
(throughput rate of 1.5 MHz).
2.4 WR-RD Mode with Reduced Interface
System Connection
CS and RD can be tied low, using only WR to control the
start of conversionfor applications that require reduced digital interface while operating in the WR-RD mode (
Figure 4
Data will be valid approximately 705 ns following WR ’s rising edge.
2.5 Multiplexer Addressing
The ADC08062 has 2 multiplexer inputs. These are selected
using the A0 multiplexer channel selection input.
Table 1
shows the input code needed to select a given channel. The
multiplexer address is latched when received but the multiplexer channel is updated after the completion of the current
conversion.
TABLE 1. Multiplexer Addressing
ADC08062 Channel
A0
0V
1V
IN1
IN2
The multiplexer address data must be valid at the time of
RD’s falling edge, remain valid during the conversion, and
can go high after RD goes high when operating in the Read
Mode.
The multiplexer address data should be valid ator before the
time of WR’s falling edge, remain valid while WR is low, and
go invalid after WR goes high when operating in the WR-RD
Mode.
3.0 REFERENCE INPUTS
The two V
and define the zero to full-scale input range of the A to D con-
inputs of theADC08061/2 are fully differential
REF
verter. This allows the designer to vary the span of the analog input since this range will beequivalent to the voltagedifference between V
REF+
and V
. Transducers with
REF−
).
Application Information (Continued)
minimum output voltages above GND can also be compensated by connecting V
minimum voltage. By reducing V
to less than 5V, the sensitivity of the converter can be increased (i.e., if V
ADC08061/2’s reference arrangement also facilitates ratio-
REF
metric operation and in many cases the ADC08061/2’s
power supply can be used for transducer power as well as
the V
necting V
ducer’s power supply input to V
source. Ratiometric operation is achieved by con-
REF
to GND and connecting V
REF−
ity degrades when V
The voltage at V
digital output of all zeros. Though V
REF−
the reference design affords nearly differential-input capability for some measurement applications.
possible differential configuration.
It should be noted that, while the two V
differential, the digital output will be zerofor anyanalog input
voltage if V
REF−
≥ V
4.0 ANALOG INPUT AND SOURCE IMPEDANCE
The ADC08061/2’s analog input circuitry includes an analog
switch with an “on” resistance of 70Ω and capacitance of
1.4 pF and 12 pF (see
theA/D’s inputsignal acquisitiontime (while WRis lowwhen
using the WR -RD Mode). A small transient current flows into
the input pin each time the switch closes.Atransient voltage,
whose magnitude can increase as the source impedance increases, may be present at the input. So long as the source
impedance is less than 500Ω, the input voltage transient will
not cause errors and need not be filtered.
Large source impedances can slowthe chargingof thesampling capacitors and degrade conversion accuracy. There-
to a voltage that is equal to this
REF−
REF(VREF
=
2.5V, then 1 LSB=9.8 mV). The
+
. The ADC08061/2’s linear-
−|V
REF+
REF−
=
V
REF+−VREF−
and a trans-
REF+
| is less than 2.0V.
sets the input level that produces a
is not itself differential,
IN
Figure 7
shows one
inputs are fully
REF
.
REF+
Figure 7
). The switch isclosed during
fore, only signal sources with output impedances less than
500Ω should be used if rated accuracy is to be achieved at
the minimum sample time (100 ns maximum). A signal
source with a high output impedance should have its output
)
buffered with an operational amplifier.Any ringing or voltage
shifts at the op amp’s output during the sampling period can
result in conversion errors.
Correct conversion results willbe obtained for input voltages
greater than GND − 100 mV and less than V
not allow the signal source to drivethe analog input pinmore
than 300 mV higher than V
+
, or more than 300 mV lower
than GND. The current flowing through any analog input pin
should be limited to 5 mA or less to avoid permanent damage to the IC if an analog input pin is forced beyond these
voltages. The sum of all the overdrive currents into all pins
must be less than 20 mA. Some sort of protection scheme
should be used when the input signal is expected to extend
more than 300 mV beyond the power supply limits.A simple
protection network using resistors and diodes is shown in
Figure 9
.
6.0 INHERENT SAMPLE-AND-HOLD
An important benefit of the ADC08061/2’s input architecture
is the inherent sample-and-hold (S/H) and its ability to measure relatively high speed signals without the help of an external S/H. In a non-sampling converter, regardless of its
speed, the input must remain stable to at least
throughout the conversion process if full accuracy is to be
maintained. Consequently, for many highspeed signals, this
signal must be externally sampled and held stationaryduring
the conversion.
The ADC08061 and ADC08062 are suitable for DSP-based
systems because of the direct control of the S/H through the
WR signal. The WR input signal allows the A/D to be synchronized to a DSP system’s sampling rate or to other
ADC08061 and ADC08062s.
+
+ 100 mV. Do
1
⁄2LSB
*
Represents a multiplexer channel in the ADC08062.
FIGURE 7. ADC08061 and ADC08062 Equivalent Input Circuit Model
DS011086-19
www.national.com13
Application Information (Continued)
External Reference 2.5V Full-Scale
(Standard Application)
Note : Bypass capacitors consist of a 0.1 µF
ceramic in parallel with a 10 µF bead tantalum.
DS011086-20
Power Supply as Reference
DS011086-21
FIGURE 8. Analog Input Options
Input Not Referred to GND
* Signal source driving VIN(−) must be capable
of sinking 5 mA.
DS011086-22
Note the multiple bypass capacitors on the reference and power supply pins. V
grounded (see Section 7.0 “Layout, Grounds, and Bypassing”). V
is shown with an optional input protection network.
IN1
FIGURE 9. Typical Connection
The ADC08061 can perform accurate conversions of
full-scale input signals at frequencies from dc to more than
300 kHz (full power bandwidth) without the need of anexternal sample-and-hold (S/H).
7.0 LAYOUT, GROUNDS, AND BYPASSING
In order to ensure fast, accurate conversions from the
ADC08061/2, it is necessaryto useappropriate circuit board
layout techniques. Ideally, the analog-to-digital converter’s
ground reference should be low impedance and free of noise
from other parts of the system. Digital circuits can produce a
great deal of noise on their ground returns and, therefore,
should have their own separate ground lines. Best performance is obtained using separate ground planesfor the digital and analog parts of the system.
www.national.com 14
should be bypass to analog ground using multiple capacitors if it is not
REF−
DS011086-23
The analog inputs should be isolated from noisy signal
traces to avoid having spurious signals couple to the input.
Any external component (e.g., an input filter capacitor) connected across the inputs should be returned to a very clean
ground point. Incorrectly grounding the ADC08061/2 will result in reduced conversion accuracy.
+
The V
supply pin, V
should be bypassed with a parallel combination of a 0.1 µF
REF+
, and V
(if not grounded)
REF−
ceramic capacitor and a 10 µF tantalum capacitor placed as
close as possible to the supply pin using short circuit board
traces. See
Figures 8, 9
.

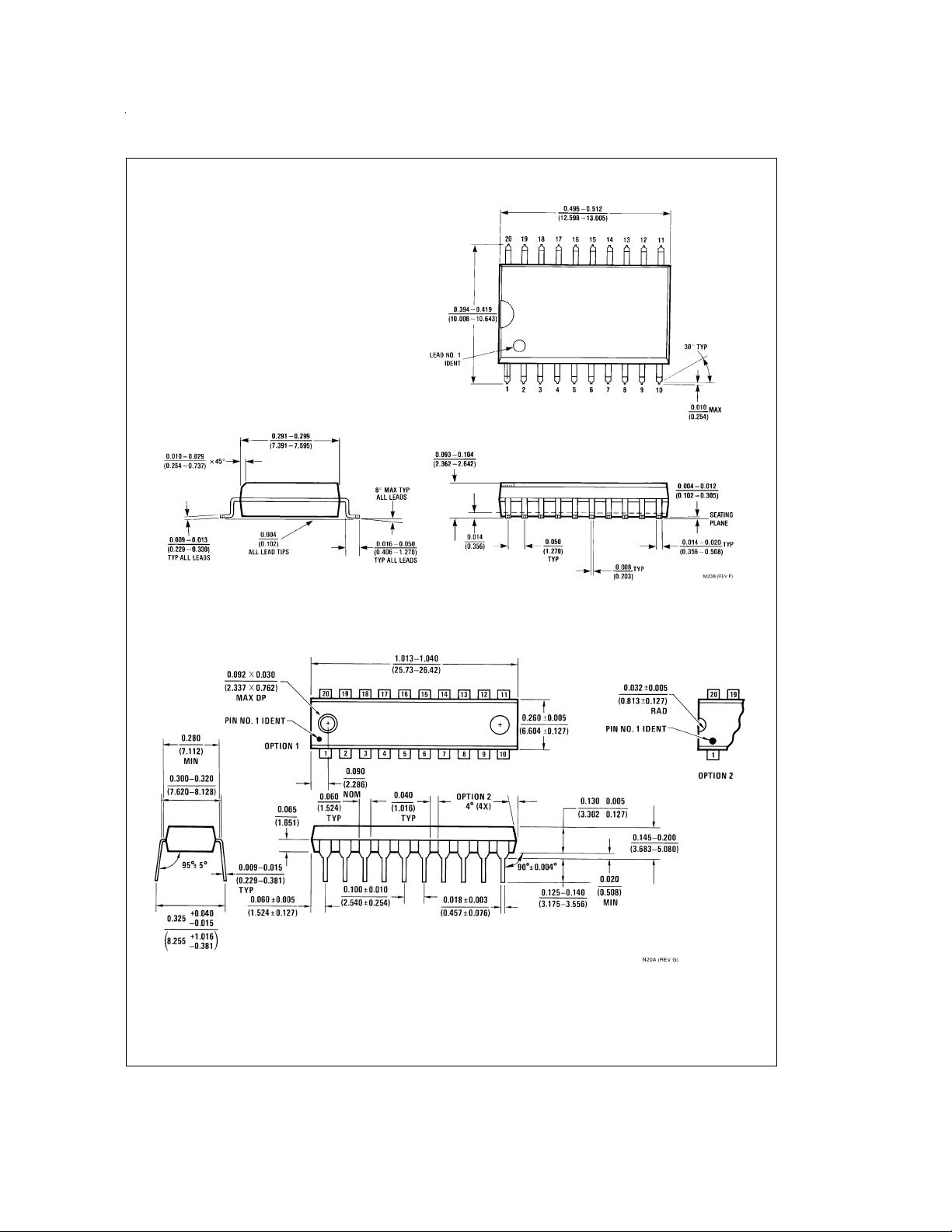

Physical Dimensions inches (millimeters) unless otherwise noted
Wide-Body Small-Outline Package (M)
Order Number ADC08061CIWM, or ADC08062CIWM
NS Package Number M20B
Order Number ADC08061BIN or ADC08062BIN
Dual-In-Line Package (N)
NS Package Number N20A
www.national.com15
Notes
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT AND GENERAL
COUNSEL OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant
into the body, or (b) support or sustain life, and
whose failure to perform when properly used in
ADC08061/ADC08062 500 ns A/D Converter with S/H Function and Input Multiplexer
accordance with instructions for use provided in the
2. A critical component is any component of a life
support device or system whose failure to perform
can be reasonably expected to cause the failure of
the life support device or system, or to affect its
safety or effectiveness.
labeling, can be reasonably expected to result in a
significant injury to the user.
National Semiconductor
Corporation
Americas
Tel: 1-800-272-9959
Fax: 1-800-737-7018
Email: support@nsc.com
www.national.com
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
National Semiconductor
Europe
Fax: +49 (0) 1 80-530 85 86
Email: europe.support@nsc.com
Deutsch Tel: +49 (0) 1 80-530 85 85
English Tel: +49 (0) 1 80-532 78 32
Français Tel: +49 (0) 1 80-532 93 58
Italiano Tel: +49 (0) 1 80-534 16 80
National Semiconductor
Asia Pacific Customer
Response Group
Tel: 65-2544466
Fax: 65-2504466
Email: sea.support@nsc.com
National Semiconductor
Japan Ltd.
Tel: 81-3-5639-7560
Fax: 81-3-5639-7507
Loading...
