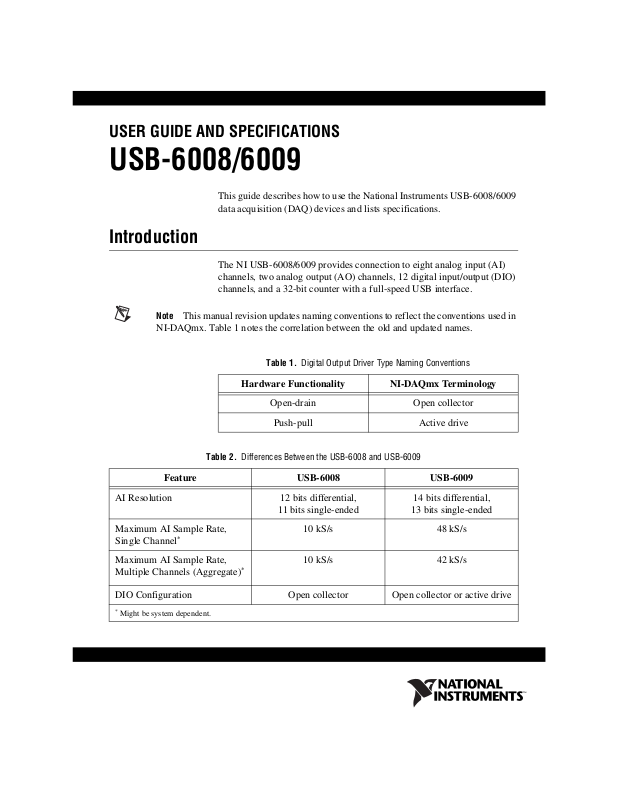

USER GUIDE AND SPECIFICATIONS
USB-6008/6009
This guide describes how to use the National Instruments USB-6008/6009
data acquisition (DAQ) devices and lists specifications.
Introduction
The NI USB-6008/6009 provides connection to eight analog input (AI)
channels, two analog output (AO) channels, 12 digital input/output (DIO)
channels, and a 32-bit counter with a full-speed USB interface.
Note This manual revision updates naming conventions to reflect the conventions used in
NI-DAQmx. Table 1 notes the correlation between the old and updated names.
Table 1. Digital Output Driver Type Naming Conventions
Hardware Functionality NI-DAQmx Terminology
Open-drain Open collector
Push-pull Active drive
Table 2. Differences Between the USB-6008 and USB-6009
Feature USB-6008 USB-6009
AI Resolution 12 bits differential,
11 bits single-ended
Maximum AI Sample Rate,
Single Channel
Maximum AI Sample Rate,
Multiple Channels (Aggregate)
DIO Configuration Open collector Open collector or active drive
*
Might be system dependent.
*
*
10 kS/s 48 kS/s
10 kS/s 42 kS/s
14 bits differential,
13 bits single-ended
1
1 USB Cable Strain Relief

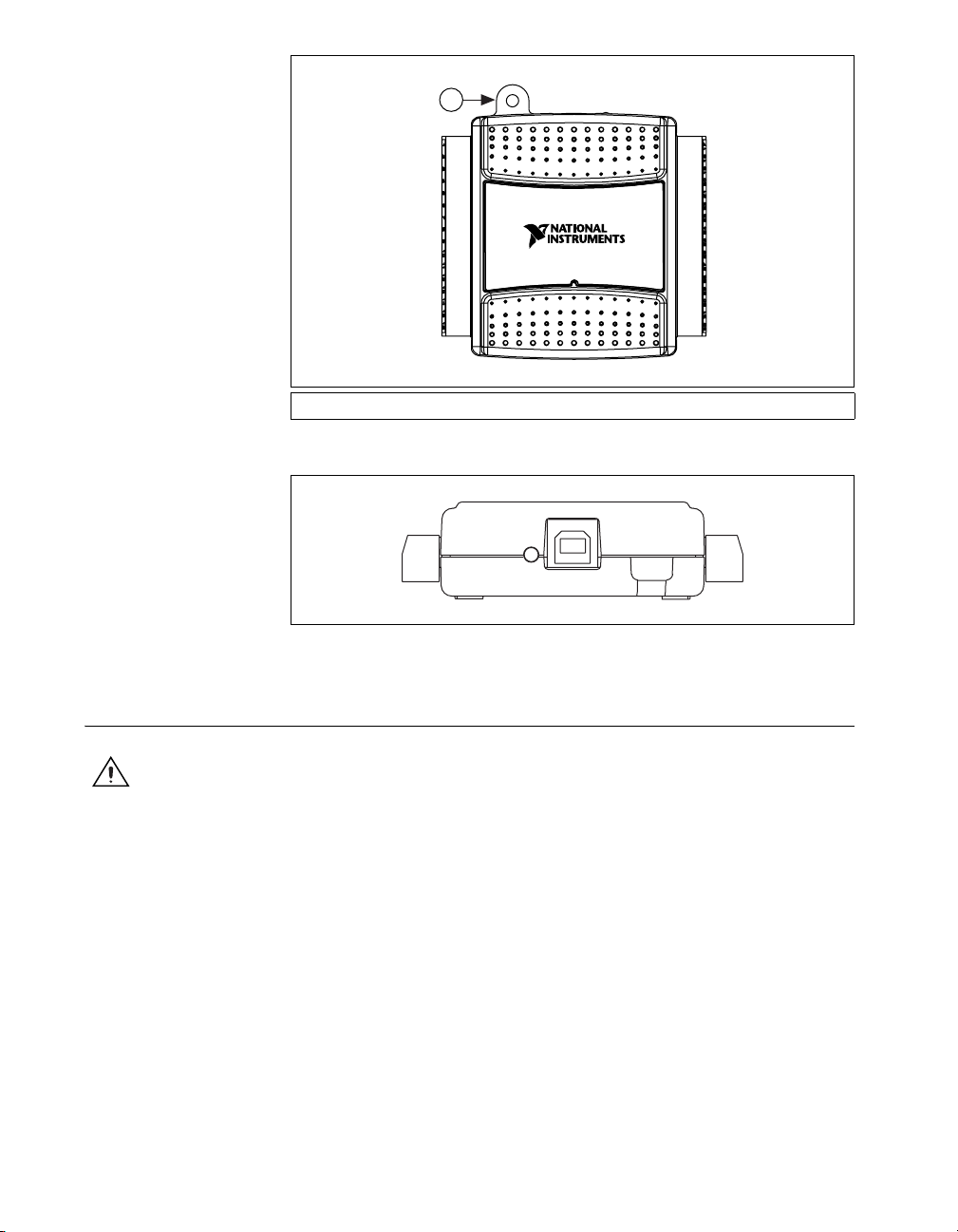

Figure 2. USB-6008/6009 Back View
1 Analog 16
NI USB-6009
8 Inputs, 14-bit, Multifunction I/O
Figure 1. USB-6008/6009
32 Digital 17
Safety Guidelines
Caution Operate the hardware only as described in these operating instructions.
The following section contains important safety information that you must
follow when installing and using the USB-6008/6009.
Do not operate the USB-6008/6009 in a manner not specified in this
document. Misuse of the device can result in a hazard. You can compromise
the safety protection built into the device if the device is damaged in any
way. If the device is damaged, contact National Instruments for repair.
Do not substitute parts or modify the device except as described in this
document. Use the device only with the chassis, modules, accessories, and
cables specified in the installation instructions. You must have all covers
and filler panels installed during operation of the device.
USB-6008/6009 User Guide and Specifications 2 ni.com
Do not operate the device in an explosive atmosphere or where there may
be flammable gases or fumes. If you must operate the device in such an
environment, it must be in a suitably rated enclosure.
If you need to clean the device, use a dry cloth. Make sure that the device
is completely dry and free from contaminants before returning it to service.
Operate the device only at or below Pollution Degree 2. Pollution is foreign
matter in a solid, liquid, or gaseous state that can reduce dielectric strength
or surface resistivity. The following is a description of pollution degrees:
• Pollution Degree 1 means no pollution or only dry, nonconductive
pollution occurs. The pollution has no influence.
• Pollution Degree 2 means that only nonconductive pollution occurs in
most cases. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
• Pollution Degree 3 means that conductive pollution occurs, or dry,
nonconductive pollution occurs that becomes conductive due to
condensation.
You must insulate signal connections for the maximum voltage for which
the device is rated. Do not exceed the maximum ratings for the device. Do
not install wiring while the device is live with electrical signals. Do not
remove or add connector blocks when power is connected to the system.
Avoid contact between your body and the connector block signal when hot
swapping modules. Remove power from signal lines before connecting
them to or disconnecting them from the device.
Operate the device at or below the Measurement Category I
circuits are subjected to working voltages
2
and transient stresses
1
. Measurement
(overvoltage) from the circuit to which they are connected during
measurement or test. Measurement categories establish standard impulse
withstand voltage levels that commonly occur in electrical distribution
systems. The following is a description of measurement categories:
• Measurement Category I is for measurements performed on circuits
not directly connected to the electrical distribution system referred to
as MAINS
3
voltage. This category is for measurements of voltages
from specially protected secondary circuits. Such voltage
measurements include signal levels, special equipment, limited-energy
parts of equipment, circuits powered by regulated low-voltage sources,
and electronics.
1
Measurement Category as defined in electrical safety standard IEC 61010-1. Measurement Category is also referred to as
Installation Category.
2
Working Voltage is the highest rms value of an AC or DC voltage that can occur across any particular insulation.
3
MAINS is defined as a hazardous live electrical supply system that powers equipment. Suitably rated measuring circuits may
be connected to the MAINS for measuring purposes.
© National Instruments Corporation 3 USB-6008/6009 User Guide and Specifications
Software
• Measurement Category II is for measurements performed on circuits
directly connected to the electrical distribution system. This category
refers to local-level electrical distribution, such as that provided by a
standard wall outlet (for example, 115 V for U.S. or 230 V for Europe).
Examples of Measurement Category II are measurements performed
on household appliances, portable tools, and similar E Series devices.
• Measurement Category III is for measurements performed in the
building installation at the distribution level. This category refers to
measurements on hard-wired equipment such as equipment in fixed
installations, distribution boards, and circuit breakers. Other examples
are wiring, including cables, bus-bars, junction boxes, switches,
socket-outlets in the fixed installation, and stationary motors with
permanent connections to fixed installations.
• Measurement Category IV is for measurements performed at the
primary electrical supply installation (<1,000 V). Examples include
electricity meters and measurements on primary overcurrent
protection devices and on ripple control units.
Software support for the USB-6008/6009 for Windows 2000/XP is
provided by NI-DAQmx.
Note For information about non-Windows operating system support, refer to
ni.com/info and enter rddqld.
VI Logger
The NI-DAQmx CD contains example programs that you can use to get
started programming with the USB-6008/6009. Refer to the NI-DAQmx for
USB Devices Getting Started Guide, that shipped with your device and is
also accessible from Start»All Programs»National Instruments»
NI-DAQ for more information.
The NI-DAQmx CD includes VI Logger Lite which is an easy-to-use
configuration-based tool specifically designed for data logging
applications. The application is available at Start»All Programs»
National Instruments»VI Logger.
USB-6008/6009 User Guide and Specifications 4 ni.com
Hardware
The following block diagram shows key functional components of the
USB-6008/6009.
Full-Speed USB Interface
Vbus
USB
External
Powe r
Supply
USB Microcontroller
SPI
8 Channel
12/14b ADC
12b DAC
12b DAC
+5 V/200 mA
PFI 0
P1.<0..3>
P0.<0..7>
+2.5 V/CAL
AI <0..7>
AO 0
AO 1
Digital I/O Terminal Block
Analog I/O Terminal Block
Figure 3. Device Block Diagram
© National Instruments Corporation 5 USB-6008/6009 User Guide and Specifications
Setting Up Hardware
Complete the following steps to set up the hardware:
1. Install combicon screw terminal blocks by inserting them into the
combicon jacks.
Note The USB-6008/6009 kit ships with signal labels. You can apply the signal labels to
the screw terminal blocks for easy signal identification.
2. Refer to Table 3 and Figure 4 for label orientation and affix the
provided signal labels to the screw terminal blocks. Until the signal
labels are applied, you can insert the screw terminal blocks into either
of the combicon jacks. Refer to Figure 4 for more information about
signal label orientation.
4
2
3
1
7
1
lat
i
g
iD
90
23
O
06
/
I
-B
no
i
t
S
cn
U
uf
I
i
t
l
N
u
M
,
t
i
b-
41
,
st
2
3
1
A
an
gol
1
1 Overlay Label with Pin Orientation Guides
2 Combicon Jack
nI
8
6
3 Signal Labels
4 USB Cable
up
Figure 4. Signal Label Application Diagram
Note
Once you label the screw terminal blocks, you must only insert them into the
matching combicon jack, as indicated by the overlay label on the USB-6008/6009 device.
3. Connect the wiring to the appropriate screw terminals.
USB-6008/6009 User Guide and Specifications 6 ni.com
I/O Connector
The USB-6008/6009 ships with one detachable screw terminal block for
analog signals and one detachable screw terminal block for digital signals.
These terminal blocks provide 16 connections that use 16 AWG to
28 AWG wire.
Table 3 lists the analog terminal assignments, and Table 4 lists the digital
terminal assignments.
Table 3. Analog Terminal Assignments
Module Terminal
1 GND GND
2 AI 0 AI 0+
3 AI 4 AI 0 –
4 GND GND
12345678910111213141516
5 AI 1 AI 1+
6 AI 5 AI 1–
7 GND GND
8 AI 2 AI 2+
9 AI 6 AI 2–
10 GND GND
11 AI 3 AI 3+
12 AI 7 AI 3–
Signal,
Single-Ended Mode
Signal,
Differential Mode
13 GND GND
14 AO 0 AO 0
15 AO 1 AO 1
16 GND GND
© National Instruments Corporation 7 USB-6008/6009 User Guide and Specifications
Table 4. Digital Terminal Assignments
Module Terminal Signal
17 P0.0
18 P0.1
19 P0.2
20 P0.3
21 P0.4
22 P0.5
23 P0 6
24 P0.7
25 P1.0
26 P1.1
27 P1.2
28 P1.3
29 PFI 0
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
30 +2.5 V
31 +5 V
32 GND
USB-6008/6009 User Guide and Specifications 8 ni.com
Signal Descriptions
Table 5 describes the signals available on the I/O connectors.
Table 5. Signal Descriptions
Signal Name Reference Direction Description
GND — — Ground—The reference point for the
single-ended AI measurements, bias
current return point for differential mode
measurements, AO voltages, digital
signals at the I/O connector, +5 VDC
supply, and the +2.5 VDC reference.
AI <0..7> Va r ie s Input Analog Input Channels 0 to 7—For
single-ended measurements, each signal is
an analog input voltage channel. For
differential measurements, AI 0 and AI 4
are the positive and negative inputs of
differential analog input channel 0.
The following signal pairs also form
differential input channels:
<AI 1, AI 5>, <AI 2, AI 6>, and
<AI3,AI7>.
AO 0 GND Output Analog Channel 0 Output—Supplies the
voltage output of AO channel 0.
AO 1 GND Output Analog Channel 1 Output—Supplies the
voltage output of AO channel 1.
P1.<0..3>
P0.<0..7>
+2.5 V GND Output +2.5 V External Reference—Provides a
+5 V GND Output +5 V Power Source—Provides +5 V
PFI 0 GND Input PFI 0—This pin is configurable as either a
© National Instruments Corporation 9 USB-6008/6009 User Guide and Specifications
GND Input or Output Digital I/O Signals—You can
individually configure each signal as an
input or output.
reference for wrap-back testing.
power up to 200 mA.
digital trigger or an event counter input.
Analog Input
You can connect analog input signals to the USB-6008/6009 through the
I/O connector. Refer to Table 5 for more information about connecting
analog input signals.
Analog Input Circuitry
Figure 5 illustrates the analog input circuitry of the USB-6008/6009.
+2.5 V
REF
30.9 kΩ
127 kΩ
AI
39.2 kΩ
MUX
PGA
Input Range
Selection
Figure 5. Analog Input Circuitry
ADC
AI FIFO
MUX
The USB 6008/6009 has one analog-to-digital converter (ADC). The
multiplexer (MUX) routes one AI channel at a time to the PGA.
PGA
The progammable-gain amplifier provides input gains of 1, 2, 4, 5, 8, 10,
16, or 20 when configured for differential measurements and gain of
1 when configured for single-ended measurements. The PGA gain is
automatically calculated based on the voltage range selected in the
measurement application.
A/D Converter
The analog-to-digital converter (ADC) digitizes the AI signal by
converting the analog voltage into a digital code.
USB-6008/6009 User Guide and Specifications 10 ni.com
Analog Input Modes
AI FIFO
The USB-6008/6009 can perform both single and multiple A/D
conversions of a fixed or infinite number of samples. A first-in-first-out
(FIFO) buffer holds data during AI acquisitions to ensure that no data
is lost.
You can configure the AI channels on the USB-6008/6009 to take
single-ended or differential measurements. Refer to Table 5 for more
information about I/O connections for single-ended or differential
measurements.
Connecting Differential Voltage Signals
For differential signals, connect the positive lead of the signal to the AI+
terminal, and the negative lead to the AI– terminal.
AI+
Voltage
Source
Figure 6. Connecting a Differential Voltage Signal
USB-6008/6009
AI–
The differential input mode can measure ±20 V signals in the ±20 V range.
However, the maximum voltage on any one pin is ±10 V with respect to
GND. For example, if AI 1 is +10 V and AI 5 is –10 V, then the
measurement returned from the device is +20 V.
© National Instruments Corporation 11 USB-6008/6009 User Guide and Specifications
20
15
10
5
0
–5
Amplitude (V)
–10
–15
–20
AI 1
AI 5
Result
Figure 7. Example of a Differential 20 V Measurement
Connecting a signal greater than ±10 V on either pin results in a clipped
output.
20
15
10
5
0
–5
Amplitude (V)
–10
–15
–20
AI 1
AI 5
Result
Figure 8. Exceeding +10 V on AI Returns Clipped Output
Connecting Reference Single-Ended Voltage Signals
To connect reference single-ended voltage signals (RSE) to the
USB-6008/6009, connect the positive voltage signal to the desired
AI terminal, and the ground signal to a GND terminal.
USB-6008/6009 User Guide and Specifications 12 ni.com
AI
Digital Trigger
When an AI task is defined, you can configure PFI 0 as a digital trigger
input. When the digital trigger is enabled, the AI task waits for a rising edge
on PFI 0 before starting the acquisition. To use ai/Start Trigger with a
digital source, specify PFI 0 as the source and select rising edge.
Analog Output
The USB-6008/6009 has two independent AO channels that can generate
outputs from 0–5 V. All updates of AO lines are software-timed.
Analog Output Circuitry
Figure 10 illustrates the analog output circuitry for the USB-6008/6009.
Voltage
Source
GND
Figure 9. Connecting a Reference Single-Ended Voltage Signal
USB-6008/6009
+5 V
REF(+) REF(–)
12-Bit
DAC
GND
Output
Buffer
Figure 10. Analog Output Circuitry
50 Ω
AO
DACs
Digital-to-analog converts (DACs) convert digital codes to analog
voltages.
© National Instruments Corporation 13 USB-6008/6009 User Guide and Specifications
Connecting Analog Output Loads
To connect loads to the USB-6008/6009, connect the positive lead of the
load to the AO terminal, and connect the ground of the load to a GND
terminal.
AO
USB-6008/6009
Figure 11. Connecting a Load
Minimizing Glitches on the Output Signal
When you use a DAC to generate a waveform, you may observe glitches in
the output signal. These glitches are normal; when a DAQ switches from
one voltage to another, it produces glitches due to released charges. The
largest glitches occur when the most significant bit of the DAC code
changes. You can build a low-pass deglitching filter to remove some of
these glitches, depending on the frequency and nature of the output signal.
Refer to
glitches.
ni.com/support for more information about minimizing
Digital I/O
The USB-6008/6009 has 12 digital lines, P0.<0..7> and P1.<0..3>, which
comprise the DIO port. GND is the ground-reference signal for the DIO
port. You can individually program all lines as inputs or outputs.
Load
GND
Digital I/O Circuitry
Figure 12 shows P0.<0..7> connected to example signals configured as
digital inputs and digital outputs. You can configure P1.<0..3> similarly.
USB-6008/6009 User Guide and Specifications 14 ni.com
+5 V
1
LED
LED
2
3
4
1 P0.0 configured as an open collector digital output driving a LED
2 P0.2 configured as a active drive digital output driving a LED
3 P0.4 configured as a digital input receiving a TTL signal from a gated invertor
4 P0.7 configured as a digital input receiving a 0 V or 5 V signal from a switch
+5 V
TTL Signal
Switch
GND
I/O Connector
P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7
Figure 12. Example of Connecting a Load
Caution
Exceeding the maximum input voltage ratings or maximum output ratings, which
are listed in the Specifications, can damage the DAQ device and the computer. National
Instruments is not liable for any damage resulting from such signal connections.
Source/Sink Information
The default configuration of the USB-6008/6009 DIO ports is open
collector, allowing 5 V operation, with an onboard 4.7 kΩ pull-up resistor.
An external, user-provided, pull-up resistor can be added to increase the
source current drive up to a 8.5 mA limit per line as shown in Figure 13.
The USB-6009 ports can also be configured as active drive using the
DAQmx API, allowing 3.3 V operation with a source/sink current limit of
± 8.5 mA. Refer to the NI-DAQmx Help for more information about how to
set the DIO configuration.
© National Instruments Corporation 15 USB-6008/6009 User Guide and Specifications
+5 V
+5 V
USB-6008/6009
Re
External
Pull-up
Resistor
Load
Rp
4.7 KΩ Onboard Resistor
P0.0
Rl
A
GND
Figure 13. Example of Connecting External User-Provided Resistor
Por t Pad
Complete the following steps to determine the value of the user-provided
pull-up resistor:
1. Place an ammeter in series with the load.
2. Place a variable resistor between the digital output line and the +5 V.
3. Adjust the variable resistor until the ammeter current reads as the
intended current. The intended current must be less than 8.5 mA.
4. Remove the ammeter and variable resistor from your circuit.
5. Measure the resistance of the variable resistor. The measured
resistance is the ideal value of the pull-up resistor.
6. Select a static resistor value for your pull-up resistor that is greater than
or equal to the ideal resistance.
7. Re-connect the load circuit and the pull-up resistor.
I/O Protection
To protect the USB-6008/6009 against overvoltage, undervoltage, and
overcurrent conditions, as well as ESD events, you should avoid these fault
conditions by using the following guidelines:
• If you configure a DIO line as an output, do not connect it to any
external signal source, ground signal, or power supply.
• If you configure a DIO line as an output, understand the current
requirements of the load connected to these signals. Do not exceed the
specified current output limits of the DAQ device.
USB-6008/6009 User Guide and Specifications 16 ni.com
Power-On States
Static DIO
Event Counter
National Instruments has several signal conditioning solutions for
digital applications requiring high current drive.
• If you configure a DIO line as an input, do not drive the line with
voltages outside of its normal operating range. The DIO lines have a
smaller operating range than the AI signals.
• Treat the DAQ device as you would treat any static sensitive device.
Always properly ground yourself and the equipment when handling
the DAQ device or connecting to it.
At system startup and reset, the hardware sets all DIO lines to
high-impedance inputs. The DAQ device does not drive the signal high or
low. Each line has a weak pull-up resistor connected to it.
Each of the USB-6008/6009 DIO lines can be used as a static DI or DO
line. You can use static DIO lines to monitor or control digital signals. All
samples of static DI lines and updates of DO lines are software-timed.
You can configure PFI 0 as a source for a gated invertor counter input edge
count task. In this mode, falling-edge events are counted using a 32-bit
counter. For more information about event timing requirements, refer to the
Specifications section.
Reference and Power Sources
The USB-6008/6009 creates an external reference and supplies a power
source.
+2.5 External References
The USB-6008/6009 creates a high-purity reference voltage supply for
the ADC using a multi-state regulator, amplifier, and filter circuit. The
resulting +2.5 V reference voltage can be used as a signal for self test.
+5 V Power Source
The USB-6008/6009 supplies a 5 V, 200 mA output. This source can be
used to power external components.
Note While the device is in USB suspend, the output is disabled.
© National Instruments Corporation 17 USB-6008/6009 User Guide and Specifications
Specifications
Analog Input
The following specifications are typical at 25 °C, unless otherwise noted.
Converter type ........................................Successive approximation
Analog inputs..........................................8 single-ended, 4 differential,
software selectable
Input resolution
USB-6008........................................12 bits differential,
11 bits single-ended
USB-6009........................................14 bits differential,
13 bits single-ended
Max sampling rate
Single channel
USB-6008.................................10 kS/s
USB-6009.................................48 kS/s
Multiple channels (aggregate)
USB-6008.................................10 kS/s
USB-6009.................................42 kS/s
AI FIFO ..................................................512 bytes
Timing resolution ...................................41.67 ns (24 MHz timebase)
Timing accuracy .....................................100 ppm of actual sample rate
Input range
Single-ended....................................±10 V
Differential ......................................±20 V, ±10 V, ±5 V, ±4 V,
Working voltage .....................................±10 V
Input impedance .....................................144 kΩ
Overvoltage protection ...........................±35
1
±2.5 V, ±2 V, ±1.25 V, ±1 V
1
Might be system dependent.
USB-6008/6009 User Guide and Specifications 18 ni.com
Trigger source ........................................ Software or external digital
trigger
System noise
USB-6008, differential....................1.47 mVrms
USB-6009, single-ended................. 2.93 mVrms
USB-6009, differential....................0.37 mVrms
USB-6009, single-ended................. 0.73 mVrms
Absolute accuracy at full scale, single ended
Typical at 25 °C
Range
+10 14.7 138
Absolute accuracy at full scale, differential
Typical at 25 °C
Range
+20 14.7 138
+10 7.73 84.8
+5 4.28 58.4
+4 3.59 53.1
+2.5 2.56 45.1
+2 2.21 42.5
+1.25 1.70 38.9
+1 1.53 37.5
1
Input voltages may not exceed the working voltage range.
Analog Output
Converter type........................................ Successive approximation
(mV)
(mV)
Maximum over Temperature
(mV)
1
Maximum over Temperature
(mV)
Analog outputs ....................................... 2
Output resolution.................................... 12 bits
Maximum update rate ............................ 150 Hz, software-timed
Output range...........................................0 to +5 V
Output impedance .................................. 50 Ω
© National Instruments Corporation 19 USB-6008/6009 User Guide and Specifications
Digital I/O
Output current drive................................5 mA
Power-on state ........................................0 V
Slew rate .................................................1 V/µs
Short circuit current ................................50 mA
Absolute accuracy (no load) ...................7 mV typical, 36.4 mV maximum
at full scale
Digital I/O
P0.<0..7> .........................................8 lines
PI.<0..3>..........................................4 lines
Direction control.....................................Each channel individually
programmable as input or output
Output driver type
USB-6008........................................Open collector (open-drain)
USB-6009........................................Each channel individually
programmable as active drive
(push-pull) or open collector
(open-drain)
Compatibility ..........................................TTL, LVTTL, CMOS
Absolute maximum voltage range ..........– 0.5 to 5.8 V with respect to GND
Pull-up resistor........................................4.7 kΩ to 5 V
Power-on state ........................................Input (high impedance)
USB-6008/6009 User Guide and Specifications 20 ni.com
Digital logic levels
Level Min Max Units
Input low voltage
Input high voltage
Input leakage current
Output low voltage (I = 8.5 mA)
Output high voltage
Active drive (push-pull), I = –8.5mA
Open collector (open-drain), I = –0.6mA, nominal
Open collector (open-drain), I = –8.5mA, with external pull-up
resistor
External Voltage
+5 V output (200 mA maximum) .......... +5 V typical, +4.85 V minimum
+2.5 V output (1 mA maximum) ........... +2.5 V typical
+2.5 V accuracy ..................................... 0.25% max
Reference temperature drift ................... 50 ppm/°C max
Counter
Number of counters................................ 1
Resolution .............................................. 32 bits
–0.3
2.0
—
—
2.0
2.0
2.0
0.8
5.8
50
0.8
3.5
5.0
—
V
V
µA
V
V
V
V
Counter measurements........................... Edge counting (falling-edge)
Pull-up resistor ....................................... 4.7 kΩ to 5 V
Maximum input frequency..................... 5 MHz
Minimum high pulse width.................... 100 ns
Minimum low pulse width ..................... 100 ns
Input high voltage .................................. 2.0 V
Input low voltage ................................... 0.8 V
Bus Interface
USB specification .................................. USB 2.0 full-speed
USB bus speed ....................................... 12 Mb/s
© National Instruments Corporation 21 USB-6008/6009 User Guide and Specifications
Power Requirements
USB
4.10 to 5.25 VDC.............................80 mA typical, 500 mA max
USB suspend ...................................300 µA typical, 500 µAmax
Physical Characteristics
If you need to clean the module, wipe it with a dry towel.
Dimensions
Without connectors..........................6.35 cm × 8.51 cm × 2.31 cm
With connectors...............................8.18 cm × 8.51 cm × 2.31 cm
I/O connectors.........................................USB series B receptacle,
Weight
With connectors...............................84 g (3 oz)
Without connectors..........................54 g (21 oz)
Screw-terminal wiring ............................16 to 28 AWG
(2.50 in. × 3.35 in. × 0.91 in.)
(3.22 in. × 3.35 in. × 0.91 in.)
(2) 16 position terminal block
plug headers
Torque for screw terminals.....................0.22 to 0.25 N · m
(2.0 to 2.2 lb · in.)
Safety
Standards
The USB-6008/6009 is designed to meet the requirements of the following
standards of safety for electrical equipment for measurement, control, and
laboratory use:
• IEC 61010-1, EN 61010-1
• UL 61010-1
• CAN/CSA-C22.2 No. 61010-1
Note For UL and other safety certifications, refer to the product label, or visit
ni.com/certification, search by model number or product line, and click the
appropriate link in the Certification column.
USB-6008/6009 User Guide and Specifications 22 ni.com
Caution Do not use this module for connection to signals or for measurements within
Measurement Categories II, III, or IV.
Environmental
Voltages
Connect only voltages that are within these limits.
Channel-to-GND .................................... ±30 V max,
Measurement Category I
Measurement Category I is for measurements performed on circuits not
directly connected to the electrical distribution system referred to as
MAINS voltage. MAINS is a hazardous live electrical supply system that
powers equipment. This category is for measurements of voltages from
specially protected secondary circuits. Such voltage measurements include
signal levels, special equipment, limited-energy parts of equipment,
circuits powered by regulated low-voltage sources, and electronics.
Hazardous Locations
The USB-6008/6009 are not certified for use in hazardous locations.
The USB-6008/6009 device is intended for indoor use only.
Operating temperature
(IEC 60068-2-1 and IEC 60068-2-2) ..... 0 to 55 °C
Operating humidity
(IEC 60068-2-56)................................... 10 to 90% RH, noncondensing
Maximum altitude.................................. 2,000 m (at 25°C ambient
temperature)
Storage temperature
(IEC 60068-2-1 and IEC 60068-2-2)..... –40 to 85 °C
Storage humidity
(IEC 60068-2-56) .................................. 5 to 90% RH, noncondensing
Pollution Degree (IEC 60664) ............... 2
© National Instruments Corporation 23 USB-6008/6009 User Guide and Specifications
Electromagnetic Compatibility
Emissions................................................EN 55011 Class A at 10 m
Immunity ................................................Industrial levels per
EMC/EMI ...............................................CE, C-Tick, and FCC Part 15
Note The USB-6008/6009 may experience temporary variations in analog input readings
when exposed to radiated and conducted RF noise. The device returns to normal operation
after RF exposure is removed.
CE Compliance
This product meets the essential requirements of applicable European
Directives, as amended for CE marking, as follows:
Low-Voltage Directive (safety)..............73/23/EEC
Electromagnetic Compatibility
Directive (EMC) .....................................89/336/EEC
FCC Part 15A above 1 GHz
EN 61326:1997 + A2:2001,
Table 1
(Class A) Compliant
Note Refer to the Declaration of Conformity (DoC) for this product for any additional
regulatory compliance information. To obtain the DoC for this product, visit
ni.com/certification, search by model number or product line, and click the
appropriate link in the Certification column.
Where to Go for Support
The National Instruments Web site is your complete resource for technical
support. At
troubleshooting and application development self-help resources to email
and phone assistance from NI Application Engineers.
A Declaration of Conformity (DoC) is our claim of compliance with the
Council of the European Communities using the manufacturer’s
declaration of conformity. This system affords the user protection for
electronic compatibility (EMC) and product safety. You can obtain the DoC
for your product by visiting
supports calibration, you can obtain the calibration certificate for your
product at
USB-6008/6009 User Guide and Specifications 24 ni.com
ni.com/support you have access to everything from
ni.com/certification. If your product
ni.com/calibration.
National Instruments corporate headquarters is located at
11500 North Mopac Expressway, Austin, Texas, 78759-3504.
National Instruments also has offices located around the world to help
address your support needs. For telephone support in the United States,
create your service request at
ni.com/support and follow the calling
instructions or dial 512 795 8248. For telephone support outside the United
States, contact your local branch office:
Australia 1800 300 800, Austria 43 0 662 45 79 90 0,
Belgium 32 0 2 757 00 20, Brazil 55 11 3262 3599,
Canada (Calgary) 403 274 9391, Canada (Ottawa) 613 233 5949,
Canada (Québec) 450 510 3055, Canada (Toronto) 905 785 0085,
Canada (Vancouver) 604 685 7530, China 86 21 6555 7838,
Czech Republic 420 224 235 774, Denmark 45 45 76 26 00,
Finland 385 0 9 725 725 11, France 33 0 1 48 14 24 24,
Germany 49 0 89 741 31 30, India 91 80 51190000,
Israel 972 0 3 6393737, Italy 39 02 413091, Japan 81 3 5472 2970,
Korea 82 02 3451 3400, Malaysia 603 9131 0918,
Mexico 01 800 010 0793, Netherlands 31 0 348 433 466,
New Zealand 0800 553 322, Norway 47 0 66 90 76 60,
Poland 48 22 3390150, Portugal 351 210 311 210,
Russia 7 095 783 68 51, Singapore 65 6226 5886,
Slovenia 386 3 425 4200, South Africa 27 0 11 805 8197,
Spain 34 91 640 0085, Sweden 46 0 8 587 895 00,
Switzerland 41 56 200 51 51, Taiwan 886 2 2528 7227,
Thailand 662 992 7519, United Kingdom 44 0 1635 523545
National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation.
Refer to the Terms of Use section on ni.com/legal for more information about National
Instruments trademarks. Other product and company names mentioned herein are trademarks or trade
names of their respective companies. For patents covering National Instruments products, refer to the
appropriate location: Help»Patents in your software, the patents.txt file on your CD, or
ni.com/patents.
© 2004–2005 National Instruments Corporation. All rights reserved.
371303E-01 Jul05
Loading...
