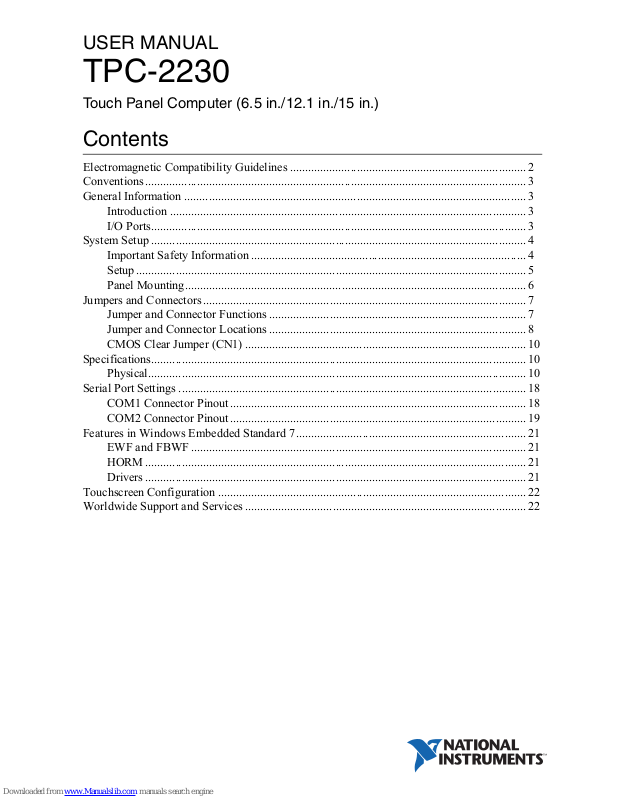

USER MANUAL

TPC-2230

Touch Panel Computer (6.5 in./12.1 in./15 in.)

Contents

Electromagnetic Compatibility Guidelines .............................................................................. 2

Conventions .............................................................................................................................. 3

General Information ................................................................................................................. 3

Introduction ...................................................................................................................... 3

I/O Ports............................................................................................................................ 3

System Setup ............................................................................................................................ 4

Important Safety Information ........................................................................................... 4

Setup ................................................................................................................................. 5

Panel Mounting................................................................................................................. 6

Jumpers and Connectors........................................................................................................... 7

Jumper and Connector Functions ..................................................................................... 7

Jumper and Connector Locations ..................................................................................... 8

CMOS Clear Jumper (CN1) ............................................................................................. 10

Specifications............................................................................................................................ 10

Physical............................................................................................................................. 10

Serial Port Settings ................................................................................................................... 18

COM1 Connector Pinout .................................................................................................. 18

COM2 Connector Pinout .................................................................................................. 19

Features in Windows Embedded Standard 7............................................................................ 21

EWF and FBWF ............................................................................................................... 21

HORM .............................................................................................................................. 21

Drivers .............................................................................................................................. 21

Touchscreen Configuration ...................................................................................................... 22

Worldwide Support and Services ............................................................................................. 22

Electromagnetic Compatibility Guidelines

This hardware has been tested and found to comply with the applicable regulatory requirements
and limits for electromagnetic compatibility (EMC) as indicated in the hardware’s Declaration
of Conformity (DoC)1. These requirements and limits are designed to provide reasonable
protection against harmful interference when the hardware is operated in the intended
electromagnetic environment. In special cases, for example when either highly sensitive or noisy
hardware is being used in close proximity, additional mitigation measures may have to be
employed to minimize the potential for electromagnetic interference.

While this hardware is compliant with the applicable regulatory EMC requirements, there is no
guarantee that interference will not occur in a particular installation. To minimize the potential
for the hardware to cause interference to radio and television reception or to experience
unacceptable performance degradation, install and use this hardware in strict accordance with

1

the instructions in the hardware documentation and the DoC

If this hardware does cause interference with licensed radio communications services or other
nearby electronics, which can be determined by turning the hardware off and on, you are
encouraged to try to correct the interference by one or more of the following measures:

• Reorient the antenna of the receiver (the device suffering interference).

.

• Relocate the transmitter (the device generating interference) with respect to the receiver.

• Plug the transmitter into a different outlet so that the transmitter and the receiver are on
different branch circuits.

Some hardware may require the use of a metal, shielded enclosure (windowless version) to meet
the EMC requirements for special EMC environments such as, for marine use or in heavy

1

industrial areas. Refer to the hardware’s user documentation and the DoC

for product

installation requirements.

When the hardware is connected to a test object or to test leads, the system may become more
sensitive to disturbances or may cause interference in the local electromagnetic environment.

Operation of this hardware in a residential area is likely to cause harmful interference. Users are
required to correct the interference at their own expense or cease operation of the hardware.

Changes or modifications not expressly approved by National Instruments could void the user’s
right to operate the hardware under the local regulatory rules.

Notice To ensure the specified EMC performance, operate this product with only

shielded cables and accessories connected to USB and COM ports.

Notice To ensure the specified EMC performance, the length of cables connected

to USB and COM ports must be no longer that 3 m (10 ft.).

1

The Declaration of Conformity (DoC) contains important EMC compliance information and instructions
for the user or installer. To obtain the DoC for this product, visit
model number or product line, and click the appropriate link in the Certification column.

2 | ni.com | TPC-2230 User Manual

ni.com/certification, search by

Conventions

This symbol denotes a caution, which advises you of precautions to
take to avoid injury. When this symbol is marked on a product, refer to

Important Safety Information section for information about

the
precautions to take.

When this symbol is marked on a product, it denotes a warning
advising you to take precautions to avoid electrical shock.

When this symbol is marked on a product, it denotes a component that
may be hot. Touching this component may result in bodily injury.

Take precautions to avoid data loss, loss of signal integrity, degradation
of performance, or damage to the model.

General Information

This section includes general information about the TPC-2230 Human Machine Interface (HMI).

Introduction

The TPC-2230 touch panel computer, an HMI based on an x86 platform, includes these key
features:

• Powerful processing—The TPC-2230 uses the Intel Atom processor, specifically
designed for embedded, industrial applications.

• Fanless—By using an advanced but low-power Intel Atom processor, the TPC-2230 does
not require a fan for cooling.

• Robust communication—The TPC-2230 is a powerful I/O interface for easy
communication with other devices. The I/O interface includes serial ports, gigabit Ethernet,
and support for USB 2.0 and USB 3.0.

• Wide operating temperature—The TPC-2230 provides a -20 °C to 60 °C operating
temperature range.

• Windows Embedded support—The TPC-2230 supports Windows Embedded Standard 7
(WES7).

I/O Ports

The TPC-2230 includes the following ports:

• Two serial ports: RS232 (COM1) and RS232/422/485 (COM2)

• One USB 2.0 port compliant with USB 1.0 and 1.1

• One USB 3.0 port compliant with USB 2.0, 1.0 and 1.1

• Two RJ-45 Gigabit Ethernet ports

• One power connector

TPC-2230 User Manual | © National Instruments | 3

Figure 1 shows the I/O port arrangement.

Figure 1. I/O Port Arrangement

1

1 Power Connector

2LAN B

3LAN A

2 3

4

4 USB 2.0 (Bottom) and USB 3.0 (Top)

5 COM2 (RS232/422/485)

6 COM1 (RS232)

5

For more TPC-2230 specifications, refer to the Specifications section.

System Setup

This section includes setup information for the TPC-2230.

Important Safety Information

Before setting up the TPC-2230, read these safety instructions carefully.

6

Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.

For plug-in equipment, the power outlet socket must be located near the equipment and must be
easily accessible.

Keep this equipment away from excessive humidity.

Place this equipment on a reliable surface during installation. Dropping it or letting it fall may
cause damage.

The openings on the enclosure are for air convection and protect the equipment from
overheating. Do not cover the openings.

Make sure the power source voltage is correct before connecting the equipment to the power
outlet.

Position the power cord so that it cannot be stepped on. Do not place anything over the power
cord.

All cautions and warnings on the equipment should be noted.

If the equipment is not used for a long time, disconnect it from the power source to avoid damage
by transient overvoltage.

4 | ni.com | TPC-2230 User Manual

Never pour any liquid into an opening. This may cause fire or electrical shock.

Never open the equipment. For safety reasons, only qualified service personnel should open the
equipment.

If one of the following situations arises, have service personnel check the equipment:

• The power cord or plug is damaged.

• Liquid has penetrated into the equipment.

• The equipment has been exposed to moisture.

• The equipment does not work well, or you cannot get it to work according to the user manual.

• The equipment has been dropped and damaged.

• The equipment has obvious signs of breakage.

Do not leave this equipment in an environment where the storage temperature may go below

-30 °C (- 22 °F) or above 80 °C (176 °F). Doing so could damage the equipment. The equipment

should be in a controlled environment.

Caution There is a danger of explosion if the battery is incorrectly replaced.

Replace the battery only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to the manufacturer’s instructions.

The sound pressure level at the operator’s position according to IEC 704-1:1982 is no more than
70 dB (A).

Caution The protection this equipment provides may be impaired if it is used in a

manner not described in this manual.

Setup

Follow these steps to set up the TPC-2230:

1. Unpack the TPC-2230. Be sure your kit includes the following items:

• The TPC-2230 HMI

• Ten panel mounting clamps

• Ten panel mounting screws (M4x30)

• Six panel mounting screws for limited space mounting (M4x20)

• Six GRANO panel mounting screws for limited space mounting (M4x16)

• One 3-pin power connector

• One HMI Resource Recovery USB

• One earth ground cable

• Two screws for optional mPCIe module

If any items are missing or damaged, contact National Instruments.

Caution Be sure system power is off before plugging in or pulling out the CFast

card.

TPC-2230 User Manual | © National Instruments | 5

2. Verify that the CFast card containing Windows Embedded or another operating system is

+

–

GND_EARTH

G

–

+

installed in the unit.

3. Connect the power connector to an 24 VDC power line. Be sure to connect the positive,
negative, and ground lines as shown in Figure 2. The power lines can be from either a
power adapter or in-house power source. Connect GND_EARTH to chassis GND.

Figure 2. Power Connector

4. Connect the power connector to the power receptacle on the TPC-2230. The power
receptacle pin assignment is shown in Figure 3. Note the position of the earth ground pin,
marked G.

Figure 3. Power Receptacle and Pin Assignment

5. The system turns on immediately after you apply power.

Touchscreen Calibration

The TPC-2230 touchscreen should be correctly calibrated and ready to use when you power on
the system. However, if the calibration is not correct or you want to choose custom calibration
options, refer to the Touchscreen Configuration section.

Panel Mounting

Follow these steps to mount the TPC-2230 in a panel:

1. Install the TPC-2230 in the panel opening. (Refer to the Specifications section for cutout
dimensions.)

2. Hook the clamps included in the accessory pack to the holes around the four sides of the
bezel. Be sure to remove the protective inserts in the panel mounting holes.

3. Insert the screws included in the accessory pack into the clamps. To fasten the TPC-2230
to the panel, tighten the screws so they push against the mounting panel.

• Use ten clamps and M4x30 screws to panel mount the 15 in. unit.

• Use eight clamps and M4x30 screws to panel mount the 12 in. unit.

• Use six clamps and M4x20 screws to panel mount the 6.5 in. unit.

6 | ni.com | TPC-2230 User Manual

Note Use GRANO screws if the CFast slot is blocked by one of the longer screws.

Note The mounting panel thickness should be less than 6 mm (0.236 in.).

Jumpers and Connectors

This section describes the TPC-2230 jumpers and connectors.

Jumper and Connector Functions

Table 1-4 lists the jumper and connector functions.

Table 1-4. Mainboard Connectors and Jumpers

Label Function Description

BH2 Battery RTC battery bracket

CN1 CMOS CMOS clear select

CN7/CN8 LAN RJ45 connection

CN10 USB connector USB data and power

CN12 SATA connector SATA data connection

CN13 SATA power SATA device power

CN14 CFast slot CFast power and data

CN15 COM1 Serial port: COM1 RS232

CN16 COM2 Serial port: COM2 RS232/422/485

CN18 Power in connector Device power input

MINIPCIE Mini PCIe Connection for Mini PCIe device

SW2 COM2 mode Select COM2 RS232/422/485

SW3 Ter minat ion Termination resistor select

TPC-2230 User Manual | © National Instruments | 7

Jumper and Connector Locations

CN15

CN16

CN10

CN7

CN8

PFS1

MINIPCIE1

CN18

SW4

CN1

U36

BH2

SODIMM1

SW3

SW2

SW1

CN12

CN13

CN6

CN5

CN11

CN4

CN3

CN2

CN9

CN17

BH1

U1

CN20

Figures 5 and 6 show the jumper and connector locations.

Figure 5. Main Board Jumpers and Connectors—Top Side

8 | ni.com | TPC-2230 User Manual

Figure 6. Main Board Jumpers and Connectors—Bottom Side

JDEDEBUG1

CN19

U26

U6

U10

U12

U48

CN14

TPC-2230 User Manual | © National Instruments | 9

CMOS Clear Jumper (CN1)

31

31

The CMOS Clear jumper is disabled by default. To enable CMOS Clear, move the jumper from
the 1-2 position to the 2-3 position. Pin 1 is the pin on CN1 closest to the front panel connectors.

Table 1-7. CN1 Jumper Functions

Position Function

1-2 Disabled

2-3 Clear CMOS

Specifications

This section lists the TPC-2230 system specifications.

Physical

6.5 in.

Weight 1.5 kg (52.91 oz)

Dimensions (W × H × D) 199 mm × 152 mm × 58.9 mm

(7.83 in. × 5.98 in. × 2.32 in.)

Cutout dimensions (suggested) 189.1 mm× 142.1 mm

(7.44 in. × 5.59 in.)

12.1 in.

Weight 2.5 kg (88.18 oz)

Dimensions (W × H × D) 311.8 mm × 238 mm× 57.2 mm

(12.28 in. × 9.37 in. × 2.25 in.)

Cutout dimensions (suggested) 303 mm× 229 mm

(11.93 in. × 9.02 in.)

10 | ni.com | TPC-2230 User Manual

15 in.

7.00 mm
(0.28 in.)

101.10 mm
(3.98 in.)

134.20 mm
(5.28 in.)

152.00 mm
(5.98 in.)

199.00 mm
(7.83 in.)

132.00 mm
(5.2 in.)

7.00 mm
(0.28 in.)

7.00 mm
(0.28 in.)

58.90 mm
(2.32 in.)

187.80 mm
(7.39 in.)

140.80 mm
(5.54 in.)

Weight 3.9 kg (137.57 oz)

Dimensions (W × H × D) 383.2 mm × 307.3 mm × 61.1 mm

(15.09 in. × 12.10 in. × 2.41 in.)

Cutout dimensions (suggested) 374.5 mm × 298.5 mm

(14.74 in. × 11.75 in.)

Figure 8. Dimensions of 6.5 in. Device

TPC-2230 User Manual | © National Instruments | 11

4.00 mm
(0.0 in.)

Figure 9. Dimensions of 12.1 in. Device

7.00 mm

(0.28 in.)

180.00 mm
(7.08 in.)

7.00 mm
(0.28 in.)

186.30 mm
(7.33 in.)

238.00 mm
(9.37 in.)

150.00 mm
(5.90 in.)

247.20 mm
(9.73 in.)

7.0 mm

(0.28 in.)

311.80 mm
(12.28 in.)

57.20 mm
(2.25 in.)

12 | ni.com | TPC-2230 User Manual

301.60 mm
(11.87 in.)

227.60 mm
(8.96 in.)

4.00 mm
(0.0 in.)

Figure 10. Dimensions of 15 in. Device

115.00 mm
(4.53 in.)

115.00 mm
(4.53 in.)

306.10 mm
(12.05 in.)

383.20 mm
(15.08 in.)

7.00 mm
(0.28 in.)

7.00 mm
(0.28 in.)

230.10 mm
(9.06 in.)

307.30 mm
(12.09 in.)

180.00 mm
(7.08 mm)

7.0 mm

(0.28 in.)

61.10 mm
(2.40 in.)

372.90 mm
(14.68 in.)

System

CPU Intel Atom Processor E3827 1.75 GHz

Video Integrated

BIOS AMI UEFI BIOS

LAN 10/100/1000 Base-T 2 ports

296.90 mm
(11.68 in.)

TPC-2230 User Manual | © National Instruments | 13

RAM 4 GB DDR3L 1600MHz SO-DIMM

Watchdog timer 1 to 255 s timeout period

Storage CFast, 1 slot

LCD

Display type TFT LED LCD

Maximum resolution

6.5 in. 640 × 480 XGA

12.1 in. 1024 × 768 XGA

15 in. 1024 × 768 XGA

Maximum colors

6.5 in. 262,000

12.1 in. 262 k/16.2 M

15 in. 262 k/16.2 M

Viewing angle 160°/140°

Luminance (cd/m2)

6.5 in. 800

12.1 in. 600

15 in. 400

Contrast ratio

6.5 in. 600:1

12.1 in. 700:1

15 in. 700:1

Backlight LED

Backlight lifespan 50,000 hr

Note There may be several bright or dark pixels on the LCD. This phenomenon is

normal in LCD manufacturing.

14 | ni.com | TPC-2230 User Manual

Touchscreen

Touch type Resistive 5-wire

Base glass construction Tempered glass

Resolution

6.5 in. 640 × 480

12.1 in. 1024 × 1024

15 in. 1024 × 1024

Light transmission 80% ± 3%

Controller USB interface

Lifespan 1 million touches at a single point

Power

Input voltage 24 VDC ± 20%

Power consumption (typical)

6.5 in. 19.2 W

12.1 in. 45.6 W

15 in. 40.8 W

Note Providing power levels either below or above the stated range is not

recommended.

Environment

Operating temperature -20 °C to 60 °C (-4 °F to 140 °F)

Storage temperature -30 °C to 70 °C (-22 °F to 158 °F)

Humidity 40 °C @ 10% to 95% relative humidity

(noncondensing)

Vibration 2 grms (5 Hzto 500 Hz)

Maximum altitude 2,000 m

Pollution Degree 2

Indoor use only

Note The front bezel is compliant with IP66.

TPC-2230 User Manual | © National Instruments | 15

Safety

This product is designed to meet the requirements of the following standards of safety for
information technology equipment:

• IEC 60950-1, EN 60950-1

• UL 60950-1, CSA 60950-1

Note For UL and other safety certifications, refer to the product label or the Online

Product Certification section.

Electromagnetic Compatibility

This product meets the requirements of the following EMC standards for information
technology equipment:

• EN 55024 (CISPR 24); Immunity

• EN 55022 (CISPR 22); Class A Emissions

• AS/NZS CISPR 22; Class A Emissions

• FCC 47 CFR Part 15B: Class A Emissions

• ICES-003: Class A Emissions

Note For the standards applied to assess the EMC of this product, refer to the

Online Product Certification section.

CE Compliance

This product meets the essential requirements of applicable European Directives as follows:

• 2014/35/EU; Low-Voltage Directive (safety)

• 2014/30/EU; Electromagnetic Compatibility Directive (EMC)

Online Product Certification

Refer to the product Declaration of Conformity (DoC) for additional regulatory compliance
information. To obtain product certifications and the DoC for this product, visit ni.com/

certification

Certification column.

, search by model number or product line, and click the appropriate link in the

Environmental Management

NI is committed to designing and manufacturing products in an environmentally responsible
manner. NI recognizes that eliminating certain hazardous substances from our products is
beneficial to the environment and to NI customers.

For additional environmental information, refer to the Minimize Our Environmental Impact web
page at
directives with which NI complies, as well as other environmental information not included in
this document.

16 | ni.com | TPC-2230 User Manual

ni.com/environment. This page contains the environmental regulations and

Waste Electrical and Electronic Equipment (WEEE)

⬉ᄤֵᙃѻક∵ᶧ᥻ࠊㅵ⧚ࡲ⊩ ˄Ё೑

RoHS

˅

Ё೑ᅶ᠋

National Instruments

ヺড়Ё೑⬉ᄤֵᙃѻકЁ䰤ࠊՓ⫼ᶤѯ᳝ᆇ⠽䋼ᣛҸ

(RoHS)

DŽ݇Ѣ

National Instruments

Ё೑

RoHS

ড়㾘ᗻֵᙃˈ䇋ⱏᔩ

ni.com/

environment/rohs_china

DŽ

(For information about China RoHS compliance,

go to

ni.com/environment/rohs_china

.)

EU Customers At the end of the product life cycle, all products must be sent to

a WEEE recycling center. For more information about WEEE recycling centers,
National Instruments WEEE initiatives, and compliance with WEEE Directive
2002/96/EC on Waste and Electronic Equipment, visit

.

weee

ni.com/environment/

Battery Replacement and Disposal

EU Customers This device contains a long-life coin cell battery. If you need to

Cd/Hg/Pb

replace it, use the Return Material Authorization (RMA) process or contact an
authorized National Instruments service representative. For more information about
compliance with the EU Battery Directive 2006/66/EC about Batteries and
Accumulators and Waste Batteries and Accumulators, visit

environment/batterydirective

.

ni.com/

Mercury Disposal and Recycling

LCD lamp(s) in this monitor contain mercury. Dispose or recycle according to local, state or
federal laws. Consult the Electronic Industries Alliance at

www.eiae.org for more

information. For specific information on lamp disposal, consult www.lamprecycle.org.

Cleaning

If you need to clean the unit, use a damp cloth. Do not use liquid or spray detergents for cleaning.
Make sure that the unit is completely dry and free from contaminants before returning it to
service.

TPC-2230 User Manual | © National Instruments | 17

Serial Port Settings

1

5

9

6

This section describes the TPC-2230 serial port settings.

COM1 Connector Pinout

The TPC-2230 COM1 serial port is RS232 only. The following figure and table show the COM1
connector pinout.

Pin Signal

1 DCD

2 RX

3 TX

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

9 RI

18 | ni.com | TPC-2230 User Manual

COM2 Connector Pinout

1

5

9

6

The TPC-2230 COM2 serial port is adjustable. You can set it to RS-232, RS-422, or RS-485,
and it has auto data flow control capability. In other words, the TPC-2230 can automatically
detect the data flow direction at this port when two-wired RS485 communication is activated.

The following figure and table show the COM2 pinout and settings.

PIN RS-232 RS-422 RS-485

1 DCD TX- D-

2 RX TX+ D+

3 TX RX+ —

4 DTR RX- —

5 GND GND GND

6 DSR — —

7 RTS — —

8 CTS — —

9 RI — —

TPC-2230 User Manual | © National Instruments | 19

COM4 Mode SW2 Setting

20 11

101

RS232 Mode

RS422 Master Mode

RS422 Slave Mode

20 11

101

20 11

101

RS485 Mode

20 11

101

20 | ni.com | TPC-2230 User Manual

Features in Windows Embedded Standard 7

The TPC-2230 supports Windows Embedded Standard 7 (WES7).

EWF and FBWF

Enhanced Write Filter (EWF) provides an upper filter in the storage device driver stack that
redirects disk write operations to volatile (RAM) or nonvolatile (disk) storage. EWF protects a
volume from write access and offers the following benefits:

• Write-protects one or more partitions on your system.

• Enables read-only media, such as CD-ROM or flash, to boot and run.

• Prolongs the lifespan of write-sensitive storage, such as CFast.

File Based Write Filter (FBWF) also redirects disk write operations to volatile (RAM) or
nonvolatile (disk) storage. Where EWF protects entire volumes from writes, FBWF protects
only individual files and directories. Although FBWF is not as robust as EWF, because EWF
protects entire volumes, it is very useful when you need to write to specific files and have those
changes persist between reboots.

You can enable and disable EWF and FBWF only between reboots.

To disable/enable EWF/FBWF in Windows Embedded Standard 7 (WES7), search for Info Code

ewftpc on ni.com/info for more information.

When EWF is enabled, the C: partition is protected from any disk writing. In this mode, any
changes on the C: partition (including modifications to files or the registry) are redirected to
memory. Thus, these changes are discarded in the next system startup. You can enable this mode
manually after finishing all system changes such as installing your applications or adjusting
system settings.

HORM

Hibernate Once, Resume Many (HORM) enables users to create a single hibernation file and
boot to that file repeatedly. Using HORM, you can boot to a known state each time the system
is powered on. HORM works only when EWF is enabled on all system partitions. HORM does
not work with FBWF. Depending on the system state, HORM can reduce boot times.

To enable HORM is in Windows Embedded Standard 7 (WES7), search for Info Code
on ni.com/info for more information.

Note You can programmatically control EWF, FBWF, and HORM using VIs

included with the LabVIEW 2010 or later Touch Panel Module.

ewftpc

Drivers

The TPC-2230 is configured with all necessary drivers installed. If you need to reinstall any
drivers, they are on the HMI Resources USB, which is included in the kit.

TPC-2230 User Manual | © National Instruments | 21

Touchscreen Configuration

This section explains how to configure the TPC-2230 touchscreen using the PenMount Control
Panel.

To calibrate the TPC-2230, launch All Programs»PenMount Windows Universal Driver»

Utility»PenMount Control Panel. Select PenMount 6000 USB under Select a device to
configure and click Configure. Here you can select either Standard Calibration or Advanced
Calibration. Follow the onscreen instructions for either choice.

Worldwide Support and Services

The National Instruments website is your complete resource for technical support. At ni.com/

support

self-help resources to email and phone assistance from NI Application Engineers.

Visit
other services.

Visit
facilitates technical support and ensures that you receive important information updates from NI.

you have access to everything from troubleshooting and application development

ni.com/services for NI Factory Installation Services, repairs, extended warranty, and

ni.com/register to register your National Instruments product. Product registration

A Declaration of Conformity (DoC) is our claim of compliance with the Council of the European
Communities using the manufacturer’s declaration of conformity. This system affords the user
protection for electromagnetic compatibility (EMC) and product safety. You can obtain the DoC
for your product by visiting
you can obtain the calibration certificate for your product at

ni.com/certification. If your product supports calibration,

ni.com/calibration.

National Instruments corporate headquarters is located at 11500 North Mopac Expressway,
Austin, Texas, 78759-3504. National Instruments also has offices located around the world. For
telephone support in the United States, create your service request at

ni.com/support or dial

1 866 ASK MYNI (275 6964). For telephone support outside the United States, visit the
Worldwide Offices section of ni.com/niglobal to access the branch office websites, which
provide up-to-date contact information, support phone numbers, email addresses, and current
events.

Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for more information on National Instruments trademarks. Other
product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National
Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the
National Instruments Patents Notice at ni.com/patents. You can find information about end-user license agreements (EULAs) and third-party
legal notices in the readme file for your NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance
for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data. NI MAKES
NO EXPRESS OR IMPLIED WARRANTIES AS TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR
ANY ERRORS. U.S. Government Customers: The data contained in this manual was developed at private expense and is subject to the applicable
limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015.

© 2015–2018 National Instruments. All rights reserved.

375426C-01 Mar18
