National Instruments NI WAP-3701, NI WAP-3711 User Manual

NI WAP-3701/3711

User’s Manual

First Edition, Sept 2007

NI WAP-3701/3711

User’s Manual

The software described in this manual is furnished under a license agreement and may be used only in

accordance with the terms of that agreement.

Copyright Notice

Copyright © 2007 National Instruments Corporation.

All rights reserved.

Reproduction without permission is prohibited.

Trademarks

National Instruments or NI is a registered trademark of National Instruments Corporation.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the
part of NI.

NI provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not
limited to, its particular purpose. NI reserves the right to make improvements and/or changes to this manual, or
to the products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, NI assumes no
responsibility for its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the
information herein to correct such errors, and these changes are incorporated into new editions of the
publication.

Table of Contents

Chapter 1 Introduction ...............................................................................................1-1

Overview .............................................................................................................................. 1-2

Package Checklist................................................................................................................. 1-2

Product Features ................................................................................................................... 1-2

Product Specifications .......................................................................................................... 1-2

Chapter 2 Getting Started ..........................................................................................2-1

First-Time Installation and Configuration ............................................................................ 2-2

Deploying the Access Point (AP) ......................................................................................... 2-5

Setting up Client Computers................................................................................................. 2-5

Configuring IEEE 802.11g-related Settings.............................................................. 2-5

Configuring TCP/IP-related Settings ........................................................................ 2-6

Confirming the Settings of the AP and Client Computers.................................................... 2-6

Checking if the IEEE 802.11g-related Settings Work............................................... 2-6

Checking if the TCP/IP-related Settings Work ......................................................... 2-6

Chapter 3 Web Console Configuration.....................................................................3-1

Overview .............................................................................................................................. 3-2

Menu Structure.......................................................................................................... 3-2

Save, Save & Restart, and Cancel Buttons................................................................ 3-3

Home and Refresh Buttons........................................................................................ 3-3

Viewing Status...................................................................................................................... 3-3

Associated Wireless Clients ...................................................................................... 3-3

Current DHCP Mappings .......................................................................................... 3-4

System Log................................................................................................................ 3-4

Link Monitor (AP Client mode only)........................................................................ 3-4

General Operations............................................................................................................... 3-5

Specifying the Operational Mode.............................................................................. 3-5

Administrative Password........................................................................................... 3-6

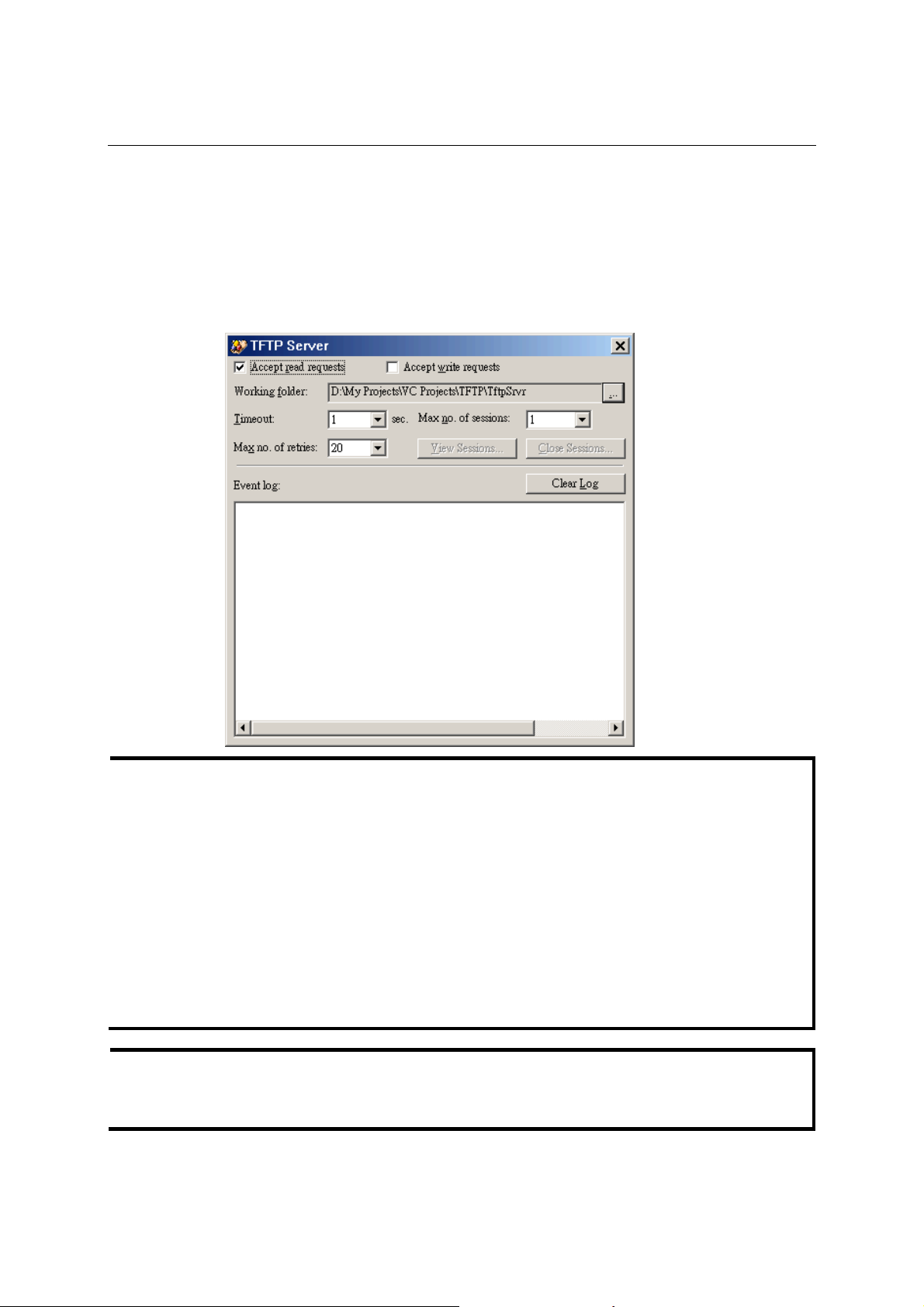

Managing the Firmware ............................................................................................ 3-6

Configuring TCP/IP-related Settings.................................................................................. 3-10

Addressing............................................................................................................... 3-10

DHCP Server (AP/Bridge modes only)................................................................... 3-11

Configuring IEEE 802.11g-related Settings ....................................................................... 3-12

Communication ....................................................................................................... 3-12

Security ................................................................................................................... 3-15

IEEE 802.1X/RADIUS (AP mode only)................................................................. 3-19

Configuring Advanced Settings.......................................................................................... 3-21

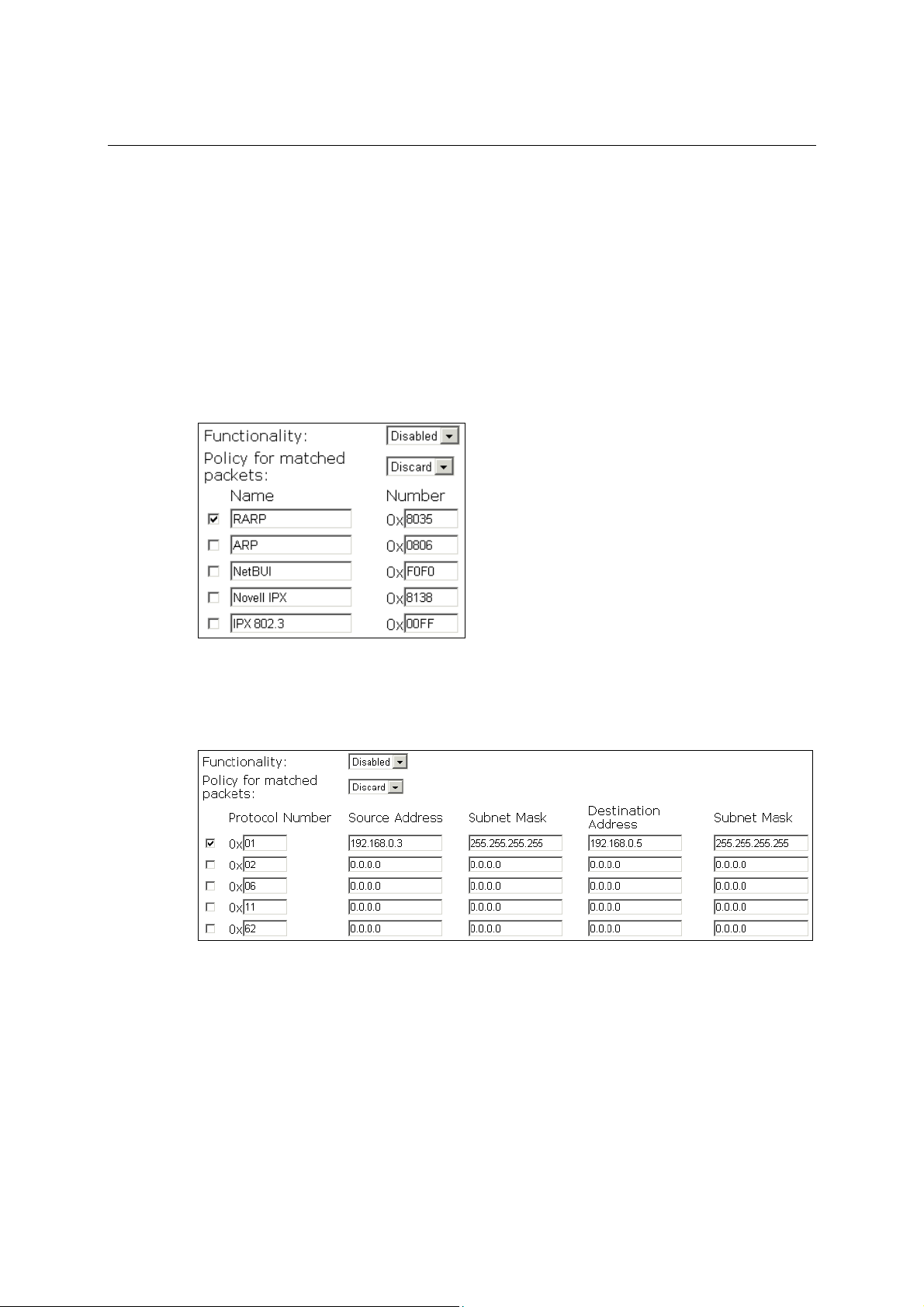

Packet Filters........................................................................................................... 3-21

Management............................................................................................................ 3-22

Appendix A Default Settings........................................................................................A-1

Appendix B Troubleshooting.......................................................................................B-1

Wireless Settings Problems ..................................................................................................B-1

TCP/IP Settings Problems ....................................................................................................B-2

Unknown Problems ..............................................................................................................B-3

Appendix C Regulatory Statement.............................................................................. C-1

Appendix D Technical Support and Professional Services ......................................D-1

1

1

Chapter 1 Introduction

The NI WAP-3701/3711 enables wireless users to access network resources wirelessly. The NI
WAP-3701/3711 can authenticate and authorize wireless users by IEEE 802.1X and RADIUS, and
communicate with a back-end RADIUS (Remote Authentication User Dial-In Service) server to
determine if a wireless user is allowed to access the wireless network..

The following topics are covered in this chapter:

Overview



Package Checklist



Product Features



Product Specifications



NI WAP-3701/3711 User’s Manual Introduction

Overview

NI WAP-3701/3711 is rated to operate at temperatures ranging from 0 to 60°C, and is rugged
enough for any harsh industrial environment. It can be installed easily on DIN-Rail mounting as
well as in distribution boxes. The DIN-Rail mounting capability, wide operating temperature range,
and the IP30 case with LED indicators make the NI WAP-3701/3711 a ready, plug-and-play, yet
reliable solution for your Industrial Wireless application.

Package Checklist

The NI WAP-3701/3711 is shipped with the following items. If any of these items is missing or
damaged, please contact your customer service representative for assistance.

y 1 × NI WAP-3701/3711 802.11g/b Wireless AP/Bridge/Client
y 2 × Swivel Type Antenna (2 dBi RP-SMA)
y Quick Installation Guide
y Document & Software CD (includes User’s Manual and Windows Utility)

Product Features

y IEEE 802.11b/g Compliant
y Redundant 24 VDC power inputs or Power-over-Ethernet
y Powerful security with WPA/802.1X/MAC address filtering
y DIN-Rail mounting capability
y Casing design meets IP30 protection standard

Product Specifications

WLAN

Standards IEEE802.11g/b for wireless LAN, IEEE802.3u 10/100BaseTX

Frequency Range 2.4-2.4835 GHz, Direct Sequence Spread Spectrum (DSSS)
Data Rate & Modulation OFDM@54Mbps, CCK@11/5.5Mbps, DQPSK@2Mbps and

Operating Channels USA: 1-11 (FCC) / Europe: 1-13 (ETSI)
Security 64-bit and 128-bit WEP encryption, WPA (IEEE

Data Rates 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power 802.11b:

Receiver Sensitivity 802.11b:

for Ethernet LAN, IEEE802.3af for Power over Ethernet

DBSK@1Mbps

802.1X/RADIUS and TKIP)

≥17dBm

802.11g:
6/9Mbps≥17dBm, 12/18Mbps≥15dBm,
24Mbps≥14dBm, 36Mbps≥14dBm,
48Mbps≥12dBm, 54Mbps≥12dBm

8% FER@1Mbps≤-91dBm,
8% FER@2Mbps≤-88dBm
8% FER@5.5Mbps≤-85dBm,
8% FER@11Mbps≤-83dBm

1-2

NI WAP-3701/3711 User’s Manual Introduction

802.11g:
10% PER@6Mbps≤-88dBm,
10% PER@9Mbps≤-87dBm
10% PER@12Mbps≤-84dBm,
10% PER@18Mbps≤-82dBm
10% PER@24Mbps≤-79dBm,
10% PER@36Mbps≤-75dBm
10% PER@48Mbps≤-69dBm,
10% PER@54Mbps≤-68dBm

Software Features

Protocols HTTP, DHCP, TCP/IP, RADIUS, DNS, NetBIOS, NetBEUI,

Configuration Web-based management
Client OS Support Windows 95/98/2000/ME/NT/XP, Unix, and Macintosh

Interface

Antenna 2dBi diversity antenna with an R-SMA connector
RJ45 port 10/100BaseT(X) auto negotiation speed
LED Indicators PWR1, PWR2, WLAN (Link/ACT), LAN (Link/ACT)

Power

Input Voltage 12 to 45 VDC; Redundant dual DC power inputs or Power over

Input Current (@24V) 0.3A
Connection Removable Terminal Block
Overload Current Protection 1.6A
Reverse Polarity Protection Present

Mechanical

Casing IP30 protection, metal case
Installation DIN-Rail or panel mounting

Environment

Operating Temperature 0 to 60°C (32 to 140°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Ambient Relative Humidity 5 to 95% (non-condensing)

Regulatory Approvals
Safety UL60950-1, CSA C22.2 No. 60950-1, EN60950-1, TUV

Hazardous Location UL/cUL Class I, Division 2, Groups A, B, C, and D

Emissions FCC, CE, SRRC

AppleTalk, and IPX/SPX

Ethernet (PoE, power on RJ45 pins 4, 5 for power + and pins 7, 8
for power -)

1-3

Chapter 2 Getting Started

This chapter explains how to install the NI WAP-3701/3711 for the first time.

The following topics are covered:

First-Time Installation and Configuration



Deploying the Access Point (AP)



Setting up Client Computers



Configuring IEEE 802.11g-related Settings

¾
¾

Configuring TCP/IP-related Settings



Confirming the Settings of the AP and Client Computers

Checking if the IEEE 802.11g-related Settings Work

¾
¾

Checking if the TCP/IP-related Settings Work

2

2

NI WAP-3701/3711 User’s Manual Getting Started

First-Time Installation and Configuration

Before installing the NI WAP-3701/3711, check to make sure that all items in the Package
Checklist are in the box. In addition, you will need access to a notebook computer or PC equipped
with an Ethernet port. The NI WAP-3701/3711 has a default IP address that you must use when
connecting to the NI WAP-3701/3711 for the first time.

NOTE

NOTE

For testing requirements, if you only have one NI WAP-3701/3711, we strongly suggest that you
prepare a notebook computer or PC with a wireless LAN adapter installed. After finishing the
installation and configuration, you should test the NI WAP-3701/3711 to make sure the wireless
transmission is working normally.

Step 1: Select the Power Source

The NI WAP-3701/3711 can be powered by a DC power input, or by PoE (Power over Ethernet).
The NI WAP-3701/3711 will use the power source that you choose.

The PoE capability of the bridge is PowerDsine-compatible. Please visit PowerDsine’s website
for more information (

Step 2: Connect the NI WAP-3701/3711 to a notebook or PC

Since the NI WAP-3701/3711 supports MID/MID-X auto-sensing, you can use either a
straight-through cable or cross-over cable to connect the NI WAP-3701/3711 to the notebook. If
the LAN LED on the NI WAP-3701/3711’s front panel lights up, it means the connection is
established.

Step 3: Set up the computer’s IP address

In a Windows environment, the computer’s IP address can be changed in the TCP/IP settings
window. Select an IP address on the same subnet as the NI WAP-3701/3711. Since the NI
WAP-3701/3711’s default IP address is 192.168.127.253, and the subnet mask is 255.255.255.0,
you should set the IP address of the computer to 192.168.127.xxx.

http://www.powerdsine.com).

Step 4: Use the web-based manager to configure the NI WAP-3701/3711

Open your computer’s web browser and type http://192.168.127.253 in the address box to access

the homepage of the web-based Network Manager. Before the homepage opens, you will need to
enter the user name and password as shown in the following figure. For first-time configuration,

enter the default user name and password and then click on OK:

Default user name & password

User name: admin
Password: root

192.168.127.253

2-2

NI WAP-3701/3711 User’s Manual Getting Started

NOTE

For security reasons, we strongly recommend changing the password. To do this, open the

Network Manager homepage, click on General Æ Password, and then follow the onscreen

instructions.

Step 5: Select the Operational Mode for NI WAP-3701/3711

By default, the NI WAP-3701/3711’s operation mode is set to AP/Bridge. If you want to change
the setting, click on General Æ Operational Mode, as shown in the following figure, select an
operation mode, and then click on Save to activate the change.

Go to the General, Operational Mode section, select an operational mode and then click Save at

the bottom of this page. This will take you back to the starting page.

NOTE

The AP supports 2 operational modes:

y AP/Bridge

This mode provides both Access Point and Static LAN-to-LAN Bridging functionality. The

static LAN-to-LAN bridging function is supported through WDS (Wireless Distribution
System).

y AP Client

This mode is for Dynamic LAN-to-LAN Bridging. The AP Client automatically establishes

bridge links with APs from any vendors. In either mode, the NI WAP-3701/3711 forwards
packets between its Ethernet interface and wireless interface for wired hosts on the Ethernet
side and wireless host(s) on the wireless side.

Detailed information about configuring the NI WAP-3701/3711’s Operation Mode is given in
Chapter 3.

2-3

NI WAP-3701/3711 User’s Manual Getting Started

Step 6: Configure the NI WAP-3701/3711’s IEEE 802.11 settings

Go to the IEEE 802.11 Communication section to configure IEEE 802.11g-related communication
settings, including Regulatory domain, Channel number, and Network name (SSID).

The number of available RF channels depends on local regulations; therefore, you will need to
choose an appropriate regulatory domain to comply with local regulations. The SSID of a wireless
client computer and the SSID of the NI WAP-3701/3711 must be identical for them to be able to
communicate with each other.

When you are finished, click on Save at the bottom of the page. This will return you to the home

page.

NOTE

Step 7: Review and Apply Settings

On the home page, you can review all of the settings you have made. Changes are highlighted in

red. If the changes are okay, click on Restart to restart the NI WAP-3701/3711 for the new

settings to take effect.

About 10 seconds are needed for the AP to complete its restart process.

2-4

NI WAP-3701/3711 User’s Manual Getting Started

Deploying the Access Point (AP)

After the settings have been configured, deploy the AP to the field application environment.
Connect the AP to an Ethernet LAN through an Ethernet switch or hub.

If you are configuring a pair of NI WAP-3701/3711 units for AP mode for a dynamic or static
bridging application and external high-gain directional antennas are used, it is difficult to adjust
alignments of the antennas when the two devices are separated by a long distance.

To adjust the alignments of a pair of bridges’ directional antennas:

1. Connect each bridge to a computer via Ethernet

2. Configure the date rate of each bridge to the lowest value, 1 Mbps.

3. Fix the alignment of the antenna on one side.

4. Adjust the alignment of the antenna on the other side by using response time information

obtained by pinging (i.e., running PING.exe) the “fixed-side” computer.

5. Fine-tune the alignment of the antenna until you get a best response time.

6. Increase the data rate of each bridge simultaneously until a maximum workable data rate is

reached. You may not be able to use the highest data rate, 54 Mbps, because of the distance
and the gain of the antennas.

Adjust antenna alignment

WDS Link

Bridge 1

PING (ICMP Echo Request)

Computer 1 Computer 2

ICMP Echo Reply

Bridge 2

Setting up Client Computers

The TCP/IP and IEEE 802.11g-related settings of wireless client computers must match those of
the Access Point.

Configuring IEEE 802.11g-related Settings

Open Internet Explorer and type the NI WAP-3701/3711’s IP address in the Address field. Press
Enter to establish the connection.

Before the TCP/IP networking system of a wireless client computer can communicate with other
hosts, the underlying wireless link must be established between this wireless computer and an
Access Point.

To establish a wireless link to an Access Point:

1. Launch the configuration/monitoring utility provided by the vendor of the installed WLAN

NIC.

2. Use the utility to make appropriate Operating Mode, SSID, and WEP settings.

2-5

NI WAP-3701/3711 User’s Manual Getting Started

NOTE

NOTE

NOTE

NOTE

A wireless client computer must be in infrastructure mode to associate with an AP.

The SSID of the wireless client computer and the SSID of the AP must be identical. Or, if the

SSID broadcast capability of the AP is enabled (default setting), the SSID of the wireless client

computer could be set to “any.”

Both the wireless client computer and the Access Point must have the same WEP settings for
them to communicate with each other.

For better wireless security, IEEE 802.1X capability of the Access Point must be enabled so that
only authenticated wireless users can access the wireless network.

Configuring TCP/IP-related Settings

Use the Windows Network Control Panel Applet to change the TCP/IP settings of the client

computers so that the IP addresses of the client computers and the IP address of the Access Point
are in the same IP subnetwork.

If a client computer is originally set up with a static IP address, you can either change its IP
address to match the IP address of the Access Point, or select the option
“automatically-obtain-an-IP-address” if there is a DHCP server on the network.

NOTE

For some versions of Windows, the computer needs to be restarted for the new TCP/IP settings to
take effect.

Confirming the Settings of the AP and Client Computers

After you have completed deploying the Access Point and setting up client computers, you must
make sure the settings you have made are correct.

Checking if the IEEE 802.11g-related Settings Work

To check if a wireless client computer can associate with the NI WAP-3701/3711:

1. Launch the configuration/monitoring utility provided by the vendor of the installed WLAN

NIC.

2. Check if the client computer is associated to an NI WAP-3701/3711. If the check fails, see

Appendix B, “Wireless Settings Problems,” to troubleshoot the problem.

Checking if the TCP/IP-related Settings Work

To check if a client computer can assess the Internet:

1. Open a Windows Command Prompt window on the client computer.

2. Type “ping AP”, where AP is the IP address of the Access Point. Replace it with your real IP

address—for example, 192.168.127.253, and then press Enter.

If the AP responds, go to the next step; otherwise see Appendix B, “TCP/IP Settings
Problems” to troubleshoot the problem.

2-6

NI WAP-3701/3711 User’s Manual Getting Started

3. Type “ping default_gateway”, where default_gateway is the IP address of the default gateway

of the wireless client computer, and then press Enter. If the gateway responds, go to the next

step; otherwise, see Appendix B, “TCP/IP Settings Problems,” to troubleshoot the problem.

4. Type “ping 1st_dns_server”, where 1st_dns_server is the IP address of the primary DNS

server of the wireless client computer, and then press Enter. If this DNS server responds, go

to the next step; otherwise, see Appendix B, “TCP/IP Settings Problems,” to troubleshoot the
problem.

2-7

3

3

Chapter 3 Web Console Configuration

In this chapter, we will explain each Web management page of the Web-based Network Manager.

The following topics are covered in this chapter:

Overview



Menu Structure

¾
¾

Save, Save & Restart, and Cancel Buttons

¾

Home and Refresh Buttons



Viewing Status

Associated Wireless Clients

¾
¾

Current DHCP Mappings

¾

System Log

¾

Link Monitor (AP Client mode only)



General Operations

Specifying the Operational Mode

¾
¾

Administrative Password

¾

Managing the Firmware



Configuring TCP/IP-related Settings

Addressing

¾
¾

DHCP Server (AP/Bridge modes only)



Configuring IEEE 802.11g-related Settings

Communication

¾
¾

Security

¾

IEEE 802.1X/RADIUS (AP mode only)



Configuring Advanced Settings

Packet Filters

¾
¾

Management

NI WAP-3701/3711 User’s Manual Web Console Configuration

Overview

Menu Structure

The left side of the home page contains a menu that you can use to carry out commands. Here is a
brief description of the hyperlinks in the menu:

y Home. For returning to the home page.
y Status. Status information.

¾ Wireless Clients. The status of the wireless clients currently associated with the AP.
¾ DHCP Mappings. Current IP-MAC address mappings of the built-in DHCP server.
¾ System Log. System events log.
¾ Link Monitor. When the NI WAP-3701/3711 is in AP Client mode, this page shows the

signal strength and link quality of the wireless link to its associated access point.

y General. Global operations.

¾ Operational Mode. Operational mode of the NI WAP-3701/3711—AP/Bridge or AP

Client.

¾ Password. For changing the settings of the NI WAP-3701/3711.
¾ Firmware Tools. For upgrading the firmware of the NI WAP-3701/3711, backing up and

restoring the configuration, and resetting the NI WAP-3701/3711’s configuration to
factory defaults.

y TCP/IP. TCP/IP-related settings.

¾ Addressing. IP address settings for the AP to work with TCP/IP.
¾ DHCP Server. Settings for the DHCP (Dynamic Host Configuration Protocol) server on

the Access Point.

y IEEE 802.11. IEEE 802.11g-related settings.

¾ Communication. Basic settings for the IEEE 802.11g interface of the NI

WAP-3701/3711 to work properly with wireless clients.

¾ Security. Security settings for authenticating wireless users and encrypting wireless data.
¾ IEEE 802.1X/RADIUS. IEEE 802.1X Port-Based Network Access Control and RADIUS

(Remote Authentication Dial-In User Service) settings for better wireless security.

y Advanced. Advanced settings of the NI WAP-3701/3711.

¾ Packet Filters. Ethernet Type Fiters, IP Protocol Filters, and TCP/UDP Port Filters

settings.

¾ Management. UPnP, System Log, and SNMP settings.

3-2

NI WAP-3701/3711 User’s Manual Web Console Configuration

Save, Save & Restart, and Cancel Buttons

There are three buttons at the bottom of each page for configuring settings—Save, Save &
Restart, and Cancel. Clicking Save stores changes to the NI WAP-3701/3711’s memory and

returns you to the home page. Clicking Save & Restart stores the changes to the NI

WAP-3701/3711’s memory and restarts the NI WAP-3701/3711 to activate the new settings.

Clicking Cancel discards any changes already made and returns you to the home page.
Note that if you click on Save, the home page will reflect the fact that the configuration settings

have been changed by displaying two buttons—Restart and Cancel. In addition, changes are
highlighted in red. Clicking Restart restarts the AP to activate the new settings. Clicking Cancel

discards all of the changes.

Home and Refresh Buttons

At the bottom of each status page that shows read-only information, there are two buttons—Home
and Refresh. Clicking Home brings you back to the home page. Clicking Refresh updates the

status information showing on the page.

Viewing Status

Associated Wireless Clients

On this page, the status information of each associated client, including its MAC address, IP
address, user name (if the client has been IEEE 802.1X authenticated), number of bytes it has sent,
number of bytes it has received, and the time of its last activity, is shown.

3-3

NI WAP-3701/3711 User’s Manual Web Console Configuration

Current DHCP Mappings

On this page, all the current static or dynamic DHCP mappings are shown. A DHCP mapping is a

correspondence relationship between an IP address assigned by the DHCP server and a computer
or device that obtains the IP address. A computer or device that acts as a DHCP client is identified
by its MAC address.

A static mapping indicates that the DHCP client always obtains the specified IP address from the

DHCP server. You can set static DHCP mappings in the Static DHCP Mappings section of the
DHCP Server configuration page. A dynamic mapping indicates that the DHCP server chooses an
IP address from the IP address pool specified by the First allocateable IP address and
allocateable IP address count settings on the DHCP Server configuration page.

System Log

System events are recorded in the memory of the NI WAP-3701/3711. The logged information is
useful for troubleshooting purposes. The system events are divided into several categories, and
you can select which categories of events to log.

Link Monitor (AP Client mode only)

When the NI WAP-3701/3711 is in AP Client mode, you can use the Link Monitor status page to

monitor the link quality and signal strength sensed by its RF module. Larger values mean better
wireless connectivity to the associated Access Point. This feature is especially useful when you are
aligning a pair of directional antennas for bridging applications.

NOTE

The values are updated every 20 seconds.

3-4

NI WAP-3701/3711 User’s Manual Web Console Configuration

General Operations

Specifying the Operational Mode

Go to the General, Operational Mode section, select an operational mode and then click Save at

the bottom of this page. This will take you back to the starting page.

The AP supports 2 operational modes:

y AP/Bridge.

This mode provides both Access Point and Static LAN-to-LAN Bridging functionality.

The static LAN-to-LAN bridging function is supported through Wireless Distribution System
(WDS).

y AP Client.

This mode is for Dynamic LAN-to-LAN Bridging. The AP Client automatically establishes

bridge links with APs from any vendor.

In either mode, the NI WAP-3701/3711 forwards packets between its Ethernet interface and
wireless interface for wired hosts on the Ethernet side and wireless host(s) on the wireless side.

There are 2 types of wireless links as specified by the IEEE 802.11 standard.

y STA-AP.

This type of wireless link is established between an IEEE 802.11 Station (STA) and an IEEE

802.11 Access Point (AP). An STA is usually a client computer (PC or PDA) with a WLAN
network interface card (NIC). The AP Client mode is actually an STA.

y WDS.

This type of wireless link is established between two IEEE 802.11 APs. Wireless packets
transmitted along the WDS link comply with the IEEE 802.11 WDS (Wireless Distribution
System) format at the link layer.

The relationships among the operational modes and the wireless link types are shown in the
following table:

AP/Bridge AP Client

AP/Bridge

AP Client

To establish a static bridge link based on WDS, the AP/bridges at both end of the WDS link must
be configured manually with each other’s MAC addresses. To establish a dynamic bridge link

between an AP and an AP Client, both devices must be configured with the same SSID and WEP
settings. The AP Client automatically scans for any AP that is using the matched SSID and
establishes a bridge link with the scanned AP.

WDS STA-AP

STA-AP

3-5

NI WAP-3701/3711 User’s Manual Web Console Configuration

NOTE

TIP

Although it is more convenient to use dynamic bridging, there is a limitation—the AP Client can
only transmit TCP/IP packets between its wireless interface and Ethernet interface; other types of
traffic (such as IPX and AppleTalk) are not forwarded.

When the AP is configured for AP Client, it can be used as an Ethernet-to-wireless network
adapter. For example, a notebook computer equipped with an Ethernet adapter, but no wireless
card, can be connected to this device with an Ethernet cable for wireless connectivity to another
access point.

Administrative Password

On this page, you can change the user name and password. The new password must be typed twice
to confirm (note that the default user Name and Password or “admin” and “root,” respectively).

Managing the Firmware

Firmware management operations for the NI WAP-3701/3711 include “Firmware Upgrade,”

“Configuration Backup,” “Configuration Restore,” and “Configuration Reset (Factory Defaults).”

Firmware upgrade, configuration backup, and configuration restore can be achieved via HTTP or
TFTP. The HTTP-based method is suggested because it is more user friendly. However, due to the
fact that different Web browsers and versions behave differently, HTTP-based firmware
management operations may not work properly with some Web browsers. If you cannot
successfully perform HTTP-based firmware management operations with your Web browser, try
the TFTP-based method.

Upgrading the Firmware by HTTP

To upgrade the firmware of NI WAP-3701/3711 by HTTP:

1. Click Browse and then select a correct firmware .bin file. The firmware file path will be

shown in the Firmware file name text box.

2. Click Upgrade to begin the upgrade process.

3-6

NI WAP-3701/3711 User’s Manual Web Console Configuration

Backing up and Restoring Configuration Settings by HTTP

To back up the configuration of the NI WAP-3701/3711 by HTTP (i.e., export the configuration to
a file):

1. Click on Back Up

2. You will be prompted to open or save the configuration file. Click on Save.

3. The configuration file is named with the NI WAP-3701/3711’s MAC address. For example, if

the NI WAP-3701/3711’s MAC address is 00-01-02-33-44-55, the configuration backup file

should be “000102334455.hex”. Don’t change the configuration file name in the Save As

dialog box. Select the folder in which the configuration file is to be stored, and then click on

Save.

NOTE

The procedure may be different for different Web browsers (IE, Netscape, etc.).

To restore the configuration of the NI WAP-3701/3711 by HTTP (i.e., import the configuration
from a file):

1. Click Browse and then select the correct configuration .hex file. You must make sure the file

name is the NI WAP-3701/3711’s MAC address. The firmware file path will be shown in the

Firmware file name text box.

2. Click Restore to upload the configuration file to the NI WAP-3701/3711.

Upgrading Firmware by TFTP

When using TFTP as the firmware management protocol, you can configure settings for the AP’s
TFTP client to communicate with a TFTP server. If the TFTP client does not get a response from

the TFTP server within a period specified by the Timeout setting, it will resend the previous
request. The Max number of retries setting specifies the maximum number of resends before the

TFTP client stops communicating with the TFTP server.

To upgrade the NI WAP-3701/3711’s firmware by TFTP:

1. Prepare a computer that will be used as a TFTP server and as a managing computer to trigger

the upgrade process.

2. Connect the computer and one of the LAN Ethernet switch port with a normal Ethernet cable.

3. Configure the IP address of the computer so that the NI WAP-3701/3711 and the computer

are on the same IP subnet.

3-7

NI WAP-3701/3711 User’s Manual Web Console Configuration

4. On the computer, run the TFTP Server utility, and specify the folder in which the firmware

files will be placed.

5. On the computer, run a Web browser and click the General, Firmware Tools hyperlink.

6. Choose TFTP as the Firmware management protocol.

7. Specify the IP address of the computer, which acts as a TFTP server. If you don’t know the IP

address of the computer, open a Command Prompt, and type ipconfig, then press the Enter

key.

8. Trigger the firmware upgrade process by clicking Upgrade.

NOTE

TIP

After the dialog box of the TFTP server program appears, be sure to specify the working folder
within which the downloaded firmware files reside.

Make sure the Accept read requests check box of the TFTP Server is selected.

The LAN IP address of the AP and the IP address of the TFTP server must be on the same IP
subnet for TFTP to work.

Due to the unreliable nature of wireless media, it is highly recommended that the TFTP server
and the wireless AP that is being upgraded are connected by Ethernet on the same LAN. Doing so
will help ensure a much smoother upgrade process.

After the firmware is upgraded, be sure to delete the contents of the Web browser cache so that
the Web management pages can be shown correctly.

A failed upgrade may corrupt the firmware and cause the NI WAP-3701/3711 to fail. When this
occurs, contact NI technical support for assistance.

If you want to upgrade the firmware of a deployed AP from a remote location over the Internet,

adjust the Timeout and Max no. of retries settings of the TFTP Server for remote TFTP upgrade

to succeed.

3-8

NI WAP-3701/3711 User’s Manual Web Console Configuration

Backing up and Restoring Configuration Settings by TFTP

To back up the configuration of the NI WAP-3701/3711 by TFTP:

1. Prepare a computer that will be used as a TFTP server and as a managing computer to trigger

the backup process.

2. Connect the computer and one of the LAN Ethernet switch ports with a normal Ethernet cable.

3. Configure the IP address of the computer so that the computer and the NI WAP-3701/3711

are on the same IP sub-net.

4. On the computer, run the TFTP Server utility. Select the Accept write requests check box,

and specify the folder to which the configuration settings of the AP will be saved.

5. On the computer, run a Web browser and click the General, Firmware Tools hyperlink.

6. Choose TFTP as the Firmware management protocol.

7. Within the Configuration Backup/Restore section, specify the IP address of the computer

that acts as a TFTP server. If you don’t know the IP address of the computer, open a

Command Prompt, and type ipconfig, then press the Enter key.

8. Trigger the backup process by clicking Back Up. The NI WAP-3701/3711’s configuration

settings will be saved as “AaBbCcDdEeFf.hex” by the TFTP server, where

“AaBbCcDdEeFf” is the NI WAP-3701/3711’s MAC address. For example, if the NI
WAP-3701/3711’s MAC address is 00-01-02-33-44-55, the configuration backup file will be
“000102334455.hex”.

NOTE

NOTE

Remember to select the Accept write requests check box of TFTP Server.

To restore the configuration of the NI WAP-3701/3711 by TFTP:

1. Prepare a computer that will be used as a TFTP server and as a managing computer to trigger

the restoring process.

2. Connect the computer and one of the LAN Ethernet switch ports with a normal Ethernet cable.

3. Configure the IP address of the computer so that the computer and the NI WAP-3701/3711

are on the same IP subnet.

4. On the computer, run the TFTP Server utility, and specify the folder in which the

configuration backup file resides. A configuration backup file is named with the NI
WAP-3701/3711’s MAC address. For example, if the NI WAP-3701/3711’s MAC address is
00-01-02-33-44-55, the configuration backup file should be “000102334455.hex”.

5. On the computer, open the web browser and click the General, Firmware Tools hyperlink.

6. Choose TFTP as the Firmware management protocol.

7. In the Configuration Ba ckup/Restore section, specify the IP address of the computer that

acts as a TFTP server. If you don’t know the IP address of the computer, open a Command

Prompt, type ipconfig, and then press the Enter key.

8. Trigger the restoring process by clicking Restore. The NI WAP-3701/3711 will then

download the configuration backup file from the TFTP server.

Make sure the file is a valid configuration backup file for NI WAP-3701/3711.

3-9

NI WAP-3701/3711 User’s Manual Web Console Configuration

TIP

If you want to back up or restore the configuration from a remote location over the Internet,

adjust the Timeout and Max no. of retries settings of TFTP Server for remote TFTP

configuration backup/restore to succeed.

Resetting the Configuration to Factory Defaults

Clicking the Reset button resets the device configuration to factory defaults.

WARNING

Think twice before clicking the Reset button. Doing so will cause you to lose all of your current

configuration settings.

Configuring TCP/IP-related Settings

Addressing

The IP address of the AP can be set manually (Set Manually) or automatically assigned by a
DHCP server on the LAN (Obtain from a DHCP Server). If you are manually setting the IP
address, Subnet mask, and Default gateway settings, set them appropriately, so that they comply
with your LAN environment. In addition, you can specify the Host name and Domain (DNS
suffix) of the NI WAP-3701/3711.

3-10

NI WAP-3701/3711 User’s Manual Web Console Configuration

DHCP Server (AP/Bridge modes only)

Basic

The NI WAP-3701/3711 can assign IP addresses to client computers automatically by DHCP. In

this section of the management page, you can specify the Default gateway, Subnet mask,
Primary DNS server, and Secondary DNS server settings that will be sent to a client at its

request. Additionally, you can specify the first IP address that will be assigned to the clients and
the number of IP addresses that can be allocated.

NOTE

There should only be one DHCP server on the LAN; otherwise, DHCP will not work properly. If

a DHCP server is already connected to the LAN, disable the DHCP server functionality of the NI
WAP-3701/3711.

By default, the DHCP server function is disabled.

Static DHCP Mappings

IP addresses of servers are often static so that clients can always locate the servers by the static IP

addresses. By using Static DHCP Mappings, you can ensure that a host will get the same IP

address when it requests one from the DHCP server. Therefore, instead of configuring the IP
address of an intranet server manually, you can configure the server to obtain an IP address by
DHCP so that it is always assigned the same IP address.

3-11

NI WAP-3701/3711 User’s Manual Web Console Configuration

To assign a static IP address to a specific DHCP client:

1. Specify the MAC address of the DHCP client and the IP address to be assigned to it. Then,

give a description for this mapping.

2. Select the corresponding Enabled check box.

Configuring IEEE 802.11g-related Settings

Communication

Basic

Basic IEEE 802.11g-related communication settings include AP functionality, RF type,
Regulatory domain, Channel number, Network name (SSID), Data rate, and Transmit
power.

For specific needs such as configuring the NI WAP-3701/3711 as a wireless LAN-to-LAN bridge,
the AP functionality can be disabled so that no wireless client can associate with the AP.

The RF type of the WLAN interface can be configured to work with IEEE 802.11b only (B Only),

IEEE 802.11g only (G Only), B WIFI mode (for internal usage), or mixed mode (Mixed—802.11g

and 802.11b simultaneously).

The number of available RF channels depends on local regulations; therefore, you must choose an
appropriate regulatory domain to comply with local regulations. The SSID of a wireless client
computer and the SSID of the AP must be identical for them to communicate with each other.

If you experience RF interference, you may want to reduce the Data rate to ensure a more reliable
wireless transmission. In most cases, leave the setting at Auto.

The transmit power of the RF module on the NI WAP-3701/3711 can be adjusted so that the RF
coverage of the NI WAP-3701/3711 can be changed.

Link Integrity

When the Ethernet LAN interface has been detected as being disconnected from the wired network,
all currently associated wireless clients are disassociated by the AP and no wireless client can
associate with the AP. The detection mechanism is based on pinging the IP address specified in the

Reference host.

3-12

NI WAP-3701/3711 User’s Manual Web Console Configuration

Association Control

If the number of currently associated wireless clients exceeds the value specified in the Max
number of clients setting, no more wireless clients can associate with the NI WAP-3701/3711. If
the traffic load of the NI WAP-3701/3711 exceeds the load specified in the Block clients if traffic
load exceeds setting, no more wireless clients can associate with the NI WAP-3701/3711.

AP Load Balancing

Several APs can form a load-balancing group if they are set with the same Group ID. The

load-balancing policy can be by Number of Users or by Traffic Load.
If the by-number-of-users policy is selected, a new wireless user can only associate with an AP

that has the smallest number of associated wireless users in the group. On the other hand, if the

by-traffic-load policy is selected, a new wireless user can only associate with an AP that has the

least traffic load in the group.

Wireless Distribution System

Notebook
Computer

Traditionally, access points are connected by Ethernet. By using a Wireless Distribution System
(WDS), APs can communicate with one another wirelessly. For example, AP 2 acts as an access
point for the notebook computers and it forwards packets sent from the notebook computers to AP
1 through WDS. Then, AP 1 forwards the packets to the Ethernet LAN. Packets destined for the
notebook computers follow a reverse path from the Ethernet LAN through the APs to the notebook
computers. In this way, AP 2 plays a role of “AP repeater.”

Segment 1

LAN

WDS

LAN

AP 2

AP 1

LAN

Segment 2

Bridge 1

WDS Link

Bridge 2

3-13

NI WAP-3701/3711 User’s Manual Web Console Configuration

By WDS, two or more LAN segments can be connected wirelessly. As illustrated in the above
figure, a pair of wireless LAN-to-LAN bridges is used to connect two LAN segments. Since the
AP is WDS-enabled, it can be used as a wireless bridge.

NOTE

The NI WAP-3701/3711 can have up to 6 WDS links to other APs or wireless bridges.

To enable a WDS link:

1. Specify the MAC address of the NI WAP-3701/3711 at the other end of the WDS link.

2. Select the corresponding Enabled check box.

For example, assume that you want two NI WAP-3701/3711’s with MAC addresses
00-02-65-01-62-C5 and 00-02-65-01-62-C6 to establish a WDS link. On the NI WAP-3701/3711
with MAC address 00-02-65-01-62-C5, set the peer MAC address of port 1 to 00-02-65-01-62-C6
and on the NI WAP-3701/3711 with MAC address 00-02-65-01-62-C6, set the peer MAC address
of port 1 to 00-02-65-01-C5.

TIP

Plan your wireless network and draw a diagram so that you know how each NI WAP-3701/3711
is connected to other peer APs or wireless bridges by WDS, and how bridges are connected to
other peer bridges by WDS. See the following figure for an sample network-planning diagram.

Sample wireless bridge network topology.

3-14

NI WAP-3701/3711 User’s Manual Web Console Configuration

WARNING

Be sure to eliminate loops from networks that consist of wireless bridges, Ethernet switches,
Ethernet links, and WDS links. If any loops exist, packets will circle around the loops and
network performance will be seriously degraded.

Network topology containing a loop

Security

IEEE 802.11g security settings include SSID broadcasts, Wireless client isolation, Security
mode, IEEE 802.11 Authentication algorithm, WEP keys, MAC-Address-Based Access
Control.

Basic

For security reasons, it is highly recommended that you do not set the security mode to the Open
System option. When the security mode is set to Open System, no authentication or data

encryption will be performed. In addition, you can disable the SSID broadcast functionality so that
a wireless client computer with an SSID set to “any” cannot associate with the NI
WAP-3701/3711.

When the Wireless client isolation setting is set to This AP Only, wireless clients of this AP
cannot see each other, and wireless-to-wireless traffic is blocked. When the setting is set to All
APs in this Subnet, traffic between wireless users from different APs on the same IP subnet is

blocked. This feature is useful for WLANs deployed in public places. In this way, hackers have no
chance to attack other wireless users in a hotspot. The behaviors are illustrated in the following
figures.

3-15

NI WAP-3701/3711 User’s Manual Web Console Configuration

STA 1

STA 2

STA 3

AP 1 AP 2

WCI:

This AP Only

WCI:

This AP Only

Switch

Wireless Link
Ethernet Link

Behavior of the “This AP Only” wireless client isolation option

STA 1

STA 2

STA 3

AP 1 AP 2

WCI:

All APs in This

Subnet

Switch

WCI:

All APs in This

Subnet

Wireless Link
Ethernet Link

Behavior of the “All APs on This Subnet” wireless client isolation option

When AP 1 and AP 2 are using the “This AP Only” option, wireless traffic between STA 1 and
STA 2 is blocked by AP 1, whereas wireless traffic between STA 2 and STA 3 (which are
associated with different APs) is still allowed. If the “All APs in This Subnet” option is used as
shown in the above figure, AP 1 and AP 2 communicate with each other via an inter-AP protocol
to share their STA association information to block wireless traffic among all the STAs.

3-16

NI WAP-3701/3711 User’s Manual Web Console Configuration

A total of 7 security modes are available with the different NI WAP-3701/3711 models:

y

Open System. No authentication, no data encryption.

y

Static WEP. WEP (Wired Equivalent Privacy) keys must be configured manually.

y

Static TKIP (WPA-PSK). Only TKIP (Temporal Key Integrity Protocol) mechanism of WPA

(Wi-Fi Protected Access) is enabled. In this mode, you need to specify the Pre-shared key,
which will be used by the TKIP engine as a master key to generate keys that actually encrypt

outgoing packets and decrypt incoming packets.

NOTE

The number of characters of the Pre-shared key setting must be at least 8 and can be up to 63.

y IEEE 802.1X EAP without Encryption (EAP-MD5). The IEEE 802.1X functionality is

enabled and the user-name/password-based EAP-MD5 authentication is used. No data
encryption.

IEEE 802.1X EAP with Static WEP (EAP-MD5). The IEEE 802.1X functionality is enabled

y

and the user-name/password-based EAP-MD5 authentication is used. Data encryption is
achieved by static WEP.

IEEE 802.1X EAP with Dynamic WEP (EAP-TLS, EAP-TTLS, PEAP). The IEEE 802.1X

y

functionality is enabled and dynamic WEP key distribution authentication (EAP-TLS,
EAP-TTLS, or PEAP) is used. Data encryption is achieved by dynamic WEP.

IEEE 802.1X EAP with Dynamic TKIP (WPA). This is a full WPA mode, in which both the

y

TKIP and IEEE 802.1X dynamic key exchange mechanisms are enabled. The AP is highly

secure in this mode.

In the above security modes, a back-end RADIUS (Remote Authentication Dial-In User Service)
server is needed if IEEE 802.1X functionality is enabled. See the appropriate section for more
information about IEEE 802.1X and RADIUS.

According to the IEEE 802.11 standard, WEP can be used for authentication and data encryption.

Normally, Shared Key authentication is used if WEP data encryption is enabled. In rare cases,
Open System authentication may be used when WEP data encryption is enabled. The
Authentication algorithm setting is provided for better compatibility with wireless clients with
various WLAN network adapters. There are three options available, including Open System,
Shared Key, and Auto.

NOTE

When WEP is enabled by a security mode, the Key length can be specified to be 64 Bits or 128
Bits. The Selected key setting specifies the key to be used as a send-key for encrypting traffic
from the AP side to the wireless client side. All 4 WEP keys are used as receive-keys to decrypt

traffic from the wireless client side to the AP side.

Each field of a WEP key setting is a hex-decimal number from 00 to FF. For example, when the
security mode is Static WEP and the key length is 64 Bits, you could set Key 1 to

“00012E3ADF”.

3-17

NI WAP-3701/3711 User’s Manual Web Console Configuration

MAC-Address-Based Access Control

With MAC-Address-Based Access Control, you can specify the wireless client computers that

are permitted or not permitted to associate with the NI WAP-3701/3711. When the table type is set

to inclusive, entries in the table are permitted to associate with the NI WAP-3701/3711. When the
table type is set to exclusive, entries in the table are not permitted to associate with the NI

WAP-3701/3711.

To deny access for wireless clients to the wireless network:

Select Enabled from the Functionality drop-down list.

1.

2.

Set the Access control type to exclusive.

3.

Specify the MAC address of a wireless client to be denied access, and then click Add.

4.

Repeat Steps 3 for other wireless clients.

NOTE

To grant access for wireless clients to the wireless network:

Select Enabled from the Functionality drop-down list.

1.

2.

Set the Access control type to inclusive.

3.

Specify the MAC address of a wireless client to be denied access, and then click Add.

4.

Repeat Steps 3 for other wireless clients.

To delete an entry in the access control table:

Click Delete next to the entry.

y

The size of the access control table is 64.

Instead of manually entering MAC addresses to the access control table one by one, you can
prepare a text file that contains all the MAC addresses and put it on a TFTP server, and then
command the NI WAP-3701/3711 to download the MAC ACL (Access Control List) file from the
TFTP server. The following figure shows the contents of a sample ACL file.

3-18

NI WAP-3701/3711 User’s Manual Web Console Configuration

Sample MAC ACL file

To download a MAC ACL file from a TFTP server:

Specify the IP address of the TFTP server in the TFTP server IP address text box.

1.

2.

Specify the name of the MAC ACL file on the TFTP server in the MAC ACL file name text

box.

3.

Click Download.

IEEE 802.1X/RADIUS (AP mode only)

IEEE 802.1X Port-Based Network Access Control is a new standard for solving some security

issues associated with IEEE 802.11, such as lack of user-based authentication and dynamic
encryption key distribution. With IEEE 802.1X and the help of a RADIUS (Remote
Authentication Dial-In User Service) server and a user account database, an enterprise or ISP
(Internet Service Provider) can manage its mobile users’ access to its wireless LANs. Before being

granted access to a wireless LAN supporting IEEE 802.1X, a user needs to issue his or her user
name and password or digital certificate to the backend RADIUS server by EAPOL (Extensible

Authentication Protocol Over LAN). The RADIUS server can record accounting information, such
as when a user logs on to the wireless LAN and logs off from the wireless LAN for monitoring or
billing purposes.

The IEEE 802.1X functionality of the access point is controlled by the security mode. So far, the

wireless access point supports two authentication mechanisms—EAP-MD5 (Message Digest
version 5), EAP-TLS (Transport Layer Security). If EAP-MD5 is used, the user must give his or

her user name and password for authentication. If EAP-TLS is used, the wireless client computer
automatically gives the user’s digital certificate that is stored in the computer hard disk or a smart

card for authentication. And after a successful EAP-TLS authentication, a session key is generated
automatically for encrypting wireless packets sent between the wireless client computer and the
associated wireless access point. In short, EAP-MD5 only supports user authentication, whereas
EAP-TLS supports both user authentication and dynamic encryption key distribution.

3-19

NI WAP-3701/3711 User’s Manual Web Console Configuration

IEEE 802.1X-Compliant

Wireless Client

Wireless AP

user authentication

Wireless AP

Internet

user authentication

RADIUS

Server

User

Database

IEEE 802.1X and RADIUS

An access point supporting IEEE 802.1X can be configured to communicate with two RADIUS
servers. When the primary RADIUS server fails to respond, the wireless access point will try to
communicate with the secondary RADIUS server. You can specify the length of timeout and the

number of retries before communicating with the secondary RADIUS server after failing to

communicate with the primary RADIUS server.

An IEEE 802.1X-capable wireless access point and its RADIUS server(s) share a secret key so
that they can authenticate each other. In addition to its IP address, a wireless access point can
identify itself by an NAS (Network Access Server) identifier. Each IEEE 802.1X-capable wireless

access point must have a unique NAS identifier.

3-20

NI WAP-3701/3711 User’s Manual Web Console Configuration

Configuring Advanced Settings

Packet Filters

The NI WAP-3701/3711 provides layer 2 (Ethernet Type Filters), layer 3 (IP Protocol Filters), and
layer 4 (TCP/UDP Port Filters) filtering capabilities. The configuration processes for the filters are
similar.

Functionality: whether this filtering capability is enabled or disabled.

y
y

Policy for matched packets: how a matched packet is processed—discard or pass.

y

To enable a filtering rule: select the check box to the left of the rule.

Ethernet Type Filters

The Ethernet type field of the MAC (Media Access Control) header of a packet incoming from the

WLAN or Ethernet interface is inspected for filtering. As a rule, specify the hex-decimal Ethernet
type number and give the rule a name.

IP Protocol Filters

The protocol, source address, and destination address fields of a packet incoming from the WLAN
or Ethernet interface is inspected for filtering. As a rule, specify the hex-decimal protocol number,
source IP address range (Source IP Address AND Source Subnet Mask), and destination IP
address range (Destination IP Address AND Destination Subnet Mask).

A source/destination IP address range is determined by performing an AND operation on the
source/destination IP address field and the source/destination subnet mask field. For example, if
the source IP address field is 192.168.127.253 and the source subnet mask field is 255.255.255.0,
the resultant source IP address range is 192.168.127.0 to 192.168.127.255.

3-21

NI WAP-3701/3711 User’s Manual Web Console Configuration

TCP/UDP Port Filters

The destination port field of the TCP or UDP header of a packet incoming from the WLAN or
Ethernet interface is inspected for filtering. As a rule, specify the decimal Destination Port,
Protocol type (TCP/UDP), and the name of the higher-level protocol (Application Name).

Management

UPnP

UPnP (Universal Plug and Play) enables a Windows XP user to discover peripheral devices
automatically by HTTP. When the UPnP functionality is enabled, you can see the AP in My

Network Places of Windows XP. The NI WAP-3701/3711 can be given a friend name that will be
shown in My Network Places. Double-clicking the icon in My Network Places that stands for the

AP will launch the default Web browser for you to configure the NI WAP-3701/3711.

System Log

System events can be logged to the on-board RAM of the NI WAP-3701/3711 (Local log) or sent
to a remote computer on which an SNMP trap monitor program runs (Remote log by SNMP trap).

See the next subsection for more information about SNMP trap settings.

The system events are divided into the following categories:

General: system and network connectivity status changes.

y
y

Built-in AP: wireless client association and WEP authentication status changes.

y

MIB II traps: Cold Start, Warm Start, Link Up , Link Down and SNMP Authentication Failure.

y

RADIUS user authentication: RADIUS user authentication status changes.

3-22

NI WAP-3701/3711 User’s Manual Web Console Configuration

NOTE

The SNMP Authentication Failure trap is issued when using an incorrect community string to
manage the AP via SNMP and the SNMP MIB II OID, snmpEnableAuthenTraps, is enabled
(disabled by default).

SNMP

The SNMP (Simple Network Management Protocol) functionality can be disabled, and you can

specify the name (used as a password) of the read-only and read-write community. In addition, up
to 5 SNMP trap targets can be set in the SNMP Trap Table.

To specify a trap target :

Type the IP address of the target host.

1.

2.

Type the Community for the host.

Select the corresponding check box next to the IP address text box.

3-23

A

A

Appendix A Default Settings

TIP

Press the Reset (SF-Reset, or Soft-Reset) switch on the housing of a powered-on AP to reset the

configuration settings to factory-default values.

Setting Name Default V alue

Global

User Name admin

Password root

IEEE 802.11g

Regulatory Domain FCC (U.S.) or ETSI (Europe)

Channel Number 11 for FCC or 13 for ETSI

SSID NI

SSID Broadcasts Enabled

Transmission Rate Auto

Transmit Power 100%

MAC Address

Security Mode

Selected WEP Key Key #1

WEP Key #1 00-00-00-00-00

WEP Key #2 00-00-00-00-00

WEP Key #3 00-00-00-00-00

WEP Key #4 00-00-00-00-00

MAC-Address-Based Access Control
Access Control Table Type
Wireless Client Isolation
AP Load balancing
Link Integrity
Association Control

Max Number of Clients 64

Block Clients if Traffic Load Exceeds Disabled

See the label on the accompanying PCMCIA card
or the label on the housing of the NI
WAP-3701/3711.

Open System

Disabled

Inclusive

Disabled

Disabled

Disabled

NI WAP-3701/3711 User’s Manual Default Settings

LAN Interface

Method of obtaining an IP Address Set manually

IP Address 192.168.127.253

Subnet Mask 255.255.255.0

Default Gateway 0.0.0.0

DHCP Server Disabled

Management

UPnP Enabled

System Log Local Log

SNMP Enabled

SNMP read community
SNMP write community
TELNET

public

private

Enabled

A-2

Check the following first:

Make sure that the power is on and the Ethernet cables are connected firmly to the RJ45 jacks

y

of the NI WAP-3701/3711.

y

Make sure the LED WLAN of the AP is blinking to indicate that the RF is working.

y

Make sure you are using the correct types of Ethernet cables. Keep in mind that there are two

kind of Ethernet cable—normal and crossover.

Wireless Settings Problems

B

B

Appendix B Troubleshooting

The wireless client computer cannot associate with an NI WAP-3701/3711.

Is the wireless client set in infrastructure mode?

y

¾

Check the operating mode of the WLAN NIC.

Is the SSID of the WLAN NIC identical to that of the prospective NI WAP-3701/3711?

y

¾

Check the SSID setting of the WLAN NIC and of the NI WAP-3701/3711.

Is the WEP functionality of the prospective NI WAP-3701/3711 enabled?

y

¾

Make appropriate WEP settings of the client computer to match those of the NI

WAP-3701/3711.

y

Is the prospective NI WAP-3701/3711 within range of wireless communication?

¾

Check the signal strength and link quality sensed by the WLAN NIC.

NI WAP-3701/3711 User’s Manual Troubleshooting

TCP/IP Settings Problems

Correspondent

Host

Client

Computer

IEEE 802.11g

Ethernet LAN

Stage A State B

AP

Stage D

Default Gateway

of Client Computer

Internet

DNS Server

of Client Computer

Communication stages for a client to reach its corresponden t host

For a wireless client computer to communicate with a host on the Internet by the host’s domain
name (e.g.,

http://www.wi-fi.com), it first sends a DNS request to a DNS server on the Internet.
The DNS request travels first to the AP, and then the AP relays this request to the default gateway
of the client computer. Finally, this request is forwarded by the gateway to the DNS server on the
Internet. The DNS reply issued by the DNS server is transmitted back to the client computer
following a reverse path. When the client computer receives the DNS reply, it knows the IP
address of the correspondent host and sends additional packets to this IP address.

NOTE

As illustrated in the above figure, the communication path could be broken at some of the stages.

The OS-provided network diagnostic tool, ping.exe, can be employed to determine TCP/IP-related

communication problems.

If two or more NICs are installed and operating on a client computer, TCP/IP may not work

properly due to incorrect entries in the routing table. Use the OS-provided command-line network

tool, route.exe, to add or delete entries from the routing table. Or, use Windows-provided Device
Manager to disable unnecessary NICs.

Solve the following problems in order:

The AP does not respond to ping from the client computer.

Are two or more NICs installed on the client computer?

y

¾

Use the OS-provided command-line network tool, route.exe, to modify the contents of

the routing table.

¾

Use Windows-provided Device Manager to disable unnecessary NICs.

Is the underlying link (Ethernet or IEEE 802.11g) established?

y

¾

Make sure the Ethernet link is OK.

B-2

NI WAP-3701/3711 User’s Manual Troubleshooting

¾

Make sure the wireless settings of the wireless client computer and of the AP match.

Are the IP address of the client computer and the IP address of the AP on the same IP subnet?

y

¾

Use WinIPCfg.exe or IPConfig.exe to see the current IP address of the client computer.

Make sure the IP address of the client computer and the IP address of the AP are on the
same IP subnet.

TIP

If you forget the current IP address of the AP, use a Wireless Router/AP Browser combination to
get the information (see Appendix B-3).

The default gateway of the client computer does not respond to ping from the client
computer.

Solve the preceding problem first.

y
y

Are the IP address of the AP and the IP address of the client computer on the same IP subnet?

y

If you cannot locate any incorrect AP settings, the default gateway may be down, or there are

other communication problems on the network backbone.

The DNS server(s) of the client computer do not respond to ping from the client computer.

Solve the preceding problems first.

y
y

If you cannot locate any incorrect AP settings, the default gateway of the AP may be down, or

there are other communication problems on the network backbone.

Unknown Problems

The AP has been set to obtain an IP address automatically by DHCP. How can I determine
the acquired IP address so that I can manage it using a Web browser?

Use the utility, Wireless Router/AP Browser (WLBrwsr.exe), in the “Utilities” folder on the

y

companion CD-ROM disc. This utility can discover nearby APs and show their MAC
addresses and IP addresses. In addition, it can launch the default Web browser on your
computer.

Wireless Router/AP Browser

B-3

NI WAP-3701/3711 User’s Manual Troubleshooting

The NI WAP-3701/3711 stops working and does not respond to Web management requests.

y

The firmware of the AP may be stuck in an incorrect state.

¾

Unplug the power connector from the power jack, and then re-plug the connector to

restart the AP.

¾

Report this problem to our technical support staff.

If the AP still does not work after being restarted, some hardware components of the AP may

y

have failed.

¾

Contact our technical support staff.

B-4

Appendix C Regulatory Statement

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiated radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:

C

C

Reorient or relocate the receiving antenna.

y
y

Increase the separation between the equipment and receiver.

y

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

y

Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, (example – use only shielded interface cables

when connecting to computer or peripheral devices). Any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to operate this
equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator & your body.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE
EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and
telecommunication terminal equipment and the mutual recognition of their conformity (R&TTE).

The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications
Terminal Equipment and Satellite Earth Station Equipment) as of April 8,2000.

NI WAP-3701/3711 User’s Manual Regulatory Statement

Safety

This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity when
working with electrical equipment. All guidelines of this and of the computer manufacture must
therefore be allowed at all times to ensure the safe use of the equipment.

EU Countries Intended for Use

The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark,
Finland, France (with Frequency channel restrictions), Germany, Greece, Ireland, Italy,
Luxembourg, Portugal, Spain, Sweden, The Netherlands, and United Kingdom.

The ETSI version of this device is also authorized for use in EFTA member states Norway and
Switzerland.

EU Countries Not Intended for Use

None.

Potential Restrictive Use

France: only channels 10, 11, 12, and 13.

C-2

D

D

Appendix D Technical Support and Professional

Services

Visit the following sections of the National Instruments Web site at ni.com for technical support

and professional services:

y

Support— Online technical support resources at ni.com/support include the following:

Self-Help Resources— For answers and solutions, visit the award-winning National

Instruments Web site for software drivers and updates, a searchable KnowledgeBase, product
manuals, step-by-step troubleshooting wizards, thousands of example programs, tutorials,
application notes, instrument drivers, and so on.

Free Technical Support— All registered users receive free Basic Service, which includes

access to hundreds of Application Engineers worldwide in the NI Discussion Forums at

ni.com/forums. National Instruments Application Engineers make sure every question receives

an answer.

For information about other technical support options in your area, visit ni.com/services or
contact your local office at ni.com/contact.

Training and Certification— Visit ni.com/training for self-paced training, eLearning virtual

y

classrooms, interactive CDs, and Certification program information. You also can register for
instructor-led, hands-on courses at locations around the world.

System Integration— If you have time constraints, limited in-house technical resources, or

y

other project challenges, National Instruments Alliance Partner members can help. To learn

more, call your local NI office or visit ni.com/alliance.

Declaration of Conformity (DoC)— A DoC is our claim of compliance with the Council of

y

the European Communities using the manufacturer’s declaration of conformity. This system
affords the user protection for electronic compatibility (EMC) and product safety. You can

obtain the DoC for your product by visiting ni.com/certification.

Calibration Certificate— If your product supports calibration, you can obtain the calibration

y

certificate for your product at ni.com/calibration.

If you searched ni.com and could not find the answers you need, contact your local office or NI

corporate headquarters. Phone numbers for our worldwide offices are listed at the front of this

manual. You also can visit the Worldwide Offices section of ni.com/niglobal to access the branch

office Web sites, which provide up-to-date contact information, support phone numbers, email
addresses, and current events.

NI AirWorks NI-WAP-3701/3711 User’s Manual Service Information

Worldwide Technical Support and Product Information

ni.com

National Instruments Corporate Headquarters

11500 North Mopac ExpresswayAustin, Texas 78759-3504USATel: 512 683 0100

Worldwide Offices

Australia 1800 300 800, Austria 43 662 457990-0, Belgium 32 (0) 2 757 0020, Brazil 55 11 3262
3599, Canada 800 433 3488, China 86 21 5050 9800, Czech Republic 420 224 235 774, Denmark
45 45 76 26 00, Finland 358 (0) 9 725 72511, France 01 57 66 24 24, Germany 49 89 7413130,
India 91 80 41190000, Israel 972 3 6393737, Italy 39 02 413091, Japan 81 3 5472 2970, Korea 82
02 3451 3400, Lebanon 961 (0) 1 33 28 28, Malaysia 1800 887710, Mexico 01 800 010 0793,
Netherlands 31 (0) 348 433 466, New Zealand 0800 553 322, Norway 47 (0) 66 90 76 60, Poland
48 22 3390150, Portugal 351 210 311 210, Russia 7 495 783 6851, Singapore 1800 226 5886,
Slovenia 386 3 425 42 00, South Africa 27 0 11 805 8197, Spain 34 91 640 0085, Sweden 46 (0) 8
587 895 00, Switzerland 41 56 2005151, Taiwan 886 02 2377 2222, Thailand 662 278 6777,
Turkey 90 212 279 3031, United Kingdom 44 (0) 1635 523545

For further support information, refer to the Cross referenceolor:Blueparatext appendix. To
comment on National Instruments documentation, refer to the National Instruments Web site at
ni.com/info and enter the info code feedback.

© 2007 National Instruments Corporation. All rights reserved.

D-2
