NI PXI/PCI-5114 Specifications
8-Bit 250 MS/s Digitizer
Unless otherwise noted, the following conditions were used for each
specification:
• All filter settings
• All impedance selections
• Sample clock set to 250 MS/s
Typical values are representative of an average unit operating at room
temperature. Specifications are subject to change without notice. For the
most recent NI 5114 specifications, visit
To access the NI 5114 documentation, including the NI High-Speed
Digitizers Getting Started Guide, which contains functional descriptions of
the NI 5114 signals, navigate to Start»Programs»National Instruments»
NI-SCOPE»Documentation.
Hot Surface If the NI 5114 has been in use, it may exceed safe handling temperatures and
cause burns. Allow the NI 5114 to cool before removing it from the PXI chassis.
Contents
ni.com/manuals.
Vertical.................................................................................................... 2
Analog Input (Channel 0 and Channel 1) ........................................ 2
Horizontal................................................................................................ 6
Sample Clock...................................................................................6
Phase-Locked Loop (PLL) Reference Clock...................................7
CLK IN (Sample Clock and Reference Clock Input,
Front Panel Connector) ................................................................. 8
Trigger..................................................................................................... 8
Reference (Stop) Trigger ................................................................. 8
TRIG (External Trigger, Front Panel Connector)............................ 10
PFI 0 and PFI 1 (Programmable Function Interface,
AUX Front Panel Connectors) ............................................................. 10
TClk Specifications................................................................................. 12
Waveform Specifications........................................................................ 13
Calibration............................................................................................... 14
Power .......................................................................................................14
Software...................................................................................................15
Environment ............................................................................................16
NI PXI-5114 .....................................................................................16
NI PCI-5114 .....................................................................................17
Safety, Electromagnetic Compatibility, and CE Compliance .................18
Physical....................................................................................................19
Where to Go for Support .........................................................................20
Vertical
Analog Input (Channel 0 and Channel 1)
Specification Val ue Comments
Number of
Channels
Connector BNC —
Impedance and Coupling
Input
Impedance
Input Coupling AC, DC, GND AC coupling
Two (simultaneously sampled) —
50 Ω ±1.5%
1 MΩ ±1% in parallel with a typical capacitance of 26 pF
Software
selectable.
available on
1 MΩ only.
NI PXI/PCI-5114 Specifications 2 ni.com
Specification Val ue Comments
Voltage Levels
Full Scale (FS)
Input Range and
Programmable
Vertical Offset
Maximum Input
Overload
Accuracy
50 Ω 1 MΩ —
Range
(V
pk-pk
Vertical Offset
Range (V)
)
Range
(V
pk-pk
Vertical Offset
)
Range (V)
0.04 ±0.8 0.04 ±0.8
0.1 ±0.8 0.1 ±0.8
0.2 ±0.8 0.2 ±0.8
0.4 ±0.8 0.4 ±0.8
1 ±6.5 1.0 ±8.0
2 ±6.0 2.0 ±8.0
4 ±5.0 4.0 ±8.0
10 ±30
10 ±2.0
20 ±25
40 ±15
50 Ω 1 MΩ —
7 V
with |Peaks| ≤ 10 V |Peaks| ≤ 35 V
rms
Resolution 8 bits —
DC Accuracy
(Programmable
Vertical
Offset = 0 V)
Programmable
Vertical Offset
Accuracy
NI PXI-5114:
±(1.5% of Input + 0.3% of FS + 200 μV)
NI PCI-5114:
Within ±5 °C of
self-calibration
temperature.
±(1.5% of Input + 0.3% of FS + 280 μV)
± 2% of offset setting Within ±5 °C of
self-calibration
temperature.
DC Drift ±(0.03% of Input + 0.06% of FS + 40 μV) per °C —
Crosstalk,
Typical
≤ –60 dB at 10 MHz
≤ –45 dB at 100 MHz
CH 0 to/from
CH 1, External
Trigger to CH 0
or CH 1.
© National Instruments Corporation 3 NI PXI/PCI-5114 Specifications
Specification Val ue Comments
Bandwidth and Transient Response
Bandwidth
(–3 dB)
Bandwidth
Limit Filter
AC Coupling*
Cutoff (–3 dB),
Typical
Passband
Flatness
1
0
–1
–2
–3
–4
–5
–6
–7
–8
Amplitude (dB relative to 50 kHz)
–9
–10
1 M 100 M10 M 200 M
Range
(V
) Bandwidth
pk-pk
All ranges
125 MHz 2.8 ns
except 0.04
0.04 100 MHz 3.5 ns
20 MHz Noise Filter
12 Hz
±1 dB up to 50 MHz
Noise Filter
Frequency (Hz)
Rise/Fall Time,
Typical
Full Bandwidth
—
—
*AC coupling
available on
1 MΩ only.
Referenced to
50 kHz.
Bandwidth
limit filter off.

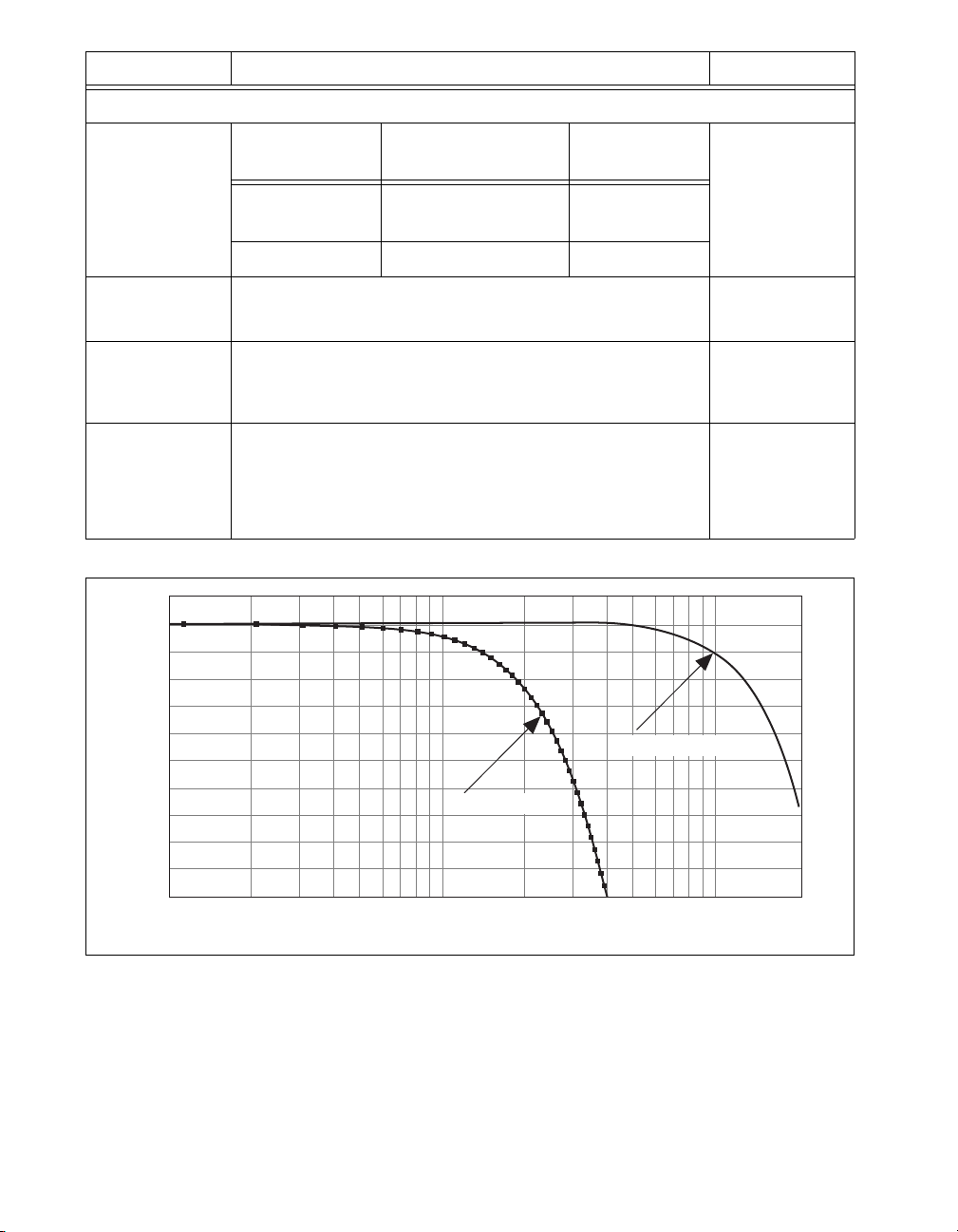

Figure 1. NI 5114 Frequency Response (Typical)
NI PXI/PCI-5114 Specifications 4 ni.com
Specification Val ue Comments
Spectral Characteristics
Spurious Free
Dynamic Range
with Harmonics
(SFDR), Typical
Total Harmonic
Distortion
(THD), Typical
Effective
Number of Bits
(ENOB),
Calculated*
Range (V
All ranges except 0.04 0.04
–58 dBc –58 dBc
–58 dBc –58 dBc
7.2 6.2
) 10 MHz,
pk-pk
–1 dBFS
input signal.
Includes the
nd
2
the 5
harmonics.
Measured
from DC to
125 MHz.
20 MHz
bandwidth
limit filter off.
Signal to Noise
and Distortion
(SINAD),
44 dB 38 dB
Typical
RMS Noise Range
(V
pk-pk
All ranges
except 0.04
)
20 MHz
Filter On
20 MHz
Filter Off
0.28% FS 0.28% FS
50 Ω
terminator
connected
to input.
0.04 0.28% FS 0.45% FS
*
ENOB = log2(sinad) – ½log2(1.5) – log2(A/V)
where
sinad = the linear representation of SINAD
A = amplitude of the supplied sine wave during the test
V = (peak) full-scale range of the waveform recorder input
Refer to 1057-1994 IEEE Standard for Digitizing Waveform Recorders for information on equation derivation.
through
th
© National Instruments Corporation 5 NI PXI/PCI-5114 Specifications
Horizontal
Sample Clock
Specification Val ue Comments
Sources Internal, Onboard Clock (internal VCXO)*
External, CLK IN (front panel SMB connector)
Onboard Clock (Internal VCXO)
Sample Rate
Range
Timebase
Frequency
Timebase
Accuracy
Real-Time Sampling
(Single Shot)
3.815 kS/s to 250MS/s* 250 MS/s to 5 GS/s in
250 MHz When not using
Not Phase-Locked to
Reference Clock
±25 ppm Equal to the Reference
Random Interleaved
Sampling (RIS)
increments of 250 MS/s
Phase-Locked to
Reference Clock
Clock accuracy
* Internal Sample
Clock is locked to the
Reference Clock or
derived from the
onboard VCXO.
* Divide by n
decimation used
for all rates less than
250 MS/s. For more
information about
Sample Clock and
decimation, refer to
the NI High-Speed
Digitizers Help.
External Sample
Clock.
—
Sample Clock
Delay Range
Sample Clock
Delay Resolution
NI PXI/PCI-5114 Specifications 6 ni.com
±1 Sample Clock period —
≤ 20 ps —
Specification Val ue Comments
External Sample Clock
Sources CLK IN (front panel SMB connector) —
Frequency
Range
Duty Cycle
Tolerance
50 MHz to 250 MHz Divide by n
decimation available
where
1 ≤ n ≤ 65,535.
For more information
about Sample Clock
and decimation, refer
to the NI High-Speed
Digitizers Help.
45% to 55% —
Phase-Locked Loop (PLL) Reference Clock
Specification Val ue Comments
Sources NI PXI-5114 NI PCI-5114 —
Frequency
Range
PXI_CLK10 (backplane
connector
CLK IN (front panel SMB
connector)
1 MHz to 20 MHz in 1 MHz increments.
Default of 10 MHz.
)
RTS I 7
CLK IN (front panel SMB
connector)
—
The PLL Reference Clock frequency must be accurate
to ±50 ppm.
Duty Cycle
Tolerance
Exported
Reference Clock
Destinations
© National Instruments Corporation 7 NI PXI/PCI-5114 Specifications
45% to 55% —
NI PXI-5114 NI PCI-5114 —
PFI <0..1> (front panel
9-pin mini-circular
DIN connector)
PXI_Trig <0..7>
(backplane connector)
PFI <0..1> (front panel
9-pin mini-circular
DIN connector)
RTSI <0..7>
CLK IN (Sample Clock and Reference Clock Input, Front Panel Connector)
Specification Val ue Comments
Input Voltage
Range
Maximum Input
Overload
Impedance 50 Ω —
Coupling AC —
Sine wave: 0.65 V
Square wave: 0.2 V
7 V
with |Peaks| ≤ 10 V —
rms
pk-pk
pk-pk
to 2.8 V
to 2.8 V
(0 dBm to 13 dBm)
pk-pk
pk-pk
—
Trigger
Reference (Stop) Trigger
Specification Val ue Comments
Trigger Types
and Sources
Edge, Window, Hysteresis,
Video, Digital, Immediate,
and Software
Type s Sources Refer to the
CH 0, CH 1, TRIG,
PXI_Trig<0..6>, PFI <0..1>,
PXI Star Trigger,
RTSI<0..6>, and Software
following
sections and to
NI High-Speed
Digitizers Help
for more
information.
Time
Resolution
Rearm Time TDC Rearm Time Holdoff set to 0
Holdoff From Rearm Time up to [(235 – 1) × (Sample Clock Period)] —
Trigger Delay From 0 up to [(235 – 1) – posttrigger samples] ×
NI PXI/PCI-5114 Specifications 8 ni.com
TDC Onboard Clock External Clock TDC = Time to
On 40 ps N/A
Off 4 ns External Clock Period
On 10 μs
Off 2 μs
(1/ sample rate), in seconds
Digital
Conversion
Circuit.
—
Specification Val ue Comments
Analog Trigger (Edge, Window, and Hysteresis Trigger Types)
Sources CH 0 (front panel BNC connector)
—
CH 1 (front panel BNC connector)
TRIG (front panel BNC connector)
Trigger Level
8 bits (1 in 256)
Resolution
CH 0, CH 1 TRIG (External Trigger) —
Trigger Level
100% FS ±5 V
Range
Edge Trigger
5% FS up to 100 MHz 0.5 V
up to 100 MHz
pk-pk
Sensitivity
Level
±5% FS up to 10 MHz ±0.5 V up to 10 MHz
Accuracy,
Typical
Jitter ≤ 65 ps rms —
Trigger Filters Low Frequency (LF) Reject High Frequency (HF) Reject —
50 kHz 50 kHz
Digital Trigger (Digital Trigger Type)
Sources NI PXI-5114 NI PCI-5114 —
PXI_Trig <0..6> (backplane
connector)
PFI <0..1> (front panel
RTS I <0..6 >
PFI <0..1> (front panel
SMB connector)
SMB connector)
PXI Star Trigger (backplane
connector)
Video Trigger (Video Trigger Type)
Sources CH 0 (front panel BNC connector)
—
CH 1 (front panel BNC connector)
TRIG (front panel BNC connector)
© National Instruments Corporation 9 NI PXI/PCI-5114 Specifications
Specification Val ue Comments
Types Specific Line
Any Line
Specific Field
Standards SDTV: M-NTSC, B/G-PAL, SECAM, M-PAL
EDTV: 480i/59.94 fps, 480i/60 fps, 480p/59.94 Fps,
480p/60 Fps, 576i/50 fps, 576p/50 Fps
HDTV: 720p/50 Fps, 720p/59.94 Fps, 720p/60 Fps,
1080i/50 fps, 1080i/59.94 fps, 1080i/60 fps, 1080p/24 Fps
fps = fields per
second;
Fps = Frames
per second
TRIG (External Trigger, Front Panel Connector)
Specification Val ue Comments
Connector BNC —
Impedance 1 MΩ in parallel with 22 pF —
Coupling AC, DC —
AC-Coupling Cutoff
(–3 dB)
Input Voltage Range ±5 V —
12 Hz —
—
Maximum Input Overload |Peaks| ≤ 42 V —
PFI 0 and PFI 1 (Programmable Function Interface, AUX Front Panel Connectors)
Specification Val ue Comments
Connector 9-pin mini-circular DIN —
Direction Bi-directional —
NI PXI/PCI-5114 Specifications 10 ni.com
Specification Val ue Comments
As an Input (Trigger)
Destinations Start Trigger (Acquisition Arm)
—
Reference (Stop) Trigger
Arm Reference
Advance Trigger
Input Impedance 150 kΩ —
V
IH
V
IL
Maximum Input
2.0 V —
0.8 V —
–0.5 V to 5.5 V —
Overload
Maximum
25 MHz —
Frequency
As an Output (Event)
Sources Start Trigger (Acquisition Arm)
—
Reference (Stop) Trigger
End of Record
Done (End of Acquisition)
Probe Compensation (1 kHz, 50% duty cycle
square wave, PFI 1 only)
Output Impedance 50 Ω —
Logic Type 3.3 V CMOS —
Maximum Drive
±24 mA —
Current
Maximum
25 MHz —
Frequency
© National Instruments Corporation 11 NI PXI/PCI-5114 Specifications
TClk Specifications
National Instruments TClk synchronization method and the NI-TClk driver
are used to align the sample clocks on any number of SMC-based modules
in a chassis. For more information about TClk synchronization, refer to the
NI-TClk Synchronization Help, which is located within the NI High-Speed
Digitizers Help.
• Specifications are valid for any number of modules installed in one
NI PXI-1042 chassis.
• All parameters set to identical values for each SMC-based module.
• Sample Clock set to 250 MS/s and all filters are disabled.
• For other configurations, including multichassis systems, contact
NI Technical Support at
Note Although you can use NI-TClk to synchronize nonidentical modules, these
specifications apply only to synchronizing identical modules.
Specification Val ue Comments
Intermodule SMC Synchronization Using NI-TClk for Identical Modules (Typical)
Skew 500 ps Caused by clock and analog
ni.com/support.
path delay differences.
No manual adjustment
performed.
Skew After Manual
Adjustment
Sample Clock
Adjustment
Resolution
NI PXI/PCI-5114 Specifications 12 ni.com
< 20 ps For information about
manual adjustment, refer
to the Synchronization
Repeatability Optimization
topic in the NI-TClk
Synchronization Help.
For additional help with the
adjustment process, contact
NI Technical Support at
ni.com/support.
< 20 ps —
Waveform Specifications
Specification Val ue Comments
Onboard Memory
Size
Minimum Record
Length
Number of
Pretrigger Samples
Number of
Posttrigger Samples
Maximum Number
of Records in
Onboard Memory
8 MB per Channel
Standard
64 MB per Channel
Option
256 MB per Channel
Option
1 Sample —
Zero up to full Record Length Single-record
Zero up to full Record Length Single-record
8 MB/channel 32,768 —
32 MB/channel 262,144
256 MB/channel 1,048,576
8 megasamples
per channel
64 megasamples
per channel
256 megasamples
per channel
—
mode and
multiple-record
mode.
mode and
multiple-record
mode.
Allocated Onboard
Memory per Record
© National Instruments Corporation 13 NI PXI/PCI-5114 Specifications
(Record Length × 1 byte/S) + 240 bytes,
rounded up to next multiple of 128 bytes
or
256 bytes, whichever is greater
—
Calibration
Specification Val ue Comments
Self-Calibration Self-calibration is done on software command.
The calibration corrects for gain, offset,
compensated 1 MΩ attenuator, triggering, and
timing adjustment errors for all input ranges.
External Calibration
(Factory Calibration)
Interval for External
Calibration
Warm-Up Time 15 minutes —
The external calibration calibrates the VCXO, gain,
and the voltage reference. Appropriate constants are
stored in nonvolatile memory.
2 years —
Power
Specification Typical Value Comments
NI PXI-5114 NI PCI-5114 —
+3.3 VDC
+5 VDC 1.1 A 1.7 A
+12 VDC 250 mA 45 mA
840 mA 1.6 A
—
—
–12 VDC 170 mA —
Total Power 13.32 W 14.32 W
NI PXI/PCI-5114 Specifications 14 ni.com
Software
Specification Val ue Comments
Driver Software NI PXI-5114: NI-SCOPE 2.9 or later.
NI PCI-5114: NI-SCOPE 3.1 or later.
NI-SCOPE is an IVI-compliant driver that allows you to
configure, control, and calibrate the NI 5114. NI-SCOPE
provides application programming interfaces for many
development environments.
Application
Software
Interactive Soft
Front Panel and
Configuration
NI-SCOPE provides programming interfaces,
documentation, and examples for the following
application development environments:
•LabVIEW
™
• LabWindows
• Measurement Studio
• Microsoft Visual C/C++
• Microsoft Visual Basic
The Scope Soft Front Panel 2.3 or later supports interactive
control of the NI 5114. The Scope Soft Front Panel is
included on the NI-SCOPE CD.
National Instruments Measurement & Automation Explorer
(MAX) also provides interactive configuration and test
tools for the NI 5114. MAX is included on the NI-SCOPE
CD.
/CVI
™
—
—
—
© National Instruments Corporation 15 NI PXI/PCI-5114 Specifications
Environment
NI PXI-5114
Note To ensure that the NI PXI-5114 cools effectively, follow the guidelines in
the Maintain Forced Air Cooling Note to Users included in the NI PXI-5114 kit.
The NI PXI-5114 is intended for indoor use only.
Specification Val ue Comments
Operating
Temperature
Storage
Temperature
Operating Relative
Humidity
Storage Relative
Humidity
Operating Shock 30 g, half-sine, 11 ms pulse. Meets IEC-60068-2-27. Test
Storage Shock 50 g, half-sine, 11 ms pulse. Meets IEC-60068-2-27. Test
Operating Vibration 5 Hz to 500 Hz, 0.31 g
Storage Vibration 5 Hz to 500 Hz, 2.46 g
Altitude 2,000 m maximum (at 25 °C ambient temperature) —
0 ºC to +55 ºC in all NI PXI chassis except the following:
0 ºC to +45 ºC when installed in an NI PXI-1000/B or
PXI-101x chassis.
Meets IEC-60068-2-1 and IEC-60068-2-2.
– 40 ºC to +71 ºC. Meets IEC-60068-2-1 and
IEC-60068-2-2.
10% to 90%, noncondensing. Meets IEC-60068-2-56. —
5% to 95%, noncondensing. Meets IEC-60068-2-56. —
profile developed in accordance with MIL-PRF-28800F.
profile developed in accordance with MIL-PRF-28800F.
. Meets IEC-60068-2-64. —
rms
. Meets IEC-60068-2-64.
Test profile exceeds requirements of MIL-PRF-28800F,
Class B.
rms
—
—
—
—
—
Pollution Degree 2 —
NI PXI/PCI-5114 Specifications 16 ni.com
NI PCI-5114
Note To ensure that the NI PCI-5114 cools effectively, follow the guidelines in the
Maintain Forced Air Cooling Note to Users included in the NI PCI-5114 kit. Also, to
maximize airflow and extend the life of the device, leave any adjacent PCI slots empty.
The NI PCI-5114 is intended for indoor use only.
Specification Val ue Comments
Operating
0 ºC to +45 ºC. Meets IEC-60068-2-1 and IEC-60068-2-2. —
Temperature
Storage
Temperature
Operating Relative
– 40 ºC to +71 ºC. Meets IEC-60068-2-1 and
—
IEC-60068-2-2.
10% to 90%, noncondensing. Meets IEC-60068-2-56. —
Humidity
Storage Relative
5% to 95%, noncondensing. Meets IEC-60068-2-56. —
Humidity
Storage Shock 50 g, half-sine, 11 ms pulse. Meets IEC-60068-2-27. Test
—
profile developed in accordance with MIL-PRF-28800F.
Storage Vibration 5 Hz to 500 Hz, 2.46 g
. Meets IEC-60068-2-64.
rms
—
Test profile exceeds requirements of MIL-PRF-28800F,
Class B.
Altitude 2,000 m maximum (at 25 °C ambient temperature). —
Pollution Degree 2 —
© National Instruments Corporation 17 NI PXI/PCI-5114 Specifications
Safety, Electromagnetic Compatibility, and CE Compliance
Specification Va lu e Comments
Safety The NI 5114 meets the requirements of the following
standards of safety for electrical equipment for measurement,
control, and laboratory use:
• IEC 61010-1, EN 61010-1
• UL 61010-1, CAN/CSA-C22.2 No. 61010-1
For UL and other safety certifications, refer to the product label or visit ni.com/certification,
search by model number or product line, and click the appropriate link in the Certification column.
Emissions EN 55011 Class A at 10 m
FCC Part 15A above 1 GHz
Immunity EN 61326 EMC requirements; Minimum Immunity —
EMC/EMI CE, C-Tick, and FCC Part 15 (Class A) Compliant
Note: For EMC compliance, you must operate this device
with shielded cabling.
This product meets the essential requirements of applicable European Directives, as amended
for CE marking, as follows:
Low-Voltage
Directive
(safety)
Electromagnetic
Compatibility
Directive
(EMC)
73/23/EEC —
89/336/EEC —
—
—
—
For full EMC compliance, you must operate this device with shielded cabling. Refer to the
Declaration of Conformity (DoC) for this product for any additional regulatory compliance
information. To obtain the DoC for this product, visit
number or product line, and click the appropriate link in the Certification column.
Waste
Electrical and
Electronic
Equipment
(WEEE)
NI PXI/PCI-5114 Specifications 18 ni.com
EU Customers: At the end of their life cycle, all products must be sent to a
WEEE recycling center. For more information about WEEE recycling centers
and National Instruments WEEE initiatives, visit
weee.htm
.
ni.com/certification, search by model
ni.com/environment/
Physical
Specification Val ue Comments
Dimensions NI PXI-5114 NI PCI-5114 —
3U, One slot,
PXI/cPCI Module
21.6 × 2.0 × 13.0 cm
(8.5 × 0.8 × 5.1 in.)
Weight 455 g (16 oz) 421 g (14.8 oz) —
Front Panel Connectors
Label Function Connector Type —
CH 0 Analog Input BNC female
CH 1 Analog Input BNC female
TRIG External Trigger BNC female
CLK IN Sample Clock Input and
Reference Clock Input
AUX I/O PFI 0, PFI 1 9-pin mini-circular DIN
NI PXI-5114 Front Panel Indicators
Label Function For more
ACCESS The ACCESS LED indicates the status of the PCI bus and
the interface from the NI PXI-5114 to the controller.
ACTIVE The ACTIVE LED indicates the status of the onboard
acquisition hardware of the NI PXI-5114.
35.5 × 2.0 × 11.3 cm
(13.4 × 0.8 × 4.4 in.)
SMB jack
information,
refer to the
NI High-Speed
Digitizers Help.
© National Instruments Corporation 19 NI PXI/PCI-5114 Specifications
Where to Go for Support
The National Instruments Web site is your complete resource for technical
support. At
troubleshooting and application development self-help resources to email
and phone assistance from NI Application Engineers.
A Declaration of Conformity (DoC) is our claim of compliance with the
Council of the European Communities using the manufacturer’s
declaration of conformity. This system affords the user protection for
electronic compatibility (EMC) and product safety. You can obtain the DoC
for your product by visiting
supports calibration, you can obtain the calibration certificate for your
product at
National Instruments corporate headquarters is located at
11500 North Mopac Expressway, Austin, Texas, 78759-3504.
National Instruments also has offices located around the world to help
address your support needs. For telephone support in the United States,
create your service request at
instructions or dial 512 795 8248. For telephone support outside the United
States, contact your local branch office:
Australia 1800 300 800, Austria 43 0 662 45 79 90 0,
Belgium 32 0 2 757 00 20, Brazil 55 11 3262 3599,
Canada 800 433 3488, China 86 21 6555 7838,
Czech Republic 420 224 235 774, Denmark 45 45 76 26 00,
Finland 385 0 9 725 725 11, France 33 0 1 48 14 24 24,
Germany 49 0 89 741 31 30, India 91 80 41190000,
Israel 972 0 3 6393737, Italy 39 02 413091, Japan 81 3 5472 2970,
Korea 82 02 3451 3400, Lebanon 961 0 1 33 28 28,
Malaysia 1800 887710, Mexico 01 800 010 0793,
Netherlands 31 0 348 433 466, New Zealand 0800 553 322,
Norway 47 0 66 90 76 60, Poland 48 22 3390150,
Portugal 351 210 311 210, Russia 7 095 783 68 51,
Singapore 1800 226 5886, Slovenia 386 3 425 4200,
South Africa 27 0 11 805 8197, Spain 34 91 640 0085,
Sweden 46 0 8 587 895 00, Switzerland 41 56 200 51 51,
Taiwan 886 02 2377 2222, Thailand 662 278 6777,
United Kingdom 44 0 1635 523545
ni.com/support you have access to everything from
ni.com/calibration.
ni.com/certification. If your product
ni.com/support and follow the calling
National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation.
Refer to the Terms of Use section on ni.com/legal for more information about National
Instruments trademarks. Other product and company names mentioned herein are trademarks or trade
names of their respective companies. For patents covering National Instruments products, refer to the
appropriate location: Help»Patents in your software, the patents.txt file on your CD, or
ni.com/patents.
© 2005–2006 National Instruments Corporation. All rights reserved.
374179B-01 Jun06
Loading...
