About This Manual

The NI PXI-562x is a single-channel high-speed digitizer module whose
dynamic range and resolution are optimized for frequency-domain analysis
applications in research, product design and validation, and manufacturing
test. This manual provides information on installing, connecting signals to,
and acquiring data from the NI PXI-562x. This manual also provides an
overview of the features, functionality, and use of the NI PXI-562x
high-speed digitizer module.

Conventions

The following conventions are used in this manual:
<> Angle brackets that contain numbers separated by an ellipsis represent a
range of values associated with a bit or signal namefor example,
DBIO<3..0>.
» The » symbol leads you through nested menu items and dialog box options
to a final action. The sequence File»Page Setup»Options directs you to
pull down the File menu, select the Page Setup item, and select Options
from the last dialog box.
This icon denotes a note, which alerts you to important information.
This icon denotes a caution, which advises you of precautions to take to
avoid injury, data loss, or a system crash.
bold Bold text denotes items that you must select or click in the software, such
as menu items and dialog box options. Bold text also denotes parameter
names.
italic Italic text denotes variables, emphasis, a cross reference, or an introduction
to a key concept. This font also denotes text that is a placeholder for a word
or value that you must supply.
monospace
© National Instruments Corporation ix NI PXI-562x User Manual
Text in this font denotes text or characters that you should enter from the
keyboard, sections of code, programming examples, and syntax examples.
This font is also used for the proper names of disk drives, paths, directories,
programs, subprograms, subroutines, device names, functions, operations,
variables, filenames and extensions, and code excerpts.
About This Manual

Related Documentation

The following documents contain information that you might find helpful as you read this manual:
NI PXI-5620 Specifications
NI PXI-5621 Specifications
NI-SCOPE User Manual
Spectral Measurements Toolset User Guide
NI PXI-562x User Manual x ni.com
Taking Measurements with the NI PXI-562x
The NI PXI-5620 is a 64 Ms/s, 14-bit frequency-domain digitizer
module optimized for the best possible noise and distortion performance
in a 5–25 MHz passband. It has a –3 dB front-end bandwidth from
10 kHz to 36 MHz, and is always AC-coupled, meaning it does not admit
DC components of a signal.
The NI PXI-5621 is a DC-coupled version of the NI PXI-5620, optimized
for a passband of 0–25 MHz. Except for its permanent DC coupling and
wider front-end bandwidth, the NI PXI-5621 is functionally identical to the
NI PXI-5620.
Refer to the NI PXI-5620 Specifications and the NI PXI-5621
Specifications documents for NI PXI-562x performance specifications.
This chapter provides information on installing, connecting signals to,
and acquiring data from the NI 562x modules.
The NI 562x family of high-speed digitizers has the following features:
A 14-bit, 64 MS/s analog-to-digital converter (ADC)
32 or 64 MB deep onboard sample memory
1

Installing the Software and Hardware

Perform the following steps to set up your digitizer:
1. If you are using an application development environment (ADE) or third-party tool, install it now if you have not already done so. The supported ADEs include LabVIEW, LabWindows/CVI, and other C or C++ environments.
Note
Yo u must install all of the included software before installing your hardware.
2. Install NI-SCOPE. The included NI-SCOPE CD contains the software you need to configure, test, and program operation of the NI 562x.
© National Instruments Corporation 1-1 NI PXI-562x User Manual
Chapter 1 Taking Measurements with the NI PXI-562x
a. Insert your NI-SCOPE CD into your CD drive. If installation does
not start automatically, navigate to your CD drive and click
setup.exe
b. To install both the instrument driver and ADE examples, select the
Programmatic and Interactive Support option when prompted.
3. Install the Spectral Measurements Toolset (SMT) CD, if included. The SMT provides frequency-domain functionality and examples. If installation does not start automatically, navigate to your CD drive and click
setup.exe
.
.
Caution
Yo u must turn off and unplug your chassis before installing your device. To prevent damage due to electrostatic discharge or contamination, handle the device using the edges or the metal bracket.
4. Install your digitizer as shown in Figure 1-1.
PXI Chassis
O N
S T
A N
D
B Y
1
2
3
4
5
6
7
8
Your PXI Device
Ejector Handle in Down Position

Figure 1-1. PXI Installation

Configuring and Testing the Digitizer

To configure and test your NI 562x, complete the following steps:
1. Launch Measurement & Automation Explorer.
2. Double-click Devices and Interfaces to open a list of recognized
devices.
NI PXI-562x User Manual 1-2 ni.com
Chapter 1 Taking Measurements with the NI PXI-562x
3. Find the NI 562x in the list. Notice the device number assigned to your NI 562x. You need this device number to program your NI 562x.
4. Right-click the device name, and select Properties from the menu.
5. From the Properties window, click Test Resources to test the device resources. A dialog box appears and indicates if the resource test has passed.
6. Click Run Test Panels to run the functional test panels and begin using your NI 562x. Connect a signal to your digitizer, and select appropriate parameters.
7. Click Advanced to enable triggering options.
8. Click Close when you finish testing your NI 562x.
9. Click OK in the Properties window.
You have successfully installed and configured the necessary software and hardware to use your NI 562x.

Acquiring Data Programmatically

You can acquire data programmatically either by writing an application for your NI 562x or by using one of the examples that ships with NI-SCOPE.
For time-domain examples, go to the following default locations:
LabVIEW examples are located in the Functions palette at Instrument I/O»Instrument Drivers»NI SCOPE»IF Digitizers.
Examples for C and Visual Basic programmers using Windows Me/98/95 are located in
Examples
.
vxipnp\win95\niScope\
Examples for C programmers using Windows 2000/NT are located at
vxipnp\winnt\niScope\Examples\c
.
Examples for Visual Basic programmers using Windows 2000/NT are located at
vxipnp\winnt\niScope\Examples\VisualBasic
.
LabWindows/CVI examples are located at
cvi\NI-SCOPE Support\samples\niScope\cvi
Note
If you installed the examples in a different location, your file paths differ from the
.
default locations above.
© National Instruments Corporation 1-3 NI PXI-562x User Manual
Chapter 1 Taking Measurements with the NI PXI-562x
For more detailed VI and function help, refer to the NI-SCOPE VI Reference Help and the NI-SCOPE Function Reference Help, located
at Start»Programs»National Instruments»NI-SCOPE.

Safety Information

The following section contains important safety information that you must follow when installing and using the product.
Do not operate the product in a manner not specified in this document. Misuse of the product can result in a hazard. You can compromise the safety protection built into the product if the product is damaged in any way. If the product is damaged, return it to National Instruments for repair.
Do not substitute parts or modify the product except as described in this document. Use the product only with the chassis, modules, accessories, and cables specified in the installation instructions. You must have all covers and filler panels installed during operation of the product.
Do not operate the product in an explosive atmosphere or where there may be flammable gases or fumes. Operate the product only at or below the pollution degree stated in the NI PXI-5620 Specifications and the NI PXI-5620 Specifications documents. Pollution is foreign matter in a solid, liquid, or gaseous state that can reduce dielectric strength or surface resistivity. The following is a description of pollution degrees:
Pollution degree 1 means no pollution or only dry, nonconductive pollution occurs. The pollution has no influence.
Pollution degree 2 means that only nonconductive pollution occurs in most cases. Occasionally, however, a temporary conductivity caused by condensation must be expected.
Pollution degree 3 means that conductive pollution occurs, or dry, nonconductive pollution occurs that becomes conductive due to condensation.
Clean the product with a soft nonmetallic brush. Make sure that the product is completely dry and free from contaminants before returning it to service.
Yo u must insulate signal connections for the maximum voltage for which the product is rated. Do not exceed the maximum ratings for the product. Remove power from signal lines before connecting them to or disconnecting them from the product.
NI PXI-562x User Manual 1-4 ni.com
Chapter 1 Taking Measurements with the NI PXI-562x
Operate this product only at or below the installation category stated in the NI PXI-5620 Specifications and the NI PXI-5620 Specifications documents.
The following is a description of installation categories:
Installation Category I is for measurements performed on circuits not directly connected to MAINS
1
. This category is a signal level such as voltages on a printed wire board (PWB) on the secondary of an isolation transformer.
Examples of Installation Category I are measurements on circuits not derived from MAINS and specially protected (internal) MAINS-derived circuits.
Installation Category II is for measurements performed on circuits directly connected to the low-voltage installation. This category refers to local-level distribution such as that provided by a standard wall outlet.
Examples of Installation Category II are measurements on household appliances, portable tools, and similar equipment.
Installation Category III is for measurements performed inthe building installation. This category is a distribution level referring to hardwired equipment that does not rely on standard building insulation.
Examples of Installation Category III include measurements on distribution circuits and circuit breakers. Other examples of Installation Category III arewiring including cables, bus-bars, junction boxes, switches, socket outlets in the building/fixed installation, and equipment for industrial use, such as stationary motors with a permanent connection to the building/fixed installation.
Installation Category IV is for measurements performed at the source of the low-voltage (<1,000 V) installation.
Examples of Installation Category IV are electric meters, and measurements on primary overcurrent protection devices and ripple-control units.
1
MAINS is defined as the electricity supply system to which the equipment concerned is designed to be connected either for powering the equipment or for measurement purposes.
© National Instruments Corporation 1-5 NI PXI-562x User Manual
Chapter 1 Taking Measurements with the NI PXI-562x
Below is a diagram of a sample installation.
NI PXI-562x User Manual 1-6 ni.com
Hardware Overview
This chapter provides an overview of the features and functionality of the NI 562x.

How the NI 562x Works

A signal follows this path through the NI 562x to the host computer:
1. The signal enters the NI 562x through the analog front panel connector, INPUT. Refer to the Connecting Signals section to find more about the front panel.
2. The signal is filtered and conditioned. Gain and dither are applied to the signal. Refer to the Conditioning the SignalImpedance, Dither,
Gain, and AC Coupling section for more information.
3. The ADC converts the signal from analog to digital. Refer to the
Digitizing the SignalThe ADC section for more information.
4. (Optional) The digital downconverter (DDC) digitally zooms in on data. Refer to the Incorporating the DDC section.
5. The data is sent to onboard memory (the buffer). Refer to the Storing
Data in Memory section for additional information.
6. The data is transferred to the host computer via the PXI backplane.
2
Analog
Input
Filtering/
Conditioning
© National Instruments Corporation 2-1 NI PXI-562x User Manual
ADC
DDC
(Optional)

Figure 2-1. Basic Signal Flow

Onboard
Memory
P X
I
B u
s
Chapter 2 Hardware Overview

Connecting Signals

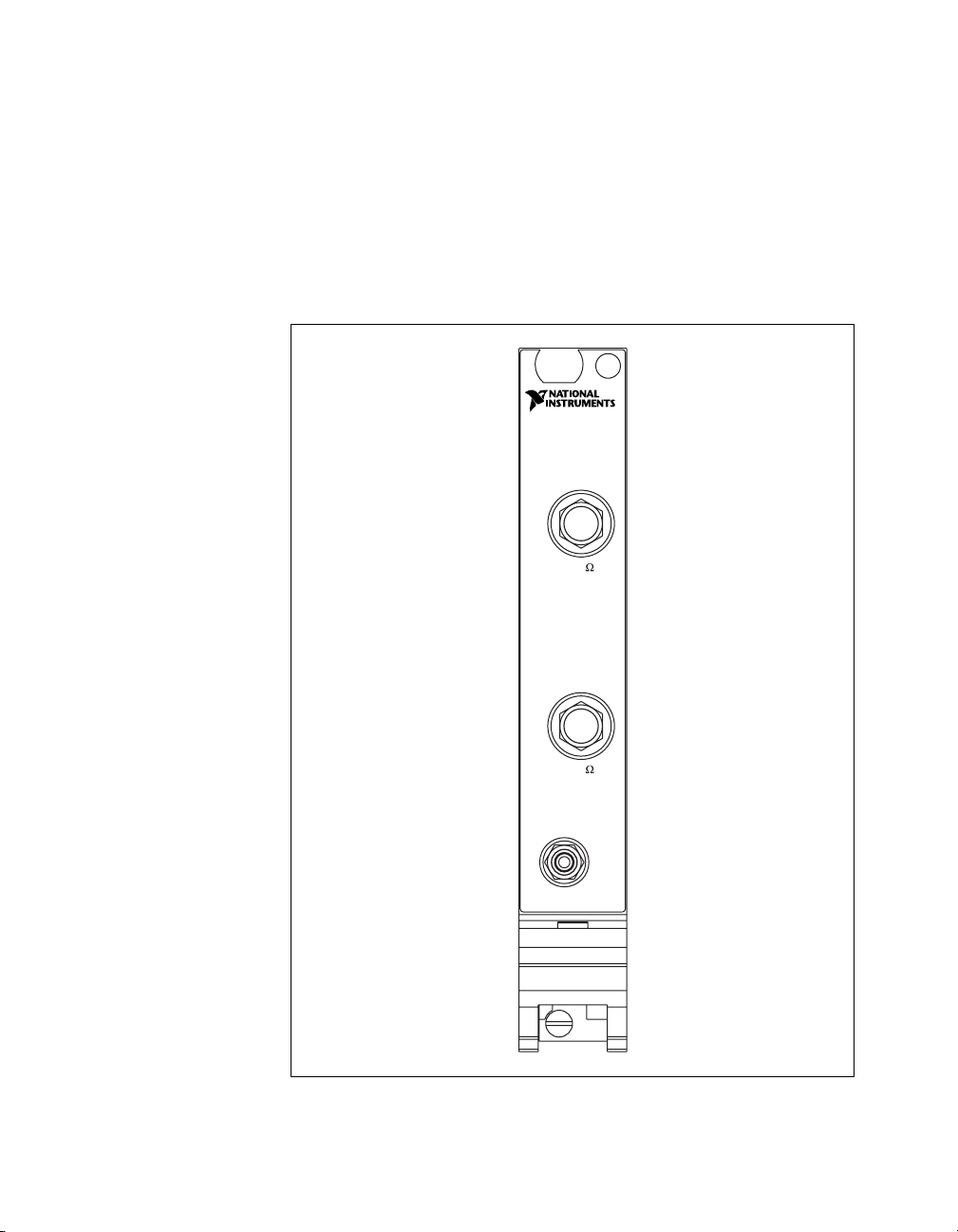

Figure 2-2 shows the NI 562x front panel, which contains three connectors: two SMA connectors and an SMB connector.
One of the SMA connectors, INPUT, is for attaching the analog input signal you want to measure. The second SMA connector, REF CLK IN, is a 50 Ω, 10 MHz, AC-coupled reference input. The SMB connector, PFI1, is for external digital triggers.
562x
64 MS/s Digitizer
INPUT
50
+20 dBm MAX
REF CLK IN
50
+16 dBm MAX
PFI 1
Figure 2-2. NI 562x Front Panel
NI PXI-562x User Manual 2-2 ni.com
Chapter 2 Hardware Overview

Conditioning the Signal—Impedance, Dither, Gain, and AC Coupling

To minimize distortion, signals receive a minimal amount of conditioning. Gain and coupling are nonadjustable. The NI PXI-5620 is AC coupled, meaning it rejects any DC signal components. The NI PXI-5621 is DC coupled, meaning its wider passband acquires DC signal components also.
Both versions of the NI 562x digitizer module have a set input impedance of 50 and may apply dither to the input signal.
Input Impedance
The input impedance of the NI 562x and the output impedance of the source connected to the NI 562x form an impedance divider, which attenuates the input signal according to the following formula:
R
in

V
m
-------------------
V
×=
s

RinR
+
s
where V
is the measured voltage
m
V
is the unloaded source voltage
s
R
is the input impedance of the NI 562x
in
R
is the output impedance of the external device
s
If the signal you are measuring has an output impedance other than 50 Ω, your measurements are affected by this impedance divider. For example, if the device has 75 output impedance, your measured signal has 80% of the voltage it would have at 50 Ω.
Dither
Dither is random noise added to the input signal between 0 and 5 MHz. Dither lowers the amount of distortion caused by differential nonlinearity in the ADC when a signal is digitized. When an FFT is applied to the signal, this random noise cancels out most of the distortion created by differential nonlinearity. Dither is not automatically applied, but you can enable it in software.

Digitizing the Signal—The ADC

Regardless of your requested sample rate, the NI 562x ADC is always running at 64 MS/s. If you request a rate less than 64 MS/s, the timing engine of the NI 562x stores only one sample in a group of n samples, effectively reducing the sample rate to 64/n MS/s.
© National Instruments Corporation 2-3 NI PXI-562x User Manual
Chapter 2 Hardware Overview

Incorporating the DDC

Optionally, you can route the data through the DDC before storing it in onboard memory.
The DDC is a digital signal processing (DSP) chip, the Intersil HSP50214B. The first stage uses a digital quadrature mixer that shifts a signal to baseband from any frequency within the range of the digitizer. The next stage decimates (reduces the sample rate) by an integer from 4–16,384. A series of programmable digital lowpass filters prior to each stage of decimation prevents aliasing when the sample rate is reduced. You can retrieve the decimated data as in-phase and quadrature, or as phase and magnitude. A discriminator allows you to take the derivative of the phase to demodulate an FM signal.
By mixing, filtering, and decimating the sampled data, the DDC allows you to zoom in on a band of frequencies much narrower than the Nyquist band of the ADC. The lower sample rate means that signals of longer duration can be stored in the same amount of memory. For spectral analysis, you can use a smaller, faster FFT to look at only the band passed through the DDC.
Refer to the NI-SCOPE VI Reference Help for specific DDC attributes you can use to program your NI 562x. For more information on using the onboard DDC with LabVIEW, refer to the online help included with NI-SCOPE and the Spectral Measurements Toolset software.

Storing Data in Memory

Samples are acquired into onboard memory on the NI 562x before being transferred to the host computer. The minimum size for a buffer is approximately 256 samples although you can specify smaller buffers in software. When specifying a smaller buffer size, the minimum number of points are still acquired into onboard memory, but only the specified number of points are retrieved into the host computer memory.
During the acquisition, samples are stored in a circular buffer that is continually rewritten until a trigger is received. After the trigger is received, the NI 562x continues to acquire posttrigger samples if you have specified a posttrigger sample count. The acquired samples are placed into onboard memory. The number of posttrigger or pretrigger samples is limited only by the amount of onboard memory.
NI PXI-562x User Manual 2-4 ni.com

Block Diagram

Chapter 2 Hardware Overview

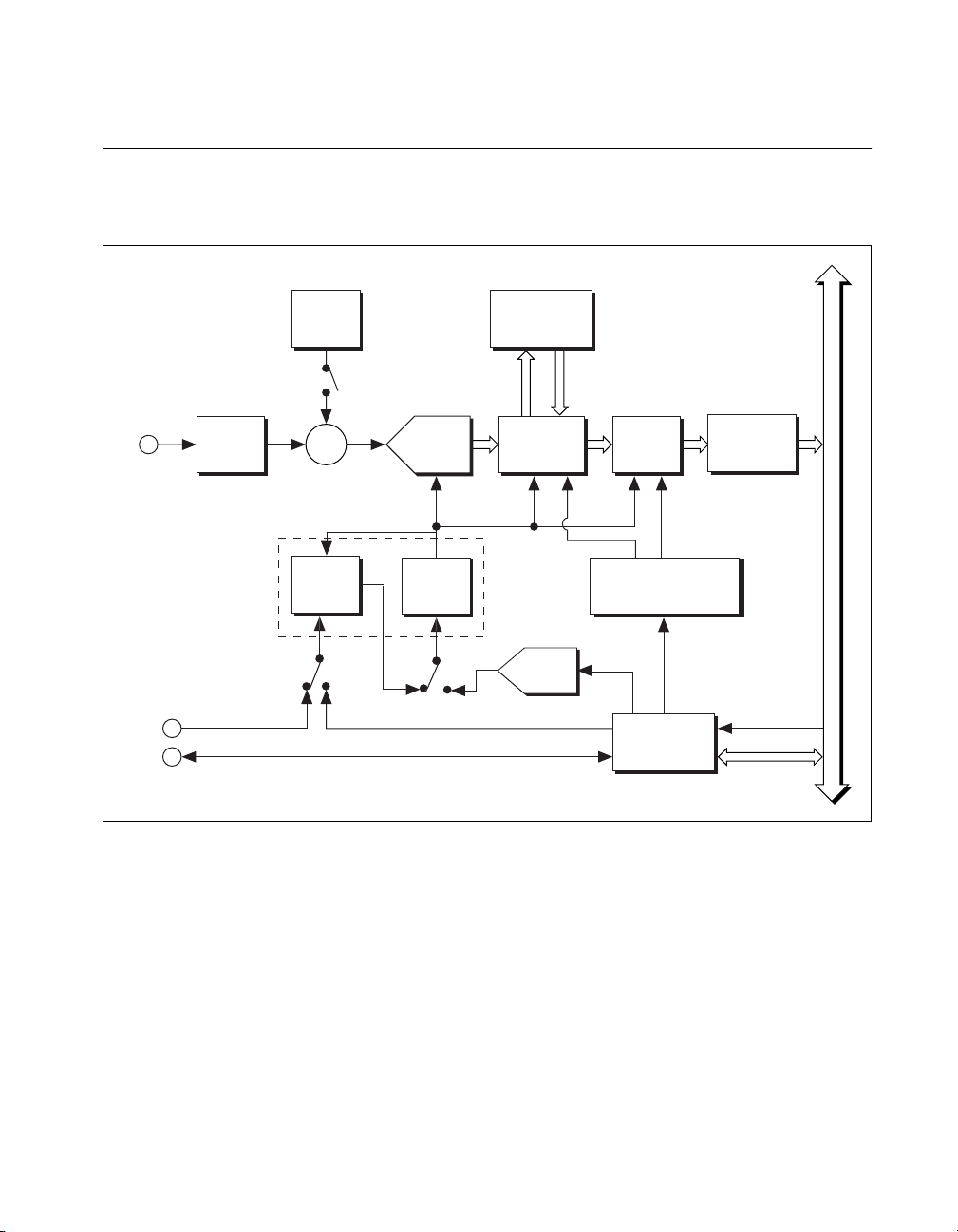

The block diagram below illustrates the operation of the NI 562x. An explanation of some of these features follows.
Analog
Input
(INPUT)
10 MHz
Reference
Input
(REF CLK IN)
EXT TRIG
(PFI)
Filter
PLL
Dither
+
Phase
Detector
ADC
Voltage
Controlled
Oscillator
External Trigger
Digital
Downconverter
Data Path
Logic
CalDAC
Onboard
Memory
TIO
(Timing and Control)
Trigger and
Clock Routing

Figure 2-3. NI 562x Block Diagram

MITE
(PXI Interface)
P X
I
CLK 10
PXI Trigger
The digital downconverter is a digital signal processor (DSP) that allows you to digitally zoom in on data, which reduces the amount of data transferred into memory and speeds up the rate of data transfer. The digital downconverter performs frequency-translation, filtering, and decimation after signals go through the ADC. Refer to the Incorporating the DDC section for more information.
The PLL uses a phase detector to synchronize the acquisition clock to either a 10 MHz reference clock supplied through REF CLK IN or to the CLK 10 signal from the PXI backplane. You can also leave the acquisition clock in
© National Instruments Corporation 2-5 NI PXI-562x User Manual
Chapter 2 Hardware Overview
a free-running state, in which the acquisition clock is not synchronized to any external reference.
The voltage controlled crystal oscillator (VCXO) is a 64 MHz clock.
The trigger and clock routing area directs clock signals and triggers.
The TIO is the timing engine used for the NI 562x.
The MITE is the PXI bus interface. The MITE provides high-speed direct memory access (DMA) transfers from the NI 562x to the host computer memory.

Other Features

This section contains information on other features on the NI 562x.

Multiple-Record Acquisitions

After the trigger has been received and the posttrigger samples have been stored, you can configure the NI 562x to begin another acquisition that is stored in another memory record on the device. This process is a multiple-record acquisition. To perform multiple-record acquisitions, configure the NI 562x to the number of records to be acquired before starting the acquisition. The NI 562x acquires an additional record each time a trigger is accepted until all the requested records are stored in memory. After the initial setup, this process does not require software intervention.
Between each record, a dead time exists during which the trigger is not accepted. If the record length is greater than 80 µs, the dead time is 500 ns. If, however, the record length is less than 80 µs, the dead time is 80 µs. During this time, the memory controller sets up for the next record. Also, additional dead time may exist while the minimum number of pretrigger samples are being acquired.
NI PXI-562x User Manual 2-6 ni.com
Chapter 2 Hardware Overview
Figure 2-4 shows a timing diagram of a multiple-record acquisition.

Triggering

Trigger
Acquisition
In Progress
Buffer
1 2 3
500 ns
12
= Trigger Not Accepted (Pretrigger Points Not Acquired)
1
= Trigger Not Accepted (500 ns Dead Time)
2
= Trigger Not Accepted (Acquisition in Progress)
3
= Trigger Accepted
Figure 2-4. Multiple-Record Acquisition Timing Diagram
You can externally trigger the NI 562x through the digital line, PFI1. You can also use software to trigger the NI 562x. Figure 2-5 shows the different trigger sources. The digital triggers are TTL-level signals with a minimum pulse-width requirement of 100 ns or 16 ns times the DDC decimation.
Software
RTSI <0..7>
8
PFI1
PXI Star
Trigger
Figure 2-5. Digital Trigger Sources

Calibration

Although the NI 562x is factory calibrated, it needs periodic calibration to verify that it is still within the specified accuracy. For more information on calibration, contact NI or visit the NI Web site at
ni.com/support/calibrat
© National Instruments Corporation 2-7 NI PXI-562x User Manual
.
Chapter 2 Hardware Overview

Synchronizing Multiple PXI Devices

The NI 562x uses a PLL to synchronize the 64 MHz sample clock to a 10 MHz reference clock. You can either supply the reference clock through the SMA connector (REF CLK IN) on the front panel or use the system reference clock on the PXI backplane.
The PXI bus and the NI 562x have the following timing and triggering features that you can use for synchronizing multiple digitizers:
System Reference ClockA 10 MHz clock on the PXI backplane with ±100 ppm accuracy. It is independently distributed to each PXI peripheral slot through equal-length traces with a skew of less than 1 ns between slots. Multiple devices can use this common timebase for synchronization, which allows each NI 562x to phase lock to the system reference clock.
SMA connector (REF CLK IN)A 10 MHz reference input that you can use to connect an external frequency source for synchronization.
NI PXI-562x User Manual 2-8 ni.com
Technical Support and Professional Services
Visit the following sections of the National Instruments Web site at
ni.com
SupportOnline technical support resources include the following:
TrainingVisit
System IntegrationIf you have time constraints, limited in-house
for technical support and professional services:
Self-Help ResourcesFor immediate answers and solutions,
visit our extensive library of technical support resources available in English, Japanese, and Spanish at resources are available for most products at no cost to registered users and include software driversand updates, a KnowledgeBase, product manuals, step-by-step troubleshooting wizards, hardware schematics and conformity documentation, example code, tutorials and application notes, instrument drivers, discussion forums, a measurement glossary, and so on.
Assisted Support OptionsContact NI engineers and other
measurement and automation professionals by visiting
ni.com/ask
and connects you to the experts by phone, discussion forum, or email.
interactive CDs. You also can register for instructor-led, hands-on courses at locations around the world.
technical resources, or other project challenges, NI Alliance Program members can help. To learn more, call your local NI office or visit
ni.com/alliance
. Our online system helps you define your question
ni.com/custed
.
A
ni.com/support
for self-paced tutorials, videos, and
.These
If you searched your local office or NI corporate headquarters. Phone numbers for our worldwide offices are listed at the front of this manual. You also can visit the Worldwide Offices section of office Web sites, which provide up-to-date contact information, support phone numbers, email addresses, and current events.
© National Instruments Corporation A-1 NI PXI-562x User Manual
ni.com
and could not find the answers you need, contact
ni.com/niglobal
to access the branch

Glossary

Prefix Meanings Value
p- pico 10
n- nano- 10
µ- micro- 10
m- milli- 10
k- kilo- 10
M- mega- 10
G- giga- 10

Symbols

% percent
+ positive of, or plus
12
9
6
3
3
6
9
negative of, or minus
/per
° degree
± plus or minus
ohm
< less than
A
A amperes
A/D analog-to-digital
AC alternating current
© National Instruments Corporation G-1 NI PXI-562x User Manual
Glossary
AC coupled allowing the transmission of AC signals while blocking DC signals
ADC analog-to-digital converteran electronic device, often an integrated
circuit, that converts an analog voltage to a digital number
ADC resolution the resolution of the ADC, which is measured in bits. An ADC with
16 bits has a higher resolution, and thus a higher degree of accuracy, than a 12-bit ADC.
ADE application development environment
alias a false lower frequency component that appears in sampled data acquired
at too low a sampling rate
amplification a type of signal conditioning that improves accuracy in the resulting
digitized signal and reduces noise
amplitude flatness a measure of how close to constant the gain of a circuit remains over a range
of frequencies
analog bandwidth the range of frequencies to which a measuring device can respond
attenuate to decrease the amplitude of a signal
B
bbit—one binary digit, either 0 or 1
Bbyte—eight related bits of data, an eight-bit binary number. Also used to
denote the amount of memory required to store one byte of data.
bus the group of conductors that interconnect individual circuitry in a computer.
Typically, a bus is the expansion vehicle to which I/O or other devices are connected. An example of the PC bus is the PCI bus.
C
CCelsius
CMOS complementary metal oxide semiconductora process used in making
chips.
NI PXI-562x User Manual G-2 © National Instruments Corporation
Glossary
CMRR common-mode rejection ratio—a measure of an instrument’s ability to
reject interference from a common-mode signal, usually expressed in decibels (dB)
coupling the manner in which a signal is connected from one location to another
D
data path logic a signal router
dB decibelthe unit for expressing a logarithmic measure of the ratio of two
signal levels: dB = 20log10 V1/V2, for signals in volts
dBm decibels with reference to 1 mW, the standard unit of power level used in
RF and microwave work. Using this standard, 0 dBm equals 1 mW, 10 dBm equals 10 mW, and so on. In a 50 system, 0 dBm equals ±0.224 V
DC direct current
DDC See digital downconverter.
dead time a period of time in which no activity can occur
rms
.
default setting a default parameter value recorded in the driver. In many cases, the default
input of a control is a certain value (often 0) that means use the current default setting.
differential input an analog input consisting of two terminals, both of which are isolated from
computer ground, whose difference is measured
digital downconverter a DSP that selects only a narrow portion of the frequency spectrum, thereby
eliminating unwanted data before it is transferred into memory
dither random noise added to a signal before it is digitized to minimize distortion
created by differential nonlinearity
DMA direct memory accessa method by which data is transferred to/from
computer memory from/to a device or memory on the bus while the processor does something else. DMA is the fastest method of transferring data to/from computer memory.
double insulated a device that contains the necessary insulating structures to provide electric
shock protection without the requirement of a safety ground connection
© National Instruments Corporation G-3 NI PXI-562x User Manual
Glossary
drivers software that controls a specific hardware instrument
DSP digital signal processor
E
EEPROM electrically erasable programmable read-only memoryROM that can be
erased with an electrical signal and reprogrammed
F
FFT fast Fourier transform
filtering a type of signal conditioning that allows you to remove unwanted signals or
frequency components from the signal you are trying to measure
G
gain the factor by which a signal is amplified, sometimes expressed in decibels
H
hardware the physical components of a computer system, such as the circuit boards,
plug-in boards, chassis, enclosures, peripherals, cables, and so on
harmonics multiples of the fundamental frequency of a signal
Hz hertzthe number of scans read or updates written per second
I
I/O input/outputthe transfer of data to/from a computer system involving
communications channels, operator interface devices, and/or data acquisition and control interfaces
impedance resistance
in. inch or inches
inductance the relationship of induced voltage to current
NI PXI-562x User Manual G-4 © National Instruments Corporation
Glossary
input bias current the current that flows into the inputs of a circuit
input impedance the measured resistance and capacitance between the input terminals of a
circuit
instrument driver a set of high-level software functions that controls a specific plug-in DAQ
board. Instrument drivers are available in several forms, ranging from a function callable language to a virtual instrument (VI) in LabVIEW.
interrupt a computer signal indicating that the CPU should suspend its current task
to service a designated activity
interrupt level the relative priority at which a device can interrupt
ISA industry standard architecture
L
LabVIEW Laboratory Virtual Instrument Engineering Workbencha program
development application based on the programming language G and used commonly for test and measurement purposes
LSB least significant bit
M
m meters
M (1) Mega, the standard metric prefix for 1 million or 10
units of measure such as volts and hertz; (2) mega, the prefix for 1,048,576,
20
or 2
, when used with B to quantify data or computer memory
MB megabytes of memory
MITE MXI Interface to Everythinga custom ASIC designed by NI that
implements the PCI bus interface. The MITE supports bus mastering for high-speed data transfers over the PCI bus.
multiple-record
multiple, distinct chunks (or records) of data
acquisition
© National Instruments Corporation G-5 NI PXI-562x User Manual
6
,whenusedwith
Glossary
N
noise an undesirable electrical signalnoise comes from external sources such as
the AC power line, motors, generators, transformers, fluorescent lights, soldering irons, CRT displays, computers, electrical storms, welders, radio transmitters, and internal sources such as semiconductors, resistors, and capacitors. Noise corrupts signals you are trying to send or receive.
O
OhmsLaw (R=V/I)—the relationship of voltage to current in a resistance
onboard memory the device memory. Onboard memory is distinct from computer memory.
overcurrent amperages above the maximum power level specified for a device
overrange a segment of the input range of an instrument outside of the normal
measuring range. Measurements can still be made, usually with a degradation in specifications.
P
PCI Peripheral Component Interconnecta high-performance expansion bus
architecture originally developed by Intel to replace ISA and EISA; it is achieving widespread acceptance as a standard for PCs and workstations and offers a theoretical maximum transfer rate of 132 Mbytes/s
peak value the absolute maximum or minimum amplitude of a signal (AC + DC)
PFI Programmable Function Input
PLL phase-locked loopan electronic circuit that controls an oscillator so that
it maintains a constant phase angle relative to a reference signal
PXI PCI eXtensions for InstrumentationPXI is an open specification that
builds on the CompactPCI specification by adding instrumentation-specific features
NI PXI-562x User Manual G-6 © National Instruments Corporation
R
Rresistor
RAM random-access memory
Glossary
random interleaved sampling (RIS)
real-time sampling sampling that occurs immediately
record length the size of a chunk (or record) of data that can be or has been acquired by a
resolution The smallest amount of input signal change that an instrument or sensor can
rms root mean squarea measure of signal amplitude; the square root of the
ROM read-only memory
method of increasing sample rate by repetitively sampling a repeated waveform
device
detect. Resolution can be expressed in bits, in proportions, or in percent of full scale. For example, a system has 12-bit resolution, one part in 4,096 resolution, and 0.0244% of full scale.
average value of the square of the instantaneous signal amplitude
S
s seconds
S samples
S/s samples per secondused to express the rate at which an instrument
samples an analog signal
sample rate the speed that a device can acquire data
sense in 4-wire resistance the sense measures the voltage across the resistor
being excited by the excitation current
settling time the amount of time required for a voltage to reach its final value within
specified limits
© National Instruments Corporation G-7 NI PXI-562x User Manual
Glossary
Shannon Sampling Theorem
a theorem stating that a signal must be sampled at least twice as fast as the bandwidth of the signal to accurately reconstruct the signal as a waveform
source impedance a parameter of signal sources that reflects current-driving ability of voltage
sources (lower is better) and the voltage-driving ability of current sources (higher is better)
system noise a measure of the amount of noise seen by an analog circuit or an ADC when
the analog inputs are grounded
T
temperature coefficient
thermal drift measurements that change as the temperature varies
thermal EMFs thermal electromotive forcesvoltages generated at the junctions of
thermoelectric potentials
TIO timing input/outputthe engine used for timing and control.
the percentage that a measurement will vary according to temperature. See also thermal drift.
dissimilar metals that are functions of temperature. Also called thermoelectric potentials.
See thermal EMFs.
transfer rate the rate, measured in bytes/s, at which data is moved from source to
destination after software initialization and set up operations; the maximum rate at which the hardware can operate
trigger any event that causes or starts some form of data capture
TTL transistor-transistor logica digital circuit composed of bipolar transistors
wired in a certain manner
V
V volts
V
AC
V
DC
NI PXI-562x User Manual G-8 © National Instruments Corporation
volts alternating current
volts direct current
Glossary
V
error
voltage error
vertical sensitivity the smallest voltage change a device can detect
VI virtual instrument(1) a combination of hardware and/or software
elements, typically used with a PC, that has the functionality of a classic stand-alone instrument (2) a LabVIEW software module (VI), which consists of a front panel user interface and a block diagram program
V
rms
volts, root mean square value
W
waveform shape the shape the magnitude of a signal creates over time
working voltage the highest voltage that should be applied to a product in normal use,
normally well under the breakdown voltage for safety margin
© National Instruments Corporation G-9 NI PXI-562x User Manual

Index

A
acquiring data
multi-record acquisitions, 2-6 programmatically, 1-3
ADC, 2-3
B
basic signal flow (figure), 2-1 block diagram for NI PXI-562x digitizer, 2-5
C
calibration, 2-7 conditioning signals
AC coupling, 2-3 dither, 2-3 gain, 2-3
input impedance, 2-3 connecting signals, 2-2 contacting National Instruments, A-1 conventions used in the manual, ix coupling, 2-3 customer
education, A-1
professional services, A-1
technical support, A-1
D
data acquisition
multi-record acquisitions, 1-3, 2-6
programmatically, 1-3 data, storing in memory, 2-4 DDC (digital downconverter)
incorporating, 2-4
overview, 2-4
dead time, in multiple-record acquisitions, 2-6 diagnostic resources, A-1 digital downconverter. See DDC (digital
downconverter) digitizing the signal (ADC), 2-3 dither, 2-3 documentation
conventions used in manual, ix online library, A-1 related documentation, x
drivers
instrument, A-1 software, A-1
E
example code, A-1
F
frequently asked questions, A-1 front panel (figure), 2-2
G
gain, 2-3
H
hardware installation, 1-1 hardware overview
basic signal flow (figure), 2-1 block diagram, 2-5 calibration, 2-7 conditioning signals
coupling, 2-3 dither, 2-3
© National Instruments Corporation I-1 NI PXI-562x User Manual
Index
gain, 2-3 input impedence, 2-3
help
professional services, A-1 technical support, A-1
I
incorporating DDC, 2-4 input impedence, 2-3 installing software and hardware, 1-1 instrument drivers, A-1
K
KnowledgeBase, A-1
M
MITE interface, 2-6 multiple-record acquisitions
overview, 2-6 timing diagram (figure), 2-7
N
National Instruments
customer education, A-1 professional services, A-1 system integration services, A-1 technical support, A-1 worldwide offices, A-1
NI PXI-562x digitizer
See also hardware overview acquiring data programmatically, 1-3 block diagram, 2-5 front panel (figure), 2-2 installing software and hardware, 1-1 safety information, 1-4
NI-SCOPE driver, 1-1
O
online technical support, A-1
P
phase detector, 2-5 phase-locked loop (PLL), 2-5 phone technical support, A-1 professional services, A-1 programmatically acquiring data, 1-3 programming examples, A-1 PXI devices, multiple, synchronizing, 2-8 PXI installation, 1-1
R
REF CLK IN connector, 2-2, 2-8 related documentation, x
S
safety information, 1-4 signal conditioning
coupling, 2-3 dither, 2-3 gain, 2-3 input impedance, 2-3
signal path from NI PXI-562x to host
computer, 2-1 SMA connectors, 2-2, 2-8 software drivers, A-1 software installation, 1-1 specifications. See related documentation storing data in memory, 2-4 support
technical, A-1 synchronizing multiple PXI devices, 2-8 system integration services, A-1 System Reference Clock, PXI, 2-8
NI PXI-562x User Manual I-2 ni.com
Index
T
technical support, A-1 telephone technical support, A-1 TIO (timing engine), 2-6 training
customer, A-1 trigger and clock routing area, 2-6 triggering
digital trigger sources (figure), 2-7
overview, 2-7 troubleshooting resources, A-1
V
voltage controlled crystal oscillator
(VCXO), 2-6
W
Web
professional services, A-1 technical support, A-1
worldwide technical support, A-1
© National Instruments Corporation I-3 NI PXI-562x User Manual
Loading...
