Contents
Chapter 1
Introduction to NI-IMAQdx
About the NI-IMAQdx Software...................................................................................1-1
Application Development Environments ........................................................1-2
Configuring Your Camera...............................................................................1-2
Fundamentals of Building Applications with NI-IMAQdx...........................................1-3
This chapter describes the NI-IMAQdx driver software, lists the supported
application development environments (ADEs), describes the
fundamentals of creating applications using NI-IMAQdx, describes the
files used to build these applications, and explains where to find sample
programs.
About the NI-IMAQdx Software
NI-IMAQdx gives you the ability to use GigE Vision cameras and
IEEE 1394 industrial digital video cameras to acquire images. You can
use cameras with the following output formats:
•Monochrome (8–16 bits/pixel)
•RGB (24–48 bits/pixel)
•YUV 4:1:1 (12 bits/pixel)
•YUV 4:2:2 (16 bits/pixel)
•YUV 4:4:4 (24 bits/pixel)
•Bayer (8–16 bits/pixel)
1
The cameras may operate at various resolutions and frame rates, depending
on camera capabilities.
NI-IMAQdx complies with the Automated Imaging Association GigE
Vision specification and the 1394 Trade Association Industrial and
Instrumentation specification for Digital Cameras (IIDC), and controls
all available modes and features of the digital camera.
Note Refer to the NI Vision Acquisition Software Release Notes for the specific version of
the IIDC specification or the GigE Vision specification to which this driver complies.
This release of NI-IMAQdx supports the following ADEs
for Windows Vista/XP/2000:
•LabVIEW version 7.1.1 and later
•LabVIEW Real-Time Module version 7.1.1 and later
•LabWindows
•Microsoft Visual C/C++ version 6.0 and later
•Microsoft Visual Basic version 6.0 and later
•Microsoft Visual Studio .NET 2003 and later
Note Although the NI-IMAQdx software has been tested and found to work with these
ADEs, other ADEs may also work.
™
/CVI™ version 7.0 and later
Configuring Your Camera
Use National Instruments Measurement & Automation Explorer (MAX) to
configure your camera. Refer to the Measurement & Automation Explorer Help for NI-IMAQdx for information about configuring your camera. You
can access the Measurement & Automation Explorer Help for NI-IMAQdx
from within MAX by going to Help»Help Topics»NI-IMAQdx.
The camera configuration is saved in a camera file, which the NI-IMAQdx
VIs and functions use to configure a camera and supported attributes.
NI-IMAQdx User Manual1-2ni.com
Chapter 1Introduction to NI-IMAQdx
Fundamentals of Building Applications with NI-IMAQdx
Architecture
Figure 1-1 illustrates the NI-IMAQdx driver architecture.
LabVIEW
NIIMAQDX.DLL
Application Level
Kernel Level
NIIMAQDXK.DLL
Windows Kernel
NIPALK.SYS
1
OCHI1394.SYS
1394BUS.SYS
1
Components provided by the underlying operating system.
TCPIP.SYS
NDIS.SYS
NIGEV.SYS
LabWindows/CVI
Visual C++
LabVIEW RT Kernel
1
11
NIPALP.DLL
TNF.DLL
Figure 1-1. NI-IMAQdx Architecture
The architecture uses a hardware abstraction layer, which separates
software API capabilities, such as general acquisition and control
functions, from hardware-specific information. This layer lets you run
your application on different operating systems and use updated versions
of the driver without having to recompile your application.
The NI-IMAQdx function libraries are dynamic link libraries (DLLs),
which means that NI-IMAQdx routines are not linked into the executable
files of applications. Only the information about the NI-IMAQdx routines
in the NI-IMAQdx import libraries is stored in the executable files.
Import libraries contain information about their DLL-exported functions.
They indicate the presence and location of the DLL routines. Depending
on the development tools you use, you can give the DLL routines
information through import libraries or through function declarations.
Your NI-IMAQdx software contains function prototypes for all routines.
Example Programs
You can find NI-IMAQdx code examples in the following directories.
Note If you installed NI-IMAQdx in the default location, you can find the following
example directories within
C:\Program Files\National Instruments.
•LabVIEW—
LabVIEW\examples\imaq. For a brief description of
any example VI, open the VI, and select Windows»Show VI Info for
a text description of the example.
Tip You can access the NI-IMAQdx examples from the NI Example Finder. From
LabVIEW, go to Help»Find Examples to launch the NI Example Finder.
•CVI—
•C—
•Visual Basic—
•Microsoft Visual Studio .NET 2003—
CVI\samples\imaqdx.
NI-IMAQdx\examples\MSVC.
NI-IMAQdx\examples\VB.
MSVB.NET
. The .NET examples are converted from the NI-IMAQdx
NI-IMAQdx\examples\
for Visual Basic examples. The .NET examples are written in Visual
Basic .NET and demonstrate use of the NI-IMAQdx 3.0 Assemblies
and the IMAQ Vision 8.2 Viewer control.
Refer to the
readme.rtf file located in your target installation directory
for the latest details about the example programs.
NI-IMAQdx User Manual1-4ni.com
Basic Acquisition with
NI-IMAQdx
This chapter contains an overview of the NI-IMAQdx library, a description
of the acquisition flow of NI-IMAQdx, and generic programming
examples. The chapter also contains flowcharts of high-level and low-level
snap, grab, and sequence operations.
Introduction
The NI-IMAQdx application programming interface (API) is divided into
two main function groups: high-level and low-level.
•High-level functions—Use to capture images quickly and easily.
If you need more advanced functionality, you can mix high-level
functions with low-level functions.
–Snap functions—Capture all or a portion of a single image to the
user buffer.
–Grab functions—Perform an acquisition that loops continually on
one or more internal buffers. You can copy the last acquired buffer
to a separate user buffer for processing or analysis.
–Sequence functions—Acquire a specified number of internal
buffers and then stops.
•Low-level functions—Use when you require more direct control of the
image acquisition.
–Acquisition functions—Configure, start, stop, and unconfigure an
image acquisition, or examine a user buffer during an acquisition.
–Attribute functions—Examine and change the acquisition or
camera attributes.
–Event functions—Register events.
–Register functions—Access registers.
–Session functions—Open, close, or enumerate sessions.
Both high-level and low-level functions support snap, grab, sequence, and
triggered acquisitions. Using high-level functions, you can write programs
quickly without having to learn the details of the low-level API and driver.
The low-level functions give you finer granularity and control over the
image acquisition process, but you must understand the API and driver in
greater detail to use these functions.
Note The high-level functions call low-level functions and use certain attributes that are
listed in the high-level function description of the NI-IMAQdx Function Reference Help.
Changing the value of these attributes while using low-level functions affects the operation
of the high-level functions.
Acquisition Flow
This section describes the basic steps of performing an acquisition with the
NI-IMAQdx software. The basic steps are initialization, configuration, and
acquisition.
Opening a Camera
To acquire images using the high-level or low-level functions, you first
must open a camera session. A camera session is a process-safe handle to
a camera. The driver uses a camera session to identify the camera to which
further NI-IMAQdx functions apply. You can simultaneously open as many
camera sessions as there are cameras connected to your system.
When opening the camera session, you need to specify two parameters:
camera name and camera control mode. Refer to the following sections for
detailed information about these parameters. When an application is

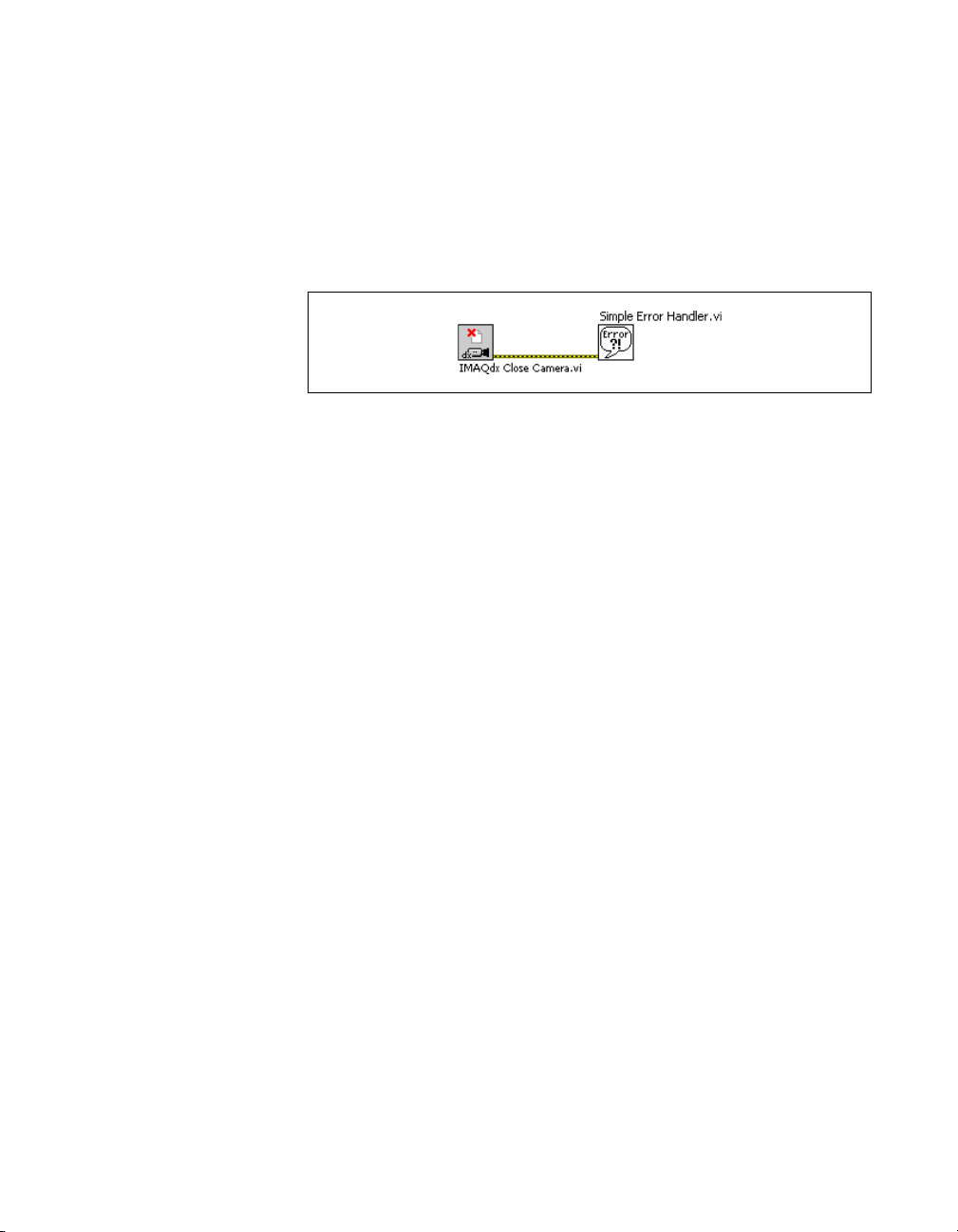

finished with the camera, call the Close Camera function to close the
camera session.
NI-IMAQdx User Manual2-2ni.com
Chapter 2Basic Acquisition with NI-IMAQdx
Camera Name
NI-IMAQdx references all camera sessions by a name. The driver creates
default names for each camera in your system in the order that the cameras
are connected. The names observe the convention shown in Table 2-1.
Table 2-1. Camera Naming Convention
Camera NameCamera Installed
cam0
cam1
Device 0
Device 1
......
cam
n
Every camera has an
.iid interface file and an .icd camera file.
Device n
•Interface files—Store information about which physical camera is
associated with a camera name. Each interface file can be used by only
a single camera.
•Camera files—Store all the configurable attributes. Camera files can
be shared between identical cameras. Use MAX to configure the
default state of a particular camera.
Figure 2-1 shows the relationship between cameras, interface files, and
camera files.
MyCam.icdCam0.iid
or
Default.icdCam1.iid
Figure 2-1. Relationship Between Cameras, Interface Files, and Camera Files
Note
Use the Enumerate function to query the number and names of available cameras.
Use the Discover Ethernet Cameras function to find ethernet cameras on the network with
a remote subnet.
When you open a camera session with the Camera Open function, the
camera with the unique serial number described by the interface file
camn.iid opens, where
is not present and a camera of the same make and model is present, as
described in the interface file, the driver opens the available camera. The
interface file updates to use the new camera. The camera file described by
the interface file opens, and all the user attributes are set in the driver. If no
camera of the same make and model is present, the Camera Open function
returns an error.
Camera Control Mode
The camera control mode parameter has two options: controller and
listener. The default option—controller—controls the camera and receives
video data. The listener only receives video data. Use the listener option in
broadcasting applications. Refer to the Broadcasting section of Chapter 3,
Advanced Programming with NI-IMAQdx, for more information about
broadcasting.
Configure the Acquisition
After opening the camera, configure the camera for acquisition by
specifying the following parameters: whether the acquisition is one-shot
or continuous, and the number of internal buffers to use.
n
is the reference to the camera. If the camera
While configuring the camera, the driver validates all the user-configurable
attributes. If any attributes are invalid or out of range, the driver returns an
error and does not configure the acquisition.
If you want to reconfigure the acquisition, call the Unconfigure Acquisition
function before calling the Configure function again.
Note National Instruments recommends that you do not configure an acquisition in a loop
because doing so is time-intensive.
One-Shot/Continuous Acquisition
Use a one-shot acquisition to start an acquisition, perform the acquisition,
and stop the acquisition using a single function. The number of images
acquired is equal to the number of images in the images collection.
With a one-shot acquisition, you specify a certain number of internal
buffers. The camera transfers each image up to and including the specified
number of buffers. The driver acquires every image during a one-shot
NI-IMAQdx User Manual2-4ni.com
Chapter 2Basic Acquisition with NI-IMAQdx
acquisition. National Instruments recommends one-shot acquisition for
applications that do not require real-time acquisition or processing.
Use a continuous acquisition to start an acquisition, continuously acquire
images into the internal buffers, and explicitly stop the acquisition. With
continuous acquisition, the driver acquires video data continuously from
the camera and enables you to examine the most current buffer. National
Instruments recommends continuous acquisition for real-time acquisition
and processing.
Note If CPU activity increases during a continuous acquisition, the driver might miss
subsequent images. Check the buffer number output to determine if you have missed any
images.
Number of Buffers
Another aspect of configuration is specifying the number of internal buffers
into which you want to acquire image data. During configuration, buffers
are allocated from system memory and page-locked. Once the acquisition
starts, the camera transfers video data over the IEEE 1394 bus to the
IEEE 1394 interface card FIFO. Then, video data is directly transferred to
the internal buffer. This transfer requires negligible CPU resources. For the
GigE Vision bus, CPU resources are used to pass network packets. For
ethernet, ethernet packets are evaluated by software and copied into an
internal buffer.
Each internal buffer you allocate is the exact size of the raw data being
transmitted by the camera. For continuous acquisitions, allocate three or
more buffers. Allocating a single buffer for a continuous acquisition may
result in a high number of lost images. For one-shot acquisitions, specify
the number of buffers that the application requires. For example, if the
application runs for two seconds, and the camera acquires at 30 frames
per second, allocate 60 buffers to capture each image.
Having more buffers available for the GigE Vision bus can increase the
reliability of data transfer, especially when there are adverse network
conditions.
Region of Interest
The region of interest (ROI) specifies a rectangular portion of the image to
be captured. If the camera supports scalable video modes, the ROI defines
the portion of the image to transfer from the camera to system memory.
If the camera does not support scalable video modes, the entire image is
transferred from the camera to system memory. In all video modes, the ROI
specifies the amount of data decoded by the driver while acquiring into a
user buffer.
By default, the driver transfers the entire image. Specify a smaller ROI for
the following reasons:
•To acquire only the necessary subset of data
•To increase the acquisition speed by reducing the amount of data
transferred and/or decoded
•To allow for multiple simultaneous acquisitions by reducing
bandwidth usage
Note Although you can specify an ROI of any size, the NI-IMAQdx software coerces the
ROI into one that is more compatible for the given camera. Refer to Chapter 3, Advanced
Programming with NI-IMAQdx, for more information about defining an ROI for scalable
images.
Pixel Format
The pixel format specifies the source type of the image format. Different
pixel formats decode into different image types. Refer to the Decoding
section for more information.
Acquisition
After configuring and starting your acquisition, the camera sends data to
the internal buffers. To process the acquired image data, you must copy the
data from the internal buffer into your user buffer.
User Buffer
Before starting the acquisition, you must allocate a user buffer in addition
to configuring internal buffers. The driver copies or decodes image data
from the internal buffer into the user buffer during acquisition. Then,
process and analyze the image in the user buffer.
When acquiring data into an image, the driver resizes and casts the image
as needed. However, if you acquire data into a user buffer, you must allocate
enough space for one decoded image.
Note Unlike internal buffers, you are responsible for destroying user buffers.
NI-IMAQdx User Manual2-6ni.com
Chapter 2Basic Acquisition with NI-IMAQdx
Buffer Number Mode
Specify one of the following options for the buffer number mode.
•Buffer Number—Gets the exact buffer number specified in the Buffer
Number parameter.
•Last—Gets the most recently acquired buffer.
•Next—Gets the next incoming buffer.
Buffer Number
A buffer number is a zero-based index that represents the cumulated
transferred image count. For example, during a continuous acquisition with
three internal buffers, the buffer number is updated as follows: 0, 1, 2, 3, 4,
5, and so on. Buffer numbers 0 and 3 refer to the same internal buffer in the
buffer ring.
For a one-shot acquisition, you can request only one of the available buffer
numbers. For a continuous acquisition, you can request any present or
future buffer number. You can also request the next logical buffer or the
buffer containing the most recently acquired data. With high-level grab
acquisitions, the buffer number defaults to the next transferred buffer.
When you complete the buffer acquisition step, the driver returns the actual
buffer number with the image.
Overwrite Mode
Ideally, a continuous acquisition acquires and processes every image that
is transferred from the camera. However, because of processing time
fluctuations, some images from the camera may not be processed before
the camera transfers the next image. Using multiple internal buffers in a
continuous acquisition allows for a small amount of jitter. However, if a
delay becomes too long, the camera overwrites the requested buffer with
new image data.
NI-IMAQdx is able to detect overwritten internal buffers. You can configure
the driver to manage an overwritten buffer in one of the following ways:
•Get newest valid buffer
•Get oldest valid buffer
•Fail and return an error
In all cases, the camera continues to transfer data when a buffer is
overwritten.
The default overwrite mode for all types of acquisition is to get the newest
valid buffer. This option, which National Instruments recommends for most
applications, enables you to process the most recent image. If you need to
get the image closest in time to a requested buffer, configure the driver to
get the oldest valid buffer. If your application requires that every image be
processed, configure the driver to fail when a buffer is overwritten so that
you are alerted.
Timeouts
A timeout is the length of time, in milliseconds, that the driver waits for an
image from the camera before returning an error. A timeout error usually
occurs if the camera has been removed from the system or when the camera
did not receive an external trigger signal.
Decoding
Except for 8-bit monochrome images, all video modes require decoding
before you can interpret the image data. For example, many color cameras
output images of type YUV 4:2:2. However, NI Vision does not natively
support the YUV mode. To process and display the image, the driver
automatically decodes the YUV image into a 32-bit RGB image.
Table 2-2 lists common video modes and their corresponding image types
after being decoded by NI-IMAQdx.
Table 2-2. Decoder Inputs and Corresponding Outputs
Raw Camera OutputDecoded Destination Image Type
8-bit monochromeImage_U8
10–16-bit monochromeImage_I16
YUV 4:1:1Image_RGB
YUV 4:2:2Image_RGB
YUV 4:4:4Image_RGB
24-bit RGBImage_RGB
30–48-bit RGBImage_RGB_U64
8-bit BayerImage_RGB
10–16-bit BayerImage_RGB
NI-IMAQdx User Manual2-8ni.com
Decoding images requires CPU resources. However, many of the decoding
algorithms have been optimized in the driver. If you do not want decoded
image data, you can use NI-IMAQdx to get a copy of the raw camera
output.
Programming Examples
This section contains examples of high-level and low-level image
acquisitions. Refer to the Example Programs section of Chapter 1,
Introduction to NI-IMAQdx, for directory paths to the code examples
discussed in this section.
High-Level Function Examples
Use high-level functions to write programs quickly without having to learn
the details of the low-level API and driver.
Snap
A snap acquires a single image into a user buffer. Figure 2-2 illustrates the
typical programming order of a high-level snap acquisition.
Chapter 2Basic Acquisition with NI-IMAQdx
Open
Snap
User-Specific Functions
Close
Figure 2-2. High-Level Snap Flowchart
Opens and configures camera
Acquires image into buffer
Executes user-specific image
processing
Closes the camera session
Use a snap for low-speed or one-shot applications where ease of
programming is essential. When you invoke a snap, the driver opens
a session on a camera and initializes the camera. Opening a session
sets the ROI to the size of the settings you configured in MAX.
