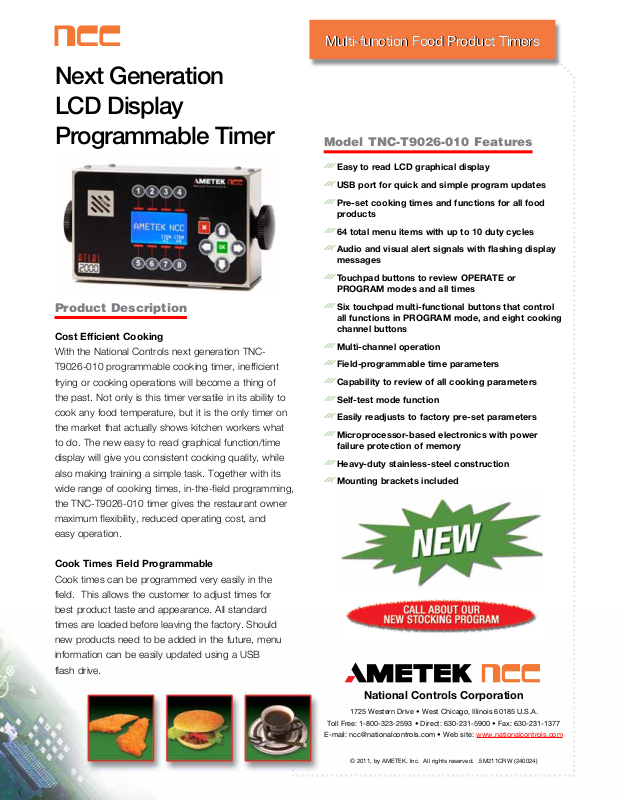

NATIONAL CONTROLS TNC-T9026-010 User Manual
Next Generation
LCD Display
Multi-function Food Product Timers
Multi-function Food Product Timers
Programmable Timer
Product Description
Cost Efficient Cooking
With the National Controls next generation TNC-
T9026-010 programmable cooking timer, inefficient
frying or cooking operations will become a thing of
the past. Not only is this timer versatile in its ability to
cook any food temperature, but it is the only timer on
the market that actually shows kitchen workers what
to do. The new easy to read graphical function/time
display will give you consistent cooking quality, while
also making training a simple task. Together with its
wide range of cooking times, in-the-field programming,
the TNC-T9026-010 timer gives the restaurant owner
maximum flexibility, reduced operating cost, and
easy operation.
Model TNC-T9026-010 Features
///
Easy to read LCD graphical display
///
USB port for quick and simple program updates
///
Pre-set cooking times and functions for all food
products
///
64 total menu items with up to 10 duty cycles
///
Audio and visual alert signals with flashing display
messages
///
Touchpad buttons to review OPERATE or
PROGRAM modes and all times
///
Six touchpad multi-functional buttons that control
all functions in PROGRAM mode, and eight cooking
channel buttons
///
Multi-channel operation
///
Field-programmable time parameters
///
Capability to review of all cooking parameters
///
Self-test mode function
///
Easily readjusts to factory pre-set parameters
///
Microprocessor-based electronics with power
failure protection of memory
///
Heavy-duty stainless-steel construction
///
Mounting brackets included
Cook Times Field Programmable
Cook times can be programmed very easily in the
field. This allows the customer to adjust times for
best product taste and appearance. All standard
times are loaded before leaving the factory. Should
new products need to be added in the future, menu
information can be easily updated using a USB
flash drive.
National Controls Corporation
1725 Western Drive • West Chicago, Illinois 60185 U.S.A.
Toll Free: 1-800-323-2593 • Direct: 630-231-5900 • Fax: 630-231-1377
E-mail: ncc@nationalcontrols.com • Web site: www.nationalcontrols.com
© 2011, by AMETEK, Inc. All rights reserved. .5M211CRW (240024)
Next Generation
LCD Display
Programmable Timer
Multi-function Food Product Timers
Multi-function Food Product Timers
.250 [6.35] DIA MOUNTING HOLE 4 PLACES
7.756 ±.040 [197.00 ±1.02]
OPENING FOR
AUDIBLE ALERT
2000
.975 ±.062 [24.7 ±1.57]
8.130 [206.50]
10.204 [259.18] MAX.
4321
8765
Nat io na l C ont ro ls Co rp .
CANCEL
OK
MOUNTING BRACKETS ARE NOT ATTACHED
WHEN TIMER IS SHIPPED.
6.225 [158.12]
4.700 [119.38]
2.050 [52.07]
Operating Specifications
Operating Voltage: 105-265 VAC, 50/60 Hz
Power Consumption: 20 VA (max.)
Display: 128 x 64 pixel monochrome LCD 2.5” x 1.5”
Timing Accuracy: ±0.5%
Audio Alert: 80db ± 5db at 3.2 KHz, 2’ from speaker
Maximum Menu List: 64 items, with ten functions per item
Number of Timing Cycles: Selectable for up to 8 channels
UL/CUL
1.000 [25.40]
72.000 ±2
[1828.80 ± 50.8]
MANUFACTURED BY
AMETEK/NATIONAL CONTROLS CORPORATION
FOR SERVICE CALL 800-323-2593
MULTI-PRODUCT TIMER
CATALOG NO.: A2000
MODEL: TNC-T9026-
120/240 VAC, 50/60 HZ, 2.3 WATTS
DATE CODE:
ASSEMBLED IN MEXICO
662P
USB
CONNECTOR
COMMERCIAL
COOKING APPLIANCE
255R
RoHS
IN
(CM)
ON
OFF
POWER
Dimensions
Free-Standing: W-8.2” x H-4.6” (21.84 cm x 11.68 cm)
WARRANTY
National Controls Corporation warrants this products for a period of two (2) years from date of receipt by user against defective material
or workmanship, but not against damage caused by accident, abuse, faulty installation, or improper application or operation. During this
period, National Controls will, at its option, repair or replace defective products returned, transportation charges prepaid, to its factory.
National Controls shall not be liable for any indirect or consequential damages. To the extent permitted by law, this warranty is given in
lieu of all other warranties expressed or implied, and National Controls neither assumes nor authorizes any person to assume for it any
liability beyond that stated herein.
