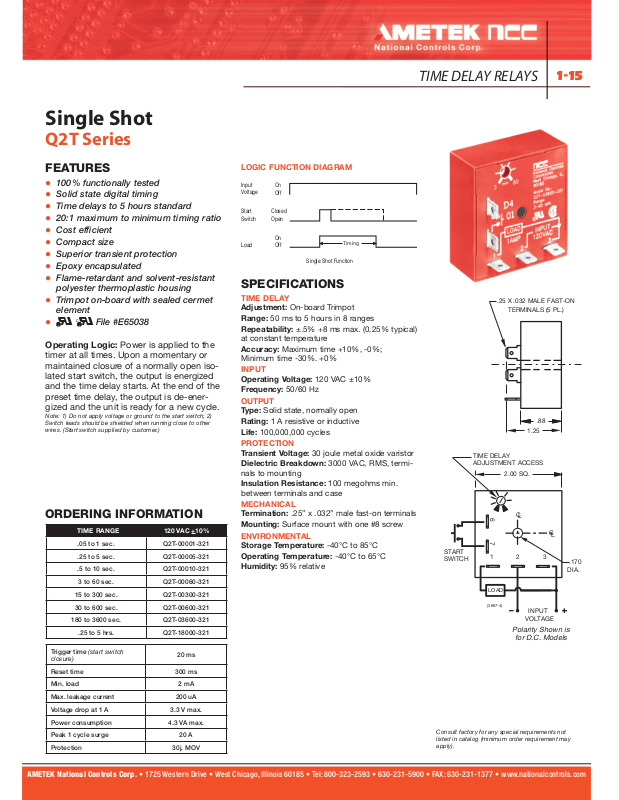

Q2T Series
TIME DELAY RELAYS
1-15
FEATURES
100% functionally tested
●
Solid state digital timing
●
Time delays to 5 hours standard
●
20:1 maximum to minimum timing ratio
●
Cost efficient
●
●
Compact size
●
Superior transient protection
●
Epoxy encapsulated
●
Flame-retardant and solvent-resistant
polyester thermoplastic housing
●
Trimpot on-board with sealed cermet
element
●
File #E65038
Operating Logic: Power is applied to the
timer at all times. Upon a momentary or
maintained closure of a normally open iso
lated start switch, the output is energized
and the time delay starts. At the end of the
preset time delay, the output is de-ener
gized and the unit is ready for a new cycle.
Note: 1) Do not apply voltage or ground to the start switch; 2)
Switch leads should be shielded when running close to other
wires. (Start switch supplied by customer.)
ORDERING INFORMATION
TIME RANGE 120 VAC +10%
.05 to 1 sec. Q2T-00001-321
.25 to 5 sec. Q2T-00005-321
.5 to 10 sec. Q2T-00010-321
3 to 60 sec. Q2T-00060-321
15 to 300 sec. Q2T-00300-321
30 to 600 sec. Q2T-00600-321
180 to 3600 sec. Q2T-03600-321
.25 to 5 hrs. Q2T-18000-321
LOGIC FUNCTION DIAGRAM
SPECIFICATIONS
TIME DELAY
Adjustment: On-board Trimpot
Range: 50 ms to 5 hours in 8 ranges
Repeatability: ±.5% +8 ms max. (0.25% typical)
at constant temperature
Accuracy: Maximum time +10%, -0%;
Minimum time -30%. +0%
-
INPUT
Operating Voltage: 120 VAC ±10%
-
Frequency: 50/60 Hz
OUTPUT
Type: Solid state, normally open
Rating: 1 A resistive or inductive
Life: 100,000,000 cycles
PROTECTION
Transient Voltage: 30 joule metal oxide varistor
Dielectric Breakdown: 3000 VAC, RMS, termi
nals to mounting
Insulation Resistance: 100 megohms min.
between terminals and case
MECHANICAL
Termination: .25” x .032” male fast-on terminals
Mounting: Surface mount with one #8 screw
ENVIRONMENTAL
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 65°C
Humidity: 95% relative
-
Trigger time (start switch
closure)
Reset time 300 ms
Min. load 2 mA
Max. leakage current 200 uA
Voltage drop at 1 A 3.3 V max.
Power consumption 4.3 VA max.
Peak 1 cycle surge 20 A
Protection 30j. MOV
