Let’s build the
Jenny Side Table
SKU 34505
N
I
U
M
0
6
60
A
S
S
T
E
Y
L
B
E
M
Scan me!
Inspiration
Digital Instructions
Free Lifetime Warranty
22-0111
Ok, let’s
get rolling
What’s included
Description Qty
A Top Panel 1
This should be easy, just follow
our instructions and you will be
back to Netflix in no time.
Estimated time for assembly
60:00
What you need
• Some of your favourite bubbly
or your preferred relaxant
• Use the packaging carton as
a working surface to prevent
product damage during assembly
• Phillips head screwdriver
B Bottom Panel 1
C Shelf Panel 1
D Left Side Panel 1
E Left Side Panel 1
F Right Side Panel 1
G Right Side Panel 1
H Back Panel 1
J Drawer Bottom Panel 1
L Drawer Back Panel 1
• Drill with 1/4” and/or 5/16” drill bits
Weight Limitation
90
lbs top11lbs drawer
Toll-free at 1-866-619-1004
Help@nathanjames.com
Nathanjames.com/help
24
lbs shelf
M Drawer Front Panel 1
N Left Drawer Side Panel 1
O Right Side Drawer Panel 1
P Metal Frame 2
Scan me!
Inspiration
Digital Instructions
Free Lifetime Warranty
2
The goods
A
D G H
J L M N O
E F
B C
P
IMPORTANT
1. Do not tighten bolts / screws completely until all bolts / screws are lined up and
inserted into holes.
2. Do not over tighten screws and bolts to avoid stripping.
3. Please use hand tools to assemble this product. Do not use power tools.
3
What’s included
Description Qty
1 M6*15 mm Bolt 4
2 Cam Bolt 8
3 Cam Lock 8
4 Wooden Dowel 16
5 Handle 1
6 M4.2*40 mm Screw 8
7 M4*23 mm Bolt 2
8 M3.5*12 mm Screw 12
M4.2*32 mm Screw for
9
Non-drywall Anchor
M4.2*50 mm Screw for
10
Drywall Anchor
11 Non-drywall Anchor 2
12 Drywall Anchor 2
13 Plastic Pad 4
14 Allen Key 1
2
2
15 Drawer Runner Set 1
4
The goods
1
8 9 10 11 12 13 14
left drawer runner right drawer runner left cabinet rail right cabinet rail
2 3 4 5 6 7
15
5
Step 1
Let’s get this thing fired up! We’ll start with the Cam Locks (2) and Wooden Dowels (4). Insert the
Wooden Dowels (4) into the sides of the Left Side Panels (D)(E) and Right Side Panels (F)(G). Screw
the Cam Bolts (2) into the Top Panel (A) and Drawer Front Panel (M).
4
2
2
4
4
4
D
2
2
A
2
2
2
2
M
4
E
4
4
F
4
4
4
D
4
4
4
4
G
4
4
Step 2
Now let’s put those pieces together!
Align the Left Side Panels (D)(E)
and the Right Side Panels (F)(G) on
top of the Top Panel (A). The Cam
Bolts you inserted in the last step
should align with the holes in the
side panels. Use Cam Locks (3) to
secure the panels in place.
3
3
F
G
6
3
3
A
E
Step 3
Now it’s time to assemble
the Cabinet Rails (15).
We’ll be using the rails
labeled CL and CR.
Attach the CL rail using
M3.5*12 mm Screws (8).
Be sure that the wheel of
the rail is facing the front
of the cabinet. Repeat
this process for the CR
rail, again ensuring the
wheel of the rail is facing
the front of the cabinet.
Front
15
Back
Back
8
8
8
Front
Back
Next, slide the Back Panel
(H) into the groove in the
back of the cabinet.
8
8
8
Front
Back Front
15
7
Step 4
Attach the Bottom Panel
(B) to the cabinet you built
in the previous steps with
M4.2*40 mm Screws (6).
6
6
6
Step 5
6
B
6
6
You’re doing great! Now it’s
time to start on the drawer.
Attach the Left Drawer Side
Panel (N) and the Right
Drawer Side Panel (O) to the
Drawer Back Panel (L) using
M4.2*40 mm Screws (6).
6
6
O
L
N
8
Step 6
Slide the Drawer Bottom
Panel (J) into the drawer
base you created in the
last step.
J
Step 7
Time to finish up this drawer.
Attach the Handle (5) to the
Drawer Front Panel (M) with
M4*23 mm Bolts (7). Next,
attach the Drawer Front
Panel (M) and lock into
place with Cam Locks (3).
3
3
7
7
3
M
3
5
9
Step 8
Time to attach the Drawer Runners (15). We’ll be attaching the
runners labeled DL and DR. Attach DL underneath the drawer
on the left side with M3.5*12 mm Screws (8). Be sure the wheel
of the rail is facing the back of the drawer. Repeat this process
with the right side rail labeled DR.
8
Step 9
8
8
8
8
8
8
8
left drawe r runner right drawer runner
Drawer runner x 1 set
15
1
You’re almost done! Now
would be a good time to
order a pizza to enjoy with
your new side table. Attach
the Metal Frames (P) to the
bottom of the Bottom Panel
(B) and Shelf Panel (C) with
M6*15 mm Bolts (1). Use
the Allen Key (14) to tighten
bolts.
1
P
B
C
1
1
10
P
Step 10
Slide the completed
drawer into the cabinet.
Cabinet
Slide
Drawer
Slide
Step 11
Attach Plastic Pads (13)
to each corner of the
back of the drawer.
13
13
11
Step 12
You made it to the last
step! We’re so proud of
you. Time to attach this
baby to the wall! We’ll
be using screws and
anchors to secure it. See
the following pages for
detailed instructions on
how to do this.
12
10
12
10
11
12
11
9
10
11
9
9
Please note…
Parts 9 & 11 are
for non-drywall
applications. Parts 10
& 12 are for drywall
applications.
See following pages
for more detailed
instructions.
12
Step 12 (cont.)
Non-drywall application
Mark it
Chose your desired location on the wall, have your
friend hold the table in place and use a pencil to
mark where the anchors will go.
1/4” Drill bit
Move the table to the side and following the marks you
just made, with a 1/4” drill bit, drill 2 holes into the wall.
Insert the anchors
Go ahead and tap the wall anchors into place in the new
holes that you just drilled.
If you’re feeling strong, just go ahead and push it in.
All about the angle
Insert 1 screw through each metal bracket and
into the wall anchor. Tilt your phillips head
screwdriver, and secure but do not over tighten.
11
11
9
13
Step 12 (cont.)
Drywall application
Mark it
Chose your desired location on the wall, have your
friend hold the table in place and use a pencil to
mark where the anchors will go.
5/16” Drill bit
Move the table to the side and following the marks you just
made, with a 5/16” drill bit, drill 2 holes into the wall.
Insert the anchors
Go ahead and tap the wall anchors into place in the new
holes that you just drilled.
If you’re feeling strong, just go ahead and push it in.
All about the angle
Insert 1 screw through each metal bracket and
into the wall anchor. Tilt your phillips head
screwdriver, and secure but do not over tighten.
12
12
10
14
Step 12 (cont.)

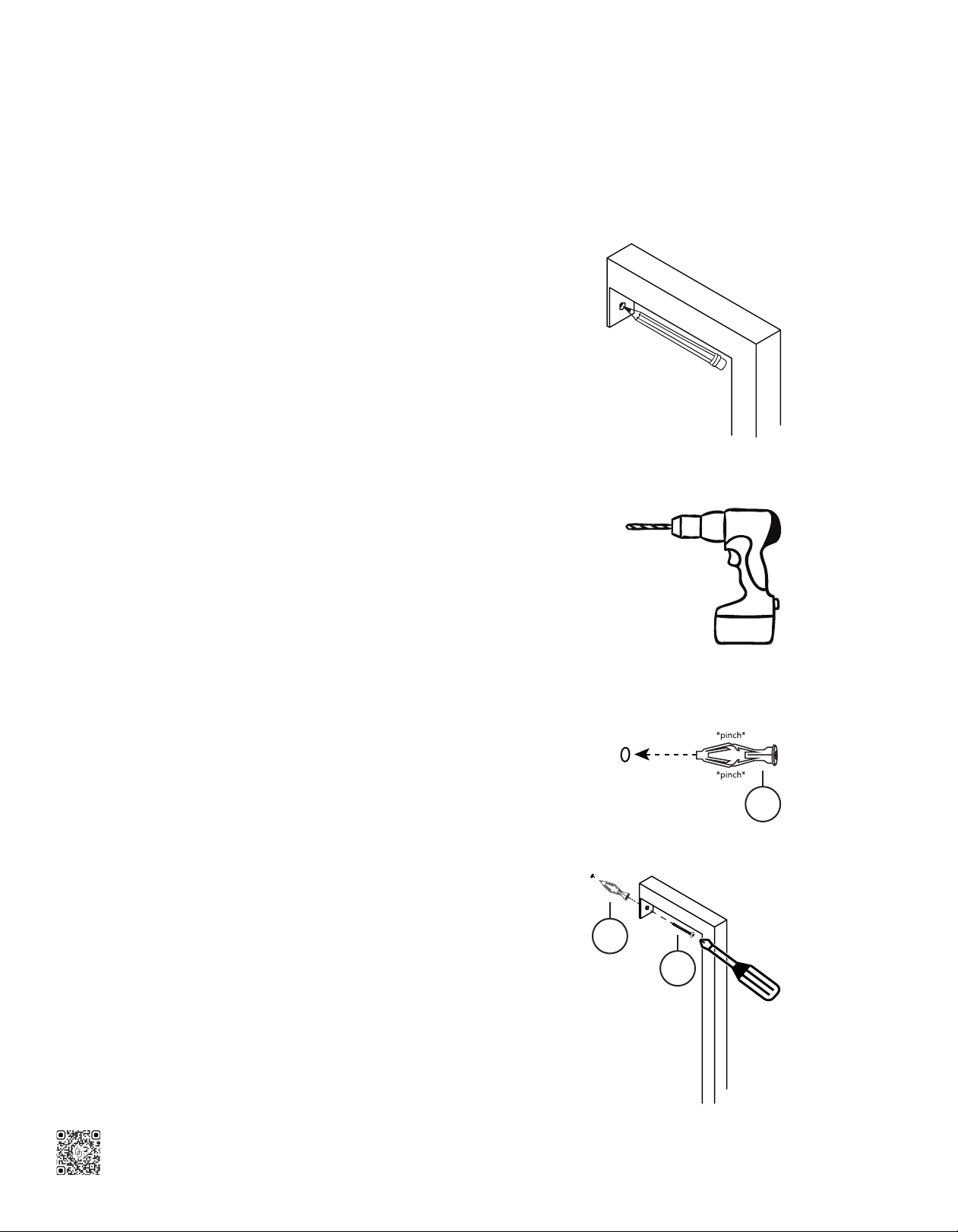

How to use drywall anchors
1. Drill hole with 5/16” bit
2. Pinch and insert
3. Begin tightening 4. Tighten to 100%
15
No heartburn,
when we handle the return
Give us a call 1-866-619-1004 or shoot us a message
at help@nathanjames.com we will issue you a free
replacement with zero hassle.
Our way Their way
Give us a call
Replacement
You
We really don’t want you to go through the hassle of re-packaging your item
and sending it back, because let’s be honest…nobody has time for that.
Re-package item
Schedule pick up
Track package
Replacement
You
16
Safety first, fun later
We want your Jenny Side Table to last as long as possible, so we recommend
that you tighten the screws 2 weeks after assembly and for added safety
check the tightness of all screws every 2 months.
For proper care and treatment of fabric & metal please check our website
at NathanJames.com/products
Safe use of this product
starts with you.
Use this side table responsibly with the primary
concern for your safety. Follow assembly
instructions carefully and inspect product upon
receipt and each use.
Nathan James and its parent companies cannot
be held legally responsible for any injuries or
death resulted from failure to follow instructions
or improper use of this product.
DO NOT use for commercial purposes
DO NOT place on uneven floor or surface
DO NOT use as a step stool or stand on table
DO NOT leave spilled liquid on table top
Do not modify the
structure of this
product in any way.
Our products have been tested to meet specific
safety measures as they were originally
intended to be sold. Any modifications will
present the risk of creating significant safety
issues which NJ will not be responsible for.
Proper use
DO NOT put hot serving liquid directly on table top
DO NOT use table if damaged or broken
DO NOT make temporary repairs
DO NOT use outdoors
17
