Telephone Line Monitor
USER GUIDE
For Technical Assistance
Please Phone: (07) 5596 5128
DESCRIPTION
Our Telephone Line Monitor (TLM) device is designed to activate whenever
the Telephone Line that it is connected to has been disconnected or cut.
The incoming Telephone Line MUST connect to the LINE IN port of TLM.
All telephones and telephone devices MUST connect to the LINE OUT port of
TLM.
This is extremely important because Telephone Devices connected in Parallel
to the same Telephone Line as TLM will activate the TLM Relay whenever they
are used.
TLM is totally ‘Transparent’ in operation and will not affect the use of the
Telephone Line in any way.
TELEPHONE LINE DISCONNECTION
TLM’s function is to constantly monitor the Telephone Line that it is connected
to and only respond when the telephone line connected to it has been
disconnected or cut.
In the event that this happens, after 6 seconds TLM will automatically CLOSE
the contacts of an Internal Relay, which in turn can be used to trigger other
external equipment to advise of the loss of Telephone Line. The contact of the
Internal Relay will remain closed until the telephone line service has been
restored.
TLM’s Internally Relay has Dry Relay Contacts, rated at 12V/1A.
Three Optional low cost Accessories are available from Natcomm for use with
TLM, to alert the user that the Telephone Line has been lost. These Accessory
Devices are all designed for Easy User Installation. See page 5 for further details.
The Relay Output of TLM can alternatively be used to Control a 3rd Party
Electrical Device (not supplied). An Accessory Device Connection box (with 2
screw terminals) is supplied for this purpose and connects to TLM via a short
supplied cable.
Important Note : TLM waits 6 seconds before activating the internal relay,
should it detect that a telephone line connected to it has been disconnected or
cut This period is designed to overcome false alarms should a very brief
interruption to the telephone line service occur.
Page 2 National Communications
DESCRIPTION Continued
TELEPHONE LINE CONNECTION
1. Single Telephone Socket Operation
TLM can be connected to ANY Telephone Socket on the Telephone Line.
If another Telephone Device is to be used on the same Telephone
Socket, then it can be connected using a Double Telephone Adaptor (not
supplied) to the LINE OUTPUT Port of TLM.
2. Multiple Telephone Socket Operation
a) The LINE IN port of TLM MUST be connected to the Incoming
Telephone Line (which connects to the first socket on your line).
b) The LINE OUT port of TLM MUST be then be connected to all
Telephone sockets on the Telephone Line.
c) This installation procedure MUST be carried out by a suitably qualified
telephone technician.
d) This will ensure that there are NO Parallel connected Telephone
Devices used on the same line, which would cause TLM to respond as
if the Telephone Line was Cut or Disconnected.
POWER CONNECTION
A 12VAC Power Adaptor is supplied with TLM. It can also be operated
from a 12VDC source, with a minimum capacity of 300mA. If an
alternative 12VDC source is used, polarity is not important.
OPERATION WITH ADSL
TLM can operate on a Telephone Line which also has an ADSL service.
TLM will not affect the ADSL operation.
ADSL will not affect the operation of TLM.
If used, the ADSL FILTER should be fitted ahead of the TLM device.
National Communications Page 3
INSTALLATION INSTRUCTIONS
1. Telephone Line Connection
The incoming Telephone Line MUST connect to the LINE IN port of TLM.
All telephones and telephone devices MUST connect to the LINE OUT port
of TLM.
This is extremely important because Telephone Devices connected in
Parallel to the same Telephone Line as TLM will activate the TLM Relay
whenever they are used.
2. Accessory Device Connection
(Light, Loud Siren or other device)
If you are connecting a NATCOMM Accessory, refer to pages 5-11.
If you are connecting a THIRD PARTY ELECTRICAL Accessory, refer
to pages 12 - 15.
An interface box with 2 screw terminals is supplied to provide a convenient
means of connecting your 3rd Party Electrical Device to the Relay contacts
located within TLM.
A short connection lead is also supplied to connect the connection box to
TLM.
Important Note : The Dry Contact Relay within TLM is rated at
12V and 1Amp. If you exceed either of these parameters,
permanent damage will result.
3.
Power Adaptor Connection
CONNECT the supplied 12VAC Power Supply (or alternative 12V source)
and switch it ON.
Page 4 National Communications

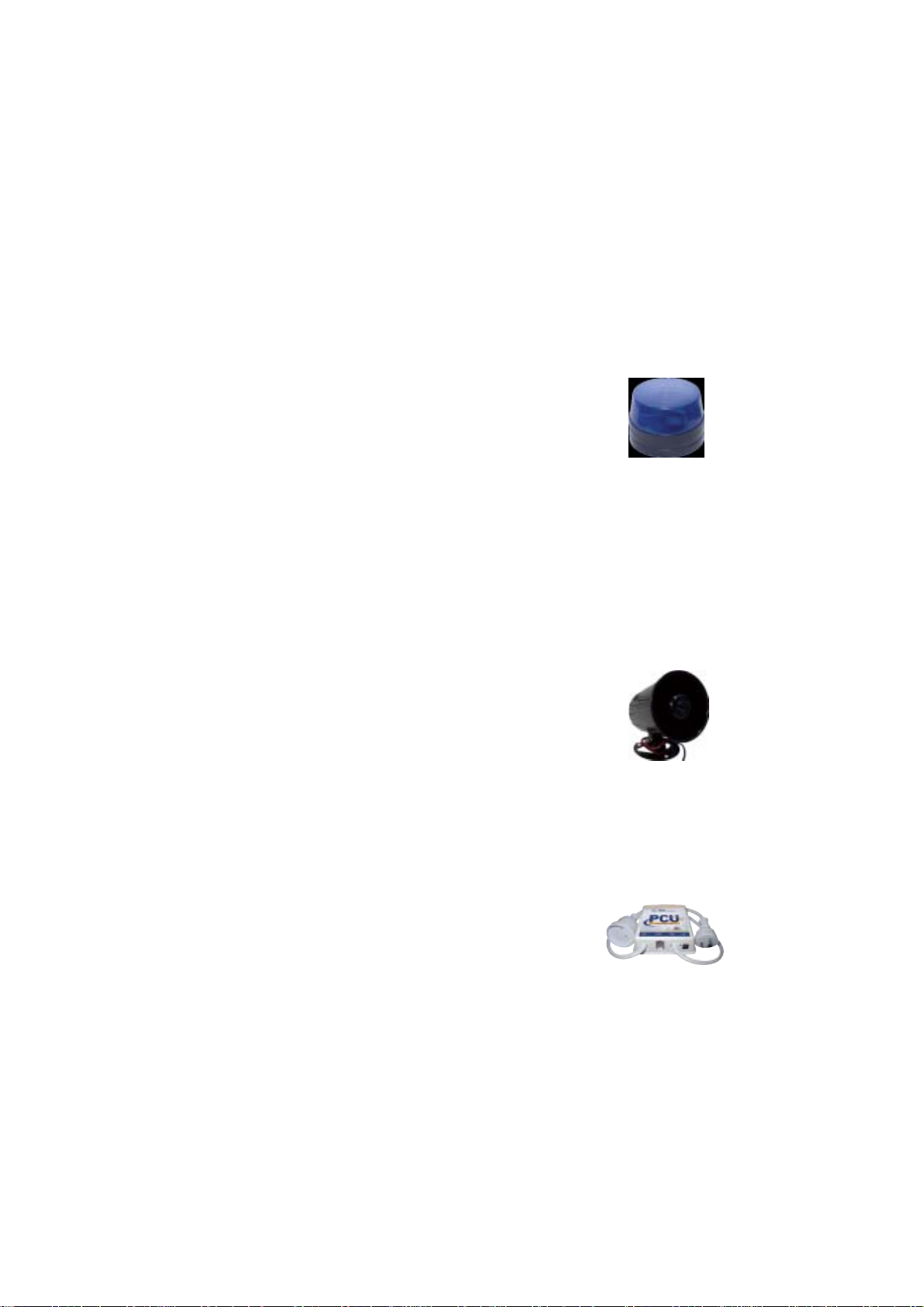

NATCOMM ACCESSORIES
1) Mini Strobe Light (blue)
The Siren accessory connects to the Relay Output
port of TLM via the ‘Connection Box’ and short
cable supplied with this accessory. A 10 metre
cable is supplied with this accessory that can be
shortened or lengthened as necessary (polarity is
important please see bold section below).
Please Note : Wiring polarity IS VERY important for this
Accessory. Permanent damage will result if the
polarity of the Red and Red/Black wires is not
maintained.
2) Siren Speaker with V olume Control
The Strobe Light accessory connects to the Relay
Output port of TLM via the ‘Connection Box’ and
short cable supplied with this accessory. A 10
metre cable is supplied with this accessory that
can be shortened or lengthened as necessary.
Please Note : Wiring polarity IS VERY important for this
Accessory. Permanent damage will result if the
polarity of the Red and Red/Black wires is not
maintained.
3) Power Control Unit
The Power Control Unit accessory connects to
the Relay Output port of TLM via the curly cord
cable supplied with this accessory.
National Communications Page 5
Supply
12V Power
Supplied Strobe
Connection Box
Telephone line out
(to handset)
PSTN Line or
Analogue Extension
IP Analogue Adaptor

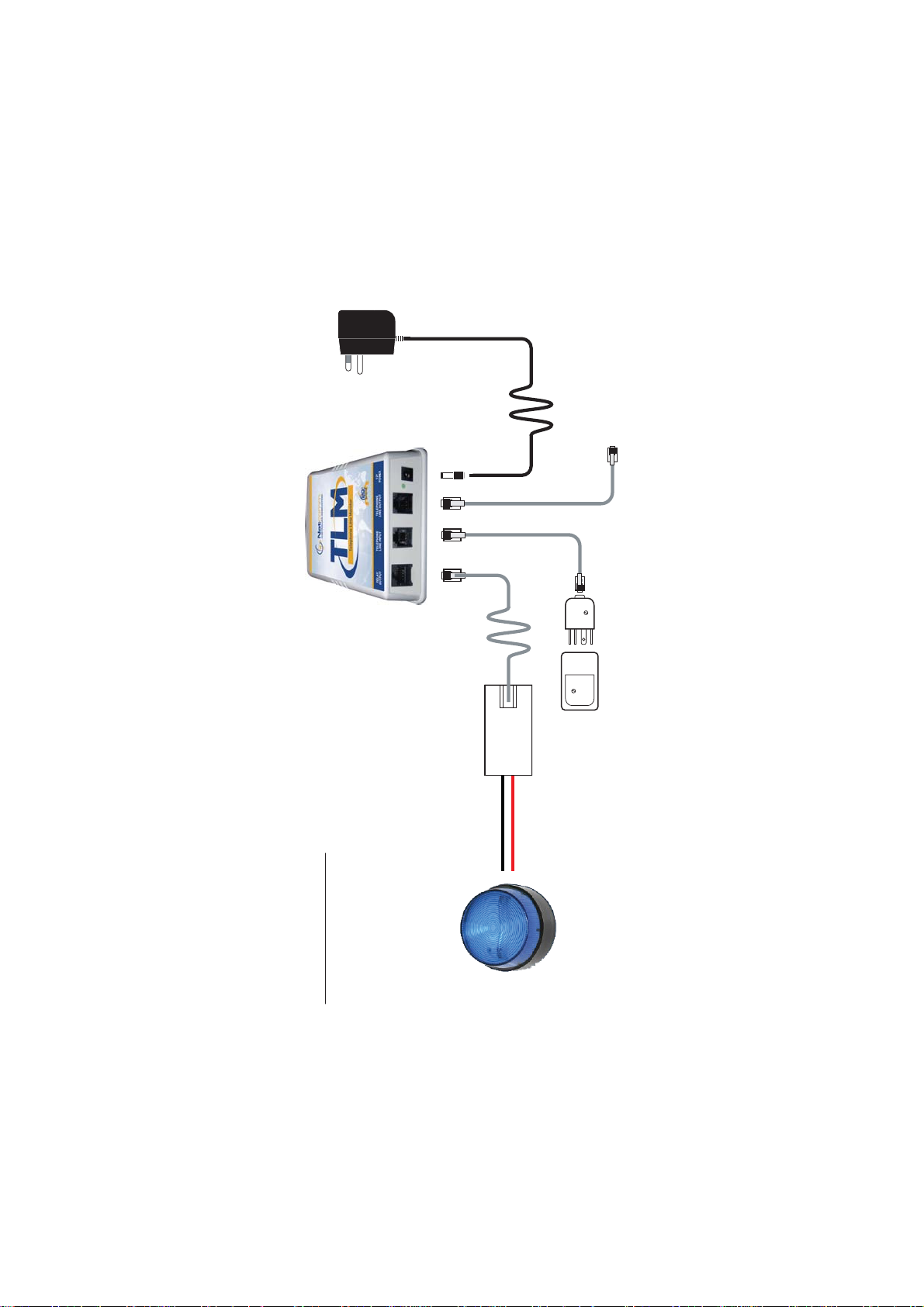

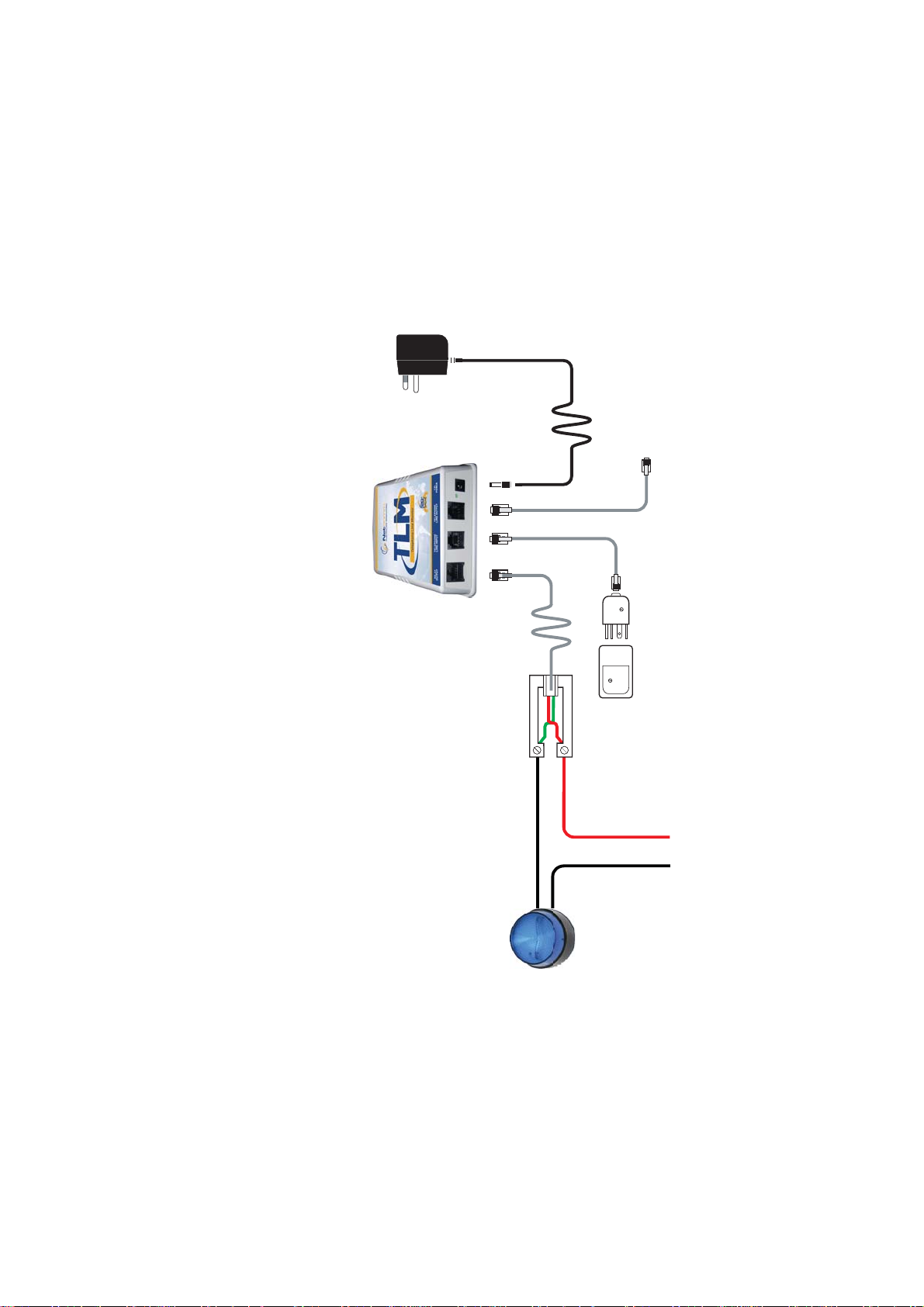

CONNECTION WITH
NATCOMM SUPPLIED STROBE
NATCOMM STROBE LIGHT ACCESSORY INSTALLATION
Page 6 National Communications
BLACK
RED
STROBE LIGHT INSTALLATION
A white connection box is supplied to allow for easy user connection of
this accessory.
The box has two leads connecting from it :
STEP 1. The short Cream coloured telephone cable with the RJ plug
should be plugged into the Relay Output port of TLM.
STEP 2. A 10m figure 8 cable with Red and Red/Black wire, is supplied
connected to the Positive (Red) and Negative (Red/Black) wires of the
Strobe Accessory, using a connection block.
You can lengthen or shorten this cable, but it is VERY IMPORTANT that
you maintain polarity of the wires.
The Red wire from the Connection Box must connect to Red wire
connected to the Strobe Accessory only.
The Black/Red wire (Red wire with Black stripe) from the Connection Box
must connect to Black wire connected to the Strobe Accessory only.
Polarity is important. Failure to maintain polarity
will cause fatal damage to the Strobe Accessory.
National Communications Page 7
Supply
12V Power
Supplied Siren
Connection Box
Telephone line out
(to handset)
PSTN Line or
Analogue Extension
IP Analogue Adaptor

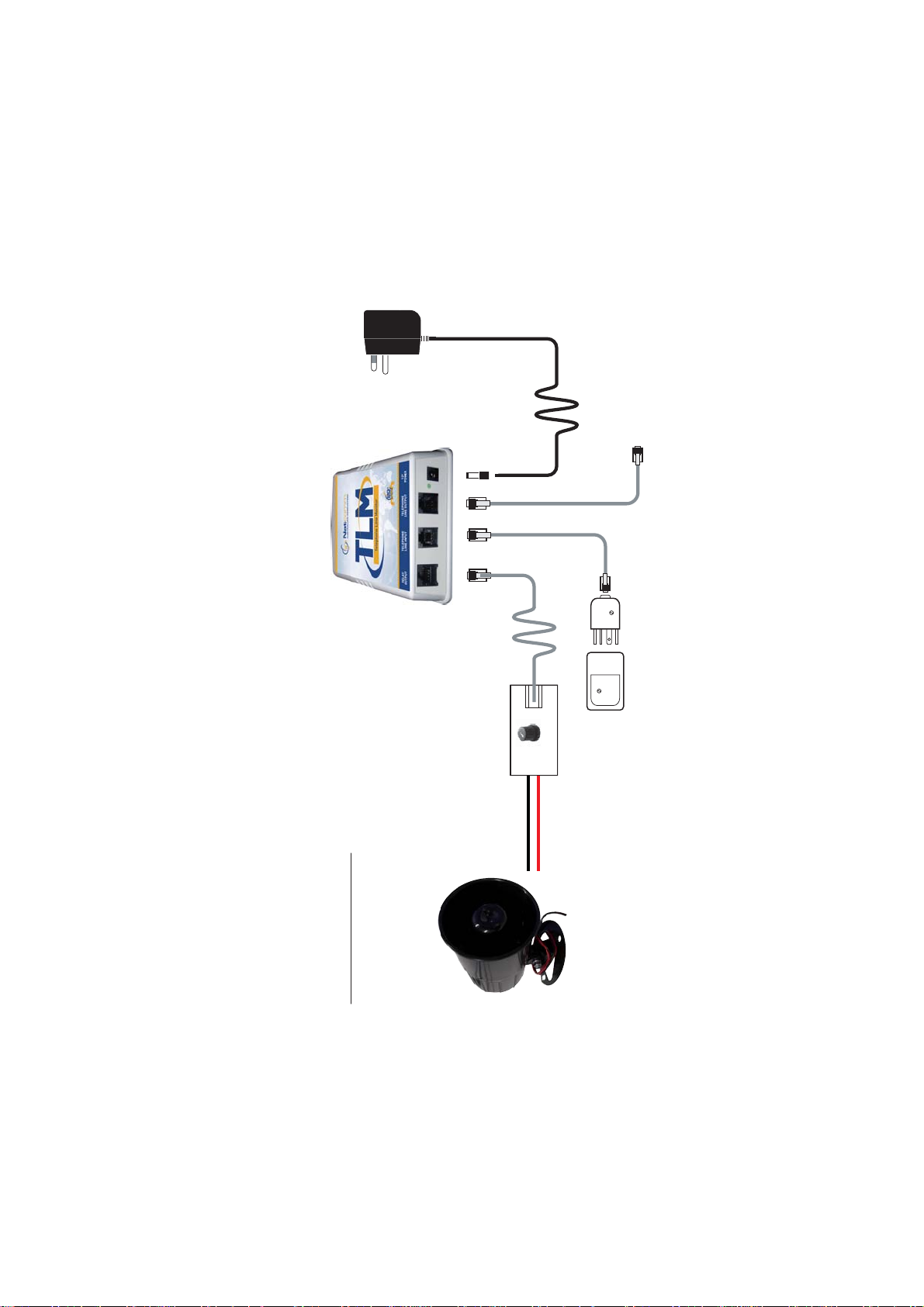

NATCOMM SIREN ACCESSORY INSTALLATION
CONNECTION WITH
NATCOMM SUPPLIED SIREN
Page 8 National Communications
BLACK
RED

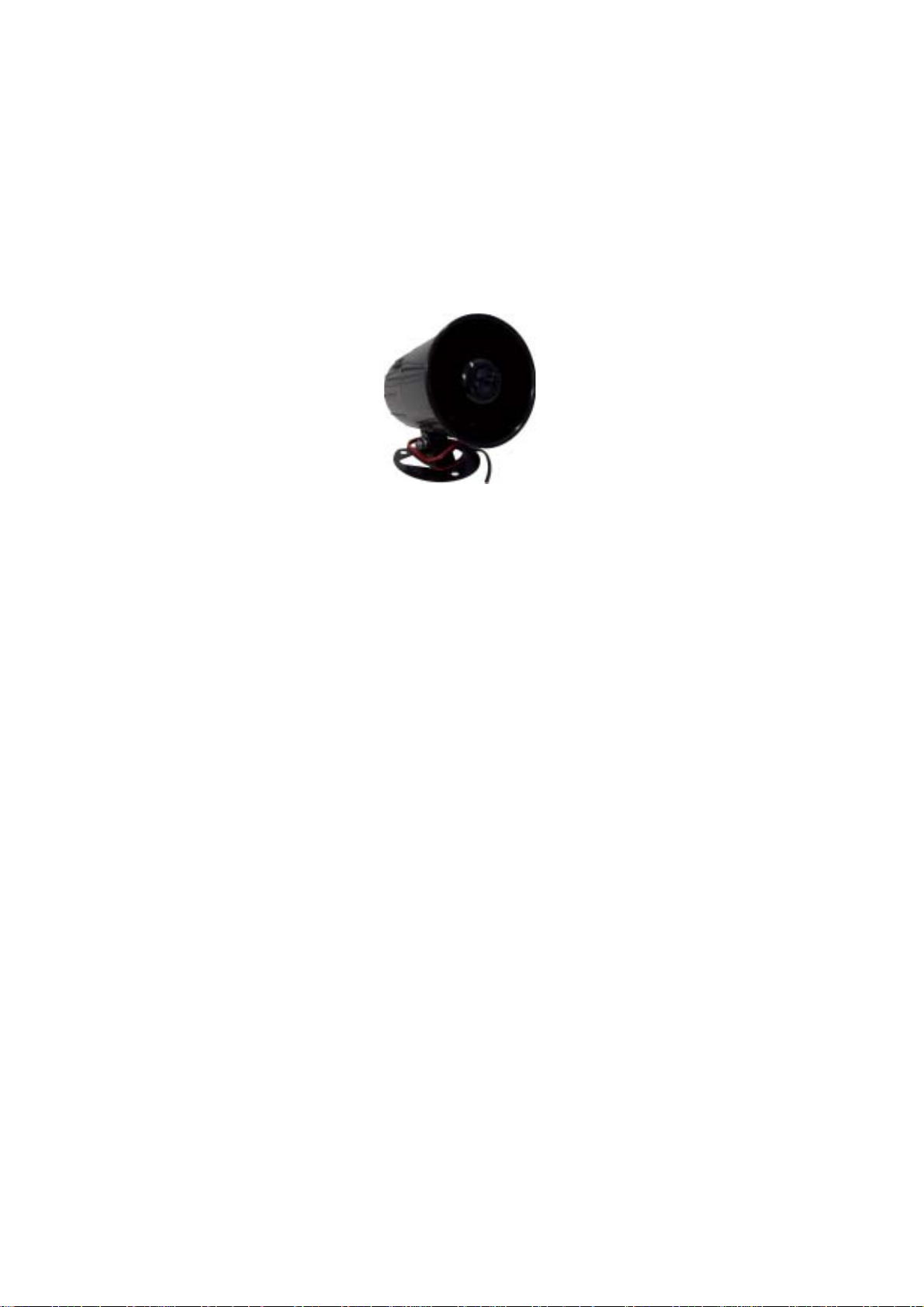

SIREN INSTALLATION
A white connection box is supplied to allow for easy user connection of
this accessory.
The box has two leads connecting from it :
STEP 1. The short Cream coloured telephone cable with the RJ plug
should be plugged into the Relay Output port of TLM.
STEP 2. A 10m Red and Black figure 8 cable is supplied connected to
the Positive (Red) and Negative (Black) wires of the Siren Accessory,
using a connection block.
You can lengthen or shorten this cable, but it is VERY IMPORTANT that
you maintain polarity of the wires.
The Red wire from the Connection Box must connect to Red wire
connected to the Siren Accessory only.
The Black/Red wire (Red wire with Black stripe) from the Connection Box
must connect to Black wire connected to the Siren Accessory only.
Polarity is important. Failure to maintain polarity
will cause fatal damage to the Siren Accessory.
National Communications Page 9
Supply
12V Power
Telephone line out
(to handset)
PSTN Line or
Analogue Extension
IP Analogue Adaptor

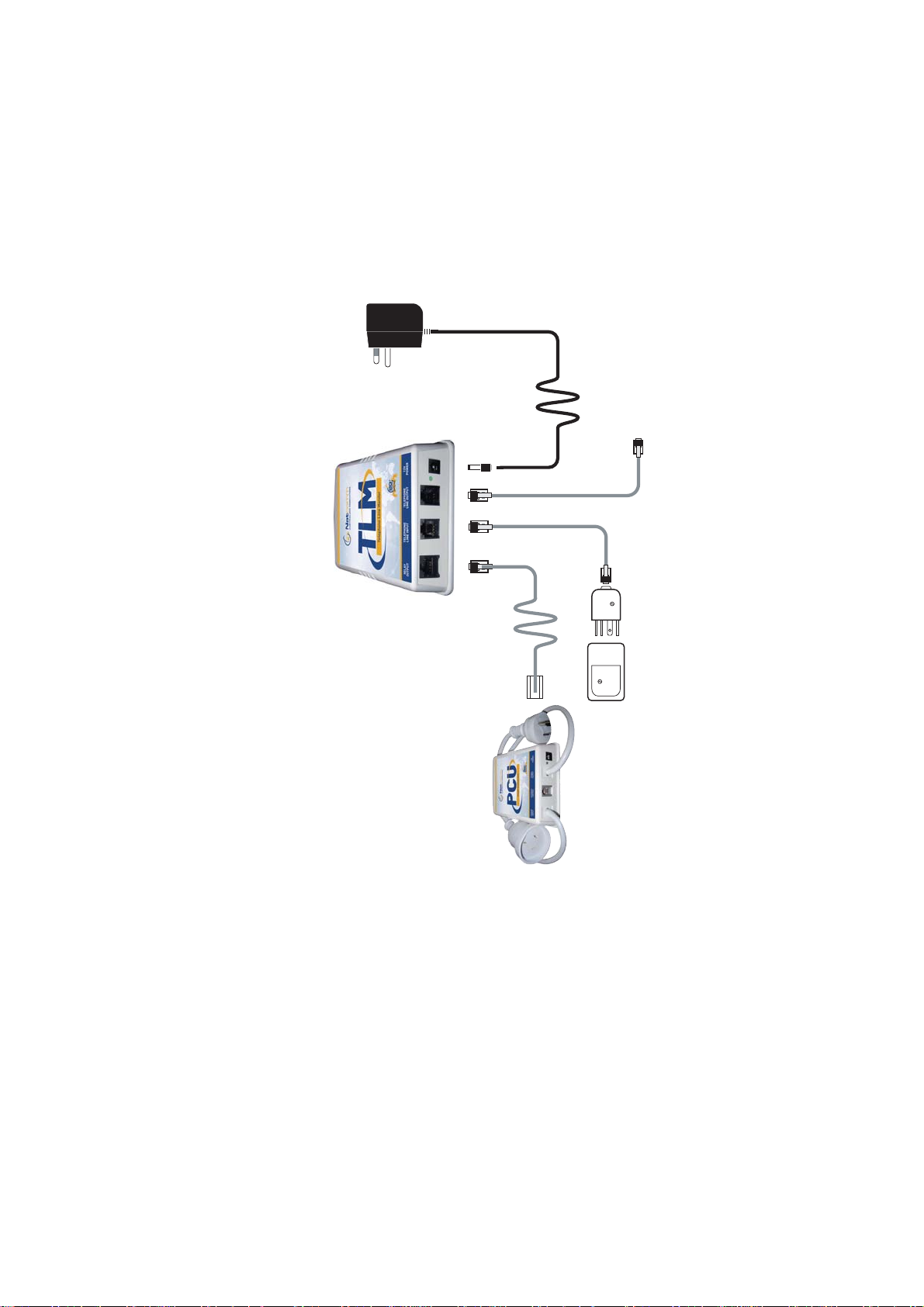

CONNECTION WITH
NATCOMM POWER CONTROL UNIT
POWER CONTROL UNIT ACCESSORY INSTALLATION
Page 10 National Communications

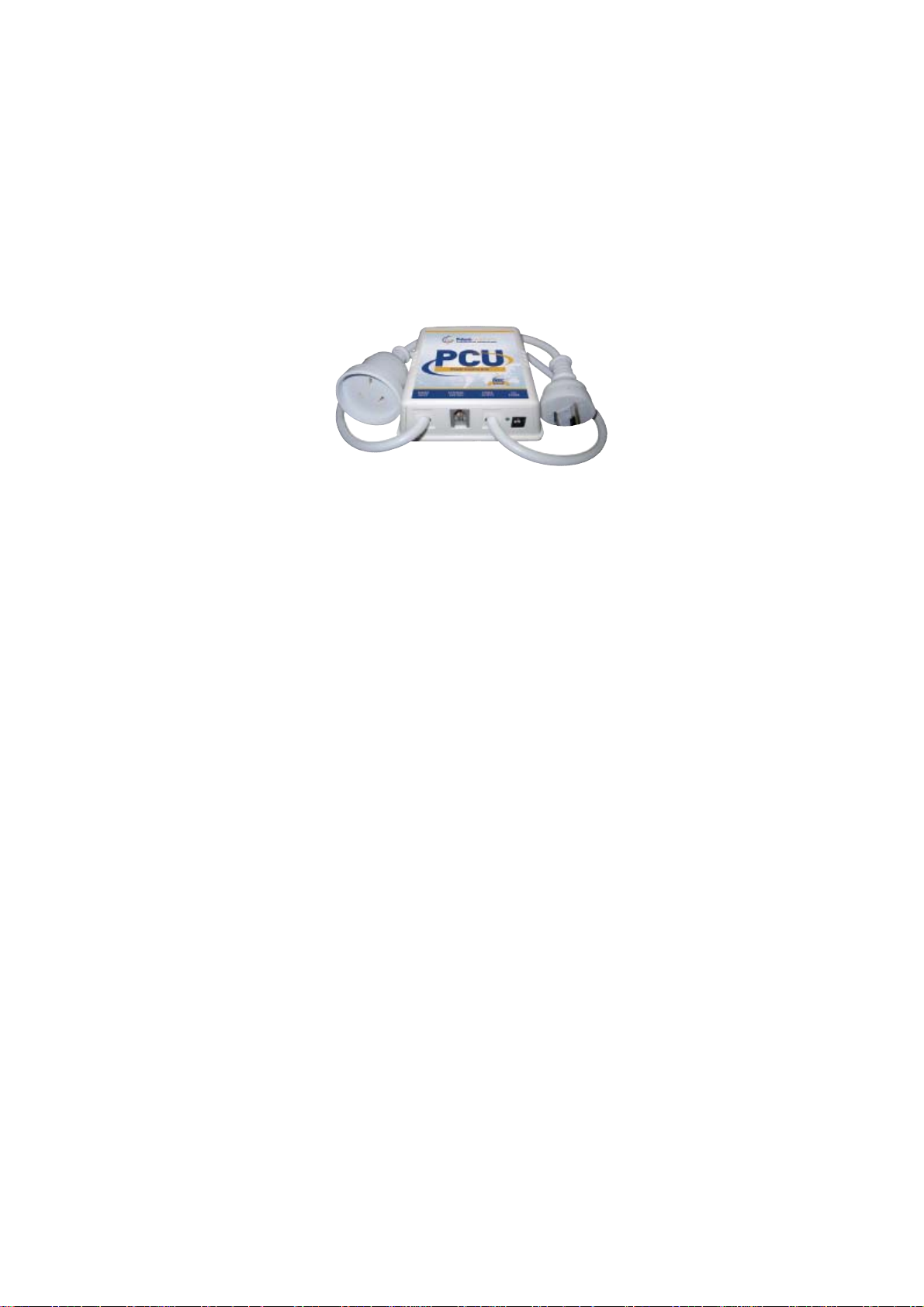

POWER CONTROL UNIT
AS/NZS3260 Approval Number Q00217
Our POWER CONTROL UNIT (PCU-2) accessory will allow you to use
a 120VAC to 240VAC Electrical Device ( such as a Light, Horn or a Loud
Siren) to INDICATE when your telephone line is Cut or Disconnected.
It is designed for quick and easy USER INSTALLATION.
It has a standard AC Male Power Plug connected to a short cable. This
AC Male Power Plug should connect to a Wall Power Socket.
It also has a standard AC Female Power Socket connected to a short
cable. This AC Female Power Socket should connect to the AC Male
Power Plug of your Electrical Device.
Your can connect TWO or more devices to POWER CONTROL UNIT if
required. It is designed to operate up to 10Amps in total.
A short cable with RJ 4 pin connectors is supplied with your POWER
CONTROL UNIT. One end of this cable plugs into POWER CONTROL
UNIT and the other end plugs into the RELAY OUTPUT port of your TLM.
Our Alternative Model PCU2 is set up in a NORMALLY OFF configuration,
which means that the electrical equipment connected to this device will
be SWITCHED OFF at all times, until your TLM provides a relay closure.
TLM will then provide the relay closure whenever the telephone line is
Cut or Disconnected.
National Communications Page 11
Supply
12V Power
Telephone line out
(to handset)
UN POWERED 3RD PARTY CUSTOMER ACCESSORY
CONNECTION WITH CUSTOMER SUPPLIED
ACCESSORY THAT ONLY REQUIRES A
DRY CONTACTS CLOSURE
Page 12 National Communications
TLM Relay Output is
Dry Contacts rated at
12V 1A maximum
Customer device that only
requires a Dry Contacts closure
Connect to rst
two terminals.
Telephone line in
Red & Green
UNPOWERED 3RD PARTY
DEVICE CONNECTION
The relay output from TLM can also be used to advise an external 3rd
party electrical device that the telephone line has been cut or
disconnected.
The relay output from TLM is Dry Contact (Rated at 1A at 12V).
TLM’s relay contacts connect to the centre 2 pins of the 4P4C RJ
socket of TLM.
This output is ideal for many devices where a simple ‘unpowered’
relay closure is required.
A Connection Box with a short cable to connect it to TLM is provided
to allow for quick and easy connection to the external 3rd part device.
The Connection Box has 2 screw terminals for cable connection to the
external 3rd part device.
The Connection Box screw terminals also connect to the centre 2
pins of the 4P4C RJ socket of TLM.
See the diagram on page 12 for further detail.
If your 3rd party electrical device requires powered output from the
TLM relay contacts, please refer to pages 14-15.
Important Note : The Dry Contact Relay within TLM is rated at
12V and 1Amp. If you exceed either of these parameters,
permanent damage will result.
National Communications Page 13
Supply
12V Power
Telephone line out
(to handset)
POWERED 3RD PARTY CUSTOMER ACCESSORY
CONNECTION WITH
CUSTOMER SUPPLIED
POWERED ACCESSORY
Page 14 National Communications
TLM Relay Output is
Dry Contacts rated at
12V 1A maximum
Accessory Device
Telephone line in
+-
Accessory Power Supply
(maximum 12V 1A)
POWERED 3RD PARTY
DEVICE CONNECTION
The relay output from TLM can also be used to advise an external 3rd
party electrical device that the telephone line has been cut or
disconnected.
The relay output from TLM is Dry Contact (Rated at 1A at 12V).
You can connect a power source AC or DC up to 12V and 1Amp to the
relay contacts if required.
In this situation 1 leg of the wires connecting to the TLM relay should
come from an external power source (not supplied).
A Connection Box with a short cable to connect it to TLM is provided
to allow for quick and easy connection of this power source.
The Connection Box screw terminals will then connect the power
source to one of the centre 2 pins of the 4P4C RJ socket of TLM.
When the TLM relay closes, power will then output through the other
centre pin of the 4P4C RJ socket of TLM to the remote electrical
device.
When the relay opens, this power flow will be removed.
See the diagram on page 14 for further detail.
Important Notes :
1) The Dry Contact Relay within TLM is rated at 12V and 1Amp.
If you exceed either of these parameters, permanent damage
will result.
2) Do NOT use the 12V power adaptor supplied with TLM as a
power source for the connection box or 3rd part accessory.
Doing so can cause TLM to not function correctly due to power
‘brown out’.
National Communications Page 15
SPECIFICATIONS
Dimensions (all in mm) : 106 (W) x 106 (D) x 43 (H)
Weight : 200g
Power Supply : 240VAC to 12V AC/300mA
Power Consumption : When Idle - 0.5 Watts
: During Call - 0.75 Watts
Ringer Equivalence : 0.3 REN
T elephone Input Connectors : RJ 11 - 6 pin (2 centre)
Relay Output Connector: : RJ 4P4C (2 centre)
Power Input Connector : 2.5mm barrel connector
ACMA COMPLIANCE : Supplier Number N782
WARRANTY
This device is guaranteed against defects from workmanship for a period
of two years (24 months) from the date of purchase. In the event of
failure, you should return the product, along with proof of purchase date,
and a written statement about the nature of the problem.
This Warranty shall not apply to any unit which has been subject to
alteration, modification, abuse, negligence, accident, external voltage/
lightning surge or used in any manner contrary to these instructions.
The obligation is solely to repair or replace the product. The warrantor
is not liable for any incidental or consequential damages due to such
defects.
The user is responsible for freight costs to the repair point. The warrantor
will be responsible for freight costs in returning this unit back to the
user.
Damage caused to this device or attached equipment, by lightning strikes
or over voltage surge is not covered under this warranty.
CASE SEALED AT FACTORY
OPENING THE CASE VOIDS THE WARRANTY
Page 16 National Communications
Loading...
