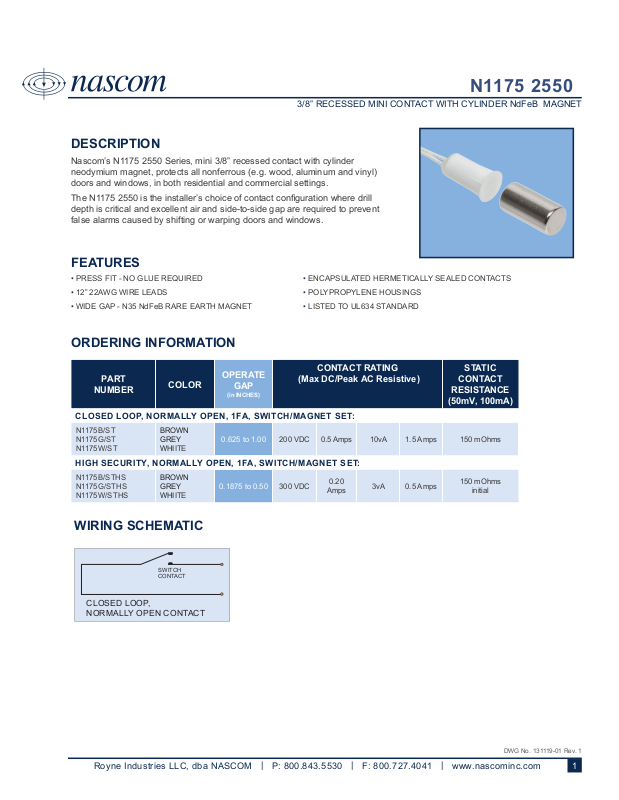

Nascom N11752550W-STFB, N11752550W-ST2CR, N11752550W-ST, N11752550T-STFB, N11752550T-ST2CR Specsheet
...
N1175 2550
3/8” RECESSED MINI CONTACT WITH CYLINDER NdFeB MAGNET
DESCRIPTION
Nascom’s N1175 2550 Series, mini 3/8” recessed contact with cylinder neodymium magnet, protects all nonferrous (e.g. wood, aluminum and vinyl) doors and windows, in both residential and commercial settings.
The N1175 2550 is the installer’s choice of contact configuration where drill depth is critical and excellent air and side-to-side gap are required to prevent false alarms caused by shifting or warping doors and windows.
FEATURES
• PRESS FIT - NO GLUE REQUIRED |
• ENCAPSULATED HERMETICALLY SEALED CONTACTS |
• 12” 22AWG WIRE LEADS |
• POLYPROPYLENE HOUSINGS |
• WIDE GAP - N35 NdFeB RARE EARTH MAGNET |
• LISTED TO UL634 STANDARD |
ORDERING INFORMATION
|
|
OPERATE |
|
CONTACT RATING |
|
STATIC |
||
PART |
COLOR |
(Max DC/Peak AC Resistive) |
CONTACT |
|||||
GAP |
||||||||
NUMBER |
|
|
|
|
RESISTANCE |
|||
|
(in INCHES) |
|
|
|
|
|||
|
|
|
|
|
|
(50mV, 100mA) |
||
|
|
|
|
|
|
|
||
CLOSED LOOP, NORMALLY OPEN, 1FA, SWITCH/MAGNET SET: |
|
|
|
|||||
N1175B/ST |
BROWN |
|
|
|
|
|
|
|
N1175G/ST |
GREY |
0.625 to 1.00 |
200 VDC 0.5 Amps |
10vA |
1.5 Amps |
150 mOhms |
||
N1175W/ST |
WHIITE |
|
|
|
|
|
|
|
HIGH SECURITY, NORMALLY OPEN, 1FA, SWITCH/MAGNET SET: |
|
|
|
|||||
N1175B/STHS |
BROWN |
|
|
0.20 |
|
|
150 mOhms |
|
N1175G/STHS |
GREY |
0.1875 to 0.50 |
300 VDC |
3vA |
0.5 Amps |
|||
Amps |
initial |
|||||||
N1175W/STHS |
WHIITE |
|
|
|
|
|||
|
|
|
|
|
|
|||
WIRING SCHEMATIC
SWITCH
CONTACT
CLOSED LOOP,
NORMALLY OPEN CONTACT
DWG No. 131119-01 Rev. 1
Royne Industries LLC, dba NASCOM | P: 800.843.5530 | F: 800.727.4041 | www.nascominc.com |
