STINGRAY 5600 VHFRADIO OWNER'S MANUAL
GENERAL INFORMATION
Your new STINGRAY 5600 VHF marine radio telephone has been designed to give you a rugged and reliable instrument providing the set is correctly installed. You are therefore encouraged to carefully acquaint yourself with all the points in this handbook to ensure optimum trouble free performance is achieved.
STINGRAY 5600 is a compact, fully synthesised, 55 channel transceiver which includes all International channels allocated for port operation, intership and public correspondence with all the added advantages of "dual watch" on channel 16 and any selected channel.
For the yachtsman the special marine frequency 157.85 Mhz, known as channel "M" is also provided as standard.
STINGRAY 5600 is of solid state design with conservatively rated rugged components and materials. The equipment has been tested and type approved in the UK to Home Office Specification MPT 1251. The transceiver is not regarded as being waterproof and should not therefore be sited in an exposed position or subjected to rain or spray.
INSTALLATION
It is important to carefully determine the most suitable location for your STINGRAY 5600 on your vessel. Electrical, mechanical and environmental considerations must all be taken into account. Avoid siting your VHF set within I metre of your steering compass. The microphone, loudspeaker and extension speaker if fitted, all have powerful magnets. You must select the optimum relationship among these considerations.
Keep in mind the flexibility designed into the STINGRAY 5600 so that you can most conveniently use your radio. Features which should be considered are:
- The speaker and microphone connector face forward allowing convenient in-dash or "built in" installations,
- The EXTERNAL speaker jack may be used with an auxiliary speaker in lieu of the built in speaker.
- 3. All connections are 'plug-in' type for easy removal of the radio.
Some of the more imporant external factors to consider in selecting the location of your STINGRAY 5600 are:
- 1. Select a sheltered location that is free from spray and splash.
- 2. Keep the battery leads as short as possible. Connection directly to the battery is most desirable. If direct connection cannot be made with the power leads supplied, extension up to 3 metres should be made with #10 AWG wire. Longer extensions should use larger wire.
- Keep the antenna leads as short as possible. Long antenna leads can cause substantial loss of performance for both receiving and transmitting.
- Locate your Intenna as high as possible and clear from metal objects. The reliable range of coverage is a direct function of antenna height.
- Select a location that does not allow the radio to be subjected to direct sunlight (including that coming through windows).
- 6. Select a location that allows free air flow around the heat sink on the rear of the radio.
- 7. Select a location well away from the ship's compass. Auxiliary speakers also should be located away from the compass.

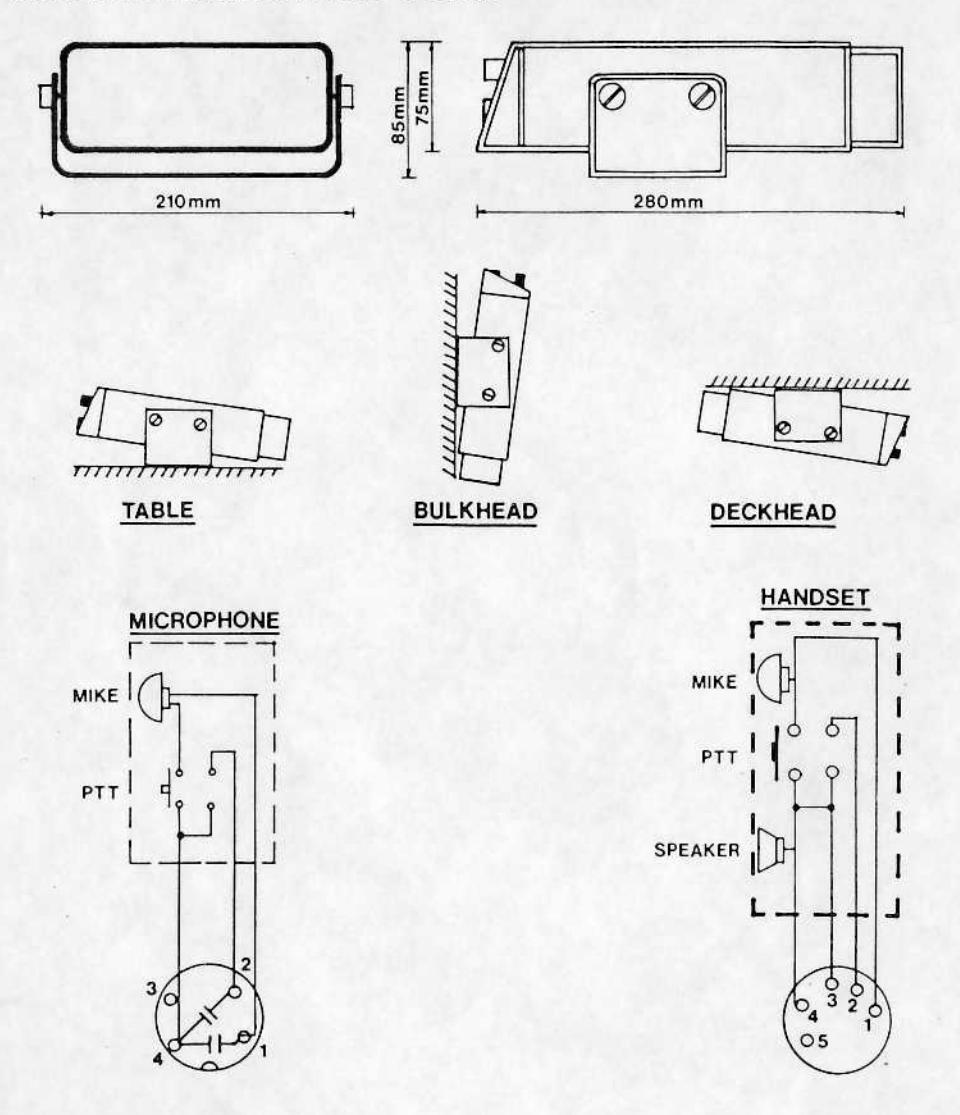

INSTALLATION (cont'd)
After you have carefully considered the various factors affecting your choice of location, position the radio (with the bracket, microphone, power plug, antenna plug, and any auxiliary plugs installed) into the selected location to assure there is no interference with surrounding items. Mark the location of the mounting bracket, Remove the holes to be drilled for the mounting hardware. Drill the holes and mount the bracket with hardware compatible with the material of the mounting surface. Install the power cable (red is +, black is –), antenna and all other auxiliary cables and accessories. Install the radio into the mounting bracket and connect all cables and accessories to the appropriate jacks and connectors.
ANTENNA
A variety of antennae are available from a number of quality suppliers. It is recommended you draw upon the advice of your NASA Marine Electronics Dealer in determining a suitable antenna for your vessel and range requirements. Details of quality antennae are available upon request.
The general rules for antennae are: The more gain the greater the range and, the higher above the water line the greater the range. Antennae should be located so as not to be in proximity to metal objects. Antennae should not have excessively long coaxial feed cable.
ENGINE NOISE SUPPRESSION
Interference from the impulse noise generated by the electrical systems of engines is sometimes a problem with radios. The STINGRAY 5600 has been designed to be essentially impervious to ignition impulse noise and alternator noise. However, in some installations it may be necessary to take measures to further reduce the effect of noise interference. All DC battery wires, antenna lead, and accessory cables should be routed away from the engine and engine compartment and from power cabling carrying particularly high currents.
REAR PANEL CONNECTORS
- 1. EXT CONNECTOR If it is desired to use a speaker other than the one in the radio, a four or eight ohm speaker equipped with a miniature phone plug may be connected to this jack. The internal speaker is disabled when an external speaker is used.
- DC POWER CONNECTOR Battery connections are to be made with the cable supplied to mate with this connector. Remember, red is +, black is -!! The power cable is equipped with a fuse tp protect the radio. Use only a six (6) AMPERE fast blow fuse for replacement.
- ANT CONNECTOR This connector is for connection of the antenna. A type PL259 connector is required to make proper connection.
TRANSMITTING AND RECEIVING
Before operating the radiotelephone transmitter you must meet all requirements set up by the local government agency in charge of communications in your country.
In most countries this includes obtaining a proper licence and have access to the rules and regulations covering this type of equipment.
- 1. Properly install radiotelephone in accordance with the installation section in this manual.
- 2. Turn the radiotelephone on and raise the Volume control until background noise is heard. Be sure to rotate the Squelch control to its fullest counterclockwise position initially.
- 3. To transmit, press the transmit switch (PTT) on the handset and speak slowly, and in your normal tone of voice.
- 4. To receive, simply release the switch. During periods of transmission the receiver is silenced and reception is therefore impossible. In the same way, your signal cannot be heard by another station when he is transmitting.
FUNCTIONS AND OPERATION
- 1. MICROPHONE CONNECTOR Ensure microphone, connector has slight smear of silicon grease or vaseline and tighten (only hand tight).
- ON/OFF-VOLUME Control turns power into radio and allows adjustment to the desired listening level with clockwise rotation.
- 1W/25W SELECTOR Controls transmitter output power. The 1W (watt) position should be used whenever practical and should always be used for in-port or short range communications.
- 4. CHANNEL SELECTOR Selects the desired channel from those programmed into the memory.
- 5. SQUELCH CONTROL/DIM SWITCH Used to quiet background noise when no signal is being received. Proper adjustment is such that the control is advanced only slightly beyond the point where the background noise is marginally quietened.
- 6. NUMERICAL CHANNEL INDICATOR Indicates selected channel.
- 7. CH16 SELECTOR Provides instant channel 16 selection by overriding the CHANNEL SELECTOR, DUAL WATCH SELECTOR, AND CH M SELECTOR.
- CHANNEL 16 INDICATOR Operates in conjunction with CH 16 selector to draw attention to the fact that the CHANNEL SELECTOR and DUAL WATCH functions have been overriden.
- DUAL WATCH SELECTOR Provides dual watch function when CH 16 is at OFF position. Automatically scans between CH 16 and another channel shown on the numercial indicator, and locks on CH 16 when a signal strong enough to open squelch level exists and will remain there as long as traffic continues.
- 10. TX/RX INDICATOR Glows green in the receiving mode. The red transmit lamp is operated from the actual presence of power transmitted to the antenna.
- 11. DUAL WATCH INDICATOR Operates in conjunction with the DW switch to draw attention to the fact that the CHANNEL SELECTOR has been overriden.
- 12. CH M SWITCH Provides instant channel M selection by overriding the Channel Selector.
- 13. CH M INDICATOR Indicates channel M function.
- 14. 1W/25W INDICATOR Indicates transmitting power switch selection.
SPECIFICATIONS
GENERAL
| Channels | 4 | Transmit 56 | |
|---|---|---|---|
| Receive 56 | |||
| Frequency Control | |||
| Method | 3 | PLL synthesiser | |
| Antenna Impedance | pedance : 50 ohms, nominal | ||
| Circuitry | 26 transistors, 9 IC's | ||
| 5 FET's 50 diodes | |||
| Speaker | .: | 2¼ inch front mounted, 8 ohms | |
| Microphone | : | Rugged 600 ohm dynamic element with coiled cord and plu | |
| connector. | |||
| Channel Display | LED numerical readout | ||
| Frequency Stability | 4 | +- 0.0005% | |
| Operating Temperature | |||
| Range | * | -10°C to +50°C | |
| Size | 1 | 280(L) x 210(W) x 85(H) mm | |
| Weight | : | 2.0kg | |
| Controls | : |
On-Off/volume and squelch controls; channel selector; instant
Channel 16 selector, 1W/25W power and dimmer switch, dual watch switch, instant Channel M selector. |
|
| Connectors | 4 | Antenna, microphone, handset, external speaker, DC power. | |
| Frequency Range | : | 156 to 158 MHz transmit | |
| 156 to 163 MHz receive | |||
| Lights and Indicators | : |
Red/Green transmit/receive LEDs, Green 7 segment LED channel
readout and Channel 16 LED, dual-watch LED. Channel M LED 1W/25W indicator. |
|
| Standard Accessories | 4 | Plug-in microphone, mounting bracket and hardware, DC power cord, spare fuse, owner's manual. | |
| Supply Voltage | 13.8V DC | ||
| Oscillator Drop-Out | |||
| Voltage | 8V DC nominal | ||
TRANSMITTER
| Power Output | 1 | 25 or 1 Watt (switch selectable) | ||||
|---|---|---|---|---|---|---|
| Power Requirement | 1 | : 25 Watts output: 4.5A @13.8V DC | ||||
| 1 Watt output : 1.0A @13.8V DC | ||||||
| Modulation | 12 | FM, +-5KHz deviation | ||||
| Hum and Noise | ||||||
| Attenuation | 1 | 45 dB | ||||
| Audio Distortion | 5 | Less than 5% with 3 KHz deviation with 1000Hz modulating frequency. | ||||
| Spurious Emission | 1 | -75 dB | ||||
| Output Transistor | ||||||
| Protection | 12 | Built-in automatic power protection | ||||
| Output Power | ||||||
| Stabilization | 1 | Built-in Automatic level control (ALC) | ||||
| RECEIVER | ||||||
| Sensitivity | 10 | 0.25µV for 12 dB SINAD | ||||
| 0.50µV for 20 dB quieting | ||||||
| Threshould Squelch | ||||||
| Sensitivity | 20 | 0.15µV | ||||
| Tight Squelch | ||||||
| Sensitivity | 1.0µV | |||||
| Spurious REsponse | ||||||
| Attenuation | - | 75 dB | ||||
| Image Response | ||||||
| Attenuation | : |
70 dB @ 0.3μV desired 35 dB @ 300μV desired
50 dB @ 30μV desired |
||||
| Adjacent Channel | ||||||
| Rejection | t | 75 dB | ||||
| Selectivity | : | +/-7.5KHz @6 dB down +/- 15KHz @60 dB down | ||||
| Audio Output | ||||||
| Power | 3.0 Watts minimum at 10% distortion at 1KHz modulation and | |||||
| +/- 3.0KHz deviation (8 Ohm speaker). | ||||||
| Power Requirement | ; | 0.45A @13.8V DC, squelched | ||||
| 0.70A @13.8V DC at rated audio output | ||||||
| IF Frequencies | 1 | 1st – 21.4MHz | ||||
| 2nd – 455KHz | ||||||
| Hum and Noise Level | 0 | -50 dB | ||||
VHF FM MARINE RADIOTELEPHONE CHANNELS (INTERNATIONAL CHANNEL)
.....
|
CHANNEL
NUMBER |
FREQUENCY (MHZ) | TYPE | FUNCTION | ||
|---|---|---|---|---|---|
| SHIP | SHORE | TRAFFIC | SHIP TO SHIP | SHIP TO SHORE | |
| 1 | 156.050 | 160.650 | Int'l only | - | Yes |
| ż | 156.100 | 160.700 | Int'l only | - | Yes |
| 3 | 156.150 | 160.750 | Int'l only | 1 | Yes |
| 4 | 156.200 | 160.800 | Int'l only | - | Yes |
| 5 | 156.250 | 160.850 | Int'l only | - | Yes |
| 6 | 156.300 | 156.300 | Safety | Yes | NO |
| 7 | 156.350 | 160.950 | Int'l only | Yes | Yes |
| 8 | 156.400 | 156.400 | Com'l | Yes | NO |
| 9 | 156.450 | 156.450 | Com'l | Yes | Yes |
| - 10 | 156.500 | 156.500 | Comil | Yes | Yes |
| 11 | 156.550 | 156.550 | Comi | Yes | Vac |
| 12 | 156.600 | 156.600 | Port Op. | Yes | Voc |
| 13 | 156.650 | 156.650 | Nav. | Yes | Vac |
| 14 | 156,700 | 156.700 | Port Op. | I US | Pagaina Only |
| 15 | 154 000 | 156.750 | weth P. | Receive Only | Voe |
| 16 | 156.800 | 156.800 | Safety C. |
1 CS
Vac |
Ver |
| 17 | 156.850 | 156.850 | State Cont. | Voc | Voe |
| 18 | 156.900 | 161.500 | Intionly | Vor | Vec |
| 19 | 156.950 | 161.550 | Int I only | Vor | Vor |
| 20 | 157.000 | 161.600 | Port Op. | res | Ves |
| 21 | 157.050 | 161.650 | Intioniy | Var | Voc |
| 22 | 157.100 | 161.700 | Coast Ga d | 105 | Nos |
| 23 | 157.150 | 161.750 | Int I only | No | Nos. |
| TPN=24 | 157.200 | 161.800 | Public C. | - NO | Vas |
| 25 | 157.250 | 161.850 | Public C. | No | Ves |
| 26 | 157.300 | 161.900 | Public C. | No | Ves |
| 27 | 157.350 | 161.950 | Public C. | No | Ves |
| 28 | 157.400 | 162.000 | Public C. | Ver | Ves |
| 60 | 156.025 | 160.625 | Int I only | Vec | Ves |
| 61 | 156.075 | 160.075 | Int'l only | Ves | Yes |
| 62 | 156,125 | 160.725 | Int'l only | Ver | Yes |
| 63 | 156.175 | 160.775 | Int I only | Vec | Ves |
| 04 | 150.225 | 160.825 | Int'l only | Ves | Ves |
| 0.5 | 156.275 | 160.075 | Int'l only | Yes | Yes |
| 67 | 156 375 | 156 375 | Sml crft safety | Yes | No |
| 69 | 156.575 | 156 425 | Non Com'l | No | Yes |
| IM =00 | 156 475 | 156 475 | Non Com'l | No | Yes |
| 70 | 156 525 | 156 575 | Non Com'l | Yes | No |
| 70 | 156 575 | 156 575 | Non Com'l | No | Yes |
| - 72 | 156.625 | 156 625 | Non Com'l | Yes | No |
| 73 | 156 675 | 156 675 | Port On | Yes | Yes |
| 74 | 156 725 | 156 775 | Port On | Yes | Yes |
| 77 | 156.975 | 156 875 | Com'l | Yes | No |
| 79 | 156.075 | 161 525 | Int'l only | Yes | Yes |
| 70 | 156 975 | 161 575 | Int'l only | Yes | Yes |
| 20 | 157.025 | 161.575 | Int'l only | Yes | Yes |
|
00
91 |
157.025 | 161.625 | Int'l only | _ | Yes |
| 10 80 | 157.075 | 161 725 | Int'l only | 22 | Yes |
| 02 | 157.125 | 161 775 | Int'l only | Yes | |
| 0.3 | 157.175 | 161 825 | Public C | No | Yes |
| 04 | 157.225 | 161 975 | Public C | No | Yes |
| 83 | 157.275 | 161 025 | Public C | No | Yes |
| 00 | 157.525 | 161 923 | Public C | No | Yes |
| 88 | 157 475 | 162 025 | Int'l only | Yes | Yes |
| 1 00 | 131.423 | 1 104.04.3 | · | ||
MARINAS NOW CHANNEL 80
SCHEMATIC DIAGRAM.
