Page 1

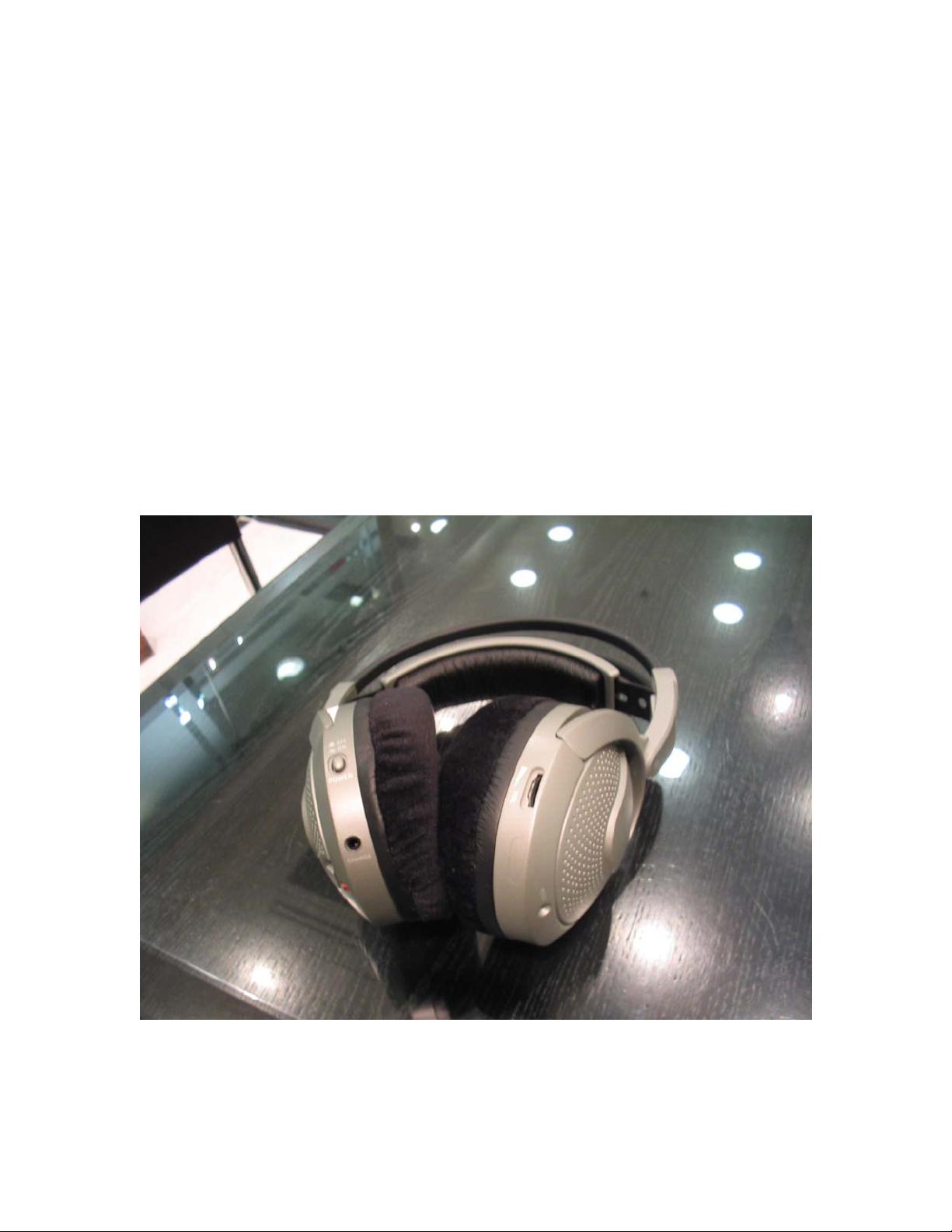

2.4GHz Wireless Headphone
NTED800
REV0B Page 1 Of 10
July 02, 2005
Page 2
I. Location of Functions

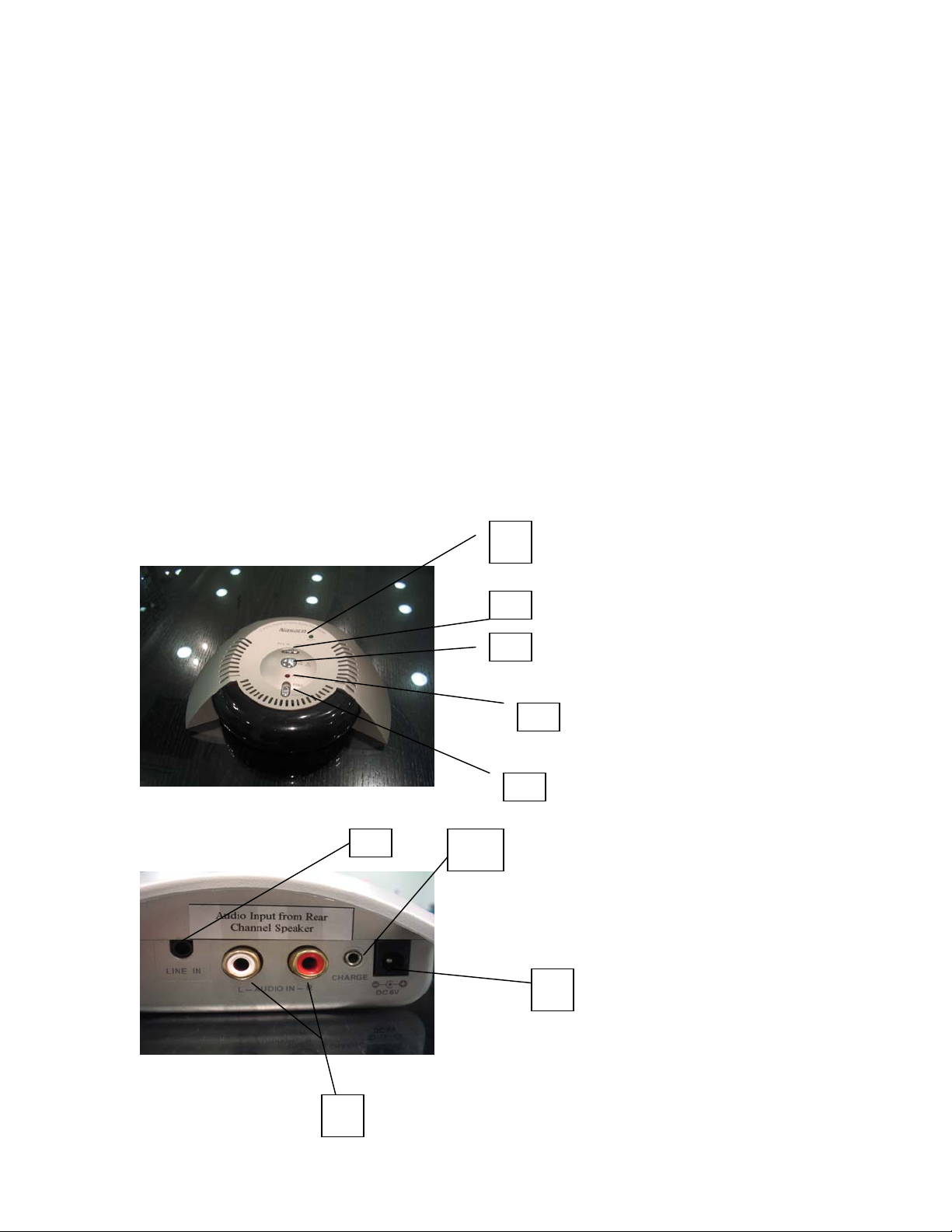

A. Transmitter(NTJD800)
1. Power On/Off
2. Power light
3. RCA/LINE IN select switch
4. RSSI light
5. VIDEO/AUDIO select switch
6. LINE IN jack
7. RCA jack
8. Charging jack
9. Power Input Jack
Front view
4
8
Rear view
REV0B Page 2 Of 10
7
9
July 02, 2005
Page 3

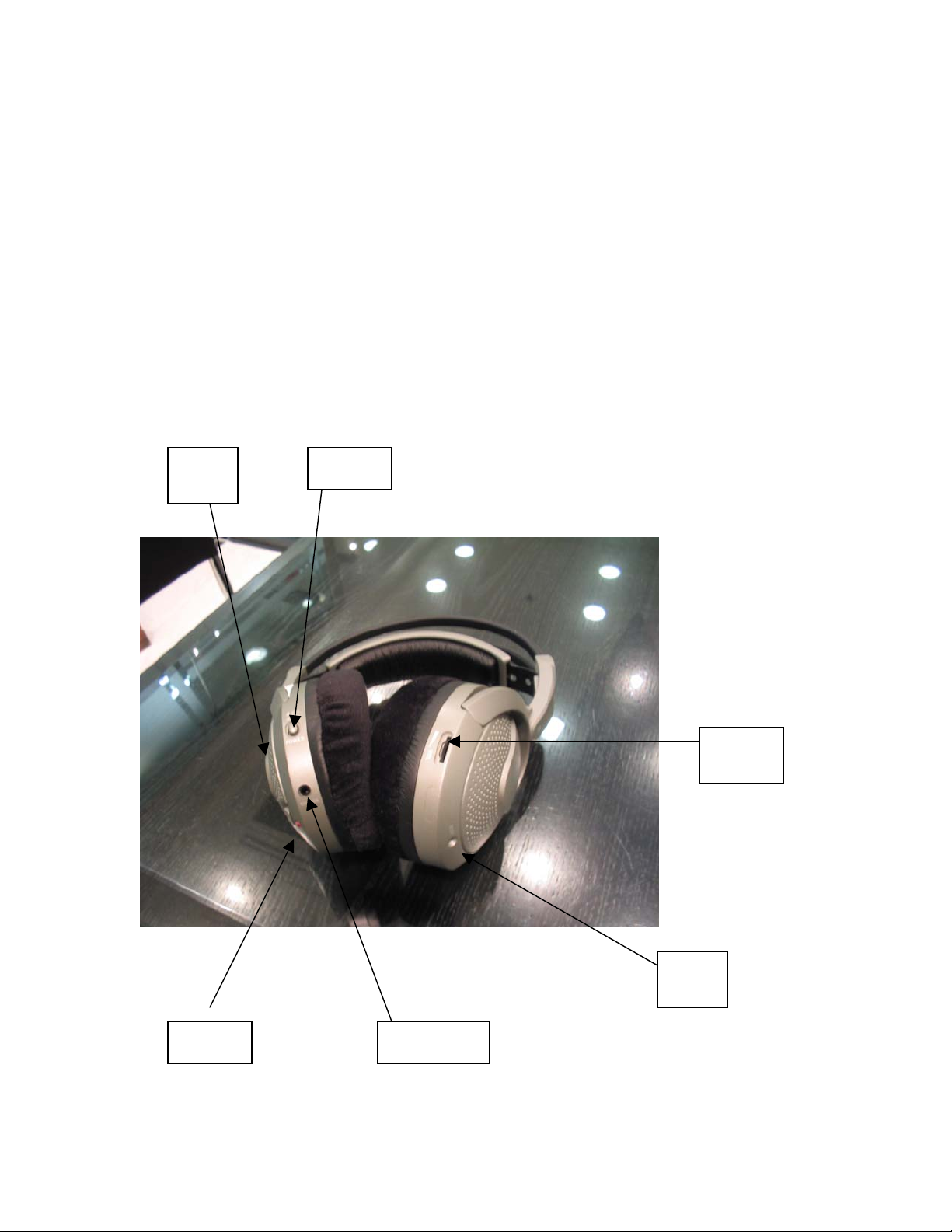

B. Wireless Headphone(NTED800)
10. Power/RSSI light
11. Power ON/OFF
12. Charging LED
13. Battery Compartment Cover
14. Charging Hole
15. Volume
13 11
12
REV0B Page 3 Of 10
14
15
10
July 02, 2005
Page 4

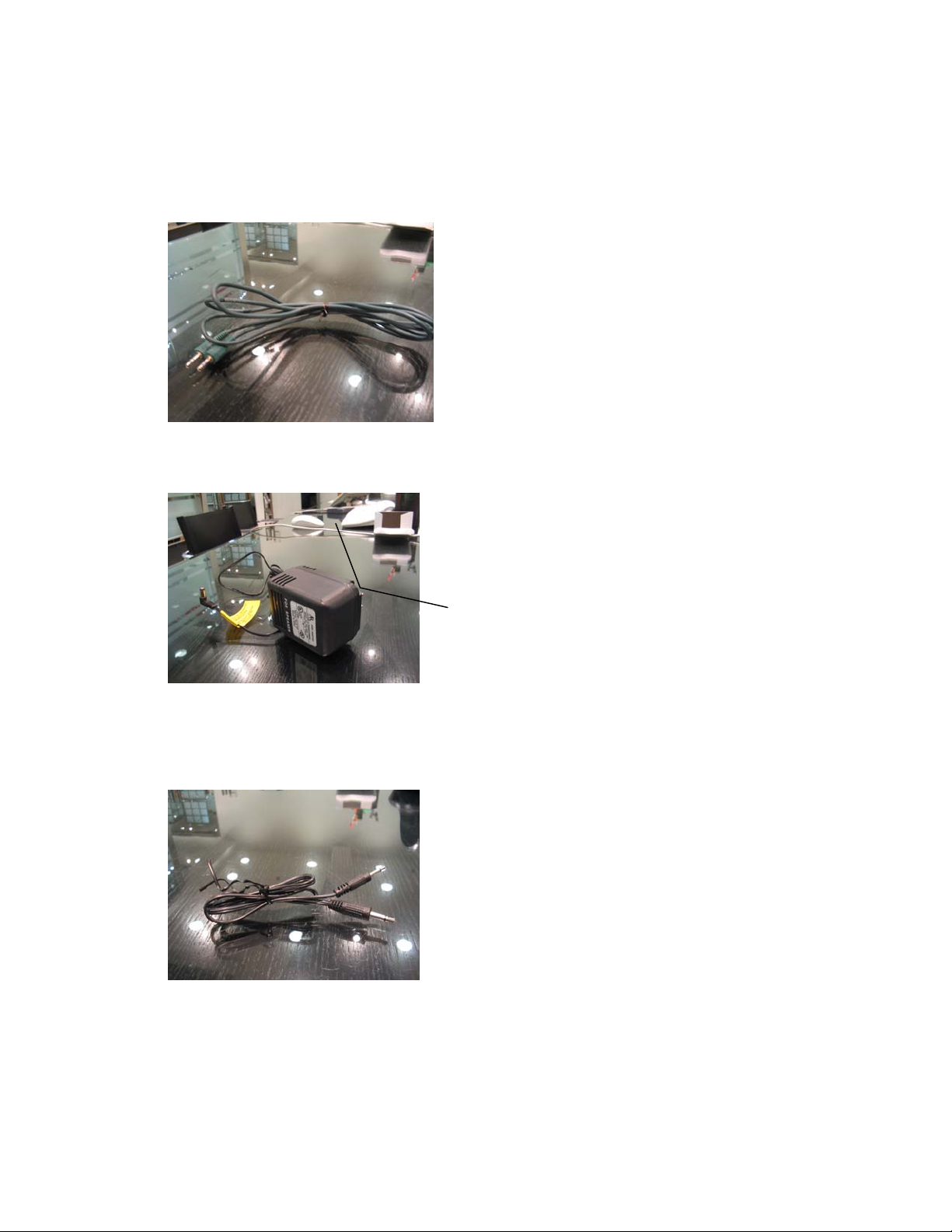

Accessories:
Audio Cable(Stereo) for Transmitter
Adaptor(6V 500mA) for Transmitter
Charging Cable(2.5mm + 3.5mm)
REV0B Page 4 Of 10
July 02, 2005
Page 5
Connecting the System
I. Powering the Transmitter

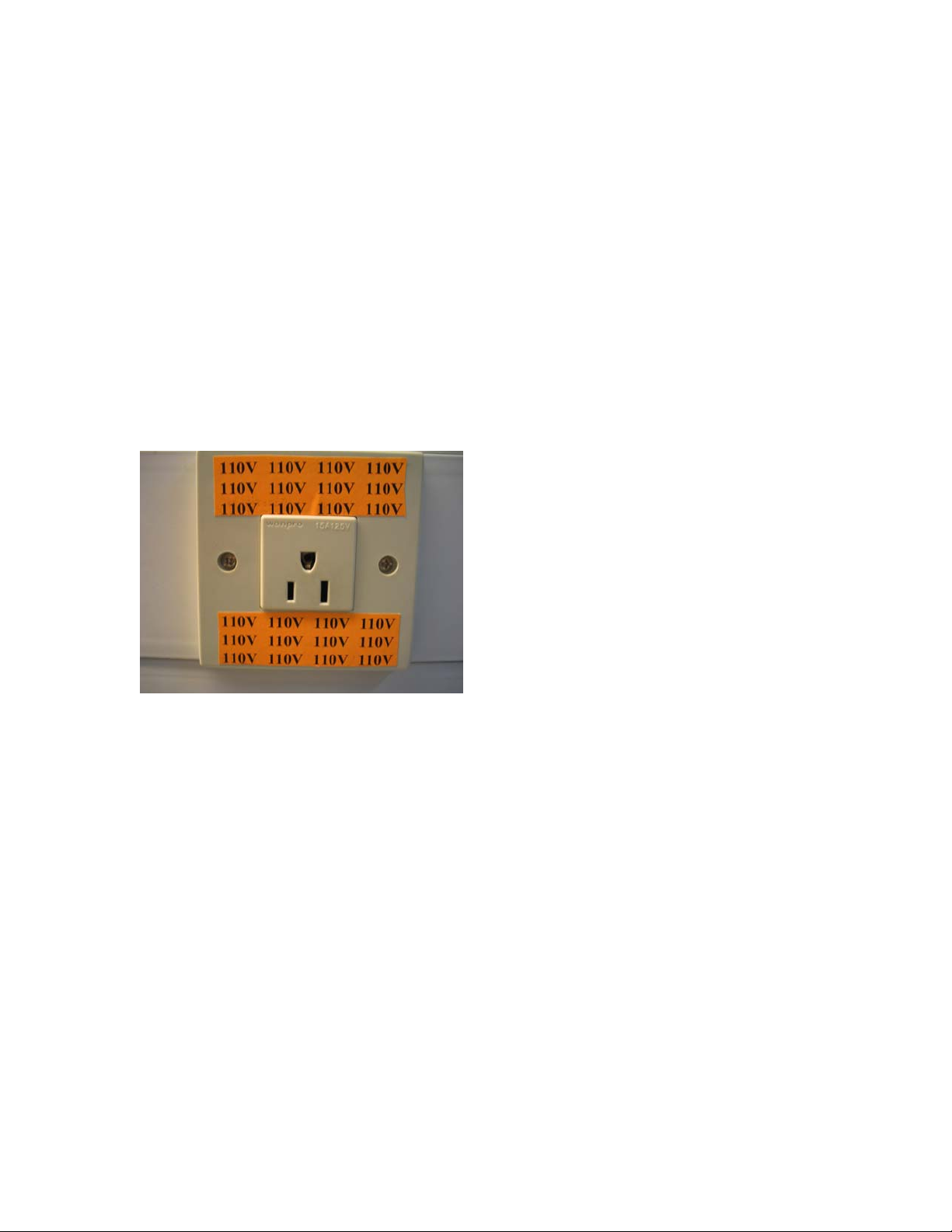

Connect the small, round plug from the transmitter AC
power adaptor to the transmitter power input jack and plug
the other end of the adaptor into any standard 120V AC
wall outlet.
Press the ON/OFF button of the transmitter. The Red LED
on the power light should be ON.
II. Connecting to an Audio Source

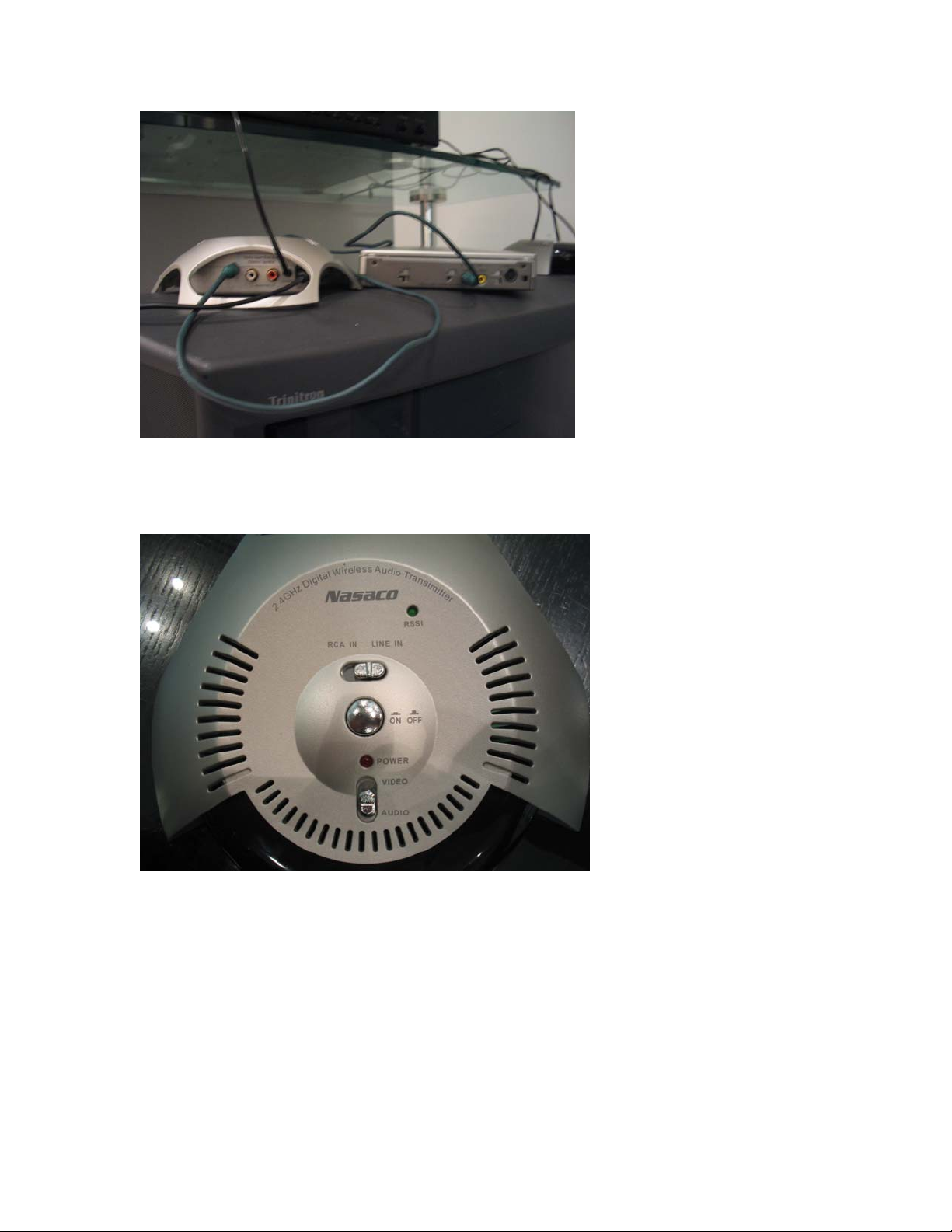

Connect the audio cable to the LINE IN jack of the
transmitter and plug the other end to audio source (e.g.
LINE OUT of DVD player).
REV0B Page 5 Of 10
July 02, 2005
Page 6
Turn the LINE IN selection switch to LINE IN.
The Audio/Video Switch is for latency select. Usually set
at Audio for music listening.
REV0B Page 6 Of 10
July 02, 2005
Page 7
III. Powering the Headphone
Open the Battery Compartment Cover of the headphone
and insert 3 AAA-size batteries with proper polarity.
Press ON/OFF button and green LED of POWER light
should be flashing. Once the headphone is pair up with the
transmitter, the green LED will remain ON.
Turn volume to appropriate level and you can listen to the
headphone.
IV. Charging of batteries in
headphone
Insert the smaller plug of the charging cable into the
charging jack of transmitter. Plug the other end of the
cable into the charging hole of the headphone. The red
charging light is ON and you can charge your batteries.
REV0B Page 7 Of 10
July 02, 2005
Page 8
Important – Charging of batteries
This charging circuit will charge rechargeable NiMH
or NiCd batteries. DO NOT attempt to charge any
other batteries except those specified above
Remember to charge the batteries overnight (or over 10
hours) for fully charge. Battery life for operation is about 5
hours.
V. Audio Muting
When audio source is cut off for 3 minutes, the speaker will
be muted. But if audio signal resumes, the muting will be
disabled and speaker will be ON again
REV0B Page 8 Of 10
July 02, 2005
Page 9

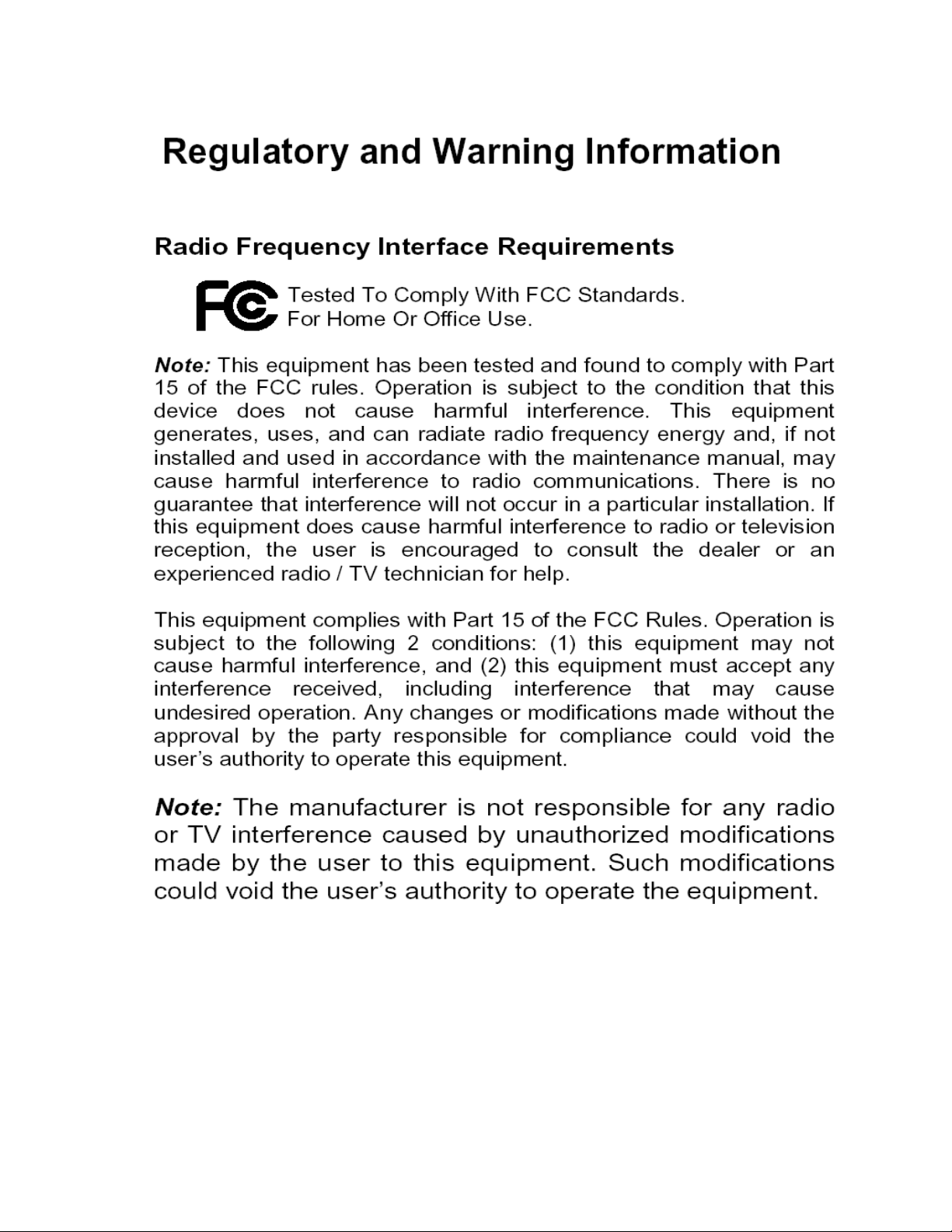

REV0B Page 9 Of 10
July 02, 2005
Page 10
N
N
t
d
Y
asaco
TED - 800
TESTED TO COMPL
WITH FCC STANDARDS
FOR HOME OR OFFICE USE
FCC ID LLP-NTED800
This device complies with part 15 of the FCC
rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device mus
accept any interference received, including
interference that may cause undesire
operation.
END
REV0B Page 10 Of 10
July 02, 2005
