NASA SX 35 DSC User Manual

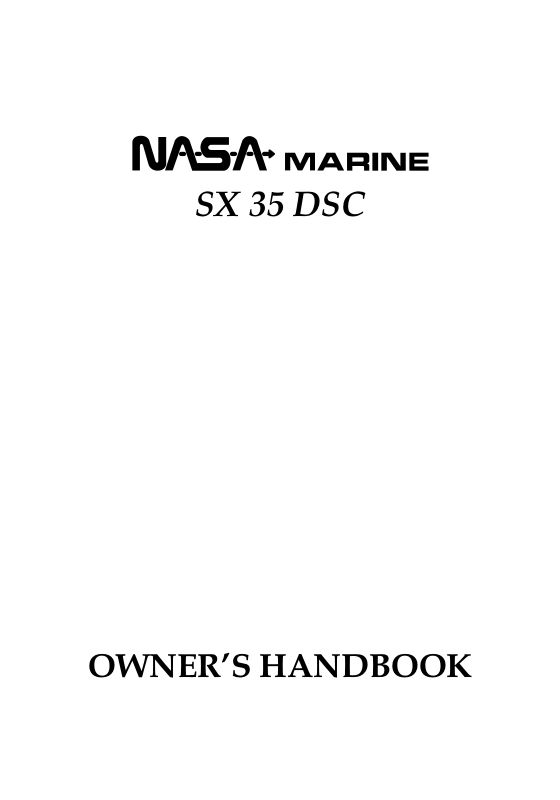

SX 35 DSC
OWNER’S HANDBOOK
DECLARATION OF CONFORMITY
0678
(As required by Article 6.3 of Directive 1999/5/EC-RTTE Directive)
NASA MARINE LTD.
Boulton Road
Stevenage, Herts, SG1 4QG
England
Telephone +44(0)1438 354033
Telefax +44(0)1438 741498
Intended for Worldwide use as a Class D DSC VHF Radiotelephone for use aboard non-SOLAS vessels and identified by type number
NASA DSC RADIO
to which this declaration refers, has been tested to the essential radio test suites required by the notified body and is in conformity with the standards
EN 301 025-2 EN 301 025-3
EN60945 and complies with the essential requirements of Directive 1999/5/EC. Conformity procedure under Annex IV of 1999/5/EC (Technical Construc-
tion file) has been undertaken by EMCCert Dr. Rasek of Boelwiese 5, 91320 Ebermannstadt, Germany. The Technical Construction File is held by Mr. Alan Mully at
NASA MARINE LTD.
Boulton Road
Stevenage, Herts, SG1 4QG
England
Telephone +44(0)1438 354033
Telefax +44(0)1438 741498
Alan Mully-Director-NASA MARINE Ltd.
SX 35 DSC
1
NOTICE
This device is only and aid to navigation. Its performance can be affected by many factors including equipment failure or defects, environmental conditions, and improper handling or use. It is the users’s responsibility to exercise common prudence and naviga­tional judgement, and this device should not be relied upon as a substitute for such prudence and judgement. Your NASA SX35 DSC VHF radio generates and radiates radio frequency (RF) elec­tromagnetic energy (EME). This equipment must be installed and operated in accordance with the instructions contained in this hand­book. Failure to do so can result in personal injury and/or product malfunction.
Antenna Mounting and EME Exposure
For optimal radio performance and minimal human exposure to radio frequency electromagnetic energy, make sure the antenna is:
• Connected to the radio before transmitting
• Properly mounted
• Located where it will be away from people
• Located at least three feet (91 cm) from the Base Station trans­ceiver and handsets.
2
SX 35 DSC
TABLE OF CONTENTS
DECLARATION OF CONFORMITY............................................................1
GENERAL INFORMATION ............................................................................ 5
Introduction ................................................................................................... 5
LICENSE INFORMATION .............................................................................. 6
United Kingdom ...........................................................................................6
Digital Selective Calling (DSC) Capability .............................................7
Required License Information ................................................................... 7
Equipment Required ....................................................................................7
Equipment Supplied ....................................................................................7
Optional Equipment.....................................................................................7
BASIC RADIO COMMUNICATION PROCEDURES ...............................8
Using Channel 16 ..........................................................................................8
Calling Another Vessel ................................................................................ 9
Telephone Calls.............................................................................................9
Prohibited Communication ...................................................................... 10
Transceiver ...................................................................................................11
Antenna......................................................................................................... 11
Power Connection ....................................................................................... 11
NMEA Cable ................................................................................................12
External Speaker Connection ................................................................... 12
Rear Panel Connectors ...............................................................................12
Antenna Connector ..................................................................................... 12
OPERATION .....................................................................................................13
General .......................................................................................................... 13
Display and Controls ................................................................................. 13
Basic Operation ........................................................................................... 14
Power On/Off ..............................................................................................14
Volume and Squelch ..................................................................................14
Channel Selection .......................................................................................15
Channel Banks.............................................................................................15
Keypad, Transceiver ...................................................................................15
Keypad, Microphone .................................................................................. 16
Primary Calling Channel........................................................................... 17
Transmitting ................................................................................................17
Working Channel Recall ........................................................................... 18
Transmitter Power Setting ........................................................................ 18
Channel Scanning ....................................................................................... 18
Priority Scan ................................................................................................. 19
All Scan .........................................................................................................19
SX 35 DSC
3
Memory Scan ............................................................................................... 20
Menu Functions...........................................................................................21
Main Menu Topics......................................................................................22
Directory .................................................................................................22
Lamp ........................................................................................................ 25
Contrast ................................................................................................... 26
Data Set ................................................................................................... 26
MMSID Set............................................................................................. 29
Time Set ..................................................................................................30
NMEA Set ...............................................................................................31
MMSID .........................................................................................................32
Sending a Distress Call.............................................................................. 33
Receiving Distress Calls ............................................................................35
Distress sent by another vessel...........................................................35
Distress ACK sent to another vessel..................................................36
Distress Relay from another vessel ...................................................36
Normal DSC Calls ......................................................................................37
Individual DSC Call .............................................................................37
Directory Call .........................................................................................37
Manual Call ............................................................................................39
All Ships Call .........................................................................................40
Group Call .............................................................................................. 42
Receiving DSC Calls .................................................................................. 43
Individual Call Received .....................................................................43
Last Call Received .................................................................................45
All Ships Call Received .......................................................................46
Group Call Received.............................................................................46
REFERENCE ......................................................................................................47
Maintenance................................................................................................. 47
Special Functions ........................................................................................47
Simulator Mode .....................................................................................47
Clear Memory Channels ......................................................................47
New Microphone................................................................................... 47
Printer Operation ........................................................................................47
Troubleshooting .......................................................................................... 48
Specifications............................................................................................... 49
Channel Assignments ................................................................................53
4
SX 35 DSC
GENERAL INFORMATION
NOTICE
Unauthorized changes or modifications to this equipment may void com­pliance with Regulatory Agency Type Acceptance. Any changes or modifi­cation must be approved in writing by the manufacturer.
NOTICE
This radio transceiver has been tested and complies with EN-301 025-1 v1.1.2 (August 2000). This specification provides reasonable protection against harmful interference in a normal installation. This radio generates, uses and radiates radio frequency energy and, if not installed and used in accor­dance with the instructions, may cause harmful interference to other ma­rine electronic equipment. However, there is no guarantee that interference will not occur in a particular installation. If this radio does cause harmful interference to marine electronic equipment, which can be determined by turning this radio Off and On, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the antenna.
• Increase separation between this radio and other marine electronic equipment.
• Connect this radio to a power source different from that of other ma­rine electronic equipment.
• Consult your dealer or an experienced technician for help.
Introduction
Your SX 35 DSC VHF Transceiver is designed for operation in the marine VHF FM frequency band. The operating frequency range is 156.025 to 163.275 MHz which includes all currently allocated International channels and United Kingdom M and M2 marina channels.
The transceiver has Digital Selective Calling (DSC) capabilities conforming to EN-301 025-1 v1.1.2 operation. Distress, All Ships, Individual and Group DSC call formats are supported. There are thirty two memories for storing incoming DSC calls and thirty two for your personal DSC call directory.
Other features include all channel scanning, priority channel scanning, memory channel scanning, one button instant access to channel 16 and an alphanumeric keypad on the microphone.
SX 35 DSC
5
LICENSE INFORMATION
Prior to using your SX 35 DSC inquire with your national radio communi­cation authorities.
United Kingdom
The Radiocommunications Agency, an Executive Agency of the Department of Trade and Industry, is responsible for the management of the nonmili­tary radio spectrum in the UK.
License information and application forms are available on their web site: www.radio.gov.uk under Publications - Maritime.
Direct inquiries to:
Radiocommunications Agency (RA) Wyndham House 189 Marsh Wall London E14 9SX Tel: 020 7211 0211
The minimum Certificate of Competence that is required for use of a ship portable radio is the Short Range Certificate. This certificate covers use of both standard VHF and VHF/DSC equipment under the Global Maritime Distress and Safety System in sea area A1.
The training and examinations for these certificates are carried out by:
Royal Yachting Association RYA House
Romsey Road, Eastleigh Hampshire SO5 4YA Tel: 023 8062 7400
6
SX 35 DSC
Digital Selective Calling (DSC) Capability
You must obtain a nine-digit maritime mobile service identity (MMSI) and program it into the unit before you transmit. To obtain an MMSI, you will be asked to provide certain information about your ship. It is important that you obtain an MMSI because National Coast Guards and other search and rescue (SAR) agencies use this information to help speed search and rescue operations.
Required License Information
The following information pertaining to your transceiver is necessary if com­pleting a station license application
Output Power............................................... 1 Watt (low) and 25 Watts (high)
Emission ................................................................................16K0F3E, 16K0G3E
Frequency Range ......................................................... 156.025 to 157.425 MHz
UK M .........................................................................................157.850 MHz
UK M2 .......................................................................................161.425 MHz
Meets Essential Requirements of RTTE DIRECTIVE (Declaration of Confor­mity)
Equipment Required
The minimum equipment required for two way voice and DSC VHF radio communication with vessels and shore stations includes:
• VHF radio communication transmitter and receiver designed and ap­proved for marine VHF communication use.
• Power source suitable for the VHF transmitter and receiver.
• For Digital Selective Calling (DSC) VHF communication radios, con­nection to a GPS receiver that provides latitude and longitude coordi­nates and UTC time for distress messages.
Equipment Supplied
• SX 35 DSC Marine VHF Transceiver.
• Microphone with alphanumeric keypad.
• Mounting Bracket with knobs.
• Power Cable with in-line fuse (6.3 Amp).
• NMEA Data Cable.
Optional Equipment
• Flush Mounting Kit.
SX 35 DSC
7
BASIC RADIO COMMUNICATION PROCEDURES
Distress or emergency calls may be made either manually or automatically. Sending distress calls automatically uses the Digital Selective Calling (DSC) functions of your transceiver and requires an operating and properly con­nected navigation receiver. The following procedures are for sending voice distress messages manually. Sending an automatic distress call is described in the DSC section of this manual.
Using Channel 16
Channel 16 is the Calling and Distress channel. An emergency may be de­fined as a situation that threatens human life or property. In such situa­tions, make sure your transceiver is turned On and set the channel selector to Channel 16. Then use the following procedure to make a distress call. The total transmission should not exceed 1 minute.
1. Press the microphone Push To Talk button. Speak slowly and clearly into the microphone: “Mayday, Mayday, Mayday, this is your vessel’s name, your vessel’s name, your vessel’s name”.
2. Then repeat once: “Mayday, your vessel’s name”.
3. Continue by reporting your position in latitude and longitude or by reporting your bearing (true or magnetic, specify which) and dis­tance from a prominent or well known landmark, geographic fea­ture or aid to navigation.
4. Explain the nature of your emergency (fire, sinking, collision, grounding, health condition, injury, etc.).
5. Report the kind of assistance you require (fire, medical aid, pumps, etc.).
6. State the number of people aboard and the condition of any injured.
7. Estimate the seaworthiness and condition of your vessel.
8. Describe your vessel: length, type, color and any distinguishing fea­ture.
9. End the message by saying “Over”. Release the Push To Talk but­ton and listen for a reply.
10. If there is no reply, repeat the above message procedure. If there is still no response, try another channel.
8
SX 35 DSC
Calling Another Vessel
Channel 16 may be used to establish initial contact with another vessel. However, its most important use is for voice emergency messages. Chan­nel 16 must be monitored at all times except when engaged in actual com­munication on another channel. Channel 16 is monitored by international search and rescue (SAR) authorities, National Coast Guards and by other vessels. Use of Channel 16 for calling or hailing must be limited to initial contact only. Calling should not exceed 30 seconds and may be repeated 3 times at 2 minute intervals.
Prior to making contact with another vessel, determine which channel will be used for continued communication after the initial contact. Channels 68 and 72 (see Channel Assignment tables) are two channels available for non­commercial (recreational) communication. Monitor the desired channel for traffic and, when clear, switch to Channel 16 to make initial contact.
Listen for traffic on the Calling Channel (16). If clear, press the Push To Talk (PTT) button on the microphone. Speak the name of the vessel you are calling followed by “this is” and the name of your vessel and your call sign. Release the PTT and listen for a reply. When the other vessel returns your call, acknowledge the call with “go to”, the number of the new channel and “over”. Switch to the new channel and listen for traffic. If necessary, wait for traffic to clear, and then call the other vessel. As communication pro­ceeds, end each transmission with “over”. When communication with the other vessel is completed, end the last transmission with your call sign and the word “out”. It is not necessary to end each transmission with your call sign, just give your call sign at the beginning and end of each contact.
Remember to switch to Channel 16 when not actively communicating on another channel.
Telephone Calls
You may use your SX 35 DSC transceiver to make telephone calls to per­sons on shore. To do so requires the services of marine operators who oper­ate on designated Public Correspondence channels. There are several chan­nels designated for this type of traffic and to determine the channel being used in your area, ask someone with local knowledge, contact a Harbor Master or other marine authority.
SX 35 DSC
9
Call the marine operator and identify yourself with your vessel’s name. Normally you contact a marine operator on their working channel rather than making initial contact on Channel 16. The marine operator will ask for your intentions and establish a payment method for the call (collect, credit card, etc.). When arrangements are complete, your radio communication will be patched into the telephone line. In conversing with a person on the phone it is important to use normal radio communication procedures. You should say “over” and release the PTT button at the end of each transmis­sion. Both parties cannot speak simultaneously as on normal telephone calls.
Prohibited Communication
The following communications are prohibited by regulations and violators are subject to penalties.
• False distress or emergency messages (including false DSC distress).
• Messages to “any vessel” except in emergencies and radio tests.
• Messages to or from a vessel on land.
• Transmission while on land.
• Obscene, indecent, or profane language.
10
SX 35 DSC
INSTALLATION
Transceiver
Your SX 35 DSC Transceiver is designed to withstand the rigors of the ma- rine environment. However, selecting a mounting location affording some protection from the elements will prolong the life of connectors, controls and the liquid crystal display (LCD).
Select a location within easy reach and view of the operator and away from your vessel’s compass. Locate the microphone to avoid entanglement with steering or engine controls, both when in use and when stowed. Also, con­sider routing of antenna, power and NMEA interface cables. Mount the transceiver securely to a solid surface.
Antenna
Power Connection
CAUTION
Reverse polarity connections can damage your transceiver
The power cable for you transceiver must be connected to the ships main power buss. Use the 6.3 Amp in-line fuse provided. Connect the Red wire to the positive (+) terminal and the Black wire to the negative (—) terminal. Connect the barrel terminals on the power cable to the matching color wires and terminals extending from the rear panel of the transceiver.
SX 35 DSC
11
NMEA Cable
In order for the position reporting features of your SX 35 DSC transceiver to function, an operating GPS navigation receiver must be connected to your transceiver. The supplied data cable plugs into the 8 pin connector on the transceiver’s rear panel and the other end connects to the NMEA data out­put from your GPS navigation receiver. Your GPS must output the $GPRMC NMEA data sentence. Refer to your navigation receiver manual for infor­mation about its NMEA output settings and connections.
External Speaker Connection
Provision for connecting and external speaker is provided on the rear panel. Use an 8 Ohm speaker rated for at least 3 Watts and suitable for the environ­ment at the chosen location.
Rear Panel Connectors
Data Connector
(Rear Panel)
1 NMEA Rx (+) 2 NMEA Rx (–) 3 NMEA Tx (+) 4 Ground/Tx (–)
5 Clock 6 Reset 7 PDI 8 PDO
Pins 3 & 4 reserved for DSC/PC printer interface Pins 5~8 reserved for Flash programmer
Brown Red Orange Shield
Green Blue Gray Purple
17
8 4
External Speaker Connector
(Rear Panel)
3.5 mm Phone plug Tip Audio Out (+)
Body Audio Out (–)
Antenna Connector
The transceiver is fitted with a type SO 239 female connector which mates with a PL 259 male connector supplied with VHF marine antennas.
12
SX 35 DSC
OPERATION
0
1
ABC
2
DEF
3
GHI
4
JKL
5
MNO
6
PQRS
7
TUV
8
WXYZ
9
ENT
EXIT
mic
General
Your SX 35 DSC is an advanced marine VHF communication transceiver offering the safety and convenience of Digital Selective Calling in addition to all the useful features found in the best conventional VHF radios.
Display and Controls
The transceiver is operated using the front panel controls, the keypad, the Push To Talk (PTT) button and a keypad on the microphone. The 4-line LCD displays the current operating status, menus for selecting functions, and settings for optional features. The microphone has a keypad for chang­ing channels and selecting functions.
Channel/data SelectorLCD DisplayInternal Speaker
SELECT
VOL SQ
SX 35
DSC
DISTRESS
LIFT HERE
MENU
ENT
EXIT
HI/LO
SCAN
END
MEM16CALL
OFF
Microphone Cable Entry
Under Cover
Volume Control
SX 35 DSC
Squelch ControlKeypadEmergency Button
Frequency Bank Annunciators
USA INT CAN
4 lines, 11 characters each for alphanumeric information
Channel
Number
Liquid Crystal Display
SX 35 DSC
13
Basic Operation Power On/Off
Power to the transceiver is controlled with the VOLume knob. When the VOL knob is in the full CCW position the unit is turned Off.
To turn the transceiver On:
• Rotate the VOL knob CW until it clicks over the detent. The LCD back­light illuminates and the Power-On screen appears.
INT
SX 35 DSC
CODE 000.00
Power-On Screen
After approximately two seconds, the Normal Communication screen ap­pears in the display.
16 PRI. HI MEM CHANNEL N 28°04.814 W 83°42.169
Normal Com Screen
with GPS Connected
To turn the transceiver Off:
• Rotate the VOL knob CCW until it clicks over the detent to the OFF position.
V olume and Squelch
The VOLume and SQuelch controls have concentric knobs. The outer ring knob controls squelch and the inner knob controls volume. They are inde­pendent controls but work together to control audio output from the speaker. The volume control sets the loudness of sound from the speaker and the squelch control is used to mute background noise when no received signals are present.
INT
16 PRI. HI MEM CHANNEL ––°––.––– ––°––.–––
Normal Com Screen w/o GPS Connected
INT
14
SX 35 DSC
To properly set the VOL and SQ controls:
• Rotate the SQ control fully CCW.
• Rotate the VOL control CW until background noise is plainly heard.
• Slowly rotate the SQ control CW until the noise is muted (squelched).
Then adjust the control slightly more CW (approximately 1/8 turn). Use care not to set the SQ control more CW than necessary or weak signals may not be heard.
Channel Selection
When the transceiver is turned On, the Primary Calling Channel (channel
16) is selected. There are three ways to change channels:
• Rotate the SELECT knob, press and hold the
ENT
or
keys, or di-
EXIT
rectly enter the channel number using the numeric keys on the micro­phone. The
ENT
and
keys will always change channels except when
EXIT
being used to enter or edit a directory page.
Channel Banks
Your SX 35 DSC is designed for use with the International VHF marine channel frequencies plus authorized local channel frequencies. Only au­thorized dealers can program other approved country channels, where spe­cifically allowed by government regulations, by using the 8 pin com con­nector.
Keypad, Transceiver
A tone is emitted each time a key is pressed. A three beep error tone is emitted when a key is not allowed. Some functions require a key to be pressed and held. After the hold period times out, a second tone is emitted as the function is entered. The basic purpose for each key follows. Detailed usage of keys is described in operating procedures for the transceivers vari­ous functions.
SX 35 DSC
15
MENU
Opens menus to select optional settings to personalize your transceiver’s operation.
HI/LO
Use to toggle transmitter power between 25 watts and 1 watt out­put. Certain channels are restricted to 1 watt maximum power and
will cause the error beep if the HI/LO key is pressed.
END
Cancels DSC calls and Emergency/Distress calls.
16
Selects the Primary Calling Channel 16 or the last channel used. Also, cancels DSC and Emergency/Distress calls.
ENT
Used to complete editing or selection of options from menus. Use to delete channels in All Scan function.
SCAN
Can be used alone or with the MEM key to select Priority Scan, Memory Scan or All Scan.
MEM
Stores channels in the scan memory bank, and when used with the SCAN key, starts Memory Scan.
CALL
Initiates DSC operation screens.
Keypad, Microphone
WXYZ
keys. The
9
ENT
or
EXIT
keys step or scroll to a new channel. The microphone keys are used to enter alphanumeric characters and symbols shown in the following chart.
syeKenohporciM
01
CBA
2
FED
3
IHG
LKJ
4
5
ONM
6
SRQP
VUT
7
8
ecneuqeSretcarahCciremunahplA
01ADGJMPTW
ecapS-BEHKNQUX (,CFILORVY ).?!:#'S&Z
%/23456789
16
SX 35 DSC
ZYXW
9
Loading...
+ 40 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
