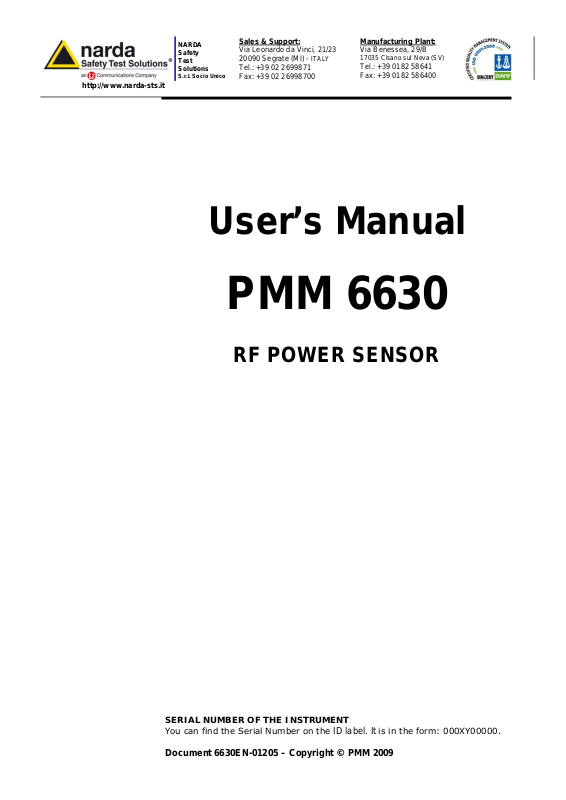

NARDA PMM 6630 User Manual

http://www.narda-sts.it

NARDA
Safety
Test
Solutions

S.r.l. Socio Unico

Sales & Support:

Via Leonardo da Vinci, 21/23
20090 Segrate (MI) ­Tel.: [phone]
Fax: [phone]

User’s Manual

PMM 6630

ITALY

Manufacturing Plant:

Via Benessea, 29/B

17035 Cisano sul Neva (SV)

Tel.: [phone]
Fax: [phone]

RF POWER SENSOR

SERIAL NUMBER OF THE INSTRUMENT

You can find the Serial Number on the

Document 6630EN-01205 – Copyright © PMM 2009

ID label. It is in the form: 000XY00000.

g

REMARK:

® Names and Logo are registered trademarks of Narda Safety Test
Solutions GmbH and L3 Communications Holdings, Inc. – Trade names
are trademarks of the owners.

If the instrument is used in any other way than it is described in this
Users Manual, it may become unsafe.

Before using this product, the related documentation must be read
carefully and fully understood to familiarize with all the safety
prescriptions.

To ensure the correct use and the maximum safety level, the User shall
know all the instructions and recommendations contained in this
document.

This product is a Safety Class III instrument accordin

to IEC
classification and has been designed to meet the requirements of
EN61010-1 (Safety Requirements for Electrical Equipment for
Measurement, Control and Laboratory Use).

This product has a Pollution Degree II normally only non-conductive

pollution occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.

The information contained in this document is subject to change without
notice.

2 PMM 6630 User’s Manual

KEY TO THE ELECTRIC AND SAFETY SYMBOLS

This is an high quality instrument designed to provide for many
years of reliable service. Nevertheless, even this product will
eventually become obsolete. When that time comes, please
remember that electronic equipment must be disposed of in
accordance with local regulations. This product conforms to the
WEEE Directive of the European Union (2002/96/EC) and belongs
to Category 9 (Monitoring and Control Instruments). You can
return the instrument to us free of charge for proper environment
friendly disposal. You can obtain further information from your
local NARDA Dealer or by visiting our website at www.narda­sts.it .

Warning, danger of electric
shock

Read carefully the User’s
Manual and its instructions,
pay attention to the safety
symbols

Earth

Unit Earth Connection

Earth Protection

Equipotential

KEY TO THE SYMBOLS USED IN THIS DOCUMENT:

The DANGER sign draws attention to a
potential risk to a person’s safety. All the

DANGER

precautions must be fully understood and
applied before proceeding

WARNING

The WARNING sign draws attention to a
potential risk of damage to the apparatus
or loss of data. All the precautions must be
fully understood and applied before
proceeding

CAUTION

NOTE:

The CAUTION sign draws attention against
unsafe practices for the apparatus
functionality

The NOTE draw attention to important
information

PMM 6630 User’s Manual

3

Contents

Safety considerations and instructions ……………………
EC Conformity Certificate……………………………………….

1 General Page

1.1 Documentation........................................................

1.2 Introduction….....................................………………………

1.3 Standard Accessories...............................................

1.4 Other equipment available.........................................

1.5 Specifications………….................................................

1.6 PMM 6630 Connectors.………………….……………………………….

1.7 PMM 6630 ID Label………………………........................…….

2 Operation Page

2.1 Foreword……............................................................

2.2 Inspection……………....................................................

2.3 Ambient…………………..................................................

2.4 Return for service…………...........................................

2.5 Cleaning.................................................................

2.6 Installation and use…………...................…...................

2.7 Functional description…….……………...........................….

2.8 Power signals of dangerous intensity …….....................

2.9 Remove PMM 6630 from the setup.……………................

3 Win6630 Operating Instructions Page

3.1 Foreword………………..................................................

3.2 PC minimum requirements ……….....……………….............

3.3 Installation.……………………........……………………………………..

3.4 Running Win6630……………...…...................................

3.5 Main window contents..............................................

3.5.1 Title bar……………………………..…………………...................

3.5.2 Main window…………………………………………….………………..

3.5.3 Setting menu…….………………………………………...............

3.5.3.1 Settings………..………………...…………………..................

3.5.3.2 Preference.……….……….………………………….................

3.5.3.3 ? (Info)................…………………………………….............

3.5.3.4 Frequency setting……………..……….……………..............

3.5.3.5 Unit setting………………………………….…………….............

3.5.3.6 HOLD / RUN………………………………………....................

3.5.3.7 EXIT…………………………………………………......................

3.6 Uninstalling Win6630…………..…………………………..............

3.7 Uninstalling the driver of PMM 6630.…........................

Page

7
8

10
10
11
11
12
14
14

16
16
16
17
17
18
24
24
25

28
28
29
32
33
33
34
34
35
38
38
39
39
39
39
40
41

4 PMM 6630 User’s Manual

4 Communication protocol Page

4.1 Disclaimer ………….………………..................................

4.2 Protocol..…….......................................................

42
42

5 Accessories Page

5.1 Foreword............................................................

5.2 Inspection..........................................................

5.3 Ambient.............................................................

5.4 Return for service................................................

5.5 Cleaning.............................................................

5.6 6630-USB Cable…………………………………………………….….

5.7 PMM 6630FOA (optional)…………………………………………..

46
46
46
47
47
48
50

PMM 6630 User’s Manual

5

Figures

Figure

1-1
1-2
1-3
1-4
1-5
2-1
5-1
5-2
5-3
5-4
5-5

PMM 6630 ………………………………………..…………………………
PMM 6630FOA……………………………………………………………..
PMM 6630 Front view.………………………………………………..
PMM 6630 Rear view .………………………………………………..
PMM 6630 Side view.…………………………………………………..
PMM 6630 Inducted immunity set block diagram………
6630-USB Cable…..……………………………………………………..
PMM 6630FOA……………………………………………………………..
PMM 6630FOA Front view.………………………………………….
PMM 6630FOA Rear view .………………………………………….
PMM 6630FOA Label with Serial Number…………………..

Page

10
11
14
14
14
24
48
50
52
52
52

Tables

Table

1-1
1-2
1-3
4-1
4-2
5-1
5-2
5-3

Specifications of PMM 6630……………..………….....………..

Power ON Led..………………………………………………………….…
Measuring range / PC connection Led………………………..

Query Commands …………………………………………............

Setting Commands ……………………………………………………..
Specifications of 6630-USB Cable…………………….………..
Specifications of PMM6630FOA………………………….……….
LEDs status…………………………………………………………………..

Page

12
14
14
43
44
48
51

56

6 PMM 6630 User’s Manual

g

g

g

g

SAFETY RECOMMENDATIONS AND INSTRUCTIONS

This product has been designed, produced and tested in Italy, and it left the
factory in conditions fully complying with the current safety standards. To
maintain it in safe conditions and ensure correct use, these general instructions
must be fully understood and applied before the product is used.

• When the device must be connected permanently, first provide effective

grounding;

• If the device must be connected to other equipment or accessories, make

sure they are all safely grounded;

• In case of devices permanently connected to the power supply, and lackin

any fuses or other devices of mains protection, the power line must be
equipped with adequate protection commensurate to the consumption of all
the devices connected to it;

• In case of connection of the device to the power mains, make sure before

connection that the voltage selected on the voltage switch and the fuses are
adequate for the voltage of the actual mains;

• Devices in Safety Class I, equipped with connection to the power mains by

means of cord and plug, can only be plugged into a socket equipped with a
ground wire;

• Any interruption or loosenin

of the ground wire or of a connecting power
cable, inside or outside the device, will cause a potential risk for the safety of
the personnel;

• Ground connections must not be interrupted intentionally;

• To prevent the possible dan

er of electrocution, do not remove any covers,
panels or guards installed on the device, and refer only to NARDA Service
Centers if maintenance should be necessary;

• To maintain adequate protection from fire hazards, replace fuses only with

others of the same type and rating;

• Follow the safety re

ulations and any additional instructions in this manual to

prevent accidents and damages.

PMM 6630 User’s Manual

7

Declaration of EC Conformity

(in accordance with the Directives: EMC 89/336/EEC and Low Voltage 73/23/EEC)

This is to certify that the product: PMM 6630 RF Power Sensor 9 kHz – 3 GHz

Produced by: NARDA S.r.l.
Safety Test Solution
Via Benessea 29/B
17035 Cisano sul Neva (SV) - ITALY

complies with the following European Standards
Safety: CEI EN 61010-1 (2001)
EMC: EN 61326-1 (2007)

This product complies with the requirements of the Low Voltage Directive
2006/95/CE and with the EMC Directive 2004/108/CE.

NARDA S.r.l.

8 PMM 6630 User’s Manual

This page has been intentionally left blank

PMM 6630 User’s Manual

9

g

1.1
Documentation

1.2
Introduction

1 – General

This Manual includes:

• Questionnaire to send back to

to service.

• Check list of supplied accessories.

The PMM 6630 is a simple and easy to use RF power
measuring instrument.
It is very suitable in EMC applications to calibrate CDNs
and CLAMPs for conducted and induced immunity tests,
and to measure the power of RF signals forwarded to
antennas or GTEMs cells.
Forward and reflected powers can be measured by using a
directional coupler.
The internal compensation prevents temperature drifting
effects.
The instrument is supplied together with drivers for any
WindowsTM environments. Just execute WindowsTM software
and get your reading (dBm, W and Vrms) into the PC
monitoring window.
If you are using PMM immunity software (conducted or
radiated) all drivers are already embedded and ready to
use.

ether with the instrument

Document 6630EN-01205 – © NARDA 2009

10 PMM 6630 User’s Manual

Fig. 1-1 PMM 6630

g

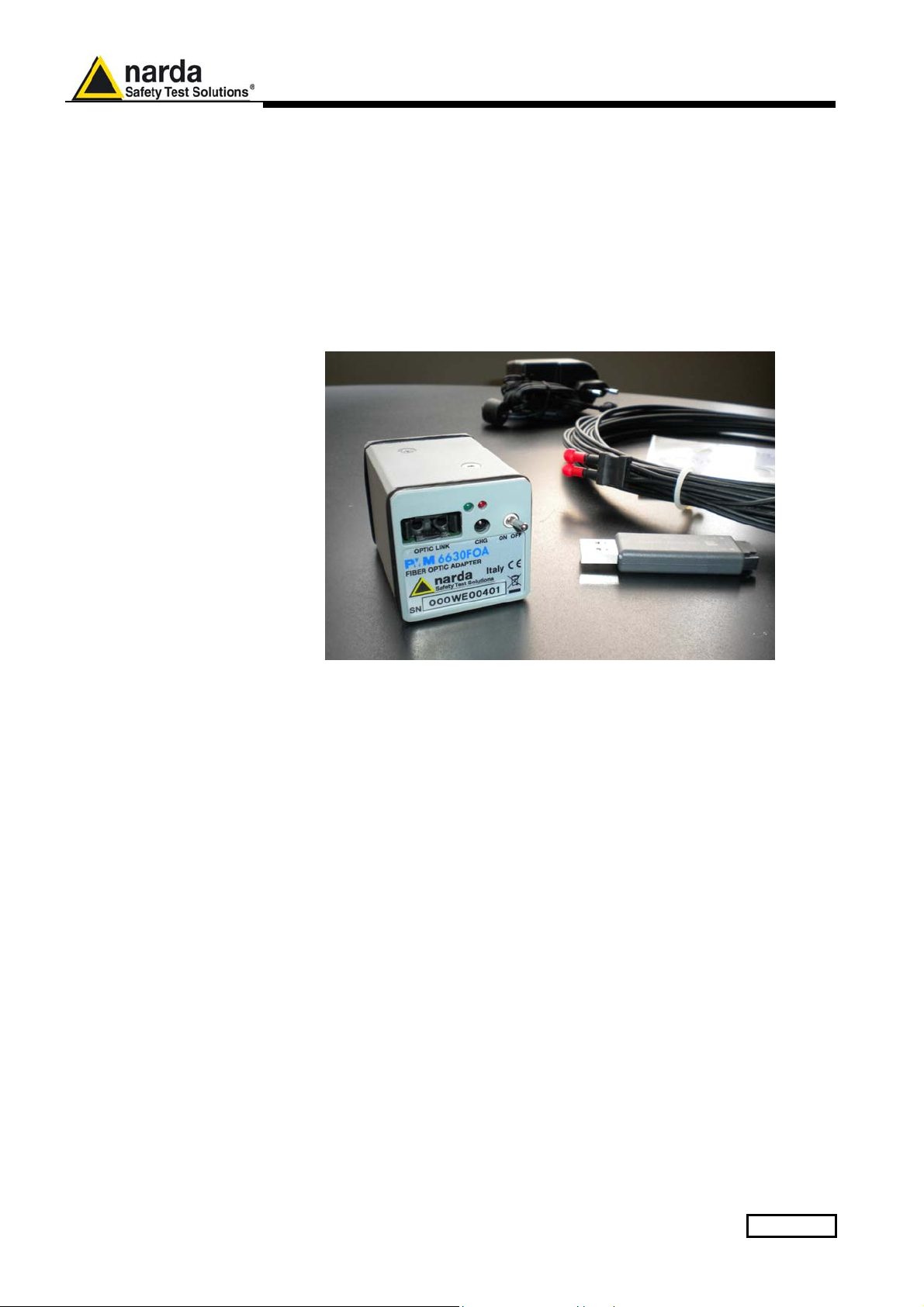

The PMM 6630 also can work with the optional accessory

PMM 6630FOA that allows to convert the USB signal of the
power sensor into fiber optic compatible signal. It is often
beneficial to use noise immune fibre optic cable instead of
USB cable in environments where is requested a low noise
level or simply to extend the link; moreover, the optic link
is immune to interferences caused by high field level.
The PMM 6630FOA is linked to the USB port of any
Personal Computer through the USB-OC Optical USB
Converter supplied with the unit.

1.3
Standard
accessories

1.4
Other available
accessories

Fig. 1-2 PMM 6630FOA

Accessories and documents supplied with PMM 6630

• 6630-USB Cable;

• CD-ROM with Software;

• User’s Manual

• Calibration Certificate

• Service form

Other equipment available from PMM to use in conjunction
with the PMM 6630 RF power meter:

• PMM 3030 (3 GHz) – PMM 3010 (1 GHz) EMI Si

nal

Generator

• PMM 6000N Wideband RF Power Amplifier

• PMM 6630FOA Fiber Optic Adapter

PMM 6630 User’s Manual

11

1.5
Specifications

TABLE 1-1 Specifications of the PMM 6630

Frequency range

Power
measurement
range

Max. Power

RF Connector

Max. SWR
(25°C ± 10 °C)

Power linearity
(25°C ± 10 °C)

Measurement
Accuracy

1, 2

(25°C ± 10 °C)

Measuring ranges
(automatic
change)

Temperature
operating range

This condition applies to all specifications:

• The operating ambient temperature range must be -10°

to +40 °C.

9 kHz to 3 GHz

100 nW to 1 W (-40 dBm to +30 dBm)

2 W peak envelope, max 300 ms

N-male 50 Ω

10 kHz to 300 kHz 1.10
>300 kHz to 100 MHz 1.05
>100 MHz to 1 GHz 1.10
> 1 GHz to 3 GHz 1.25

10 kHz to 3GHz 1.20

from +30 dBm to -9 dBm

from < -9 dBm to -40 dBm

-40 dBm to 30 dBm at 50 MHz: 0,2 dB

< 0,35 dB

High +30 dBm to -9 dBm
Low -9 dBm to -40 dBm
Switching point Hysteresis 1 dB typical

-10°C to 50°C

12 PMM 6630 User’s Manual

Power Supply

5 VDC – 100 mA (through USB Port)

PC Interface

System
requirements

Size

USB 1.0 1.1 2.0

Windows XP, Vista, Win7

30 x 30 x 95 mm (WxHxD)

Weight

0.12 kg

1. Max SWR source = 1.25

2. Calculated with worst calibration uncertainties to the calibration factor of 0,17 dB.

PMM 6630 User’s Manual

13

1.6
Connectors

1-RF input

Fig. 1-3 PMM 6630 Front view

1- Fischer connector cable
input

2-Led: Power ON Led

3-Led: Measuring range/
PC connection

Led status Meaning

Green PMM 6630 ON

OFF PMM 6630 OFF / Disconnected

Led status Meaning

Green PMM 6630 in Low range, from -9 dBm to -40 dBm

OFF PMM 6630 in High range, +30 dBm to -9 dBm
Red Communication fault

1.7
ID Label
PMM 6630

Fig. 1-4 PMM 6630 Rear view

TABLE 1-2: Power ON Led

TABLE 1-3: Measuring range/ PC connection Led

Fig. 1-5 PMM 6630 Side view Legend: 1-Year of production

2-Serial Number

14 PMM 6630 User’s Manual

This page has been intentionally left blank

PMM 6630 User’s Manual

15

g

2.1
Foreword

2.2
Inspection

2.3
Ambient

1

2 – Operation

None

Once received the instrument, please check:

- packaging integrity

- instrument and accessories integrity

- contents, accordin

manual

Contact your Dealer immediately if something is
damaged or missed.

Store instrument and accessories in clean, dry environment
free of dust and acid vapours.
Follow requirements for temperature and humidity:

Operation:

• Temperature

• Humidity

Storage:

• Temperature

• Humidity

to the check list attached to this

-10° to +40° C
< 90% RH

-20° to + 70° C
< 95% RH

Document 6630EN-01205 – © NARDA 2009

16 PMM 6630 User’s Manual

g

2.4
Return for
service

2.5
Cleaning

When the instrument needs to be sent to NARDA for
repairs please complete the questionnaire enclosed with
this Operating Manual making sure you fill in all the details
relative to the service requested.
In order to minimize repair time, please describe the
nature of the failure. If the failure occurs only under certain
conditions, please provide details on how we may recreate
the same condition in order to identify the fault.
If possible, please reuse the original packaging, making
sure the instrument in wrapped in heavy paper or plastic.
Alternatively, use a strong box filled with shockproof
material, place enou

h material all around the equipment
so that the unit is stable and firmly blocked inside the box.
Mark the box: FRAGILE HANDLE WITH CARE.

To clean the equipment use only dust-free, non-abrasive
dry cloths.

To avoid damage never use any kind of solvent, acid,
or similar to clean the instrument.

PMM 6630 User’s Manual

17

g

2.6
Installation
and use

PMM 6630 is supplied through USB port PC. The RF Input
connector is located on the front; the Fisher connector (for
PC connection) and Leds on the rear.

Connect the PMM 6630 to the PC only once the
software Win6630 supplied in the CD-ROM has been
successfully installed.

Do not connect the Data-Supply cable by applyin
force to the cable directly: this may damage the
connection. Always hold firmly the connectors with
your fingers to connect the cable.
Presence of dust, dirt or particles of any nature on
the 4 poles connector surfaces must be carefully
prevented.

To avoid damage, the arrow marked on the external
part of the Data-Supply connector must match to the
PMM 6630 connector.

Once Win6630 has been successfully installed (see Chapter

3), connect the Data-Supply cable (supplied) to the PMM
6630 respecting the connection sense; make sure to
tighten the Fisher cable connector to the PMM 6630
connector.

18 PMM 6630 User’s Manual

Connect the other cable end to the USB port PC.

When the PMM 6630 is on, the Leds show the operating
mode (see chapter 1).

If the driver is not already installed a message informing
that new hardware has been found will appear and a
guided installation will be started:

Do not allow connection to Windows Update by checking
“No, not now” and click “next”

PMM 6630 User’s Manual

19

Select “Install from a list or specific path” and click “next”

Select options as in the picture and click “browse” to select
the directory containing the requested files:

The folder “USB-WIN-XP” which includes driver for
Windows XP and Vista is in the following path:

c:\Programmi\Win6630\Win-XP. Select it and click

“OK”

20 PMM 6630 User’s Manual

Click “next” to start the installation.

Click “continue”

PMM 6630 User’s Manual

21

Click “Finish” to complete the driver installation; the new
hardware is now ready to use.

22 PMM 6630 User’s Manual

Connect the PMM 6630 RF input connector to the source.

Tighten the PMM 6630 N-type RF connector input
connector to the source connector. Loose
connections may cause wrong readings.

PMM 6630 User’s Manual

23

g

2.7
Functional
description

The following block diagram represents the typical
configuration of inducted immunity tests where the PMM

6630 measure the power applied to the CDNs.

2.8
Power signals
of dangerous
level

Fig. 2-1 Inducted immunity set block diagram

Do not apply to the PMM 6630 power levels exceedin
the max. allowed value (see Table 1.1).

24 PMM 6630 User’s Manual

2.9
Remove
PMM 6630
from the setup

Uninstalling the driver is not required to remove the
PMM 6630 from the setup.

Press to close the Win6630 Software.

Disconnect the USB Cable from the PC.

Do not disconnect the USB Cable by applying force to
the cable directly: this may damage the connection.
Always hold firmly the connectors with your fingers
to disconnect the cable.

Disconnect the PMM 6630 from the RF source.

PMM 6630 User’s Manual

25

Disconnect the Fisher connector and the Data-Supply cable
from the Power Sensor.

Disconnect the Data-Supply cable by applying force to
the cable directly: this may damage the connection.
Always hold firmly the connectors with your fingers
to disconnect the cable.

26 PMM 6630 User’s Manual

This page has been left blank intentionally

PMM 6630 User’s Manual

27

3.1
Foreword

3.2
PC minimum
requirements

2

3 –Win6630 Operating instructions

This chapter is the installation and operation guide of the
PC Software Win6630 supplied with the PMM 6630 RF
Power Sensor.

• Processor: Pentium

• 16 Mb RAM

• 10 Mb free space on hard disk;

• Operating system Windows™, XP/Vista/Win7.

Software updates can be downloaded from the web
page www.narda-sts.it.

Document 6630EN-01205 – © NARDA 2009

28 PMM 6630 User’s Manual

3.3
Installation

Do not connect the PMM 6630 to the PC until the
installation is completed.

Insert the Win6630 CD into the PC CD-ROM driver.
In Computer Resources double click on the corresponding
CD-ROM driver.

To start the installation double click on the Win6630 icon.

In Windows Vista most programs are blocked for
computer protection. To start the installation
correctly it might be necessary to authorize the
operation.

PMM 6630 User’s Manual

29

The installation folder must be specified. Click Next to
confirm the default folder or Change to modify.

Click Next to proceed installing.

30 PMM 6630 User’s Manual

The installing status is displayed then:

Click Finish to complete and exit the installer.
The folder Win6630 are created under Programs with the
icon Win6630 on desktop.

PMM 6630 User’s Manual

31

g

3.4
Running
Win6630

Connect the PMM 6630 to PC an click the icon on desktop.

Alternatively (Windows XP): Start, All Programs,

Win6630, Win6630.

Windows Vista or 7: Click Windows ( ), Programs,
Win6630, Win6630.

This window is displayed first:

This messa

e appears when PMM 6630 is not connected or

the communication is not established:

32 PMM 6630 User’s Manual

3.5
Main window
contents

3.5.1
Title bar

Main window:

1. Title bar

2. Main window

3. Measurements and settings selections

4. Frequency setting

5. Unit setting;

6. Hold/run readings;

7. Exit and quit the program

The title bar shows the Win6630 icon, the current RF power
measurement, the measuring unit and the Software name.
The control buttons allow to minimize to icon and exit the
program.

When minimizing the main window the information is
displayed in the Windows application bar at the bottom of
screen.

PMM 6630 User’s Manual

33

3.5.2
Main window

3.5.3
Setting menu

The main window displays:

- Power data.

-50.91

- Measuring unit (see “Unit setting”)

dBm

- Correction frequency (see par. “Frequency setting”)
Default: Freq: 50.00 MHz

- Average, Correction Factor e Offset
(see “Setting menu/Settings”)

Avg: 1

CorFact: 100.0%

Offset: 0.0 dB

Commands:

- Settings: Average, Correction Factor, Offset.

- Preference: program skin.

- ? (Info): software and product information.

34 PMM 6630 User’s Manual

g

3.5.3.1
Settings

Settings options:

- Offset: The value represents the compensation of the

eventual attenuation between the device under test and
the Power Sensor.

Enter a new offset value , confirm with and

close the window with .

- Average: setting of the number (1, 4, 16, 32, 64, 128,

256, 512 and 1024) of readings to calculate the arithmetic
average (AVG).

In the example, the avera

e value of the last 4 field

readings will be displayed.

Press

to close the Average window .

PMM 6630 User’s Manual

35

- Correction Factors expressed in %, for each frequency.

The displayed level is the incident power corrected by this
factor.
At the first run the correction factor is disabled; to enable,
tick on “Click to enable Correction Factor”.

Press to enter a Correction Factor. The following
window will be displayed:

The setting displayed at the first run is the default
one; the last setting will be displayed then.

36 PMM 6630 User’s Manual

g

Enter a frequency correction factor between 80%
and 120%.

Set the Frequency and the

Correction Factor ; press
to store the values on the table and close the window with

.

A warning message will appear if the new frequency value

is already present in the table.

To cancel the Correction Factor, click on the correspondin

line, that turns blue, then press

to cancel the

Correction Factor value.

PMM 6630 User’s Manual

37

3.5.3.2
Preference

3.5.3.3
? (Info)

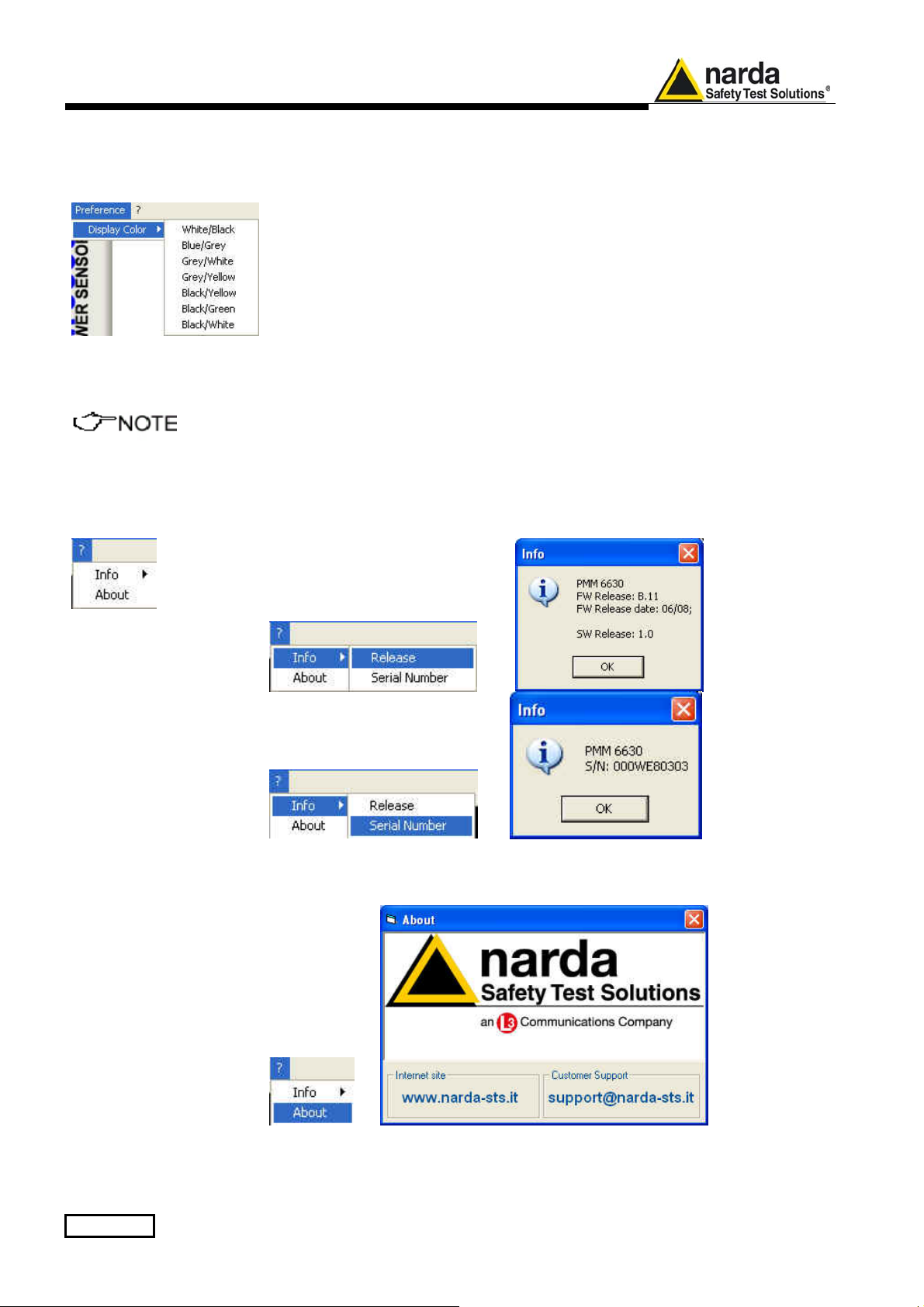

Selection of different colour combinations of the main
window:

Background / readings and units

- Blue/Gray

- Grey/White

- Grey/Yellow

- Black/Yellow

- Black/Green

- Black/White

The settings colours of Freq, Avg, CorFact and Offset
will be displayed accordingly.

Contents:

- Info: current PMM 6630 firmware version and date,

Software version and serial number

- About: Manufacturer information.

38 PMM 6630 User’s Manual

g

3.5.3.4
Frequency
correction
setting

3.5.3.5
Unit setting

This setting in MHz recalls the corresponding frequency
correction factor stored in the PMM 6630 memory.

The frequency is displayed with three decimals, with max.

resolution of 0.001 MHz. Press SET to enter the frequency

value.

Click on the buttons to change the measuring units:

- dBm:

3.5.3.6
HOLD / RUN

3.5.3.7
EXIT

- nW:

- mVrms:

Press HOLD to hold the last reading.

Click on the button to toggle from HOLD to RUN

The button XYZ/TOT is active even when in HOLD.

If the program is ended when in HOLD mode, it will
restart in RUN mode.

Press EXIT to end the pro

ram. The current settings are

saved and will be recalled at the next start.

PMM 6630 User’s Manual

39

3.6
Uninstalling
Win6630

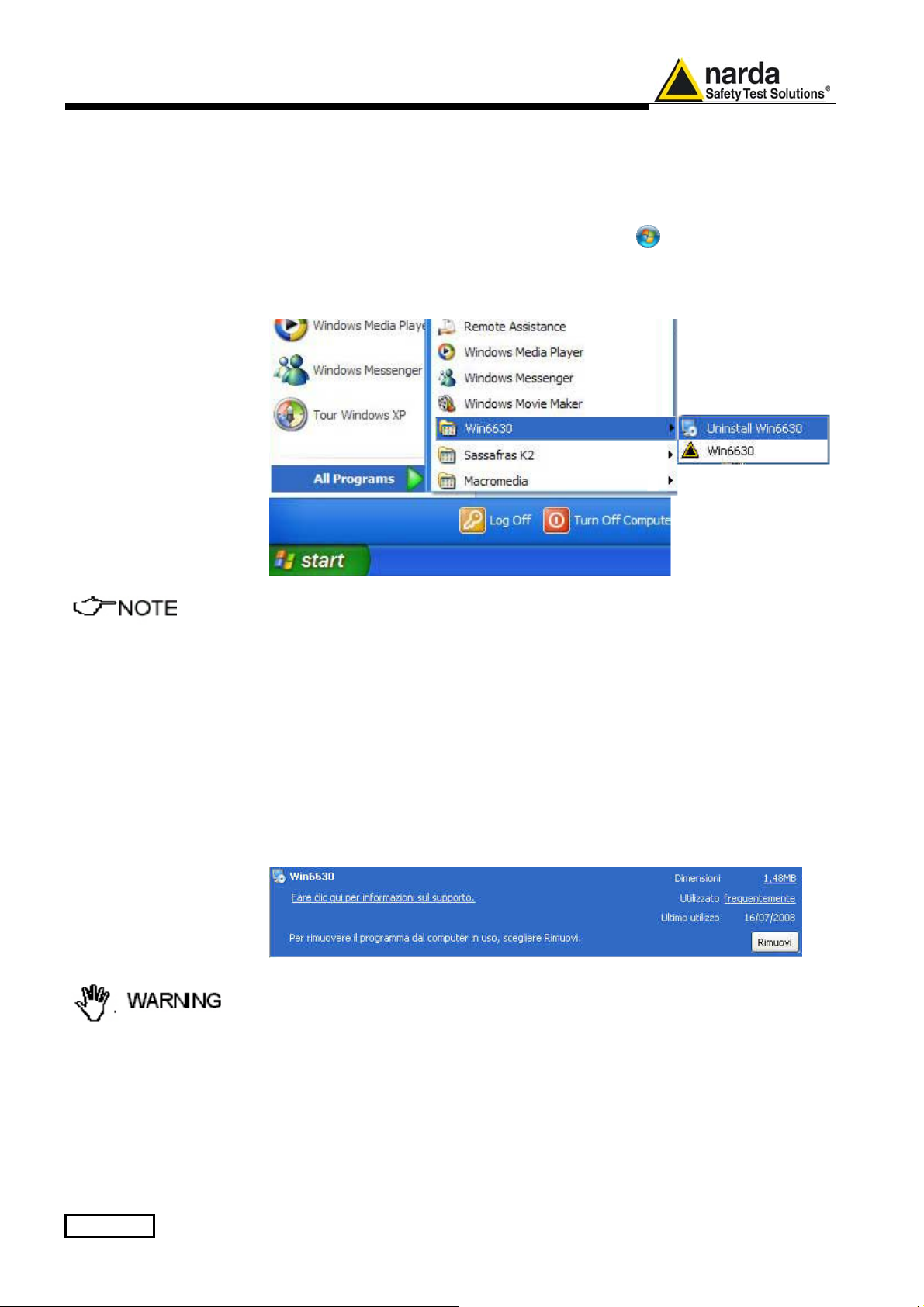

Disconnect the USB cable (the procedure of “safe
disconnection” is unnecessary).

Windows XP: click Start
in Windows Vista or 7: click Windows

Then All Programs, Win6630, Uninstall Win6630.

If the Uninstaller is not available:

- Disconnect the USB cable (the procedure of “safe
disconnection” is unnecessary).

- Click Start, Settings, Control Panel and Add or
Remove Programs (Programs and functions for

Windows Vista or 7).

Find Win6630 then click Remove and follow the

instructions.

When asked if removing the shared files, answer NO
to prevent other programs not to run correctly.

40 PMM 6630 User’s Manual

3.7
Uninstalling
PMM 6630 Driver

Right click My computer to access Properties

Select Hardware and Device Manager.
Click + to expand Port (COM and LPT).
Right click USB Serial Port (COM) then click Uninstall

Click OK to end.

Once the uninstall is completed the peripheral USB Serial
Port (COM) will be removed.

PMM 6630 User’s Manual

41

g

4.1
Disclaimer

4.2
Protocol

4 - Communication protocol

This chapter provides the information required to control
the PMM 6630 via the Data-Supply cable connected to a PC
and by means of user’s own PC software applications.
Narda STS S.r.l supports the correctness of the information
only, and disclaim for any consequence the use of such
information may cause to anybody. The inclusion of
Narda’s communication protocol into user’s or third party
software is entirely at the user’s risks and responsibility. In
no way Narda STS S.r.l shall be liable for damages of any
kind consequent to the use of the information provided in
this chapter.

The commands are sent to the device through FTDI driver
in USB mode (USB 1.1 / 2.0) or virtual serial port whose
parameters are:

• Bits per second: 9600

• Data Bits: 8

• Parity: Nessuna

• Stop Bits: 1

• Flow control: None

The commands are composed by an ASCII string delimited

by “#” (0x23) and “*” (0x2A)

Commands must start with “#63”.
The answer can be either in ASCII or Binary, according to
the command sent. The first character is always like the
character sent, and can be used as control marker or
synchronization for the answer.

The available commands are of two categories:

• Query COMMANDs

• Setting COMMANDs

The commands have this format:

#63Qcommand(parameters)* where::
# = command string start;

63 = string always present;
Q = ? for query commands;
S for setting commands;
Command = command string;
(parameters) = settin

present);

* = command string end.

parameters value (where

Document 6630EN-01205 – © NARDA 2009

42 PMM 6630 User’s Manual

?v
Release

?p
Power

?m

Average of

4 measurements

?M

Average of

16 PWR’s

?s
Serial Number

?f
Frequency

TABLE 4-1 Query COMMANDs

#63?v* sends back a string containing information about

model, release and date of firmware.

Example of reply to the command #63?v*: "PMM

6630:A.00.01/08;"

#63?p* sends back a string containing power data expressed in

dBm.
When this command is sent while the 6630 is switching the
ADCs, the data is meaningless, thus the 6630 replies with the

string: " *** ".

Example of reply to the command #63?p*: "-4.97 dBm"

#63?m* sends back a string containing the average power of 4

measurements. As for power data, it is expressed in dBm.
When the 4 last data are taken from different ranges, the

average is meaningless, thus the 6630 replies with the string: "
*** ".

Example of reply to the command #63?m*: "-4.97 dBm"

#63?m* sends back a string containing the average power of

16 measurements. As for power data, it is expressed in dBm.
When the 16 last data are taken from different ranges, the

average is meaningless, thus the 6630 replies with the string: "
*** ".

Example of reply to the command #63?M*: "-4.97 dBm"

#63?s* sends back a string containing the serial number of the

6630.

Example of reply to the command #63?s*: "123456789"

#63?f* sends back a string containing the frequency at which

the 6630 is set. Note that this frequency value establishes the
correct calibration of the 6630 at that particular frequency only,
thus when this value has not the appropriate setting, the 6630
measurements are meaningless. It is expressed in kHz.

Example of reply to the command #63?f*: "f:1200 kHz"

When frequency value is set to 0 kHz no frequency correction
factors are computed.
Example of reply to the command when frequency is set to 0

kHz #63?f*: "f:dis"

PMM 6630 User’s Manual

43

g

g

Sf
Set Frequency

TABLE 4-2 Setting COMMANDs

#63Sf<value>* sets the frequency(<value>) to which

refer the correction factor. The frequency is expressed in
kHz.
Once the 6630 has received and recognized this command,
all measurements will be corrected using the factor stored
at factory and related to that frequency.
Sending a frequency value of 0 kHz disables the frequency
correction factor function.

Example of command #63Sf9*: Set the referrin
frequency to 9 kHz and reply: f:9 kHz (This value is the

PMM 6630 minimum frequency)

Example of command #63Sf3000000*: Set the referrin
frequency to 3 GHz and reply: f:3000000 kHz (This value

is the PMM 6630 maximum frequency)

Example of command #63Sf0*: Disable frequency
correction factor function and reply: f:dis

44 PMM 6630 User’s Manual

This page has been intentionally left blank

PMM 6630 User’s Manual

45

5 - Accessories

5.1
Foreword

5.2
Inspection

5.3
Ambient

Storage:

3

This chapter explains how to use the accessories of PMM

6630.
The following general indications apply to all accessories.

Check the packaging integrity.

If anything is found damaged or missed, immediately
contact your Dealer.
Check the accessories with reference to the packing
list included in the package.

Store the accessories in clean, dry environment free of
dust and acid vapours.
Follow requirements for temperature and humidity:

Operation:

• Temperature

• Humidity

• Temperature

• Humidity

-10° to +50° C
< 90% RH

-20° to + 70° C
< 95% RH

Document 6630EN-01205 – © NARDA 2009

46 PMM 6630 User’s Manual

5.4
Return for
service

5.5
Cleaning

Every part of the accessories can only be replaced by
NARDA, when the instrument needs repair or is
malfunctioning, please contact the NARDA Support center.
When an accessory needs to be sent to NARDA for repairs
please complete the questionnaire enclosed with this
Operating Manual making sure you fill in all the details
relative to the service requested.
In order to minimize repair time, please describe the
nature of the failure. If the failure occurs only under certain
conditions, please provide details on how we may recreate
the same condition in order to identify the fault.
If possible, please reuse the original packaging, making
sure the accessory is wrapped in heavy paper or plastic.
Alternatively, use a strong box filled with shockproof
material, place enough material all around the equipment
so that the unit is stable and firmly blocked inside the box.
Mark the box: FRAGILE HANDLE WITH CARE.

To clean the equipment use only dust-free, non-abrasive
dry cloths.

To avoid damage never use any kind of solvent, acid,
or similar to clean the instrument.

PMM 6630 User’s Manual

47

5.6 6630-USB Data-Supply Cable

Fig. 5-1 6630-USB Data-Supply Cable

TABLE 5-1 Specifications of the 6630-USB Data-Supply Cable

Length 1,8 m

USB Connector Type A Male

Multipolar Connector 4 Poles

Such devices like USB Hubs and USB cable
extensions may not work properly. Connect the PMM
6630 to the PC directly with the supplied 6630-USB
cable.

Front view

Connector 4 poles

48 PMM 6630 User’s Manual

Rear view

USB Type A Male

This page has been intentionally left blank

PMM 6630 User’s Manual

49

5.7 PMM 6630FOA Fiber Optic Adapter (Optional)

Introduction

The PMM 6630FOA Fiber Optic Adapter is an optional
accessory of the PMM 6630 RF Power Sensor.

The PMM 6630FOA is a fiber optic adapter that allows to
convert the USB signal of the PMM 6630 into fiber optic
compatible signal; it is often beneficial to use noise
immune fibre optic cable instead of USB cable in
environments where a low noise level is required or simply
to extend the link; moreover, the optic link is immune to
interferences caused by high level field.
The PMM 6630FOA is linked to the USB port of any
Personal Computer through the USB-OC Optical USB
Converter supplied with the unit.

The power supply is provided by an internal Li-Ion battery
for up to 8 hours of continuous operation; the internal
battery can be recharged with the battery charger supplied
with the unit.

The PMM 6630FOA has been designed for EMC applications
and can be driven by Win6630 or PMM Immunity Test
software or by a software developed directly by the user.

50 PMM 6630 User’s Manual

Fig. 5-2 PMM 6630FOA

Standard
accessories
and
documents

Optional
accessories

Specifications

TABLE 5-2 Specifications of the PMM 6630FOA

Output

Input

Compatibility

Power Supply

Operating time

Recharging time

Temperature
operating range

Storing
temperature

Dimensions

Weight

The accessories and documents enclosed with the
instrument PMM 6630FOA are:

• PMM 6630FOA Fiber Optic Adapter;

• USB-OC Optical USB Converter;

• FO-6630/10 Cable, Fiber Optic Cable (10m);

• Battery charger + international plug adapter;

• Operating Manual + repair request form;

• Calibration Certificate.

The following accessories can be ordered separately:

• FO-6630/10 Cable, fiber optic 10 m;

• FO-6630/20 Cable, fiber optic 20 m;

• FO-6630/40 Cable, fiber optic 40 m.

This condition applies to all specifications:

• The operating ambient temperature range must be -10°

to +50 °C.

connector for optic fibre
Maximum length of optic fibre, 80 meters

Connector 4 poles

with PMM 6630 RF Power Sensor

Internal battery 3,7 V – 1,8 Ah Li-Ion, rechargeable

8 hours

4 hours

-10°C to 50°C

from -20 to +70°C

40 x 40 x 61 mm (WxHxD)

168 g

PMM 6630 User’s Manual

51

Housing

The PMM 6630FOA is allocated in a small rectangular
housing; on the front panel is located the 4 poles connector
for 6630 matching; on the rear panel there are connection
for the fiber optic, connector for the battery charger, power
switch, LEDs for checking about charging and ID label for
immediate identification;

Legend:

4 poles Connector

Fig. 5-3 PMM 6630

Front view

Legend:

1- Optic link

2- Green Led

3- Red Led

4- Connector for
battery charger

5- Power switch

6- ID Label

Fig. 5-4 PMM 6630

Rear view

Legend:
7- Serial Number

Fig. 5-5 PMM 6630FOA

Label with Serial Number

52 PMM 6630 User’s Manual

Installation

Make sure USB-OC converter driver is installed in
your PC.

Connect the PMM 6630FOA to the PMM 6630 only
once the software has been successfully installed.

Connect the Fisher connector of the PMM 6630FOA
by holding firmly it with your fingers.
Presence of dust, dirt or particles of any nature on
the 4 poles connector surfaces must be carefully
prevented.

To avoid damage, the arrow marked on the external
part of the connector must match to the PMM 6630
connector.

Connect the PMM 6630FOA connector to the Power Sensor
respecting the connection sense.

Place the units on a stable surface.

PMM 6630 User’s Manual

53

Make sure USB-OC converter driver is installed in your PC;

connect the converter supplied with the unit to the first
available USB port

Sometime devices like USB Hubs or USB cable
extensions may not work properly. In such
occurrences simply connect the USB-OC to the PC
directly.

Connect the supplied fiber optic to the FIBER OPTIC

connector of the PMM 6630FOA taking care that the spigot
matches the housing. Connect the other end of the fiber
optic to the USB-OC.

Connect the PMM 6630 RF input connector to the source.

Tighten the PMM 6630 N-type RF connector input
connector to the source connector. Loose
connections may cause wrong readings.

54 PMM 6630 User’s Manual

Power supply and
battery charging

To charge the unit it’s needed to switch OFF the unit.

The PMM 6630FOA is supplied by internal rechargeable Li­Ion battery which can be recharged with the battery
charger supplied with the unit.

Make a full charging cycle before using the Optic
Adapter for longest battery operation time.

The battery charger has an internal output current
limiter in case of overload when connecting to the
mains.

The complete charging cycle of a new battery lasts 4
hours.

Battery charger:

output: DC, 12 V, ~ 1.25A

To charge the unit it’s needed to switch OFF the unit at

first; connect the battery charger to the AC mains BEFORE

connecting it to the connector labelled CHG of the PMM

6630FOA. The LEDs show how charging progresses,
according to what specified in Table 5-3.

Connector:

-

+

PMM 6630 User’s Manual

55

Use of
PMM 6630FOA
with PMM 6630

During the use, it is suggest to disconnect the PMM
6630FOA from the battery charger.

Once PMM 6630FOA has been successfully installed to the

PMM 6630, the fiber Optic Adapter can be switched ON by
power switch (also the PMM 6630 is then automatically
switched on).

When switched ON, both LEDs of the PMM 6630FOA are
OFF; one of the two green LEDs on PMM 6630 body turns
ON, after two seconds the other green led turns also ON.
The PMM 6630 and PMM 6630FOA are ready to be used.

If there are communications problems between the PMM
6630FOA and the software, it will be displayed an error
message on the screen.

During the use, the Red Led of the PMM 6630FOA turns ON
to warn the Operator that the instrument is running out of
battery; the residual autonomy during measurements is of

15 minutes.

Check the Led status as per the table below.

Switch TABLE 5-3: LEDs Status

ON*

Red

ON

the instrument is running out of battery.

Green

OFF

Battery recharging completed

OFF

* disconnect the PMM 6630FOA from the battery charger.

56 PMM 6630 User’s Manual

Green

ON

Red

ON

the battery is under charge

error of charging

g

Application The wide frequency ran

the PMM 6630 and PMM 6630FOA in EMC applications for
monitoring the field strength during radiated and
conducted immunity tests in Open Area Test Sites,
TEMs/GTEMs and Anechoic Chambers.

e and small size allow for using

PMM 6630 User’s Manual

57

Remove
PMM 6630 and
PMM 6630FOA
from the setup

Uninstalling the driver is not required to remove the
PMM 6630, PMM 6630FOA and USB-OC from the
setup.

Close the running Software.

To remove the PMM 6630FOA from the setup is
needed to switch OFF the unit.

Disconnect the USB-OC from the PC.

Do not disconnect the USB-OC by applying force to
the fiber optic directly: this may damage the
connection. Always hold firmly the adapter with your
fingers to disconnect.

Disconnect the PMM 6630 from the RF source taking care to
the fiber optic adapter with other hand.

58 PMM 6630 User’s Manual

Place the units on a stable surface.

Disconnect the PMM 6630FOA from the Power Sensor
holding it from the ring nut.

Don’t disconnect the PMM 6630FOA applying huge
force to the connector: this could damage the
connection on both side. Always hold firmly the
connector at ring nut with your fingers, being sure it
has been completely unscrewed at first.

PMM 6630 User’s Manual

59

Microsoft

®

, WindowsTM, WordTM, ExcelTM are marks of the Microsoft Corporation.

NARDA s.r.l. reserves the right to reproduce and translate, even only partially, this document.

Warning: This Manual may be subject to modification without prior notice.

.

60 PMM 6630 User’s Manual
