Power Monitors
and Sensors
RF Switching
Products
Passive
Components
Integrated Microwave
Assemblies (IMAs) Introduction

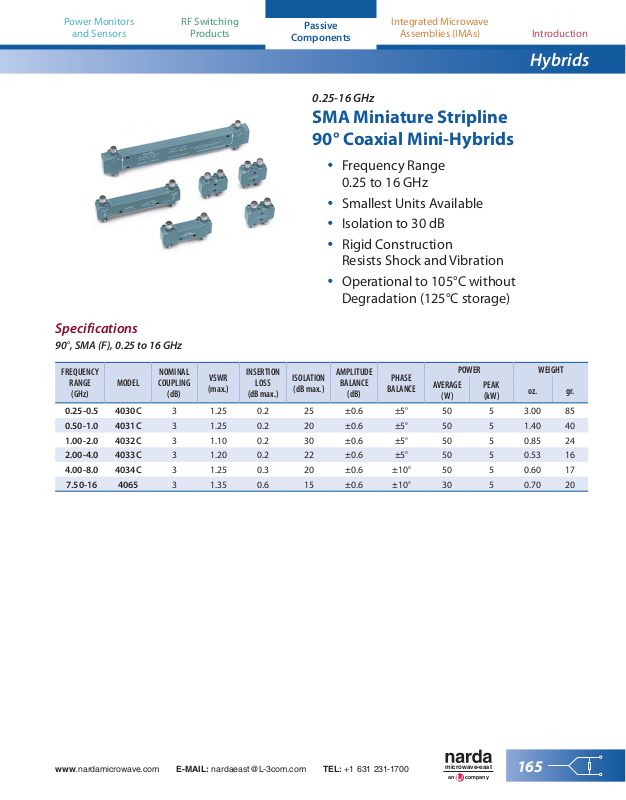

0.25-16 GHz
SMA Miniature Stripline
90° Coaxial Mini-Hybrids
y Frequency Range
0.25 to 16 GHz
y Smallest Units Available
y Isolation to 30 dB
y Rigid Construction
Resists Shock and Vibration
y Operational to 105°C without
Degradation (125°C storage)
Hybrids
Specifications
90°, SMA (F), 0.25 to 16 GHz
FREQUENCY
RANGE
(GHz)
0.25-0.5 4030C 3 1.25 0.2 25 ±0.6 ±5° 50 5 3.00 85
0.50-1.0 4031C 3 1.25 0.2 20 ±0.6 ±5° 50 5 1.40 40
1.00-2.0 4032C 3 1.10 0.2 30 ±0.6 ±5° 50 5 0.85 24
2.00-4.0 4033C 3 1.20 0.2 22 ±0.6 ±5° 50 5 0.53 16
4.00-8.0 4034C 3 1.25 0.3 20 ±0.6 ±10° 50 5 0.60 17
7.50-16 4065 3 1.35 0.6 15 ±0.6 ±10° 30 5 0.70 20
MODEL
NOMINAL
COUPLING
(dB)
VSWR
(max.)
INSERTION
LOSS
(dB max.)
ISOLATION
(dB max.)
AMPLITUDE
BALANCE
(dB)
PHASE
BALANCE
POWER WEIGHT
AVERAGE
(W)
PEAK
(kW)
oz. gr.
www.nardamicrowave.com E-MAIL: nardaeast@L-3com.com TEL: +1 631 231-1700
microwave-east
an company
165
Introduction
Hybrids
Outline Drawings
Integrated Microwave
Assemblies (IMAs)
Passive
Components
RF Switching
Products
Power Monitors
and Sensors
MODEL
4031C
4032C
MAXIMUM DIMENSIONS
A B C D E F G
3.06
(77.75)
1.78
(45.21)
.51
(12.87)
.50
(12.70)
8
2.56
(65.07)
1.28
(32.51)
.25
(6.35)
.25
(6.35)
.10
(2.46)
.09
(2.29)
.84
(21.40)
.64
(16.25)
MODEL 4030C
1.375 ± .010
(34.93)
.500 ± .015
(12.70)
TOL: ±0.2
H
THRU 2 HOLES
Ø.125 +.004/-.002
Ø.104 +.004/-.002
166
microwave-east
an company
MODEL A B C D E
TOL: ±0.2
4033C
4034C
4065
1.16
(29.46)
1.00
(25.40)
1.00
(25.40)
.51
(12.88)
.50
(12.70)
.58
(14.68)
.312
(7.92)
.31
(7.87)
.390 ± .010
(9.91)
Allow .020 for sealant build-up per surface.
Dimensions in inches (mm in parentheses), unless otherwise specified.
www.nardamicrowave.com E-MAIL: nardaeast@L-3com.com TEL: +1 631 231-1700
.66
(16.76)
.50
(12.70)
.50
(12.70)
.58
(14.75)
.50
(12.70)
.50
(12.70)
