Napoleon Tureen GD82PT-T, Turen GD82NT-T, Turen GD82PT-T Installation And Operation Instructions Manual

Download

$10.00

W415-0666 / 01.28.08

TABLE of CONTENTS

PG 2-5 INTRODUCTION

Warranty

Fireplace Dimensions Installation Overview General Instructions General Information Care of Glass

6-11 VENTING

Vent lengths

Horizontal Termination Vertical Termination Minimum Air Terminal Location Clearances

12-18 INSTALLATION

Wall & Ceiling Protection

Horizontal Installation Vertical Installation Using Flexible Vent Components Horizontal Air Terminal Installation Vertical Air Terminal Installation Fireplace Vent Connection Using Rigid Vent Components Horizontal Air Terminal Installation Vertical Air Terminal Installation Extended Horizontal Air Terminal Installation Mobile Home Installation Gas Installation Restricting Vertical Vents Minimum Framing Clearances Minimum Enclosure Clearances Minimum Mantel and Enclosure Clearances

18 ELECTRICAL CONNECTION

Hard Wiring Connection

Schematic

19 FINISHING

Door Removal Shipping Bracket Bowl, Mesh and Rock Replacement

20-21 SERVICING / REPLACEMENTS

Optional Front Removal

PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE

Control Panel Removal Glass/Door Replacement Bowl and Burner Removal Blower Replacement Decorative Panel Removal Battery Replacement Night Light

Replacement

22-23 OPERATION

General Transmitter Layout

Fireplace Operation

Hand Held Remote Operation Temperature Display Room Thermostat Smart Thermostat Flame Height Fan Speed Child Proof Function Remote Auxiliary Outlet Low Battery / Manual Bypass Power Failure Fan Control Module

24 OPERATING INSTRUCTIONS

Lighting Instructions To turn off gas

25 ADJUSTMENTS

Pilot Burner Adjustment

Flame Characteristics Venturi Adjustment

25 MAINTENANCE 26-27 REPLACEMENTS

Replacement Parts

Flexible Vent Kits Terminal Kits Roof Terminal Kits Accessories Replacement Parts Diagram

28-29 TROUBLE SHOOTING GUIDE 30 SERVICE HISTORY

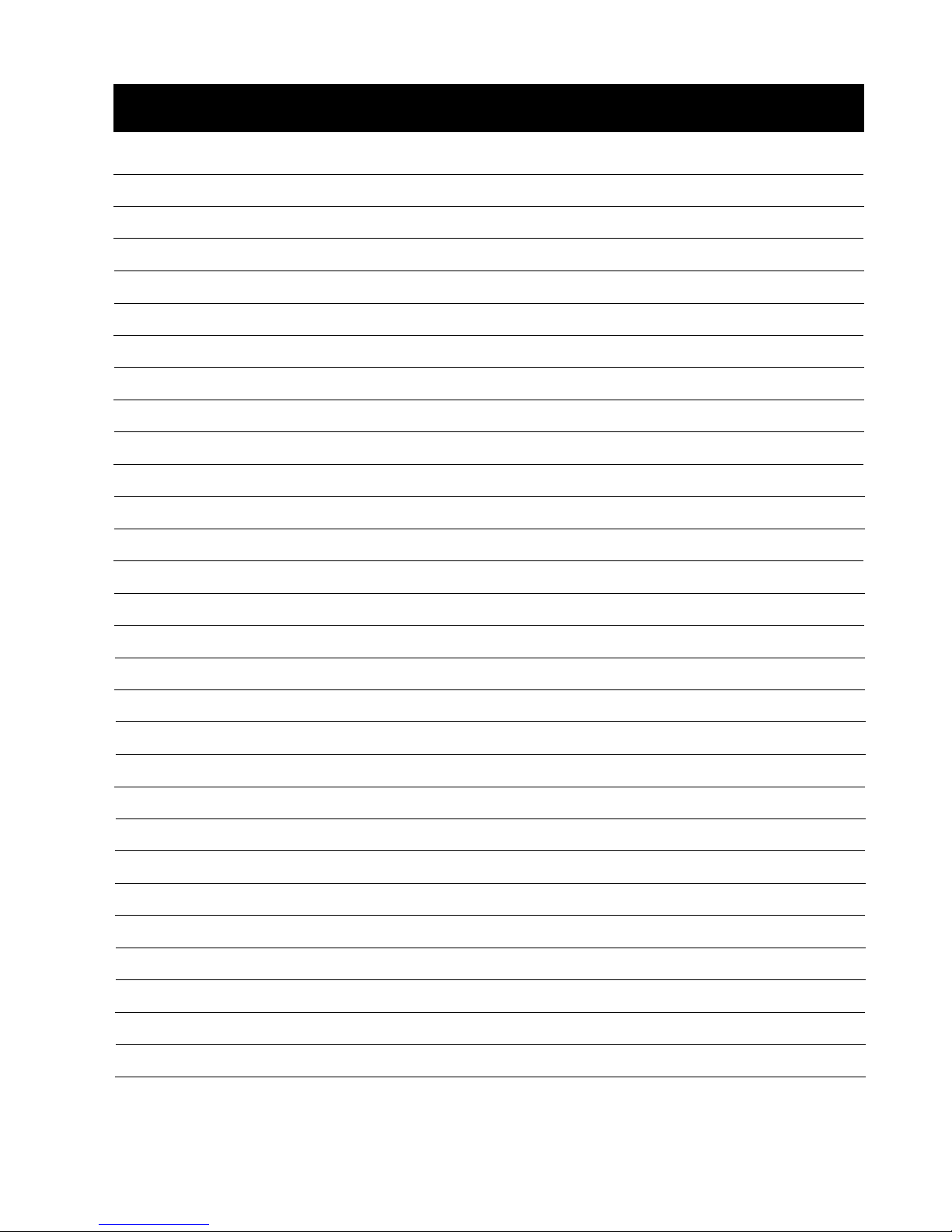

31-32 NOTES

WARNING

• Do not burn wood or other materials in this fireplace.

• Adults and especially children should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition. Supervise young children when they are in the same room as the fireplace.

• Clothing or other flammable material should not be placed on or near the fireplace.

• Due to high temperatures, the fireplace should be located out of traffic and away from furniture and draperies.

• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.

• Even after the fireplace is out, the glass and/or screen will remain hot for an extended period of time.

• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot surfaces. These screens and guards must be fastened to the floor.

• Any safety screen or guard removed for servicing must be replaced prior to operating the fireplace.

• It is imperative that the control compartments, burners and circulating blower and its passageway in the fireplace and venting system are kept clean. The fireplace and its venting system should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. The fireplace area must be kept clear and free from combustible materials, gasoline and other flammable vapours and liquids.

• Under no circumstances should this fireplace be modified.

• This fireplace must not be connected to a chimney flue pipe serving a separate solid fuel burning appliance.

• Do not use this fireplace if any part has been under water. Immediately call a qualified service technician to inspect the fireplace and to replace any part of the control system and any gas control which has been under water.

• Do not operate the fireplace with the glass door removed, cracked or broken. Replacement of the glass should be done by a licensed or qualified service person.

• Do not strike or slam shut the fireplace glass door.

• This fireplace uses and requires a fast acting thermocouple. Replace only with a fast acting thermocouple supplied by Wolf Steel Ltd.

• Pressure relief doors must be kept closed while the fireplace is operating to prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of the exhaust escaping through these openings can also cause the surrounding combustible materials to overheat and catch fire.

• Only doors / optional fronts certified with the unit are to be installed on the appliance.

W415-0666 / 01.28.08

NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.

The following materials and workmanship in your new NAPOLEON® gas fireplace are warranted against defects for as long as you own the fireplace. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims. Electrical (110V and millivolt) components and wearable parts such as blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly are covered and NAPOLEON® will provide replacement parts free of charge during the first year of the limited warranty. Labour related to warranty repair is covered free of charge during the first year. Repair work, however, requires the prior approval of an authorized company official. Labour costs to the account of NAPOLEON® are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON® dealer.

®®

W415-0666 / 01.28.08

FIREPLACE DIMENSIONS

FIGURE 1

58"

46"

/8"

4" DIA.

7" DIA.

/4"

221/8"

21"

/8"

137/8"

24"

28"

87/8"

GAS INLET

14"

INSTALLATION OVERVIEW

28"

W415-0666 / 01.28.08

FIGURE 2

GENERAL INSTRUCTIONS

This gas fireplace should be installed and serviced by a qualified installer to conform with local codes. Installation practices vary from region to region and it is important to know the specifics that apply to your area, for example: in Massachusetts State:

• The fireplace damper must be removed or welded in the open position prior to installation of a fireplace insert or gas log.

• The appliance off valve must be a “T” handle gas cock.

• The flexible connector must not be longer than 36 “.

• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent sealed combustion product.

• A carbon monoxide detector is required in all rooms containing gas fired appliances.

• WARNING: This product must be installed by a licensed plumber or gas fitter when installed within the commonwealth of Massachusetts. In absence of local codes, install to the current CAN/CGA -B149 Installation Code in Canada or to the National Fuel Gas Code,

NSI Z223.1, and NFPA 54 in the United States. Suitable for mobile home installation if installed in accordance with the current standard CAN/CSA Z240MH Series, for gas equipped mobile homes, in Canada or ANSI Z223.1 and NFPA 54 in the United States. The fireplace and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa). The fireplace must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa). When the fireplace is installed directly on carpeting, vinyl tile or other combustible material other than wood flooring, the fireplace shall be installed on a metal or wood panel extending the full width and depth. The optional heat circulating blower is supplied with a cord. If installed, the junction box must be electrically connected and grounded in accordance with local codes. In the absence of local codes, use the current CSA C22.1 canadian electrical code in Canada or the ANSI/NFPA 70 national electrical code in the United States.

Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing and operating the fireplace. Never obstruct the front opening of the fireplace. Objects placed in front of the fireplace must be kept a minimum of 48” from the front face of the unit.

This fireplace is only for use with the type of gas indicated on the rating plate. This fireplace is not convertible for use with other gases, unless a certified kit is used. Expansion / contraction noises during heating up and cooling down cycles are normal and are to be expected. Change in flame appearance from “HI” to “LO” is more evident in natural gas than in propane. This fireplace is approved for bathroom, bedroom and bed-sitting room installations and is suitable for mobile home installation. The inner stainless steel looking firebox back will discolour with heat, turning a light brown, straw like colour that is to be considered normal.

We Suggest that our gas hearth products be installed and serviced by professionals who are certified in the U.S. by the National Fireplace Institute (NFI) as NFI Gas Specialists.

CARE OF GLASS

Do not use abrasive cleaners to clean glass. Buff lightly with a clean dry cloth. The glass is 3/16” ceramic glass available from your Napoleon® / Wolf Steel Ltd. dealer. Do not substitute materials. Clean the glass after the first 10 hours of operation with a recommended gas fireplace glass cleaner. Thereafter clean as required. Do not clean glass when hot! If the glass is not kept clean permanent discolouration and / or blemishes may result.

GENERAL INFORMATION

FOR YOUR SATISFACTION, THIS FIREPLACE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION AND QUALITY!

Maximum input is 26,000 BTU/hr for both natural gas and propane. When the fireplace is installed at elevations above 4,500ft, and in the absence of specific recommendations from the local authority having jurisdiction, the certified high altitude input rating shall be reduced at the rate of 4% for each additional 1,000ft. Maximum output for natural gas is 16150 BTU/hr at an efficiency of 62%; and 16150 BTU/hr for propane at an efficiency of 62%. Minimum inlet gas supply pressure is 4.5 “ water column for natural gas and 11 “ water column for propane. Maximum inlet gas pressure is 7 “ water column for natural gas and 13 “ water column for propane. Manifold pressure under flow conditions is

3.5 “ water column for natural gas and 10 “ water column for propane. This fireplace is certified to be installed in an aftermarket permanently located, manufactured (mobile) home, where not prohibited by local codes. No external electricity (110 volts or 24 volts) is required for the gas system operation.

W415-0666 / 01.28.08

VENTING

VENT LENGTHS

For safe and proper operation of the fireplace follow the venting instruction exactly. Deviation from the minimum vertical vent length can create difficulty in burner start-up and/or carboning. Provide a means for visually checking the vent connection to the fireplace after the fireplace is installed. Vent lengths that pass through unheated spaces (attics, garages, crawl spaces) should be insulated with the insulation wrapped in a protective sleeve to minimize condensation. Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp or

merican Metal Amerivent venting components.

Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp and

merican Metal Amerivent venting systems must not be combined. Follow the installation procedure provided with the venting components. For vent systems that provide seals on the inner exhaust flue, only the outer air intake joints must be sealed using a red high temperature silicone (RTV). This same sealant maybe used on both the inner exhaust and outer intake vent pipe joints of all other approved vent systems except for the exhaust vent pipe connection to the fireplace flue collar which must be sealed using the black high temperature sealant MillPac. A starter adaptor must be used and may be purchased from the corresponding supplier:

Supplier 4 / 7

Duravent W175-0053

merivent 4DSC-N2 Direct Temp 4DT-AAN For Simpson Dura-Vent, Selkirk Direct Temp and American Metal

merivent, follow the installation procedure found on the website for your venting supplier:

VENTING SUPPLIER WEBSITE ADDRESS

Simpson Dura-Vent www.duravent.com Selkirk Direct Temp www.selkirkcorp.com

merican Metal Amerivent www.americanmetalproducts.com

When using Napoleon® venting components, use only approved Wolf Steel Ltd. rigid / flexible vent components with the following termination kits: wall terminal kit GD222 and GD222R, or 1/12 to 7/12 pitch roof terminal kit GD110, 8/12 to 12/12 roof terminal kit GD111, flat roof terminal kit GD112 or periscope kit GD201 (for wall penetration below grade). With flexible venting, in conjunction with the various terminations, use either the 5 foot vent kit GD220 or the 10 foot vent kit GD330. These vent kits allow for either horizontal or vertical venting of the fireplace. The maximum number of allowable 4” vent connections is three horizontally or vertically (excluding the fireplace and the air terminal connections). For optimum flame appearance and fireplace performance, keep the vent length and number of elbows to a minimum. Under extreme vent configurations, allow several minutes (5-15) for the flame to stabilize after ignition.

The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year to verify that it is unobstructed and undamaged. Horizontal runs may have a 0” rise per foot in all cases using Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, or American Metal Amerivent rigid vent components and Wolf Steel flexible vent components.

For optimum performance, it is recommended that horizontal runs have a minimum 1/4” rise per foot when using Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, or American Metal Amerivent rigid vent components and a minimum of 1” rise per foot when using Wolf Steel flexible vent components. When venting, the horizontal run must be kept to a maximum of 20 feet. If a 20 foot horizontal run is required, the fireplace must have a minimum vertical rise immediately off the fireplace of 57”. When terminating vertically, the vertical rise is a minimum 3 feet and a maximum 40 feet above the fireplace.

16”

MINIMUM

FIGURE 4

FIGURES 3a-b

24” MAXIMUM

10”

MINIMUM

56”

PLUS RISE*

* REFER TO “VENTING” SECTION

30”

MINIMUM

MAXIMUM 10 FOOT VENT LENGTH

CAN BE USED WITH GD201 PERISCOPE KIT

HORIZONTAL VENT SECTIONS: A minimum clearance of 2” all around the vent pipe on all horizontal runs to combustibles is required. Use ﬁ restop spacer W010-1799 (supplied).

VERTICAL VENT SECTIONS: A minimum of 1” all around the vent pipe on all vertical runs to combustibles is required except for clearances in ﬁ replace enclosures. Use ﬁ restop spacer W500-0096 (not supplied).

* The ﬁ rst 2 feet of outer 7 “ diameter vent pipe from the appliance must be wrapped in the 1” thick insulation sleeve (supplied). Make sure the insulation is pulled down tight to the ﬁ replace when installed. There after, a 2” clearance all around the vent pipe from combustible materials on all horizontal vent sections is required.

12” MINIMUM

WARNING

FIRST

2 FEET

REQUIRES

INSULATION

SLEEVE

INSULATION SLEEVE

3 FEET

MINIMUM

40 FEET

MAXIMUM

W415-0666 / 01.28.08

DEFINITIONS

for the following symbols used in the venting calculations and examples are:

> - greater than > - equal to or greater than < - less than < - equal to or less than

- total of both horizontal vent lengths (HR) and offsets

(HO) in feet HR - combined horizontal vent lengths in feet HO - offset factor: .03(total degrees of offset - 90°*) in

feet

VT - combined vertical vent lengths in feet

HORIZONTAL TERMINATION

When (HT) < (VT) Simple venting conﬁ guration (only one 90° elbow)

FIGURE 5

ELBOW VENT LENGTH VALUES

Feet Inches 1° 0.03 0.5 15° 0.45 6.0 30° 0.9 11.0 45° 1.35 16.0 90°* 2.7 32.0

* the ﬁ rst 90° offset has a zero value and is shown in the formula as -90°

See graph to determine the required vertical rise VT for the required horizontal run HT. For vent conﬁ gurations requiring more than one 90° elbow, the following formulas apply:

Formula 1: HT < V Formula 2: HT + VT < 40 feet

90°

when (HT) < (VT) Simple venting conﬁ guration (only one 90° elbow)

VERTICAL RISE IN FEET

HORIZONTAL VENT RUN PLUS OFFSET IN FEET H

The shaded area within the lines represents acceptable values for HT and V

FIGURE 6

90°

Example 1:

V1 = 3 ft V2 = 8 ft VT =

V1 +

V2 =

3 + 8 = 11 ft

H1 = 2.5 ft H

= 2 ft

HR = H1 + H2 = 2.5 + 2 = 4.5 ft

HO = .

03 (three 90° elbows - 90°) = .03(270° - 90°) = 5.4 ft

HT = HR + HO = 4.5 + 5.4 = 9.9 ft

+ VT = 9.9 + 11 = 20.9 ft

Formula 1: H

Formula 2: HT + VT < 40 feet

20.9 < 40 Since both formulas are met, this vent conﬁ guration is acceptable.

< V

9.9 < 11

W415-0666 / 01.28.08

HORIZONTAL TERMINATION

when (H Simple venting conﬁ guration (only one 90° elbow)

See graph to determine the required vertical rise VT for the required horizontal run HT.

) > (VT)

FIGURE 7

V H1 = 3 ft H HR = H1 + H2 = 3 + 5 = 8 ft

= VT = 6 ft

= 5 ft

HO = .03 (two 90° elbows - 90°) = .03(180° - 90°) = 2.7

HT = HR + HO = 8 + 2.7 = 10.7 ft HT + VT =

Formula 1: HT < 4.2 V

4.2 V

10.7 + 6 =16.7

10.7 < 25.2

= 4.2 x 6 = 25.2 ft

Formula 2: HT + VT < 24.75 feet

16.7 < 24.75

Since both formulas are met, this vent conﬁ guration is ac-

REQUIRED

VERTICAL

RISE IN “

HORIZONTAL VENT RUN PLUS OFFSET IN FEET H

The shaded area within the lines represents acceptable values for HT and V

For vent conﬁ gurations requiring more than one 90° elbow the following formulas apply:

Formula 1: HT < 4.2 V

Formula 2: HT + VT < 24.75 feet

Example 2:

90°

FIGURE 8

ceptable.

90°

FIGURE 9

Example 3:

VT = V1 + V2 = 4 + 1.5 = 5.5 ft H1 = 2 ft H2 = 1 ft H3 = 1 ft H4 = 1.5 ft HR = H1 + H2 + H3 + H4 = 2 + 1 + 1 + 1. 5 = 5.5 ft HO = .03 (four 90° elbows - 90°) = .03(360° - 90°) = 8.1 ft HT = HR + HO = 5.5 + 8.1 = 13.6 ft HT + VT = 13.6 + 5.5 = 19.1 ft

Formula 1: HT < 4.2 V

4.2 VT = 4.2 x 5.5 = 23.1 ft

= 4 ft = 1.5 ft

13.6 < 23.1

Formula 2: HT + VT < 24.75 feet

19.1 < 24.75

W415-0666 / 01.28.08

Since both formulas are met, this vent conﬁ guration is acceptable.

when (HT) < (VT)

VERTICAL TERMINATION

Example 4:

FIGURE 10

FIGURE 11

90°

See graph to determine the required vertical rise VT for the required horizontal run HT.

REQUIRED VERTICAL RISE IN FEET

HORIZONTAL VENT RUN PLUS OFFSET IN FEET

The shaded area within the lines represents acceptable values for HT and V

For vent conﬁ gurations requiring more than zero 90° elbow (top exit) or one 90° elbow (rear exit), the following formulas apply:

Formula 1: HT < V

Formula 2: HT + VT < 40 feet

H1 = 8 ft

= 5 ft = 6 ft = 10 ft

V1 +

V2 +

V3 =

5 + 6 + 10 = 21 ft

H2 = 2.5 ft HR = H1 + H2 = 8 + 2.5 = 10.5 ft

= .03 (four 90° elbows - 90°)

= .03 (90 + 90 + 90 + 90 - 90) = 8.1 ft

HT = HR + HO = 10.5 + 8.1 = 18.6 ft HT + VT = 18.6 + 21 = 39.6 ft

Formula 1: H

Formula 2: HT + VT < 40 feet

< V

18.6 < 21

39.6 < 40 Since both formulas are met, this vent conﬁ guration is acceptable.

W415-0666 / 01.28.08

VERTICAL TERMINATION

when (HT) > (VT)

FIGURE 12

Simple venting conﬁ gurations See graph to determine the required vertical rise VT for the required horizontal run HT.

MAXIMUM

VERTICAL

RISE IN

FEET

HORIZONTAL VENT RUN PLUS OFFSET IN FEET

The shaded area within the lines represents acceptable values for HT and V

For vent conﬁ gurations requiring more than two 90° elbow (top exit) or one 90° elbow (rear exit), the following formulas apply:

Formula 1: HT < 3V Formula 2: HT + VT < 40 feet

90°

FIGURE 13

Example 5:

H1 = 6 ft H2 = 2 ft HR = H1 + H2 = 6 + 2 = 8 ft HO = .03(four 90° elbows - 90°)

= .03(90 + 90 + 90 + 90 - 90) = 8.1 ft

HT = HR + HO = 8 + 8.1 = 16.1 ft HT + VT = 16.1 + 4.5 = 20.6 ft

Formula 1: H

Since this formula is not met, this vent conﬁ guration is unacceptable. Formula 2: HT + VT < 40 feet

20.6 < 40 Since only formula 2 is met, this vent conﬁ guration is unacceptable and a new ﬁ replace location or vent conﬁ guration will need to be established to satisfy both formulas.

= 2 ft = 1 ft = 1.5 ft

V1 +

V2 +

V3 =

< 3V

3VT =

16.1 > 13.5

2 + 1 + 1.5 = 4.5 ft

3 x

4.5 = 13.5 ft

90°

W415-0666 / 01.28.08

MINIMUM AIR TERMINAL LOCATION CLEARANCES

FIGURE 14

GD-301

W415-0666 / 01.28.08

INSTALLATION

WALL AND CEILING PROTECTION

HORIZONTAL VENT SECTIONS: A minimum clearance of 2” all around the vent pipe on all horizontal runs to combustibles is required. Use firestop spacer W010-1799 (supplied). VERTICAL VENT SECTIONS: A minimum of 1” all around the vent pipe on all vertical runs to combustibles is required except for clearances in fireplace enclosures. Use firestop spacer W500-0096 (not supplied).

HORIZONTAL INSTALLATION

This application occurs when venting through an exterior wall. Having determined the correct height for the air terminal location, cut and frame a hole in the exterior wall 11 3/4“ wide by 11 3/4“ high to accommodate the firestop assembly. Dry fit the firestop assembly before proceeding to ensure the brackets on the rear surface fit within the horizontal framing.

s an alternative to framing, the vent pipe can be enclosed in the wall using Napoleon® vent sleeve VS47KT.

NOTE: THE FIRESTOP ASSEMBLY MUST BE INSTALLED WITH THE VENT SHIELD TO THE TOP.

The length of the vent shield may be cut shorter for combustible walls that are less than 8 1/2" thick but the vent shield must extend the full depth of the combustible wall.

1. Apply a bead of caulking (not supplied) around the outer edge of the inside surface of the firestop assembly, fit the firestop assembly to the hole and secure using the 4 screws W415-0026 (supplied in your manual baggie).

2. Once the vent pipe is installed in its final position, apply high temperature sealant W573-0002 (not supplied) between the pipe / liner, and the firestop.

NOTE: DO NOT FILL THE CAVITY BETWEEN THE PIPE AND THE FIRESTOP SLEEVE WITH ANY TYPE OF MATERIAL.

FIGURE 15

VENT

SHIELD

CAULKING

113/4”

FIRESTOP

SPACER

113/4”

DETERMINE THE CORRECT HEIGHT

FINISHING MATERIAL

1. Determine the air terminal location, cut and frame 9 3/4” openings in the ceiling and the roof to provide the minimum 1“ clearance between the vent pipe and any combustible material. Try to center the vent pipe location midway between two joist to prevent having to cut them. Use a plumb bob to line up the center of the openings. Do not fill this space with any type of material. A vent pipe shield will prevent any materials such as insulation, from filling up the 1" air space around the pipe. Nail headers between the joist for extra support.

2. Apply a bead of caulking (not supplied) to the framework or to the Wolf Steel vent pipe shield plate or equivalent (in the case of a finished ceiling), and secure over the opening in the ceiling. A firestop must be placed on the bottom of each framed opening in a roof or ceiling that the venting system passes through. Apply a bead of caulking (not supplied) all around and place a firestop spacer over the vent shield to restrict cold air from being drawn into the room or around the fireplace. Ensure that both spacer and shield maintain the required clearance to combustibles. Once the vent pipe is installed in its final position, apply sealant between the vent pipe and the firestop spacer.

3. In the attic, slide the vent pipe collar down to cover up the open end of the shield and tighten. This will prevent any materials, such as insulation, from filling up the 1" air space around the pipe.

VERTICAL INSTALLATION

FIGURE 16

93/4”

FIRESTOP

UNDERSIDE

OF JOIST

FIGURE 17

VENT PIPE

SHIELD

VENT PIPE

SHIELD

FIGURE 18

93/4”

CAULKING

VENT

PIPE

COLLAR

W415-0666 / 01.28.08

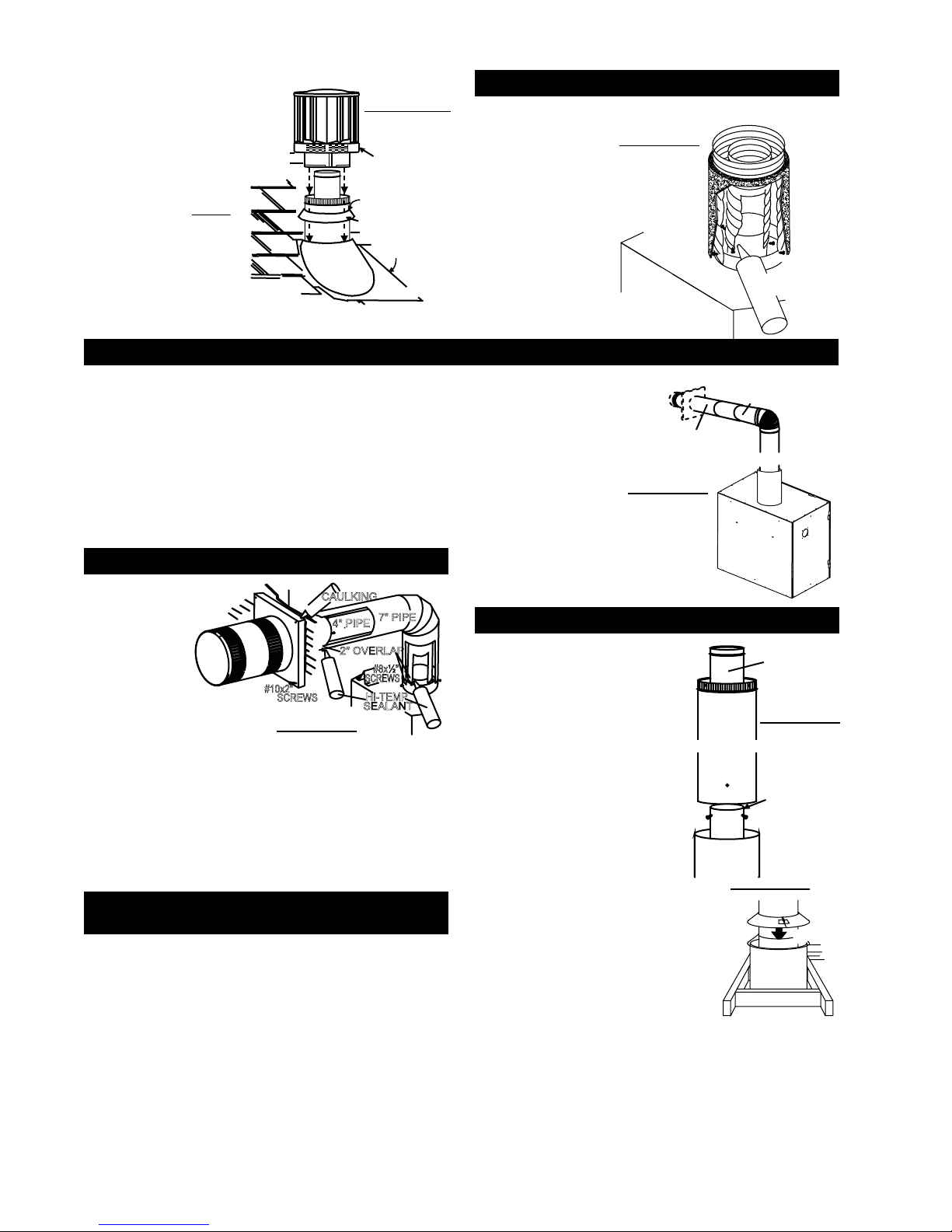

USING FLEXIBLE VENT COMPONENTS

FIGURE 19

ELBOW

Do not allow the inside vent pipe to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. A 1

SPACERS

1/4” air gap between the liner and the outer liner all around is required for safe operation. A spacer is required at the start, middle and end of each elbow to ensure this gap is maintained. Spacers are attached to the inner flexible vent pipe at predetermined intervals to maintain a 1 1/4" air gap to the outer flexible vent pipe. These spacers must not be removed.

HORIZONTAL AIR TERMINAL INSTALLATION

WARNING

For safe and proper operation of the fireplace, follow the venting

instructions exactly.

All inner exhaust and outer intake vent pipe joists may be sealed

using either red RTV high temp silicone sealant or black high temp Mill Pac with the exception of the fireplace exhaust flue

collar which must be sealed using Mill Pac (not supplied).

Use only approved flexible vent pipe kits marked:

“Wolf Steel Approved Venting” as identified

by the stamp only on the 7” outer vent pipe.

Six inches (6”) is the minimum bend radius allowed for the seven inch (7”) diameter flexible vent pipe. For optimum performance it is recommended that all horizontal runs have a minimum 1” rise per foot using flexible venting.

Note: Direct vent terminals shall not be recessed into a wall or siding.

1. Stretch the 4" diameter flexible vent pipe to the required

#10x2"

SCREWS

CAULKING

2" OVERLAP

FIGURE 20

5"FLEX

PIPE

8" FLEX

PIPE

length taking into account the additional length

HI-TEMP

SEALANT

needed for the finished wall surface. Slip the liner a minimum of 2" over the inner sleeve of the air terminal and secure with 3 #8 screws. Apply a heavy bead of the high temperature sealant W573-0007 (not supplied).

2. Using the 7” diameter flexible vent pipe, slide over the outer combustion air sleeve of the air terminal and secure with 3 #8 screws. Seal as before.

3. Insert the vent pipe through the firestop maintaining the required clearance to combustibles. Secure to the exterior wall and make weather tight by sealing with caulking W573-0002 (not supplied).

4. If more vent pipe needs to be used to reach the fireplace, couple them together as illustrated in (Fig. 20). The vent system must be supported approximately every 3 feet for both vertical and horizontal runs.

HIGH TEMP

SEALANT

#8 X 1/2” SELF DRILLING

#8 X 1/2” SELF DRILLING SCREWS & WASHERS

SCREWS & WASHERS

4” COUPLER

7” COUPLER

Use non-combusible strapping to maintain the minimum 1” clearance to combustibles.

7” FLEX

PIPE

4” FLEX

PIPE

FIGURE 21

7” FLEX PIPE

VERTICAL AIR TERMINAL INSTALLATION

1. Move the fireplace into position.

2. Fasten the roof

support to the roof using the screws provided. The roof support is optional. In this case the venting is to be adequately supported using either an alternate method suitable to the authority having jurisdiction or the optional roof

ROOF SUPPORT

support.

3. Stretch the inner flexible vent pipe to the required length.

Slip the liner a minimum of 2” over the inner vent pipe of the air terminal connector and secure with 3 #8 screws. Seal using a heavy bead of the high temperature sealant W573-0007 (not supplied).

4. Repeat using the outer

flexible vent pipe.

5. Thread the air terminal connector / pipe assembly down through the roof. The air terminal must be located vertically and plumb. Attach the air terminal connector to the roof support, ensuring that the top of the air terminal is 16”

AIR

TERMINAL

CONNEC-

TOR

above the highest point that it penetrates the roof. If the attic

space is tight, we recommend threading the Wolf Steel vent pipe collar or equivalent loosely onto the air terminal assembly as it is passed through the attic.

6. Remove nails from the

shingles, above and to the

DO NOT CLAMP THE

FLEXIBLE VENT PIPE

sides of the chimney. Place the flashing over the air terminal connector leaving a min. 3/4” of the air terminal connector showing above the top of the flashing. Slide the flashing underneath the sides and upper edge of the shingles. Ensure that the air terminal connector is properly centred within the flashing, giving a 3/4” margin all around. Fasten to the roof. Do not nail through the lower portion of the flashing. Make weather-tight by sealing with caulking. Where possible, cover the sides and top edges of the flashing with roofing material.

FIGURE 22a

INNER PIPE

FIGURE 22b

HIGH TEMPERATURE SEALANT

INNER FLEXIBLE VENT PIPE

OUTER FLEXIBLE VENT PIPE

W415-0666 / 01.28.08

Aligni

7. place the terminal over the air terminal connector making sure the liner goes into the hole in the terminal. Secure with the three screws provided.

8. Apply a heavy bead of weatherproof caulking 2” above the flashing. NOTE: Maintain a minimum 2” space between the air inlet base and the storm collar. Install the storm collar around the air terminal connector and slide down to the caulking. Tighten to ensure that a weather-tight seal between the air terminal connector and collar is achieved.

The vent system must be supported approximately every 3 feet for both vertical and horizontal runs. Use Wolf Steel vent spacers or equivalent every 3 feet and either side of each elbow to maintain the minimum 1¼” clearance between the outer and inner vent pipes. Use Wolf Steel support ring assembly or equivalent noncombustible strapping to maintain the minimum clearance to combustibles for both vertical and horizontal runs.

All inner exhaust and outer intake vent pipe joists may be sealed using either red RTV high temp silicone sealant or black high temp Mill Pac with the exception of the fireplace exhaust flue collar which must be sealed using Mill Pac (not supplied).

fireplace into position. Measure the vent length required between terminal and fireplace taking into account the additional length needed for the finished wall surface and any 1¼” overlaps between venting components.

the outer edge of the 4” inner collar of the fireplace. Attach the first vent component and secure using 3 self tapping screws. Repeat using 7” piping.

with a twisting motion to ensure that both the terminal sleeves engage into the vent pipes and sealant. Secure the terminal to the exterior wall and make weather tight by sealing with caulking W573-0002 (not supplied).

1. Follow the instructions for “Horizontal Air Terminal Installations”, items 1 to 3.

2. Continue adding components alternating inner and outer venting. Ensure that all 4” venting and elbows have sufficient vent spacers attached and each component is securely fastened to the one prior. Attach the 4” telescopic sleeve to the vent run. Repeat using a 7” telescopic sleeve. Secure and seal as before. To facilitate completion, attach 4” and 7” couplers to the air terminal.

W415-0666 / 01.28.08

ng the seams of the terminal and air terminal connector,

2”

USING RIGID VENT COMPONENTS

HORIZONTAL AIR TERMINAL INSTALLATION

1. Move the

#10x2"

SCREWS

FIGURE 24

2. Apply high temperature sealant W573-0007 (not supplied) to

3. Holding the air terminal insert the terminal into both vent pipes

EXTENDED HORIZONTAL AIR TERMINAL

INSTALLATION

FIGURE 22c

CAULK ING

STORM COLLAR

CAULKING

4" PIPE

2" OVERLAP

SEALANT

AIR INLET BASE

WEATHER SEALANT

FLASHING

7" PIPE

#8x½"

SCREWS

HI-TEMP

FIREPLACE VENT CONNECTION

1. Install the 4” diameter flexible vent pipe to the fireplace.

Secure with 3 screws and flat washers. Seal the joint and screw

FIGURE 23

holes using the high temperature sealant W573-0007 (not supplied).

2. Install the 7” diameter flexible vent pipe to the fireplace. Attach and seal the joints using high temperature sealant

#8 x 1/2”

SELF DRILLING

SCREWS

2” OVERLAP

HI-TEMP

SEALANT

W573-0002 (not supplied).

3. Install the air terminal. See item 3 of the Horizontal Air Terminal Installation. Extend the 4” telescopic sleeve; connect to the air terminal assembly. Fasten with self tapping screws and seal. Repeat using the 7” telescopic sleeve.

FIGURE 25

AIR TERMINAL

20" COUPLER

TELESCOPIC

SLEEVE

VENTING

VERTICAL VENTING INSTALLATION

1. Move the fireplace into position.

2. Fasten the roof support to the roof

using the screws provided. The roof support is optional. In this case the venting is to be adequately supported using either an alternate method suitable to the authority having jurisdiction or the optional roof

TERMINAL

CONNECTOR

support.

3. Apply high temperature sealant W573-0007 (not supplied) to the outer edge of the inner pipe of the air terminal connector. Slip a 4" diameter coupler a minimum of 2" over the pipe and secure using 3 screws.

4. Apply high temperature sealant W573-0007 (not supplied) to the outer edge of the of the outside pipe of the air terminal connector. Slip a 7" diameter coupler over the pipe and secure as before. Trim the 7" coupler even with the 4" coupler end.

5. Thread the air terminal pipe assembly down through the roof support and attach, ensuring that a minimum 16" of air terminal will penetrate the roof when fastened. If the attic space is tight, we recommend threading the Wolf Steel vent pipe collar or equivalent loosely onto the air terminal assembly as it is passed through the attic. The air terminal must be located vertically and plumb.

6. Remove nails from the shingles, above and to the sides of the chimney. Place the flashing over the air terminal and slide it underneath the sides and upper edge of the shingles. Ensure that the air terminal is properly centered within the flashing, giving a 3/4" margin all around. Fasten to the roof. Do NOT nail through the lower portion of the flashing. Make weather-tight by sealing with caulking. Where possible, cover the sides and top edges of the flashing with roofing material.

INNER PIPE

FIGURE 26

AIR

HIGH TEMPERATURE SEALANT

4” RIGID VENT PIPE

7” RIGID VENT PIPE

FIGURE 27

VENT PIPE

SHIELD

VENT

PIPE

COLLAR

7. Aligning the seams of the terminal and air terminal connector,

place the terminal over the air terminal connector making sure the liner goes into the hole in the terminal. Secure with the three screws provided. Figure 22c

8. Apply a heavy bead of weather-proof caulking 2” above the flashing. NOTE: Maintain a minimum 2” space between the air inlet base and the storm collar. Install the storm collar around the air terminal connector and slide down to the caulking. Tighten to ensure that a weather-tight seal between the air terminal connector and collar is achieved.

9. Continue adding rigid venting sections, sealing and securing as above. Attach a 4" collapsed telescopic sleeve to the last section of rigid piping. Secure with screws and seal. Repeat using a 7" telescopic sleeve.

10. Run a bead of high temperature sealant W573-0007 (not supplied) around the outside of the 4" collar on the fireplace. Pull the telescopic sleeve a minimum of 2" onto the collar. Secure with 3 screws. Repeat with the 7" telescopic sleeve.

11. In the attic, slide the vent pipe collar down to cover up the open end of the shield and tighten. This will prevent any materials, such as insulation, from filling up the 1" air space around the pipe. Figure 27

MOBILE HOME INSTALLATION

This appliance is certified to be installed as an OEM (Original Equipment Manufacturer) installation in a manufactured home or mobile home and must be installed in accordance with the manufacturer’s instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home Standard, CAN/CSA Z240 MH Series, in Canada. This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is supplied with the mobile home appliance.

This Mobile/Manufactured Home Listed appliance comes factory equipped with a means to secure the unit. The fireplace is equipped with two 1/4” diameter holes located in the front left and right corners of the base. For mobile home installations, the fireplace must be fastened in place. Use #10 hex head screws, inserted through the holes in the base to secure. Always turn off the pilot and the fuel supply at the source, prior to moving the mobile home.

fter moving the mobile home and prior to lighting the fireplace,

ensure that the logs are positioned correctly.

. When flexing any gas line, support the gas valve so that the

lines are not bent or kinked.

5. Check for gas leaks by brushing on a soap and water solution. Do not use open flame.

Purge all gas lines with the glass door of the stove removed. Assure that a continuous gas flow is at the burner before re-installing the door.

RESTRICTING VERTICAL VENTS

TOP OF FIREBOX

FIGURE 28

RESTRICTOR PLATE

FLUE COLLAR

Vertical terminations may display a very active flame. If this appearance is not desirable, the vent exit must be restricted using restrictor plate, W500-0205. This reduces the velocity of the exhaust gases, slowing down the flame pattern and creating a more traditional appearance. The plate has a series of holes to allow for adjustment. Remove the two screws on either side of the exhaust collar inside the firebox. Install the plate in the desired set of holes, then replace the screws. It is recommend to secure in the third set of holes which causes the greatest amount of restriction for vent length between 15 and 30 feet.

MINIMUM FRAMING CLEARANCES

WARNING

THE STANDOFFS HAVE

BEEN SHIPPED FLAT.

BEFORE FRAMING

ENSURE THE STANDOFFS

ARE BENT UP AND

SCREWED INTO PLACE.

ATTENTION ATENCIÓN

LES ESPACEURS SONT

EMBALLÉS À PLAT. AVANT DE

CONSTRUIRE L'OSSATURE,

ASSUREZ-VOUS QUE LES

ESPACEURS SONT PLIÉS

ET FIXÉS EN PLACE À

L'AIDE DE VIS.

LAS TRABAS PERMANECEN

PLANAS DURANTE EL ENVÍO.

ANTES DE LA INSTALACIÓN, VERIFIQUE QUE LAS TRABAS SE PLIEGUEN HACIA ARRIBA

Y SE ATORNILLEN

CORRECTAMENTE.

This appliance is certified to be installed in an aftermarket permanently located, manufactured (mobile) home, where not prohibited by local codes. This fireplace is only for use with the type of gas indicated on the rating plate. This fireplace is not convertible for use with other gases, unless a certified kit is used.

Conversion Kits The mobile home appliance is field convertible between Natural Gas (NG) and Propane (LP).To convert from one gas to another consult your Napoleon dealer/distributor.

GAS INSTALLATION

Proceed once the vent installation is complete.

NOTE: All gas connections must be contained within the fireplace when complete.

1. Move the fireplace into position and secure to the floor

through the 1/4" holes located at either side of the base.

2. The fireplace is designed to accept 3/8" gas supply line. The

fireplace is equipped with a 3/8" manual shut-off valve.

3. Connect the gas supply in accordance to local codes. In the absence thereof, install according to the National Installation Code.

FIGURE 29

It is best to frame your fireplace after it is positioned and the vent system is installed. Use 2x4’s and frame to local building codes. NOTE: In order to avoid the possibility of exposed insulation or vapour barrier coming in contact with the fireplace body, it is recommended that the walls of the fireplace enclosure be “finished” (ie: drywall/sheetrock), as you would finish any other outside wall of a home. This will ensure that clearance to combustibles is maintained within the cavity. For convenience, the stand-offs have been shipped flat. Before framing, ensure the stand-offs are opened and screwed in place. It is not necessary to install a hearth extension, but the fireplace should be raised to be flush with either the hearth or the finished floor. When roughing in the fireplace, raise the fireplace to accommodate for the thickness of the finished floor materials, i.e. tile, carpeting, hard wood. Objects placed in front of the fireplace should be kept a minimum of 48” away from the front face.

W415-0666 / 01.28.08

MIN

/2"

44"

MIN

FIGURE 31

72”

MINIMUM

ENCLOSURE

HEIGHT

29"

FIGURE 30a-b

WARNING

10"

MIN

Do not build into this area - it must be left clear to provide adequate clearance for the vent in this 14” wide area centered along the front of the fireplace. No combustibles are allowed.

3 1/2” MAXIMUM

14” MINIMUM

W415-0666 / 01.28.08

1 1/2” MAXIMUM

22 1/2”

58 1/4”

29”

GAS INLET

2”

8 7/8”

MINIMUM ENCLOSURE CLEARANCES

Minimum clearance to combustible construction from ﬁ replace and vent surfaces: Combustible framing:

- 0 “ to stand-offs

Non-combustible ﬁ replace ﬁ nishing:

- 4 “ from the sides of ﬁ replace opening

- 22 Combustible ﬁ replace ﬁ nishing:

- 0 “ to rear and sides

- 2” all around the vent pipe

- 22

- 72 “ from bottom of unit to enclosure top

- 72 “ from bottom of unit to ceiling

FIGURE 32

/8 “ to the top of ﬁ replace opening

/4 “ recessed depth

HORIZONTAL VENT SECTIONS: A minimum clearance of 2” all around the vent pipe on all horizontal runs to combustibles is required. Use ﬁ restop spacer W010-1799 (supplied).

Facing and/or ﬁ nishing material must never overhang into the ﬁ replace opening.

Do not distort or force the frame kit components.

When using a rough ﬁ nish material (i.e. stone), maintain a ¼” - ½” border from the framing

WARNING

components.

W415-0666 / 01.28.08

MINIMUM MANTEL AND ENCLOSURE CLEARANCES

Combustible mantel clearance can vary according to the mantel depth. Use the graph to help evaluate the clearance needed.

COMBUSTIBLE

FIGURES 33

COMBUSTIBLE

8”

INSULATION

26”

12 1/4”

SLEEVE

NON-COMBUSTIBLE

BRICK

2”

0” IF NON-

COMBUSTIBLE

FINISHING IS

USED SUCH AS

BRICK AND

STONE

TOP OF FIREPLACE

8” MANTEL

6”

14”

12”

10”

NON-COMBUSTIBLE

4”

2”

8”

72”

NONCOMBUSTIBLE

1”

2”

56”

MINIMUM

PLUS RISE*

IMPORTANT:

The requires a minimum inside enclosure height of 72”. For temperature requirements, the enclosure space around and above the ﬁ replace must be left unobstructed.

* See venting section

ELECTRICAL CONNECTION

Do NOT use the ﬁ replace if any part has been under water.

Call a qualiﬁ ed service technician IMMEDIATELY to have the ﬁ replace inspected for damage to the electrical circuit.

If access to the control area is necessary BEFORE INSTALLATION, remove the access panel.

The access panel must be re-installed before operating the unit.

ELECTRICAL SCHEMATIC

BLOWER

REMOTE

OFF

REMOTE

OFF

TOP OF FIREPLACE OPENING

FIGURE 34a&b

14 13 12

7 0

34 7

12 56

MANTEL DEPTH

HARD WIRING CONNECTION

Permanently framing the ﬁ replace with an enclosure, requires the ﬁ replace junction box to be hardwired. This fireplace must be electrically connected and grounded in accordance with local codes. In the absence of local codes, use the current CSA C22.1 CANADIAN ELECTRICAL CODE in Canada or the ANSI/NFPA 70-1996 NATIONAL ELECTRICAL CODE in the

United States.

110 V OUT

Fan Control Module (FCM)

It is necessary to hard wire this ﬁ replace.

FIGURE 35

FAN AUX OU T

Night Lights

Receiver Wall Mount

Receiver 12 Pin Connector

RECEIVER

W415-0666 / 01.28.08

Receiver Hearth Mount

Modulating 820

OUT

FCM-COM

MOTOR

Red

Black

TPTH

White

Green

FINISHING

DOOR REMOVAL

Before the glass door can be removed, the optional front must be removed. The glass door is secured to the top front edge of the ﬁ rebox. Pull the handles of the latches forward, then lift the hooks out from the slots in the door frame to release the top of the door. Next, pivot forward until the top edge of the door clears the front of the ﬁ replace. Next gripping the sides of the door lift the door out from the retainer along the bottom of the door.

FIGURE 36

LATCHES

GLASS

OPTIONAL FRONT

DOOR

RETAINER

SHIPPING BRACKET

FIGURE 38

SCREW W/ SPACER

2. Place the steel mesh inside the bowl making sure there is even space between the mesh and edge of bowl. (Fig. 39)

FIGURE 39

3. Carefully place the rocks on the bowl by lining up the locating notch on the underside of the rock cluster with the opening in the rear of the bowl. (Fig. 40)

FIGURE 37

Before installing the bowl and rocks, you must ﬁ rst remove the shipping bracket. Lift up to remove.

BOWL, MESH & ROCK PLACEMENT

FINISHING SECTION

1. Carefully slide the opening in the rear of the bowl over the burner making sure to line the holes in the bottom of the bowl with the 2 locating pins on the burner bottom

. (Fig. 38)

FIGURE 40

UNDERSIDE OF ROCK CLUSTER

4. After rocks have been placed on the bowl, add the remaining rock by inserting the pin into the hole shown in (Fig. 41).

FIGURE 41

TOP SIDE OF ROCK CLUSTER

W415-0666 / 01.28.08

SERVICING / REPLACEMENTS

OPTIONAL FRONT REMOVAL

1a. Rectangular Front Removal

Pull on the top of the optional front away from the ﬁ replace until the male portion of the latch disengages. Tilt forward slightly and lift from the 2 shoulder screws near the bottom.

1b. Heritage and Wrought Iron Front Removal

Turn the head of each turn button from a horizontal position to vertical. (Fig. 42) Allow the front to tilt forward slightly and lift from the 2 shoulder screws near the bottom front. Note: Fronts are heavy

so when the second turn button is turned the front will want to fall forward.

FIGURE 42

CONTROL PANEL REMOVAL

Lift the panel from the slots. This will allow access and removal of the remote receiver and spark module.

If valve replacement is necessary follow step 1 above then proceed with the following ...

BOWL AND BURNER REMOVAL

Remove the 6 screws that secure the burner base. Once the gas has been disconnected, the burner train assembly will lift out. (Fig. 38)

Start by sliding the bowl forward until it clears the burner then lift from the ﬁ rebox. Remove the 2 screws located behind the burner then lift up off the oriﬁ ce and out. Then using a ﬂ at head screw driver remove the curved decorative panel. Finally remove the 2 screws holding the burner base in place.

Lift the burner out from the ﬁ rebox.

(Fig. 45)

BLOWER REPLACEMENT

Your comes equipped with a heat circulating blower. The blower is pre-wired and is controlled by the remote control supplied with the unit.

Drywall dust will penetrate into the blower bearings, causing irreparable damage. Care must be taken to prevent drywall dust from coming into contact with the blower or its compartment. Any damage resulting from this condition is not

covered by the warranty policy.

BLOWER MOUNTING PLATE

REMOVE 4 SCREWS

GLASS/DOOR REPLACEMENT

1. Place the door frame face down careful not to scratch the

paint.

2. Center the gasketed glass inside the door frame with the thick side of the gasket facing up.

3. Bend the glass retainers located along the edge of the door frame over the gasket holding the glass in place. Careful not to break the glass.

FIGURE 43

WARNING

Care must be taken when removing and disposing of any broken glass or damaged components. Be sure to vacuum up any broken glass from inside the ﬁ replace before operation.

FIGURE 44

1. Turn off the power to the ﬁ replace.

2. Turn off the gas valve.

3. Remove optional front, glass door, bowl w/ rocks, burner, deco-

rative panel, & burner base.

4. The blower mounting plate can now be removed. Remove the four screws that secure the plate to the ﬁ rebox base.

5. The blower is secured to the ﬁ rebox. Disconnect the wire connectors before attempting to remove the blower from the ﬁ rebox.

6. Remove the two screws securing the blower and lift through blower access opening.

Note: When re-installing the replacement blower, it will be necessary to replace the gasket (W290-0104) on the blower mounting plate.

FIGURE 45

REMOVE 2 SCREWS

BURNER

BASE

W415-0666 / 01.28.08

DECORATIVE PANEL REMOVAL

FIGURE 46

TOP

EDGES

BOTTOM

EDGES

NIGHT LIGHTTM REPLACEMENT

Your comes equipped with our Night LightTM. The light has been pre-wired and is controlled from the remote control. If in the event the lamp or lens needs to be replaced, follow the instructions below.

Unplug the wire harness / transformer from the FCM (Fan Control Module) box inside the ﬁ replace or turn off the electrical breaker

for the ﬁ replace.

LENSE

FRAME

SCREWS

FIREBOX TOP

FIGURE 48

FIGURE 49

1. Insert a gloved hand behind the top right corner of the panel and pull forward gently.

2. Place your hands along the edge of the panel allowing it to come out of its place in the ﬁ rebox. Then pull forward slightly allowing the panel to rest on the ﬁ rebox edge.

3. Repeat on the left side.

4. Guide the panel out by rotating it carefully from left to right, be-

ing sure to stay clear of the burner.

5. Next remove the 2 screws at the back of the ﬁ rebox securing the decorative base.

6. Lift up and turn to remove.

BATTERY REPLACEMENT

1. Remove the optional front. (Instructions on Pg. 20)

2. Tilt the control panel forward allowing access to the electode

box which is screwed to the base of the ﬁ rebox. (Fig. 47)

3. Pull back on the battery compartment door latch and remove.

4. Replace battery.

5. Reinstall battery compartment and control doors.

GASKET

AMBER SIDE UP

LENSE

FRAME

Remove the four screws that secure the lens frame to the top of the ﬁ rebox. This frame retains the glass lens. The lamp can now be accessed.

Note: Do not handle the lamp (bulb) with bare ﬁ ngers, protect with a clean dry cloth.

The lamp will pull straight out of the socket. Replace with Wolf Steel parts only, as lamp and lens are special “high temperature” products. When re-installing, ensure integrity of gasket seal.

THE FIREBOX MUST BE SEALED.

Over tightening the screws could break the lens. “Light Leakage” from the upper area may be observed. The holes in the lamp housing are necessary for ventilation and

must not be blocked.

FIGURE 47

W415-0666 / 01.28.08

GENERAL TRANSMITTER LAYOUT

OPERATION

FIGURE 54FIGURE 53

FIGURE 50

FIREPLACE OPERATION

1. Install 4 AA batteries into the receiver battery bay as indicated on the battery cover (+/-).

2. Place the 3 position slider switch in the “Remote” position.

3. Using the end of a paper clip, or other similar object, insert the end of the paper clip into the hole marked “PRG” on the receiver front cover. The receiver will “beep” three (3) times to indicate that it is ready to synchronize with the transmitter.

4. Install the 3 AAA batteries in the transmitter as indicated in the battery bay, located on the base of the transmitter. With the batteries already installed in the transmitter, push the “ON” button. The receiver will “beep” four times to indicate the trans- mitter’s command is accepted and set to the particular code of that transmitter. The system is now initialized.

FIGURE 51

HAND HELD REMOTE OPERATIONS

1. Press the ON/OFF key on the transmitter, it controls all functions of the remote. The transmitter display will show all active icons on the screen. At the same time the receiver turns on the main burner and a single “beep” from the receiver will conﬁ rm reception of the command.

2. Press the ON/OFF key on the transmitter. The transmitter LCD display will only show the room temperature and icon. At the same time the receiver will turn the burner off and the appliance burner turns off. A single “beep” from the receiver conﬁ rms reception of the command.

With the thermostat in the off mode, the ﬂ ame height may be chosen and the main burner left on, regardless of the room temperature. To turn off the ﬂ ame, either turn off the on/off key or reduce ﬂ ame height to the off position.

FIGURE 52

TEMPERATURE DISPLAY

1. With the system in the “OFF” position, press the Thermostat Key and the Mode Key at the same time to change the temperature from Fahrenheit to Celsius.

2. Check the LCD screen on the Transmitter to verify that a C or F is visible to the right of the Room Temperature display.

ROOM THERMOSTAT

The remote control can operate as a room thermostat. The thermostat can be set to a desired temperature to control the comfort level in the room.

FIGURE 55

1. Press the Thermostat Key. The LCD display on the Transmitter will show that the room is “ON” and the set temperature is now displayed.

2. To adjust the set temperature, press the Up/Down Arrow Keys until the desired set temperature is displayed on the LCD screen of the Transmitter.

SMART THERMOSTAT

The Smart Thermostat function adjusts the ﬂ ame height according to the difference between the set temperature and the actual room temperatures. As the room temperature gets closer to the set point the Smart Function will automatically adjust the ﬂ ame down.

FIGURE 56

1. Press the thermostat key unit the word “SMART” appears to the right of the temperature bulb graphic.

2. To adjust the set temperature, press the Up/Down arrow keys until the desired set temperature is displayed on the LCD screen at the Transmitter.

FLAME HEIGHT

The remote control has six (6) ﬂ ame levels. With the system on and the ﬂ ame level at the maximum, press the Down Arrow Key once and it will reduce the ﬂ ame height by one step until the ﬂ ame is turned off.

The Up Arrow Key will increase the ﬂ ame height each time it is pressed. If the Up Arrow Key is pressed while the system is on but the ﬂ ame is off, the ﬂ ame will come on the high position. A single “beep” will conﬁ rm reception of the command.

W415-0666 / 01.28.08

FIGURE 57 FIGURE 58

Flame OFF Flame at level 1

FIGURE 59 FIGURE 60

Flame at level ﬁ ve Flame at “HI” level six

FAN SPEED

If the appliance is equipped with a hot air circulating fan, the speed of the fan can be controlled by the remote system. The fan speed can be adjusted through six (6) speeds.

1. Use the Mode key to guide you to the fan control icon.

2. Use the Up/Down Arrow keys to turn ON/OFF or adjust the fan

speed. A single “beep” will conﬁ rm reception of the command.

FIGURE 64 FIGURE 65

LOW BATTERY / MANUAL BYPASS

The life span of the remote batteries depends on various factors: quality of the batteries, the number of ignitions, the number of changes to the room thermostat set point, etc.

When the transmitter batteries are low, a Battery Icon will appear on the LCD display before all battery power is lost. When the batteries are replaces this Icon will disappear.

When the receiver batteries are low, no “beep” will be emitted from the receiver when it receives an ON/OFF command. This is an alert for the receiver that there’s low battery. When the batteries are replaced the “beep” will be emitted from the receiver when the ON/OFF Key is pressed.

If the batteries of the receiver or transmitter are low, the appliance can be turned on manually by sliding the three position slider switch on the receiver to the “ON” position. This will bypass the remote control feature and the appliance main burner will come on if the gas valve is in the “ON” position.

FIGURE 66

To restore button function temporarily, press the Up and Down buttons in the following sequence: up-down-down-up-down If no button is pressed within 2 minutes, the transmitter will return to the Child-Proof mode.

FIGURE 61 FIGURE 62

Blower off Blower “HI” level six

CHILD PROOF FUNCTION

This function will lock the keys to avoid unsupervised operation.

1. Press the MODE and UP keys at the same time.

2. To de-activate this function, press the MODE and UP keys at the same time.

FIGURE 63

REMOTE AUXILIARY OUTLET

The auxiliary function controls the Night Light™.

1. Use the Mode Key to guide you to the AUX icon.

2. Pressing the Up Arrow Key will activate the light.

3. Pressing the Down Arrow Key will turn the light off.

A single “beep” will conﬁ rm the reception of the command.

IN THE EVENT OF A POWER FAILURE

Refer to remote operation.

The receiver will emit a “beep” sound to conﬁ rm programming has been successful once power is restored.

FAN CONTROL MODULE

Fan Control Module (FCM) offers the added ability to control the fan speed through six (6) speeds, a remotely actuated 120V AUX outlet and a constantly powered 120V outlet. The FCM provides DC power to the receiver allowing the batteries to be used only when line power is interrupted or lost.

Note: Control module ON/OFF switch should always be in the “ON” position. If for any reason the module is turned OFF the components plugged into the module won’t have power.

FIGURE 67

MAINS VOLTAGE

SUPPLY CORD

MODULE ON/ON SWITCH

COMMUNICATION BUS (3 PIN)

FAN OUTLET PLUG

MAINS VOLTAGE PLUG

AUX OUTLET PLUG

W415-0666 / 01.28.08

OPERATING INSTRUCTIONS

When lit for the first time, the fireplace will emit a slight odour for a few hours. This is a normal temporary condition caused by the curing of paints and lubricants used in the manufacturing process and will not occur again. Simply open a window to sufficiently ventilate the room.

fter extended periods of non-operation such as following a

vacation or a warm weather season, the fireplace may emit a

FOR YOUR SAFETY READ BEFORE LIGHTING:

A. This fireplace is equipped with a pilot which must be lit by hand

while following these instructions exactly. B. Before operating smell all around the fireplace area for gas and next to the floor because some gas is heavier than air and will settle on the floor. C. Use only your hand to turn the gas control knob / manual shut-off knob. Never use tools. If the knob will not turn by hand, do not try to repair it. Call a qualified service technician. Force or attempted repair may result in a fire or explosion. D. Do not use this fireplace if any part has been under water. Immediately call a qualified service technician to inspect the fireplace and replace any part of the control system and any gas control which has been under water.

LIGHTING INSTRUCTIONS

Warning: if you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Initial lighting of the pilot and main burners must be done with the glass door off. Do not connect valve or wall switch to electricity. See insta llation instructions. When lighting and re-lighting, the gas knob cannot be turned from pilot to off unless the knob it depressed slightly.

1. STOP! read the safety information on the operating label.

2. Turn off all electric power to the fireplace.

3. Turn the gas knob clockwise to off.

4. Wait 5 minutes to clear out any gas. If you smell gas,

including near the floor, STOP! Follow “B” on the operating label. If you don’t smell gas, go to the next step.

5. If the fireplace is equipped with a flame adjustment valve, turn clockwise to off.

6. Find pilot located in front of the back log on the right side.

TO TURN OFF GAS

1. Turn off all electric power to the fireplace if service is to be

performed.

2. For a complete shut-down procedure: push in gas control knob slightly and turn clockwise to off. Do not force.

slight odour for a few hours. This is caused by dust particles in the heat exchanger burning off. Open a window to sufficiently ventilate the room. Purge all gas lines with the glass door of the fireplace open. Assure that a continuous gas flow is at the burner before closing the door.

WHAT TO DO IF YOU SMELL GAS

• Do not touch any electric switch.

• Do not use any phone in your building.

• If you cannot reach your gas supplier, call the fire department.

• Turn off all gas to the fireplace.

• Do not try to light any appliance.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

FIGURE 68

GAS KNOB

7. Turn gas knob counter-clocwise to pilot.

8. This unit is equipped with an auto-spark. Depress and hold

gas knob . Keep knob fully depressed for one minute, then release. If pilot does not continue to burn repeat steps 3 through

9. With pilot lit, turn gas knob counter-clockwise to on.

10. If equipped with flame adjustment valve, push and turn knob

to high.

11. If equipped with remote on-off switch, main burner may not come on when you turn the valve to on or high. Remote switch must be in the on position to ignite burner.

12. Turn on all electric power to the fireplace.

FIGURE 69

3. For a temporary shut-down procedure: set thermostat to lowest setting or remote switch to off. Press and turn the gas knob clockwise to pilot.

SOLENOID

PILOT ON/OFF KNOB

W415-0666 / 01.28.08

ADJUSTMENTS

PILOT BURNER ADJUSTMENT

Adjust the pilot screw to provide properly sized ﬂ ame. Turn in a clockwise direction to reduce the gas ﬂ ow.

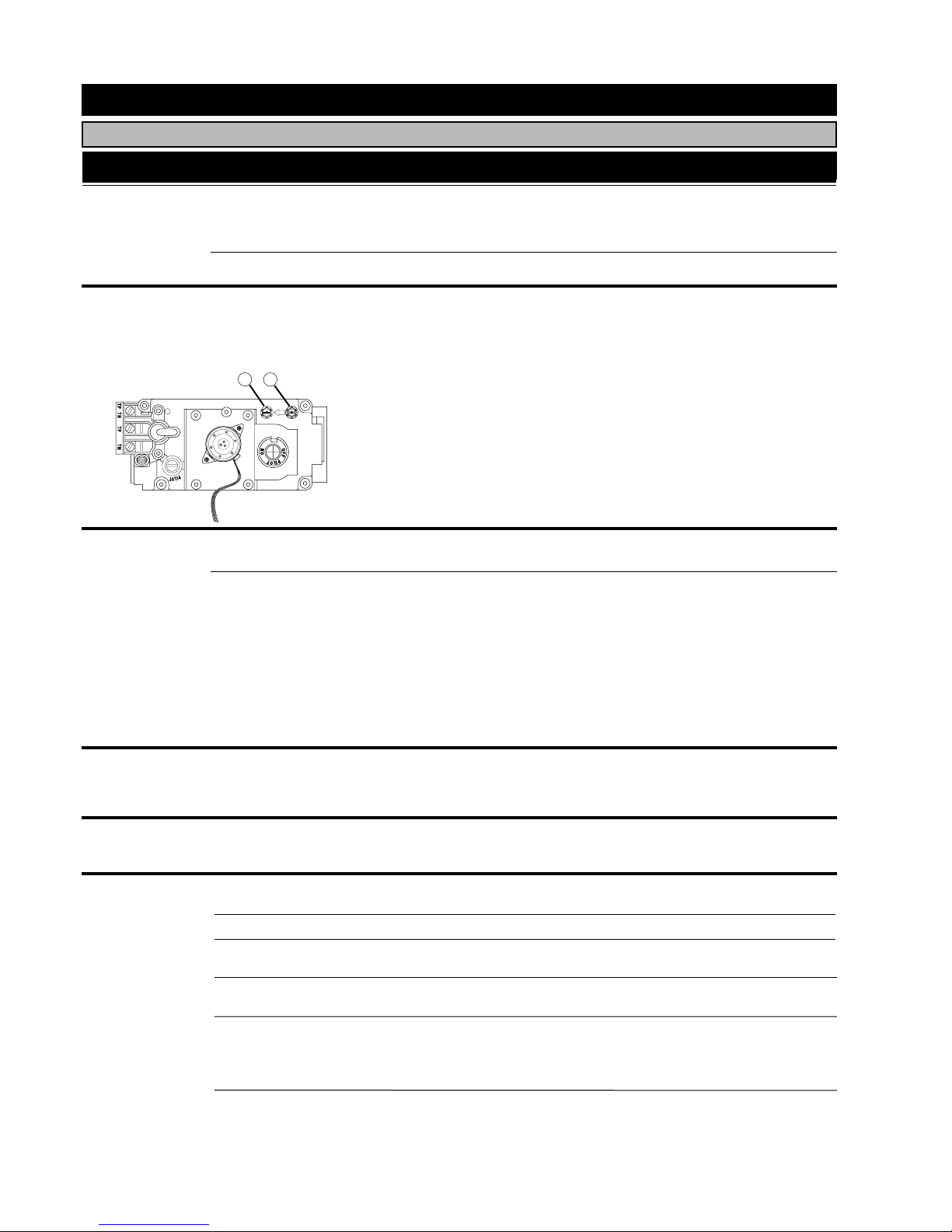

Check Pressure Readings: (Fig. 71)

Inlet pressure can be checked by turning screw (A) counter-clockwise 2 or 3 turns and then placing pressure gauge tubing over the test point. Gauge should read 7” (minimum 4.5”) water column for natural gas or 13” (11” minimum) water column for propane. Check that main burner is operating on “HI”. Outlet pressure can be checked the same as above using screw (B). Gauge should read 3.5” water column for natural gas or 10” water column for propane. Check that main burner is operating on “HI”.

AFTER TAKING PRESSURE READINGS, BE SURE TO TURN SCREWS CLOCKWISE FIRMLY TO RESEAL. DO NOT OVERTORQUE.

Leak test with a soap and water solution.

FIGURE 70

PILOT SCREW

FLAME CHARACTERISTICS

It is important to periodically perform a visual check of the pilot and burner ﬂ ames. Compare them to the illustration below.

3/8” - 1/2”

FIGURE 72

FIGURE 73

VENTURI ADJUSTMENT

Closing the air shutter will cause a more yellow ﬂ ame, but can lead to carboning. Opening the air shutter will cause a more blue ﬂ ame, but can cause ﬂ ame lifting from the burner ports. The flame may not appear yellow immediately; allow 15 to 30 minutes for the ﬁ nal ﬂ ame colour to be established.

FIGURE 74

AIR SHUTTER

OPENINGS

LP 1/2”

NG 3/16”

FIGURE 71

MAINTENANCE

TURN OFF THE GAS AND ELECTRICAL POWER BEFORE

SERVICING THE FIREPLACE.

CAUTION: Label all wires prior to disconnection when servicing

controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. This ﬁ replace and its venting system should be inspected before use and at least annually by a qualiﬁ ed service person. The ﬁ replace area must be kept clear and free of combustible materials, gasoline or other ﬂ ammable vapors and liquids. The ﬂ ow of combustion and ventilation air must not be obstructed.

1. In order to properly clean the burner and pilot assembly, remove the rocks and bowl to expose both assemblies.

2. Keep the control compartment, rocks, bowl, air shutter opening and the area surrounding the bowl clean by vacuuming or brushing, at least once a year.

AIR SHUTTER OPENING

3. Check to see that all burner ports are burning. Clean out any of the ports which may not be burning or are not burning properly.

4. Check to see that the pilot ﬂ ame is large enough to engulf the thermocouple and thermopile and reaches toward the burner with the third jet.

5. Replace the cleaned rocks and bowl.

6. Check to see that the main burner ignites completely on all open-

ings when the gas knob for the burner is turned on. A 5 to 10 second total light-up period is satisfactory. If ignition takes longer, consult your Napoleon

7. Check that the gasketing on the sides, top and bottom of the door is not broken or missing. Replace if necessary.

8. If for any reason the vent air intake system is disassembled, reinstall and re-seal per the instructions provided for the initial installation.

dealer / distributor.

W415-0666 / 01.28.08

REPLACEMENTS

Contact your dealer for questions concerning prices and availability of replacement parts. Normally all parts can be ordered through your Napoleon® dealer or distributor. When ordering replacement parts always give the following information:

1. MODEL & SERIAL NUMBER OF FIREPLACE

2. INSTALLATION DATE OF FIREPLACE

ART NUMBER

3. P

4. DESCRIPTION OF PAR T

5. FINISH

WARNING

Failure to position the parts in accordance with these diagrams or failure to use only parts speciﬁ cally approved with this appliance may result in property damage or personal injury.

FOR WARRANTY REPLACEMENT PART S, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE REQUIRED TO HONOUR THE CLAIM.

REPLACEMENT PARTS

PART NO. DESCRIPTION

1 W135-0275 OUTER ROCKS 2 W135-0304 SINGLE ROCK 3 W135-0277 BOWL 4 GL-655 ROCK SET ASSEMBLY 5 W565-0090 WIRE MESH 6* W390-0002 DOOR LATCH (EA) 7 W725-0047 NATURAL GAS VALVE - MODULATING 7 W725-0048 PROPANE GAS VALVE - MODULATING 8* W455-0019 NATURAL GAS ORIFICE #43 8* W455-0003 PROPANE GAS ORIFICE #54 9 W680-0005 THERMOCOUPLE ** 10 W240-0005 ELECTRODE C/W LEAD 11 W680-0004 THERMOPILE 12 W010- 1194 NATURAL GAS PILOT ASSEMBLY 13 W010- 1201 PROPANE GAS PILOT ASSEMBLY 14* W455-0070 NG PILOT INJECTOR 14* W455-0068 LP PILOT INJECTOR 15* W385-0334 NAPOLEON® LOGO

16 W010-1799 FIRESTOP SPACER

17 W100-0099 BURNER 18 GD 552 BLOWER 19 W660-0041 SPARK SWITCH 20 W660-0071 TRANSMITTER 21 W660-0070 RECEIVER 22 W190-0017 DC SPARK UNIT CONTROL 23 W300-0086 NIGHT LIGHT GLASS 24 W387-0006 NIGHT LIGHT LAMP 25 W750-0178 NIGHT LIGHT WIRE HARNESS 26 W290-0080 NIGHT LIGHT LENSE GASKET 27* W361-0027 INSULATION SLEEVE 28 W225-0171 DOOR 29* W500-0205 RESTRICTOR 30* W010-1500 GLASS W/ GASKET 31 W660-0069 FAN CONTROL MODULE

WARNING

** This is a fast acting thermocouple. It is an integral safety component. Replace only with a fast acting thermocouple supplied by Wolf Steel Ltd.

* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR FUR-

THER INFORMATION, CONTACT YOUR NAPOLEON® DEALER.

FLEXIBLE VENT KITS

GD220 (5 FT)

32* W010-0397 4” FLEXIBLE ALUMINIUM LINER

- (5 FT) C/W SPACERS 32* W410-0017 7” FLEXIBLE ALUMINIUM LINER - (5 FT)

GD330 (10 FT)

33* W010-0300 4” FLEXIBLE ALUMINIUM LINER

- (10 FT) C/W SPACERS 33* W410-0018 7” FLEXIBLE ALUMINIUM LINER - (10 FT) 34* W010-0370 WALL SUPPORT ASSEMBLY

TERMINAL KITS

35 PERISCOPE - GD201 36 WALL TERMINAL KIT - GD222R

ROOF TERMINAL KITS

37* 1/12 TO 7/12 PITCH - GD110 38* 8/12 TO 12/12 PITCH - GD111 39* FLAT ROOF - GD112 40 W490-0073 4/7 INNER/OUTER SLEEVE 41 W670-0006 4/7 TERMINAL 42 W170-0086 STORM COLLAR 43 W010-0453 ROOF SUPPORT 44 W263-0065 / ROOF FLASHING W263-0066 / ROOF FLASHING W263-0067 ROOF FLASHING

ACCESSORIES

45* W573-0007 HI-TEMP SEALANT 46 GD501 HEAT GUARD 47 GA-566 HOT AIR DISTRIBUTION KIT 48* GA-72 HOT AIR EXHAUST KIT 49 GA-70 EXTENSION KIT, 5FT FLEX VENT 50* W010-0370 WALL SUPPORT ASSEMBLY 51* W175-0001 4” COUPLER 52* W175-0013 7” COUPLER 53* W175-0239 CONVERSION KIT 54* W175-0240 CONVERSION KIT - LP TO NG 55 RFK82 RECTANGLE FACING KIT 56 AFK82 ARCHED FACING KIT 57* RFK82WI WROUGHT IRON FACING KIT

NG TO LP

W415-0666 / 01.28.08

9**

W415-0666 / 01.28.08

TROUBLE SHOOTING GUIDE

BEFORE ATTEMPTING TO TROUBLESHOOT, PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR OPEN.

SYMPTOM PROBLEM TEST SOLUTION

Main burner ﬂ ame is a blue, lazy, transparent ﬂ ame.

Flames are consistently too large or too small. Carboning occurs.

Carbon is being deposited on glass, logs or combustion chamber surfaces.

White / grey film forms.

Exhaust fumes smelled in room, headaches.

Pilot goes out when the gas knob is released.

The gas valve has an interlock device which will not allow the pilot burner to be lit until the thermocouple has cooled. Allow approximately 60 seconds for the thermocouple to cool.

Blockage in vent. - remove blockage. In really cold conditions, ice buildup may occur on

the terminal and should be removed as required.

Incorrect installation.

Unit is over-ﬁ red or underﬁ red.

Air shutter has become blocked

Flame is impinging on the rocks or combustion chamber.

Sulphur from fuel is being deposited on glass, logs or combustion chamber surfaces.

Fireplace is spilling. - check door seal and relief ﬂ ap seal.

System is not correctly purged.

Out of propane gas. - ﬁ ll the tank.

Pilot flame is not large enough

Pilot ﬂ ame is not engulﬁ ng the thermocouple.

Thermocouple shorting / faulty.

Faulty valve.

- ensure correct location of storm collars.

- check pressure readings: Inlet pressure can be checked by turning screw (A) counter-clockwise 2 or 3 turns and then placing pressure gauge tubing over the test point. Gauge should read 7” (minimum 4.5”) water column for natural gas or 13” (11” minimum) water column for propane. Check that main burner is operating on “HI”. Outlet pressure can be checked the same as above using screw (B). Gauge should read 3.5” water column for natural gas or 10” water column for propane. Check that main burner is operating on “HI”. AFTER TAKING PRESSURE READINGS, BE SURE TO TURN SCREWS CLOCKWISE FIRMLY TO RESEAL. DO NOT OVERTORQUE. Leak test with a soap and water solution.

- ensure air shutter opening is free of lint or other obstructions.

- check that the bowl and rockset are correctly positioned.

- open air shutter to increase the primary air.

- check the input rate: check the manifold pressure and oriﬁ ce size as speciﬁ ed by the rating plate values.

- check that the door gasketing is not broken or missing and that the seal is tight.

- check that both 4” and 7” vent liners are free of holes and well sealed at all joints.

- check that minimum rise per foot has been adhered to for any horizontal venting.

- clean the glass with a gas ﬁ replace glass cleaner. DO NOT CLEAN GLASS WHEN HOT. If deposits are not cleaned off regularly, the glass may become permanently marked.

- check for chimney blockage

- check that the paint curing process is complete

- purge the gas line with the glass door open.

- turn up the pilot ﬂ ame.

- gently twist the pilot head to improve the ﬂ ame pattern around the thermocouple.

- loosen and tighten thermocouple.

- clean thermocouple and valve connection.

- replace thermocouple.

- replace valve.

- replace.

W415-0666 / 01.28.08

SYMPTOM PROBLEM TEST SOLUTION

Pilot burning; no gas to main burner; gas knob is on ‘HI’; wall switch / thermostat is on.

Pilot goes out while standing; Main burner is in ‘OFF’ position.

Themostat or switch is defective. Wall switch wiring is defective.

Main burner oriﬁ ce is plugged. - remove stoppage in oriﬁ ce.

Faulty valve.

Gas piping is undersized. - turn on all gas appliances and see if pilot ﬂ ame ﬂ utters, diminishes or

- connect a jumper wire across the wall switch terminals; if main burner lights, replace switch / thermostat.

- disconnect switch wires &connect a jumper wire across terminals 1 & 3; if the main burner lights, check the wires for defects and / or replace wires.

- replace.

extinguishes, especially when main burner ignites. Monitor appliance supply working pressure.

- check if supply piping size is to code. Correct all undersized piping.

Pilot will not light. - check if pilot can be lit by a match

PILOT

BURNER

THERMOCOUPLE

Main burner goes out; pilot stays on.

Main burner goes out; pilot goes out.

Remote wall switch is in “OFF” position; main burner comes on when gas knob is turned to “ON” position.

No spark at pilot burner

THERMOPILE

Spark gap is incorrect - spark gap should be 0.150” to 0.175” (5/32” to 11/64” approx.) from the electrode

No gas at the pilot burner

Pilot ﬂ ame is not large enough or not engulﬁ ng the thermopile

Thermopile shorting - clean thermopile connection to the valve. Reconnect.

Remote wall switch wire is too long; too much resistance in the system.

Faulty thermostat or switch.

Refer to “MAIN BURNER GOES OUT; PILOT STAYS ON”

Vent is blocked

Vent is re-circulating

4” ﬂ exible vent has become disconnected from ﬁ replace.

Wall switch is mounted upside down

ing.

grounding.

Faulty valve.

- replace the wire if the wire insulation is broken or frayed.

- replace the electrode if the ceramic insulator is cracked or broken.

- check & replace the battery

- check to make sure the electrode is connected to the ignitor box

- ﬁ ll the tank.Out of propane gas

tip and the pilot burner. To ensure proper electrode location, tighten securing nut (ﬁ nger tight plus 1/4 turn).

- check that the manual valve is turned on.

- check the pilot oriﬁ ce for blockage.

- replace the valve.

- call the gas distributor.

- turn up pilot ﬂ ame.

- replace pilot assembly.

- replace thermopile / valve.

- shorten wire to correct length or wire gauge.

- replace.

- check for vent blockage.

- check joint seals and installation.

- re-attach to ﬁ replace.

- reverse.

- replace.Remote wall switch is ground-

- check for ground (short); repair ground or replace wire.Remote wall switch wire is

- replace.

W415-0666 / 01.28.08

SPECIAL CONCERNS

SERVICE PERFORMANCE

Fireplace Service History

SERVICE TECHNICIAN NAME

This fireplace must be serviced annually depending on usage

DEALER NAME

DATE

W415-0666 / 01.28.08

NOTES

W415-0666 / 01.28.08

NOTES

W415-0666 / 01.28.08

Napoleon Tureen GD82PT-T, Turen GD82NT-T, Turen GD82PT-T Installation And Operation Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
