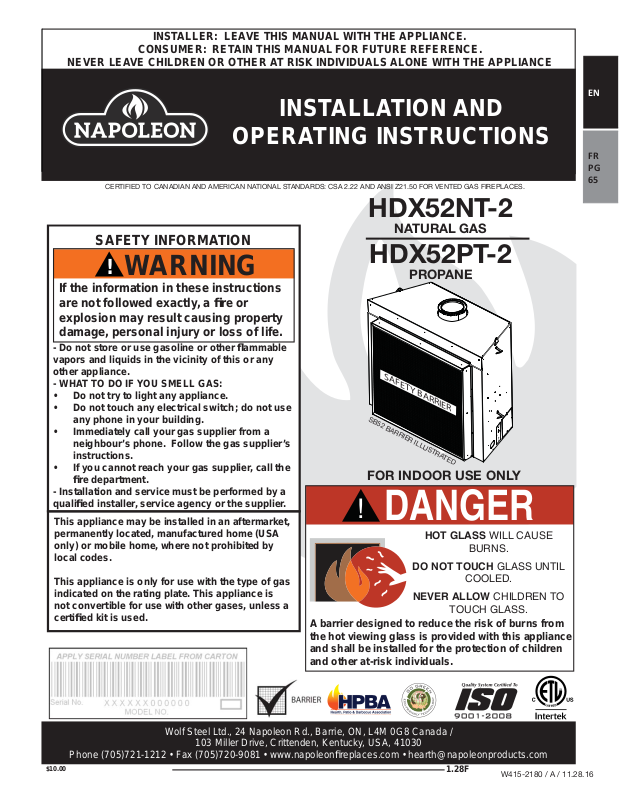

Napoleon HDX52PT2, HDX52NT2 Installation Manual

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.

CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE

INSTALLATION AND

OPERATING INSTRUCTIONS

CERTIFIED TO CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA 2.22 AND ANSI Z21.50 FOR VENTED GAS FIREPLACES.

HDX52NT-2

NATURAL GAS

SAFETY INFORMATION

HDX52PT-2

WARNING

If the information in these instructions are not followed exactly, a ﬁ re or explosion may result causing property damage, personal injury or loss of life.

- Do not store or use gasoline or other ﬂ ammable vapors and liquids in the vicinity of this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbour’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the ﬁ re department.

- Installation and service must be performed by a

qualiﬁ ed installer, service agency or the supplier.

This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certiﬁ ed kit is used.

Decorative Product: Not for use as a heating appliance.

SB52 BARRIER ILLUSTRATED

FOR INDOOR USE ONLY

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals.

PROPANE

SAFETY BARRIER

DANGER

HOT GLASS WILL CAUSE

BURNS.

DO NOT TOUCH GLASS UNTIL

COOLED.

NEVER ALLOW CHILDREN TO

TOUCH GLASS.

FR PG 65

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /

103 Miller Drive, Crittenden, Kentucky, USA, 41030

Phone (705)721-1212 • Fax (705)720-9081 • www.napoleonﬁ replaces.com • hearth@napoleonproducts.com

$10.00

1.28F

W415-2180 / A / 11.28.16

The camera icon indicates video tutorials are available as additional reference, visit http://mynapoleon.napoleonproducts.com/download/index/44/1

W415-2180 / A / 11.28.16

1.0 INSTALLATION OVERVIEW 3

2.0 INTRODUCTION 4

3.0 VENTING 8

4.0 INSTALLATION 16

5.0 FRAMING 22

6.0 FINISHING 31

7.0 ELECTRICAL INFORMATION 35

8.0 OPERATION 38

9.0 OPERATING INSTRUCTIONS 41

10.0 MAINTENANCE 44

11.0 REPLACEMENTS 49

12.0 OVERVIEW 50

13.0 ACCESSORIES 51

14.0 LOG BURNER 53

15.0 GLASS BURNER 54

16.0 RELIEF DOOR ASSEMBLY 55

17.0 VALVE TRAIN ASSEMBLY 56

18.0 TROUBLESHOOTING 57

19.0 WARRANTY 60

20.0 SERVICE HISTORY 61

21.0 NOTES 62

NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.

TABLE OF CONTENTS

2.1 DIMENSIONS 5

2.2 GENERAL INSTRUCTIONS 5

2.3 GENERAL INFORMATION 6

2.4 RATING PLATE INFORMATION 7

3.1 VENTING LENGTHS AND COMPONENTS 8

3.2 TYPICAL VENT INSTALLATION 9

3.3 VENT TERMINAL CLEARANCES 10

3.4 VENT APPLICATION FLOW CHART 11

3.5 DEFINITIONS 11

3.6 ELBOW VENT LENGTH VALUES 11

3.7 HORIZONTAL TERMINATION 12

3.8 VERTICAL TERMINATION 14

4.1 WALL AND CEILING PROTECTION 16

4.1.1 HORIZONTAL INSTALLATION 17

4.1.2 VERTICAL INSTALLATION 17

4.2 USING FLEXIBLE VENT COMPONENTS 18

4.2.1 HORIZONTAL AIR TERMINAL INSTALLATION 18

4.2.2 VERTICAL AIR TERMINAL INSTALLATION 19

4.2.3 APPLIANCE VENT CONNECTION 20

4.3 MOBILE HOME INSTALLATION 20

4.4 GAS INSTALLATION 21

5.1 INSTALLING NON-COMBUSTIBLE BOARD 25

5.2 MINIMUM CLEARANCE TO COMBUSTIBLE ENCLOSURES 27

5.3 MINIMUM COMBUSTIBLE MANTEL CLEARANCES 29

5.4 NON-COMBUSTIBLE FACING MATERIAL 30

6.1 SAFETY SCREEN REMOVAL / INSTALLATION 31

6.2 LATCH DOOR ENGAGING / DISENGAGING 32

6.3 GLASS DOOR REMOVAL / INSTALLATION 33

6.4 BURNER INSTALLATION 34

6.5 LOGO PLACEMENT 34

7.1 HARD WIRING CONNECTION 35

7.2 RECEPTACLE WIRING DIAGRAM 35

7.3 BATTERY HOLDER INSTALLATION 36

7.4 WIRING DIAGRAM 37

8.1 GENERAL TRANSMITTER LAYOUT 38

8.2 INITIALIZING THE TRANSMITTER/BATTERY HOLDER FOR THE FIRST TIME 38

8.3 TEMPERATURE DISPLAY 39

8.4 FLAME HEIGHT 39

8.5 NIGHT LIGHT DIMMER CONTROL 39

8.6 CONTINUOUS PILOT / INTERMITTENT PILOT (CPI / IPI) SELECTION 40

8.7 KEY LOCK 40

8.8 LOW BATTERY / MANUAL BYPASS 40

8.9 OPTIONAL BLOWER SPEED 40

9.2 PILOT BURNER ADJUSTMENT 42

9.1 RESTRICTING VERTICAL VENTS 42

9.3 VENTURI ADJUSTMENT 43

9.4 FLAME CHARACTERISTICS 43

10.1 ANNUAL MAINTENANCE 45

10.2 CONTROL ACCESS 46

10.3 BURNER REMOVAL 47

10.4 BRICK PANEL REMOVAL 47

10.5 PORCELAIN PANEL REMOVAL 47

10.6 MEDIA TRAY REMOVAL (GLASS ONLY) 47

10.7 NIGHT LIGHT REPLACEMENT 48

10.8 CARE OF GLASS 49

10.9 CARE OF PLATED PARTS 49

1.0 INSTALLATION OVERVIEW

See the section “VENTING - VENT TERMINAL CLEARANCES”

See the section “FRAMING MINIMUM COMBUSTIBLE MANTEL CLEARANCES”

See the section “FRAMING - MINIMUM CLEARANCE TO COMBUSTIBLE ENCLOSURES” for drywall (or other combustible materials)

See the section “FRAMING”

See the section “FRAMING - MINIMUM CLEARANCE TO COMBUSTIBLE ENCLOSURES” for non-combustible materials such as tile, marble, granite, etc. IMPORTANT: Extra support may be required

See the section “FRAMING”

Side Wall

See the section “MAINTENANCE CONTROL ACCESS”

See the section “ELECTRICAL INFORMATION BATTERY HOLDER INSTALLATION”

Batteries must be disposed of according to the local laws and regulations. Some batteries may be recycled, and may be accepted for disposal at your local recycling center. Check with your municipality for recycling instructions.

W415-2180 / A / 11.28.16

2.0 INTRODUCTION

• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.

• ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND IS PROHIBITED.

• Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause ﬁ re or injury.

• Risk of ﬁ re or asphyxiation do not operate appliance with ﬁ xed glass removed.

• Do not connect 110 volts to the control valve.

• Risk of burns. The appliance should be turned off and cooled before servicing.

• Do not install damaged, incomplete or substitute components.

• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges may be sharp.

• Do not burn wood or other materials in this appliance.

• Children and adults should be alerted to the hazards of high surface temperature and should stay away to

avoid burns or clothing ignition.

• Young children should be carefully supervised when they are in the same room as the appliance.

Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house. To restrict access to an appliance, install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.

• Clothing or other ﬂ ammable material should not be placed on or near the appliance.

• Due to high temperatures, the appliance should be located out of trafﬁ c and away from furniture and draperies.

• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.

• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.

• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot surfaces. These screens and guards must be fastened to the ﬂ oor.

• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior to operating the appliance.

• The appliance is a vented gas-ﬁ red appliance. Do not burn wood or other materials in the appliance

• It is imperative that the control compartments, burners and circulating blower and its passageway in the appliance and venting system are kept clean. The appliance and its venting system should be inspected before use and at least annually by a qualiﬁ ed service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and free from combustible materials, gasoline and other ﬂ ammable vapors and liquids.

• Under no circumstances should this appliance be modiﬁ ed.

• This appliance must not be connected to a chimney ﬂ ue pipe serving a separate solid fuel burning appliance.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass should be done by a licensed or qualiﬁ ed service person.

• Do not strike or slam shut the appliance glass door.

• When equipped with pressure relief doors, they must be kept closed while the appliance is operating to prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of the exhaust escaping through these openings can also cause the surrounding combustible materials to overheat and catch ﬁ re.

• Only doors / optional fronts certiﬁ ed with the appliance are to be installed on the appliance.

• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all plastic bags, these are not toys and should be kept away from children and infants.

• As with any combustion appliance, we recommend having your appliance regularly inspected and serviced as well as having a Carbon Monoxide Detector installed in the same area to defend you and your family against Carbon Monoxide.

• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance. Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or damage of decorations, a T.V. or other electronic components.

• A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed.

• If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance.

• Installation and repair should be done by a qualiﬁ ed service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments, burners and circulating air passageways of the appliance be kept clean.

WARNING

3.2C

W415-2180 / A / 11.28.16

2.1 DIMENSIONS

56 7/8"

1445mm

54 13/16"

1392mm

41 7/8"

1064mm

27 1/8"

689mm

29 1/8"

740mm

47 17/32" 1207mm

50 3/8"

1280mm

9 3/16"

233mm

38 7/8" 987mm

44 3/4"

1137mm

2.2 GENERAL INSTRUCTIONS

WARNING

ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT,

WITH THE GLASS DOOR OPENED OR REMOVED.

PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.

PROVIDE ADEQUATE VENTILATION.

NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.

OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48 INCHES

(121.9cm) FROM THE FRONT FACE OF THE APPLIANCE.

SURFACES AROUND AND ESPECIALLY ABOVE THE APPLIANCE CAN BECOME HOT. AVOID CONTACT

WHEN THE APPLIANCE IS OPERATING.

FIRE RISK. EXPLOSION HAZARD.

HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE TESTING GAS

LINE AT TEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE BEFORE PRESSURE

TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG (35mb).

USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE.

USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING

COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.

THE APPLIANCE MUST NOT BE OPERATED AT TEMPERATURES BELOW FREEZING (32°F / 0°C).

ALLOW THE APPLIANCE TO WARM TO ABOVE FREEZING PRIOR TO OPERATION.

Ø 10 7/8"

276mm

Ø 7 7/8"

200mm

51mm

THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to conform with local codes. Installation practices vary from region to region and it is important to know the speciﬁ cs that apply to your area, for example in Massachusetts State:

• This product must be installed by a licensed plumber or gas ﬁ tter when installed within the commonwealth of Massachusetts.

• The appliance damper must be removed or welded in the open position prior to installation of an appliance insert or gas log.

• The appliance off valve must be a “T” handle gas cock.

• The ﬂ exible connector must not be longer than 3 feet (0.9m).

• A Carbon Monoxide detector is required in all rooms containing gas ﬁ red appliances.

• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent sealed combustion product.

W415-2180 / A / 11.28.16

The installation must conform with local codes or, in

absence of local codes, the National Gas and Propane Installation Code CSA B149.1 in Canada, or the National Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United States. Suitable for mobile home installation if installed in accordance with the current standard CAN/CSA Z240MH Series, for gas equipped mobile homes, in Canada or ANSI Z223.1 and NFPA 54 in the United States.

s long as the required clearance to combustibles is maintained, the most desirable and beneﬁ cial location for an appliance is in the center of a building, thereby allowing the most efﬁ cient use of the heat created. The location of windows, doors and the trafﬁ c ﬂ ow in the room where the appliance is to be located should be considered. If possible, you should choose a location where the vent will pass through the house without cutting a ﬂ oor or roof joist.

If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood ﬂ ooring, the appliance shall be installed on a metal or wood panel extending the full width and depth.

Some appliances have optional fans or blowers. If an optional fan or blower is installed, the junction box must be electrically connected and grounded in accordance with local codes, use the current CSA C22.1 Canadian

Electrical Code in Canada or the ANSI/NFPA 70 National Electrical code in the United States.

2.3 GENERAL INFORMATION

FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION AND QUALITY!

www.ncertied.org

We suggest that our gas hearth products be installed and serviced by professionals who are certied in the U.S. by the National Fireplace

Institute

(NFI) as NFI Gas

Specialists

4.1C

HDX52-2

NG P

Altitude (FT) 0-4,500 0-4500 Max. Input (BTU/HR) 55,000 55,000 Max. Output Steady State (BTU/HR) 37,391 36,500 Efﬁ ciency (w/the fan on) 64% 68% Min. Inlet Gas Supply Pressure 4.5" w.c. (11mb) 11" w.c. (27mb) Max. Inlet Gas Supply Pressure 13" w.c. (17mb) 13" w.c. (32mb) Manifold Pressure (Under Flow Conditions) 3.5" w.c. (9mb) 10" w.c. (25mb)

This appliance is approved for bathroom, bedroom, and bed-sitting room installations and is certiﬁ ed for mobile home installation.

This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certiﬁ ed kit is used.

When the appliance is installed at elevations above 4,500ft (1371m), and in the absence of speciﬁ c recommendations from the local authority having jurisdiction, the certiﬁ ed high altitude input rating shall be reduced at the rate of 4% for each additional 1,000ft (305m).

Expansion / contraction noises during heating up and cooling down cycles are normal and are to be expected. Change in ﬂ ame appearance from “HI” to “LO” is more evident in natural gas than in propane.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the appliance and must be installed.

W415-2180 / A / 11.28.16

CHDX52P

INSTRUCTION MANUAL FOR GREATE

TRUCTION MANUAL FOR GREAT

CED INPUT / ALIMENTATION RÉDUITE 36CED INPUT / ALIMENTATION R

SSU

PRESSION AU COLLECTEURPRESSION AU COLLECTEUR

SSU

NIMUM SUPPLY PRESSURE /

. APPROPRIÉ PAPPROPR

EXIGENCES DE LA NEXIGENCES DE LA

PLIQUÉE, SE REFERER À LA NO

TRE L’INCENDIE POUR LES INSTALLATIONS

DIE POUR LES INSTALLATION

OMMUNAUTÉS, ANSI/NFPA 501A.SI/NFPA 501A.

POUR UN POUR UN

NOTE: The protective wrap on plated parts is best removed when the assembly is at room temperature but this can be improved if the assembly is warmed, using a hair dryer or similar heat source.

This appliance is equipped with a remote control system, which requires batteries (supplied) to be installed. The transmitter takes 3 “AAA” batteries and in the case of a power failure the receiver takes 4 “AA” batteries.

2.4 RATING PLATE INFORMATION

ALLOW APPLIANCE TO COOL BEFORE PERFORMING ANY MAINTANCE OR CLEANING.

Both the rating plate and lighting instructions are attached to a cable and inserted along the left side of the appliance.

THIS APPLIANCE MUST BE INSTALLED IN ACCORDANCE WITH LOCAL CODES, IF ANY; IF NONE, FOLLOW THE CURRENT ANSI Z223.1 OR CSA B149, INSTALLATION CODES. VENTED GAS FIREPLACE. APPROVED FOR BEDROOM, BATHROOM, AND BED-SITTING ROOM INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION IF INSTALLED IN ACCORDANCE WITH THE CURRENT STANDARD CAN/CSA Z240MH SERIES GAS EQUIPPED MOBILE HOMES, IN CANADA OR IN THE UNITED STATES THE MANUFACTURED HOME CONSTRUCTION AND SAFETY STANDARD, TITLE 24 CFR, PART 3280. WHEN THIS US STANDARD IS NOT APPLICABLE USE, THE STANDARD FOR FIRE SAFETY CRITERIA FOR MANUFACTURED HOME INSTALLATIONS, SITES AND COMMUNITIES, ANSI/NFPA 501A. FOR USE WITH BARRIER W565-0231. FOLLOW THE

INSTALLATION INSTRUCTIONS LOCATED IN THE INSTALLATION MANUAL

DIRECT VENT GAS FIREPLACE.

NOT FOR USE WITH SOLID FUEL. FOR USE WITH GLASS DOORS CERTIFIED WITH THIS APPLIANCE ONLY.

WARNING: DO NOT ADD ANY MATERIAL

TO THE APPLIANCE, WHICH WILL COME IN CONTACT WITH THE FLAMES, OTHER THAN THAT SUPPLIED BY THE MANUFACTURER WITH THE APPLIANCE DECORATIVE PRODUCT: NOT FOR USE AS A HEATING APPLIANCE.

MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS: TOP 0" FLOOR 0" RECESSED DEPTH 29" SIDES 0" BACK 0" VENT TOP 3" VENT SIDES & BOTTOM 2" VERTICAL VENT 1" MANTEL 6"*

TOP SIDES & BACK: PER STAND OFF SPACERS FOR FRAMING MATERIALS. FOR FINISHING MATERIALS, SEE OWNER’S MANUAL. *MAXIMUM HORIZONTAL EXTENSION 2". SEE INSTRUCTION MANUAL FOR GREATER EXTENSIONS. SEE OWNER’S INSTRUCTION MANUAL FOR MINIMUM AND MAXIMUM LENGTHS.

OPTIONAL FAN KIT: NZ64

ELECTRICAL RATING: 115V.60HZ. LESS THAN 12 AMPERES

WOLF STEEL LTD.

24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA

CONFORMS TO / CONFORME AUX: ANSI Z21.50-2014, CERTIFIED TO / CERTIFIÉ CSA 2.22-2014 VENTED GAS FIREPLACE / FOYER À GAZ VENTILÉ.

MODEL NATURAL GAS /

GAZ NATURAL

HDX52N HDX52P

0-4500FT (0-1370M) ALTITUDE / ÉLÉVATION 0-4500FT (0-1370M) 55,000 BTU/H 37,000 BTU/H REDUCED INPUT / ALIMENTATION RÉDUITE 36,500 BTU/H

3.5

" WATER COLUMN/D’UNE COLONNE D’EAU MANIFOLD PRESSURE / 10" WATER COLUMN/D’UNE COLONNE D’EAU

PRESSION AU COLLECTEUR

4.5" WATER COLUMN/D’UNE COLONNE D’EAU MINIMUM SUPPLY PRESSURE / 11" WATER COLUMN/D’UNE COLONNE D’EAU

7.0" WATER COLUMN/D’UNE COLONNE D’EAU MAXIMUM SUPPLY PRESSURE 13" WATER COLUMN/D’UNE COLONNE D’EAU

65.2% P.4 FE 65.2%

THE APPLIANCE MUST BE VENTED USING THE APPROPRIATE

NAPOLEON VENT KITS. SEE OWNERS INSTALLATION MANUAL

FOR VENTING SPECIFICS. PROPER REINSTALLATION AND

RESEALING IS NECESSARY AFTER SERVICING THE VENT-AIR

SERIAL NUMBER/ NO. DE SÉRIE: HDX52

9700539 (WSL) 4001658 (NAC)

CHDX52N CHDX52P

INPUT / ALIMENTATION 55,000 BTU/H

MANIFOLD PRE

MINIMUM SUPPLY PRE

PRESSION D’ALIMENTATION MINIMALE

PRESSION D’ALIMENTATION MAXIMALE

65.2%

INTAKE SYSTEM.

WARNING

INSTALLER L’APPAREIL SELON LES CODES D’INSTALLATION ANSI Z223.1 OU CSA-B149 EN VIGUER. FOYER À GAZ VENTILÉ. HOMOLOGUÉ POUR INSTALLATION DANS UNE CHAMBRE À COUCHER, UNE SALLE DE BAIN ET UN STUDIO. APPROPRIÉ POUR INSTALLATION DANS UNE MAISON MOBILE SI SON INSTALLATION CONFORME AUX EXIGENCES DE LA NORME CAN/CSA Z240MH SÉRIE DE MAISONS MOBILES ÉQUIPÉES AU GAZ EN VIGEUR AU CANADA OU AUX ÉTATS-UNIS DE LA NORME DE SÉCURITÉ ET DE CONSTRUCTION DE MAISONS MANUFACTURÉE, TITRE 24 CFR, SECTION 3280. DANS LE CAS OU CETTE NORME D’ÉTATS-UNIS NE PEUT ETRE APPLIQUÉE, SE REFERER À LA NORME RELATIVE AU CRITÈRE DE MESURES DE SÉCURITÉ CONTRE L’INCENDIE POUR LES INSTALLATIONS DANS LES MAISONS MANUFACTURÉS, LES SITES ET LES COMMUNAUTÉS, ANSI/NFPA 501A. POUR UNE UTILISER AVEC BARRIÈRE W565-0231. SUIVEZ LES INSTRUCTIONS D'INSTALLATION SE TROUVENT DANS LE MANUEL D'INSTALLATION.

4001657 (NGZ) 4001659 (WUSA)

HDX52P

RE /

.4 FE

L’APPAREIL DOIT ÉVACUER SES GAZ EN UTILISANT L’ENSEMBLE D’ÉVACUATION PROPRE À NAPOLEON. RÉFÉRER AU MANUEL D’INSTALLATION DE PROPRIÉTAIRE POUR L’ÉVACUATION PRÉCISE. IL EST IMPORTANT DE BIEN RÉINSTALLER ET RESCELLER L’EVENT APRÉS AVOIR ASSURÉ LE MAINTIEN DU SYSTÉME DE PRISE D’AIR.

DESSUS, CÔTÉS & ARRIÈRE : SELON LES ESPACEURS DE DÉGAGEMENT POUR LES MATÉRIAUX D’OSSATURE SELON LA MANUEL DE PROPRIÉTAIRE POUR LES MATÉRIAUX DE FINITION. *L’EXTENSION HORIZONTALE MAXIMALE : 2". RÉFÉRER AU MANUAL D’INSTRUCTION POUR DES EXTENSIONS PLUS GRANDES. RÉFÉRER AU MANUEL D’INSTALLATION DE PROPRIÉTAIRE.

MODEL PROPANE / PROPANE MODÈLE

65%

HDX52

FOYER À D'ÉVENT DIRECT. UN

COMBUSTIBLE SOLIDE NE PAS ÊTRÉ UTILISÉ AVEC CET APPAREIL. UTILISER AVEC LES PORTE VITRÉES HOMOLOGUÉES SEULEMENT AVEC CETTE APPAREIL.

ADVERTISSEMENT :

A CET APPAREIL AUCUN MATÉRIAU DEVANT ENTRER EN CONTACT AVEC LES FLAMMES AUTRE QUE CELUI QUI EST FOURNI AVEC CET APPAREIL PAR LE FABRICANT. PRODUIT DÉCORATIF: NE PAS UTILISER COMME APPAREIL DE CHAUFFAGE

DÉGAGEMENTS MINIMAUX DES MATÉRIAUX COMBUSTIBLES : DESSUS 0" PLANCHER 0" PROFONDEUR DE L’ENCLAVE FACE 29" CÔTÉS 0" ARRIÈRE 0" DESSUS DU CONDUIT D’EVENT 3" CÔTÉS ET DESSOUS DU CONDUIT D’EVENT 2" CONDUIT D’EVENT VERTICAL 1" TABLETTE 6"*

ENSEMBLE DE VENTILATEUR: NZ64

SPÉCIFICATIONS ÉLECTRIQUES : 115 V, 60HZ. MOINS DE 12 AMPÈRES.

N’AJOUTEZ PAS

W385-1928 / D

INSTALLER: It is your responsibility to check off the appropriate box on the rating plate according to the model, venting and gas type of the appliance.

The illustration is for reference only. Refer to the rating plate on the appliance for accurate information.

NOTE: The rating plate must remain with the appliance at all times. It must not be removed.

W415-2180 / A / 11.28.16

3.0 VENTING

RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE.

IF VENTING IS INCLUDED WITH SPACERS THE VENT SYSTEM MUST BE SUPPORTED EVERY 3FT

(0.9m) FOR BOTH VERTICAL AND HORIZONTAL RUNS. USE SUPPORTS OR EQUIVALENT

COMBUSTIBLES. SPACERS ARE ATTACHED TO THE INNER PIPE AT PREDETERMINED INTERVALS

TO MAINTAIN AN EVEN AIR GAP TO THE OUTER PIPE. THIS GAP IS REQUIRED FOR SAFE

OPERATION. A SPACER IS REQUIRED AT THE START, MIDDLE AND END OF EACH ELBOW TO

For safe and proper operation of the ﬁ replace follow the venting instruction exactly. Deviation from the minimum vertical vent length can create difﬁ culty in burner start-up and/or carboning. Under extreme vent conﬁ gurations, allow several minutes (5-15) for the ﬂ ame to stabilize after ignition. Provide a means for visually checking the vent connection to the ﬁ replace after the ﬁ replace is installed. Use a ﬁ restop, vent pipe shield or attic insulation shield when penetrating interior walls, ﬂ oor or ceiling.

WARNING

NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE REQUIRED CLEARANCE FROM

ENSURE THIS GAP IS MAINTAINED. THESE SPACERS MUST NOT BE REMOVED.

This ﬁ replaces uses 8" (203mm) exhaust / 11" (280mm) air intake vent pipe system.

Refer to the section applicable to your installation.

NOTE: If for any reason the vent air intake system is disassembled; reinstall per the instructions provided for the initial installation.

7.7

3.1 VENTING LENGTHS AND COMPONENTS

For vent systems that provide seals on the inner exhaust ﬂ ue, only the outer air intake joints must be sealed using a red high temperature silicone (RTV). This same sealant may be used on both the inner exhaust and outer intake vent pipe joints of all other approved vent systems except for the exhaust vent pipe connection to the ﬁ replace ﬂ ue collar which must be sealed using the black high temperature sealant Mill Pac.

When using Wolf Steel venting components, use only approved Wolf Steel ﬂ exible components with the following termination kits: wall terminal kit GD622R, or 1/12 to 7/12 pitch roof terminal kit GD610, 8/12 to 12/12 roof terminal kit GD611 or ﬂ at roof terminal kit GD612. With ﬂ exible venting, in conjunction with the various terminations, use either the 5 foot (1.5m) vent kit GD620 or the 10 foot (3m) vent kit GD630.

For optimum ﬂ ame appearance and ﬁ replace performance, keep the vent length and number of elbows to a minimum. The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year to verify that it is unobstructed and undamaged.

The minimum allowable vertical vent length is 3 feet (0.9m) maximum allowable vertical vent length is 40 feet (12m). The maximum number of allowable 8” (203mm) vent connections is three horizontally or vertically (excluding the ﬁ replace and the air terminal connections).

GD811 GD812

GD822R GD810

GD820

GD830

When venting, the horizontal run must be kept to a minimum of 36” (91.4cm) or a maximum of 20 feet (6m). If a 20 foot (6m) horizontal run is required, the ﬁ replace must have a minimum vertical rise immediately off the ﬁ replace of 57” (144.8cm). When terminating vertically, the vertical rise is a minimum 36” (91.4cm) and a maximum 40 feet (12m) above the ﬁ replace.

For optimum performance, it is recommended that all horizontal runs have a minimum 1/4” (6mm) rise per foot/meter. Provide a means for visually checking the vent connection to the ﬁ replace after the ﬁ replace is installed. Do not allow the inside liner to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. A 3/4” (19mm) air gap between the inner and outer liner all around is required for saf operation. Use a ﬁ restop when penetrating interior walls, ﬂ oor or ceiling.

W415-2180 / A / 11.28.16

18" (45.7cm)

vertical rise is

8.4A

3.2 TYPICAL VENT INSTALLATION

16″ (40.6cm)

MINIMUM

24″ (61cm)

MIN.

47 1/2"

(120.7cm)

Refer to “VENTING” section.

18" (45.7cm)

MAXIMUM

71 1/2"

(181.6cm)

PLUS RISE *

40 FEET (12m)

MAXIMUM

3 FEET (0.9m)

MINIMUM

47 1/2"

(120.7cm)

45.8

W415-2180 / A / 11.28.16

3.3 VENT TERMINAL CLEARANCES

COVERED BALCONY APPLICATIONS ††*

MIN

= 3 feet

(0.9m)

= 2 x

MAX

ACTUAL

MAX

IHHW

INSTALLATIONS

CANADA U.S.A.

12” (30.5cm) 12” (30.5cm) Clearance above grade, veranda porch, deck or balcony.

18”

9” (229mm) Clearance to windows or doors that open.

18”

(45.7cm)**

Vertical clearance to ventilated sofﬁ ts located above the terminal within a horizontal distance of 2’ (0.6m) from the center line of the terminal.

Clearance to an inside non-combustible corner wall or protruding non-combustible obstructions (chimney, etc.).

Clearance to each side of the center line extended above the meter / regulator assembly to a maximum vertical distance of 15’ (4.6m).

12” (30.5cm)

12” (30.5cm)* 12” (30.5cm) * Clearance to permanently closed windows.

(45.7cm)**

12” (30.5cm)** 12” (30.5cm)** Clearance to unventilated sofﬁ t.

0” (0mm) 0” (0mm) Clearance to an outside corner wall.

0” (0mm)*** 0” (0mm)***

2” (51mm)*** 2” (51mm)*** Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase, etc.).

3’(0.9m) 3’(0.9m)****

3’ (0.9m) 3’ (0.9m)**** Clearance to a service regulator vent outlet.

12” (30.5cm) 9” (229mm) Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other appliance.

6’ (1.8m) 3’ (0.9m) † Clearance to a mechanical air supply inlet.

7’ (2.1m) ‡ 7’ (2.1m) **** Clearance above a paved sidewalk or paved driveway located on public property.

12” (30.5cm)†† 12” (30.5cm)**** Clearance under a veranda, porch or deck.

(4.6m)

16” (40.6cm) 16” (40.6cm) Clearance above the roof.

2’ (0.6m)†* 2’ (0.6m) †* Clearance from an adjacent wall including neighbouring buildings.

12” (30.5cm) 12” (30.5cm) Clearance under a covered balcony

Δ The terminal shall not be located less than 6 feet under a window that opens on a horizontal plane in a structure with three walls and a roof.

* Recommended to prevent condensation on windows and thermal breakage

** It is recommended to use a heat shield and to maximize the distance to vinyl clad sofﬁ ts.

*** The periscope requires a minimum 18 inches clearance from an inside corner.

**** This is a recommended distance. For additional requirements check local codes.

† 3 feet above if within 10 feet horizontally.

‡ A vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces.

†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the ﬂ oor.

†* Recommended to prevent recirculation of exhaust products. For additional requirements check local codes.

††* Permitted only if the balcony is fully open on a minimum of one side.

NOTE: Clearances are in accordance with local installation codes and the requirements of the gas supplier.

W415-2180 / A / 11.28.16

8’ (2.4m) 8’ (2.4m)

3’ (0.9m) 3’ (0.9m) See chart for wider wall dimensions.

6’ (1.8m) 6’ (1.8m)

Roof must be non-combustible without openings.

See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has an opening between the terminal and the open side of the structure.

12.1E

3.4 VENT APPLICATION FLOW CHART

TOP EXIT

Horizontal Termination

Vertical rise is equal

to or greater than

the horizontal run

Horizontal run +

vertical rise to

maximum of 40 feet

(12m)

Vertical rise is less

than horizontal run

Horizontal run +

vertical rise to

maximum of

24.75 feet (7.5m)

4.2 times the

vertical rise equal to

or greater than the

horizontal run

Vertical rise is equal

to or greater than

the horizontal run

Horizontal run +

vertical rise to

maximum of 40 feet

3.5 DEFINITIONS

For the following symbols used in the venting calculations and examples are: > - greater than > - equal to or greater than < - less than < - equal to or less than HT - total of both horizontal vent lengths (Hr) and offsets (Ho) in feet HR - combined horizontal vent lengths in feet HO - offset factor: .03 (total degrees of offset - 90°*) in feet VT - combined vertical vent lengths in feet

Vertical Termination

(12m)

13.1A

14.1

Vertical rise is less

than horizontal run

Horizontal run +

vertical rise to

maximum of 40 feet

(12m)

3 times the vertical

rise equal to or

greater than the

horizontal run

3.6 ELBOW VENT LENGTH VALUES

FEET INCHES MILLIMETERS 1° 0.03 0.5 12.7 15° 0.45 6.0 152.4 30° 0.9 11.0 279.4 45° 1.35 16.0 406.4 90°* 2.7 32.0 812.8

* The ﬁ rst 90° offset has a zero value and is shown in the formula as - 90°

15.1A

W415-2180 / A / 11.28.16

3.7 HORIZONTAL TERMINATION

(HT) < (VT)

Simple venting conﬁ guration (only one 90° elbow)

See graph to determine the required vertical

rise VT for the required horizontal run HT.

40 (12.2)

39 (11.9)

REQUIRED

30 (9.1)

VERTICAL

RISE IN FEET

20 (6.1)

(METERS)VT

10 (3.1)

2 (0.6)

18"

2.5

(0.8)5(1.5)

7.5

(2.3)

(3.1)

12.5 (3.8)15(4.6)

HORIZONTAL VENT RUN PLUS OFFSET IN

FEET (METERS) H

The shaded area within the lines represents

acceptable values for HT and V

For vent conﬁ gurations requiring more than one 90° elbow, the following formulas apply: Formula 1: HT < V

Formula 2: HT + VT < 40 feet (12.2m)

17.5 (5.3)20(6.1)

Example: V1 = 3 FT (0.9m)

V2 = 8 FT (2.4m) VT = V1 + V2= 3 FT (0.9m ) + 8 FT (2.4m) = 11 FT (3.4m) H1 = 2.5 FT (0.8m) H2 = 2 FT (0.6m) HR = H1 + H2 = 2.5 FT (0.8m) + 2 FT (0.6m) = 4.5 FT (1.4m) HO = .03 (three 90° elbows - 90°) = .03 (270° - 90°) = 5.4 FT (1.7m) HT = HR + HO = 4.5 FT (1.4m) + 5.4 FT (1.6m) = 9.9 FT (3m) HT + VT = 9.9 FT (3m) + 11 FT (3.4m) = 20.9 FT (6.4m)

Formula 1: HT < V

9.9 FT (3m) < 11 FT (3.4m) Formula 2: HT + VT < 40 FT (12.2m)

20.9 FT (6.4m) < 40 FT (12.2m) Since both formulas are met, this vent conﬁ guration is acceptable.

90°

16.1B

90°

W415-2180 / A / 11.28.16

V V V

(HT) > (VT)

Simple venting configuration (only one 90° elbow)

REQUIRED

VERTICAL RISE

See graph to determine the required vertical rise VT for the

147 (3733.8)

(3733.8)

required horizontal run H

150 (3810)

150 (3810) 147

100 (2540)

IN INCHES

(MILLIMETERS)

HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) H

57 (1447.8)

24 (609.6)

19 1/2

(495.3)

50 (1270)

(1.5)

(3.1)15(4.6)

(4.6)

(3.1)

12.5

(3.8)

(0.6)

(5.5)

20 (6.1)

(6.1)

19.5

(5.9)

The shaded area within the lines represents acceptable

values for HT and VT

For vent configurations requiring more than one 90° elbow, the following formulas apply:

< 4.2 V

Formula 1: Formula 2: HT + V

Example:

= VT = 6 FT (1.8m)

= 3 FT (0.9m)

= 5 FT (1.5m)

= H

HO = .03 (two 90° elbows - 90°) = .03 (180° - 90°) = 2.7FT (0.8m) H

= H

+ V

+ H

= 3FT (0.9m) + 5FT (1.5m) = 8 FT (2.4m)

+ H

= 8FT (2.4m) + 2.7FT (0.8m) = 10.7FT (3.3m)

= 10.7FT (3.3m) + 6FT (1.8m) = 16.7FT (5.1m)

< 24.75 feet (7.5m)

90°

Formula 1: HT < 4.2 V

4.2 VT = 4.2FT (1.3m) x 6FT (1.8m) = 25.2FT (7.7m)

10.7FT (3.3m) < 25.2FT (7.7m)

Formula 2: HT + V

16.7FT (5.1m) < 24.75 (7.5m)

Since both formulas are met, this vent configuration is acceptable.

Example:

= 4 FT (1.2m)

= 1.5 FT (0.5m)

= V

+ V

= 2 FT (0.6m)

= 1 FT (0.3m)

= 1.5 FT (0.5m)

= H

= .03 (four 90° elbows - 90°) = .03 (360° - 90°) = 8.1 FT (2.5m)

= H

+ V

= 4FT (1.2m) + 1.5FT (0.5m) = 5.5 FT (1.7m)

+ H2 + H

+ H

= 5.5 FT (1.7m) + 8.1 FT (2.5m) = 13.6 FT (4.2m)

= 13.6 FT (4.2m) + 5.5 FT (1.7m) = 19.1 FT (5.8m)

Formula 1: HT < 4.2 V

4.2 VT = 4.2 FT (1.3m) x 5.5 FT(1.7m) = 23.1 FT (7m)

< 24.75 FT (7.5m)

90°

+ H4 = 2FT (0.6m) + 1FT (0.3m) + 1FT (0.3m) + 1.5FT (0.5m) = 5.5 FT (1.7m)

90°

13.6 FT (4.2m) < 23.1 FT (7m) Formula 2: HT + V

19.1FT (5.8m) < 24.75 FT (7.5m)

< 24.75 FT (7.5m)

Since both formulas are met, this vent configuration is acceptable.

16.1_2A

W415-2180 / A / 11.28.16

3.8 VERTICAL TERMINATION

(HT) < (VT)

Simple venting conﬁgurations.

See graph to determine the required vertical rise V

required horizontal run H

40 (12.2)

30 (9.1)

REQUIRED

VERTICAL

RISE IN FEET

(METERS) V

3 (0.9)

20 (6.1)

10 (3.1)

(1.5)

HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) H

The shaded area within the lines represents acceptable

values for H

For vent conﬁgurations requiring one or more 90° elbows the following formulas apply:

Formula 1: H Formula 2: HT + V

< V

< 40 feet (12.2m)

(3.1)

and VT

(4.6)

for the

(6.1)

Example: V

= 5 FT (1.5m)

= 6 FT (1.8m)

= 10 FT (3.1m)

= V

V H H H H = .03 (360° - 90°) = 8.1 FT (2.5m) H H

Formula 1: HT < V

18.6FT (5.7m) < 21FT (6.4m) Formula 2: HT + V

39.6FT (12.1m) < 40FT (12.2m)

+ V2 + V3 = 5FT (1.5m) + 6FT (1.8m) + 10FT (3.1m) = 21FT (6.4m)

= 8 FT (2.4m)

= 2.5 FT (0.8m)

= H

+ H

= .03 (four 90° elbows - 90°)

= H

+ V

= 8FT (2.4m) + 2.5FT (0.8m) = 10.5 FT (3.2m)

+ H

= 10.5FT (3.2m) + 8.1FT (2.5m) = 18.6FT (5.7m)

= 18.6FT (5.7m) + 21FT (6.4m) = 39.6FT (12.1m)

< 40 FT (12.19m)

Since both formulas are met, this vent conﬁguration is acceptable.

90°

18.1A

W415-2180 / A / 11.28.16

Simple venting conﬁgurations.

(HT) > (VT)

20 (6.1)

19 (5.8)

See graph to determine the required vertical rise V

required horizontal run HT.

for the

REQUIRED

VERTICAL

RISE IN FEET

(METERS) V

2 (0.6)

3 (0.9)

10 (3.1)

(5.5)

(1.5)

(3.1)

(4.6)

(6.1)

(7.6)

HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) H

The shaded area within the lines represents acceptable

values for H

and VT

For vent conﬁgurations requiring more than two 90° elbows the following formulas apply:

Formula 1: H Formula 2: HT + V

< 3V

< 40 feet (12.2m)

Example: V

= 2 FT (0.6m)

= 1 FT (0.3m)

= 1.5 FT (0.5m)

= V1+V2+V3= 2FT (0.6m) + 1FT (0.3m) + 1.5FT (0.5m) = 4.5FT (1.4m)

= 6 FT (1.8m)

= 2 FT (0.6m)

= H

+ H

= .03 (four 90° elbows - 90°)

= .03 (360° - 90°) = 8.1 FT (2.5m) H

= H

+ V

= 6FT (1.8m) + 2FT (0.6m) = 8 FT (2.4m)

+ H

= 8FT (2.4m) + 8.1FT (2.5m) = 16.1FT (4.9m)

= 16.1FT (4.9m) + 4.5FT (1.4m) = 20.6 FT (6.3m)

90°

Formula 1: HT < 3V 3VT = 3FT (0.9m) x 4.5FT (1.4m) = 13.5FT (4.1m)

16.1FT (4.9m) > 13.5FT (4.1m) Since this formula is not met, this vent conﬁguration is unacceptable. Formula 2: HT + VT < 40 feet (12.2m)

20.6FT (6.3m) < 40 (12.2m) Since only formula 2 is met, this vent conﬁguration is unacceptable and a new appliance location or vent conﬁguration will need to be established to satisfy both formulas.

18.1_2B

(9.1)

90°

W415-2180 / A / 11.28.16

4.0 INSTALLATION

WARNING

ENSURE TO UNPACK ALL LOOSE MATERIALS FROM INSIDE THE FIREBOX PRIOR TO HOOKING UP

THE GAS AND ELECTRICAL SUPPLY.

IF YOUR APPLIANCE IS SUPPLIED WITH A REMOTE, ENSURE THE REMOTE RECEIVER IS IN THE

“OFF” POSITION PRIOR TO HOOKING UP THE GAS AND ELECTRICAL SUPPLY TO THE APPLIANCE.

FOR SAFE AND PROPER OPERATION OF THE APPLIANCE, FOLLOW THE VENTING INSTRUCTIONS

EXACTLY.

ALL EXHAUST AND INTAKE VENT PIPE JOINTS MUST BE SEALED USING RED RTV HIGH TEMP

SILICONE SEALANT (W573-0002) (NOT SUPPLIED) OR BLACK HIGH TEMP MILL PAC (W573-0007)

(NOT SUPPLIED) WITH THE EXCEPTION OF THE APPLIANCE EXHAUST FLUE COLLAR WHICH MUST

BE SEALED USING MILL PAC.

IF USING PIPE CLAMPS TO CONNECT VENT COMPONENTS, A MINIMUM OF 3 SCREWS MUST ALSO

BE USED TO ENSURE THE CONNECTION CANNOT SLIP OFF.

DO NOT CLAMP THE FLEXIBLE VENT PIPE.

RISK OF FIRE, EXPLOSION OR ASPHYXIATION. IMPROPER SUPPORT OF THE ENTIRE VENTING

SYSTEM MAY ALLOW VENT TO SAG AND SEPARATE. USE VENT RUN SUPPORTS AND CONNECT

VENT SECTIONS PER INSTALLATION INSTRUCTIONS.

RISK OF FIRE, DO NOT ALLOW LOOSE MATERIALS OR INSULATION TO TOUCH THE VENT PIPE.

REMOVE INSULATION TO ALLOW FOR THE INSTALLATION OF THE ATTIC SHIELD AND TO

MAINTAIN CLEARANCES TO COMBUSTIBLES.

68.2D

4.1 WALL AND CEILING PROTECTION

WARNING

DO NOT FILL THE SPACE BETWEEN THE VENT PIPE AND ENCLOSURE WITH ANY TYPE OF

MATERIAL. DO NOT PACK INSULATION OR COMBUSTIBLES BETWEEN CEILING FIRESTOPS.

ALWAYS MAINTAIN SPECIFIED CLEARANCES AROUND VENTING AND FIRESTOP SYSTEMS.

INSTALL WALL SHIELDS AND FIRESTOPS AS SPECIFIED. FAILURE TO KEEP INSULATION OR

OTHER MATERIALS AWAY FROM VENT PIPE MAY CAUSE FIRE.

70.1

For optimum performance it is recommended that all horizontal runs have a minimum of 1/4" (6.4mm) rise per foot (0.3m) using ﬂ exible venting. For safe and proper operation of the appliance, follow the venting instructions exactly.

For clearance to combustible materials from the vent pipe, see “FRAMING” section.

W415-2180 / A / 11.28.16

4.1.1 HORIZONTAL INSTALLATION

THE FIRESTOP ASSEMBLY MUST BE INSTALLED WITH THE VENT SHIELD TO THE TOP.

TERMINALS MUST NOT BE RECESSED INTO A WALL OR SIDING MORE THAN THE DEPTH OF THE

RETURN FLANGE OF THE MOUNTING PLATE.

This application occurs when venting through an exterior wall. Having determined the correct height for the air terminal location, cut and frame a hole in the exterior wall as illustrated to accommodate the ﬁ restop assembly. Dry ﬁ t the ﬁ restop assembly before proceeding to ensure the brackets on the rear surface ﬁ t to the inside surface of the horizontal framing.

The vent shield must be installed to the full depth of the combustible wall. The length of the vent shield may be cut shorter for combustible walls that are less than 6" (152mm) thick.

clearances or move the shield for reduced top clearances.

A. Apply a bead of caulking (not supplied) around the corner edge of the inside surface of the ﬁ restop assembly, ﬁ t the ﬁ restop assembly to the hole and secure using the 4 screws (supplied in your manual baggie).

NOTE: Bend the tabs for reduced side

WARNING

CAULKING

FIRESTOP

SPACER

VENT

SHIELD

DETERMINE THE CORRECT HEIGHT

FINISHING MATERIAL

B. Once the vent pipe is installed in its ﬁ nal position, apply red between the pipe and the ﬁ restop.

4.1.2 VERTICAL INSTALLATION

This application occurs when venting through a roof. Installation kits for various roof pitches are available from your authorized dealer / distributor. See accessories to order speciﬁ c kits required.

A. Determine the air terminal location, cut and frame a square opening as

illustrated in the ceiling and the roof to provide the minimum 1" (25mm) clearance between the vent pipe and any combustible material. Try to center the vent pipe location midway between two joists to prevent having to cut them. Use a plumb bob to line up the center of the openings. A vent pipe shield will prevent any materials such as insulation, from ﬁ lling up the 1" (25mm) air space around the pipe. Nail headers between the joist for extra support.

B. Apply a bead of caulking (not supplied) to the framework or to the

Wolf Steel vent pipe shield plate or equivalent (in the case of a ﬁ nished ceiling), and secure over the opening in the ceiling. A ﬁ restop must be placed on the bottom of each framed opening in a roof or ceiling that the venting system passes through. Apply a bead of caulking all around and place a ﬁ restop spacer over the vent shield to restrict cold air from being drawn into the room or around the ﬁ replace. Ensure that both spacer and shield maintain the required clearance to combustibles. Once the vent pipe is installed in its ﬁ nal position, apply Mill Pac sealant (W573-0007) (not supplied) or red RTV silicone (W573-0002) (not supplied) between the pipe and the ﬁ restop assembly.

C. In the attic, slide the vent pipe collar down to cover up the open end of the shield and

tighten. This will prevent any materials, such as insulation, from ﬁ lling up the 1" (25mm) air space around the pipe.

RTV silicone sealant (W573-0002)

20.7C

UNDERSIDE OF

VENT PIPE

SHIELD

21.1B

(not supplied)

FIRESTOP

JOIST

CAULKING

VENT

PIPE

COLLAR

VENT

PIPE

SHIELD

W415-2180 / A / 11.28.16

4.2 USING FLEXIBLE VENT COMPONENTS

DO NOT ALLOW THE INNER FLEX PIPE TO BUNCH UP ON HORIZONTAL OR VERTICAL RUNS AND ELBOWS.

SPACERS ARE ATTACHED TO THE INNER FLEX PIPE AT PREDETERMINED INTERVALS TO MAINTAIN AN EVEN

AIR GAP TO THE OUTER FLEX PIPE. THIS GAP IS REQUIRED FOR SAFE OPERATION. A SPACER IS REQUIRED

AT THE START, MIDDLE AND END OF EACH ELBOW TO ENSURE THIS GAP IS MAINTAINED. THESE SPACERS

For safe and proper operation of the appliance, follow the venting instructions exactly. All inner ﬂ ex pipe and outer ﬂ ex pipe joints may be sealed using high

ELBOW

SPACERS

temperature red RTV silicone W573-0002 (not supplied) or the high temperature sealant W573-0007 Mill Pac (not supplied). However, the high temperature sealant W573-0007 Mill Pac (not supplied) must be used on the joint connecting the inner ﬂ ex pipe and the exhaust ﬂ ue collar.

Use only approved ﬂ exible vent pipe kits marked:

WARNING

KEEP IT PULLED TIGHT.

MUST NOT BE REMOVED.

“Wolf Steel Approved Venting” as identiﬁ ed by the stamp only on the outer ﬂ ex pipe.

22.1A

4.2.1 HORIZONTAL AIR TERMINAL INSTALLATION

. Stretch the inner ﬂ ex pipe to the required length needed

for the ﬁ nished wall surface. Apply a heavy bead of a heavy bead of the Mill Pac sealant (W573-

B. Using the outer ﬂ ex pipe, slide over the outer

C. Insert the vent pipes through the ﬁ restop

D. If more vent pipe needs to be used to reach the

The air terminal mounting plate may be recessed into the exterior wall or siding no greater than the depth of its return ﬂ ange.

0007) (not supplied) to the inner sleeve of the air terminal. Slip the vent pipe a minimum of 2” (50.8mm) over the inner sleeve of the air terminal and secure with 3 #8 screws.

combustion air sleeve of the air terminal and secure with 3 #8 screws. Seal using Red RTV Silicone (W573-0002)

maintaining the required clearance to combustibles. Holding the air terminal (lettering in an upright, readable position), secure to the exterior wall and make weather tight by sealing with caulking (not supplied).

ﬁ replace, couple them together as illustrated. The vent system must be supported approximately every 3 feet (0.9mm) for both vertical and horizontal runs. Use noncombustible strapping to maintain the minimum 1” (25.4mm) clearance to combustibles.

#10x2"

SCREWS

HI-TEMP

SEALANT

OUTER

FLEX PIPE

CAULKING

INNER FLEX

PIPE

2" (50.8mm) OVERLAP

HIGH TEMPERATURE

#8 X 1/2” SELF DRILLING

SCREWS

INNER FLEX PIPE

23.3C

OUTER FLEX PIPE

SEALANT

INNER COUPLER

OUTER COUPLER

OUTER

FLEX PIPE

W415-2180 / A / 11.28.16

4.2.2 VERTICAL AIR TERMINAL INSTALLATION

WARNING

MAINTAIN A MINIMUM 2” (51mm) SPACE BETWEEN THE AIR INLET BASE AND THE STORM COLLAR.

. Fasten the roof support to the roof using the screws provided.

The roof support is optional. In this case the venting is to be adequately supported using either an alternate method suitable to the authority having jurisdiction or the optional roof support.

B. Stretch the inner ﬂ ex pipe to the required length. Slip the

inner ﬂ ex pipe a minimum of 2” (51mm) over the inner pipe of the air terminal connector and secure with 6 #8 screws.

Seal using a heavy bead of Mill Pac sealant (W573-0007) (not supplied).

C. Repeat using the outer ﬂ ex pipe, using a heavy bead of

D. Thread the air terminal connector / vent pipe assembly

E. Remove nails from the shingles, above and to the sides of the

F. Aligning the seams of the terminal and air terminal

G. Apply a heavy bead of weatherproof caulking 2” (51mm)

H. If more vent pipe needs to be used to reach the ﬁ replace see

Red RTV Silicone (W573-0002) (not supplied).

down through the roof. The air terminal must be positioned vertically and plumb. Attach the air terminal connector to the roof support, ensuring that the top of the air terminal is 16” (406mm) above the highest point that it penetrates the roof.

air terminal connector. Place the ﬂ ashing over the air terminal connector leaving a min. 3/4” (19mm) of the air terminal connector showing above the top of the ﬂ ashing. Slide the ﬂ ashing underneath the sides and upper edge of the shingles. Ensure that the air terminal connector is properly centred within the ﬂ ashing, giving a 3/4” (19mm) margin all around. Fasten to the roof. Do not nail through the lower portion of the ﬂ ashing. Make weather-tight by sealing with caulking. Where possible, cover the sides and top edges of the ﬂ ashing with rooﬁ ng material.

connector, place the terminal over the air terminal connector making sure the vent pipe goes into the hole in the terminal. Secure with the three screws provided.

above the ﬂ ashing. Install the storm collar around the air terminal and slide down to the caulking. Tighten to ensure that a weather-tight seal between the air terminal and the collar is achieved.

“HORIZONTAL AIR TERMINAL INSTALLATION” section.

2” (51mm)

ROOF SUPPORT

INNER PIPE

AIR

TERMINAL

CONNECTOR

SEALANT

(W572-0007)

INNER FLEX PIPE

OUTER FLEX PIPE

CAULKING

24.2B

MILL PAC

AIR I NL ET BASE

STORM COLLAR

WEA THER SEALANT

FLASHING

W415-2180 / A / 11.28.16

4.2.3 APPLIANCE VENT CONNECTION

. Install the inner exhaust ﬂ ue collar to the appliance. Secure

with a minimum of 3 #8 screws. Seal the joint and screw holes using Mill Pac sealant (W573-0007) (not supplied).

B. Install the outer ﬂ ex pipe to the appliance. Attach and seal

the joints using a red RTV silicone and a minimum of 3 #8 screws.

4.3 MOBILE HOME INSTALLATION

This appliance must be installed in accordance with the manufacturer’s instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home Standard, CAN/CSA Z240 MH Series, in Canada. This appliance is only for use with the type(s) of gas indicated on the rating plate.

This Mobile/Manufactured Home Listed appliance comes factory equipped with a means to secure the unit. Built in appliances are equipped with 1/4” (6.4mm) diameter holes located in the front left and right corners of the base. Use #10 hex head screws, inserted through the holes in the base to secure. For free standing products contact your local authorized dealer / distributor for the appropriate securing kit. For mobile home installations, the appliance must be fastened in place. It is recommended that the appliance be secured in all installations. Always turn off the pilot and the fuel supply at the source, prior to moving the mobile home. After moving the mobile home and prior to lighting the appliance, ensure that the logs are positioned correctly.

#8 X 1/2”

SELF

DRILLING

SCREWS

28.1D

2” (50.8mm) OVERLAP

HIGH TEMP SEALANT

This appliance is certiﬁ ed to be installed in an aftermarket permanently located, manufactured (mobile) home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certiﬁ ed kit is used.

Conversion Kits This appliance is ﬁ eld convertible between Natural Gas (NG) and Propane (P). To convert from one gas to another consult your Authorized dealer/distributor.

29.1B

W415-2180 / A / 11.28.16

4.4 GAS INSTALLATION

WARNING

RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS

SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE.

ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH THE GLASS DOOR OPENED OR REMOVED. PURGING OF THE GAS SUPPLY LINE SHOULD BE

PERFORMED BY A QUALIFIED SERVICE TECHNICIAN. ASSURE THAT A CONTINUOUS GAS FLOW IS AT

THE BURNER BEFORE CLOSING THE DOOR. ENSURE ADEQUATE VENTILATION. FOR GAS AND

ELECTRICAL LOCATIONS, SEE “DIMENSIONS” SECTION.

ALL GAS CONNECTIONS MUST BE CONTAINED WITHIN THE APPLIANCE WHEN COMPLETE.

HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE TESTING GAS

LINE AT TEST PRESSURES ABOVE 1/2 PSIG.

VALVE SETTINGS HAVE BEEN FACTORY SET, DO NOT CHANGE.

Installation and servicing to be done by a qualiﬁ ed installer.

• Move the appliance into position and secure.

• If equipped with a ﬂ ex connector the appliance is designed to accept a 1/2” (13mm) gas supply. Without the connector it is designed to accept a 3/8” (9.5mm) gas supply. The appliance is equipped with a manual shut off valve to turn off the gas supply to the appliance.

• Connect the gas supply in accordance to local codes. In the absence of local codes, install to the current CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United States.

• When ﬂ exing any gas line, support the gas valve so that the lines are not bent or kinked.

• The gas line ﬂ ex-connector should be installed to provide sufﬁ cient movement for shifting the burner assembly on its side to aid with servicing components.

• Check for gas leaks by brushing on a soap and water solution. Do not use open ﬂ ame.

SPARKS OR OPEN FLAMES.

30.1A

NOTE: Connect the gas supply to the 1/2" shut off and ﬂ ex connector (supplied). Ensure gas supply is secured.

W415-2180 / A / 11.28.16

5.0 FRAMING

WARNING

RISK OF FIRE!

IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING

IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE

APPLIANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH

ANY OTHER OUTSIDE WALL OF A HOME. THIS WILL ENSURE THAT CLEARANCE TO

DO NOT NOTCH THE FRAMING AROUND THE APPLIANCE STAND-OFFS. FAILURE TO MAINTAIN

AIR SPACE CLEARANCE MAY CAUSE OVER HEATING AND FIRE. PREVENT CONTACT WITH

SAGGING OR LOOSE INSULATION OR FRAMING AND OTHER COMBUSTIBLE MATERIALS. BLOCK

OPENING INTO THE CHASE TO PREVENT ENTRY OF BLOWN-IN INSULATION. MAKE SURE

WHEN CONSTRUCTING THE ENCLOSURE ALLOW FOR FINISHING MATERIAL THICKNESS TO

MAINTAIN CLEARANCES. FRAMING OR FINISHING MATERIAL CLOSER THAN THE MINIMUMS

LISTED MUST BE CONSTRUCTED ENTIRELY OF NON-COMBUSTIBLE MATERIALS. MATERIALS CONSISTING ENTIRELY OF STEEL, IRON, BRICK, TILE, CONCRETE, SLATE, GLASS OR PLASTERS, OR ANY COMBINATION THEREOF ARE SUITABLE. MATERIALS THAT ARE REPORTED AS PASSING

ASTM E 136, STANDARD TEST METHOD FOR BEHAVIOUR OF MATERIALS IN A VERTICAL TUBE

FURNACE AT 1382°F (750°C) AND UL763 SHALL BE CONSIDERED NON-COMBUSTIBLE

MINIMUM CLEARANCE TO COMBUSTIBLES MUST BE MAINTAINED OR A SERIOUS FIRE HAZARD

THE APPLIANCE REQUIRES A MINIMUM ENCLOSURE HEIGHT. MEASURE FROM THE APPLIANCE

IF STEEL STUD FRAMING KITS WITH CEMENT BOARD ARE PROVIDED, OR SPECIFIED IN THE

IF SPECIFIED IN THE INSTALLATION INSTRUCTION FINISHING MUST BE DONE USING A NON-

COMBUSTIBLE MATERIAL SUCH AS NON-COMBUSTIBLE BOARD, CERAMIC TILE, MARBLE, ETC.

DO NOT USE WOOD OR DRYWALL. ANY FIRE RATED DRYWALL IS NOT ACCEPTABLE

It is best to frame your appliance after it is positioned and the vent system is installed. Use the steel stud frame provided.

COMBUSTIBLES IS MAINTAINED WITHIN THE CAVITY.

INSULATION AND OTHER MATERIALS ARE SECURED.

MATERIALS.

COULD RESULT.

BASE.

INSTALLATION INSTRUCTIONS, THEY MUST BE INSTALLED.

71.1C

It is not necessary to install a hearth extension with this appliance. When roughing in the appliance, raise the appliance to accommodate for the thickness of the ﬁ nished ﬂ oor materials, i.e. tile, carpeting, hard wood, which if not planned for will interfere with the opening of the lower access door and the installation of many decorative ﬂ ashing accessories.

Combustible materials may be installed ﬂ ush with the front of the appliance but must not cover any of the black face-areas of the appliance. Non-combustible material (brick, stone or ceramic tile) may protrude in these areas.

Maintain these minimum clearances to combustibles from appliance and vent surfaces: Appliance framing:

Use steel stud framing provided.

Non- Combustible Appliance ﬁ nishing:

Front - 6" (152mm) to sides of appliance opening

- 13" (33cm) above appliance opening

Combustible Appliance ﬁ nishing:

- 88" (223.5cm) from bottom of appliance to enclosure top

- 24” (61cm) from the top of the appliance opening to the ceiling

- 4 1/2" (114mm) to top of vent pipe*

- 1 1/2" (38mm) to sides and bottom of vent pipe*

W415-2180 / A / 11.28.16

*HORIZONTAL VENT SECTIONS: A minimum clearance of 4 1/2" (114mm) to the top and 1 1/2" (38mm) to the sides and bottom of the vent pipe on all horizontal runs to combustibles is required. Horizontal vent sections within enclosures require a minimum clearance of 11" (279mm) at the top of the vent pipe, see “MINIMUM CLEARANCE TO COMBUSTIBLE ENCLOSURES” section. Use ﬁ restop spacer W010-3364 (supplied).

*VERTICAL VENT SECTIONS: A minimum of 1" (25mm) all around the vent pipe on all vertical runs to combustibles is required except for clearances in appliance enclosures. Vertical vent sections within enclosures require a minimum clearance of 2" (51mm) around the vent pipe. Use ﬁ restop spacer W010-3364 (not supplied).

* When constructing the enclosure allow for ﬁ nishing material thickness to maintain clearances.

IMPORTANT: Before ﬁ nishing in the appliance test the operation using the remote control, cycling it through all of its different modes, see “OPERATION” section. Should trouble shooting be required, access to the controls can be made through the pre-ﬁ nishing access panel.

88"

(223.5cm)

MINIMUM

55 1/4"

(140.3cm)

57 3/8"

(145.7cm)

29 3/8" (74.6cm)*

W415-2180 / A / 11.28.16

29 3/8"

[74.6cm]

57 3/8" [145.7cm]

[51mm]

29 3/8"

[74.6cm]

68 11/16"

[174.5cm]

57 3/8" [145.7cm]

[152mm]

57 3/8" [145.7cm]

97 1/8" [246.7cm]

W415-2180 / A / 11.28.16

5.1 INSTALLING NON-COMBUSTIBLE BOARD

WARNING

A NON-COMBUSTIBLE FINISHING MATERIAL BORDER SUCH AS BRICK, MARBLE, GRANITE, ETC.

IS REQUIRED. FINISHING WITH JUST NON-COMBUSTIBLE BOARD TO THE SIDES AND TOP OF

THE APPLIANCE IS NOT RECOMMENDED.

THE SURFACE ABOVE THE APPLIANCE GETS VERY HOT. IF PROPER FINISHING MATERIALS ARE

NOT USED, CRACKING CAN OCCUR.

With the frame assembly in place, use drywall screws to install the non-combustible board sides (1) and center (2).

NON-

COMBUSTBLE

BOARD

REQUIRED

57 3/8" [145.7cm]

54 7/8"

[139.4cm]

[152mm]

Joint Compound where required

Joint compounds such as Durabond 90 and tapes that are resilient to heat and cracking should be used when taping and mudding seams.

Setting tiles and grouting

We recommend you use tiles with a dry butt joint to be installed using a two-part mortar with an acrylic latex additive, such as Mapei Kerabond/Kerlastic, to allow for slight movement in the normal operation of the appliance. If grout is used between the tiles, a polymer-based grout, such as Mapei Ultracolour plus, is recommended.

Primer/Paint

For a painted surface, use a 100% acrylic latex primer and ﬁ nish coat. Light coloured paints may discolour.

W415-2180 / A / 11.28.16

Depending on ﬁ nishing material, the frame assembly can be adjusted out from the appliance by 1 3/4" (44mm), as shown below:

NOTE: Framing dimensions will vary depending on ﬁ nishing material thickness.

1 3/4"

(44mm)

1 3/4"

Thick Finishing Material Thin Finishing Material

(44mm)

W415-2180 / A / 11.28.16

5.2 MINIMUM CLEARANCE TO COMBUSTIBLE ENCLOSURES

WARNING

RISK OF FIRE!

THE FRONT OF THE APPLIANCE MUST BE FINISHED WITH ANY NON-COMBUSTIBLE MATERIALS

SUCH AS BRICK, MARBLE, GRANITE, ETC., PROVIDED THAT THESE MATERIALS DO NOT COVER

THE APPLIANCE OPENING.

THE STEEL STUD FRAMING KITS WITH CEMENT BOARD PROVIDED MUST BE INSTALLED.

IMPORTANT: The HDX52-2 requires a minimum inside enclosure height of 88" (223.5cm), measured from the

bottom of the appliance. For temperature requirements, this area must be left unobstructed. It is recommended that the enclosure be ventilated at the top and bottom to circulate the air.

NOTE: JOINT COMPOUNDS AND TAPES THAT ARE RESILIENT TO HEAT AND CRACKING SHOULD BE USED WHEN TAPING AND MUDDING SEAMS.

COMBUSTIBLE

TOP OF ENCLOSURE

BRICK

MATERIAL

114mm

4 1/2"

11"

279mm

MINIMUM **

0” (0mm) IF NON-

COMBUSTIBLE FINISHING

IS USED SUCH AS BRICK

AND STONE

88"

223.5cm *

MINIMUM

ENCLOSURE

HEIGHT

13"

33cm

MINIMUM

TOP OF

FIREPLACE

OPENING

41 7/8"

106.4cm

NON-COMBUSTIBLE

MATERIAL

152mm

MINIMUM

STEEL STUD

FRAMING

1 1/2"

38mm

71 1/2"

181.6cm

MINIMUM

PLUS RISE **

** See venting section

W415-2180 / A / 11.28.16

65 7/8"

167.3cm

STEEL STUD

FRAMING

NON-COMBUSTIBLE

MATERIAL

11"

279mm

4 1/2"

114mm

0” IF NON-COMBUSTIBLE FINISHING MATERIAL IS USED SUCH AS BRICK AND STONE.

1 1/2"

38mm

FIRESTOP

ASSEMBLY

88"

223.5cm

ENCLOSURE

HEIGHT

* Within the appliance enclosure a 11” (279mm) clearance between the top of the vent pipe and combustible material is required. All other clearance, including where the vent exits the enclosure are subject to 1 1/2” (38mm) to the sides and bottom and 4 1/2” (114mm) to the top for horizontal and 1” (25mm) for vertical.

55 1/4"

140.3cm

41 7/8"

106.4cm

51mm

71 1/2"

181.6cm

IMPORTANT: THE FIRESTOP ASSEMBLY PROVIDED MUST BE USED WHEN THE VENT PIPES PASS THROUGH ANY WALL, FLOOR, OR CEILING.

W415-2180 / A / 11.28.16

5.3 MINIMUM COMBUSTIBLE MANTEL CLEARANCES

WARNING

RISK OF FIRE, MAINTAIN ALL SPECIFIED AIR SPACE CLEARANCES TO COMBUSTIBLES. FAILURE

TO COMPLY WITH THESE INSTRUCTIONS MAY CAUSE A FIRE OR CAUSE THE APPLIANCE TO

OVERHEAT. ENSURE ALL CLEARANCES (I.E. BACK, SIDE, TOP, VENT, MANTEL, FRONT, ETC.) ARE

CLEARLY MAINTAINED.

WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST BE

HEAT RESISTANT TO PREVENT DISCOLOURATION.

Combustible mantel clearance can vary according to the mantel depth. Use the graph to help evaluate the clearance needed.

0 $ 1

7 ( /

( " )

+ (

* +

22 20

18 16

8 6

4 0

34 7

12 56

MANTEL DEPTH

( " )

TOP OF

OPENING

73.1

MANTEL DIMENSIONS

Ref Height Depth

41 7/8” (106.4cm)

6” (152mm) 2” (51mm)

8” (203mm) 4” (102mm)

10” (254mm) 6” (152mm)

12” (305mm) 8” (203mm)

W415-2180 / A / 11.28.16

5.4 NON-COMBUSTIBLE FACING MATERIAL

WARNING: The appliance opening may be recessed in non-combustible facing material provided it does not project more than 2" (50.8mm) past the face of the appliance. If greater projections are desired, increase the clearance to the sides and top by 2" (50.8mm) for every additional 1" (25.4mm) of projection. If using an optional surround, then 2" (50.8mm) clearance from the surround is required before projecting out a maximum 2" (50.8mm). If greater projections are desired, increase the clearance from the surround by 2" (50.8mm) for every 1" (25.4mm) of additional projection.

SAFETY BARRIER

4”

6” (152.4mm)

4” (101.6mm)

2” (50.8mm)

0” (0mm)

SAFETY

BARRIER

(101.6mm)

3” (76.2mm) 2” (50.8mm)

TOP OF

APPLIANCE

DOOR

6” (152.4mm)

4” (101.6mm)

2” (50.8mm)

0” (0mm)

4” (101.6mm) 3” (76.2mm)

2” (50.8mm)

1” (25.4mm)

TOP OF

APPLIANCE

DOOR

W415-2180 / A / 11.28.16

SECTION A - A SECTION B - B

71.5C

+ 102 hidden pages
