Napoleon BGD48P Installation And Operation Instructions Manual

1

$10.00

W415-0326 / C / 11.23.07

W415-0326 / C / 11.23.07

2

TABLE of CONTENTS

PG 2-5 INTRODUCTION

Warranty

General Instructions
General Information
Care of Glass & Plated Parts

Installation overview

6 - 13 VENTING

Venting Lengths

Minimum Air Terminal Location Clearances
Typical Minimum and Maximum Vent Lengths
Special Vent Installations
Venting Application Flow Chart
Venting Specifi cs
Horizontal Termination

Vertical Termination

14

-

19 INSTALLATION

Wall and Ceiling Protection

Vent Heat Shield Installation
Horizontal Installation
Adjustable Firestop Installation
Vertical Installation
Using Flexible Vent Components
Horizontal air terminal installations
Vertical air terminal installations
Fireplace Vent Connection
Using Rigid Vent Components
Restricting Vertical Vents
Gas Installation
Optional wall switch installation
Mobile Home Installation

Framing
Minimum Mantel and Enclosure Clearances

Nailing Tab Installation

19-20 FINISHING

Log Placement

Charcoal Embers
Vermiculite
Glowing Embers
Logo Placement

Louvre Installation

21

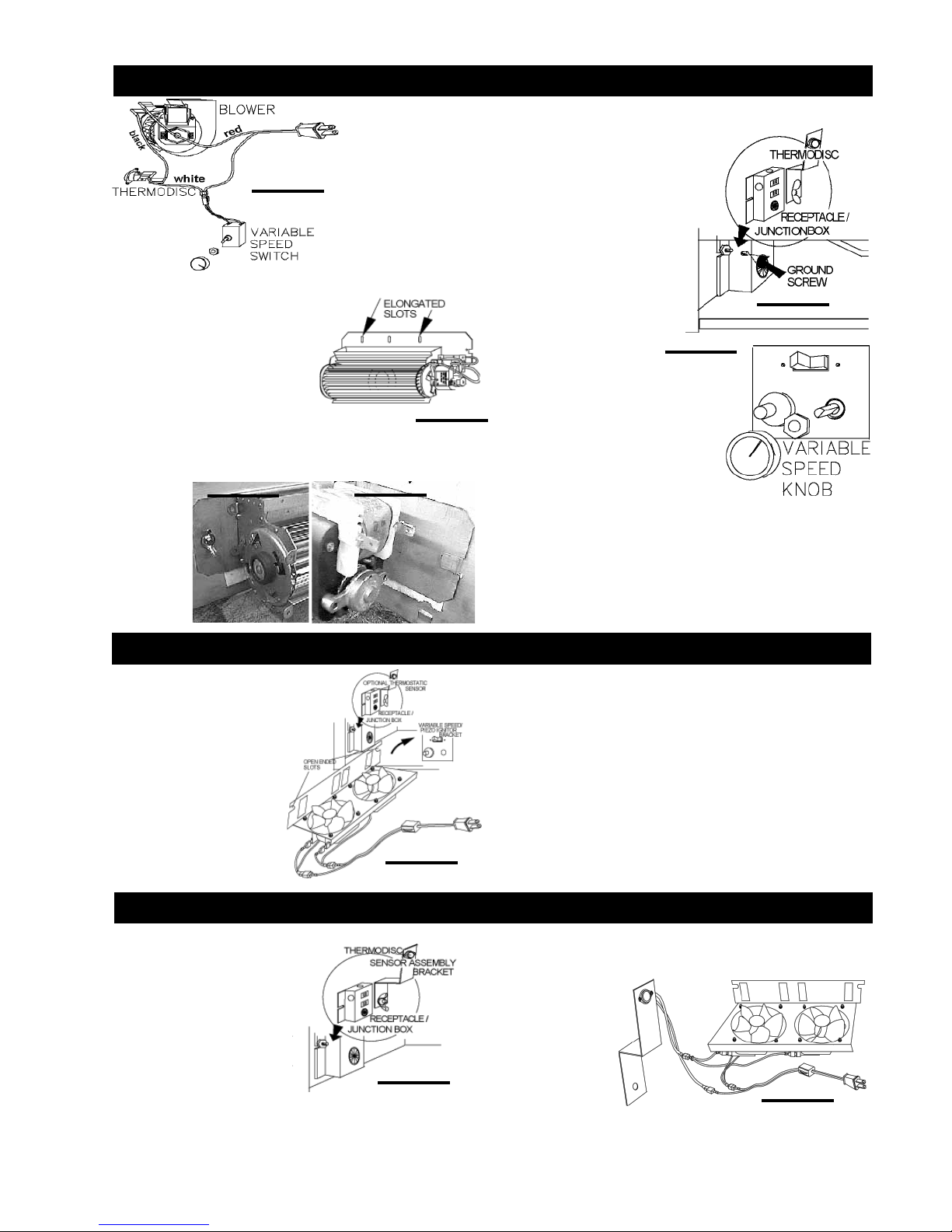

OPTIONAL BLOWER INSTALLATION

21 OPTIONAL FAN INSTALLATION /
GD36 THERMOSTATIC SENSOR CONTROL

22 OPERATION / MAINTENANCE

Operating Instructions

Maintenance

23 ADJUSTMENTS

Pilot Burner Adjustment

Venturi Adjustment

24-25 REPLACEMENTS

Ordering Replacement Parts

Replacement Parts
Vent Kits
Terminal Kits

Accessories

26-27 TROUBLE SHOOTING GUIDE

28 NOTES

PLEASE RETAIN THIS MANUAL

RETAIN THIS MANUAL FOR FUTURE REFERENCE

!

WARNING

• Do not burn wood or other materials in this fireplace.

• Adults and especially children should be alerted to the hazards of high surface temperatures and should stay away to avoid
burns or clothing ignition. Supervise young children when they are in the same room as the fireplace.

• Clothing or other flammable material should not be placed on or near the fireplace.

• Due to high temperatures, the fireplace should be located out of traffic and away from furniture and draperies.

• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.

• Even after the fireplace is out, the glass and/or screen will remain hot for an extended period of time.

• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot surfaces. These
screens and guards must be fastened to the floor.

• Any safety screen or guard removed for servicing must be replaced prior to operating the fireplace.

• It is imperative that the control compartments, burners and circulating blower and its passageway in the fireplace and venting
system are kept clean. The fireplace and its venting system should be inspected before use and at least annually by a qualified
service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. The fireplace
area must be kept clear and free from combustible materials, gasoline and other flammable vapours and liquids.

• Under no circumstances should this fireplace be modified.

• This fireplace must not be connected to a chimney flue pipe serving a separate solid fuel burning appliance.

• Do not use this fireplace if any part has been under water. Immediately call a qualified service technician to inspect the fireplace
and to replace any part of the control system and any gas control which has been under water.

• Do not operate the fireplace with the glass door removed, cracked or broken. Replacement of the glass should be done by a
licensed or qualified service person.

• Do not strike or slam shut the fireplace glass door.

• This fireplace uses and requires a fast acting thermocouple. Replace only with a fast acting thermocouple supplied by Wolf
Steel Ltd.

• Pressure relief doors must be kept closed while the fireplace is operating to prevent exhaust fumes containing carbon monox­ide, from entering into the home. Temperatures of the exhaust escaping through these openings can also cause the surrounding
combustible materials to overheat and catch fire.

• Only doors / optional fronts certified with the unit are to be installed on the appliance.

W415-0326 / C / 11.23.07

NAPOLEON® products are manufactured under the strict Standard of the world recognized

ISO 9001 : 2000 Quality Assurance Certifi cate.
NAPOLEON® products are designed with superior components and materials, assembled by trained craftsmen who
take great pride in their work. The burner and valve assembly are leak and test-fi red at a quality test station. Once
assembled the complete fi replace is thoroughly inspected by a qualifi ed technician before packaging to ensure that
you, the customer, receives the quality product that you expect from NAPOLEON®.

NAPOLEON® GAS FIREPLACE PRESIDENT'S LIFETIME LIMITED WARRANTY

The following materials and workmanship in your new NAPOLEON® gas fi replace are warranted against de­fects for as long as you own the fi replace. This covers: combustion chamber, heat exchanger, stainless steel burner,
phazer™ logs and embers, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized
enamelled components and aluminum extrusion trims.

Electrical (110V and millivolt) components and wearable parts such as blowers, gas valves, thermal switch,
switches, wiring, remote controls, ignitor, gasketing, and pilot assembly are covered and NAPOLEON® will
provide replacement parts free of charge during the fi rst year of the limited warranty.

3

Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires
the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON® are based on
a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON® dealer.

CONDITIONS AND LIMITATIONS

NAPOLEON® warrants its products against manufacturing defects to the original purchaser only -- i.e., the individual or legal entity (registered customer) whose name appears
on the warranty registration card fi led with NAPOLEON® -- provided that the purchase was made through an authorized NAPOLEON® dealer and is subject to the following condi­tions and limitations:

This factory warranty is nontransferable and may not be extended whatsoever by any of our representatives.

The gas fi replace must be installed by a licensed, authorized service technician or contractor. Installation must be done in accordance with the installation instructions included
with the product and all local and national building and fi re codes.

This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse or neglect and parts installed from other manufacturers will
nullify this warranty.

This limited warranty further does not cover any scratches, dents, corrosion or discolouring caused by excessive heat, abrasive and chemical cleaners nor chipping on porcelain
enamel parts, mechanical breakage of PHAZER™ logs and embers, nor any venting components used in the installation of the fi replace.

NAPOLEON® warrants its stainless steel burners against defects in workmanship and material for life, subject to the following conditions: During the fi rst 10 years NAPOLEON®
will replace or repair the defective parts at our option free of charge. From 10 years to life, NAPOLEON® will provide replacement burners at 50% of the current retail price.

In the fi rst year only, this warranty extends to the repair or replacement of warranted parts which are defective in material or workmanship provided that the product has been
operated in accordance with the operation instructions and under normal conditions.

After the fi rst year, with respect to this President's Limited Lifetime Warranty, NAPOLEON® may, at its discretion, fully discharge all obligations with respect to this warranty by
refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).

After the fi rst year, NAPOLEON® will not be responsible for installation, labour or any other costs or expenses related to the reinstallation of a warranted part, and such expenses
are not covered by this warranty.

Notwithstanding any provisions contained in this President's Limited Lifetime Warranty, NAPOLEON®’S responsibility under this warranty is defi ned as above and it shall not in
any event extend to any incidental, consequential or indirect damages.

This warranty defi nes the obligations and liability of NAPOLEON® with respect to the NAPOLEON® gas fi replace and any other warranties expressed or implied with respect to
this product, its components or accessories are excluded.

NAPOLEON® neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this product. NAPOLEON® will not be
responsible for: over-fi ring, downdrafts, spillage caused by environmental conditions such as rooftops, buildings, nearby trees, hills, mountains, inadequate vents or ventilation,
excessive venting confi gurations, insuffi cient makeup air, or negative air pressures which may or may not be caused by mechanical systems such as exhaust fans, furnaces,
clothes dryers, etc.

Any damages to fi replace, combustion chamber, heat exchanger, brass trim or other component due to water, weather damage, long periods of dampness, condensation,
damaging chemicals or cleaners will not be the responsibility of NAPOLEON®.

The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from your authorized dealer. The warranty registration
card must be returned within fourteen days to register the warranty.

NAPOLEON® reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty claim.

ALL SPECIFICATIONS AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE DUE TO ON-GOING PRODUCT IMPROVEMENTS. NAPOLEON® IS A REGISTERED
TRADEMARK OF WOLF STEEL LTD. PATENTS U.S. 5.303.693.801 - CAN. 2.073.411, 2.082.915. © WOLF STEEL LTD.

W415-0326 / C / 11.23.07

4

GENERAL INSTRUCTIONS

THIS GAS FIREPLACE SHOULD BE INSTALLED AND SERVICED BY
A QUALIFIED INSTALLER to conform with local codes. In absence of

local codes, install the BGD48 to the current National Fuel Gas Code,
ANSI Z223.1, or the current CAN/CGA B149, Installation Codes.

Installation practices vary from region to region and it is important
to know the specifi cs that apply to your area, ie: in Massachusetts
State:

• The fi replace damper must be removed or welded in
the open position prior to installation of a fi replace insert or
gas log.

• The appliance off valve must be a “T” handle gas cock.

• The fl exible connector must not be longer than 36".

• The appliance is not approved for installation in a bedroom
or bathroom unless unit is direct-vent.

• WARNING: This product must be installed by a licensed
plumber or gas fitter when installed within the common­ wealth of Massachusetts.

Mobile home installation must conform with local codes or in the absence
of local codes, install to the current standard for gas equipped mobile
housing CAN/CSA ZA240 MH Series in Canada or the Manufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280, or
the Fire Safety Criteria for Manufactured Home Installations, Sites and
Communities Standard ANSI/NFPA 501A in the United States.

The fi replace and its individual shut off valve must be disconnected
from the gas supply piping system during any pressure testing of that
system at test pressures in excess of 1/2 psig (3.5 kPa). The fi replace
must be isolated from the gas supply piping system by closing its
individual manual shut off valve during any pressure testing of the
gas supply piping system at test pressures equal to or less than 1/2
psig (3.5 kPa).

When the fi replace is installed directly on carpeting, vinyl tile or
other combustible material other than wood fl ooring, the fi replace
shall be installed on a metal or wood panel extending the full width
and depth.

If the optional fan or blower is installed, the junction box must be
electrically connected and grounded in accordance with local codes.

GENERAL INFORMATION

In the absence of local codes, use the current CSA C22.1 CANADIAN
ELECTRICAL CODE in Canada or the ANSI/NFPA 70 NATIONAL

ELECTRICAL CODE in the United States.

FOR YOUR SATISFACTION, THIS FIREPLACE HAS BEEN TEST­FIRED TO ASSURE ITS OPERATION AND QUALITY! Maximum input

is 36,000 BTU/hr for natural gas and 36,000 BTU/hr for propane.
When the fi replace is installed at elevations above 4,500ft, and in the
absence of specifi c recommendations from the local authority having
jurisdiction, the certifi ed high altitude input rating shall be reduced at
the rate of 4% for each additional 1,000ft.

Maximum output is 23,500 BTU/hr at an effi ciency of 65%. The maxi­mum A.F.U.E. (annual fuel utilization effi ciency) rating is 62%.

Minimum inlet gas supply pressure is 4.5" water column for natural
gas and 11" water column for propane. Maximum inlet gas pressure
is 7" water column for natural gas and 13" water column for propane.
Manifold pressure under fl ow conditions is 3.5" water column for
natural gas and 10" water column for propane.

This fi replace is approved for bathroom, bedroom and bed-sitting
room installations and is suitable for mobile home installation.

No external electricity (110 volts or 24 volts) is required for the
gas system operation.

Expansion / contraction noises during heating up and cooling

CARE OF GLASS, AND PLATED PARTS

down cycles are normal and are to be expected.

Do not use abrasive cleaners to clean plated parts. Buff lightly with a
clean dry cloth. The BGD48 is factory equipped with tempered glass.
The glass thickness is 3/16". Use only replacement glass available
from your Napoleon® dealer. DO NOT SUBSTITUTE MATERIALS.
Clean the glass after the fi rst 10 hours of operation with a recom­mended gas fi replace glass cleaner. Thereafter clean as required.

DO NOT CLEAN GLASS WHEN HOT! If the glass is not kept clean
permanent discolouration and / or blemishes may result.

Use only accessories designed for and listed with your spe-

cifi c fi replace.

Provide adequate ventilation air. Provide adequate accessibil­ity clearance for servicing and operating the fi replace. Never
obstruct the front opening of the fi replace.

For safe and proper operation of the fi replace follow the venting
instruction exactly.

Deviation from the minimum vertical vent length can create dif­fi culty in burner start-up and/or carboning.

Provide a means for visually checking the vent connection to
the fi replace after the fi replace is installed.

In order to avoid the possibility of exposed insulation or vapour
barrier coming in contact with the fi replace body, it is recom­mended that the walls of the fi replace enclosure be 'fi nished',
(i.e. drywall/sheetrock) as would any other outside wall of the
home. This will ensure that clearance to combustibles is main­tained within the cavity.

Vent lengths that pass through unheated spaces (attics, garages,
crawl spaces) should be insulated with the insulation wrapped
in a protective sleeve to minimize condensation.

Objects placed in front of the fi replace must be kept a minimum

W415-0326 / C / 11.23.07

INSTALLATION OVERVIEW

5

FIGURE 1

FIGURE 2

W415-0326 / C / 11.23.07

6

VENTING

For safe and proper operation of the fi replace follow the venting instruction exactly. Deviation from the minimum vertical vent length can
create diffi culty in burner start-up and/or carboning. Provide a means for visually checking the vent connection to the fi replace after the
fi replace is installed. Vent lengths that pass through unheated spaces (attic, garages, crawl spaces) should be insulated with the insulation
wrapped in a protective sleeve to minimize condensation.

VENTING LENGTHS

Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp or
American Metal Amerivent venting components.Minimum and

maximum vent lengths, for both horizontal and vertical installations,
and air terminal locations for either system are set out in this manual
and must be adhered to. For Simpson Dura-Vent, Selkirk Direct Temp

and American Metal Amerivent, follow the installation procedure
provided with the venting components.

All outer pipe joints of these venting systems must be sealed using
Red RTV Hight Temperature Sealant.

Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp and American
Metal Amerivent venting systems must not be combined.

A starter adaptor must be used and may be purchased from the
corresponding supplier:

Supplier 5&8 ZC

Dura-Vent W175-0170
Amerivent 4DSC-N2
Direct Temp 5DT-AA

For Simpson Dura-Vent, Selkirk Direct Temp and American
Metal Amerivent, follow the installation procedure found on
the website for your venting supplier:
VENTING SUPPLIER WEBSITE ADDRESS

Simpson Dura-Vent www.duravent.com
Selkirk Direct Temp www.selkirkcorp.com
American Metal Amerivent www.americanmetalproducts.com

When using Wolf Steel venting components, use only approved Wolf
Steel rigid / fl exible components with the following termination kits:
WALL TERMINAL KIT GD422, or 1/12 TO 7/12 PITCH ROOF TER­MINAL KIT GD410, 8/12 TO 12/12 ROOF TERMINAL KIT GD411,
FLAT ROOF TERMINAL KIT GD412 or PERISCOPE KIT GD401 (for
wall penetration below grade). With fl exible venting, in conjunction
with the various terminations, use either the 5 foot vent kit GD420
or the 10 foot vent kit GD430.

It is recommended to attach the Wolf Steel 45º rigid adaptor
directly to the unit when terminating horizontally off the back
of the unit. This must be done before attaching the desired vent
system. Once this transition has been made, venting systems
must not be combined.

These vent kits allow for either horizontal or vertical venting of the
fi replace. FIGURES 3 & 4. The maximum allowable horizontal run is
20 feet. The maximum allowable vertical vent length is 40 feet. The
maximum number of 5" vent connections is two horizontally or three
vertically (excluding the fi replace and the air terminal connections)
when using aluminium fl exible venting.

When terminating vertically, restrictor plate W500-0205 must be
installed. (Refer to Restricting Vertical Vents).

For optimum flame appearance and fireplace performance,
keep the vent length and number of elbows to a minimum.

The air terminal must remain unobstructed at all times. Ex­amine the air terminal at least once a year to verify that it is
unobstructed and undamaged.

Purge all gas lines with the glass door of the fireplace removed.
Assure that a continuous gas flow is at the burner before re­installing the door.

Under extreme vent configurations, allow several minutes (5-15)
for the flame to stabilize after ignition.

A terminal shall not terminate directly above a sidewalk or
paved driveway which is located between two single family
dwellings and serves both dwellings. Local codes or regulations
may require different clearances.

Do not allow the inside liner to bunch up on horizontal or ver­tical runs and elbows. Keep it pulled tight. A 1¼" air gap all
around between the inner liner and outer liner is required for
safe operation. Use a firestop when penetrating interior walls,
floor or ceiling.

Minimum clearance to combustible construc­tion from fi replace and vent surfaces:

Framing 0" to stand-offs
Finishing 0" to rear, sides and bottom

Non-combustible fi nishing 8" to top

All around the vent pipe 2"
Recessed depth 23"
Enclosure top 55" from bottom of unit
Clearance to ceiling 84" from bottom of unit

HORIZONTAL VENT SECTIONS: A minimum clearance of 2" all
around the vent pipe in all horizontal runs to combustibles is required.
Use fi restop spacer W010-1778 (supplied).

VERTICAL VENT SECTIONS: A minimum of 1" all around the vent
pipe on all vertical runs to combustibles is required. Use fi restop

spacer W500-0028 (not supplied).

Horizontal runs may have a 0" rise per foot in all cases using
Wolf Steel rigid or flexible vent components or Simpson
Dura-Vent, Selkirk Direct Temp or American Metal Amerivent
vent components.

For optimum performance it is recommended that all horizontal
runs have a 1" rise per foot when using Wolf Steel flexible vent
components.

W415-0326 / C / 11.23.07

MINIMUM AIR TERMINAL LOCATION CLEARANCES

FIGURE 3

7

W415-0326 / C / 11.23.07

8

TYPICAL MINIMUM AND MAXIMUM VENT LENGTHS

NOTE:
When terminating vertically, the restrictor plate W500-

0205 must be installed. Refer to Restricting Vertical
Vents.

FIGURES 4 a-b

SPECIAL VENT INSTALLATIONS

PERISCOPE TERMINATION

Use only GD401 periscope kit to locate the air termination above
grade. The periscope must be installed so that when fi nal grading
is completed, the bottom air slot is located a minimum of 12" above
grade.

FIGURE 5

W415-0326 / C / 11.23.07

VENTING APPLICATION FLOW CHART

9

HORIZONTAL

TERMINATION

vertical rise
is equal to
or greater
than the
horizontal
run
horizontal

run + verti­cal rise to
maximum
of 40 feet

vertical rise
is less than
horizontal
run

horizontal
run + verti­cal rise to
maximum of

24.75 feet

4.2 times the
vertical rise
equal to or
greater than
the horizon­tal run

VERTICAL

TERMINATION

vertical rise
is equal to
or greater
than the
horizontal
run

horizontal
run + verti­cal rise to
maximum
of 40 feet

vertical rise
is less than
horizontal
run

horizontal
run + verti­cal rise to
maximum
of 40 feet

3 times the
vertical
rise equal
to or great­er than the
horizontal
run

W415-0326 / C / 11.23.07

10

DEFINITIONS

for the following symbols used in the venting calculations and
examples are:

> - greater than
> - equal to or greater than
< - less than
< - equal to or less than
H

- total of both horizontal vent lengths (HR) and offsets (HO)

T

in feet

HR - combined horizontal vent lengths in feet
HO - offset factor: .03(total degrees of offset - 135°*) in

feet

VT - combined vertical vent lengths in feet

HORIZONTAL TERMINATION

when (HT) < (VT)

Simple venting confi guration (only one 45º and 90° elbow)

90°

FIGURE 6

ELBOW VENT LENGTH VALUES

feet inches
1° 0.03 0.5
15° 0.45 6.0
30° 0.9 11.0
45°* 1.35 16.0
90°* 2.7 32.0

* the fi rst 45º and 90° offset has a zero value and is shown
in the formula as -45° and -90º respectively or -135º when
combined.

For vent confi gurations requiring more than one 45º and 90° elbow,
the following formulas apply:

Formula 1: HT < V

Formula 2: HT + VT < 40 feet

Example 1:

FIGURE 7

T

90°

V

H

2

1

45º

REQUIRED

VERTICAL
RISE IN FEET

)

(V

T

CALCULATED HORIZONTAL VENT RUN PLUS OFF­SETS IN FEET (H

The shaded area within the lines represents acceptable values
for HT and V

.

T

)

T

45º

H

1

= 8 ft

V

1

VT =

H1 = 2.5 ft

H

H

H

=0.3(225-135º) = 2.7ft

HT = HR + HO = 4.5 + 2.7 = 7.2 ft

H

Formula 1: HT < V

Formula 2: H

15.2 < 40

Since both formulas are met, this vent confi guration is ac­ceptable.

V1 = 8 ft

= 2 ft

2

= H1 + H2 = 2.5 + 2 = 4.5 ft

R

= .

O

T

03 (one 45º elbow + two 90º elbows - 135º)

+ VT = 7.2 +8 =15.2ft

T

7.2 < 8

+ VT < 40 feet

T

90°

W415-0326 / C / 11.23.07

HORIZONTAL TERMINATION

when (H
Simple venting confi guration (only one 45º and 90° elbow)

) > (VT)

T

11

Example 2:

See graph to determine the required
vertical rise VT for the required hori­zontal run HT.

REQUIRED
VERTICAL
RISE IN
INCHES (VT)

FIGURE 8

FIGURE 9

90°

V

H

1

90°

1

90°

90°

H

H

3

V

2

2

45°

V

1

V

2

VT = V1 +

H1 = 2 ft

H

2

H

3

H

4

HR = H1 + H2 + H3 + H4 = 2 + 1 + 1 + 1. 5 = 5.5 ft

H

O

=.03 (405-135)=8.1ft

H

T

H

T

Formula 1: HT < 4.2 VT

4.2 V

Formula 2: H

19.1 < 24.75

= 4 ft
= 1.5 ft

V2 = 4 ft + 1.5 ft = 5.5 ft

= 1 ft
= 1 ft
= 1.5 ft

= .03 (one 45º elbow + four 90º elbows -135º)

= HR + HO = 5.5 + 8.1 = 13.6ft

+ VT = 13.6 + 5.5 = 19.1 ft

= 4.2 x 5.5 = 23.1 ft

T

13.6 < 23.1

+ VT < 24.75 feet

T

H

4

HORIZONTAL VENT RUN PLUS OFFSETS IN FEET

The shaded area within the lines represents acceptable values
for HT and V

For vent confi gurations requiring more than one 45º and 90° elbow
the following formulas apply:

Formula 1: H

Formula 2: HT + VT < 24.75 feet

.

T

T

< 4.2 V

T

Since both formulas are met, this vent confi guration is ac­ceptable.

W415-0326 / C / 11.23.07

12

VERTICAL TERMINATION

when (HT) < (VT)

Simple venting confi gurations

FIGURE 10

45°

See graph to determine the required vertical rise VT for the required
horizontal run HT.

REQUIRED VERTICAL RISE
IN FEET (VT)

Example 3:

V

2

FIGURE 11

90°

H

V

2

1

90°

45°

H

1

V

1

V

2

V

T

H1 = 3 ft

H

2

HR = H1 + H2 = 3 + 2.5 = 5.5 ft

H

O

= .03(45+90+90+90-135)=5.4

HT = HR + HO = 5.5 + 5.4 = 10.9 ft

H

T

Formula 1: HT < V

Formula 2: H

25.9 < 40
Since both formulas are met, this vent confi guration is ac-

ceptable.

= 5 ft
= 10 ft
=

V1 +

V2 =

5 + 10 = 15 ft

= 2.5 ft

= .03 (one 45º elbow + three 90º elbows - 135º)

+ VT = 10.9 + 15 = 25.9 ft

10.9 < 15

+ VT < 40 feet

T

90°

T

HORIZONTAL VENT RUN PLUS
OFFSETS IN FEET (HT)

The shaded area within the lines represents acceptable values
for HT and VT.

For vent confi gurations requiring more than one 45º and one 90°
elbow , the following formulas apply:

Formula 1: HT < V

Formula 2: HT + VT < 40 feet

W415-0326 / C / 11.23.07

T

VERTICAL TERMINATION

when (HT) > (VT)
Simple venting confi gurations

FIGURE 12

See graph to determine the required vertical rise V
horizontal run HT.

REQUIRED
VERTICAL
RISE IN
FEET (VT)

for the required

T

V

1

V

2

V

T

H1 = 6 ft

= 2 ft

H

2

HR = H1 + H2 = 6 + 2 = 8 ft

= .03 (one 45º elbow + three 90º elbow - 135º)

H

O

= .03(45 + 90 + 90 + 90 - 135) = 5.4 ft

HT = HR + HO = 8 + 5.4 = 13.4 ft

H

T

Formula 1: HT < 3V

Since this formula is not met, this vent confi guration is unac-
ceptable.

Formula 2: H

15.9 < 40
Since only formula 2 is met, this vent confi guration is unac-

ceptable and a new fi replace location or vent confi guration will
need to be established to satisfy both formulas.

Example 5:

= 1 ft
= 1.5 ft
=

V1 +

V2 =

1 + 1.5 = 2.5 ft

+ VT = 13.4 + 2.5 = 15.9 ft

T

3VT =

13.4 > 7.5

+ VT < 40 feet

T

3 x

2.5 = 7.5 ft

13

HORIZONTAL VENT RUN PLUS OFFSET IN FEET (HT)

The shaded area within the lines represents acceptable values
for HT and VT.

For vent confi gurations requiring more than one 45º and one 90°
elbow , the following formulas apply:

Formula 1: HT < 3V

Formula 2: HT + VT < 40 feet

Example 4:

T

45°

90°

H

1

H

2

V

1

V

2

90°

90°

FIGURE 13

90°

H

2

45°

V

H

1

1

45°

H

3

90°

FIGURE 14

V

1

V

2

V

T

H1 = 1 ft

= 1 ft

H

2

H

= 10.75 ft

3

HR = H1 + H2 + H3 = 1 + 1 + 10.75 = 12.75 ft

= .03 (three 90° elbows + two 45° elbow - 135°)

H

O

= .03(90 + 90 + 90 + 45 + 45 - 135) = 6.75 ft

HT = HR + HO = 12.75 + 6.75 = 19.5 ft

H

T

Formula 1: HT < 3V

3VT =

Formula 2: H
29 < 40
Since both formulas are met, this vent confi guration is accept-

able.

= 1.5 ft
= 8 ft
=

V1 +

V2 =

1.5 + 8= 9.5 ft

+ VT = 19.5 + 4.5= 29 ft

T

19.5 < 28.5

+ VT < 40 feet

T

3 x

9.5 = 28.5 ft

V

90°

2

W415-0326 / C / 11.23.07

14

INSTALLATION

WALL AND CEILING PROTECTION

HORIZONTAL VENT SECTIONS: A minimum clearance of 2" all
around the vent pipe in all horizontal runs to combustibles is required.
Use fi restop spacer W010-1778 (supplied).

VERTICAL VENT SECTIONS: A minimum of 1" all around the vent
pipe on all vertical runs to combustibles is required. Use fi restop
spacer W500-0028 (not supplied).

VENT HEAT SHIELD INSTALLATION

The vent heat shield must be

FIGURE 15

HORIZONTAL INSTALLATION

of 48" away from the front face of the unit.

This application occurs when venting
through an exterior wall. Having de­termined the air terminal location, cut
and frame a hole in an exterior wall.
The recommended framed opening is

installed only when terminat­ing horizontally with no vertical
rise. Remove the two screws
nearest the vent collars on
the top of the fi replace. Align
the vent heat shield (sup­plied) and secure. Adjust the
vent heat shield to touch the
fi restop spacer.

FIGURE 17c

VERTICAL INSTALLATION

147/16" W x 161/4" H.
See fi gure16.

This application occurs
when venting through
a roof. Installation kits
for various roof pitches
are available from your
Napoleon® dealer. See
Accessories to order the
specifi c kit required.

FIGURE 18

FIGURE 16

ADJUSTABLE FIRESTOP INSTALLATION

Apply a bead of caulking all around and place the fi restop top, so
that the vent shield covers the top of the vent within the opening.

NOTE: THE FIRESTOP ASSEMBLY MUST BE INSTALLED
WITH THE VENT SHIELD TO THE TOP.

The length of the vent shield may be cut shorter for combustible
walls that are less than 8 1/2" thick but the vent shield must extend
the full depth of the combustible wall.

Place the fi restop bottom against the fi restop top and secure the
two together. Adjust the assembly to ensure it is tight to the vent.
Secure fi restop to wall. This restricts cold air from being drawn
into the room or around the fi replace. Ensure that both spacer and
shield maintain the required clearance to combustibles. Once the
vent pipe / liner is installed in its fi nal position, apply high tempera­ture sealant W573-0002 (not supplied) between the pipe / liner and
the fi restop spacer. See fi gures 17a-c.

VENT
SHIELD

FIRESTOP

TOP

1. Determine the air terminal location, cut and frame

123/4" x 123/4" openings in the ceiling and the roof to provide the

minimum 1" clearance be­tween the fi replace pipe /
liner and any combustible
material. Try to centre the
exhaust pipe location mid­way between two joist to
prevent having to cut them.
Use a plumb bob to line up
the centre of the openings.
DO NOT FILL THIS SPACE
WITH ANY TYPE OF MATERIAL.

A vent pipe shield will prevent any materials such as insulation,
from fi lling up the 1" air space around the pipe. Nail headers between
the joist for extra support.

2. Apply a bead of caulking (not supplied) to the framework or
to the Wolf Steel vent pipe shield plate or equivalent (in the case
of a fi nished ceiling), and secure over the opening in the ceiling.
FIGURE 19. A fi restop must be placed on the bottom of each framed
opening in a roof or ceiling that the venting system passes through.
Apply a bead of caulking all around and place a fi restop spacer over
the vent shield to restrict cold air from being drawn into the room or
around the fi replace. Ensure that both spacer and shield maintain
the required clearance to combustibles. Once the vent pipe / liner is
installed in its fi nal position, apply sealant between the pipe / liner

FIGURE 19

FIGURE 17a

FIRESTOP

BOTTOM

W415-0326 / C / 11.23.07

FIGURE 17b

USING FLEXIBLE VENT COMPONENTS

G

L

N

E

S

"

G

X

T

P

P

E

X

E

A
T

T
E
N

T
I

O
N

­C
H

A
U

D

C
A

U
T
I

O
N

­H
O

T

FIGURE 20

ELBOW

SPACERS

middle and end of each elbow to ensure this gap

is maintained.

For safe and proper operation of the fi replace, fol-

low the venting instructions exactly.

All inner exhaust and outer intake vent pipe
joints may be sealed using either Red RTV high

temp silicone sealant or Black high temp Mill
Pac with the exception of the fi replace exhaust fl ue collar
which must be sealed using Mill Pac (not supplied).

Use only approved flexible liner kits marked:

"Wolf Steel Approved Venting" as
identified by the stamp only on the 8”
outer liner.

For safe and proper operation of the fireplace, follow the venting
instructions exactly.

NOTE: Eight (8”) inches is the minimum bend radius allowed for
the 8” diameter fl exible liner.

HORIZONTAL AIR TERMINAL INSTALLATION

1. Secure the terminal to the terminal extension plate (see fi gure

21).

2. Stretch the 5" diameter fl exible liner to the required length tak­ing into account the additional length needed for the fi nished wall
surface. Slip the liner a minimum of 2" over the inner sleeve of the
air terminal and secure with
3 #8 screws. Apply a heavy
bead of the high tempera­ture sealant W573-0002
(not supplied).

3. Using the 8" diameter
fl exible liner, slide over the
outer combustion air sleeve
of the air terminal and se­cure with 3 #8 screws. Seal
as before.

The air terminal mounting
plate may be recessed
into the exterior wall or siding by 1½", the depth of the return
fl ange.

4. Insert the liners through the fi restop maintaining the required
clearance to combustibles. Holding the air terminal (lettering in an
upright, readable position), secure to the exterior wall and make
weather tight by sealing with caulking (not supplied).

5. Apply a heavy bead of the high temperature sealant, W573-0007
(not supplied) to the inside of the 5" liner approximately 1" from the
end. Slip the liner a minimum of 2" over the fi replace vent collar and
secure with 3 #8 screws.

6. Using the 8" diameter fl exible aluminium liner, apply high tempera­ture sealant W573-0002 (not supplied), slide a minimum of 2" over the

fi replace combustion air collar and secure with 3 #8 screws.

VERTICAL AIR TERMINAL INSTALLATION

1. Fasten the roof support to the roof using the screws provided. The
roof support is optional. In this case the venting is to be adequately
supported using either an alternate method suitable to the authority
having jurisdiction or the optional roof support.

Do not allow the inside liner
to bunch up on horizontal or
vertical runs and elbows. Keep
it pulled tight. A 1 1/4" air gap
between the inner liner and
the outer liner all around is
required for safe operation. A
spacer is required at the start,

CCAAUULLKKIINNG

##1100xx22½½"

SSCCRREEWWS

A

T
T

E

C

N

A

T

U

I

O

T

N

I

O

-

N

C
H

-

A
U

H

D

O

T

CCAAUULLKKIINNG

TTEERRMMIINNAAL
EEXXTTEENNSSIIOON
PPLLAATTE

22""OOVVEERRLLAAP

HHII--TTEEMMP

SSEEAALLAANNT

55""FFLLEEX

PPIIPPE

88""FFLLEEX

PPIIPPE

FIGURE 21

2. Stretch the 5" diameter fl exible liner

FIGURE 22

to the required length. Slip the liner a
minimum of 2" over the inner sleeve of
the air terminal connector and secure
with 3 #8 screws. Seal using a heavy
bead of the high temperature sealant.

3. Repeat using 8" diameter fl exible

liner.

4. Thread the air terminal connector/

pipe assembly down through the roof. The air

FIGURE 23

terminal must be located vertically and plumb.
Attach the air terminal connector to the roof sup­port, ensuring that a minimum 16" of air terminal
will penetrate the roof when fastened.

DO NOT CLAMP THE FLEXIBLE ALU-

MINIUM LINER.

5. Remove nails from the shingles, above and
to the sides of the chimney. Place the fl ashing
over the air terminal and slide it underneath the
sides and upper edge of the shingles. Ensure
that the air terminal connector is properly centred within the fl ashing,
giving a 3/4" margin all around. Fasten to the roof. Do not nail through
the lower portion of the fl ashing. Make weather-tight by sealing with
caulking. Where possible, cover the sides and top edges of the fl ash­ing with roofi ng material.

6. Aligning the seams of the terminal and air terminal connector,
place the terminal over the air terminal connector making sure the
liner goes into the hole in the terminal. Secure screws provided.

7. Apply a heavy bead of weather­proof caulking 2" above the fl ashing.

FIGURE 24

Note: Maintain a minimum 2" space
between the air inlet base and the storm
collar. Install the storm collar around the
air terminal and slide down to the caulk­ing. Tighten to ensure that a weather­tight seal between the air terminal and
the collar is achieved.

8. If more liner needs to be used to
reach the fi replace, couple them together
as illustrated in Figure 25. The vent system must be supported ap­proximately every 3 feet for both vertical and horizontal runs. Use
noncombustible strapping to maintain a clearance to combustibles
of 1".

FIGURE 25

FIREPLACE VENT CONNECTION

1. Install the 5" diameter

fl exible liner to the fi replace.
Secure with 3 screws and fl at
washers. Seal the joint and
screw holes using the high
temperature sealant W573­0007 (not supplied).

2. Install the 8" diameter
fl exible liner to the fi replace.
Attach and seal with high
temperature sealant W573-0002 (not supplied).

FIGURE 26

W415-0326 / C / 11.23.07

15

16

P

T

E

P

E

G

L

N

E

S

"

G

S

E

A

L

A

N

T

H

I

-

T

E

M

P

A
T

T
E
N
T

I
O
N

­C

H

A
U
D

C
A

U
T

I
O

N

­H

O
T

USING RIGID VENT COMPONENTS

The vent system must be supported approximately every 3 feet for
both vertical and horizontal runs. Use Wolf Steel vent spacers or
equivalent every 3 feet and either side of each elbow to maintain
the minimum 1¼" clearance between the outer and inner vent pipes.
Use Wolf Steel support ring assembly or equivalent noncombustible
strapping to maintain the minimum clearance to combustibles for

55""PPIIPPE

22""OOVVEERRLLAAP

T

-

I

H

A

E

S

P

M

E

N

A

L

88""PPIIPPE

T

HHII--TTEEMMP

SSEEAALLAANNT

FIGURE 28

W573-0002 (not supplied) to the

both vertical and horizontal runs.

HORIZONTAL AIR TERMINAL INSTALLATION

CCAAUULLKKIINNG

##1100xx22½½"
SSCCRREEWWS

A
T
T

E

C

N

A

T

U

I
O

T

N

I

O

-

N

C
H

-

A
U

H

D

O

T

1. Move the fi replace into position. Measure the vent length

CCAAUULLKKIINNG

TTEERRMMIINNAAL
EEXXTTEENNSSIIOON
PPLLAATTE

required between terminal and fi replace taking into account the
additional length needed for the fi nished wall surface and any 1¼"
overlaps between venting components.

2. Secure the terminal to the terminal extension plate.

3. Apply high temperature sealant W573-0007 (not supplied) to

the outer edge of the 5" inner collar of the fi replace. Attach the fi rst
vent component and secure using 3 self tapping screws. Repeat
using 8" piping.

4. Holding the air terminal (with the air defl ectors to the top and
the lettering in an upright, readable position) insert into both vent
pipes with a twisting motion to ensure that both the terminal sleeves
engage into the vent pipes and sealant. Secure the terminal exten­sion plate to the exterior wall and make weather tight by sealing with
caulking (not supplied).

EXTENDED HORIZONTAL AIR TERMINAL

INSTALLATION

1. Follow the instructions for "Horizontal Air Terminal Installations",
items 1 to 4.

2. Continue adding components alternating inner and outer venting.
Ensure that all 5" venting and elbows have suffi cient vent spacers
attached and each component
is securely fastened to the one
prior. Attach the 5" telescopic
sleeve to the vent run.

Repeat using a 8" telescopic
sleeve. Secure and seal as
before. To facilitate completion,
attach 5" and 8" couplers to the
air terminal.

3. Install the air terminal. See item 4 of the
Horizontal Air Terminal Installation. Extend the

5" telescopic sleeve; connect to the air terminal
assembly. Fasten with self tapping screws and
seal. Repeat using the 8" telescopic sleeve.

VERTICAL VENTING INSTALLATION

1. Move the fi replace into position.

2. Fasten the roof support to the roof using the screws provided.

The roof support is optional. In this case the venting is to be ad­equately supported using either an alternate method suitable to the

authority having jurisdiction or the optional roof support.

3. Apply high temperature sealant
outer edge of the inner sleeve of the air terminal. Slip a 5" diam­eter coupler a minimum of 2" over the sleeve and secure using 3
screws.

W415-0326 / C / 11.23.07

FIGURE 27

4. Apply high temperature sealant W573-

0002 (not supplied) to the outer edge of the

of the outside sleeve of the air terminal. Slip
a 8" diameter coupler over the sleeve and

FIGURE 29

secure as before. Trim the 8" coupler even
with the 5" coupler end.

5. Thread the air terminal pipe assembly
down through the roof support and attach,
ensuring that a minimum 16" of air terminal
will penetrate the roof when fastened. If the

attic space is tight, we recommend thread­ing the Wolf Steel vent pipe collar or
equivalent loosely onto the air terminal
assembly as it is passed through the
attic. The air terminal must be located

vertically and plumb.

6. Remove nails from the shingles,
above and to the sides of the chimney.
Place the fl ashing over the air terminal
and slide it underneath the sides and
upper edge of the shingles. Ensure
that the air terminal is properly cen-

FIGURE 30

tred within the fl ashing, giving a 3/4"
margin all around. Fasten to the roof.
Do NOT nail through the lower portion of the fl ashing. Make weather­tight by sealing with caulking. Where possible, cover the sides and
top edges of the fl ashing with roofi ng material.

7. Aligning the seams of the terminal and air terminal connector,
place the terminal over the air terminal connector making sure the
inner sleeve goes into the hole in the terminal. Secure with the 3
screws provided.

FIGURE 31

8. Apply a heavy bead of weatherproof
caulking 2" above the flashing. Note:
Maintain a minimum 2" space between
the air inlet base and the storm collar.
Install the storm collar around the air
terminal connector and slide down to
the caulking. Tighten to ensure that
a weather-tight seal between the air
terminal connector and the collar is
achieved.

9. Continue adding rigid venting sections, sealing and securing
as above. Attach a 5" collapsed telescopic pipe to the last section
of rigid piping. Secure with screws and seal. Repeat using a 8"
telescopic pipe.

10. Run a bead of high temperature sealant around the outside
of the 5" collar on the fi replace. Pull the adjustable pipe a minimum
of 2" onto the collar. Secure with 3 screws. Repeat with the 8" tel­escopic pipe.

11. In the attic, slide the vent pipe collar down to cover up the open
end of the shield and tighten. This will prevent any materials, such as
insulation, from fi lling up the 1" air space around the pipe.

RESTRICTING VERTICAL VENTS

FIGURE 32

TOP OF THE

FIREBOX

FLUE COLLAR

RESTRICTOR PLATE

Vertical terminations display a very active fl ame. The vent exit must
be restricted using restrictor plate, W500-0205.
Remove the two screws on either side of the exhaust collar inside the
fi rebox. Install the plate as shown. Replace the screws.

17

GAS INSTALLATION

Proceed once the vent installation is complete.

NOTE: All gas connections must be contained within the fi re­place when complete.

1. Move the fi replace into position and secure to the fl oor through

the 1/4" holes located at either side of the base.

2. The fi replace is designed to accept 3/8" gas supply line. The

fi replace is equipped with a 3/8" manual shut-off valve.

3. Connect the gas supply in accordance to local codes. In the

absence thereof, install according to the National Installation Code.

4. When fl exing any gas line, support the gas valve so that the

lines are not bent or kinked.

5. Check for gas leaks by brushing on a soap and water solu-

tion.

DO NOT USE OPEN FLAME.

Purge all gas lines with the glass door of the stove removed.
Assure that a continuous gas fl ow is at the burner before re-

installing the door.

OPTIONAL WALL SWITCH

INSTALLATION

For ease of accessibility, an optional remote wall switch may be
installed in a convenient location. Route 2-strand (solid core) mil­livolt wire through the electrical hole located at the bottom left side of
the unit. The recommended maximum lead length depends on wire
size:

WIRE SIZE MAX. LENGTH
14 gauge 100 feet

16 gauge 60 feet
18 gauge 40 feet

Attach the two leads to terminals 1 and 3 located on the gas valve.

This appliance is certifi ed to be installed in an aftermarket perma­nently located, manufactured (mobile) home, where not prohibited
by local codes.

This fi replace is only for use with the type of gas indicated on the
rating plate. This fi replace is not convertible for use with other
gases, unless a certifi ed kit is used.

Conversion Kits

The mobile home appliance is fi eld convertible between Natural
Gas (NG) and Propane (LP).
To convert from one gas to another consult your Napoleon dealer/

distributor.

FRAMING

Note: In order to avoid the possibility of exposed insulation or
vapour barrier coming in contact with the fi replace body, it is recom­mended that the walls of the fi replace enclosure be “fi nished” (ie:
drywall/sheetrock), as you would fi nish any other outside wall of a
home. This will ensure that clearance to combustibles is maintained
within the cavity.

It is best to frame your fi replace after it is positioned and the vent
system is installed. Use 2x4's and frame to local building codes.

It is not necessary to install a hearth extension with this fi replace
system.

When roughing in the fi replace, raise the fi replace to accommodate
for the thickness of the fi nished fl oor materials, i.e. tile, carpeting,
hard wood, which if not planned for will interfere with the opening of
the lower access door and the installation of many decorative fl ash-

ing accessories.

Objects placed in front of the fi replace should be kept a minimum of
48" away from the front face.

Combustible materials may be installed fl ush with the front of the
fi replace but must not cover any of the black face areas of the fi re­place. Non-combustible material (brick, stone or ceramic tile) may
protrude in these areas.

FIGURE 34

FIGURE 33

MOBILE HOME INSTALLATION

This appliance is certifi ed to be installed as an OEM (Original
Equipment Manufacturer) installation in a manufactured home
or mobile home and must be installed in accordance with the
manufacturer’s instructions and the Manufactured Home Construc­tion and Safety Standard, Title 24 CFR, Part 3280, in the United
States or the Mobile Home Standard, CAN/CSA Z240 MH Series,
in Canada. This appliance is only for use with the type(s) of gas
indicated on the rating plate. A conversion kit is supplied with the
mobile home appliance.

This Mobile/Manufactured Home Listed appliance comes factory
equipped with a means to secure the unit. The fi replace is equipped
with two 1/4” diameter holes located in the front left and right cor­ners of the base. For mobile home installations, the fi replace must
be fastened in place. Use #10 hex head screws, inserted through
the holes in the base to secure. Always turn off the pilot and the fuel

supply at the source, prior to moving the mobile home.
After moving the mobile home and prior to lighting the fi replace,
ensure that the logs are positioned correctly.

511/2"

"

2

1

/

"

16

/

11

48

72

W415-0326 / C / 11.23.07

18

FIGURES 35a-b

FIGURE 36

MINIMUM MANTEL AND ENCLOSURE

CLEARANCES

Combustible mantel clearance can vary according to the mantel
depth. Use the graph to help evaluate the clearance needed. Cur­tains, above the fi replace, must not be positioned lower than the
2" distance required for the 2" combustible mantel. These same

requirements apply to any combustibles protruding on either
side of the fireplace.

FIGURE 38a

The fi replace
requires a minimum
enclosure height of 55“.
For temperature requirements,
the enclosure space around and
above the fi replace must be left unobstructed.

W415-0326 / C / 11.23.07

FIGURE 38b

FIGURE 38c

FIGURES 37

* See venting section

19

NAILING TAB INSTALLATION

1) Attach the nailing tabs to the corner posts using the 2
sheet metal screws supplied. Secure through the
centre of the top and bottom slots in the nailing
tab and then through the existing holes in the
corner posts.

If there are no existing holes, follow these
instructions:

Position the nailing tab so that the front face
is offset with the front edge of the corner post
(approx. ½"). Centre the nailing tab vertically
on the corner post.

Figure 40 a.

Drill through the centre of the top and bottom
slots in the nailing tab. Secure using the two
sheet metal screws supplied. This allows the
nailing tab to slide back and forth for desired
framing. Figure 40 b.

2) To determine the fi nal location of the nailing tab
you must fi rst determine the thickness of your fi nishing
material (i.e. drywall). This will determine the dimension from
the front edge of the corner post to the nailing tab. Once the nailing
tab is in the desired location, drill through the centre hole of the nailing
tab. Secure with a sheet metal screw*. Figure 40 c.

* Additional set screws may be installed.

CORNER

POST

NAILING

TAB

TOP SLOT

FIGURE 39

NAILING
TAB

FIGURES 40a-c

FINISHING

LOG PLACEMENT / GLOWING EMBERS

PHAZERTM logs and glowing embers, exclusive to Napoleon® Fire-

places, provide a unique and realistic glowing effect that is different
in every installation. Take the time to carefully position the glowing
embers for a maximum glowing effect. Log colours may vary. During
the initial use of the fi replace, the colours will become more uniform as
colour pigments burn in during the heat activated curing process.

FIGURES 41a-h

#1

1. Center the rear log (#1) behind the rear burner and onto the log

support.

#3

#2

A

FINISHING
MATERIAL

CENTRE

HOLE

B

2. Place log#2 and log#3 onto the locating pins. The logs should sit
fl at on the burner.

#4

3. Place the locating hole on the underside of log#4 onto the locating

pin on top of log#3. The notch at the opposite end of log#4 sits on
the third grate post in from the right.

#5

C

W415-0326 / C / 11.23.07

20

4. Place the small branch of log#5 into the notch on log#3. The notch
on the charred edge of log#5 sits on the outer left grate post.

#6

5. Place the small end of log#6 into the front notch of log#4. Place

the locating hole in the large end of log#6 onto the locating pin on
top of log#2.

#7

6. Place log#7 onto the pin located on top of log#6. The log should

sit in the notch on log#2, and the bottom should rest on the outer
right grate post.

#8

GLOWING EMBERS

Tear the embers into pieces and place along the front row of ports
covering all of the burner area in front of the small logs (#2 & #3). Care
should be taken to shred the embers into thin, small irregular pieces
as only the exposed edges of the fi bre hairs will glow. The ember

material will only glow when exposed to direct flame; however,
care should be taken to not block the burner ports.

Blocked burner ports can cause an incorrect fl ame pattern, carbon
deposits and delayed ignition. PHAZER
to direct fl ame. Use only certifi ed "glowing embers" and PHAZERTM
logs available from your Napoleon® dealer.

TM

logs glow when exposed

LOGO PLACEMENT

Remove the backing of the logo
supplied and place on the glass
viewing door, as indicated.

½"

LOGO

FIGURE 42

LOUVRE INSTALLATION

The protective wrap is best removed when the assembly is at room
temparature but this can be improved if the assembly is warmed,
using a hair dryer or similar heat source.

½"

7. Place the large end of log#8 into the rear notch of log#4.
The small branch of log#8 sits in the notch located on top of log#1.

#10

#9

8. Place log#9 onto the grate as though it had burnt off log#5. Place

log#10 onto the locating pin on log#1. Again, log#10 should be aligned
as though it has burnt off of log#7.

CHARCOAL EMBERS

Randomly place the charcoal embers along the front and sides of
the log support tray in a realistic manner. Fine dust found in the

bottom of the bag should not be used.

VERMICULITE

Sprinkle vermiculite around the charcoal embers.

Note: Both charcoal embers and vermiculite are not to be
placed on the burner.

W415-0326 / C / 11.23.07

FIGURE 43

B

A

B

HINGE

CLIP

A

UPPER LOUVRES

Insert the louvre tabs into the slots

SLOT

TAB

SLOT

located at the top left and right cor­ners of the unit.

LOWER LOUVRES

Insert the hinge clips into the slots
located at the bottom left and right
corners of the unit.

To remove the louvres, pull the
back tabs of the clips forward, while
pushing the louvre assembly back.
Lift the clip.

OPTIONAL BLOWER INSTALLATION

INSTALLATION TO BE
DONE BY A QUALIFIED
INSTALLER and must
be electrically connected
and grounded in accord-

FIGURE 44

If the fi replace was not previously equipped
with a blower: route a grounded 2-wire,

60hz power cable to the receptacle / junc­tion box. At this point, it must be strain
relieved and insulated.

The three slots on the blower mount­ing bracket allow ease of adjustment
when attaching the blower. For a quiet
running blower, do not allow the as­sembly to sit on the fi rebox base.

Slide the vibration reducing pad (A) into the clip (C) and up against
the threaded stud (B) at the other end. The blower must be able to
be positioned
entirely onto
the pad.

Tilt the blower
onto its side.
Slide it past
the controls
and into the
clip (C). Se­cure to the

FIGURE 46

B

A

ance with local codes.
In the absence of local
codes, use the current
CSA C22.1 C

TRICAL CODE in Canada

or the ANSI/NFPA 70

NATIONAL ELECTRICAL CODE

in the United States

ANADIAN ELEC-

FIGURE 45

FIGURE 47

C

threaded stud using the lock washer and wing nut provided. Ensure
that the blower does not touch the fi replace base or the fi rebox.

Attach the connectors from the black
and white wires to the thermodisc and
secure the thermodisc bracket to the
securing stud at the bottom left of the
unit using a lock washer and wing nut.
Ensure that the thermodisc touches
the fi rebox wall.
Attach the connectors from the black

and red wires to the blower.
Attach and secure the varia-

ble speed switch using the nut
provided. Plug the harness
cord into the receptacle.

The wire harness provided in this
kit is a universal harness. When
installed, ensure that any excess
wire is contained, preventing it from mak­ing contact with moving or hot objects.

Because the blower is thermally activated,
when turned on, it will automatically start
approximately 10 minutes after lighting
the fi replace and will run for approximately
30-45 minutes after the fi replace has been
turned off. Use of the fan increases the output of heat.

Drywall dust will penetrate into the blower bearings, causing irrepara­ble damage. Care must be taken to prevent drywall dust from coming
into contact with the blower or its compartment. Any damage resulting

from this condition is not covered by the warranty policy.

FIGURE 51

FIGURE 50

21

OPTIONAL FAN INSTALLATION

ELECTRICAL INSTALLATION
TO BE DONE BY A QUALI­FIED INSTALLER and must

be connected and grounded in
accordance with local codes. In
the absence of local codes, use
the current CSA C22.1 CANADIAN

ELECTRICAL CODE in Canada or the

ANSI/NFPA 70 NATIONAL ELECTRI-

CAL CODE in the United States.

To safely install the fan, turn off
the electricity fi rst.

If the fi replace was not previ­ously equipped with a fan:

FIGURE 48

GD36 THERMOSTATIC SENSOR CONTROL

This optional kit is meant to be used only in conjunction with the GD65
Fan Kit, shown above, which may
be ordered from your Wolf Steel /
Napoleon® dealer.

With the thermostatic sensor op-
tion, the fan, when turned on, be-
comes thermally activated, and will
automatically run approximately
15-30 minutes after the fi replace
has been lit and for approximately
30-45 minutes after the fi replace
has been turned off.

Use of the fan increases the output of heat.

FIGURE 49

route a grounded 2-wire, 60hz power cable to the junction box. At
this point, it must be strain relieved and insulated.

The wire harness provided in this kit is a universal harness. When
installed, ensure that any excess wire is contained, preventing it from
making contact with moving or hot objects.

To ease installation of the fan, remove the hinge screen and valve
control door (lower louvres) from the base of the fi replace.

Position the vibration reducing pad into the clip and onto the threaded
stud at the other end, piercing a hole into the pad. The fan assembly
must be able to be positioned entirely onto the pad.

Slide the fan assembly past the controls and into the clip. Secure
using the lock washer and nut provided.

Plug the harness cord into the receptacle.

Unplug the power cord from the receptacle. Connect all wires as
shown.

Attach and secure the sensor assembly bracket to the securing stud
located next to the
receptacle/junction
box at the bottom left
of the unit using the
lock washer and wing
nut. Ensure that the
thermodisc touches
the fi rebox wall.

Plug the power cord
back into the receptacle.

When installed, ensure that any excess wire is contained, preventing
it from making contact with moving or hot objects.

FIGURE 52

W415-0326 / C / 11.23.07

22

OPERATION / MAINTENANCE

OPERATING INSTRUCTIONS

When lit for the fi rst time, the fi replace will emit a slight odour for a
few hours. This is a normal temporary condition caused by the curing
of the logs and the "burn-in" of internal paints and lubricants used in
the manufacturing process and will not occur again.

FOR YOUR SAFETY READ BEFORE LIGHTING:

A. This fi replace is equipped with a pilot which must be lit by hand

while following these instructions exactly.

B. Before operating smell all around the fi replace area for gas and

next to the fl oor because some gas is heavier than air and will
settle on the fl oor

C. Use only your hand to turn the gas control knob. Never use tools.

If the knob will not turn by hand, do not try to repair it. Call a quali­fi ed service technician. Force or attempted repair may result in
a fi re or explosion.

D. Do not use this fi replace if any part has been under water. Imme-

diately call a qualifi ed service technician to inspect the fi replace
and replace any part of the control system and any gas control
which has been under water.

LIGHTING INSTRUCTIONS

After extended periods of non-operation such as following a vacation
or a warm weather season, the fi replace may emit a slight odour for
a few hours. This is caused by dust particles in the heat exchanger
burning off. In both cases, open a window to suffi ciently ventilate
the room.

Purge the gas line with the glass door removed. Assure that
a continuous gas flow is at the burner before reinstalling the
door.

WHAT TO DO IF YOU SMELL GAS

• Turn off all gas to the fi replace.

• Open windows.

• Do not try to light any appliance.

• Do not touch any electric switch; do not use
any phone in your building.

• Immediately call your gas supplier from a neigh­bour's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fi re department.

FIGURE 53

GAS KNOB

FIGURE 54

WARNING: The gas valve has an interlock device which will not
allow the pilot burner to be lit until the thermocouple has cooled.
Allow approximately 60 seconds for the thermocouple to cool.

When lighting and relighting, the gas knob cannot be turned from
pilot to off unless the knob is depressed slightly.

1. Stop! Read the above safety information on this label.

2. Turn off all electric power to the fi replace.

3. Turn the gas knob clockwise to off.

4. Wai t fi ve (5) minutes to clear out any gas. If you smell gas includ-

ing near the fl oor. Stop! Follow "B" in the above safety information
on this label. If you don't smell gas go the next step.

TO TURN OFF GAS

1. Turn off all electric power to the fi replace if service is to be
performed.

MAINTENANCE

Turn off the gas and electrical power before servicing the
fireplace.

CAUTION: Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing. This fi replace and its venting
system should be inspected before use and at least annually by a
qualifi ed service person. The fi replace area must be kept clear and
free of combustible materials, gasoline or other fl ammable vapours
and liquids. The fl ow of combustion and ventilation air must not be
obstructed.

1. In order to properly clean the burner and pilot assembly, remove
the logs to expose both assemblies.

2. Keep the control compartment, logs, burner, air shutter opening
and the area surrounding the logs clean by vacuuming or brushing,
at least once a year.

5. Turn gas knob counter-clockwise to pilot.

6. Depress slightly and hold gas knob while lighting the pilot with

the push button igniter. Keep knob depressed for one minute, then
release. If pilot does not continue to burn, repeat steps 3 through

5.

7. With pilot lit, depress and turn gas knob counter-clockwise to

on.

8. If equipped with remote on-off switch/thermostat, main burner

may not come on when you turn valve to on. Remote switch must
be in the on position to ignite burner.

9. Turn on all electric power to the fi replace.

2. Push in gas control knob slightly and turn clockwise to off. Do

not force.

3. Check to see that all burner ports are burning. Clean out any of

the ports which may not be burning or are not burning properly.

4. Check to see that the pilot fl ame is large enough to engulf the

thermocouple and thermopile and reaches toward the burner with
the third jet.

5. Replace the cleaned logs.

6. Check to see that the main burner ignites completely on all open-

ings when the gas knob for the burner is turned on. A 5 to 10 second
total light-up period is satisfactory. If ignition takes longer, consult
your Napoleon® dealer / distributor.

7. Check that the gasketing on the sides, top and bottom of the door

is not broken or missing. Replace if necessary.

W415-0326 / C / 11.23.07

ADJUSTMENTS

PILOT BURNER ADJUSTMENT

Adjust the pilot screw to provide properly sized fl ame. Turn in a
clockwise direction to reduce the gas fl ow.

23

Closing the air shutter will cause a more yellow fl ame, but can lead
to carboning. Opening the air shutter will cause a more blue fl ame,
but can cause fl ame lifting from the burner ports. The fl ame may not
appear yellow immediately; allow 15 to 30 minutes for the fi nal fl ame
colour to be established.

FIGURE 55

FIGURE 56

VENTURI ADJUSTMENT

Air shutters have been factory set open according to the chart
below:

These settings are for the maximum horizontal vent run.- Adjust­ment may be required depending on fuel type, vent confi guration
and altitude.

FRONT REAR

NG

LP

1/8"

3

/16"

7

/32

3/8"

"

FIGURE 57

Air shutter adjustment must only be done by a qualified

FIGURE 58

FRONT

AIR HOUSING

To access the air shutter, remove the two screws that secure the cover
to the air housing, taking care not to damage the gasket.

NOTE: Ensure burner is seated onto orifi ce

installer!

COVER

SCREWS

REAR

AIR HOUSING

W415-0326 / C / 11.23.07

24

REPLACEMENTS

Contact your dealer or the factory for questions concerning prices
and policies on replacement parts. Normally all parts can be ordered
through your Napoleon® dealer or distributor.

When ordering replacement parts always give the following informa­tion:

FOR

WARRANTY REPLACEMENT PART S, A PHOTOCOPY OF THE ORIGINAL INVOICE

WILL BE REQUIRED TO HONOUR THE CLAIM.

ODEL & SERIAL NUMBER OF FIREPLACE

1. M

2. INSTALLATION DATE OF FIREPLACE

3. P

ART NUMBER
ESCRIPTION OF PAR T

4. D

INISH

5. F

* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR FURTHER INFORMATION,

CONTACT YOUR NAPOLEON® DEALER.

REPLACEMENT PARTS

1 W357-0001 PIEZO IGNITER
2 W680-0004 THERMOPILE
3 W680-0005 THERMOCOUPLE **
4 W010-0796 NATURAL GAS PILOT ASSEMBLY
4 W010-0797 PROPANE GAS PILOT ASSEMBLY
5* W573-0008 HIGH TEMPERATURE SEALANT
6* W660-0005 ON/OFF TOGGLE SWITCH
7 W455-0070 NATURAL GAS PILOT INJECTOR - #62
7 W455-0068 PROPANE GAS PILOT INJECTOR - #35
8 W725-0025 NATURAL GAS VALVE
8 W725-0026 PROPANE VALVE
9* W385-0334 NAPOLEON® LOGO
10* W750-0051 20FT OF WIRE
11 W010-0978 PAN BURNER
12 W100-0078 TUBE BURNER
13 GL-660 LOG SET
14* W361-0016 GLOWING EMBERS
15* W550-0001 CHARCOAL EMBERS
16 W135-0163 REAR LOG (#1)
17 W135-0164 RIGHT MIDDLE LOG (#2)
18 W135-0165 LEFT MIDDLE LOG (#3)
19 W135-0168 FRONT CROSSOVER LOG (#4)
20 W135-0167 LEFT FRONT LOG (#5)
21 W135-0169 MIDDLE CROSSOVER LOG (#6)
22 W135-0166 RIGHT FRONT LOG (#7)
23 W135-0170 REAR CROSSOVER LOG (#8)
24 W135-0171 FRONT CHUNK (#9)
25 W135-0172 REAR CHUNK (#10)
26 W010-0907 BLACK DOOR C/W GLASS
27 W455-0065 #45 REAR NATURAL GAS ORIFICE
28 W455-0048 #47 FRONT NATURAL GAS ORIFICE
27 W455-0050 #55 REAR PROPANE GAS ORIFICE
28 W455-0047 #56 FRONT PROPANE GAS ORIFICE
29* W361-0014 VERMICULITE
30 W010-1778 ADJUSTABLE FIRESTOP
31 W500-0206 TERMINAL EXTENSION PLATE
32 W500-0205 RESTRICTOR PLATE
33* FC-12 FLEXCONNECTOR C/W VALVE
34 W585-0138 VENT HEAT SHIELD, TOP PIECE
35 W655-0222 VENT HEAT SHIELD, BOTTOM PIECE
** WARNING: THIS IS A FAST ACTING THERMOCOUPLE. IT IS AN INTE-

GRAL SAFETY COMPONENT. REPLACE ONLY WITH A FAST ACTING
THERMOCOUPLE SUPPLIED BY WOLF STEEL LTD.

FLEXIBLE VENT KITS

GD420 (5 FT)

36* W010-0772 5" FLEXIBLE ALUMINIUM LINER

- (5 FT) C/W SPACERS
37* W730-0012 8" FLEXIBLE ALUMINIUM LINER - (5 FT)

GD430 (10 FT)

38* W730-0013 8" FLEXIBLE ALUMINIUM LINER - (10 FT)
39* W010-0773 5" FLEXIBLE ALUMINIUM LINER

- (10 FT) C/W SPACERS

TERMINAL KITS

40* W010-0810 WALL SUPPORT ASSEMBLY

41 PERISCOPE -GD401
42* WALL TERMINAL KIT - GD422
ROOF TERMINAL KITS:
43* 1/12 TO 7/12 PITCH - GD410
44* 8/12 TO 12/12 PITCH - GD411
45* FLAT ROOF - GD412

ROOF TERMINAL KITS

46 W490-0074/ 5/8 INNER/OUTER SLEEVE
47 W670-0007 5/8 TERMINAL
48* W120-0015 VERTICAL CAP
49 W170-0063 STORM COLLAR
50 W010-0453 ROOF SUPPORT
51 W263-0054 / ROOF FLASHING
W263-0055 /
W263-0056

ACCESSORIES

52* GD48-3SS 3" TRIM KIT - BRUSHED STAINLESS STEEL
52* GD48-3PB 3" TRIM KIT - POLISHED BRASS
53* GD48-4SS 4" - 3D TRIM KIT - BRUSHED STAINLESS STEEL
53* GD48-4PB 4" - 3D TRIM KIT - POLISHED BRASS
54* W175-0166 5" COUPLER
55* W175-0002 8" COUPLER
56 L48K LOUVRE KIT - UPPER & LOWER - BLACK
57* W573-0008 HI-TEMPERATURE SEALANT
58* W690-0001 MILLIVOLT THERMOSTAT
59* W660-0010B REMOTE CONTROL - ADVANTAGE
59* W660-0011B REMOTE CONTROL - ADVANTAGE PLUS™
60* W660-0013 MODULATING THERMOSTATIC HAND HELD REMOTE
61* GD825N MODULATING VALVE REGULATOR FOR W660-0013 - NG
61* GD825P MODULATING VALVE REGULATOR FOR W660-0013 - P
62 GD501 HEAT GUARD
63* W585-0096 SOFFIT HEAT SHIELD
64* W010-0810 WALL SUPPORT ASSEMBLY
65* W175-0170 DURA-VENT ZERO CLEARANCE ADAPTOR
66 W170-0086 VENT PIPE COLLAR
67 W585-0092 VENT PIPE SHIELD
68 GZ550-1KT BLOWER KIT
69* GD65 FAN KIT
70* GD36
71* W500-0033 VARIABLE SPEED SWITCH WALL MOUNTING PLATE
72* KB35 VARIABLE SPEED SWITCH
73* MBP48 METAL BRICK PANELS
74* W690-0005 THERMOSTAT - 110V FOR USE WITH GA-566 ONLY
75 GA-70 EXTENSION KIT - 5 FT
76* GDOI48BG ORNAMENTAL INSET - BRUSHED GOLD
76* GDOI48K ORNAMENTAL INSET - BLACK
76* GDOI48G ORNAMENTAL INSET - GOLD
77* W175-0208 CONVERSION KIT - NG-LP
77* W175-0207 CONVERSION KIT - LP-NG
78* ANI-K ANDIRON - PAINTED BLACK
78* ANI-G ANDIRON - GOLD PLATED
79* W730-0019 45º RIGID ELBOW

THERMOSTATIC SENSOR CONTROL KIT FOR USE WITH GD65 ONLY

W415-0326 / C / 11.23.07

25

W415-0326 / C / 11.23.07

26

TROUBLE SHOOTING GUIDE

BEFORE ATTEMPTING TO TROUBLESHOOT, PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR REMOVED.

SYMPTOM PROBLEM TEST SOLUTION

Main burner goes out;
pilot stays on.

Main burner goes out;
pilot goes out.

Pilot goes out when the
gas knob is released.

The gas valve has
an interlock device
which will not allow
the pilot burner to be
lit until the thermo­couple has cooled.
Allow approximately
60 seconds for the
thermocouple to
cool.

Pilot burning; no gas
to main burner; gas
knob is on 'HI'; wall
switch / thermostat
is on.

Pilot will not light. - check if pilot can be lit by a match

Pilot fl ame is not large enough or
not engulfi ng the thermopile

Thermopile shorting - clean thermopile connection to the valve. Reconnect.

Remote wall switch wire is too
long; too much resistance in the
system.

Faulty thermostat or switch. - replace.

Refer to "MAIN BURNER GOES OUT; PILOT STAYS ON"

Vent is blocked

Vent is re-circulating

5" fl exible vent has become dis­connected from fi replace.

System is not correctly purged.

Out of propane gas. - fi ll the tank.

Pilot fl ame is not large enough

Pilot fl ame is not engulfi ng the
thermocouple.

Thermocouple shorting / faulty. - loosen and tighten thermocouple.

Faulty valve.

Themostat or switch is defec­tive.

Wall switch wiring is defective.

Main burner orifi ce is plugged. - remove stoppage in orifi ce.

Faulty valve.

No spark at pilot burner

Out of propane gas
Spark gap is incorrect - spark gap should be 0.150" to 0.175" (5/32" to 11/64" approx.) from the electrode

No gas at the pilot burner

- turn up pilot fl ame.

- replace pilot assembly.

- replace thermopile / valve.

- shorten wire to correct length or wire gauge.

- check for vent blockage.

- check joint seals and installation.

- reattach to fi replace.

- purge the gas line with the glass door removed.

- turn up the pilot fl ame.

- gently twist the pilot head to improve the fl ame pattern around the thermo­couple.

- clean thermocouple and valve connection.

- replace thermocouple.

- replace valve.

- replace.

- connect a jumper wire across the wall switch terminals; if main burner lights,
replace switch / thermostat.

- disconnect the switch wires & connect a jumper wire across terminals 1 & 3; if
the main burner lights, check the wires for defects and / or replace wires.

- replace.

- check that the wire is connected to the push button igniter.

- check if the push button igniter needs tightening.

- replace the wire if the wire insulation is broken or frayed.

- replace the electrode if the ceramic insulator is cracked or broken.

- replace the push button igniter.

- fi ll the tank.

tip and the pilot burner. To ensure proper electrode location, tighten securing nut
(fi nger tight plus 1/4 turn).

- check that the manual valve is turned on.

- check the pilot orifi ce for blockage.

- replace the valve.

- call the gas distributor.

Pilot goes out while
standing; Main burner
is in 'OFF' position.

W415-0326 / C / 11.23.07

Gas piping is undersized. - turn on all gas appliances and see if pilot fl ame fl utters, diminishes or extin-

guishes, especially when main burner ignites. Monitor appliance supply working
pressure.

- check if supply piping size is to code. Correct all undersized piping.

SYMPTOM PROBLEM TEST SOLUTION

27

Flames are consist­ently too large or too
small. Carboning oc­curs.

Flames are very ag­gressive.

Main burner fl ame is
a blue, lazy, transpar­ent fl ame.

Carbon is being de­posited on glass, logs
or combustion cham­ber surfaces.

White / grey film
forms.

Remote wall switch is
in "OFF" position; main
burner comes on when
gas knob is turned to
"ON" position.

Unit is over-fi red or under-fi red.

Door is ajar

Venting action is too great. -restrict vent exit with restrictor plate, W500-0205.

Blockage in vent.

Incorrect installation.

Air shutter has become blocked

Flame is impinging on the logs
or combustion chamber.

Sulphur from fuel is being depos­ited on glass, logs or combustion
chamber surfaces.

Wall switch is mounted upside
down

ing.

Remote wall switch wire is
grounding.

Faulty valve.

- check pressure readings:
Inlet pressure can be checked by turning screw (A) counter-clockwise 2 or 3
turns and then placing pressure gauge tubing over the test point. Gauge should
read 7" (minimum 4.5") water column for natural gas or 13" (11" minimum) water
column for propane. Check that main burner is operating on "HI".
Outlet pressure can be checked the same as above using screw (B). Gauge
should read 3.5" water column for natural gas or 10" water column for propane.
Check that main burner is operating on "HI".
AFTER TAKING PRESSURE READINGS, BE SURE TO TURN SCREWS CLOCK­WISE FIRMLY TO RESEAL. DO NOT OVERTORQUE.
Leak test with a soap and water solution.

- fi t door assembly into the lower support brackets and secure the four door
latches.

- remove blockage. In really cold conditions, ice buildup may occur on the
terminal and should be removed as required.

- refer to Figure 23 to ensure correct location of storm collars.

- ensure air shutter opening is free of lint or other obstructions.

- check that the logs are correctly positioned.

- open air shutter to increase the primary air.

- check the input rate: check the manifold pressure and orifi ce size as specifi ed
by the rating plate values.

- check that the door gasketing is not broken or missing and that the seal is
tight.

- check that both 5" and 8" vent liners are free of holes and well sealed at all
joints.

- check that minimum rise per foot has been adhered to for any horizontal
venting.

- clean the glass with a recommended gas fi replace glass cleaner. DO NOT
CLEAN GLASS WHEN HOT.

If deposits are not cleaned off regularly, the glass may become permanently
marked.

- reverse.

- replace.Remote wall switch is ground-

- check for ground (short); repair ground or replace wire.

- replace.

W415-0326 / C / 11.23.07

28

NOTES

W415-0326 / C / 11.23.07
