Napoleon BGD42P, BGD42N Installation And Operation Instructions Manual

INSTALLER: THESE INSTRUCTIONS MUST BE CONVEYED TO AND REMAIN WITH THE HOMEOWNER.
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS, CSA 2.33, ANSI Z21.88 FOR VENTED GAS FIREPLACE HEATERS
DIRECT VENT MILLIVOLT SYSTEM
INSTALLATION AND OPERATION INSTRUCTIONS FOR
1
NATURAL GAS MODEL
PROPANE GAS MODEL
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI / CSA METHODS
BGD42N
BGD42P
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapours and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your build­ing.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 4Y8 Canada • (705)721-1212 • fax(705)722-6031
www.napoleonfireplaces.com • ask@napoleon.on.ca
W415-0381 / E / 02.09.06
2
PG 2-4 INTRODUCTION
Warranty General Instructions General Information Care of Glass & Plated Parts
5 - 12 VENTING
Venting Lengths Air Terminal Locations Typical Vent Installations Special Vent Installations
13
-
18 INSTALLATION
Wall and Ceiling Protection Using Flexible Vent Components Fireplace Vent Connection Using Rigid Vent Components Restricting Vertical Vents Gas Installation Mobile Home Installation Framing Nailing Tab Installation
19-21 FINISHING
Door, Louvre & Panel Removal & Installation Grate Installation Log Placement / Glowing Embers Vermiculite Charcoal Embers Charcoal Lumps
TABLE of CONTENTS
PG
21
OPTIONAL BLOWER INSTALLATION
22 OPTIONAL FAN INSTALLATION /
GD36 THERMOSTATIC SENSOR CON­TROL
23 OPERATION / MAINTENANCE
Operating Instructions Maintenance
24 ADJUSTMENTS
Pilot Burner Adjustment Venturi Adjustment
25-26 REPLACEMENTS
Ordering Replacement Parts Replacement Parts Vent Kits Terminal Kits Accessories
27-28 TROUBLE SHOOTING GUIDE
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
WARNING
Do not burn wood or other materials in this fireplace.
• Adults and especially children should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition. Supervise young children when they are in the same room as the fireplace.
• Due to high temperatures, the fireplace should be located out of traffic and away from furniture and draper­ies.
• Clothing or other flammable material should not be placed on or near the fireplace.
• Any safety screen or guard removed for servicing must be replaced prior to operating the fireplace.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the fireplace and venting system are kept clean. The fireplace and its venting system should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. The fireplace area must be kept clear and free from combustible materials, gasoline and other flammable vapours and liquids.
• Under no circumstances should this fireplace be modified.
• This fireplace must not be connected to a chimney flue pipe serving a separate solid fuel burning appliance.
• Do not use this fireplace if any part has been under water. Immediately call a qualified service technician to inspect the fireplace and to replace any part of the control system and any gas control which has been under water.
• Do not operate the fireplace with the glass door removed, cracked or broken. Replacement of the glass should be done by a licensed or qualified service person. Use only with a glass door certified with the fireplace.
• Do not strike or slam shut the fireplace glass door.
• This fireplace uses and requires a fast acting thermocouple. Replace only with a fast acting thermocouple supplied by Wolf Steel Ltd.
NOTE: changes, other than editorial, are denoted by a vertical line in the margin.
W415-0381 / E / 02.09.06
NAPOLEON products are manufactured under the strict Standard of the world recognized
ISO 9001 : 2000 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. Once assembled the complete fireplace is thoroughly inspected by a qualified technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON.
NAPOLEON GAS FIREPLACE PRESIDENT'S LIFETIME LIMITED WARRANTY
3
The following materials and workmanship in your new The following materials and workmanship in your new
The following materials and workmanship in your new
The following materials and workmanship in your new The following materials and workmanship in your new
ranted against defects for as long as you own the fireplace. This covers: combustion chamber,ranted against defects for as long as you own the fireplace. This covers: combustion chamber,
ranted against defects for as long as you own the fireplace. This covers: combustion chamber,
ranted against defects for as long as you own the fireplace. This covers: combustion chamber,ranted against defects for as long as you own the fireplace. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, ceramic glass (thermal break-heat exchanger, stainless steel burner, phazer™ logs and embers, ceramic glass (thermal break-
heat exchanger, stainless steel burner, phazer™ logs and embers, ceramic glass (thermal break-
heat exchanger, stainless steel burner, phazer™ logs and embers, ceramic glass (thermal break-heat exchanger, stainless steel burner, phazer™ logs and embers, ceramic glass (thermal break­age only), gold plated parts against tarnishing, porcelainized enamelled components and alumi-age only), gold plated parts against tarnishing, porcelainized enamelled components and alumi-
age only), gold plated parts against tarnishing, porcelainized enamelled components and alumi-
age only), gold plated parts against tarnishing, porcelainized enamelled components and alumi-age only), gold plated parts against tarnishing, porcelainized enamelled components and alumi­num extrusion trims.num extrusion trims.
num extrusion trims.
num extrusion trims.num extrusion trims.
Electrical (110V and millivolt) components and wearable parts such as blowers, gas valves,Electrical (110V and millivolt) components and wearable parts such as blowers, gas valves,
Electrical (110V and millivolt) components and wearable parts such as blowers, gas valves,
Electrical (110V and millivolt) components and wearable parts such as blowers, gas valves,Electrical (110V and millivolt) components and wearable parts such as blowers, gas valves,
thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly arethermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly are
thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly are
thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly arethermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly are covered and covered and
covered and
covered and covered and the limited warranty.the limited warranty.
the limited warranty.
the limited warranty.the limited warranty.
Labour related to warranty repair is covered free of charge during the first year. RepairLabour related to warranty repair is covered free of charge during the first year. Repair
Labour related to warranty repair is covered free of charge during the first year. Repair
Labour related to warranty repair is covered free of charge during the first year. RepairLabour related to warranty repair is covered free of charge during the first year. Repair
work, however, requires the prior approval of an authorized company official. Labour costs towork, however, requires the prior approval of an authorized company official. Labour costs to
work, however, requires the prior approval of an authorized company official. Labour costs to
work, however, requires the prior approval of an authorized company official. Labour costs towork, however, requires the prior approval of an authorized company official. Labour costs to the account of the account of
the account of
the account of the account of must be done through an authorized must be done through an authorized
must be done through an authorized
must be done through an authorized must be done through an authorized
NAPOLEONNAPOLEON
NAPOLEON
NAPOLEONNAPOLEON
NAPOLEONNAPOLEON
NAPOLEON
NAPOLEONNAPOLEON
will provide replacement parts free of charge during the first year ofwill provide replacement parts free of charge during the first year of
will provide replacement parts free of charge during the first year of
will provide replacement parts free of charge during the first year ofwill provide replacement parts free of charge during the first year of
are based on a predetermined rate schedule and any repair work are based on a predetermined rate schedule and any repair work
are based on a predetermined rate schedule and any repair work
are based on a predetermined rate schedule and any repair work are based on a predetermined rate schedule and any repair work
NAPOLEONNAPOLEON
NAPOLEON
NAPOLEONNAPOLEON
dealer. dealer.
dealer.
dealer. dealer.
NAPOLEONNAPOLEON
NAPOLEON
NAPOLEONNAPOLEON
gas fireplace are war- gas fireplace are war-
gas fireplace are war-
gas fireplace are war- gas fireplace are war-
CONDITIONS AND LIMITATIONS
NAPOLEON warrants its products against manufacturing defects to the original purchaser only -- i.e., the individual or legal entity (registered customer) whose name appears on the
warranty registration card filed with NAPOLEON -- provided that the purchase was made through an authorized NAPOLEON dealer and is subject to the following conditions and limitations:
This factory warranty is nontransferable and may not be extended whatsoever by any of our representatives.
The gas fireplace must be installed by a licenced, authorized service technician or contractor. Installation must be done in accordance with the installation instructions included with
the product and all local and national building and fire codes.
This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse or neglect and parts installed from other manufacturers will nullify
this warranty.
This limited warranty further does not cover any scratches, dents, corrosion or discolouring caused by excessive heat, abrasive and chemical cleaners nor chipping on porcelain enamel
parts, mechanical breakage of PHAZER™ logs and embers, nor any venting components used in the installation of the fireplace.
NAPOLEON warrants its stainless steel burners against defects in workmanship and material for life, subject to the following conditions: During the first 10 years NAPOLEON will
replace or repair the defective parts at our option free of charge. From 10 years to life, NAPOLEON will provide replacement burners at 50% of the current retail price.
In the first year only, this warranty extends to the repair or replacement of warranted parts which are defective in material or workmanship provided that the product has been operated
in accordance with the operation instructions and under normal conditions.
After the first year, with respect to this President's Limited Lifetime Warranty, NAPOLEON may, at its discretion, fully discharge all obligations with respect to this warranty by refunding
to the original warranted purchaser the wholesale price of any warranted but defective part(s).
After the first year, NAPOLEON will not be responsible for installation, labour or any other costs or expenses related to the reinstallation of a warranted part, and such expenses are
not covered by this warranty.
Notwithstanding any provisions contained in this President's Limited Lifetime Warranty, NAPOLEON’S responsibility under this warranty is defined as above and it shall not in any event
extend to any incidental, consequential or indirect damages.
This warranty defines the obligations and liability of NAPOLEON with respect to the NAPOLEON gas fireplace and any other warranties expressed or implied with respect to this product,
its components or accessories are excluded.
NAPOLEON neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this product. NAPOLEON will not be responsible for: over-firing, downdrafts, spillage caused by environmental conditions such as rooftops, buildings, nearby trees, hills, mountains, inadequate vents or ventilation, excessive venting configurations, insufficient makeup air, or negative air pressures which may or may not be caused by mechanical systems such as exhaust fans, furnaces, clothes dryers, etc.
Any damages to fireplace, combustion chamber, heat exchanger, brass trim or other component due to water, weather damage, long periods of dampness, condensation, damaging chemicals or cleaners will not be the responsibility of NAPOLEON.
The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from your authorized dealer. The warranty registration card must be returned within fourteen days to register the warranty.
NAPOLEON reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty claim.
ALL SPECIFICATIONS AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE DUE TO ON-GOING PRODUCT IMPROVEMENTS. NAPOLEON® IS A REGISTERED TRADEMARK OF WOLF STEEL LTD. PATENTS U.S. 5.303.693.801 - CAN. 2.073.411, 2.082.915. © WOLF STEEL LTD.
W415-0381 / E / 02.09.06
4
GENERAL INSTRUCTIONS
THIS GAS FIREPLACE SHOULD BE INSTALLED AND SERV­ICED BY A QUALIFIED INSTALLER to conform with local codes.
In absence of local codes, install the BGD42 to the current Na­tional Fuel Gas Code, ANSI Z223.1, or the current CAN/CGA B149, Installation Codes.
Installation practices vary from region to region and it is important to know the specifics that apply to your area,
for example: in Massachusetts State:
• The fireplace damper must be removed or welded in the open position prior to installation of a fireplace insert or gas log.
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 36 inches.
• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent sealed combustion product.
• WARNING: This product must be installed by a licensed plumber or gas fitter when installed within the commonwealth of Mas sachusetts.
Mobile home installation must conform with local codes or in the absence of local codes, install to the current standard for gas equipped mobile housing CAN/CSA ZA240 MH Series in Canada or the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the Fire Safety Criteria for Manufac­tured Home Installations, Sites and Communities Standard ANSI/ NFPA 501A in the United States.
The fireplace and its individual shutoff valve must be discon­nected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa). The fireplace must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).
When the fireplace is installed directly on carpeting, vinyl tile or other combustible material other than wood flooring, the fireplace shall be installed on a metal or wood panel extend­ing the full width and depth.
If the optional fan or blower is installed, the junction box must be electrically connected and grounded in accordance with local codes. In the absence of local codes, use the current CSA C22.1 CANADIAN ELECTRICAL CODE in Canada or the ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in the United States.
GENERAL INFORMATION
FOR YOUR SATISFACTION, THIS FIREPLACE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION AND QUALITY!
Maximum input is 28,500 BTU/hr for natural gas and 24,000 BTU/hr for propane. When the fireplace is installed at elevations above 4,500ft, and in the absence of specific recommendations from the local authority having jurisdiction, the certified high alti­tude input rating shall be reduced at the rate of 4% for each additional 1,000ft.
Maximum output for natural gas is 19,500 BTU/hr at an effi­ciency of 68.5% with the fan on, and 16,000 BTU/hr for pro­pane at an efficiency of 67% with the fan on. The maximum A.F.U.E. (annual fuel utilization efficiency) rating is 64% for natural gas and 61.5% for propane.
Minimum inlet gas supply pressure is 4.5 inches water col­umn for natural gas and 11 inches water column for propane.
W415-0381 / E / 02.09.06
Maximum inlet gas pressure is 7 inches water column for natural gas and 13 inches water column for propane. Mani­fold pressure under flow conditions is 3.5 inches water col­umn for natural gas and 10 inches water column for propane.
This fireplace is approved for bathroom, bedroom and bed­sitting room installations and is suitable for mobile home installation.
No external electricity (110 volts or 24 volts) is re­quired for the gas system operation.
Expansion / contraction noises during heating up and cooling down cycles are normal and are to be expected.
CARE OF GLASS, AND PLATED PARTS
Do not use abrasive cleaners to clean plated parts. Buff lightly with a clean dry cloth. The BGD42 is factory equipped with tempered glass. The glass thickness is 3/16". Use only re­placement glass available from your Napoleon dealer. DO NOT SUBSTITUTE MATERIALS. Clean the glass after the first 10 hours of operation with a recommended gas fireplace glass cleaner. Thereafter clean as required. DO NOT CLEAN GLASS WHEN HOT! If the glass is not kept clean permanent
discolouration and / or blemishes may result.
Use only accessories designed for and listed with
your specific fireplace.
Provide adequate ventilation air. Provide adequate ac­cessibility clearance for servicing and operating the fireplace. Never obstruct the front opening of the fire­place.
For safe and proper operation of the fireplace follow the venting instruction exactly.
Deviation from the minimum vertical vent length can create difficulty in burner start-up and/or carboning.
Provide a means for visually checking the vent con­nection to the fireplace after the fireplace is installed.
In order to avoid the possibility of exposed insulation or vapour barrier coming in contact with the fireplace body, it is recommended that the walls of the fireplace enclo­sure be 'finished', (i.e. drywall/sheetrock) as would any other outside wall of the home. This will ensure that clearance to combustibles is maintained within the cav­ity.
Vent lengths that pass through unheated spaces (at­tics, garages, crawl spaces) should be insulated with the insulation wrapped in a protective sleeve to mini­mize condensation.
Objects placed in front of the fireplace must be kept a minimum of 48" away from the front face of the unit.
VENTING
5
FIGURE 1
VENTING LENGTHS
Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct
Temp or American Metal Amerivent venting components.
Minimum and maximum vent lengths, for both horizontal and vertical installations, and air terminal locations for ei­ther system are set out in this manual and must be ad­hered to. For Simpson Dura-Vent, Selkirk Direct Temp and
American Metal Amerivent, follow the installation procedure provided with the venting components. All outer pipe joints of these venting systems must be sealed using Red RTV Hight Temperature Sealant.
Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp and American Metal Amerivent venting systems must not be combined.
A starter adaptor must be used and may be purchased from the corresponding supplier:
Supplier 4&7 ZC 5&8 ZC GAS STOVE
Dura-Vent W175-0053 W175-0170 GDS924N Amerivent 4DSC-N2 5DSC-N 4DSCB-N1
Direct Temp 4DT-AAN 5DT-AA 4DT-AAN
For vent systems that provide seals on the inner exhaust flue, only the outer air intake joints must be sealed using a red high temperature silicone (RTV). This same sealant maybe used on both the inner exhaust and outer intake vent pipe joints of all other approved vent systems except for the exhaust vent pipe connection to the fireplace flue collar which must be sealed using the black high tempera­ture sealant Mill Pac. When using Wolf Steel venting components, use only ap­proved Wolf Steel rigid / flexible components with the fol­lowing termination kits: WALL TERMINAL KIT GD422, or 1/12 TO 7/12 PITCH ROOF TERMINAL KIT GD410, 8/12 TO 12/12 ROOF TERMINAL KIT GD411, FLAT ROOF TERMI- NAL KIT GD412 or PERISCOPE KIT GD401 (for wall pen- etration below grade). With flexible venting, in conjunction with the various terminations, use either the 5 foot vent kit GD420 or the 10 foot vent kit GD430.
These vent kits allow for either horizontal or vertical venting of the fireplace. FIGURES 3 & 5. The maximum allowable horizontal run is 20 feet. The maximum allowable vertical vent length is 40 feet. The maximum number of 5" vent connections is two horizontally or three vertically (exclud­ing the fireplace and the air terminal connections) when using aluminum flexible venting.
For optimum flame appearance and fireplace perform­ance, keep the vent length and number of elbows to a minimum.
The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year to verify that it is unobstructed and undamaged.
Purge all gas lines with the glass door of the fireplace removed. Assure that a continuous gas flow is at the burner before re-installing the door.
Under extreme vent configurations, allow several minutes (5-15) for the flame to stabilize after ignition.
Eight (8") inches is the minimum bend radius allowed for the 8" diameter flexible liner.
For optimum performance it is recommended that all horizontal runs have a 1 inch rise per foot when using Napoleon flexible vent components.
A terminal shall not terminate directly above a sidewalk or paved driveway which is located between two sin­gle family dwellings and serves both dwellings. Local codes or regulations may require different clearances.
Do not allow the inside liner to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. A 1¼" air gap all around between the inner liner and outer liner is required for safe operation. Use a firestop when pen­etrating interior walls, floor or ceiling.
Minimum clearance to combustible con­struction from fireplace and vent sur­faces:
sides, back, bottom and top of the unit 0 inch recessed depth 22 inches top, sides and bottom of the vent pipe 1 inch vent heat shield 1 inch
Horizontal runs may have a 0 inch rise per foot in all cases using SIMPSON DURA-VENT or NAPOLEON RIGID OR FLEXIBLE venting components when vent­ing as illustrated in Figures 3, and 4.
Only a clearance to combustibles of 1" all around the vent pipe is required.
W415-0381 / E / 02.09.06
6
AIR TERMINAL INSTALLATIONS
FIGURE 2
INSTALLATIONS
CANADIAN U.S.A.
A
12 INCHES
12 INCHES
Clearance above grade, veranda porch, deck or balcony.
B
C
D
E
F
12 INCHES
12 INCHES*
32 INCHES**
32 INCHES**
0 INCHES
0 INCHES***
9 INCHES
12 INCHES*
32 INCHES**
32 INCHES**
0 INCHES
0 INCHES***
G
2 INCHES***
H
I
J
K
L
M
N
O
* Recommended to prevent condensation on windows and thermal breakage ** Using a Napoleon soffit heat shield, W585-0096, or equivalent, the distance may be reduced to a minimum of
*** The periscope GD-401 requires a minimum 18 inches clearance from an inside corner. **** This is a recommended distance. For additional requirements check local codes. † Three feet above if within 10 feet horizontally. ‡ A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family
†† Permitted only if the veranda, porch or deck is fully open on a minimum of two sides beneath the floor. †* Recommenced to prevent recirculation of exhaust products. For additional requirements check local codes.
3 FEET
3 FEET
12 INCHES
6 FEET
7 FEET‡
32 INCHES††
16 INCHES
2 FEET†*
18". It is recommended to maximize the distance to vinyl clad soffits.
dwellings and serves both dwellings.
2 INCHES***
3 FEET****
3 FEET****
9 INCHES
3 FEET†
7 FEET****
32 INCHES****
16 INCHES
2 FEET†*
Clearance to windows or doors that open.
Clearance to permanently closed windows.
Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet from the centerline of the terminal.
Clearance to unventilated soffit.
Clearance to an outside corner wall.
Clearance to an inside non-combustible corner wall or protruding non-combustible obstructions (chimney, etc.).
Clearance to an inside combustible corner wall or protruding com­bustible obstructions ( vent chase, etc.).
Clearance to each side of the centerline extended above the meter / regulator assembly to a maximum vertical distance of 15ft.
Clearance to a service regulator vent outlet.
Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other appliance.
Clearance to a mechanical air supply inlet.
Clearance above a paved sidewalk or paved driveway located on public property unless fitted with a heat shield kit GD-301.
Clearance under a veranda, porch, deck or balcony.
Clearance above the roof.
Clearance from an adjacent wall including neighbouring buildings.
**
W415-0381 / E / 02.09.06
TYPICAL VENT INSTALLATIONS
NOTE: When terminating vertically, the restrictor
plate W500-0205 must be installed. Refer to Restricting Vertical Vents.
FIGURES 3 a-c
7
SPECIAL VENT INSTALLATIONS
PERISCOPE TERMINATION
Use the GD401 periscope kit to locate the air termination above grade. The periscope must be installed so that when final grading is completed, the bottom air slot is located a minimum of 12 inches above grade. The maximum allow­able vent length depends on the fireplace, as illustrated.
FIGURE 4
W415-0381 / E / 02.09.06
8
VENTING APPLICATION FLOW CHART
HORIZONTAL
TERMINA TION
vertical rise is equal to or greater than the horizontal run
horizontal run + verti­cal rise to maximum of 40 feet
vertical rise is less than horizontal run
horizontal run + verti­cal rise to maximum of
24.75 feet
4.2 times the vertical rise equal to or greater than the horizontal run
VERTICAL
TERMINATION
vertical rise is equal to or greater than the horizontal run
horizontal run + verti­cal rise to maximum of 40 feet
vertical rise is less than hori­zontal run
horizontal run + verti­cal rise to maximum of 40 feet
3 times the vertical rise equal to or greater than the horizontal run
W415-0381 / E / 02.09.06
9
DEFINITIONS
for the following symbols used in the venting calcula­tions and examples are:
> - greater than > - equal to or greater than < - less than < - equal to or less than HT- total of both horizontal vent lengths (HR) and off­sets (HO) in feet HR- combined horizontal vent lengths in feet
- offset factor: .03(total degrees of offset - 135°*) in
H
O
feet
V
- combined vertical vent lengths in feet
T
HORIZONTAL TERMINATION
when (HT) < (VT)
Simple venting configuration (only one 45º and 90° elbow)
90°
FIGURE 5
ELBOW VENT LENGTH VALUES
feet inches
0.03 0.5 15° 0.45 6.0 30° 0.9 11.0 45°* 1.35 16.0 90°* 2.7 32.0
* the first 45º and 90° offset has a zero value and is shown in the formula as -45° and -90º respectively or -135º when combined.
For vent configurations requiring more than one 45º and 90° elbow, the following formulas apply:
Formula 1: HT < V Formula 2: HT + VT < 40 feet
Example 1:
T
90°
H
2
45º
REQUIRED VERTICAL
FEET
RISE IN (VT)
CALCULATED HORIZONTAL VENT RUN PLUS OFFSETS IN FEET (HT)
The shaded area within the lines represents acceptable values for HT and V
.
T
FIGURE 6
45º
H
1
90°
V1=8 ft VT= H1= 2.5 ft H2=2 ft HR= H1 + H2 = 2.5 + 2 = 4.5 ft HO=.
=0.3(225-135º) = 2.7ft
HT= HR + HO = 4.5 + 2.7 = 7.2 ft
HT + VT = 7.2 +8 =15.2ft
Formula 1: HT < V
Formula 2: HT + VT < 40 feet
V1 = 8 ft
03(one 45º elbow + two 90º elbows - 135º)
7.2 < 8
15.2 < 40
T
V
1
Since both formulas are met, this vent configuration is ac­ceptable.
W415-0381 / E / 02.09.06
10
HORIZONTAL TERMINATION
when (HT) > (VT) Simple venting configuration (only one 45º and 90° elbow)
See graph to determine the re­quired vertical rise V quired horizontal run H
REQUIRED VERTICAL RISE IN INCHES (VT)
for the re-
T
.
T
FIGURE 7
Example 2:
FIGURE 8
45°
V
1
V
2
V
T
H
1
H
2
H
3
H
4
H
R
H
O
H
T
HT + VT= 10.9 + 5.5 = 16.4 ft
=4 ft = 1.5 ft = V1 + =2 ft =1 ft =1 ft = 1.5 ft = H1 + H2 + H3 + H4 = 2 + 1 + 1 + 1. 5 = 5.5 ft = .03(one 45º elbow + three 90º elbow -135º) =.03(315-135)=5.4ft = HR + HO = 5.5 +5.4 = 10.9 ft
H
1
V
1
V2 = 4 ft + 1.5 ft = 5.5 ft
90°
90°
H
90°
3
H
H
4
V
2
2
HORIZONTAL VENT RUN PLUS OFFSETS IN FEET (HT)
The shaded area within the lines represents acceptable values for HT and V
.
T
For vent configurations requiring more than one 45º and 90° elbow the following formulas apply:
Formula 1: HT < 4.2 V
T
Formula 2: HT + VT < 24.75 feet
Formula 1:HT < 4.2 V
T
4.2 VT = 4.2 x 5.5 = 23.1 ft
10.9 < 16.8
Formula 2:HT + VT < 24.75 feet
16.4 < 24.75
Since both formulas are met, this vent configuration is ac­ceptable.
W415-0381 / E / 02.09.06
VERTICAL TERMINATION
11
when (HT) < (VT)
Simple venting configurations
FIGURE 9
45°
See graph to determine the required vertical rise VT for the required horizontal run HT.
REQUIRED VERTICAL RISE IN FEET (VT)
Example 3:
FIGURE10
90°
V
45°
H
1
V
1
V
2
V
T
H
1
H
2
H
R
H
O
H
T
HT + VT= 10.9 + 15 = 25.9 ft
=5 ft = 10 ft
=
V1 +
V2 =
5 + 10 = 15 ft
=3 ft = 2.5 ft = H1 + H2 = 3 + 2.5 = 5.5 ft = .03(one 45º elbow + three 90º elbows - 135º) = .03(45+90+90+90-135)=5.4 =HR + HO = 5.5 + 5.4 = 10.9 ft
1
90°
H
V
2
90°
2
HORIZONTAL VENT RUN PLUS OFFSETS IN FEET (HT)
The shaded area within the lines represents acceptable values for HT and VT.
For vent configurations requiring more than one 45º and one 90° elbow , the following formulas apply:
Formula 1: HT < V
T
Formula 2: HT + VT < 40 feet
Formula 1: H
< V
T
10.9 < 15
T
Formula 2: HT + VT < 40 feet
25.9 < 40
Since both formulas are met, this vent configuration is ac­ceptable.
W415-0381 / E / 02.09.06
12
VERTICAL TERMINATION
when (HT) > (VT) Simple venting configurations
FIGURE 11
See graph to determine the required vertical rise V required horizontal run HT.
REQUIRED VERTICAL RISE IN FEET (VT)
HORIZONTAL VENT RUN PLUS OFFSET IN FEET (HT)
The shaded area within the lines represents acceptable values for HT and VT.
for the
T
V
1
V
2
V
T
H
1
H
2
H
R
H
O
=1 ft = 1.5 ft
=
V1 +
V2 =
1 + 1.5 = 2.5 ft
=6 ft =2 ft = H1 + H2 = 6 + 2 = 8 ft = .03(one 45º elbow + three 90º elbow - 135º) = .03(45 + 90 + 90 + 90 - 135) = 5.4 ft
H
T
H
T
Formula 1: H
=HR + HO = 8 + 5.4 = 13.4 ft
+ VT = 13.4 + 2.5 = 15.9 ft
< 3V
T
T
3VT=
13.4 > 7.5
3 x
2.5 = 7.5 ft
Since this formula is not met, this vent configuration is unacceptable.
Formula 2: HT + VT < 40 feet
15.9 < 40
Since only formula 2 is met, this vent configuration is unac­ceptable and a new fireplace location or vent configuration will need to be established to satisfy both formulas.
Example 5:
45°
90°
H
1
V
H
2
H
1
45°
3
V
2
90°
For vent configurations requiring more than one 45º and one 90° elbow , the following formulas apply:
Formula 1: HT < 3V
T
Formula 2: HT + VT < 40 feet
Example 4:
45°
H
90°
V
H
1
1
V
2
2
90°
90°
FIGURE 12
90°
FIGURE 13
V
1
V
2
V
T
H
1
H
2
H
3
H
R
H
O
H
T
HT + VT= 19.5 + 4.5= 29 ft
Formula 1: HT < 3V
Formula 2: H
Since both formulas are met, this vent configuration is ac­ceptable.
= 1.5 ft =8 ft
=
V1 +
V2 =
1.5 + 8= 9.5 ft
=1 ft =1 ft = 10.75 ft = H1 + H2 + H3 = 1 + 1 + 10.75 = 12.75 ft = .03(three 90° elbows + two 45° elbow - 135°) = .03(90 + 90 + 90 + 45 + 45 - 135) = 6.75 ft =HR + HO = 12.75 + 6.75 = 19.5 ft
T
3VT =
3 x
9.5 = 28.5 ft
19.5 < 28.5
+ VT < 40 feet
T
29 < 40
W415-0381 / E / 02.09.06
INSTALLATION
WALL AND CEILING PROTECTION
13
FOR SAFE AND PROPER OPERATION OF THE FIREPLACE, FOLLOW THE VENTING INSTRUCTIONS EXACTLY.
NOTE: Only a clearance to combustibles of 1" all around the vent pipe is required.
HORIZONTAL INSTALLATION
This application occurs when vent­ing through an exterior wall. Having determined the air terminal location, cut and frame a hole in an exterior wall with a minimum opening as required. See Note above. (As an alternative to framing, a vent pipe shield may be installed, ensuring a 1" clearance to combustibles.
See Figure 16.)
1. Mark and cut the vent pipe shield to the determined depth of the combustible wall. Apply a bead of caulking (not supplied) to the framework or to the shield plate (in the case of a finished wall) and secure the shield through the opening to the interior wall. The final location of the vent
pipe shield should maintain the required clearance to the 8" vent pipe / liner. (See note above). Do not fill this cavity with any type of material. Apply a bead of caulking all around
and place a firestop spacer over the vent shield to restrict cold air from being drawn into the room or around the fire­place. Ensure that both spacer and shield maintain the required clearance to combustibles. Once the vent pipe / liner is installed in its final position, apply sealant between the pipe / liner and the firestop spacer.
FIGURE 14
OR
VERTICAL INSTALLATION
This application occurs when venting through a roof. Installation kits for various roof pitches are available from your Napo­leon dealer. See Accesso­ries to order the specific kit required.
1. Determine the air terminal location, cut and frame 10 inch openings in the ceiling and the roof to provide the minimum 1 inch clearance between the fireplace pipe / liner and any combustible material. Try to center the ex­haust pipe location midway between two joist to prevent having to cut them. Use a plumb bob to line up the center of the openings. DO NOT FILL THIS SPACE WITH ANY TYPE OF MATERIAL. A vent pipe shield will prevent any materials such as insulation, from filling up the 1" air space around the pipe. Nail headers between the joist for extra support.
2. Apply a bead of caulking (not sup­plied) to the frame­work or to the Wolf Steel vent pipe shield plate or equivalent (in the case of a finished ceiling), and secure over the opening in the ceil­ing. FIGURE 18. A firestop must be placed on the bottom of each framed opening in a roof or ceiling that the venting system passes through. Apply a bead of caulking all around and place a firestop spacer over the vent shield to restrict cold air from being drawn into the room or around the fire­place. Ensure that both spacer and shield maintain the required clearance to combustibles. Once the vent pipe / liner is installed in its final position, apply sealant between the pipe / liner and the firestop spacer.
FIGURE 17
FIGURE 16
FIGURE 15
W415-0381 / E / 02.09.06
14

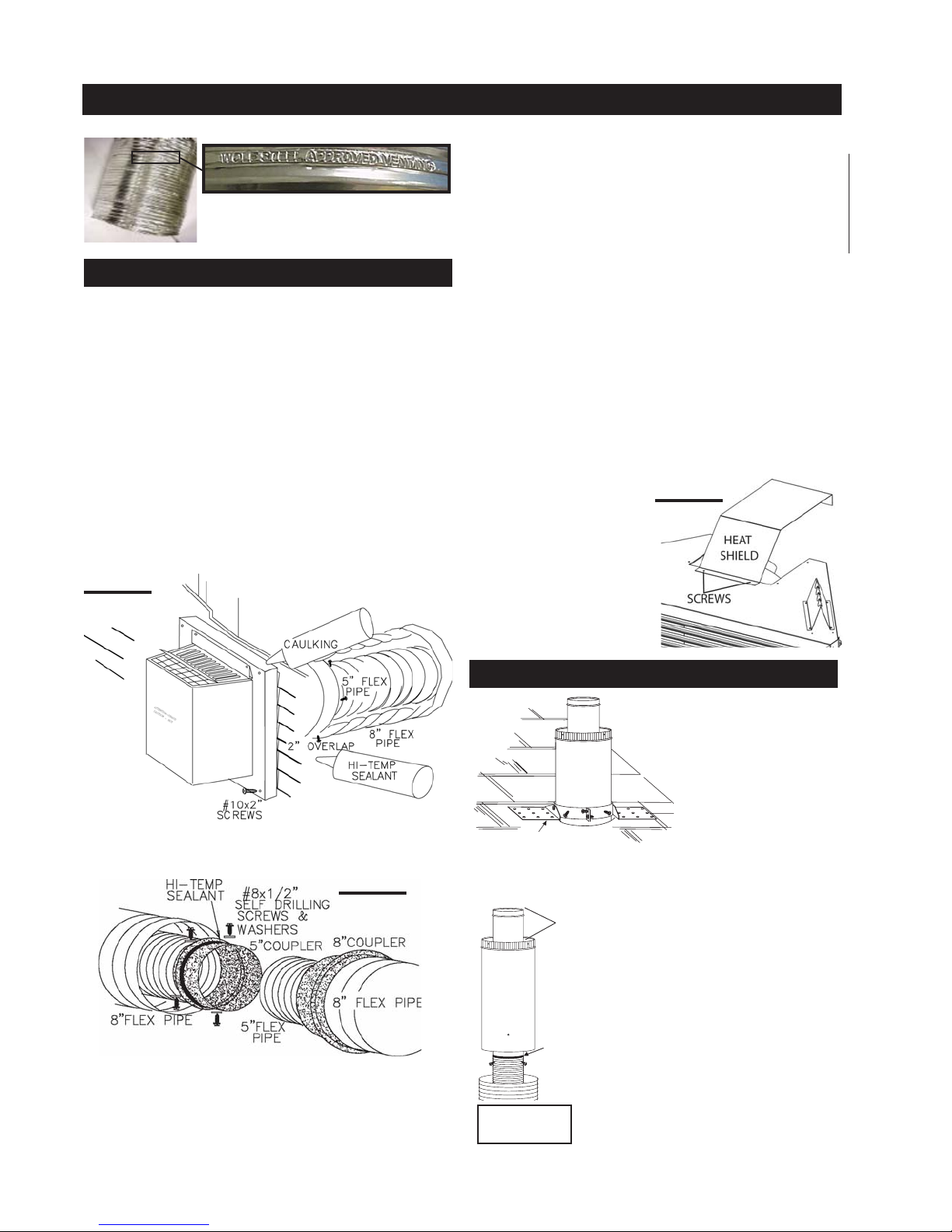

USING FLEXIBLE VENT COMPONENTS
Use only approved aluminum flexible liner kits marked:
"Wolf Steel Approved Venting" as identified by the stamp only on the 7” outer liner.
HORIZONTAL AIR TERMINAL INSTALLATION
A VENT SHIELD MUST BE USED IF THE WALL TERMINAL IS INSTALLED ON COMBUSTIBLE, EXTERIOR SURFACES.
1. Cut or frame a hole in an exterior wall with a minimum round or square opening of 10½ inches. Secure the firestop spacer over the opening to the interior wall.
2. Stretch the 5" diameter aluminum flexible liner to the required length taking into account the additional length needed for the finished wall surface. Slip the liner a mini­mum of 2" over the inner sleeve of the air terminal and secure with 3 #8 screws. Apply a heavy bead of the high temperature sealant.
3. Using the 8" diameter flexible aluminum liner, slide over the outer combustion air sleeve of the air terminal and secure with 3 #8 screws. Seal as before.
FIGURE 18
For safe and proper operation of the fireplace, follow the venting instructions exactly.
All inner exhaust and outer intake vent pipe joints may be sealed using either Red RTV high temp silicone seal­ant or Black high temp Mill Pac with the exception of the fireplace exhaust flue collar which must be sealed us­ing Mill Pac (not supplied).
5. Apply a heavy bead of the high temperature sealant, Mill Pac, to the inside of the 5" liner approximately 1" from the end. Slip the liner a minimum of 2" over the fireplace vent collar and secure with 3 #8 screws.
6. Using the 8" diameter flexible aluminium liner, apply sealant, slide a minimum of 2" over the fireplace combus­tion air collar and secure with 3 #8 screws.
7. If more liner needs to be used to reach the fireplace, couple them together as illustrated. The vent system must be supported approximately every 3 feet for both vertical and horizontal runs. Use noncombustible strapping to maintain the minimum 1" clearance to combustibles.
8. The heat shield must be installed only when ter-
FIGURE 20
minating horizontally with no vertical rise. Remove the two screws nearest the vent collars on the top of the fireplace. Align the vent shield (supplied) and secure.
The air terminal mounting plate may be recessed into the exterior wall or siding by 1½", the depth of the return flange.
FIGURE 19
4. Insert the liners through the firestop maintaining the required clearance to combustibles. Holding the air termi­nal (lettering in an upright, readable position), secure to the exterior wall and make weather tight by sealing with caulking (not supplied).
W415-0381 / E / 02.09.06
VERTICAL AIR TERMINAL INSTALLATION
1. Fasten the roof support to the roof using the screws provided.
The roof support is optional. In
this case the venting is to be
adequately supported
using either an alternate
method suitable to the authority having
ROOF SUPPORT
jurisdiction or the optional
roof support.
2. Stretch the inner aluminum flex liner to the required length. Slip the liner a minimum of 2” over the inner
sleeve of the air terminal connector
INNER
and secure with 3 #8 screws. Seal
SLEEVE
using a heavy bead of the high
temperature sealant.
AIR
TERMINAL
CONNECTOR
3. Repeat using the outer aluminum flex liner.
4. Thread the air terminal connector /
HIGH TEMPERATURE SEALANT
INNER FLEX LINER
OUTER FLEX LINER
DO NOT CLAMP
THE FLEXIBLE
ALUMINUM LINER
liner assembly down through the roof.
The air terminal must be located vertically and plumb. Attach the air terminal connector to the roof support,
ensuring that the top of the air terminal is 16” above the highest point that it penetrates the roof.
5. Remove nails from the shingles, above and to the sides of the chimney. Place the flashing over the air terminal connector leaving a min. 3/4” of the air terminal connector showing above the top of the flashing. Slide the flashing underneath the sides and upper edge of the shingles. Ensure that the air terminal connector is properly centred within the flashing, giving a 3/4” margin all around. Fasten to the roof. Do not nail through the lower portion of the flashing. Make weather-tight by sealing with caulking. Where possible, cover the sides and top edges of the flashing with roofing material.
6. Aligning the seams of the terminal and air terminal connector, place the terminal over the air terminal connector making sure the
2”
STORM COLLAR
AIR INLET BASE
CAULKING
WEATHER SEALANT
liner goes into the hole in the terminal. Secure with the three screws provided.
7. Apply a heavy bead of weatherproof caulking 2 inches above the flashing. Note: Maintain a minimum 2” space between the air inlet base and the storm collar. Install the storm collar around the air
Spacers are
attached to the inner
flex liner at
predetermined
intervals to maintain
a 1-1/4” air gap to the outer flex liner.
These spacers must
not be removed.
FLASHING
terminal and slide down to the caulking. Tighten to ensure that a weather-tight seal between the air terminal and the collar is achieved.
15
7. If more liner needs to be used to reach the fireplace, couple them together as illustrated. The vent system must be supported approximately every 3 feet for both vertical and hori­zontal runs. Use noncombustible strapping to maintain a clearance to combustibles of 1".
FIREPLACE VENT CONNECTION
1. Install the 5 inch diameter aluminium flexible liner to the fireplace. Secure with 3 screws and flat washers. Seal the joint and screw holes using the high temperature seal­ant Mill Pac.
2. Install the 8 inch diameter aluminium flexible liner to the fireplace. Attach and seal the joints.
FIGURE 24
USING RIGID VENT COMPONENTS
The vent system must be supported approximately every 3 feet for both vertical and horizontal runs. Use Wolf Steel vent spacers every 3 feet and either side of each elbow to maintain the minimum 1¼" clearance between the outer and inner vent pipes. Use Wolf Steel support ring assem­bly or equivalent noncombustible strapping to maintain the minimum clearance to combustibles for both vertical and horizontal runs.
All inner exhaust and outer intake vent pipe joists may be sealed using either Red RTV high temp silicone seal­ant or Black high temp Mill Pac with the exception of the fireplace exhaust flue collar which must be sealed us­ing Mill Pac (not supplied).
HORIZONTAL AIR TERMINAL INSTALLATION
FIGURE 25
1. Move the fireplace into po­sition. Measure the vent length required between terminal and fireplace taking into account the additional length needed for the finished wall surface and any 1¼" overlaps between venting components.
2. Apply high temperature sealant Mill Pac to the outer edge of the 5" inner collar of the fireplace. Attach the first vent compo­nent and secure using 3 self tapping screws. Repeat using 8" piping.
3. The heat shield must be
FIGURE 26
installed only when terminat­ing horizontally with no verti­cal rise. Remove the two screws nearest the vent col­lars on the top of the fireplace. Align the vent shield (sup­plied) and secure.
4. Holding the air terminal (with the air deflectors to the top), insert into both vent pipes with a twisting motion to ensure that both the terminal sleeves engage into the vent pipes and sealant. Secure the terminal to the exterior wall and make weather tight by sealing with caulking (not supplied).
The air terminal mounting plate may be recessed into the exterior wall or siding by 1½", the depth of the return flange.
EXTENDED HORIZONTAL AIR TERMINAL
INSTALLATION
1. Follow the instructions for "Horizontal Air Terminal In­stallations", items 1 to 3.
FIGURE 27
2. Continue adding compo­nents alternating inner and outer venting. Ensure that all 5" venting and elbows have suffi­cient vent spacers attached and each component is securely fastened to the one prior. Attach the 5" telescopic sleeve to the vent run.
Repeat using a 8" telescopic sleeve. Secure and seal as before. To facilitate completion, attach 5" and 8" couplers to the air terminal.
3. Install the air terminal. See item 3 of the
Horizontal Air Terminal Installation. Extend the 5" telescopic
sleeve; connect to the air terminal assembly. Fasten with self tapping screws and seal. Repeat using the 8" tel­escopic sleeve.
W415-0381 / E / 02.09.06
16
VERTICAL VENTING INSTALLATION
1. Move the fireplace into position.
2. Fasten the roof support to the roof using the screws
provided. FIGURE 21. The roof support is optional. In this case the venting is to be adequately supported using ei­ther an alternate method suitable to the authority having jurisdiction or the optional roof support.
3. Apply high temperature sealant to the outer edge of the inner sleeve of the air terminal. Slip a 5" diameter coupler a minimum of 2" over the sleeve and secure using 3 screws.
4. Apply high temperature seal- ant to the outer edge of the of the outside sleeve of the air terminal. Slip a 8" diameter coupler over the sleeve and secure as before. FIG- URE 25. Trim the 8" coupler even with the 5" coupler end.
5. Thread the air terminal pipe assembly down through the roof support and attach, ensuring that a minimum 16" of air terminal will penetrate the roof when fas­tened. FIGURE 23. If the attic
space is tight, we recommend threading the Wolf Steel vent pipe collar or equivalent the air terminal assembly as it is passed through the attic. FIGURE 29. The air terminal must
be located vertically and plumb.
6. Remove nails from the shingles, above and to the sides of the chimney. Place the flashing over the air termi­nal and slide it underneath the sides and upper edge of the shingles. Ensure that the air terminal is properly centered within the flashing, giving a 3/4" margin all around. Fasten to the roof. Do NOT nail through the lower portion of the flashing. Make weather-tight by sealing with caulking. Where possible, cover the sides and top edges of the flash­ing with roofing material. FIGURE 23.
7. Apply a heavy bead of waterproof caulking 2 inches above the flashing. Slide the storm collar around the air terminal and down to the caulking. Tighten to ensure that a weather-tight seal between the air terminal and the collar is achieved. Attach the other storm collar centered between the air intake and air exhaust slots onto the air terminal. Tighten securely. Attach the rain cap.
8. Continue adding rigid venting sections, sealing and securing as above. Attach a 5" collapsed telescopic pipe to the last section of rigid piping. Secure with screws and seal. Repeat using a 8" telescopic pipe.
9. Run a bead of high temperature sealant Mill Pac around the outside of the 5" collar on the fireplace. Pull the adjustable pipe a minimum of 2" onto the collar. Secure with 3 screws. Repeat with the 8" telescopic pipe.
10. In the attic, slide the vent pipe collar down to cover up the open end of the shield and tighten. This will prevent any materials, such as insulation, from filling up the 1" air space around the pipe.
W415-0381 / E / 02.09.06
loosely onto
FIGURE 28
FIGURE 29
RESTRICTING VERTICAL VENTS
Vertical terminations may display a very active flame. As this appearance is not desirable, the vent exit must be restricted using restrictor plate, W500-0205. This reduces the velocity of the exhaust gases, slowing down the flame pattern and creating a more traditional appearance.
Remove the two screws on either side of the exhaust collar inside the firebox. Install the plate as shown. Replace the screws.
Proceed once the vent installation is complete.
1. Move the fireplace into position and secure using the
nailing tabs and/or secure to the floor through the ¼"diam­eter holes located at either end of the base.
2. Route a 3/8" N.P.T. black iron gas line, 1/2" type-L cop-
per tubing or equivalent to the fireplace.
3. For ease of accessibility, an optional remote wall switch or millivolt thermostat may be installed in a convenient lo­cation. Route 2-strand (solid core) millivolt wire through the electrical hole located at the bottom left side of the unit. The recommended maximum lead length depends on wire size:
Attach the two leads to terminals 1 and 3 located on the gas valve.
WIRE SIZE MAX. LENGTH
14 gauge 100 feet 16 gauge 60 feet 18 gauge 40 feet
GAS INSTALLATION
4. Install rigid black pipe, 1/2" type-L copper tubing or, if local codes permit, a 3/8" flex connector and shutoff valve to the gas line and the fireplace gas valve.
Seal and tighten securely. An adapter fitting is required between the gas valve and the copper tubing or flex con­nector.
Do not kink flex connector.
5. Check for gas leaks by brushing on a soap and water
solution.
Do not use open flame.
FIGURE 30
Do not connect either the wall switch, thermostat or gas valve to electricity (110 volts).
Purge all gas lines with the glass door of the fireplace removed. Assure that a continuous gas flow is at the burner before re-installing the door.
In Canada, mobile home installation may be vented hori­zontally or vertically. In the United States, it may only be installed vertically. See "Vertical Venting" or "Horizontal Air Terminal Installation" for installation.
The fireplace is equipped with two 1/4" diameter holes located in the front left and right corners of the base. For mobile home installations, the fireplace must be fastened
FIGURE 31
RE
FIGURE 29
TOP OF THE
FIREBOX
in place. Use #10 hex head screws, inserted through the holes in the base to secure. It is recommended that the fireplace be secured in all installations.
Always turn off the pilot and the fuel supply at the source, prior to moving the mobile home.
After moving the mobile home and prior to lighting the fireplace, ensure that the logs are positioned correctly.
Note: In order to avoid the possibility of exposed insulation or vapour barrier coming in contact with the fireplace body, it is recommended that the walls of the fireplace enclo­sure be “finished” (ie: drywall/sheetrock),as you would fin­ish any other outside wall of a home. This will ensure that
MOBILE HOME INSTALLATION
clearance to combustibles is maintained within the cavity. It is best to frame your fireplace after it is positioned and
the vent system is installed. Use 2x4's and frame to local building codes. FIGURES 31-33.
It is not necessary to install a hearth extension with this fireplace system.
When roughing in the fireplace, raise the fireplace to ac­commodate for the thickness of the finished floor materi­als, i.e. tile, carpeting, hard wood, which if not planned for will interfere with the opening of the lower access door and the installation of many decorative flashing accessories.
Objects placed in front of the fireplace should be kept a
17
TO INSTALL THE UPPER LOUVRES: Insert the upper
louvres into the slots on both brackets.
TO INSTALL THE LOWER LOUVRE ASSEMBLY: At-
tach each hinge to the fire­box with 2 screws.
Position the hinge screen into place and with the con­trol door open, secure to the firebox using three screws.
FIGURE 33
FRAMING
minimum of 48" away from the front face. Combustible materials may be installed flush with the front
of the fireplace but must not cover or protrude past any of the black face-areas of the fireplace. Non-combustible ma­terial (brick, stone or ceramic tile) may protrude in these areas.
FIGURE 32
FIGURES 34
W415-0381 / E / 02.09.06
18
NAILING TAB INSTALLATION
1) Attach the nailing tabs to the corner posts using the 2 sheet metal screws supplied. Secure through the centre of the top and bottom slots in the nailing tab and then through the existing holes in the corner posts.
If there are no existing holes, follow these instructions:
NAILING TAB
Position the nailing tab so that the front face is offset with the front edge of the corner post (approx. ½"). Centre the nailing tab vertically on the corner post.
Figure 35 a.
Drill through the centre of the top and bottom slots in the nailing tab. Secure using the two sheet metal screws sup­plied. This allows the nailing tab to slide back and forth for desired framing. Figure 35b.
2) To determine the final location of the nailing tab you must first determine the thickness of your finishing mate­rial (i.e. drywall). This will determine the dimension from the front edge of the corner post to the nailing tab. Once the nailing tab is in the desired location, drill through the centre hole of the nailing tab. Secure with a sheet metal screw*. Figure 35c.
* Additional set screws may be installed.
MANTLE INSTALLATION
Combustible mantle clearance can vary according to the mantle depth. FIGURE 36. Use the graph to help evaluate the clearance needed. Curtains, above the fireplace, must not be positioned lower than the 5" distance required for the 2" combustible mantle. These same requirements
apply to any combustibles protruding on either side of the fireplace.
FIGURES 35a-c
A
FINISHING
MATERIAL
CORNER
POST
NAILING
TAB
TOP SLOT
B
FIGURES 36
W415-0381 / E / 02.09.06
CENTRE
HOLE
C
FINISHING
19
GDL42 LOUVRE INSTALLATION
PHAZERTM logs and glowing embers, exclusive to Napo-
leon Fireplaces, provide a unique and realistic glowing ef­fect that is different in every installation. Take the time to carefully position the glowing embers for a maximum glow­ing effect. Log colours may vary. During the initial use of the fireplace, the colours will become more uniform as colour
a
pigments burn in during the heat activated curing process.
1. Place the cutout in the bottom of log #1 behind the pilot
assembly. Rest the log against the back wall of the firebox.
2. Move the two small logs (#2 & #3) into position, lining up the studs located on the burner with the holes on the bottom of the logs.
3. Tear the glowing embers into pieces and place along
b
(V ALVE CONTROL DOOR)
UPPER LOUVRE
SLOT
DOOR LATCH
FIGURES 37
HINGE SCREEN
LOWER LOUVRES
L42 LOUVRE INSTALLATION
FIGURE 38
LOGO PLACEMENT
Remove the backing of the logo supplied and place on the glass viewing door, as indicated.
½"
LOGO
½"
FIGURE 39
PORCELAIN REFLECTIVE PANELS
1. Remove the upper louvres, and open the glass door. Remove the logs.
2. Remove the two securing screws located on either fire­box side.
3. Place the left panel against the left side of the firebox, ensuring that it butts up to the rear panel. Secure in place using 2 of the screws previously removed. Re­peat for the right side.
4. Replace the logs, glass door and louvres.
A
B
UPPER LOUVRES
Insert the louvre tabs into the
SLOT
TAB
slots located at the top left and right corners of the unit.
A
B
HINGE
CLIP
SLOT
LOWER LOUVRES
Insert the hinge clips into the slots located at the bottom left and right corners of the unit.
To remove the louvres, pull the back tabs of the clips forward, while pushing the louvre assem­bly back. Lift the clip.
W415-0381 / E / 02.09.06
20
GRATE INSTALLATION
the front row of ports covering all of the burner area in front of the small logs (#2 & #3). Care should be taken to shred the embers into edges of the fibre hairs will glow. The ember material will
only glow when exposed to direct flame; however, care should be taken to not block the burner ports. Blocked burner ports
can cause an incorrect flame pattern, carbon deposits and
FIGURES 40a-d
delayed ignition. PHAZERTM logs glow when exposed to di­rect flame.
thin, small irregular pieces as only the exposed
#1
#2
#3
The grate for this fireplace has been removed for shipping purposes.
The grate must be installed before the logs are installed. Remove the packaging from the grate and install onto the
two pins as illustrated.
LOG PLACEMENT
the log resting in the pocket of the left crossover log.
5. Place the bottom of the right crossover log (#6) against the right side of the grate. Place the top into the pocket provided on the center log (#5).
Randomly place the charcoal embers along the front and sides of the log support tray in a realistic manner. Fine
dust found in the bottom of the bag should not be used.
Sprinkle vermiculite around the charcoal embers.
Note: Both charcoal embers and vermiculite are not to be placed on the burner.
Place the lumps between the logs in a realistic manner taking care not to block any of the burner ports.
INSTALLATION TO BE DONE BY A QUALIFIED INSTALLER and must be electrically connected and grounded in ac- cordance with local codes. In the absense of local codes, use the current CSA C22.1 CANADIAN ELECTRICAL CODE in Canada or the ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in the United States
If the fireplace was not previously equipped with a blower: route a grounded 2-wire, 60hz power cable to the
receptacle / junction box. At this point, it must be strain relieved and insulated.
#4
#5
4. Cradle the notch on the bottom of the left crossover log (#4) around the left side of the grate and the top into the pocket provided on the back log. Place the end of the center log (#5) against the grate, as shown, with the other end of
GLOWING EMBERS
W415-0381 / E / 02.09.06
#6
The three slots on the blower mounting
21
CHARCOAL EMBERS
bracket allow ease of adjustment when attaching the blower.
VERMICULITE
For a quiet running blower, do not allow the assembly to sit on the
OPTIONAL BLOWER INSTALLATION
against the threaded stud (B) at the other end. The blower must
be able to be po­sitioned entirely onto the pad.
Tilt the blower onto its
FIGURE 41
Ensure that the blower does not touch the fireplace base or the firebox.
Attach the connectors from the black and white wires to the thermodisc and secure the thermodisc bracket to the securing stud at the bot­tom left of the unit using a lock washer and wing nut. Ensure that the thermodisc touches the firebox wall.
Attach the connectors from the black and red wires to the blower.
Attach and secure the vari­able speed switch using the nut provided. Plug the harness cord into the re­ceptacle.
B
A
side. Slide it past the controls and into the clip (C). Secure to the threaded stud using the lock washer and wing nut provided.
FIGURE 42
C
CHARCOAL LUMPS
firebox base.
Slide the vibration reducing pad (A) into the clip (C) and up
The wire harness provided in this kit is a universal harness. When installed, ensure that any excess wire is contained, preventing it from making con­tact with moving or hot objects.
Because the blower is thermally activated, when turned on, it will automatically start approximately 10 minutes after lighting the fireplace and will run for approximately 30-45 minutes after the fire­place has been turned off. Use of the fan increases the output of heat.
Drywall dust will penetrate into the blower bear­ings, causing irreparable damage. Care must be taken to prevent drywall dust from coming into contact with the blower or its compartment. Any damage resulting from this condition is not cov­ered by the warranty policy.
ELECTRICAL INSTALLATION TO BE DONE BY A QUALI­FIED INSTALLER and must be connected and grounded
in accordance with local codes. In the absence of local codes, use the current CSA C22.1 CANADIAN ELECTRICAL CODE in Canada or the ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in the United States.
To safely install the fan, turn off the electricity first.
If the fireplace was not previously equipped with a fan:
route a grounded 2-wire, 60hz power cable to the junction box. At this point, it must be strain relieved and insulated.
The wire harness provided in this kit is a universal har­ness. When installed, ensure that any excess wire is con­tained, preventing it from making contact with moving or hot objects.
To ease installation of the fan, remove the hinge screen and valve control door (lower louvres) from the base of the fireplace.
FIGURE 46
FIGURE 45
FIGURE 43
FIGURE 44
W415-0381 / E / 02.09.06
22
OPTIONAL FAN INSTALLATION
Position the vibration reducing pad into the clip and onto the threaded stud at the other end, piercing a hole into the pad. The fan assembly must be able to be positioned en­tirely onto the pad.
Slide the fan assembly past the controls and into the clip. Secure using the lock washer and nut provided.
FIGURE 47
Plug the harness cord into the receptacle.
This optional kit is meant to be used only in conjunction with the GD65 Fan Kit, shown above, which may be or­dered from your Wolf Steel / Napoleon dealer.
With the thermostatic sensor option, the fan, when turned on, becomes thermally activated, and will automatically run approximately 15-30 minutes after the fireplace has been lit and for approximately 30-45 minutes after the fireplace has been turned off.
Use of the fan increases the output of heat.
Unplug the power cord from the re­ceptacle. Connect all wires as shown.
Attach and secure the sensor assembly bracket to the se­curing stud located next to the receptacle/junction box at the bottom left of the unit using the lock washer and wing nut. Ensure that the thermodisc touches the firebox wall.
Plug the power cord back into the receptacle.
FIGURE 48
GD36 THERMOSTATIC SENSOR CONTROL
When installed, ensure that any excess wire is contained, preventing it from making contact with moving or hot ob­jects.
When lit for the first time, the fireplace will emit a slight odour for a few hours. This is a normal temporary condi­tion caused by the curing of the logs and the "burn-in" of internal paints and lubricants used in the manufacturing process and will not occur again.
FIGURE 49
After extended periods of non-operation such as following a vacation or a warm weather season, the fireplace may emit a slight odour for a few hours. This is caused by dust particles in the heat exchanger burning off. In both cases, open a window to sufficiently ventilate the room.
Purge the gas line with the glass door removed. As­sure that a continuous gas flow is at the burner before re-installing the door.
A. This fireplace is equipped with a pilot which must be lit
by hand while following these instructions exactly.
B. Before operating smell all around the fireplace area for
gas and next to the floor because some gas is heavier
FIGURE 50
W415-0381 / E / 02.09.06
OPERATION / MAINTENANCE
OPERATING INSTRUCTIONS
than air and will settle on the floor
C. Use only your hand to turn the gas control knob. Never
use tools. If the knob will not turn by hand, do not try to repair it. Call a qualified service technician. Force or at­tempted repair may result in a fire or explosion.
23
D. Do not use this fireplace if any part has been under water.
Immediately call a qualified service technician to inspect the fireplace and replace any part of the control system and any gas control which has been under water.
• Turn off all gas to the fireplace.
• Open windows.
• Do not try to light any appliance.
FOR YOUR SAFETY READ BEFORE LIGHTING:
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire de­partment.
WARNING: The gas valve has an interlock device which will not allow the pilot burner to be lit until the thermocou­ple has cooled. Allow approximately 60 seconds for the thermocouple to cool.
When lighting and re-lighting, the gas knob cannot be turned from pilot to off unless the knob is depressed
LIGHTING INSTRUCTIONS
pilot with the push button ignitor. Keep knob depressed for one minute, then release. If pilot does not continue to burn, repeat steps 3 through 5.
7. With pilot lit, depress and turn gas knob counter-clock-
wise
8. If equipped with remote on-off switch/thermostat,
main burner may not come on when you turn valve to on. Remote switch must be in the on position to ignite burner.
9. Turn on all electric power to the fireplace.
1. Turn off all electric power to the fireplace if service is
to be performed.
2. Push in gas control knob slightly and turn clock-
wise to off. Do not force.
bly, remove the logs to expose both assemblies.
2. Keep the control compartment, logs, burner, air shut-
to on.
TO TURN OFF GAS
WHAT TO DO IF YOU SMELL GAS
slightly.
1. Stop! Read the above safety information on this label.
2. Turn off all electric power to the fireplace.
3. Turn the gas knob clockwise
4. Wait five (5) minutes to clear out any gas. If you smell gas
including near the floor. Stop! Follow "B" in the above safety information on this label. If you don't smell gas go the next step.
5. Turn gas knob counter-clockwise to pilot.
6. Depress slightly and hold gas knob while lighting the
Turn off the gas and electrical power before servicing the fireplace.
CAUTION: Label all wires prior to disconnection when serv­icing controls. Wiring errors can cause improper and dan­gerous operation. Verify proper operation after servicing. This fireplace and its venting system should be inspected before use and at least annually by a qualified service person. The fireplace area must be kept clear and free of combustible materials, gasoline or other flammable va­pours and liquids. The flow of combustion and ventilation air must not be obstructed.
1. In order to properly clean the burner and pilot assem-
ter opening and the area surrounding the logs clean by vacuuming or brushing, at least once a year.
to off.
GAS KNOB
3. Check to see that all burner ports are burning. Clean out any of the ports which may not be burning or are not burn­ing properly.
4. Check to see that the pilot flame is large enough to engulf the thermocouple and thermopile and reaches to­ward the burner with the third jet.
5. Replace the cleaned logs.
6. Check to see that the main burner ignites completely on all
openings when the gas knob for the burner is turned on. A 5 to 10 second total light-up period is satisfactory. If ignition takes longer, consult your Napoleon dealer / distributor.
7. Check that the gasketing on the sides, top and bottom of the door is not broken or missing. Replace if necessary. Adjust the pilot screw to provide properly sized flame. Turn in a clockwise direction to reduce the gas flow.
MAINTENANCE
W415-0381 / E / 02.09.06
24
ADJUSTMENTS
PILOT BURNER ADJUSTMENT
Air shutters have been factory set open according to the chart below:
qualified installer!
These settings are for the maximum horizontal vent run.­Adjustment may be required depending on fuel type, vent
FIGURE 51
configuration and altitude. Closing the air shutter will cause a more yellow flame, but
can lead to carboning. Opening the air shutter will cause a more blue flame, but can cause flame lifting from the burner ports. The flame may not appear yellow immediately; allow
FIGURE 52
15 to 30 minutes for the final flame colour to be estab-
VENTURI ADJUSTMENT
lished.
AIR SHUTTER
NG
LP
1/
7
"
4
/16"
Air shutter adjustment must only be done by a
FIGURE 53
To access the air shutter, remove the two screws that se­cure the cover to the air housing, taking care not to dam­age the gasket.
# PART NO. DESCRIPTION
1 W357-0001 PIEZO IGNITER 2 W680-0004 THERMOPILE
FIGURE 54
3 W680-0005 THERMOCOUPLE 4 W010-0800 NATURAL GAS PILOT ASSEMBLY 4 W010-0801 PROPANE GAS PILOT ASSEMBLY 5 W455-0069 NATURAL GAS PILOT INJECTOR 5 W455-0067 PROPANE GAS PILOT INJECTOR 6 W725-0025 NATURAL GAS VALVE 6 W725-0026 PROPANE VALVE 7* W385-0245 NAPOLEON LOGO 8* W750-0112 20FT OF WIRE 9 W010-0864 PAN BURNER 10 GL-641 LOG SET 11* W361-0016 GLOWING EMBERS 12* W550-0001 CHARCOAL EMBERS 13* W550-0002 CHARCOAL LUMPS 14 W135-0198 BACK LOG (#1) 15 W135-0201 LEFT CROSSOVER LOG (#4) 16 W135-0202 CENTER LOG (#5)
VENTURI COVER
W415-0381 / E / 02.09.06
REPLACEMENTS
25
Contact your dealer for questions concerning prices and availability of replacement parts. Normally all parts can be ordered through your Napoleon dealer or distributor.
FOR WARRANTY REPL ACEMENT PARTS , A PHOTOCOPY OF
THE
ORIGINAL INVOICE WILL BE REQUIRED TO HONOUR
THE
CLAIM.
* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR
FURTHER
INFORMATION, CONT A C T YOUR NAPOLEON
DEALER
.
REPLACEMENT PARTS
17 W135-0203 RIGHT CROSSOVER LOG (#6) 18 W135-0199 SMALL LEFT LOG (#2) 19 W135-0200 SMALL RIGHT LOG (#3) 20 W010-0770 BLACK DOOR C/W GLASS 21 W455-0026 #38 NATURAL GAS ORIFICE 21 W455-0003 #54 PROPANE GAS ORIFICE 22* W361-0014 VERMICULITE 23 W500-0028 FIRESTOP SPACER (FLEX VENTING) 24* W500-0205 RESTRICTOR PLATE 25 W585-0138 VENT HEAT SHIELD 26 W185-0020 GRATE
* GD420 (5 FT)
PART NO. DESCRIPTION
27 W010-0772 5" FLEXIBLE ALUMINIUM LINER - (5 FT) C/W
27 W730-0012 8" FLEXIBLE ALUMINIUM LINER - (5 FT)
SPACERS
* GD430 (10 FT)
PART NO. DESCRIPTION
28 W730-0013 8" FLEXIBLE ALUMINIUM LINER - (10 FT ) 28 W010-0773 5" FLEXIBLE ALUMINIUM LINER - (10 FT) C/W SPACERS 29 W010-0810 WALL SUPPORT ASSEMBLY
30 PERISCOPE - GD401 31 WALL TERMINAL KIT - GD422 32 1/12 TO 7/12 PITCH -GD410 32 8/12 TO 12/12 PITCH -GD411 32 FLAT ROOF -GD412
PART NO. DESCRIPTION
FLEXIBLE VENT KITS
33 W010-0774 AIR TERMINAL 34 W120-0015 VERTICAL CAP 35 W170-0086 STORM COLLAR 36 W010-0453 ROOF SUPPORT 37 W263-0065 / ROOF FLASHING
W263-0066 / W263-0067
# PART NO. DESCRIPTION
38* W573-0007 10.3OZ TUBE HIGH TEMP SEALANT 39* W175-0166 5" COUPLER 39* W175-0002 8" COUPLER 40 GDL42K LOUVRE KIT - UPPER & LOWER - BLACK 40 GDL42PB LOUVRE KIT - UPPER & LOWER - POLISHED BRASS
When ordering replacement parts always give the following information:
1. M
ODEL & SERIAL NUMBER OF FIREPLACE
2. INSTALLATION DATE OF FIREPLACE
3. PART NUMBER
4. DESCRIPTION OF PA RT
5. FINISH
ROOF TERMINAL KITS
41 L42PB LOUVRE KIT - UPPER & LOWER - POLISHED BRASS 41 L42SS LOUVRE KIT - UPPER & LOWER - BRUSHED STAINLESS STEEL 42 GDOI42BG ORNAMENTAL INSET - BRUSHED GOLD 42 GDOI42K ORNAMENTAL INSET - BLACK 42 GDOI42G ORNAMENTAL INSET - GOLD 42 GDOI42SS ORNAMENTAL INSET - STAINLESS STEEL 43* W690-0001 MILLIVOLT THERMOSTAT 44* W660-0010B REMOTE CONTROL - ADVANTAGE 44* W660-0011B REMOTE CONTROL - ADVANTAGE PLUS 45* W660-0013 MODULATING THERMOSTATIC HAND HELD REMOTE 46* GD825N MODULATING VALVE REGULATOR FOR W660-0013 - NG 46* GD825P MODULATING VALVE REGULATOR FOR W660-0013 - P
ACCESSORIES
47 W500-0163 FIRESTOP SPACER (RIGID VENTING) 48 GD501 HEAT GUARD 49* W585-0096 SOFFIT HEAT SHIELD 50* W010-0810 WALL SUPPORT ASSEMBLY 51* W175-0170 DURA-VENT ZERO CLEARANCE ADAPTOR 52 W170-0086 VENT PIPE COLLAR 53 W585-0092 VENT PIPE SHIELD 54 GZ550-1KT BLOWER KIT 55* GD65 FAN KIT 56* GD36 57* W500-0033 VARIABLE SPEED SWITCH WALL MOUNTING PLATE 58* KB35 VARIABLE SPEED SWITCH 59 GA-566 HOT AIR DISTRIBUTION KIT 60* W690-0005 THERMOSTAT - 110V FOR USE WITH GA-566 ONLY 61* GA-70 EXTENSION KIT - 5 FT 62 GA-72 HOT AIR EXHAUST KIT 63* W175-0211 CONVERSION KIT - NG-LP 63* W175-0212 CONVERSION KIT - LP-NG
THERMOSTATIC SENSOR CONTROL KIT
FOR USE WITH GD
65
ONLY
TERMINAL KITS
40 GDL42SS LOUVRE KIT - UPPER & LOWER - BRUSHED STAINLESS
STEEL
41 L42K LOUVRE KIT - UPPER & LOWER - BLACK
W415-0381 / E / 02.09.06
26
W415-0381 / E / 02.09.06
TROUBLE SHOOTING GUIDE
B
EFORE ATTEMPTING TO TROUBLESHOOT, PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR REMOVED
SYMPTOM PROBLEM TEST SOLUTION
27
.
Main burner goes out; pilot stays on.
Main burner goes out; pilot goes out.
Pilot goes out when the gas knob is re­leased.
The gas valve has an interlock device which will not allow the pilot burner to be lit until the ther­mocouple has cooled. Allow ap­proximately 60 seconds for the thermocouple to cool.
Pilot flame is not large enough or not engulfing the thermopile
Thermopile shorting - clean thermopile connection to the valve. Reconnect.
Remote wall switch wire is too long; too much resist­ance in the system.
Faulty thermostat or switch. - replace.
Refer to "MAIN BURNER GOES OUT; PILOT STAYS ON"
Vent is blocked
Vent is re-circulating
5" flexible vent has become disconnected from fireplace.
System is not correctly purged.
Out of propane gas. - fill the tank.
Pilot flame is not large enough
Pilot flame is not engulfing the thermocouple.
Thermocouple shorting / faulty.
Faulty valve.
- turn up pilot flame.
- replace pilot assembly.
- replace thermopile / valve.
- shorten wire to correct length or wire gauge.
- check for vent blockage.
- check joint seals and installation.
- re-attach to fireplace.
- purge the gas line with the glass door removed.
- turn up the pilot flame.
- gently twist the pilot head to improve the flame pattern around the thermocouple.
- loosen and tighten thermocouple.
- clean thermocouple and valve connection.
- replace thermocouple.
- replace valve.
- replace.
Pilot burning; no gas to main burner; gas knob is on 'HI'; wall switch / thermostat is on.
Pilot will not light. - check if pilot can be lit by a match
Themostat or switch is de­fective.
Wall switch wiring is defec­tive.
Main burner orifice is plugged. - remove stoppage in orifice.
Faulty valve.
No spark at pilot burner
Spark gap is incorrect - spark gap should be 0.150" to 0.175" (5/32" to 11/64" approx.) from
No gas at the pilot burner
- connect a jumper wire across the wall switch terminals; if main burner lights, replace switch / thermostat.
- disconnect the switch wires & connect a jumper wire across termi­nals 1 & 3; if the main burner lights, check the wires for defects and / or replace wires.
- replace.
- check that the wire is connected to the push button ignitor.
- check if the push button ignitor needs tightening.
- replace the wire if the wire insulation is broken or frayed.
- replace the electrode if the ceramic insulator is cracked or broken.
- replace the push button ignitor.
- fill the tank.Out of propane gas
the electrode tip and the pilot burner. To ensure proper electrode location, tighten securing nut (finger tight plus 1/4 turn).
- check that the manual valve is turned on.
- check the pilot orifice for blockage.
- replace the valve.
- call the gas distributor.
W415-0381 / E / 02.09.06
28
SYMPTOM PROBLEM TEST SOLUTION
Pilot goes out while standing; Main burner is in 'OFF' position.
Flames are con­sistently too large or too small. Carboning occurs.
Flames are very aggressive.
Main burner flame is a blue, lazy, transparent flame.
Gas piping is undersized. - turn on all gas appliances and see if pilot flame flutters, dimin-
ishes or extinguishes, especially when main burner ignites. Monitor appliance supply working pressure.
- check if supply piping size is to code. Correct all undersized piping.
Unit is over-fired or under­fired.
Door is ajar
Venting action is too great. -restrict vent exit with restrictor plate, W500-0205.
Blockage in vent. - remove blockage. In extremely cold conditions, ice buildup may
Incorrect installation.
- check pressure readings: Inlet pressure can be checked by turning screw (A) counter-clock­wise 2 or 3 turns and then placing pressure gauge tubing over the test point. Gauge should read 7" (minimum 4.5") water column for natural gas or 13" (11" minimum) water column for propane. Check that main burner is operating on "HI". Outlet pressure can be checked the same as above using screw (B). Gauge should read 3.5" water column for natural gas or 10" water column for propane. Check that main burner is operating on "HI". AFTER TAKING PRESSURE READINGS, BE SURE TO TURN SCREWS CLOCKWISE FIRMLY TO RESEAL. DO NOT OVERTORQUE. Leak test with a soap and water solution.
- fit door assembly into the lower support brackets and secure the four door latches.
occur on the terminal and should be removed as required.
- refer to Figure 23 to ensure correct location of storm collars.
Carbon is being deposited on glass, logs or com­bustion chamber surfaces.
White / grey film forms.
Remote wall switch is in "OFF" position; main burner comes on when gas knob is turned to "ON" po­sition.
Air shutter has become blocked
Flame is impinging on the logs or combustion cham­ber.
Sulphur from fuel is being deposited on glass, logs or combustion chamber sur­faces.
Wall switch is mounted up­side down
grounding.
grounding. Faulty valve.
- ensure air shutter opening is free of lint or other obstructions.
- check that the logs are correctly positioned.
- open air shutter to increase the primary air.
- check the input rate: check the manifold pressure and orifice size as specified by the rating plate values.
- check that the door gasketing is not broken or missing and that the seal is tight.
- check that both 5" and 8" vent liners are free of holes and well sealed at all joints.
- check that minimum rise per foor has been adhered to for any horizontal venting.
- clean the glass with a recommended gas fireplace glass cleaner. DO NOT CLEAN GLASS WHEN HOT.
If deposits are not cleaned off regularly, the glass may become permanently marked.
- reverse.
- replace.Remote wall switch is
- check for ground (short); repair ground or replace wire.Remote wall switch wire is
- replace.
W415-0381 / E / 02.09.06
Loading...
