Napoleon Bayfield GDS25P, GDS25N, Bayfield GDS25N Installation And Operation Instructions Manual

1

W415-0547 / C / 07.25.06

W415-0547 / C / 07.25.06

2

WARNINGS & SAFETY PRECAUTIONS

Do not store gasoline or other
flammable vapours and liquids in the
vicinity of this or any other appliance.

4.

1.

5.

2.

6.

3.

Installation and service must be

performed by a qualified installer,

service agency or the gas supplier.

Follow the installation directions.

WHAT TO DO IF YOU SMELL GAS

Do not use any phone in your building.

Do not try to light any appliance.

Immediately call your gas supplier

from a neighbour's phone. Follow the

gas supplier's instructions.

W415-0547 / C / 07.25.06

Do not touch any electrical switch.

If you cannot reach your gas supplier,

call the fire department.

If this fireplace is not properly

installed, a house fire may result.

TABLE of CONTENTS

3

2. Warnings and Safety Precautions

What to do if you smell gas

4. Warranty

5. General Instructions

General Information
Care of Glass and Plated Parts

6. Location and Clearances
Stove Dimensions
Clearances to Combustibles
Mantel or Shelf Clearances

7. Blower Installation

8. Terminal Installation

9. Venting

Venting Lengths and Air Terminal Locations

10. Typical and Special Vent Installations

11. Venting Termination

16. Wall and Ceiling Protection

17. Horizontal and Vertical Venting

18. Stove Vent Connection

Mobile Home Installation
Restricting Vertical Vents
Gas Installation

19. Finishing

Glass door install and removal
Cast Front Installation and removal

20. Logo Placement
Log Placement

21. Optional Switch / Wiring Diagram

22. Lighting / Operation Instructions

23. Adjustments
Maintenance

Pilot Injector Replacement
Venturi Adjustment
Orifi ce Replacement

24. Replacements

Replacement Parts
Accessories

26. Trouble Shooting

28. Service History

PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE

WARNING

• The stove is a vented gas-fi red heater. Do not burn wood or other materials in this stove.

• Adults and especially children should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition. Keep young children and animals away when the stove is
hot.

• Due to high temperatures, the stove should be located out of traffi c and away from furniture and draperies.

• Clothing or other fl ammable material should not be placed on or near the stove.

• Any safety screen or guard removed for servicing must be replaced prior to operating the stove.

• It is imperative that the control compartments, burners and circulating blower and its passageway in the
stove and venting system are kept clean. The stove and its venting system should be inspected before use
and at least annually by a qualifi ed service person. More frequent cleaning may be required due to excessive
lint from carpeting, bedding material, etc. The stove area must be kept clear and free from combustible
materials, gasoline and other fl ammable vapours and liquids.

• Under no circumstances should this stove be modifi ed.

• This stove must not be connected to a chimney fl ue pipe serving a separate solid fuel burning appliance.

• Do not use this stove if any part has been under water. Immediately call a qualifi ed service technician to
inspect the stove and to replace any part of the control system and any gas control which has been under
water.

• Do not operate the stove with the glass door opened, cracked or broken. Replacement of the glass should
be done by a licensed or qualifi ed service person.

• Do not strike or slam shut the stove glass door.

NOTE: changes, other than editorial, are denoted by a vertical line in the margin.

W415-0547 / C / 07.25.06

4

NAPOLEON products are manufactured under the strict Standard of the world recognized

ISO 9001 : 2000 Quality Assurance Certifi cate.
NAPOLEON products are designed with superior components and materials, assembled by trained craftsmen
who take great pride in their work. The burner and valve assembly are leak and test-fi red at a quality test
station. The complete fi replace is test-fi red and thoroughly inspected by a qualifi ed technician before packag­ing to ensure that you, the customer, receives the quality product that you expect from NAPOLEON

NAPOLEON GAS FIREPLACE PRESIDENT'S LIFETIME LIMITED WARRANTY

The following materials and workmanship in your new NAPOLEON gas fi replace are warranted against
defects for as long as you own the fi replace. This covers: combustion chamber, heat exchanger, stainless steel
burner, phazer™ logs and embers, ceramic glass (thermal breakage only), gold plated parts against tarnishing,
porcelainized enamelled components and aluminium extrusion trims.

Electrical (110V and millivolt) components and wearable parts such as catalytic tiles, blowers, gas valves, ther­mal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly are covered and NAPOLEON
will provide replacement parts free of charge during the fi rst year of the limited warranty. Light bulbs are not
covered by this warranty.

Labour related to warranty repair is covered free of charge during the fi rst year. Repair work however, requires
the prior approval of an authorized company offi cial. Labour costs to the accout of NAPOLEON are based on a
predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer.

.

CONDITIONS AND LIMITATIONS

NAPOLEON warrants its products against manufacturing defects to the original purchaser only -- i.e., the individual or legal entity

(registered customer) whose name appears on the warranty registration card fi led with NAPOLEON -- provided that the purchase was
made through an authorized NAPOLEON dealer and is subject to the following conditions and limitations:

This factory warranty is nontransferable and may not be extended whatsoever by any of our representatives.
The gas fi replace must be installed by a licenced, authorized service technician or contractor. Installation must be done in accordance

with the installation instructions included with the product and all local and national building and fi re codes.

This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse or neglect and

parts installed from other manufacturers will nullify this warranty.

This limited warranty further does not cover any scratches, dents, corrosion or discolouring caused by excessive heat, abrasive and

chemical cleaners nor chipping on porcelain enamel parts, mechanical breakage of PHAZER™ logs and embers, nor any venting com­ponents used in the installation of the fi replace.

NAPOLEON warrants its stainless steel burners against defects in workmanship and material for life, subject to the following condi-

tions: During the fi rst 10 years NAPOLEON will replace or repair the defective parts at our option free of charge. From 10 years to life,
NAPOLEON will provide replacement burners at 50% of the current retail price.

In the fi rst year only , this warranty extends to the repair or replacement of warranted parts which are defective in material or workman-

ship provided that the product has been operated in accordance with the operation instructions and under normal conditions.

After the fi rst year, with respect to this President's Limited Lifetime Warranty, NAPOLEON may, at its discretion, fully discharge all

obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but
defective part(s).

After the fi rst year, NAPOLEON will not be responsible for installation, labour or any other costs or expenses related to the reinstallation

of a warranted part, and such expenses are not covered by this warranty.

Notwithstanding any provisions contained in this President's Limited Lifetime Warranty , NAPOLEON’S responsibility under this warranty

is defi ned as above and it shall not in any event extend to any incidental, consequential or indirect damages.

This warranty defi nes the obligations and liability of NAPOLEON with respect to the NAPOLEON gas fi replace and any other warran-

ties expressed or implied with respect to this product, its components or accessories are excluded.

NAPOLEON neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this

product. NAPOLEON will not be responsible for: over-fi ring, downdrafts, spillage caused by environmental conditions such as rooftops,
buildings, nearby trees, hills, mountains, inadequate vents or ventilation, excessive venting confi gurations, insuffi cient makeup air, or
negative air pressures which may or may not be caused by mechanical systems such as exhaust fans, furnaces, clothes dryers, etc.

Any damages to fi replace, combustion chamber, heat exchanger, brass trim or other component due to water, weather damage, long

periods of dampness, condensation, damaging chemicals or cleaners will not be the responsibility of NAPOLEON.

The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from your

authorized dealer. The warranty registration card must be returned within fourteen days to register the warranty.

NAPOLEON reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty claim.

ALL SPECIFICA TIONS AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE DUE TO ON-GOING PRODUCT IMPROVEMENTS. NAPOLEON® IS A REGISTERED
TRADEMARK OF WOLF STEEL LTD. PATENTS U.S. 5.303.693.801 - CAN. 2.073.411, 2.082.915. © WOLF STEEL LTD.

W415-0547 / C / 07.25.06

GENERAL INSTRUCTIONS GENERAL INFORMATION

THIS GAS STOVE SHOULD BE INST ALLED AND SERVICED
BY A QUALIFIED INSTALLER to conform with local codes.

Installation practices vary from region to region and it is im­portant to know the specifi cs that apply to your area,
for example: in Massachusetts State:

• The fi replace damper must be removed or welded in the open
position prior to installation of a fi replace insert or gas log.

• A carbon monoxide detector is required in all rooms containing

gas fi red appliances.

• The appliance off valve must be a “T” handle gas cock.

• The fl exible connector must not be longer than 36 inches.

• The appliance is not approved for installation in a bedroom or
bathroom unless the unit is a direct vent sealed combustion
product.

• WARNING: This product must be installed by a licensed plumber
or gas fi tter when installed within the commonwealth of
Massachusetts.

In absence of local codes, install to the current CAN1-B149
Installation Code in Canada or to the National Fuel Gas
Code, ANSI Z223.1, and NFPA 54 in the United States. Mo­bile home installation must conform with local codes. In the
absence of local codes, install to the current standard for
gas equipped mobile housing CAN/CSA Z240 MH Series in
Canada or the manufactured home construction and safety
standard, Title 24 CFR, part 3280, or the Fire Safety Criteria
for manufactured home installations, Sites and Community

Standard ANSI/NFPA 501A in the United States.

Purge all gas lines with the glass door of the stove re­moved. Assure that a continuous gas fl ow is at the burner
before re-installing the door.
Under extreme vent confi gurations, allow several minutes
(5-15) for the fl ame to stabilize after ignition.
It is recommended that all horizontal runs have a ¼ inch
rise per foot.
Objects placed in front of the stove must be kept a mini­mum of 48" away from the front face of the unit.

The stove and its individual shutoff valve must be disconnected
from the gas supply piping system during any pressure test­ing of that system at test pressures in excess of 1/2 psig (3.5
kPa). The stove must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than ½ psig (3.5 kPa).
The stove, when installed with a blower, must be electrically
connected and grounded in accordance with local codes. In
the absence of local codes, use the current CSA C22.1 CA­NADIAN ELECTRICAL CODE in Canada or the ANSI/NFPA
70 NATIONAL ELECTRICAL CODE in the United States.

5

The blower power cord must be connected into a properly
grounded receptacle. The grounding prong must not be
removed from the cord plug.

FOR YOUR SATISFACTION, THIS STOVE HAS BEEN TEST­FIRED TO ASSURE ITS OPERATION AND QUALITY!

Minimum inlet gas supply pressure is 4.5 inches water col­umn for natural gas and 1 1 inches water column for propane.
Maximum inlet gas pressure is 7 inches water column for
natural gas and 13 inches water column for propane. When
the valve is set to "HI", the manifold pressure under fl ow
conditions is 3.5 inches water column for natural gas and
10 inches water column for propane. When the fi replace is
installed at elevations above 4,500ft, and in the absence of
specifi c recommendations from the local authority having
jurisdiction, the certifi ed high altitude input rating shall be
reduced at the rate of 4% for each additional 1,000ft.
Expansion / contraction noises during heating up and cooling
down cycles are normal and to be expected.

This appliance is only for use with the type of gas indicated
on the rating plate. This appliance is not convertible for use
with other gases, unless a certifi ed kit is used.

CARE OF GLASS, AND PLATED PARTS

Do not use abrasive cleaners to clean these parts. Buff lightly
with a clean dry cloth.
The glass is
/ Wolf Steel Ltd. dealer. DO NOT SUBSTITUTE MA TERIALS.
Clean the glass after the fi rst 10 hours of operation with a
recommended gas fi replace glass cleaner. Thereafter clean
as required. DO NOT CLEAN GLASS WHEN HOT! If the
glass is not kept clean permanent discolouration and / or
blemishes may result.

GDS25: Maximum input is 24,500 BTU/hr for natural

gas. Maximum output for natural gas is 19,600 BTU/hr at
an effi ciency of 80%. Maximum input is 23,000 BTU/hr for
propane. Maximum output for propane gas is 18,400 BTU/hr
at an effi ciency of 80%.
This stove is approved for closet or recessed installations, as
well as for bathroom, bedroom and bed-sitting room installa­tions and is suitable for mobile home installations. The natural
gas model can be installed in a mobile home that is perma­nently positioned on its site and fueled with natural gas.

3

/16" ceramic glass available from your Napoleon

W415-0547 / C / 07.25.06

6

LOCATION & CLEARANCES

Provide adequate accessibility clearance for

servicing and operating the stove.

Never obstruct the front opening of the stove.

STOVE DIMENSIONS

FIGURE 1

As long as clearance to combustibles is kept within the re­quired distances, the most desirable and benefi cial location
for a Napoleon stove is in the centre of a building, thereby
allowing the most effi cient use of the heat created. The loca-
tion of windows, doors and the traffi c fl ow in the room where
the stove is to be located should be considered. If possible,
you should choose a location where the vent will pass through
the house without cutting a fl oor or roof joist.

171/2"

5

25

/8"

MAINTAIN THESE MINIMUM CLEARANCES
TO COMBUSTIBLES:

A. 4" B. 2"* C. 2"

STOVE SHOULD NOT BE INSTALLED DIRECTLY ON CARPETING.

TO CEILING FROM STOVE TOP..................................................48"

HORIZONTAL VENT

SIDES AND BOTTOM ................................................................1"

TOP......................................................................................2"

VERTICAL VENT

ALL SIDES.............. ...............................................................1"

FIGURE 2

7" DIA.

235/8"

3

/4"

12

1

23

/2"

MANTEL OR SHELF CLEARANCES:

COMBUSTIBLE
MANTEL OR TRIM
MATERIAL

8”

MIN.

When the
fi replace is rear
vented, a mantel
or shelf may be
installed above
the GDS25 at a
minimum
distance of 8".

12”

MAX. MANTEL WIDTH

2”

4" DIA.

COMBUSTIBLE

MATERIALS

*AT A DISTANCE OF 2" FROM THE WALL, INSTALLATION OR SERVICE

TO THE BLOWER MAY NOT BE PRACTICAL. A MINIMUM OF 5" WILL
BE REQUIRED IN ORDER TO INSTALL THE BLOWER.

If less than 5" clearance is maintained between the back
of the stove and the back wall, it will be necessary to
disconnect the venting and gas pipe to move the stove
out for installation or service of the blower.

W415-0547 / C / 07.25.06

BLOWER INSTALLATION

Blower (SEE LOCATION AND CLEARANCES)

1. Cut and remove the tie securing the blower switch wires

to the heat shield.

2. Connect the white wire coming from below the unit to the
terminal on the blower.

3. Connect the black blower wire to the black wire coming
from below the unit.

4. Insert the clips on the blower housing into the cutouts in the
rear shield. Push down to lock the clips into position.

5. Secure the blower using the screw and lock washer sup­plied.
Note: Ensure that all the wires are tucked into the blower
switch housing.

7

7

9

8

7

1

4

2

3

Switches

6. Open the switch housing by removing the top screw.

7. Install the thermodisc bracket as shown, using 2 of the

screws supplied. Connect the fl agged leads to the terminals
of the thermodisc.
Remove the knock out from the housing label.

8. Install the variable speed switch (rheostat) into the housing
with the wires facing up. Secure the switch to the housing
using the pal nut and the knob supplied.

9. Connect the male connector on the switch to the female
connector coming from the unit.

10. Tuck all of the wires into the housing and close. Secure
using the screw removed in step 6.

4

5

1

3

4

2

5

NIGHT LIGHT REPLACEMENT

comes equipped with our “Night Light”.

If in the event the lamp or lens needs to be replaced,
follow these instructions.

Disconnect the two wire leads at the wire nut. Remove
the four screws securing the accent lite assembly from
the relief door. Disassemble the lite and the lamp now
can be accessed

Note: Do not handle the lamp (bulb) with bare
fi ngers, protect with a clean dry cloth.

The lamp will pull straight out of the socket. Replace with
Wolf Steel parts only, as lamp and lens are special “high
temperature” products.
When re-installing, ensure integrity of gasket seal.

4

RAIL

7

7

WIRE NUT

SHEILD

COVER PLATE

GASKET

GLASS LENS

GASKET

RELIEF

DOOR

8

9

THE FIREBOX

MUST BE SEALED.

When re-assembling

the light assembly,
care must be taken

with all gaskets.
“Light Leakage”

from above the

cast doors may be

noticed. The holes

in the lamp housing

RAIL

are necessary for

ventilation and must

not be covered.

W415-0547 / C / 07.25.06

8

AIR TERMINAL LOCATIONS

INSTALLATIONS

CANADIAN U.S.A.

A

12 INCHES

12 INCHES

Clearance above grade, veranda porch, deck or balcony .

B
C

12 INCHES

12 INCHES*

9 INCHES

12 INCHES*

Clearance to windows or doors that open.
Clearance to permanently closed windows.
Vertical clearance to ventilated sof fit located above the terminal within

D

18 INCHES**

12 INCHES**

E
F

0 INCHES

0 INCHES***

G

2 INCHES***

H

I

J
K

L

M
N
O

**

* Recommended to prevent condensation on windows and thermal breakage

**
****

** It is recommended to use a heat shield and to maximize the distance to vinyl clad soffits.

****
******

*** The periscope GD-201 requires a minimum 18 inches clearance from an inside corner.

******
********

**** This is a recommended distance. For additional requirements check local codes.

********
††

† Three feet above if within 10 feet horizontally.

††
‡‡

‡ A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family

‡‡

††††

†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the floor.

††††
†*†*

†* Recommenced to prevent recirculation of exhaust products. For additional requirements check local codes.

†*†*

W415-0547 / C / 07.25.06

3 FEET

3 FEET

12 INCHES

6 FEET

7 FEET‡

12 INCHES††

16 INCHES

2 FEET†*

dwellings and serves both dwellings.

18 INCHES**

12 INCHES**

0 INCHES

0 INCHES***

2 INCHES***

3 FEET****

3 FEET****

9 INCHES

3 FEET†

7 FEET****

12 INCHES****

16 INCHES

2 FEET†*

a horizontal distance of 2 feet from the centerline of the terminal.
Clearance to unventilated soffit.
Clearance to an outside corner wall.
Clearance to an inside non-combustible corner wall or protruding

non-combustible obstructions (chimney, etc.).
Clearance to an inside combustible corner wall or protruding com-

bustible obstructions ( vent chase, etc.).
Clearance to each side of the centerline extended above the meter

/ regulator assembly to a maximum vertical distance of 15ft.
Clearance to a service regulator vent outlet.
Clearance to a non-mechanical air supply inlet to the building or a

combustion air inlet to any other appliance.
Clearance to a mechanical air supply inlet.
Clearance above a paved sidewalk or paved driveway located on

public property unless fitted with a heat shield kit GD-301.
Clearance under a veranda, porch, deck or balcony .
Clearance above the roof.
Clearance from an adjacent wall including neighbouring buildings.

VENTING

VENTING LENGTHS &

AIR TERMINAL LOCATIONS

Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct T emp
or American Metal Amerivent venting components.

For Simpson Dura-Vent, Selkirk Direct Temp and American
Metal Amerivent, follow the installation procedure provided
with the venting components.

All outer pipe joints of these venting systems must be sealed
using Red RTV High Temperature Sealant.
Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp and
American Metal Amerivent venting systems must not be
combined.

A starter adaptor must be used and may be purchased from
the corresponding supplier:

PART 4"/7" SUPPLIER

Duravent GDS924N Wolf Steel
Amerivent 4DSCB-N1 American Metal
Direct Temp 4DT-AAN Selkirk

For vent systems that provide seals on the inner exhaust fl ue,
only the outer air intake joints must be sealed using a red high
temperature silicone (RTV). This same sealant maybe used
on both the inner exhaust and outer intake vent pipe joints
of all other approved vent systems except for the exhaust
vent pipe connection to the fi replace fl ue collar which must
be sealed using the black high temperature sealant Mill Pac.
High temperature sealant must be ordered separately.
When using Wolf Steel venting components, use only the
following vent kits: WALL TERMINAL KIT GD175 (7-1/2'
of venting included), WALL TERMINAL KIT GD176 (24" of
venting included), or 1/12 TO 7/12 PITCH ROOF TERMINAL

KIT GD110, 8/12 TO 12/12 ROOF TERMINAL KIT GD111,
FLA T ROOF TERMINAL KIT GD112 or STOVE PERISCOPE
KIT GD180 (for wall penetration below grade) in conjunction

with the appropriate venting components.

For optimum performance, it is recom­mended that all horizontal runs have a
minimum ¼ inch rise per foot.

9

• For optimum fl ame appearance and stove performance,
keep the vent length and number of elbows to a

minimum.

• The air terminal must remain unobstructed at all times.
Examine the air terminal at least once a year to verify
that it is unobstructed and undamaged.

The maximum horizontal run with a 57 inch vertical rise im­mediately above the stove is 20 feet . FIGURES 6a-b.

FIGURE 5

HORIZONTAL RUN NOT TO

EXCEED VERTICAL RISE

FIGS 6a-b

TYPICAL CORNER INSTALL

WITH ZERO RISE

• These vent kits allow for
either horizontal or vertical
venting of the stove.

• The maximum number of
4" fl exible connections
is 3 horizontally or three
vertically (excluding the
stove and the air terminal
connections).

• When terminating
vertically, the minimum

vertical rise is 3 feet
above the stove and the
maximum vertical rise is
40 feet. FIGURE 4.

Deviation from the minimum vertical vent length can
create diffi culty in burner start-up and/or carboning.

Use an adjustable pipe as the fi nal length of rigid

piping to the stove for ease of installation.

16 INCHES

40 FEET

MAXIMUM

3 FEET

MINIMUM

FIGURE 4

24” MAX

W415-0547 / C / 07.25.06

10

TYPICAL VENT INSTALLATIONS

NOTE:
When terminating vertically a bove 15', the
restrictor plate must be in the fully closed po­sition. Refer to Restricting Vertical Vents.

FIGURES 3 a-c

16"

40FT

MAX

3FT

MIN

SPECIAL VENT INSTALLATIONS

PERISCOPE TERMINATION

Use the GD201 periscope kit to locate the air termination
above grade. The periscope must be installed so that when
fi nal grading is completed, the bottom air slot is located a
minimum of 12 inches above grade. The maximum allowable
vent length depends on the fi replace, as illustrated.

24" MINIMUM

REGARDLESS

OF HORIZONTAL

VENT LENGTH

BELOW GRADE INSTALLATION

MAXIMUM 10FT VENT LENGTH

USE GD201 PERISCOPE KIT

12"MINIMUM

FIGURE 4

W415-0547 / C / 07.25.06

11

DEFINITIONS

for the following symbols used in the venting calculations
and examples are:

> - greater than
> - equal to or greater than
< - less than
< - equal to or less than

- total of both horizontal vent lengths (HR) and offsets

H

T

(HO) in feet
HR - combined horizontal vent lengths in feet
HO - offset factor: .03(total degrees of offset - 135°*) in

feet

VT - combined vertical vent lengths in feet

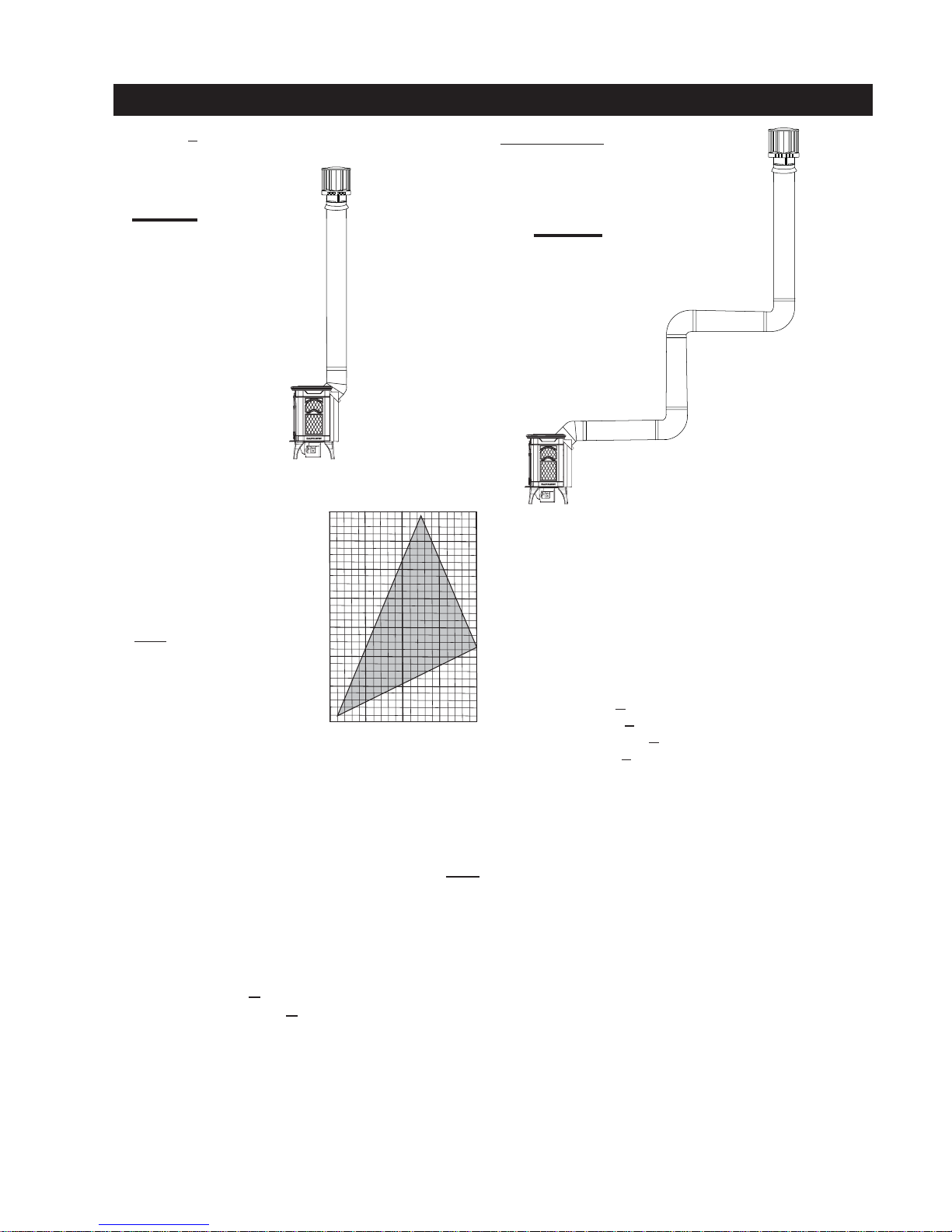

HORIZONTAL TERMINATION

when (HT) < (VT)

90°

FIGURE 5

ELBOW VENT LENGTH VALUES

feet inches
1° 0.03 0.5
15° 0.45 6.0
30° 0.9 11.0
45°* 1.35 16.0
90°* 2.7 32.0

* the fi rst 45º and 90° offset has a zero value and is
shown in the formula as -45° and -90º respectively or

-135º when combined.

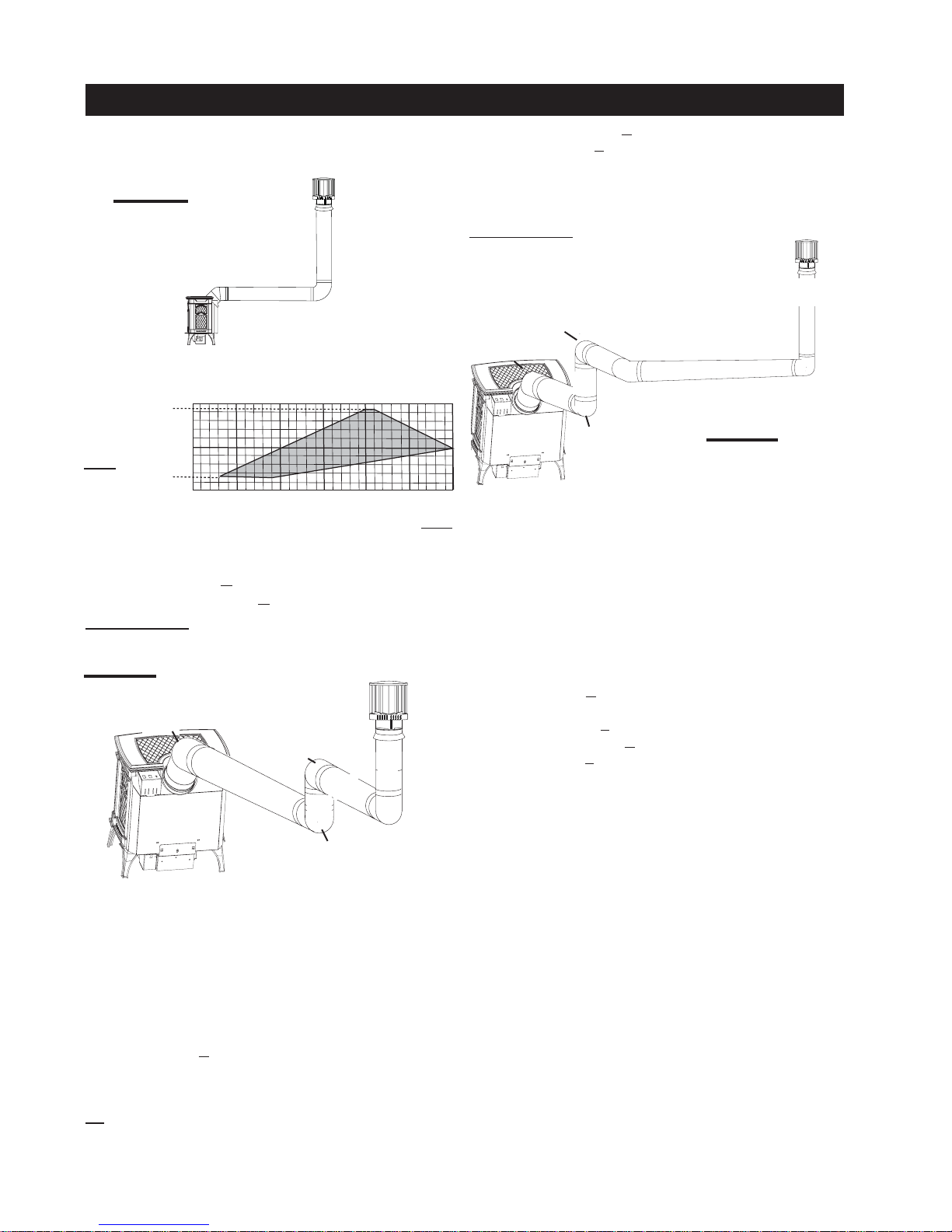

For vent confi gurations requiring more than one 45º and 90°
elbow, the following formulas apply:

Formula 1: HT < V
Formula 2: HT + VT < 40 feet

Example 1:

T

90°

H

2

45º

Simple venting confi guration (only one 45º and 90° elbow)

40

39

REQUIRED
VERTICAL
RISE IN
FEET (VT)

The shaded area within the lines represents acceptable

values for H

30

20

10

0

2.5 5 7.5 10 12.5 15

17.5 20

CALCULATED HORIZONTAL VENT RUN
PLUS OFFSETS IN FEET (HT)

and V

T

.

T

FIGURE 6

V

1

45º

H

1

V1 = 8 ft
VT =
H1 = 2.5 ft
H
HR = H1 + H2 = 2.5 + 2 = 4.5 ft
HO = .

=0.3(225-135º) = 2.7ft

HT = HR + HO = 4.5 + 2.7 = 7.2 ft
H

Formula 1: H
Formula 2: HT + VT < 40 feet

15.2 < 40

V1 = 8 ft

= 2 ft

2

03(one 45º elbow + two 90º elbows - 135º)

+ VT = 7.2 +8 =15.2ft

T

< V

T

7.2 < 8

T

90°

Since both formulas are met, this vent confi guration is
acceptable.

W415-0547 / C / 07.25.06

12

HORIZONTAL TERMINATION

when (HT) > (VT)
Simple venting confi guration (only one 45º and 90° elbow)

See graph to determine
the required vertical rise VT
for the required horizontal
run HT.

150
140

REQUIRED
VERTICAL
RISE IN
INCHES (VT)

HORIZONTAL VENT RUN PLUS OFFSETS IN FEET

130
120
110
100

90
80
70
60
50
40
30
20
10

0 5 10 15

The shaded area within the lines represents acceptable
values for HT and V

.

T

For vent confi gurations requiring more than one 45º and 90°
elbow the following formulas apply:

Formula 1: HT < 4.2 V

T

Formula 2: HT + VT < 24.75 feet

FIGURE 7

Example 2:

FIGURE 8

45°

H

90°

1

H

H

3

90°

2

V

2

90°

V

1

V

1

V

2

VT = V1 +
H1 = 2 ft
H2 = 1 ft
H3 = 1 ft
H4 = 1.5 ft
HR = H1 + H2 + H3 + H4 = 2 + 1 + 1 + 1. 5 = 5.5 ft
H

O

=.03(315-135)=5.4ft

HT = HR + HO = 5.5 +5.4 = 10.9 ft
HT + VT = 10.9 + 5.5 = 16.4 ft

Formula 1: HT < 4.2 V

4.2 VT = 4.2 x 5.5 = 23.1 ft

Formula 2: HT + VT < 24.75 feet

20

16.4 < 24.75
Since both formulas are met, this vent confi guration is

acceptable.

= 4 ft
= 1.5 ft

V2 = 4 ft + 1.5 ft = 5.5 ft

= .03(one 45º elbow + three 90º elbow -135º)

T

10.9 < 23.1

H

4

W415-0547 / C / 07.25.06

VERTICAL TERMINATION

13

when (HT) < (VT)

FIGURE 9

45°

See graph to determine the required vertical rise VT for the
required horizontal run HT.

150
140
130
120
110
100

90

REQUIRED VERTICAL RISE
IN FEET (VT)

80
70
60
50
40
30
20
10

0 5 10 15

Example 3:

V

FIGURE10

90°

V

45°

V

1

V

2

V

T

H1 = 3 ft

= 5 ft
= 10 ft

=

V1 +

H

1

V2 =

5 + 10 = 15 ft

1

90°

H

2

H2 = 2.5 ft
HR = H1 + H2 = 3 + 2.5 = 5.5 ft
HO = .03(one 45º elbow + three 90º elbows - 135º)

= .03(45+90+90+90-135)=5.4

HT = HR + HO = 5.5 + 5.4 = 10.9 ft
HT + VT = 10.9 + 15 = 25.9 ft

Formula 1: H

20

Formula 2: HT + VT < 40 feet

< V

T

10.9 < 15

T

25.9 < 40
Since both formulas are met, this vent confi guration is
acceptable.

2

90°

HORIZONTAL VENT RUN
PLUS OFFSETS IN FEET

The shaded area within the lines represents acceptable
values for HT and VT.

For vent confi gurations requiring more than one 45º and one

90° elbow , the following formulas apply:

Formula 1: HT < V

T

Formula 2: HT + VT < 40 feet

W415-0547 / C / 07.25.06

14

VERTICAL TERMINATION

when (HT) > (VT)
Simple venting confi gurations
See graph to determine the required vertical rise V

FIGURE 11

for the

T

Formula 2: HT + VT < 40 feet

15.9 < 40
Since only formula 2 is met, this vent confi guration
is unacceptable and a new fi replace location or vent
confi guration will need to be established to satisfy both
formulas.

Example 5:

V

2

90°

required horizontal run HT.
For vent confi gurations requiring more than one 45º and one
90° elbow , the following formulas apply:

REQUIRED
VERTICAL
RISE IN
FEET (V

T

20

19

10

)

3

0

HORIZONTAL VENT RUN PLUS OFFSET IN FEET

5101520

25

The shaded area within the lines represents acceptable
values for HT and VT.

Formula 1: HT < 3V

T

Formula 2: HT + VT < 40 feet
Example 4:

V

1

FIGURE 12

= 1 ft

45°

H

90°

1

V

1

H

V

2

2

90°

45°

H

V

30

1

V

2

V

T

H1 = 1 ft

= 1.5 ft
= 8 ft

=

1

V1 +

H

2

V

45°

1

90°

V2 =

1.5 + 8= 9.5 ft

H

3

FIGURE 13

H2 = 1 ft
H3 = 10.75 ft
HR = H1 + H2 + H3 = 1 + 1 + 10.75 = 12.75 ft
HO = .03(three 90° elbows + two 45° elbow - 135°)

= .03(90 + 90 + 90 + 45 + 45 - 135) = 6.75 ft

HT = HR + HO = 12.75 + 6.75 = 19.5 ft
HT + VT = 19.5 + 9.5= 29 ft

Formula 1: H
3VT =

Formula 2: HT + VT < 40 feet

< 3V

T

T

19.5 < 28.5

3 x

9.5 = 28.5 ft

29 < 40
Since both formulas are met, this vent confi guration is
acceptable.

90°

90°

V

2

V

T

H1 = 6 ft
H2 = 2 ft
HR = H1 + H2 = 6 + 2 = 8 ft
HO = .03(one 45º elbow + three 90º elbow - 135º)

= .03(45 + 90 + 90 + 90 - 135) = 5.4 ft

HT = HR + HO = 8 + 5.4 = 13.4 ft
HT + VT = 13.4 + 2.5 = 15.9 ft

Formula 1: H

Since this formula is not met, this vent confi guration is
unacceptable.

W415-0547 / C / 07.25.06

= 1.5 ft
=

V1 +

13.4 > 7.5

V2 =

1 + 1.5 = 2.5 ft

< 3V

T

3VT =

T

3 x

2.5 = 7.5 ft

VERTICAL THROUGH EXISTING CHIMNEY

INSTALLATION

This appliance is designed to be attached to a 3" co-lin­ear aluminum fl ex vent system running the full length of a
masonry chimney.

The fl exliner accommdates any contours of a masonry
chimney, however, it is necessary to keep the fl exible liner
as straight as possible. The inlet air collar of the termina­tion cap must be connected to the air intake pipe.

Use Simpson Duravent Chimney Liner Termination Kit

- 923GK (Baseplate and Co-Linear to Co-Axial Adaptor.
Follow manufacturers (Simpson Dura-Vent) installation
instructions.
When installing the unit to this system, Duravent vent
components must be used. You must start with a Duravent
adaptor, GDS924N, directly off the unit. The GDS924N is
only available at your Napoleon dealer.

15

W415-0547 / C / 07.25.06

16

VENT PIPE

SHIELD

"

"

T

P

WALL AND CEILING PROTECTION

FIGURE 16

HORIZONTAL INSTALLATION

This application occurs when venting through an exterior wall.
Having determined the air terminal location, cut and frame
a hole in an exterior wall with a minimum rectangle opening
of 10" x 9".
IMPORTANT: FOR OPTIMUM PERFORMANCE, THE
STOVE PIPE SHOULD RISE ¼" PER FOOT OF RUN.

1. Assemble the shield to the spacer as shown, using the

3 shorter screws supplied.

The shield is meant to protect combustible materials within
the wall. If the shield is deeper than the combustible portion
of the wall, cut to fi t.

2. Apply a bead of caulking all around and place the fi restop
spacer over the framework to restrict cold air from being drawn
into the room or around the stove. Ensure that both spacer
and shield maintain the required clearance to combustibles.
Secure the spacer in place using the 4 longer screws sup­plied. Once the vent pipe is installed in its fi nal position, apply
sealant between the pipe and the fi restop spacer.

VERTICAL INSTALLATION

This application occurs
when venting through a
roof.

Installation kits for vari­ous roof pitches are
available from your Na­poleon dealer. See Ac­cessories to order the
specifi c kit required.

1. Determine the air terminal location and move the stove into
position. Cut and frame 9" x 10" openings in the ceiling and
the roof to provide the minimum 1 inch clearance between
the stove pipe and any combustible material. Try to center the
exhaust pipe location midway between two joist to prevent
having to cut them. Use a plumb bob to line up the center of
the openings.

DO NOT FILL THIS SP ACE WITH ANY TYPE OF MA TERIAL.

FIGURE 18

caulking (not supplied) to the framework or to the Wolf Steel
vent pipe shield plate or equivalent (in the case of a fi nished
ceiling), and secure over the opening in the ceiling. A fi restop
must be placed on the bottom of each framed opening in a
roof or ceiling that the venting system passes through. Apply
a bead of caulking all around and place a fi restop spacer over
the vent shield to restrict cold air from being drawn into the
room or around the stove. Ensure that both spacer and shield
maintain the required clearance to combustibles. Once the
vent pipe is installed in its fi nal position, apply sealant between
the pipe and the fi restop spacer.

3. In the attic, after the pipe has been installed, slide the
vent pipe collar down to cover
up the open end of the shield
and tighten. This will prevent any
materials, such as insulation,
from fi lling up the 1" air space

around the pipe.

FOR SAFE AND PROPER

OPERATION OF THE STOVE,

FIGURE 17

99"

UUNNDDEERRSSIIDDEEOOFFJJOOIISST

1100"

FFIIRREESSTTOOP

A vent pipe shield will
prevent any materials
such as insulation, from
fi lling up the 1" air space
around the pipe. Nail
headers between the
joist for extra support.

2. Apply a bead of

FIGURE 19

W415-0547 / C / 07.25.06

17

HORIZONTAL VENTING INSTALLATION

FOLLOW THE VENTING INSTRUCTIONS EXACTLY.

ALL HORIZONTAL VENT RUNS MAY HAVE A 0" RISE

PER FOOT.

FOR OPTIMUM PERFORMANCE IT IS RECOMMENDED

THAT ALL HORIZONTAL RUNS HAVE A MINIMUM

¼ INCH RISE PER FOOT.

ALL INNER EXHAUST AND OUTER INTAKE VENT PIPE

JOINTS MAY BE SEALED USING EITHER RED RTV

HIGH TEMP SILICONE SEALANT OR BLACK HIGH

TEMP MILL PAC WITH THE EXCEPTION OF THE FIRE-

PLACE EXHAUST FLUE COLLAR WHICH MUST BE

SEALED USING MILL PAC (NOT SUPPLIED).

1. Stretch the 4" diameter aluminium fl exible liner to the re-

quired length taking into account the additional length needed
for the fi nished wall surface.
Spacers are attached to the 4" inner fl ex liner at predetermined

intervals to maintain a 1-1/4" air gap to the 7" outer stove pipe.
These spacers must not be removed.
Slip a 4" diameter length of aluminium fl exible liner a minimum
of 2" over the inner sleeve of the air terminal. Secure to the
sleeve using 3 screws. Seal the joint and screw heads using
the high temperature sealant.

2. Slip the fi rst section of 7" diameter stove pipe a minimum
of 2" over the outer sleeve of the air terminal. Secure to the
sleeve using 3 screws. Seal the joint and screw heads using
high temperature sealant.

3. Insert the liners through the fi restop / vent pipe shield.
Holding the air terminal (lettering in an upright, readable
position), secure to the exterior wall. Make weather tight by
sealing with caulking (not supplied). The air terminal mounting
plate may be recessed (up to 1½" maximum) into the exterior
wall or siding.

4. If more than one length of liner needs to be used to reach
the stove, couple them together as illustrated in FIGURE 21.
Seal the joints using the same procedure as described
above.

The vent system must be supported approximately every
10 feet along a horizontal run. Use supports or equivalent
non-combustible strapping to maintain the 1" clearance from
combustibles.

FIGURE 20

FIGURE 21

VERTICAL VENTING INSTALLATION

1. Fasten the roof support
to the roof using the screws
provided. The roof support
is optional. In this case the
venting is to be adequately
supported using either an
alternate method suitable to
the authority having jurisdiction
or the optional roof support.

2. Stretch the inner aluminum fl ex
liner to the required length. Slip the
liner a minimum of 2” over the inner
sleeve of the air terminal connector
and secure with 3 #8 screws. Seal
using a heavy bead of the high
temperature sealant.

3.Repeat using the outer aluminum
fl ex liner.

4. Thread the air terminal connector
/ liner assembly down through
the roof. The air terminal must be
located vertically and plumb. Attach
the air terminal connector to the roof
support, ensuring that the top of the
air terminal is 16” above the highest
point that it penetrates the roof.

5. Remove nails from the shingles, above and to the
sides of the chimney. Place the
fl ashing over the air terminal
connector leaving a min. 3/4”
of the air terminal connector
showing above the top of the
fl ashing. Slide the fl ashing
underneath the sides and upper
edge of the shingles. Ensure
that the air terminal connector
is properly centred within the
fl ashing, giving a 3/4” margin
all around. Fasten to the roof.
Do not nail through the lower
portion of the fl ashing. Make
weather-tight by sealing with
caulking. Where possible, cover
the sides and top edges of the
fl ashing with roofi ng material.

6. Aligning the seams of
the terminal and air terminal
connector, place the terminal
over the air terminal connector
making sure the liner goes into the hole in the terminal.
Secure with the three screws provided.

7. Apply a heavy bead of weatherproof caulking 2
inches above the fl ashing. Note: Maintain a minimum
2” space between the air inlet base and the storm collar.
Install the storm collar around the air terminal and slide
down to the caulking. Tighten to ensure that a weather­tight seal between the air terminal and the collar is
achieved.

ROOF SUPPORT

INNER
SLEEVE

AIR

TERMINAL

CONNECTOR

HIGH
TEMPERATURE
SEALANT

INNER FLEX
LINER

OUTER FLEX
LINER

DO NOT CLAMP

THE FLEXIBLE

ALUMINIUM

LINER.

2”

STORM COLLAR

Spacers are attached to

the inner fl ex liner at
predetermined intervals to
maintain a 1-1/4” air gap to

the outer fl ex liner. These

spacers must not be

removed.

W415-0547 / C / 07.25.06

AIR INLET
BASE

CAULKING

WEATHER
SEALANT

FLASHING

18

STOVE VENT CONNECTION

1. Attach the adjustable pipe to the last section of rigid pip-

ing. Secure with screws and seal.

2. Install the 4" aluminium fl exible liner

to the stove. Secure with 3 screws

2" OVERLAP

and fl at washers. Seal the joint
and screw holes using high
temperature sealant.

3. Run a bead of high tem­perature sealant Mill Pac
around the inside of the air
intake collar. Pull the adjust­able pipe a minimum 2" into
the air intake collar.

ENSURE THAT THE SEAL­ANT IS NOT VISIBLE ON THE EXTERIOR PIPES ONCE
INSTALLATION IS COMPLETED. AN OPTIONAL DECO­RATIVE BRASS BAND IS AVAILABLE FOR THIS USE.
(STANDARD WITH A GD175 KIT AND GD-176). IN THE
EVENT THAT THE VENTING MUST BE DISASSEMBLED,
CARE MUST BE TAKEN TO RESEAL THE VENTING.

MOBILE HOME INSTALLATION

SELF DRILLING

SCREWS

HI-TEMP

SEALANT

#8x1/2"

RESTRICTOR

SHOWN IN A FULLY

CLOSED POSITION

GAS INSTALLATION

1. Install rigid black pipe, or 1/2" type L copper tubing with a
shut-off valve to the stove.

2. Seal and tighten the gas line securely to a fl ex connec-
tor.

FIGURE 28

In Canada, mobile home installation may be vented horizon­tally or vertically . In the United States, it may only be installed
vertically. See "Vertical Venting" or "Horizontal Air Terminal
Installation" for installation.

For mobile home installations, the fi replace must be fastened
in place. It is recommended that the fi replace be secured in
all installations. Use the levelling/securing kit, GDSLL-KT for
this purpose.

RESTRICTING VERTICAL VENTS

FIGURE 27

RESTRICTOR

SHOWN IN A FULLY

OPEN POSITION

Vertical installations may display a very active fl ame. Loosen
the two screws and slide the restrictor plate blocking the ex­haust path. This reduces the velocity of the exhaust gases,
slowing down the fl ame pattern and creating a more traditional
fl ame appearance. For vertical vents greater than 15 feet, this
restrictor must be fully closed.

DO NOT KINK FLEXIBLE CONNECTOR.

3. Check for gas leaks by brushing on a soap and water solu­tion. DO NOT USE OPEN FLAME.

W415-0547 / C / 07.25.06

FINISHING

19

GLASS DOOR INSTALLATION

AND REMOVAL

1. Lift the top cast piece off of the unit.

2. Detach the front cast piece from the side pieces by re-

moving the screws from the brackets located in the upper
inside corners.

3. Slide the front straight up to remove.

3

DOOR

2

LATCHES

CAST FRONT INSTALLATION

AND REMOVAL

1. Lift the top cast piece off of the unit.

2. Unlatch the door latches from the door.

3. Slide the door straight up to remove.

2

3

FRONT

SCREWS

BRACKET

FIGURE 30

SWITCH FUNCTIONS

MAIN

BURNER

SWITCH

FAN

CONTROL

ACCENT

LIGHT

SWITCH

FIGURE 31

Follow the above steps in reverse in order to reinstall
the door. Ensure that the bottom of the door meets the
door retainer before closing the latches.

Follow the above steps in reverse in order to reinstall
the cast front. Ensure that the tabs on the underside of
the front fi t behind the front legs.

Note: It is not necessary to remove the cast front, in order
to remove the door.

FIGURE 32

FRONT

TAB

DOOR

RETAINER

FRONT

LEGS

W415-0547 / C / 07.25.06

20

LOGO PLACEMENT

Remove the backing from the the logo and position onto the
control door as shown.

LOG PLACEMENT

It is not necessary to remove the cast front, however, this
will make for a more simple log installation.

In order to assemble the log set, the glass door must be
removed, see Cast Front / Glass Door Removal in the
FINISHING section of this manual.

FIGURE 33a-d

LOG LOCATING SCREWS

1.27cm

LOGO

1.27cm

2. Place the hole in the underside of log #2 onto the locating
screw, on the left side of the burner . The fi bre burner is formed
to cradle the centre of the log.

BRACKET

1. Place the rear log, as shown, onto the rear log support
brackets. Ensure the cutout on the left underside of the log,
fi ts over the pilot assembly. Bend the bracket on the left side
to help retain the rear log.

3. Place the hole in the underside of log #3 onto the locating
screw, on the right side of the burner. The bottom branch of
log #3 sits infront of, and against, the right end of log #2.

4. Reinstall the glass door & front.

W415-0547 / C / 07.25.06

OPTIONAL SWITCH / WIRING DIAGRAM

The on/off switch is located on the back of the
GDS25 at the top right corner. For ease of acces­sibility, an optional remote wall switch or millivolt
thermostat may be installed in a convenient location.
The recommended maximum lead length depends on
wire size:

Purge all gas lines with the glass door of the fi replace open.

Assure that a continuous gas fl ow is at the burner before closing the door.

NOTE: WIRE TAGS

ARE BRACKETED

BATTERY
HOLDER

Black

BURNER
SWITCH /WALL

THERMOSTAT

WIRE SIZE MAX. LENGTH
14 gauge 100 feet
16 gauge 60 feet
18 gauge 40 feet
Route 2-strand (solid core) wire through the electri­cal hole located at the bottom left side of the unit.
Connect the wires from the wall switch / thermostat
to the two brown wires extending from the fi replace
mounted ignition control box.

IGNITION
MODULE

Yellow
(S)

Orange

(I)

PILOT
GAS LINE

[through
Gas line
conduit]

independent

PILOT
ASSEMBLY

[through

conduit]

21

AC ADAPTOR

Brown
(SWI)

Red
(+)

Red

Black
(-)

Yellow

Red (3 Volt)

MODULE
PLUG

BATTERY
RELAY

Black (12 Volt)
To Accent Light &
Accent Light Switch

Black
(TP)

Orange x2
(THTP)

Green x2
(TH)

Black

GAS VALVE

WIRE
HARNESS

Orange

Black

Green

Blue

RELAY
PLUG

W415-0547 / C / 07.25.06

22

Purge all gas lines with the glass door removed. Assure that a continuous gas fl ow is at the burner before reinstalling the
door.

FOR YOUR SAFETY READ BEFORE OPERATING

WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION

MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

A. THIS FIREPLACE IS EQUIPPED WITH AN IGNITION DEVICE
WHICH AUTOMATICALLY LIGHTS THE PILOT. DO NOT TRY
TO LIGHT BY HAND.
B. BEFORE OPERATING SMELL ALL AROUND THE FIREPLACE
AREA FOR GAS AND NEXT TO THE FLOOR BECAUSE SOME
GAS IS HEAVIER THAN AIR AND WILL SETTLE ON THE
FLOOR.
C. USE ONLY YOUR HAND TO TURN THE GAS CONTROL
KNOB. NEVER USE TOOLS. IF THE KNOB WILL NOT TURN
BY HAND, DO NOT TRY TO REPAIR IT. CALL A QUALIFIED
SERVICE TECHNICIAN. FORCE OR ATTEMPTED REPAIR
MAY RESULT IN A FIRE OR EXPLOSION.
D. DO NOT USE THIS FIREPLACE IF ANY PART HAS BEEN
UNDER WATER. IMMEDIATELY CALL A QUALIFIED SERVICE
TECHNICIAN TO INSPECT THE FIREPLACE AND

REPLACE ANY PART OF THE CONTROL SYSTEM AND
ANY GAS CONTROL WHICH HAS BEEN UNDER
WATER.

WHAT TO DO IF YOU SMELL GAS:

• TURN OFF ALL GAS TO THE FIREPLACE.

• OPEN WINDOWS.

• DO NOT TRY TO LIGHT ANY APPLIANCE.

• DO NOT TOUCH ANY ELECTRIC SWITCH; DO NOT
USE ANY PHONE IN YOUR BUILDING.

• IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A
NEIGHBOUR'S PHONE FOLLOW THE GAS SUPPLI
ER'S INSTRUCTIONS.

• IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL
THE FIRE DEPARTMENT.

OPERATING INSTRUCTIONS

1. STOP! READ THE ABOVE SAFETY INFORMATION ON

THIS LABEL.

2. TURN REMOTE WALL SWITCH TO OFF POSITION.

3. TURN OFF ALL ELECTRIC POWER TO THE FIREPLACE

AND REMOVE BATTERIES.

4. THIS FIREPLACE IS EQUIPPED WITH AN IGNITION

DEVICE WHICH AUTOMATICALLY LIGHTS THE PILOT. DO
NOT TRY TO LIGHT THE PILOT BY HAND.

5. TURN MANUAL SHUTOFF VALVE CLOCKWISE TO

OFF.

6. OPEN THE GLASS DOOR.

7. WAIT FIVE (5) MINUTES TO CLEAR OUT ANY GAS. IF

YOU SMELL GAS INCLUDING NEAR THE FLOOR, STOP!

FOLLOW "B" IN THE ABOVE SAFETY INFORMATION ON
THIS LABEL. IF YOU DON'T SMELL GAS GO TO THE
NEXT STEP.

8. CLOSE THE GLASS DOOR.

9. TURN MANUAL SHUTOFF VALVE COUNTER­ CLOCKWISE TO ON.

10. TURN ON ALL ELECTRIC POWER TO THE FIREPLACE
AND RE-INSTALL BATTERIES.

11. TURN ON REMOTE WALL SWITCH TO ON POSITION.

12. IF FIREPLACE WILL NOT OPERATE, FOLLOW
INSTRUCTIONS "TO TURN OFF GAS" AND CALL YOUR
SERVICE TECHNICIAN OR GAS SUPPLIER.

TO TURN OFF GAS

1. TURN OFF REMOTE WALL SWITCH TO THE FIREPLACE.

2. TURN OFF ALL ELECTRICAL POWER TO THE FIREPLACE IF SERVICE IS TO BE PERFORMED.

3. TURN MANUAL SHUTOFF VALVE CLOCKWISE TO OFF. DO NOT FORCE.

W415-0547 / C / 07.25.06

MAINTENANCE

TURN OFF THE GAS AND UNPLUG

ELECTRICAL POWER BEFORE

SERVICING THE STOVE!

CAUTION: Label all wires prior to disconnection when servic­ing controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing. This stove
and its venting system should be inspected before use and
at least annually by a qualifi ed service person. The fi replace
area must be kept clear and free of combustible materials,
gasoline or other fl ammable vapours and liquids. The fl ow of
combustion and ventilation air must not be obstructed.

1. In order to properly clean the burner and pilot assembly,

remove the logs exposing both assemblies.

2. Keep the control compartment, logs, burner, air shutter

opening and the area surrounding the logs clean by vacuum-

ADJUSTMENTS

PILOT INJECTOR AND ORIFICE REPLACEMENT

1. Turn off the electrical
and gas supply to the fi re-
place.

2. Remove the cast front,
glass viewing door and
log set.

3. Remove the 2 securing
screws. Slide the burner
assembly to the right and
lift out.

4. Using a deep
wrench, remove the main
burner orifi ce. A 7/8” back-up
wrench must be used on
the manifold, located below
the housing to ensure that
the aluminum tubing does
not twist or kink. Replace
the correct burner orifice
using pipe thread compound.

5. Loosen nut and replace with appro­priate injector

6. Reinstall the burner ensuring that the
Venturi tube fi ts over the orifi ce.

Remove the 2 screws securing the burner. Natural gas models
have air shutters set to 0.25" open (1/4"). Propane models
have air shutters set to 0.438" open (7/16").
After making adjustments replace the burner ensuring that the
venturi tube fi ts over the orifi ce and replace the screws.

9

/16” socket

ORIFICE

LOCATION

BURNER

ASSEMBLY

FIGURE 37

FIGURE 35

VENTURI ADJUSTMENT

23

ing or brushing, at least once a year.

3. Check to see that all burner ports are burning. Clean out
any of the ports which may not be burning or are not burning
properly.

4. Check to see that the pilot fl ames are large enough to
engulf the thermocouple and the thermopile on one leg and
reaches toward the burner on the other leg.

5. Replace the cleaned logs.

6. Check to see that the main burner ignites completely on

all openings when the gas knob for the burner is turned on.
A 5-10 second total light-up period is satisfactory. If ignition
takes longer, consult your Napoleon dealer/distributor.

7. Check that the door gasketing is not broken or missing.

NOTE: Check and adjust, if necessary, the primary air
to 7/16” for propane and 1/4” for natural gas. Replace the

screws.

7. T urn on the gas supply and check for gas leaks by brushing
on a soap and water solution.

Do not use open fl ame.

8. Replace the log set. Then light the pilot and main burner

to ensure that the gas lines have been purged.

9. Replace the glass viewing door and cast front. Turn on
the electrical supply to the fi replace.

Purge all gas lines with the glass door removed.

Assure that a continuous fl ow is at the burner before

re-installing the door.

This must be carried out by an AUTHORIZED
REPRESENTATIVE OF WOLF STEEL LTD. or a QUALIFIED
GAS INSTALLER in accordance with local codes or in the
absence of local codes with the requirements of the provin­cial / state authorities having jurisdiction and in accordance
with the requirements of the CAN1-B149 Installation Code in
Canada and the ANSI Z223.1 National Fuel Gas Code in the
United States.

Closing the air shutter will cause a more yellow fl ame, but
can lead to carboning. The fl ame may not appear yellow
immediately; allow 15 to 30 minutes for the fi nal fl ame
colour to be established.

FIGURE 36

Air shutter adjustment must only be done by a

qualifi ed gas installer!

W415-0547 / C / 07.25.06

24

REPLACEMENTS

Contact your dealer for questions concerning prices and
availability of replacement parts. Normally all parts can be
ordered through your Napoleon dealer or distributor.
When ordering replacement parts always give the following
information:

FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY

OF THE ORIGINAL INVOICE WILL BE REQUIRED TO

HONOUR

REPLACEMENT PARTS

# PART # DESCRIPTION

1 W135-0248 LOG #1- REAR
2 W135-0249 LOG #2 - LEFT
3 W135-0250 LOG #3 - RIGHT
4 GL-651 LOG SET
5 W725-0032 DEXEN VALVE - NG
5 W725-0049 DEXEN VALVE - LP
6 W100-0084 BURNER (NATURAL GAS)
6 W100-0086 BURNER (PROPANE)
7 W455-0017 #42 BURNER ORIFICE - NG
7 W455-0003 #54 BURNER ORIFICE - LP
7 W455-0001 #44 BURNER ORIFICE - NG-HA
7 W455-0050 #55 BURNER ORIFICE - LP-HA
8 W455-0049 PILOT INJECTOR - LP
9 W455-0071 PILOT INJECTOR - NG
10 W720-0092 PILOT TUBE
11 W100-0069 PILOT ASSEMBLY - NG
11 W100-0093 PILOT ASSEMBLY - LP
12* W385-0334 NAPOLEON LOGO
13* W660-0009 ON/OFF SWITCH
14* W387-0006 HALOGEN BULB 10W T320
15* W290-0108 TOP LENS GASKET
16* W290-0109 BOTTOM LENS GASKET
17* N402-0001 HIGH TEMPERATURE LIGHT ASSEMBLY
18 W135-0256** FRONT CAST
19 W135-0232** SIDE (LEFT OR RIGHT) CAST
20 W135-0257** TOP CAST
21 W225-0258** DOOR RIGHT CAST
21 W225-0259** DOOR LEFT CAST
22 W010-1446 GLASS W/ GASKET
23 W430-0013 CONTROL DOOR MAGNET
24 W010-1408 CONTROL COVER
25 W010-1313 FIRESTOP SPACER
26 W585-0198 FIRESTOP SPACER SHIELD

TERMINAL KITS

27* GD175 - WALL TERMINAL KIT

28 BM6790 90° ELBOW - 7" DIAMETER
29 GD222 TERMINAL ASSEMBLY
30 BM67ADJ 30" TO 53" ADJUSTABLE PIPE - 7" DIA
31 W500-0077 FIRESTOP / WALL PLATE
32* W020-0032 HARDWARE
33 BRTC7 BRASS TRIM COLLAR
34 BM6724 24" STOVE PIPE - 7" DIAMETER
35 W010-0300 10' ALUMINIUM FLEX LINER
36 W025-0001 DECORATIVE BRASS BAND

37* GD180 - PERISCOPE TERMINAL KIT

28 BM6790 90° ELBOW - 7" DIAMETER
38* GD201 PERISCOPE
30 BM67ADJ 30" TO 53" ADJUSTABLE PIPE - 7" DIA
31 W500-0077 FIRESTOP / WALL PLATE
32* W020-0032 HARDWARE
33 BRTC7 BRASS TRIM COLLAR
34 BM6724 24" STOVE PIPE - 7" DIAMETER
35 W010-0300 10' ALUMINIUM FLEX LINER C/W SPACERS - 4" DIA

39* GD176 - WALL TERMINAL KIT

29 GD222 TERMINAL ASSEMBLY
33 BRTC7 BRASS TRIM COLLAR
34 BM6724 24" STOVE PIPE - 7" DIAMETER
36 W025-0001 DECORATIVE BRASS BAND
40 BM6745 45° ELBOW
41* W410-0027 2 PLY FLEX ALUMINIUM LINER - 4" x 32.5"

THE CLAIM.

C/W SPACERS - 4" DIA

1. MODEL & SERIAL NUMBER OF FIREPLACE

2. INSTALLATION DATE OF FIREPLACE

ART NUMBER

3. P

4. DESCRIPTION OF PART

5. FINISH

* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR

FURTHER INFORMATION, CONTACT YOUR

NAPOLEON

DEALER.

ROOF TERMINAL KITS

GD110 - 1/12 TO 7/12 PITCH

42 W670-0006 AIR TERMINAL
43 W490-0073 4/7 INNER / OUTER SLEEVE
44 W010-0567 ROOF SUPPORT
45 W170-0063 STORM COLLAR
46 W263-0054 ROOF FLASHING

GD111 - 8/12 TO 12/12 PITCH

42 W670-0006 AIR TERMINAL
43 W490-0073 4/7 INNER / OUTER SLEEVE
44 W010-0567 ROOF SUPPORT
45 W170-0063 STORM COLLAR
46 W263-0055 ROOF FLASHING

GD112 - FLAT ROOF

42 W670-0006 AIR TERMINAL
43 W490-0073 4/7 INNER / OUTER SLEEVE
44 W010-0567 ROOF SUPPORT
45 W170-0063 STORM COLLAR
46 W263-0056 ROOF FLASHING

ACCESSORIES

47* W690-0001 MILLIVOLT THERMOSTAT
48* W690-0011B REMOTE CONTROL - ADVANTAGE PLUS
49 GS-65KT BLOWER KIT
50* GDSLL-KT LEG LEVELLING KIT
51* W175-0244 CONVERSION KIT - NG 2,000-4,500
51* W175-0245 CONVERSION KIT - LP 2,000-4,500
52* W175-0246 CONVERSION KIT - NG-LP 0-2,000
52* W175-0247 CONVERSION KIT - LP-NG 0-2,000
40 BM6745 45° ELBOW
53 GD-301 HEAT GUARD
54* W175-0001 4" COUPLER
38* GD201 PERISCOPE
36 W025-0001 DECORATIVE BRASS BAND
55* GS331S STOVE TOP INSET - SOAPSTONE
55* GS-331F STOVE TOP INSET - GRANITE - GREEN
55* GS-331N STOVE TOP INSET - GRANITE - BROWN

GDS25 UNIT COLOURS

**FOR OTHER AVAILABLE COLOURS, ADD THESE LETTERS TO
THE BASE PART NUMBER:
COLOR FINISH

SUMMER MOSS -M PORCELAIN
MAJOLICA BROWN -N PORCELAIN
WINTER FROST -W PORCELAIN
WROUGHT IRON -WI PAINTED

W415-0547 / C / 07.25.06

25

* WARNING: This is a fast acting thermocouple. It is an integral safety component. Replace only with a fast acting
thermocouple supplied by Wolf Steel Ltd.

W415-0547 / C / 07.25.06

26

TROUBLE SHOOTING GUIDE

BEFORE ATTEMPTING TO TROUBLESHOOT, PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR REMOVED.

SYMPTOM PROBLEM TEST SOLUTION

erify the "S" wire for the sensor and the "I" wire for the ignitor are

Pilot will not light.

Makes noise with no
spark at pilot burner

Pilot will not light.
Makes no noise with no
spark at pilot burner

- W

iring

- Loose connection

- Module

- Igniter Spark gap is
incorrect

- Transformer

A shorted or loose

-
Connection

- Improper switch wiring

- Module is not grounded

- Faulty module

V
connected to the correct terminals (not reverse) on the module and
pilot assembly.
Verify no loose connections, electrical shorts in the wiring or ground
out to any metal object.
Turn the ON/OFF switch to the "OFF" position. Remove the igniter
wire "I" from the module. Place the ON/OFF switch to the "ON" posi­tion. Hold a grounded wire about 3/16" away from the "I" terminal on
the module. If no spark the "I" terminal module must be replaced. If
there is a spark the "I" terminal is fi ne. Inspect pilot assembly for a
shorted wire or cracked insulator around the electrode.

- spark gap of the ignitor to the pilot should be .17" tor 1/8"

V

erify the transformer is installed and plugged into the module. Check
voltage of the transformer under load at the spade connections on
the module with the ON/OFF switch in the "ON" position. Acceptable
readings of a good transformer are between 3.2 and 2.8 volts A.C.
Remove and reinstall the wiring harness that plugs into the module.
Remove and verify continuity of each wire in wiring harness.
Troubleshoot the system with the simplest ON/OFF switch
Verify the value and pilot assemblies are properly grounded to the
metal chassis of the fi replace or log set.
Turn the ON/OFF switch to the "OFF" position. Remove the igniter
wire "I" from the module. Place the ON/OFF switch to the "ON" posi­tion. Hold a grounded wire about 3/16" away from the "I" terminal on
the module. If no spark the "I" terminal module must be replaced. If
there is a spark the "I" terminal is fi ne. Inspect pilot assembly for a
shorted wire or cracked insulator around the electrode.

Pilot sparks but will not light

Continues to sparks
and pilot lights, but
main burner will not
light

W415-0547 / C / 07.25.06

- Gas supply

- Module is not grounded

- Out of propane gas.

- Short or loose
connection in sensor rod

- Poor fl ame rectifi cation
or contaminated
sensor rod

- Poor grounding between
pilot assembly and
gas valve

- Damaged pilot or dirty
sensor rod

Verify that the incoming gas line ball valve is "Open". Verify that the
inlet pressure reading is within acceptable limits, inlet pressures must
not exceed 14" W.C.

Verify the value and pilot assemblies are properly grounded to the

metal chassis of the fi replace or log set.

- fi ll the tank.

Verify all conncetions. V erify the connections from the pilot assembly
are tight; also verify these connections are not grounding out to any
metal.
Verify the fl ame is engulfi ng the sensor rod. This will increase the
fl ame rectifi cation. Verify correct pilot orfi ce is installed and inlet gas
specifi cations to manual. (Remember, the fl ame carries the rectifi ca-

tion current, not the gas. If the fl ame lifts from pilot hood, the curcuit
is broken. A wrong orfi ce or too high of an inlet pressure can cause
the pilot fl ame to lift.) The sensor rod may need cleaning.

Verify that the wire harness is fi rmly connected to module

Verify that the ceramic insulator around the sensor rod is not cracked,
damaged, or loose. Verify the connection from the sensor rod to the
sensor wire. Clean sensor rod wih an enery cloth to remove any
contamination that may have accumulated on the sensor rod. Verify
continuity with multimeter with olms set at the lowest range.

SYMPTOM PROBLEM TEST SOLUTION

27

Pilot lights
Stops sparking
/ pilot remains lit
but burner will
not turn on

Exhaust fumes smelled
in room, headaches.

Carbon is being depos­ited on glass, logs or
combustion chamber
surfaces.

- Wiring / Connection

- Wiring harness

- Module or Valve

- Fireplace is spilling.

- Air shutter has become
blocked

- Flame is impinging on the
logs or combustion chamber.

Inspect all wires, ensure good tight connections. Verify that all
wiring is installed exactly as specifi ed.

Inspect the wiring harness, and verify the harness is tightly con­nected to the module. Verify that you have 7 wires and they are
connected in the right order.

Conduct the following test to verify if the problem is the module or
valve. T o measure voltages, turn multimeter to "DC" place the red
lead from multimeter on the screw on the terminal block for the
wire you are checking, touch black lead to ground (valve body).
Importantly , a "Zero" volts reading does not automatically indicate
a bad module, there may be too little resistance in the valve sole­noid. Check the Green wire disconnected from valve that the volt­age output from the module should be between 2 and 3 volts

Check all seals.

Ensure air shutter opening is free of lint or other obstructions.

Check that the logs are correctly positioned.
Open air shutter to increase the primary air.
Check the input rate: check the manifold pressure and orifi ce
size as specifi ed by the rating plate values.
Check that the door gasketing is not broken or missing and
that the seal is tight.
Check that both vent liners are free of holes and well sealed
at all joints.
Check that minimum rise per foot has been adhered to for
any horizontal venting.

Flames are very ag­gressive.

Main burner fl ame is a
blue, lazy, transparent
fl ame.

White / grey film
forms.

- Door is ajar

- Venting action is too great.

- Blockage in vent. Remove blockage. In really cold conditions, ice buildup may occur

- Incorrect installation (vertical
termination only).

- Sulphur from fuel is being de
posited on glass, logs or
combustion chamber
surfaces.

Tighten door clamps
Restrict vent exit with restrictor plate. See Restricting Vents.

on the terminal and should be removed as required.
Refer to Figure 24 to ensure correct location of storm collars.

Clean the glass with a recommended gas fi replace glass cleaner.
DO NOT CLEAN GLASS WHEN HOT.
If deposits are not cleaned off regularly, the glass may become
permanently marked.

W415-0547 / C / 07.25.06

28

SPECIAL CONCERNS

SERVICE PERFORMANCE

Fireplace Service History

SERVICE TECHNICIAN NAME

This fireplace must be serviced annually depending on usage

DEALER NAME

DATE

W415-0547 / C / 07.25.06
