Napoleon B46NTR, B46NTRE Specifications

ASCENTTM 46 DIRECT VENT GAS FIREPLACE

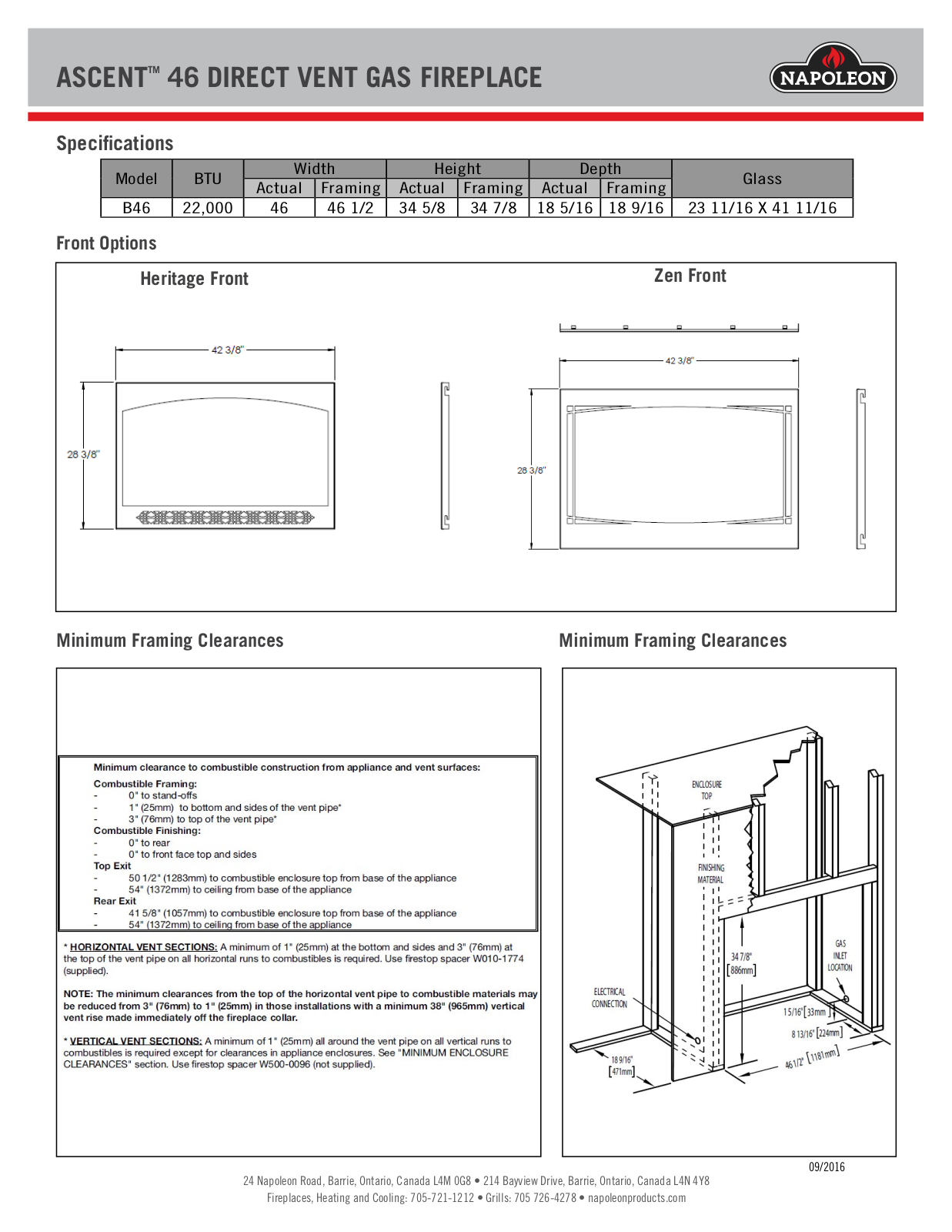

Specifications

Model BTU

B46 22,000 46 46 1/2 34 5/8 34 7/8 18 5/16 18 9/16 23 11/16 X 41 11/16

Front Options

Width Height Depth

Actual Framing Actual Framing Actual Framing

Glass

Heritage Front

Minimum Framing Clearances

Zen Front

Minimum Framing Clearances

24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8 • 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8

Fireplaces, Heating and Cooling: 705-721-1212 • Grills: 705 726-4278 • napoleonproducts.com

09/2016

ASCENT

Product information provided is not complete and is subject to change without notice. Please consult the installation manual for
the most up to date installation information.

TM

46 DIRECT VENT GAS FIREPLACE

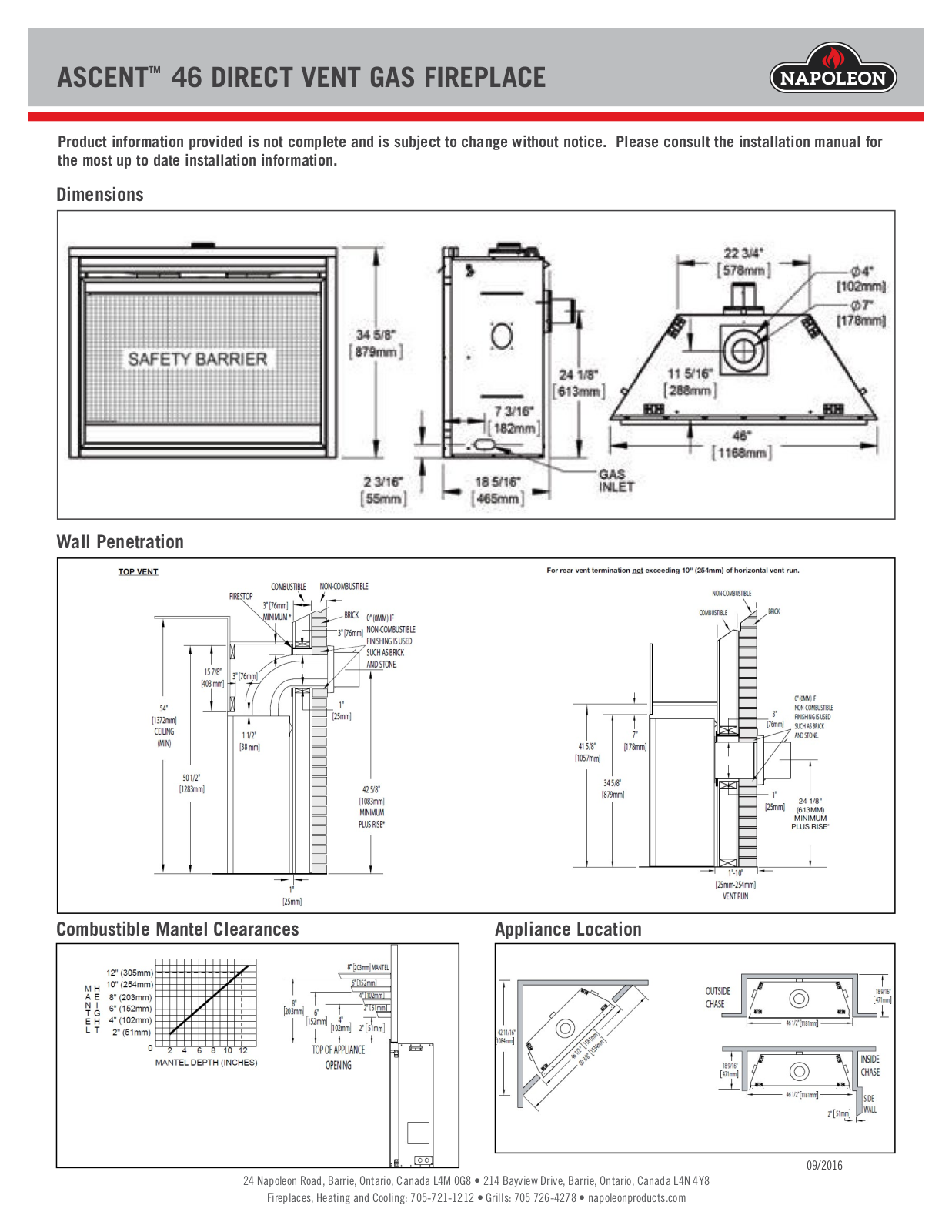

Dimensions

Wall Penetration

Combustible Mantel Clearances

Appliance Location

24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8 • 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8

Fireplaces, Heating and Cooling: 705-721-1212 • Grills: 705 726-4278 • napoleonproducts.com

09/2016
