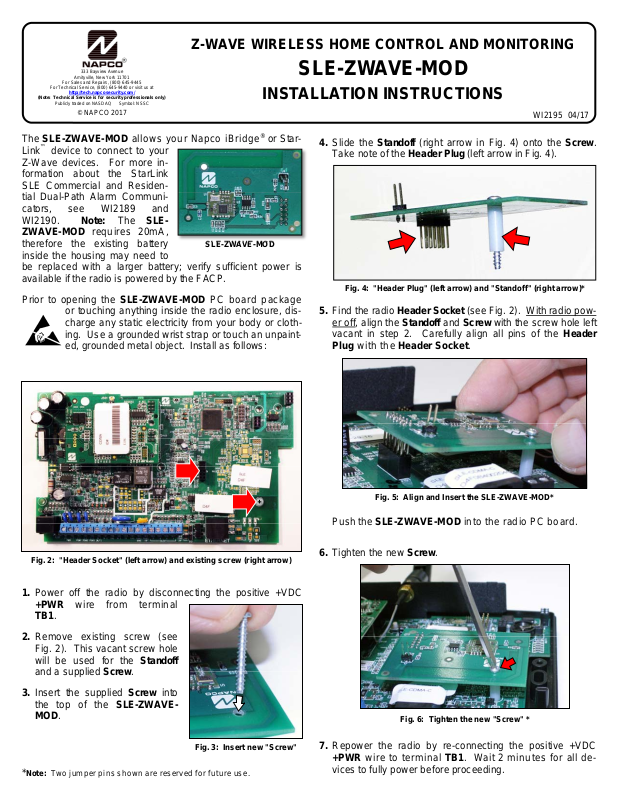

Napco SLE-ZWAVE-MOD Installation Manual

Z-WAVE WIRELESS HOME CONTROL AND MONITORING

333 Bayview Avenue

Amityville, New York 11701

For Sales and Repairs, [phone]

For Technical Service, [phone] or visit us at

(Note: Technical Service is for security professionals only)

http://tech.napcosecurity.com/

Publicly traded on NASDAQ Symbol: NSSC

INSTALLATION INSTRUCTIONS

SLE-ZWAVE-MOD

© NAPCO 2017

The SLE-ZWAVE-MOD allows your Napco iBridge® or Star-

™

Link

device to connect to your
Z-Wave devices. For more in­formation about the StarLink
SLE Commercial and Residen­tial Dual-Path Alarm Communi­cators, see WI2189 and
WI2190. Note: The SLE-
ZWAVE-MOD requires 20mA,
therefore the existing battery

SLE-ZWAVE-MOD

inside the housing may need to
be replaced with a larger battery; verify sufficient power is
available if the radio is powered by the FACP.

Prior to opening the SL E-ZWAVE-MOD PC board package

or touching anything inside the radio enclosure, dis­charge any static electricity from your body or cloth­ing. Use a grounded wrist strap or touch an unpaint­ed, grounded metal object. Install as follows:

Fig. 2: "Header Socket" (left arrow) and existing screw (right arrow)

1. Power off the radio by disconnecting the positive +VDC

+PWR wire from terminal
TB1.

2. Remove existing screw (see

Fig. 2). This vacant screw hole
will be used for the Standoff
and a supplied Screw.

3. Insert the supplied Screw into

the top of the SLE-ZWAVE-

MOD.

Fig. 3: Insert new "Screw"

*Note: Two jumper pins shown are reserved for future use.

WI2195 04/17

4. Slide the Standoff (right arrow in Fig. 4) onto the Screw.
Take note of the Header Plug (left arrow in Fig. 4).

Fig. 4: "Header Plug" (left arrow) and "Standoff" (right arrow)*

5. Find the radio Header Socket (see Fig. 2). With radio pow-

er off, align the Standoff and Screw with the screw hole left
vacant in step 2. Carefully align all pins of the Header

Plug with the Header Socket.

Fig. 5: Align and Insert the SLE-ZWAVE-MOD*

Push the SLE-ZWAVE-MOD into the radio PC board.

6. Tighten the new Screw.

Fig. 6: Tighten the new "Screw" *

7. Repower the radio by re-connecting the positive +VDC
+PWR wire to terminal TB1. Wait 2 m in u t es f o r al l d e-

vices to fully power before proceeding.
