StarLink Antenna Extension Kits
333 Bayview Avenue, Amityville, New York 11701
For Sales and Repairs, (800) 645-9445
For Technical Service, (800) 645-9440 or visit us at
(Note: Technical Service is for security professionals only)
http://tech.napcosecurity.com/
Publicly traded on NASDAQ Symbol: NSSC
© NAPCO 2018

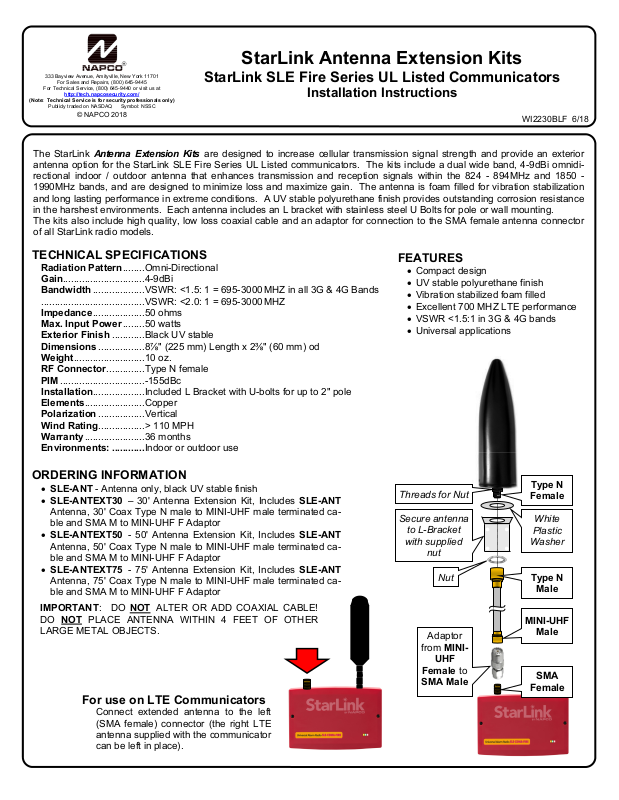

The StarLink Antenna Exte nsion Kits are designed to increase cellular transmission signal strength and provide an exterior
antenna option for the StarLink SLE Fire Series UL Listed communicators. The kits include a dual wide band, 4-9dBi omnidirectional indoor / outdoor antenna that enhances transmission and reception signals within the 824 - 894MHz and 1850 1990MHz bands, and are designed to minimize loss and maximize gain. The antenna is foam filled for vibration stabilization
and long lasting performance in extreme conditions. A UV stable polyurethane finish provides outstanding corrosion resistance
in the harshest environments. Each antenna includes an L bracket with stainless steel U Bolts for pole or wall mounting.
The kits also include high quality, low loss coaxial cable and an adaptor for connection to the SMA female antenna connector
of all StarLink radio models.
StarLink SLE Fire Series UL Listed Communicators
Installation Instructions
WI2230BLF 6/18
TECHNICAL SPECIFICATIONS
Radiation Pattern ........ Omni-Directional
Gain .............................. 4-9dBi
Bandwidth ................... VSWR: <1.5: 1 = 695-3000
...................................... VSWR: <2.0: 1 = 695-3000
MHZ in all 3G & 4G Bands
MHZ
Impedance ................... 50 ohms
Max. Input Power ........ 50 watts
Exterior Finish ............ Black UV stable
Dimensions ................. 8⅞" (225 mm) Length x 2⅜" (60 mm) od
Weight .......................... 10 oz.
RF Connector .............. Type N female
PIM ............................... -155dBc
Installation ................... Included L Bracket with U-bolts for up to 2" pole
Elements ...................... Copper
Polarization ................. Vertical
Wind Rating ................. > 110 MPH
Warranty ...................... 36 months
Environments: ............ Indoor or outdoor use
ORDERING INFORMATION
SLE-ANT - Antenna only, black UV stable finish
SLE-ANTEXT30 – 30' Antenna Extension Kit, Includes SLE-ANT
Antenna, 30' Coax Type N male to MINI-UHF male terminated cable and SMA M to MINI-UHF F Adaptor
SLE-ANTEXT50 - 50' Antenna Extension Kit, Includes SLE-ANT
Antenna, 50' Coax Type N male to MINI-UHF male terminated cable and SMA M to MINI-UHF F Adaptor
SLE-ANTEXT75 - 75' Antenna Extension Kit, Includes SLE-ANT
Antenna, 75' Coax Type N male to MINI-UHF male terminated cable and SMA M to MINI-UHF F Adaptor
IMPORTANT: DO NOT ALTER OR ADD COAXIAL CABLE!
DO NOT PLACE ANTENNA WITHIN 4 FEET OF OTHER
LARGE METAL OBJECTS.
For use on LTE Communicators
Connect extended antenna to the left
(SMA female) connector (the right LTE
antenna supplied with the communicator
can be left in place).
FEATURES
Compact design
UV stable polyurethane finish
Vibration stabilized foam filled
Excellent 700 MHZ LTE performance
VSWR <1.5:1 in 3G & 4G bands
Universal applications
Threads for Nut
Secure antenna
to L-Bracket
with supplied
nut
Nut
Adaptor
from MINI-
UHF
Female to
SMA Male
Type N
Female
White
Plastic
Washer
Type N
Male
MINI-UHF
Male
SMA
Female
