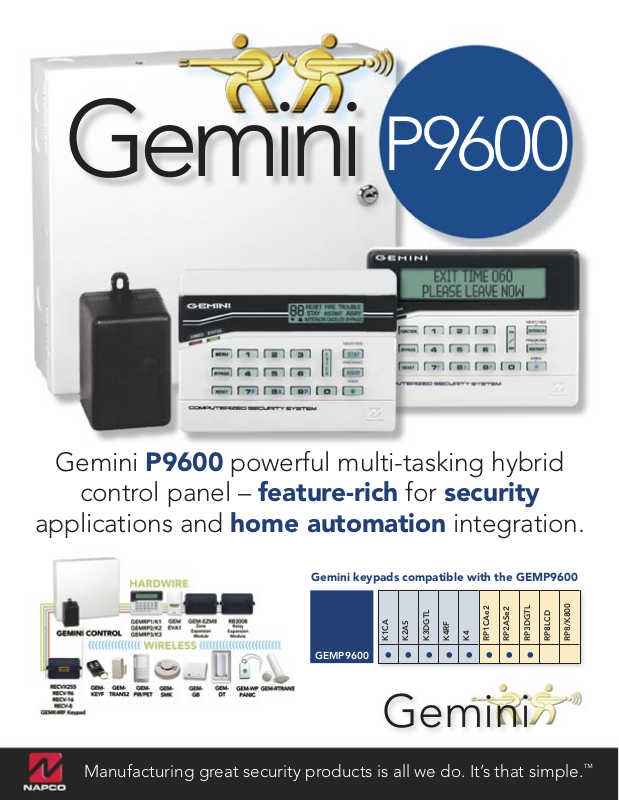

Napco P 9600 DATASHEET

Gemini

P9600

Gemini P9600 powerful multi-tasking hybrid

control panel – feature-rich for security

applications and home automation integration.

Gemini keypads compatible with the GEMP9600

GEMP9600

K1CA•K2AS•K3DGTL•K4RF•K4•RP1CAe2•RP2ASe2•RP3DGTL

K1CA•K2AS•K3DGTL•K4RF•K4•RP1CAe2•RP2ASe2•RP3DGTL

•

•

RP8LCD

RP8/K800

RP8LCD

RP8/K800

Gemini

Manufacturing great security products is all we do. It’s that simple.

™

Gemini™ P9600 zone hybrid control

Control panel features

• 8 End-of-line-resistor burglary zones programmable

for area, exit/entry delay, interior, follower, day
zone, chime, fire option, sensor watch, swinger
shutdown, zone anding and a variety of other
features

• Up to 96 zones with optional zone-expansion

modules and 4-zone keypads

• Including up to 8 2-wire fire zones

• Up to 96 individually coded users, each with a

programmable authority level

• Exclusive RS232 panel-port supports PC home

automation/ networking integration for 9600 baud
comprehensive communications

• 3 On-board relay outputs; expandable to 96

• Three keypad panics: fire, police & auxiliary

• Up to 8 independent area partitions

• Up to 8 separate access stations by up to 96 users

• Up to 64 separately-addressable X-10 devices with

the GEM-X10 kit

• English-language prompts & system status

messages from choice of keypad models

• User-customized zone descriptions,

reprogrammable as required

• Supports 2-wire and 4-wire smoke detectors

• Reports alarms, restores and troubles by zone

• 255 Event schedule

• 800 Event log

• Overview mode permits monitoring and control of

total system from one keypad

• Supports up to 4 RF receivers

• Guard-tour programmable for start time, tour

length, and check points (tour stations)

• 2 Programmable entry delay times

• 2 Interior-bypass groups

• Dynamic battery test interrupts charging and places

battery under load every four hours

• Chime by zone; programmable duration

• Non-volatile RAM retains memory during power

losses

• Quickloader™ programmable

• Auto-download log

• Exclusive V.A.L.I.D.™ feature (verifying automatic

line integrity diagnostic) reduces false alarms due
to changes in line resistance

Communicator Features

• Compatible with all major receiver formats,

including BFSK, 4/2, modem 2, SIA, 4/3/1, 4 + 2
express and point ID

• Rotary dial and touchtone™ with rotary backup

• 3 20-Digit telephone numbers

• Backup reporting; double reporting; split reporting

• 96 User codes with opening/closing reporting by

user

• AC failure reporting with programmable report

delay

• Supervised telephone line cut with programmable

delay

• Pager capability

• SIA CP01 compliant versions available

Specifications

• Operating temperature: 0-49ºC (32-120ºF)

• Input power: 16.5Vac via class 2 plug-in 40VA

transformer, supplied

• Loop voltage: 10-13VAC

• Loop current:2.5mA with 2.2ohm end-of-line

resistor (model EOL2.2K); 5mA for 2-wire smoke­detector zones

• Loop resistance: 300W max.; 50W for 2-wire smoke

detector zones

• Relay outputs (burglary; reset; aux): wet, 12Vdc,

1.2A max.; Dry (cut related jumper for dry
contacts), SPDT contacts 24Vdc, 2A, 0:6 PF

• Auxiliary power output: 12Vdc regulated

• Remote power output: 12Vdc regulated (for

keypads)

• 750 mA combined standby current (remote power

+ aux. power + reset relay power)

• Standby time: residential fire/burglary &

commercial burglary, 4 hours minimum

• EZM module: GEM-EZM8: input, 50mA (including

PGM output) PGM output: 5mA, 12V special
application

• Keypad current: GEM-RP1CAE2: 100mA; 35mA if

back lighting is disabled (cut W1, W2 & W3) PGM
output: 5mA, 12V special

Application

Maximum number of keypads: 15 maximum wiring
length for each run (#22AWG): 1000’ divided by total
number of keypads & EZMs on run
Keypad dimensions: 4 3/8” x 5 7/8” x 1 1/6”
(HWD); 11.1cm x 14.9cm x 2.7cm (HWD)

Optional accessories and peripherals

GEM-EZM8: 8-zone expansion zone module
GEM-EVA: electronic voice annunciator – unique

consumer aid “talks” users through system operation

VERI-PHONE: two-way voice/listen-in module
WIZARDII/IIE: talking alarm/appliance remote

controller works through any touch-tone phone

GEM-RECV8: wireless receiver, 8 points
GEM-RECV16: wireless receiver, 16 points
GEM-RECV96: wireless receiver, 96 points

GEM-RTRANS: Recessed wireless window/door

transmitter, 1-point

GEM-TRANS2: window/door transmitter, 2-point
GEM-KEYF: keyfob transmitter
GEM-SMK: wireless smoke detector
GEM-PIR: wireless PIR, 50x50’
GEM-DT: wireless adaptive® dual technology sensor,

40x40’

GEM-GB: wireless glass break detector
GEM-WP PANIC: waterproof panic button/pendant

Home/facilities automation:

GEM-Automation: alarm-to-PC interface for 100% 2­Way intercommunications with a growing number of
leading PC automation software packages.
GEM-Developer System Development professional’s
protocol for custom programming & seamless
integration with Gemini RS232 port communications.

GEM-RS232 permanent RS232 panel-port interface
GEM-X10 interface module provides programming

& scheduler-integrated x-10 device support.

RM3008: relay module
M278: line-reversal module
PS3002: power-supply module, 13.2Vdc, 1.9A
EOL130: 2-wire fire zone resistor, 130ohm, 3ohm
EOL2.2K: end-of-line resistor assembly, 2.2ohm for

fire circuit
FT2200: end-of-line relay/resistor supervisory
module

RB1000: relay board
RBAT4: rechargeable battery, 12Vdc, 4AH
RBATH1: dual battery harness
RPB-3: universal junction box
TRF11: transformer, 16Vac/40VA, class 2
Wl1: wire assembly with lug connector
PCD3000: downloading software for IBM PC

compatible
PCI2000/3000: quickloader up/downloading
software
PC-MINI: notebook computer interface

StarLink SL-1: Backup wireless receiver for all
alarm panel brands (sms network)

ORDERING INFORMATION

• GEM-P9600: Hybrid control panel &

transformer

• GEM-P9600M: Mercantile version of above

Compatible with RP- and K-Series Gemini keypads

GEMK1CA

GEMK2AS

GEMK3DGTL

4 built in zones

RP1CAe2

GEMRP2ASe2

GEMRP3DGTL

4 built in zones

333 Bayview Avenue, Amityville, New York 11701 USA • 1-800-645-9445 • www.napcosecurity.com

Gemini, Wizard, Adaptive StarLink and EVA are trademarks of Napco.

NAPCO Product Availability Hotline

– C

all our Stock-Out Hotline at 1-800-645-9330 Press 1 then 2.

A400B 1/03

Or email us at [e-mail]

GEMK4/K4RF

Built in RF Receiver
