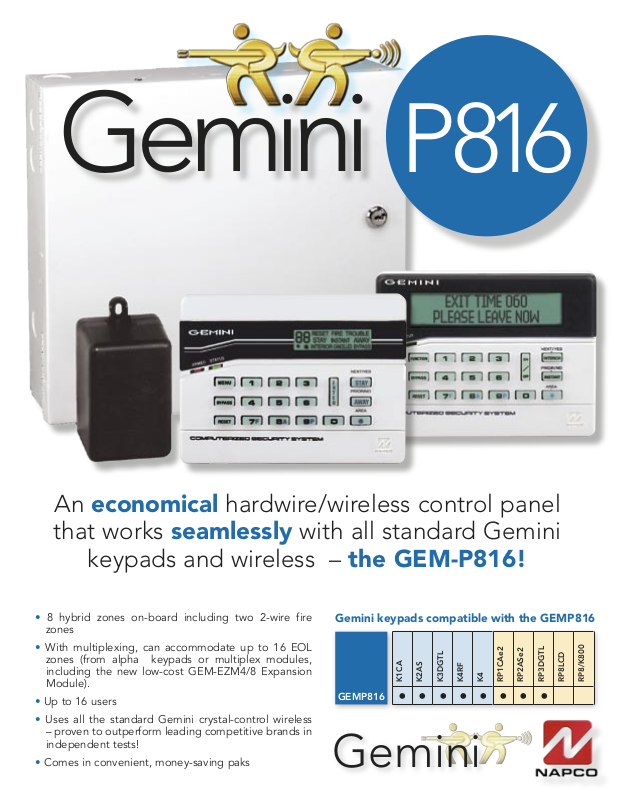

Napco P816 DATASHEET

Gemini

P816

An economical hardwire/wireless control panel

that works seamlessly with all standard Gemini

keypads and wireless – the GEM-P816!

• 8 hybrid zones on-board including two 2-wire fire

zones

• With multiplexing, can accommodate up to 16 EOL

zones (from alpha keypads or multiplex modules,
including the new low-cost GEM-EZM4/8 Expansion
Module).

• Up to 16 users

• Uses all the standard Gemini crystal-control wireless

– proven to outperform leading competitive brands in
independent tests!

• Comes in convenient, money-saving paks

Gemini keypads compatible with the GEMP816

K1CA•K2AS•K3DGTL•K4RF•K4•RP1CAe2•RP2ASe2•RP3DGTL

GEMP816

•

Gemini

RP8LCD

RP8/K800

Gemini™ P816 zone hybrid control

FEATURING:

• 8 Hybrid zones on-board (hardwire or wireless), including 2 2-

wire fire zones

• Up to 16 EOL zones with multiplexing (zones from RP1CAe2

alpha keypads or multiplex expansion modules)

• Uses low-cost GEM-EZM4/8 or 8-zone GEM-EZM8 expansion

modules

• Up to 16 users

• Supports choice of up to 7 Gemini keypads

• 256 event logging

• 3 outputs

• Interior bypass group

• Choice of Gemini™ RF receivers

• Event log with open/close suppression

• Supports GEM-EVA Voice Annunciator and Wizard™IIe Talking

Phone-In Interface Module

• Includes transformer

SPECIFICATIONS:

• Input Power 16.5VAC via Class 2 Plug-in 20 VA transformer

• Aux & remote power 12Vdc regulated

• 500 mA standby current rating with 20VA transformer, supplied

• 650 mA standby current rating with optional 40VA trans.

650mA

• Alarm current 2A

• Loop Resist. 300 ohm max.; 50 ohm max for 2-wire fire

• Burg. Voltage Output -1; programmable negative outputs -2

• Operating temp. 0-49 degrees C.

• Communication formats: Ademco Point ID, Silent Knight

Fast/Slow, Radionics Fast/Slow, Univeral High Speed, SIA and
Pager.

ORDERING INFORMATION:

• GEM-P816 GEM-P816 control and transformer.

• 816PERFPAK GEM-P816 control, GEM-RP3DGTL digital keypad and

transformer.

• 816PERFPAKPLUS GEM-P816 Control, GEM-RP3DGTL digital key-

pad, interior siren, jack & cord, 4Ah 12V Battery, PIR1710 70’ x 60’
PIR detector and transformer.

• 816PREMPAK GEM-P816 control, GEMRP1CAE2 alpha keypad & transf.

• K816PREMPAK GEM-P816 control, GEMK1CA alpha keypad and

transformer

• K816PERFPAK GEM-P816 control, GEM-K3DGTL digital keypad and

transformer.

• K816RFPK ALPHA KEYPAD/RECEIVER PAK GEM-P816 control,

GEM-K4RF fixed alpha keypad/receiver and transformer.

Compatible with these standard Gemini keypads

GEM-K1CA

4 built-in zones

GEM-K2AS

Seamlessly supports all
Gemini wireless transmitters
using standard receivers

GEM-K3DGTL

GEM-RP1CAe2
4 built-in zones

GEM-K4/K4RF

with RF receiver

GEM-RP2ASe2

GEM-RP3DGTL

333 Bayview Avenue, Amityville, New York 11701 USA • 1-800-645-9445• www.napcosecurity.com

Gemini, Wizard and EVA are trademarks of Napco. A409A
