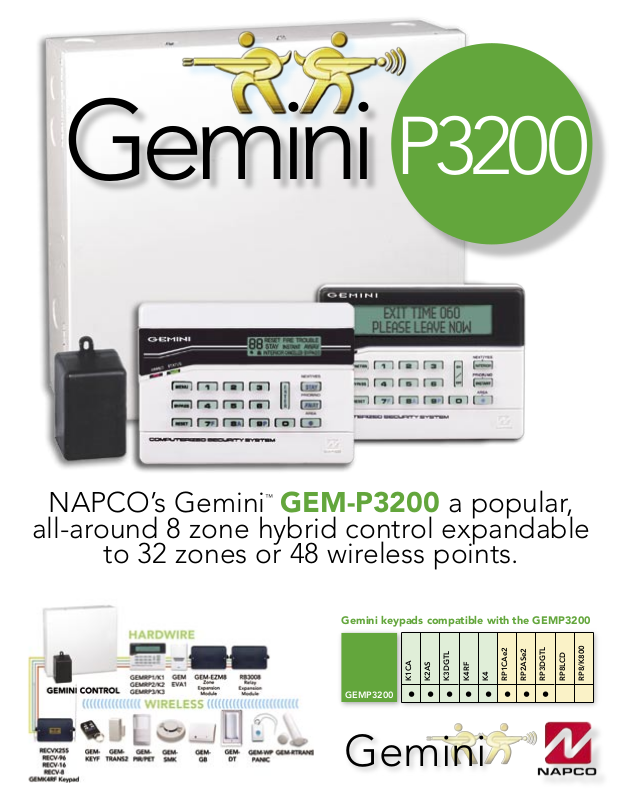

NAPCO’s Gemini
all-around 8 zone hybrid control expandable
to 32 zones or 48 wireless points.
GEM-P3200 a popular,
Gemini keypads compatible with the GEMP3200
K1CA•K2AS•K3DGTL•K4RF•K4•RP1CAe2•RP2ASe2•RP3DGTL
GEMP3200
•
RP8LCD
Gemini
RP8/K800
Gemini™ P3200 zone hybrid control
Control panel features
• 8 End-of-line-resistor burglary zones programmable for area, exit/entry delay, interior, follower,
day zone, chime, fire options, sensor watch,
swinger shutdown, zone anding and a variety of
other features
• Up to 48 points of up to 32 zones with optional
zone-expansion modules 4- zone keypad EZMs
(built-in)
• Including up to 2 2-wire fire zones
• Up to 32 individually coded users, each with a
programmable authority level
• 3 on-board relay outputs, expandable 24 external
relay outputs
• 3 keypad panics: fire, police & auxiliary
• 2 independent area partitions
• Up to 7 separate access stations by up to 32 users
• Up to 24 separately-addressable X-10 devices with
the GEM-X10KIT
• English-language prompts & system status messages from choice of keypad (8) models
• User-customized zone descriptions, reprogrammable as required
• 2-wire and 4-wire smoke detectors
• Reports alarms, restores and troubles by zone
• 255 event schedule
• 800 event log
• Overview mode permits monitoring and control of
total system from one keypad
• 2 programmable entry delay times
• Interior-bypass group
• Dynamic battery test interrupts charging and
places battery under load every four hours
• Chime by zone; programmable duration
• Non-volatile RAM retains memory during power
losses
• Quickloader™ programmable
• Auto-Download Log
• Exclusive V.A.L.I.D.™ feature (Verifying Automatic
Line Integrity Diagnostic) reduces false alarms due
to changes in line resistance
Communicator features
• Compatible with all major receiver formats,
including BFSK, 4/2, Modem 2, SIA, 4/3/1, 4 + 2
Express and Point ID
• Rotary dial and TouchTone™ with Rotary backup
• 3 20-digit telephone numbers
• Backup reporting, double reporting; split reporting
• 32 User codes with opening/closing reporting by
user
• AC failure reporting with programmable report
delay
• Supervised telephone line cut with programmable
delay
• Pager capability
Specifications
• Operating temperature: 0-49ºC (32-120ºF)
•
Input power: 16.5Vac via Class 2 Plug-In
40VA transformer
•
Loop voltage: 10-13Vdc
•
Loop current:2.5mA with 2.2ohm end-of-line
resistor (model EOL2.2K); 5mA for 2-wire
smoke-detector zones
•
Loop resistance: 300W max.; 50W for 2-wire
smoke detector zones
•
Relay outputs (burglary; reset; aux): wet,
12Vdc, 1.2A max.; dry (cut related jumper for
dry contacts), SPDT contacts 24Vdc, 2A, 0:
6 PF
•
Auxiliary power output: 12Vdc regulated
•
Remote power output: 12Vdc regulated (for
keypads)
•
650 mA combined standby current (remote
power + aux. power + reset relay power)
•
Standby time: residential fire/burglary & commercial burglary, 4 hours min.
•
EZM module: GEM-EZM8: Input, 50mA
(including PGM output. PGM output: 5mA,
12V special application
•
Keypad current: GEM-RP1CAe2: 100mA;
35mA if backlighting is disabled (cut W1,
W2 & W3) PGM Output: 5mA, 12V special
application
•
Maximum number of keypads: 7. Maximum
wiring length for each run (#22AWG): 1000’
divided by total number of keypads & EZMs
on run
•
Designer keypad dimensions: 4 3/8” x 5 7/8”
x 1 1/6” (HWD); 11.1cm x 14.9cm x 2.7cm
(HWD)
Optional Accessories And Peripherals
•
GEM-EVA: electronic voice annunciator unique consumer aid.”Talks” users through
system operation
•
VERI-PHONE: Two-way voice/listen-in module
•
WIZARD IIe: Talking alarm/appliance remote
controller works through any touch-tone
phone
•
GEM-RECV8: Wireless receiver, 8 points
•
GEM-RECV16: Wireless receiver, 16 points
•
GEM-RECV96: Wireless receiver, 96 points
•
GEM-TRANS2: Window/door transmitter,
2-point
•
GEM-KEYF: Keyfob transmitter
•
GEM-SMK: Wireless smoke detector
•
GEM-PIR: Wireless PIR, 50x50’
• GEM-PIRPET
• GEM-RTRANS
•
GEM-DT: Wireless Adaptive® Dual
Technology sensor, 40x40’
•
GEM-GB: Wireless glass break detector
•
GEM-WP PANIC: Waterproof panic button/
pendant
•
RM3008: Relay module
•
M278: Line-reversal module
•
PS3002: Power-supply module, 13.2Vdc,
1.9A
•
EOL130: 2-wire fire zone resistor, 130ohm,
3ohm
•
EOL2.2K: End-of-line resistor assembly,
2.2ohm for fire circuit
•
FT2200: End-of-line relay/resistor supervisory
module
•
RB1000: Relay board
•
RBAT4: Rechargeable battery, 12Vdc, 4AH
•
RBATH1: Dual battery harness
•
RPB-3: Universal junction box
•
TRF11: Transformer, 16Vac/40VA, Class 2
•
WL1: Wire assembly with lug connector
•
PCD3000: Downloading software for IBM PCcompatible
•
PC12000/3000: Software with interface for
IBM-compatible computer
•
PCI-MINI: Notebook computer interface
•
OI163: Instruction manual
•
WI818: Programming manual
ORDERING INFORMATION
• GEM-P3200: Hybrid control panel &
transformer
• GEM-P3200M: Mercantile version of above
•
GEM-EZM8: 8-zone expansion zone module
Compatible with these standard Gemini keypads
GEMK1CA
GEMK2AS
GEMK3DGTL
4 built in zones
RP1CAe2
GEMRP2ASe2
GEMRP3DGTL
4 built in zones
333 Bayview Avenue, Amityville, New York 11701 USA • 1-800-645-9445• www.napcosecurity.com
Gemini, Wizard, Adaptive and EVA are trademarks of Napco.
A401B
